Smart Wireless Fire Alarm Panel with Real Time Alerts
- Category: >>>
- Supplier: Shenzhen Asenware Test & Control Technology Co. Ltd.
Share on (1601211665989):
Product Overview
Description
Product Description
Specification

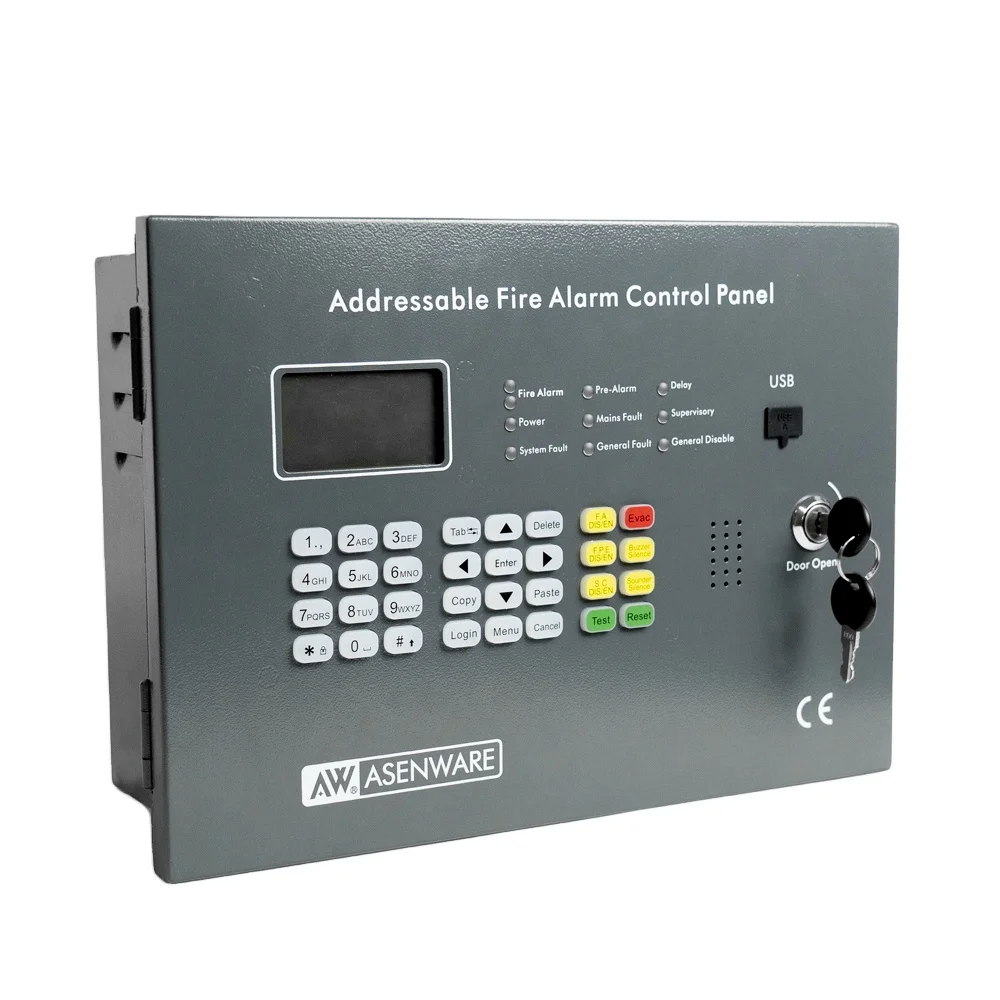

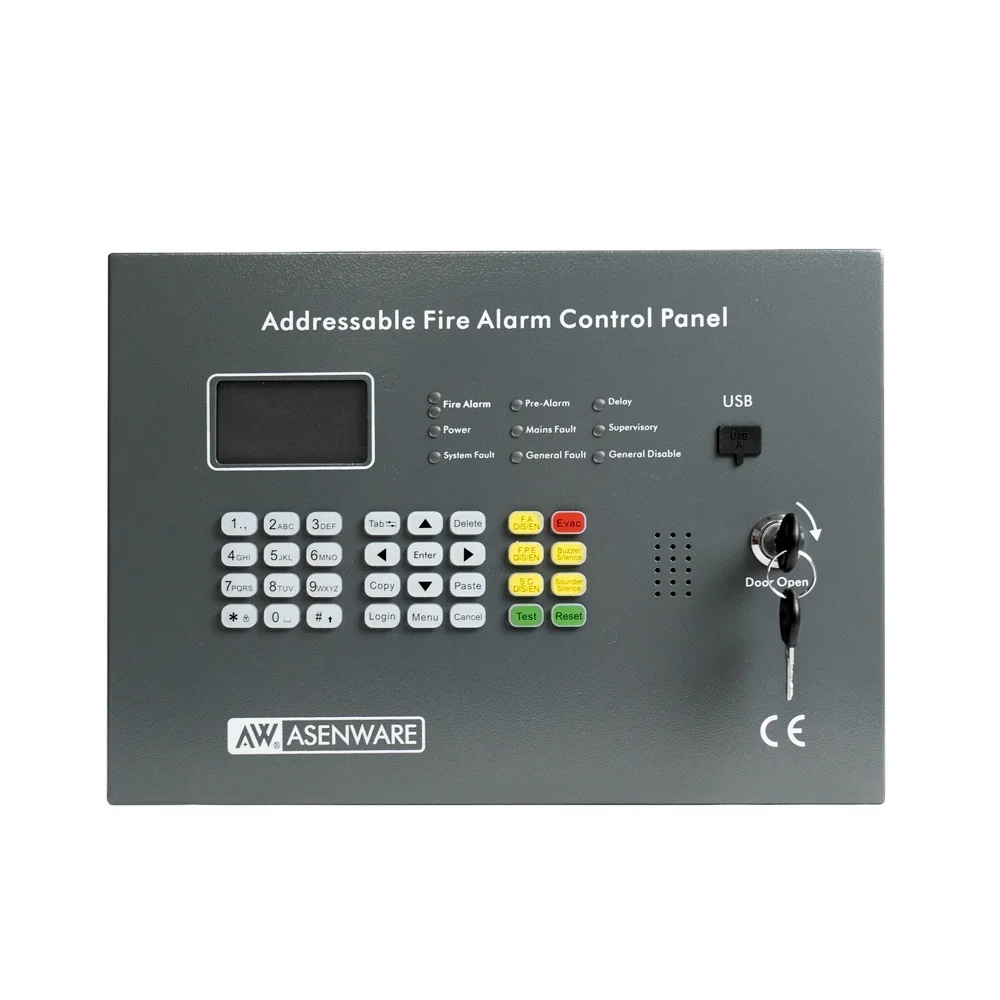

AW-FP128 series fire alarm control panel is intelligent panel which are carefully designed to make it suitable for most of
applications. It can be configured with other panels or control systems. Its user-friendly functionality makes it suitable to
program and configure the devices. 3.2-inch LCD display gives the information for fire alarm, trouble, supervisory and other
related information all the time.
applications. It can be configured with other panels or control systems. Its user-friendly functionality makes it suitable to
program and configure the devices. 3.2-inch LCD display gives the information for fire alarm, trouble, supervisory and other
related information all the time.
Features
1- 3.2-inch LCD display screen operation.
2- All addressable devices use a two-wire system.
3- A single loop can connect 128 wired addressable devices.
4- It can connect 80 Wireless circuits and 20 devices in one wireless circuit
5- Up to 999 records of history can be saved (save when power off).
6- There are two access levels.
7- It has a rechargeable backup battery.
8- Can simply judge the running status of the machine based on the LED lights.
9- Automatic search device
10- Each of the eight hosts can be controlled remotely
11- USB software upper computer to check and set the device status and fire history records
12- Meets all requirements of latest EN 54-2&EN54-4
Place of Origin | China |
Brand Name | ASENWARE |
Model Number | AW-FP128 |
Main power | 110 VAC or 220VAC (±20%) 50Hz/60Hz |
Batteries | 2*12V, 2.3A Lead acid batteries |
Battery low-voltage protection | 21V |
Number of points on each loop | 128 pcs |
Temperature range | -10 to 55°C (14~134°F) |
Relative humidity | 5 to 95%, non-condensing |
Fuse for AC power | 1A/250V glass tube fuse, slow blow,5*20mm |
Fuse for DC power | 10A/250V ceramics tube fuse slowblow5*20mm |
Terminal blocks rating | All terminals rated for 12 to 18 AWG (0.75 to 2.5mm2) |
