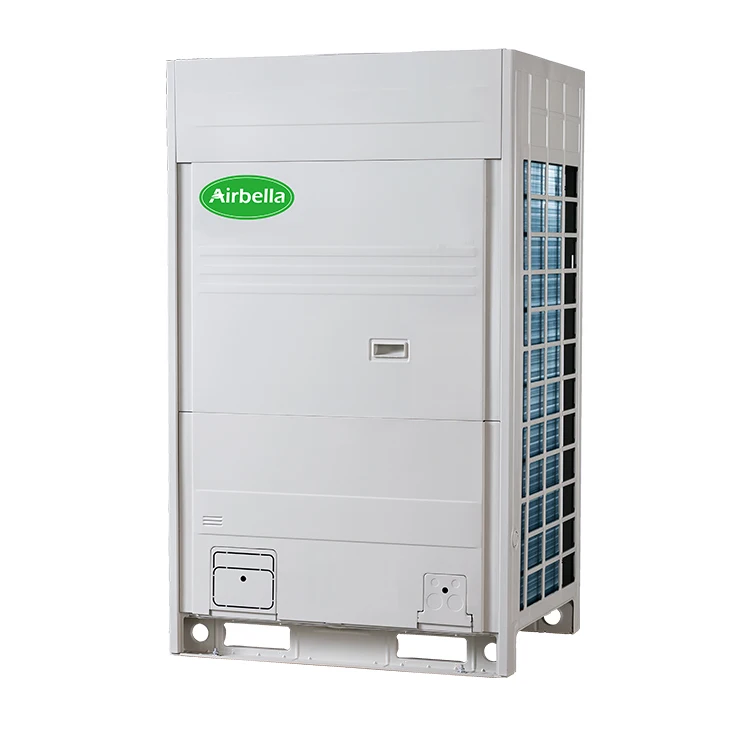

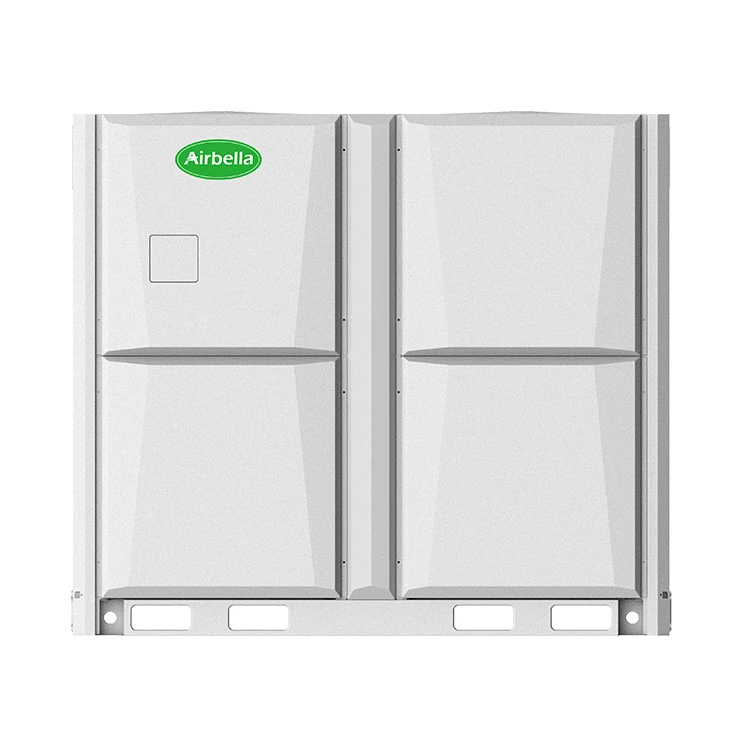

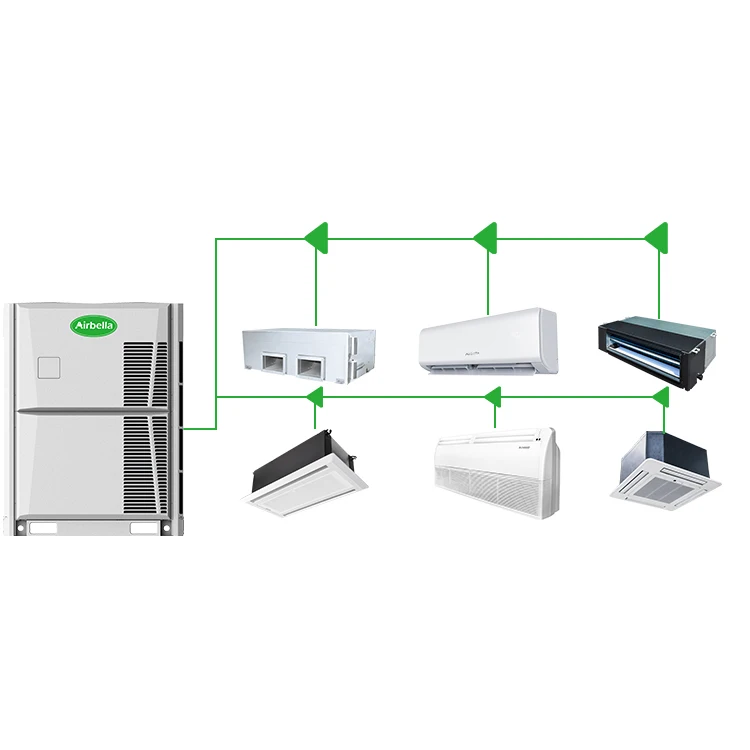

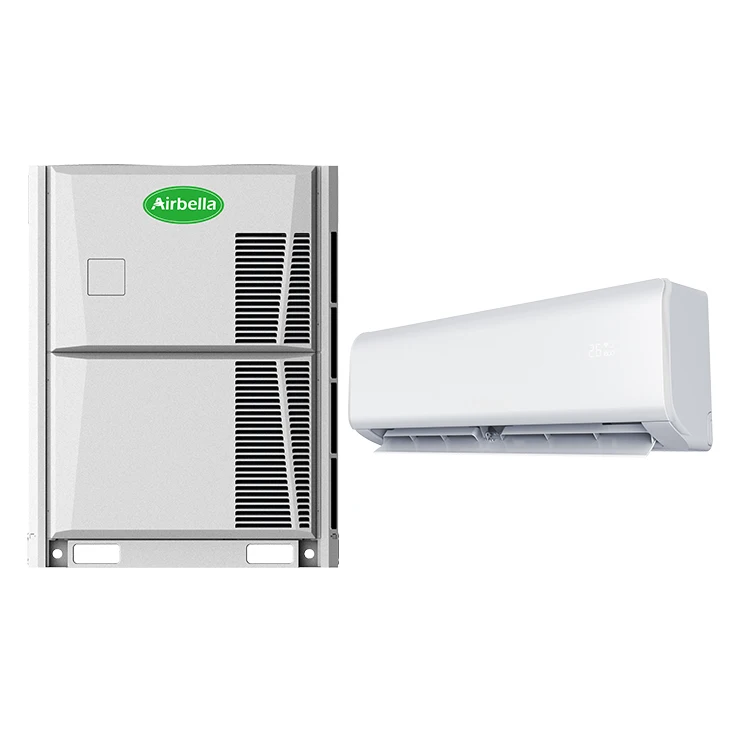

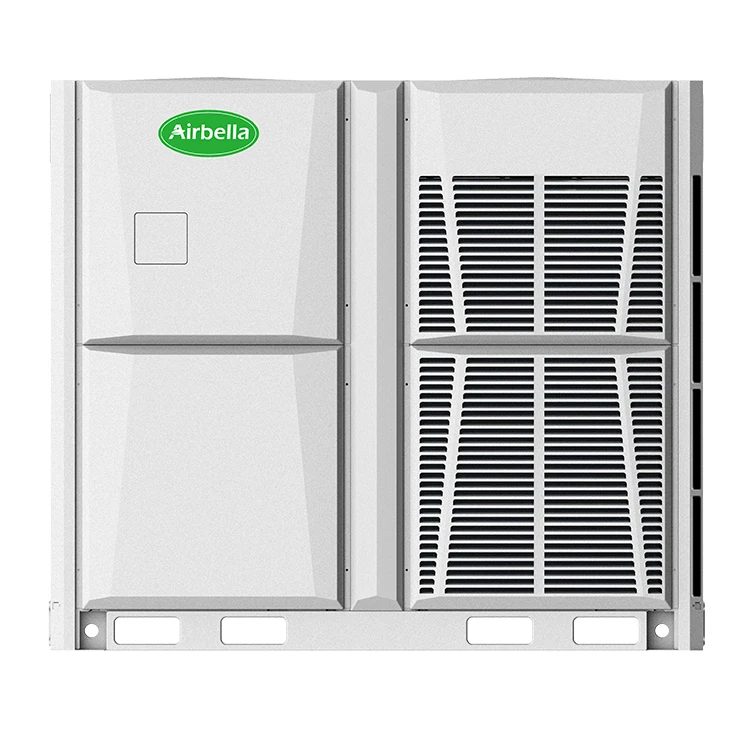

60HZ R410a DC 50Kw Indoor Only Cooling Vrv Vrf Units Conditioning Central System
- Category: >>>
- Supplier: Foshan Peile Engineering Technology Co. Ltd
Share on (1601211805906):
Product Overview
Description
Model | AMVT-D400CA3Y-G | AMVT-D450CA3Y-G | AMVT-D500CA3Y-G | |||
821042300025 | 821042300026 | 821042300027 | ||||
Cooling | Capacity | HP | 14HP | 16HP | 18HP | |
kW | 40 | 45 | 50 | |||
Btu/h | 136500 | 153500 | 170600 | |||
RT | 11.4 | 12.8 | 14.2 | |||
Power input | kW | 10.47 | 12.13 | 14.62 | ||
EER | W/W | 3.82 | 3.71 | 3.42 | ||
Max. input consumption | kW | 16.90 | 17.30 | 24.00 | ||
Rated / Max. current | A | 50.0 | 53.0 | 70.0 | ||
Capacity adjustment range | 50%~130% | 50%~130% | 50%~130% | |||
DC Inverter compressor | Quantity | 1 | 1 | 2 | ||
Type | DC /Twin-rotary | DC /Twin-rotary | DC /Twin-rotary | |||
Brand | Mitsubishi | Mitsubishi | Mitsubishi | |||
frequency range | rps | 10~120 | 10~120 | 10~120 | ||
Compressor oil | Model | FV50S | FV50S | FV50S | ||
Original oil volume | ml | 2300 | 2300 | 2300 | ||
Additional oil volume | ml | 4500 | 4500 | 4000 | ||
Fan motor | Type | DC | DC | DC | ||
Model | DR-310-920-8 （ZDK920-8ZFm） | DR-310-920-8 （ZDK920-8ZFm） | DR-310-920-8 （ZDK920-8ZFm） | |||
Quantity | 1 | 1 | 1 | |||
Insulation class | B | B | B | |||
Protection class | IP44 | IP44 | IP44 | |||
Power output | W | 920 | 920 | 920 | ||
Fan blade | Material | ASG20 | ASG20 | ASG20 | ||
Type | axial-flow | axial-flow | axial-flow | |||
Drive | Direct-driven | Direct-driven | Direct-driven | |||
Fan Quantity | 1 | 1 | 1 | |||
Air flow | m3/h | 13500 | 13500 | 13500 | ||
Outdoor coil | Fin type | hydrophilic | hydrophilic | hydrophilic | ||
Tube outside diameter | mm | 7.94 | 7.94 | 7.94 | ||
Tube type | Inner-grooved | Inner-grooved | Inner-grooved | |||
Refrigerant | Type | R410a | R410a | R410a | ||
Volume | kg | 12 | 12 | 13 | ||
Dimension (D*H*W) | Net | mm | 840*1740*1340 | 840*1740*1340 | 840*1740*1340 | |
Packing | mm | 910*1900*1410 | 910*1900*1410 | 910*1900*1410 | ||
Weight | Net | kg | 260 | 260 | 288 | |
Gross | kg | 278 | 278 | 306 | ||
Outdoor sound level | dB(A) | 60 | 61 | 62 | ||
Maximum operating pressure | MPa | 4.5 | 4.5 | 4.5 | ||
Pipe size | Liquid pipe | mm | Ø15.9 | Ø15.9 | Ø15.9 | |
Gas pipe | mm | Ø31.8 | Ø31.8 | Ø31.8 | ||

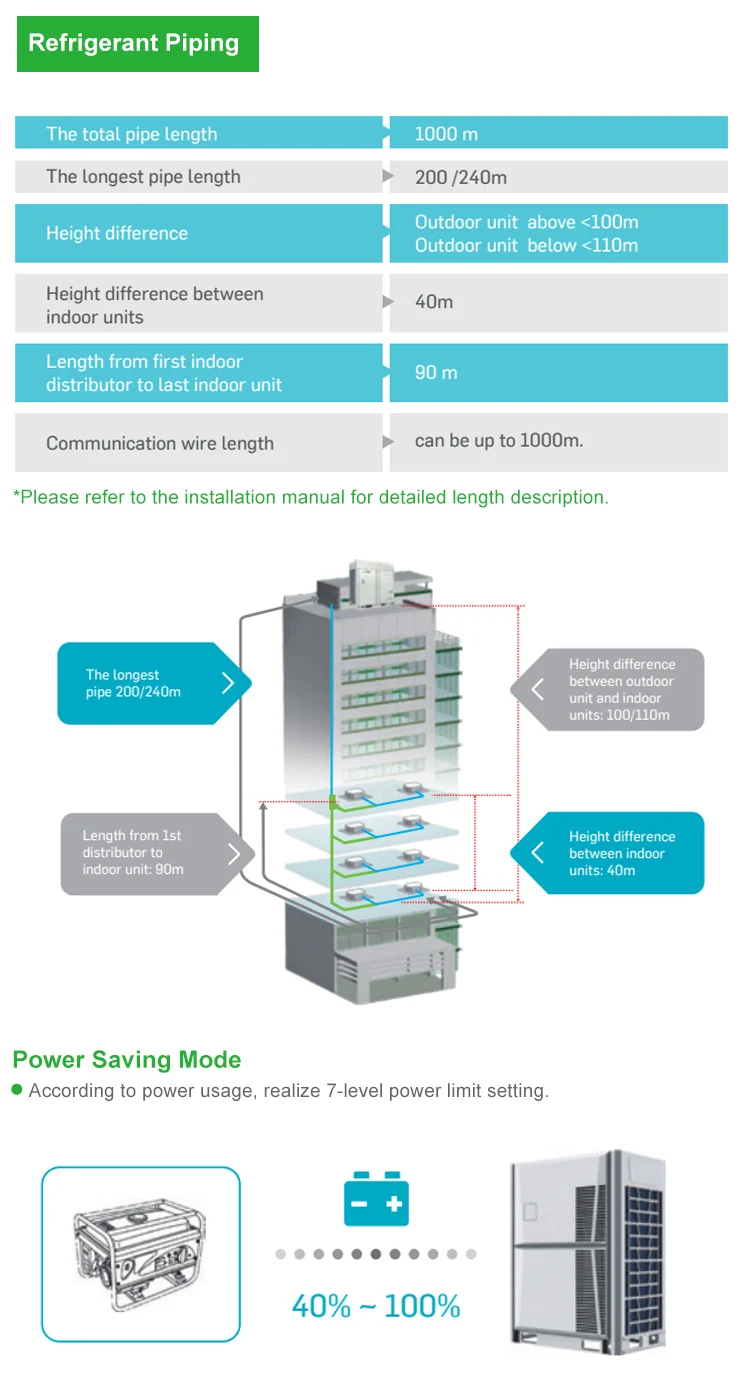

Max. pipe length | Total pipe length | m | 1000 | 1000 | 1000 | |
From OU to farthest IU(Actual length) | m | 190 | 190 | 190 | ||
From OU to farthest IU(Equivalent length) | m | 220 | 220 | 220 | ||
From 1st indoor distributor to farthest IU | m | 40 | 40 | 40 | ||
Max. vertical length | Between OU & IU(OU above IU) | m | 90 | 90 | 90 | |
Between OU & IU(OU below IU) | m | 110 | 110 | 110 | ||
Between IUs | m | 30 | 30 | 30 | ||
Between OUs | m | 0 | 0 | 0 | ||
Connection wire | Power wire size | mm2 | 10*4+10(L≤20m) | 10*4+10(L≤20m) | 10*4+10(L≤20m) | |
16*4+10(20m | 16*4+10(20m | 16*4+10(20m | ||||
16.0✖3 | 16.0✖3 | 16.0✖3 | ||||
Signal wire type | 2-core shielded cable | 2-core shielded cable | 2-core shielded cable | |||
Signal wire size | mm2 | 0.75 | 0.75 | 0.75 | ||

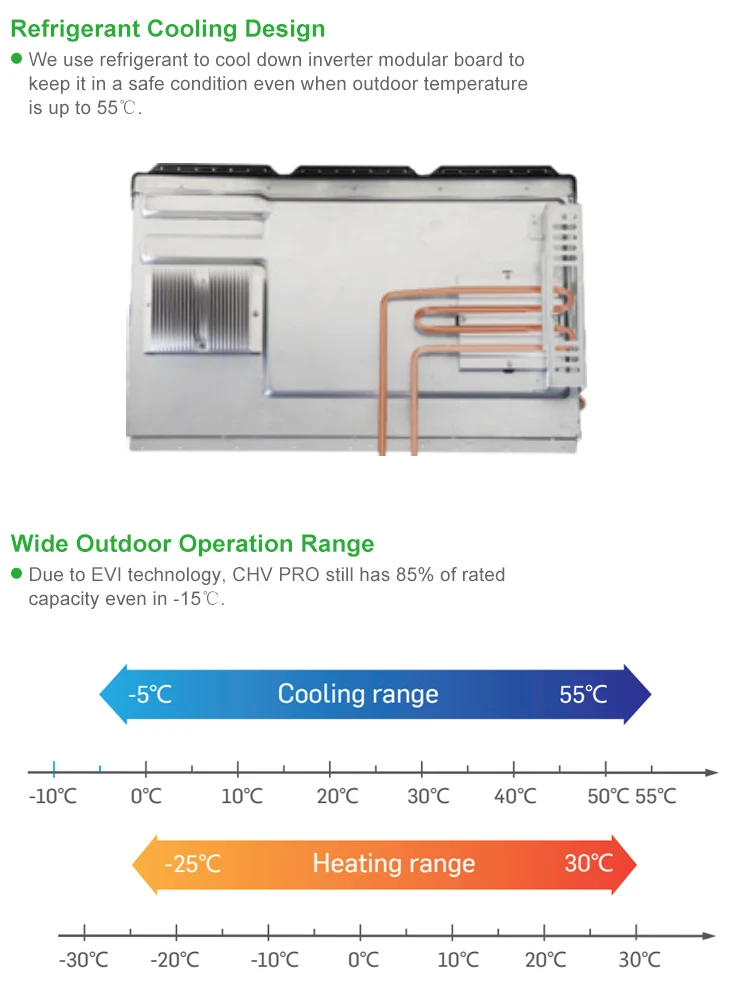

Cooling | Outdoor side | °C | -5~55 | -5~55 | -5~55 | |
Indoor side | °C | 16~32 | 16~32 | 16~32 | ||
