Product Overview
Description
Product Description
Introduction
Plastic cabinet board extrusion line is used to produce plastic board with width from 300 to 600mm, which are effective、safe
Mold：Stone plastic cabinet board mold and micro foam cabinet board mold
Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity
Diameter: We have very successful production experience.Auxiliary machine closely meet customer specifications. Nice apperance, automatic control and stable running performance.
Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity
Diameter: We have very successful production experience.Auxiliary machine closely meet customer specifications. Nice apperance, automatic control and stable running performance.
Type | PVC Cabinet Board Extrusion Line | ||||||||
Model | YF300 | YF600 | YF800 | YF1000 | YF1250 | ||||
Max width of product(mm) | 300 | 600 | 800 | 1000 | 1250 | ||||
Extruder model | SJZ65/132 | SJZ65/132 SJZ80/156 | SJZ80/156 | SJZ92/188 | SJZ92/188 | ||||
Extruder power (kw) | 37 | 55 | 55 | 132 | 132 | ||||
Max extrusion capacity(kg/h) | 200 | 280 | 280 | 600 | 600 | ||||
Cooling water consumption(m³/h) | 8 | 10 | 12 | 15 | 18 | ||||
Compressed air consumption(m³/min) | 0.6 | 0.6 | 0.8 | 1 | 1.2 | ||||

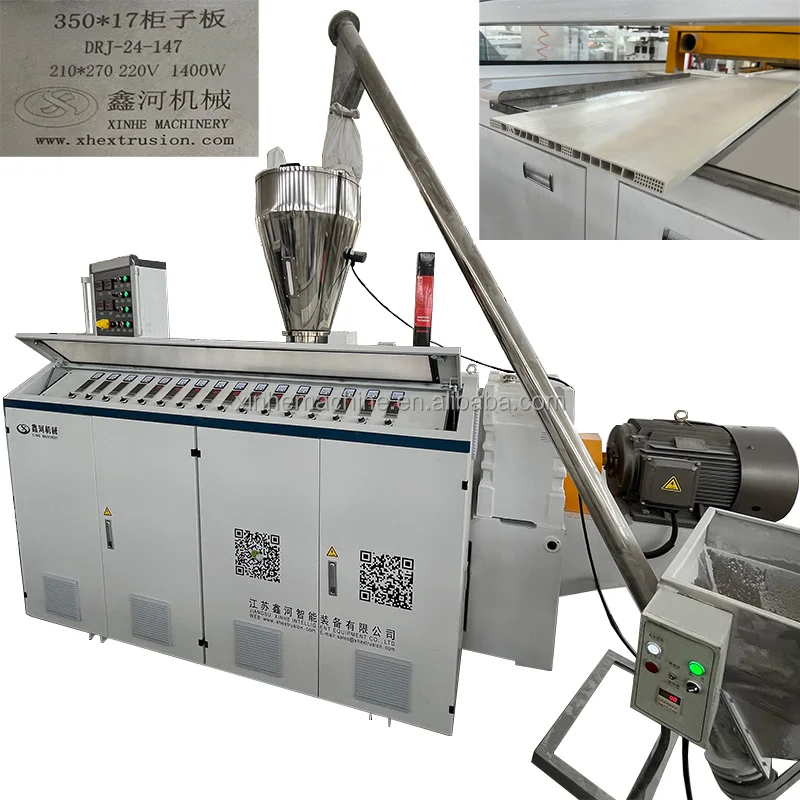

Extruder
Screw and Barrel: Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer
Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.
Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.

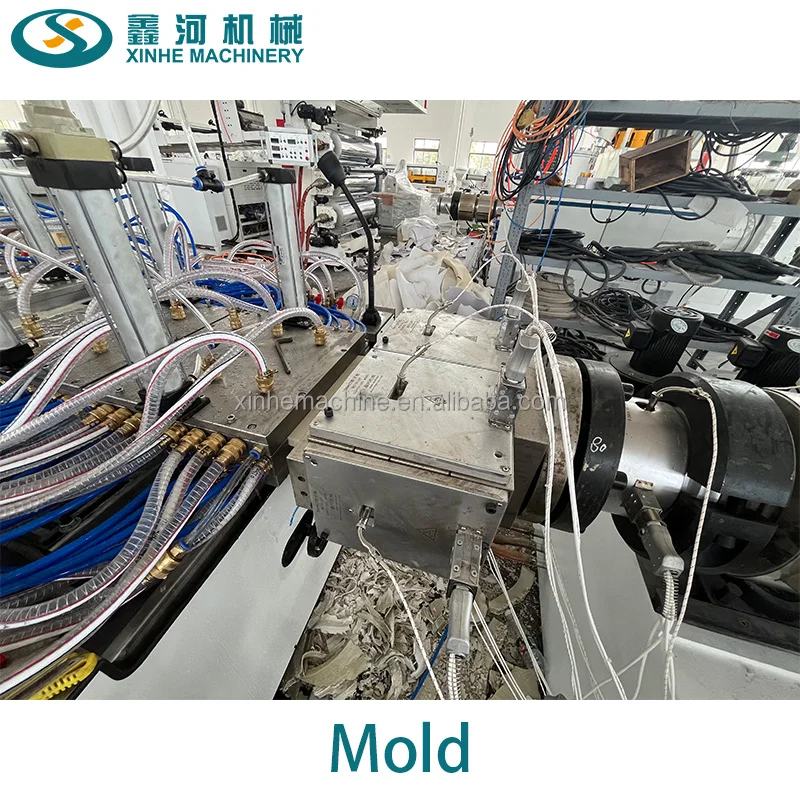

Mould
Extrusion mold material: 40Cr. Calibration mold material: Wearable tin bronze ZQSn5-2-5.

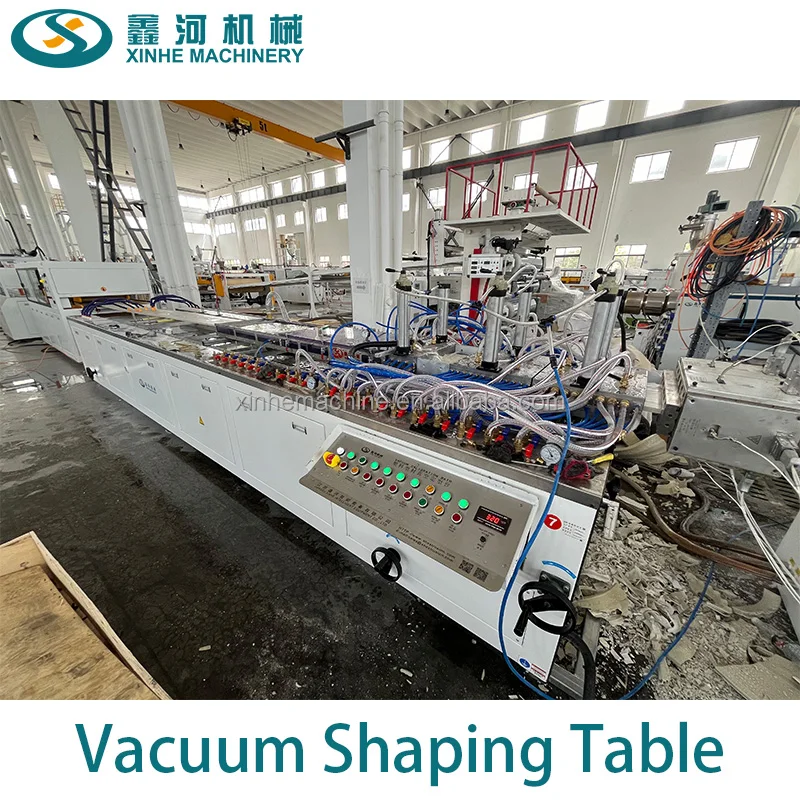

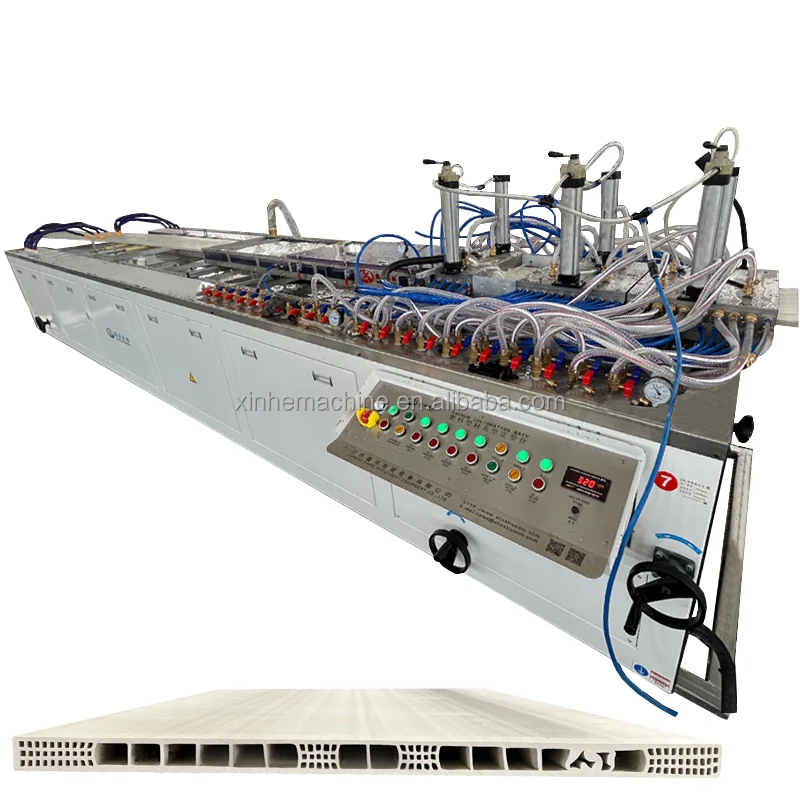

Vacuum Platform
Length: 4-6Meters, Table fore-and-aft Move: Adopt 1.5KW Gearbox Speed Reducer Motor Adjusting Distance equal to 800mm. Table Adjusting: Up-and-down adjusting adopt worm reducer & screw adjusting

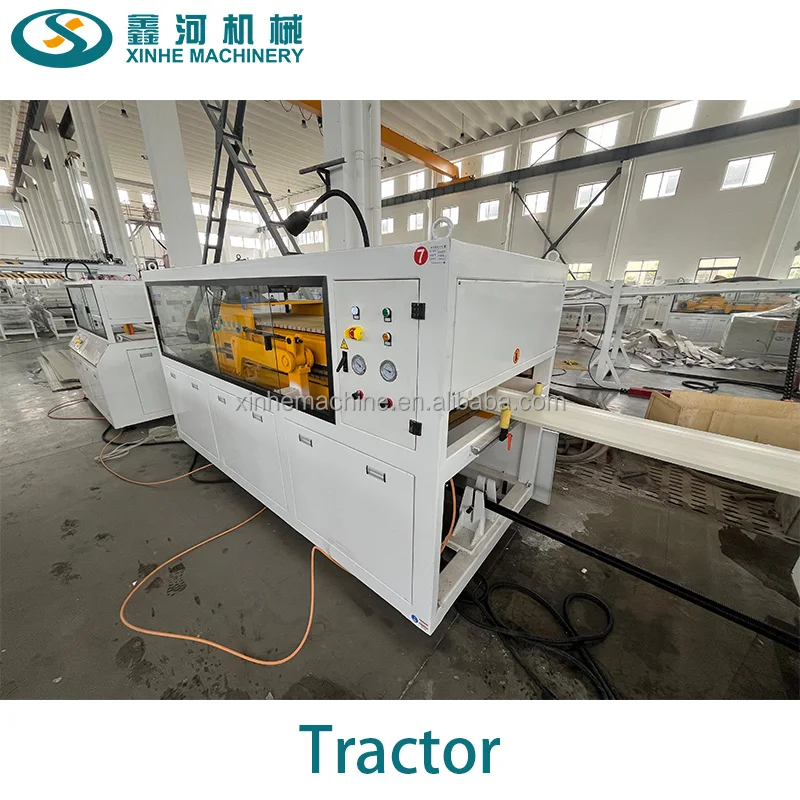

Haul-off
Haul-off Bracket Length: 1200mm, Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas
cylinder, Cut Motor Power: 0.75KW*1PC.
cylinder, Cut Motor Power: 0.75KW*1PC.

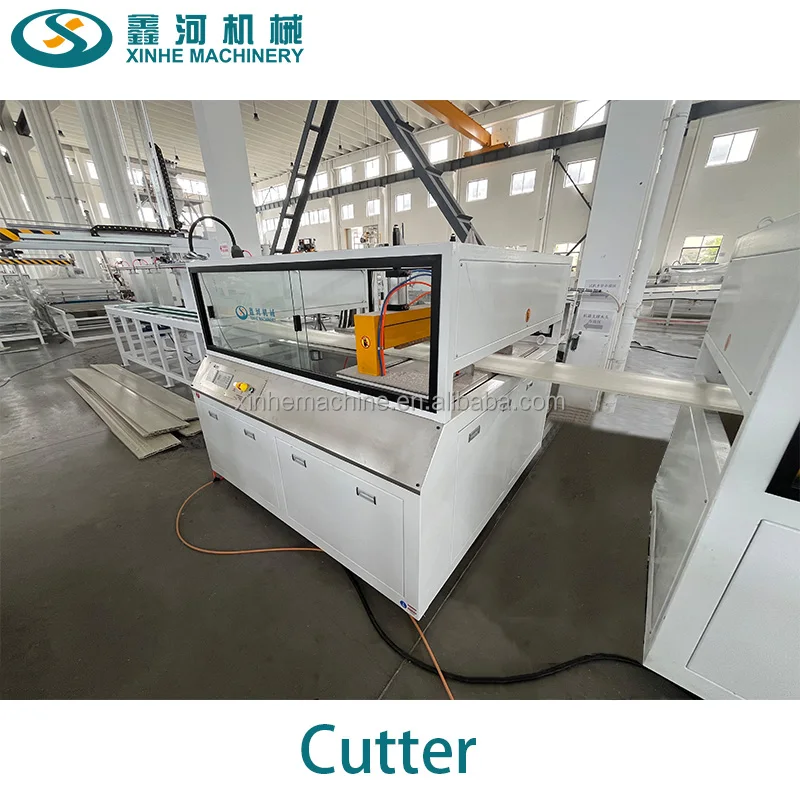

Cutter
Cutting action controller : PLC
The impact method:pneumatic impact
Cutter structure:Saw type
Stacker
Stacker length 4m, 1.5mm stainless steel board,
Stacking by Gas cylinder, Adopt limited switch send out cutting signal.
Stacking by Gas cylinder, Adopt limited switch send out cutting signal.
Pre-sale
We provid presales service in various forms,for example,making investment budget,manufacturing planning,etc.So that customers make a reasonable plan with less cost.
Investment budgeting--We provide services of product profit analysis,recommendation of machine and auxiliary equipment and relevant budgeting,human resources allocation and budgeting.
Plant planning--We provide the mounting dimension of the equipment base,design of equipment layout,workshop ventilation,water transmission etc.
