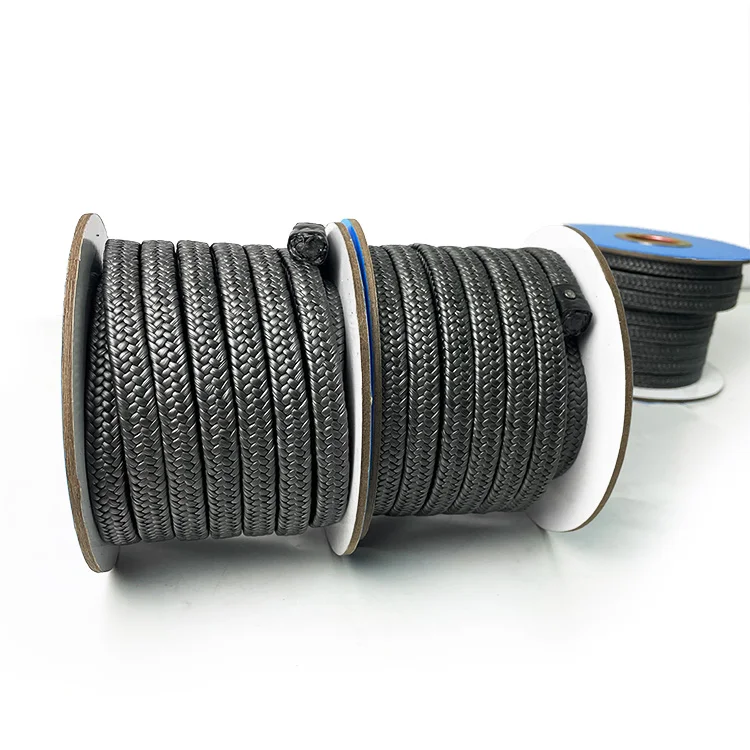

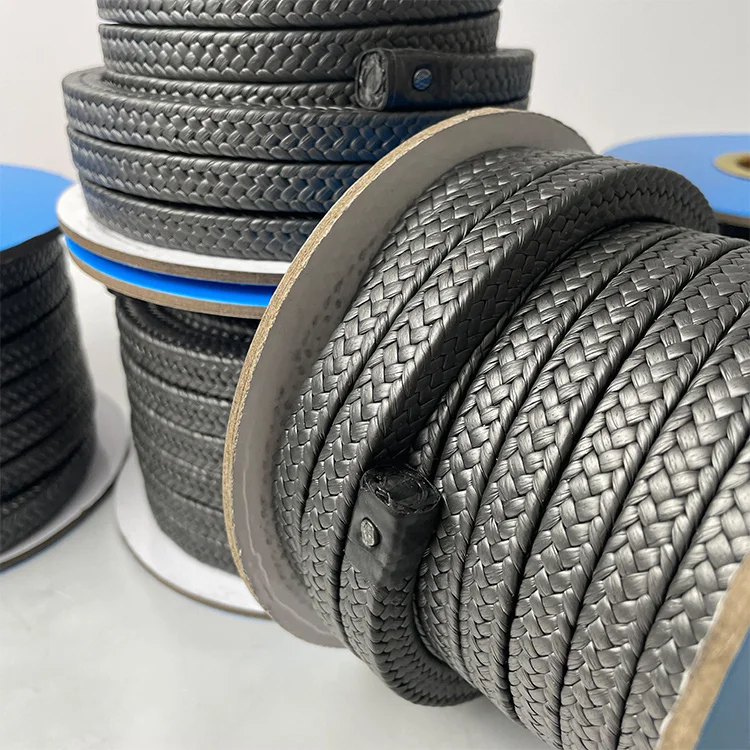

BLACK GRAPHITE PTFE GLAND PACKING FOR PUMP AND VALVE
- Category: >>>
- Supplier: Hengshui Hongwo Technology Co. Ltd.
Share on (1601212798047):
Product Overview
Description
Detailed Description

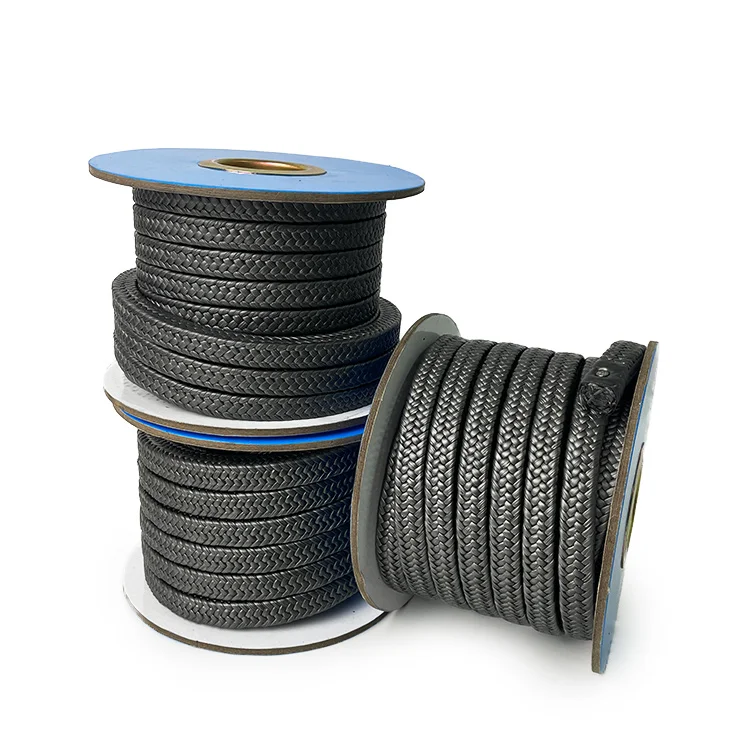

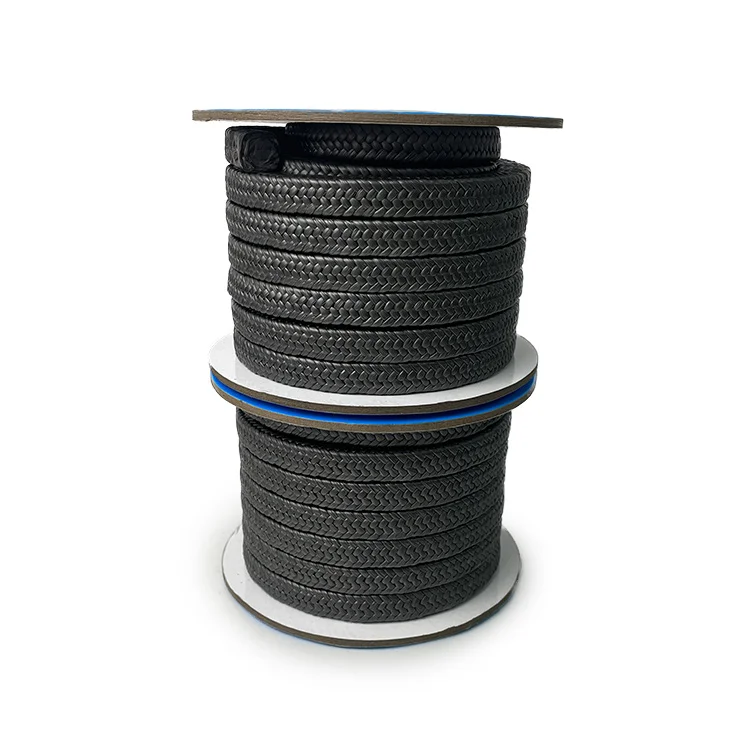

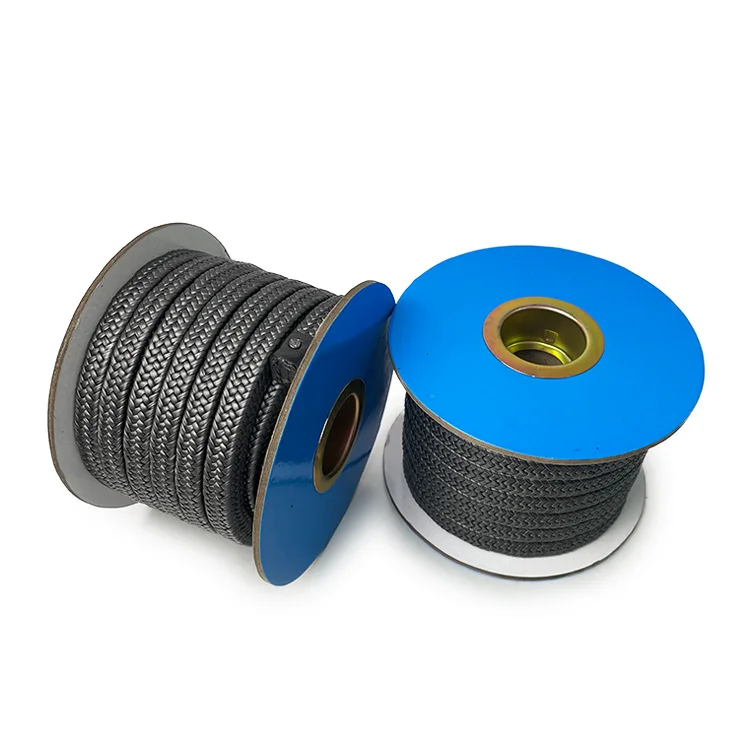

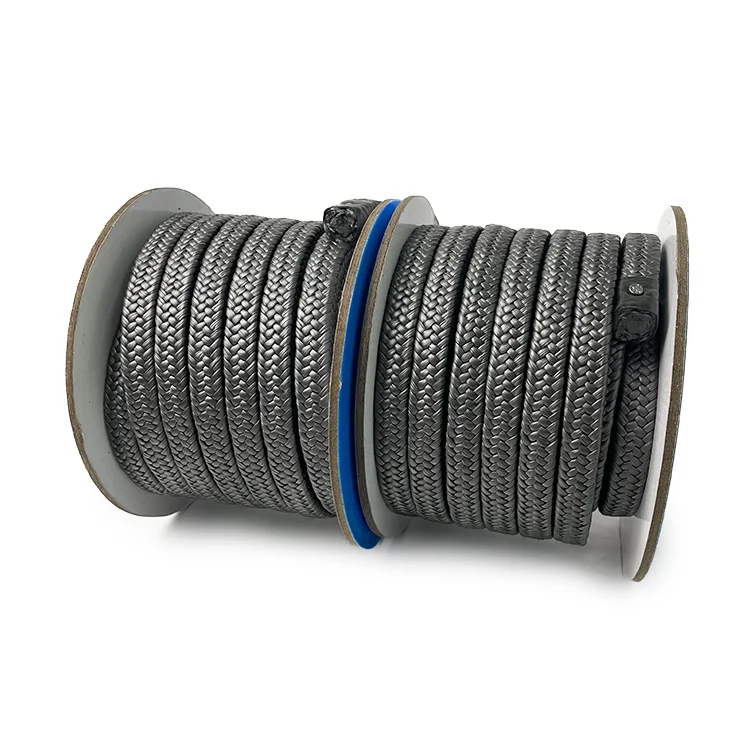

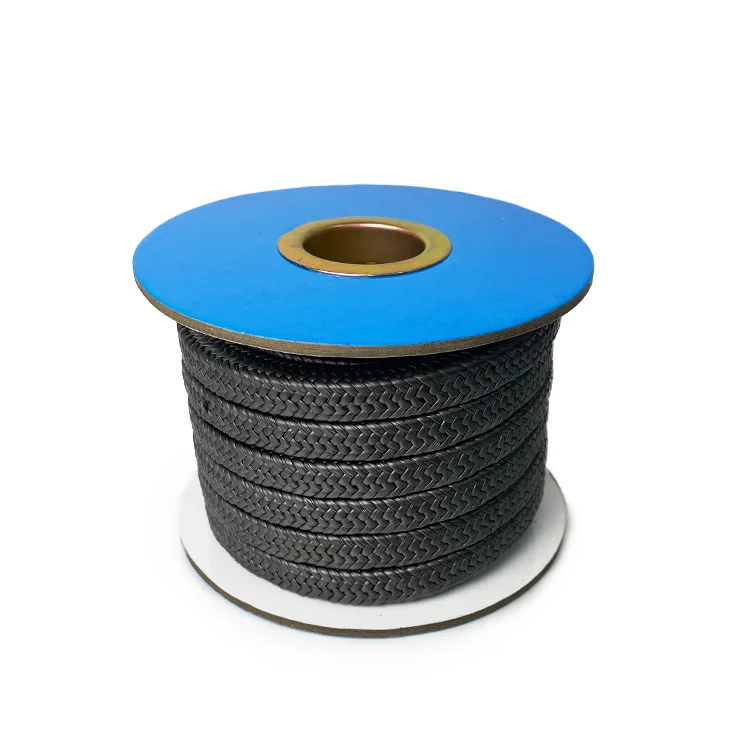

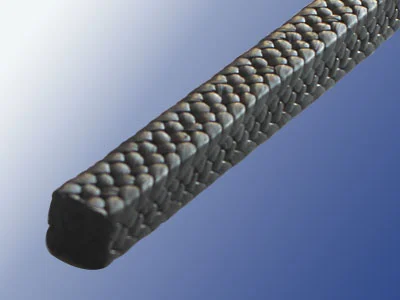

Graphite PTFE Gland Packing

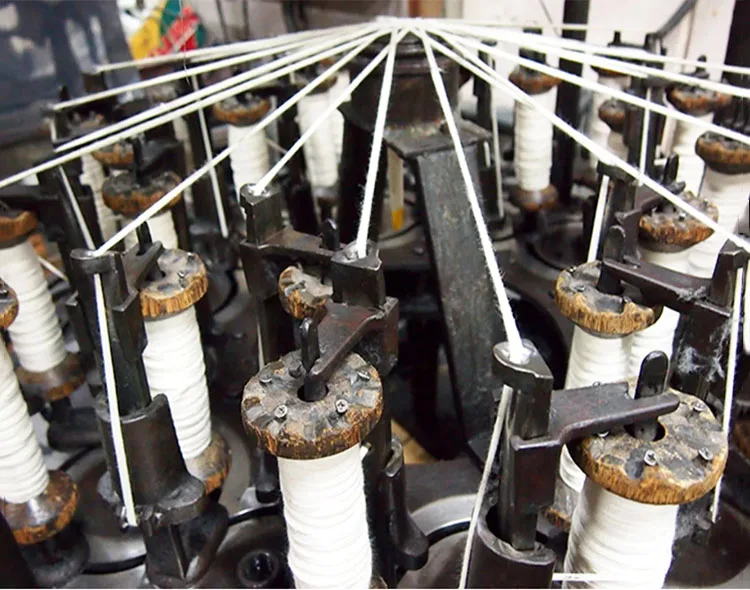

Introduction: PTFE braided (impregnated) packing is made of F4 raw material tape by warp braiding (impregnated), with good chemical stability, good self-lubricating performance, unchanged strength under high temperature and humid environment, easy to load and dismantle.
Size: From 6 x 6 mm to 50 x 50mm. Packaging: In coils of 5 to 10 kg, other weight on request.
Application: It can be used in
chemical, food, medicine, paper, chemical fiber, fine chemical and other fields where pollution is not allowed.
chemical, food, medicine, paper, chemical fiber, fine chemical and other fields where pollution is not allowed.
Style | 254A | 254B | |||
Pressure | Rotating | 20 bar | 15 bar | ||
Pressure | Reciprocating | 100 bar | 100 bar | ||
Speed | Static | 150 bar | 200 bar | ||
Shaft speed | 16 m/s | 12 m/s | |||
Density | 1.4~1.6g/cm3 | ||||
Temperature | －150~+280°C | ||||
PH range | 0~14 | ||||

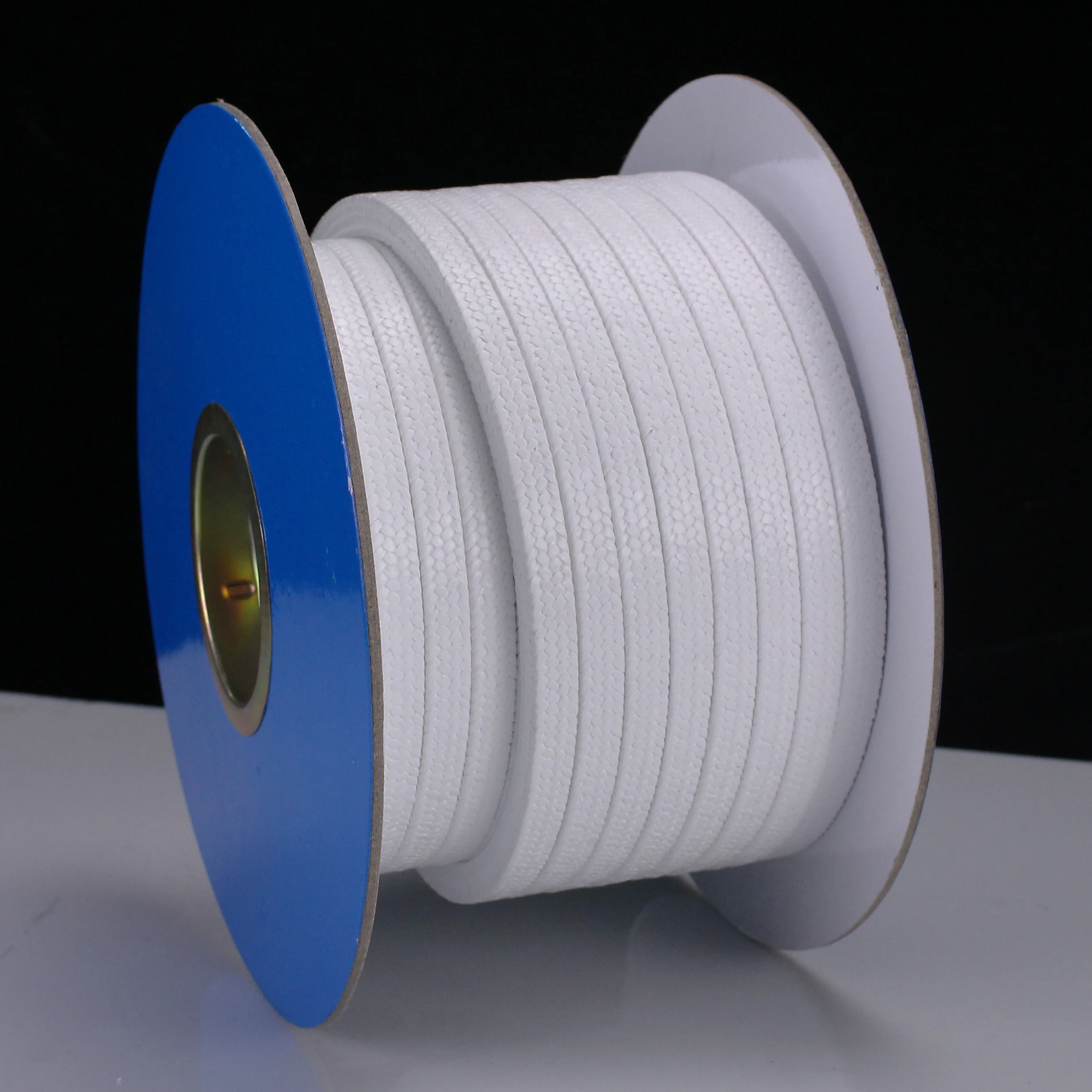

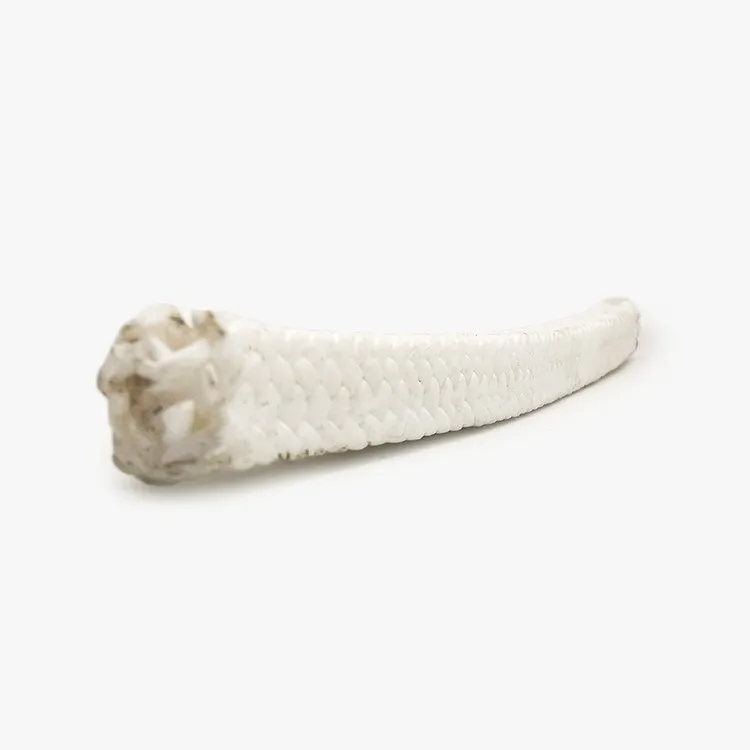

Pure PTFE Packing
Introduction: The PTFE packing is made of pure PTFE fiber, without PTFE emulsion and lubricating grease treatment. Because it is made of solid braid and has flexibility and adjustability, it can be well matched with the shaft and stuffing box, and has excellent corrosion resistance, good self-lubrication and anti-sticking.
Size: From 6 x 6 mm to 50 x 50mm.Packaging: In coils of 5 to 10 kg, other weight on request.
Application: It can be used in chemical, food, medicine, paper, chemical fiber, fine chemical and other fields where pollution is not allowed.
Recommend Products

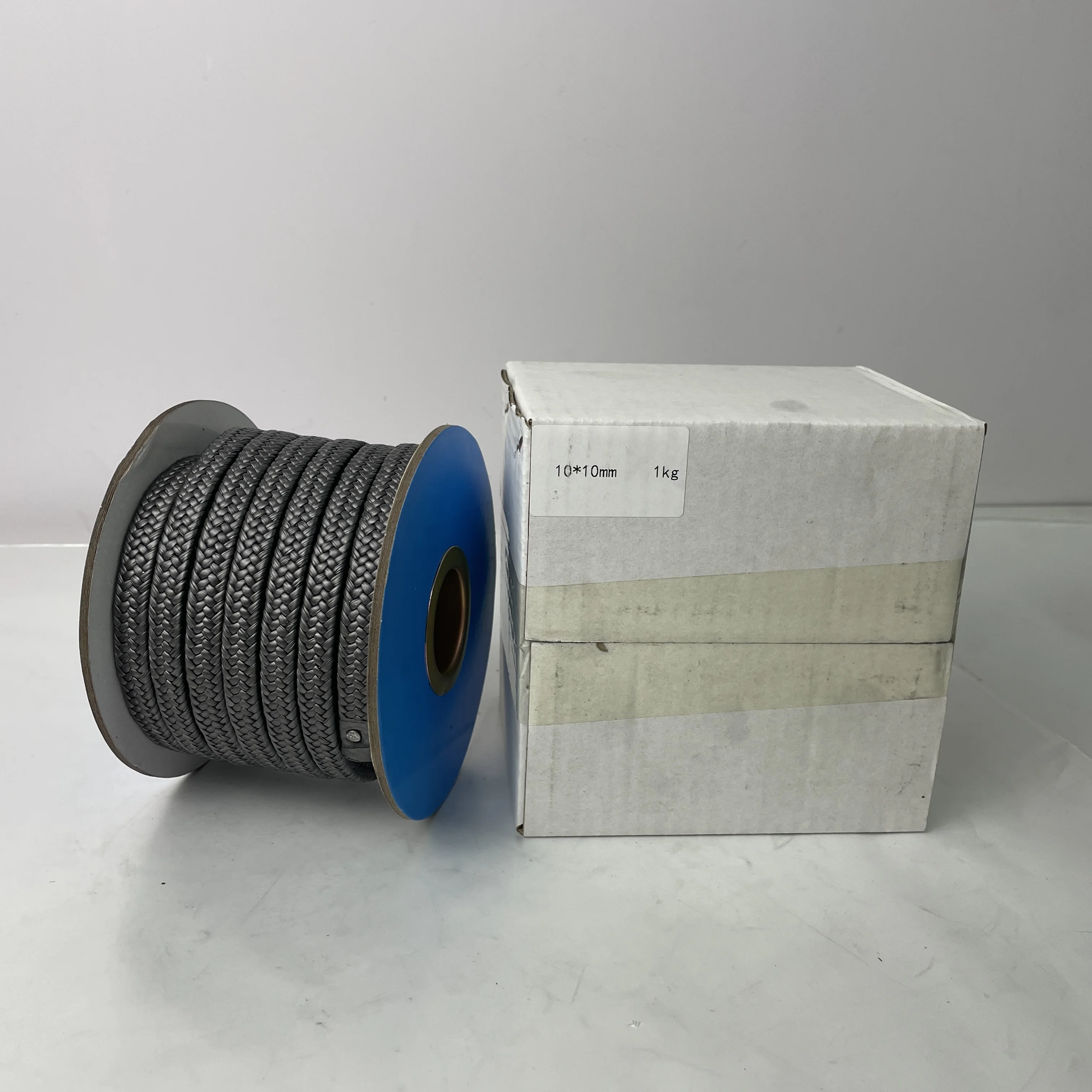

Packing & Shipping
10Kg/Roll, plastic film enveloping for each roll.
4 Roll/carton or wooden case, Fill the gap with bubble paper.
Ensure the safety of the long-distance transport.
Sample send by DHL, TNT or FedEx etc.
Order goods shipped by express, sea transport or as negotiation.
4 Roll/carton or wooden case, Fill the gap with bubble paper.
Ensure the safety of the long-distance transport.
Sample send by DHL, TNT or FedEx etc.
Order goods shipped by express, sea transport or as negotiation.
