Xingce 8 10 units cars car carrier trailer vehicle transport semi trailer Heavy duty car carrier transport truck semitrailer
- Category: >>>
- Supplier: Shandong Xingce Automobile Co. Ltd.
Share on (1601214288728):
Product Overview
Description
Products Description

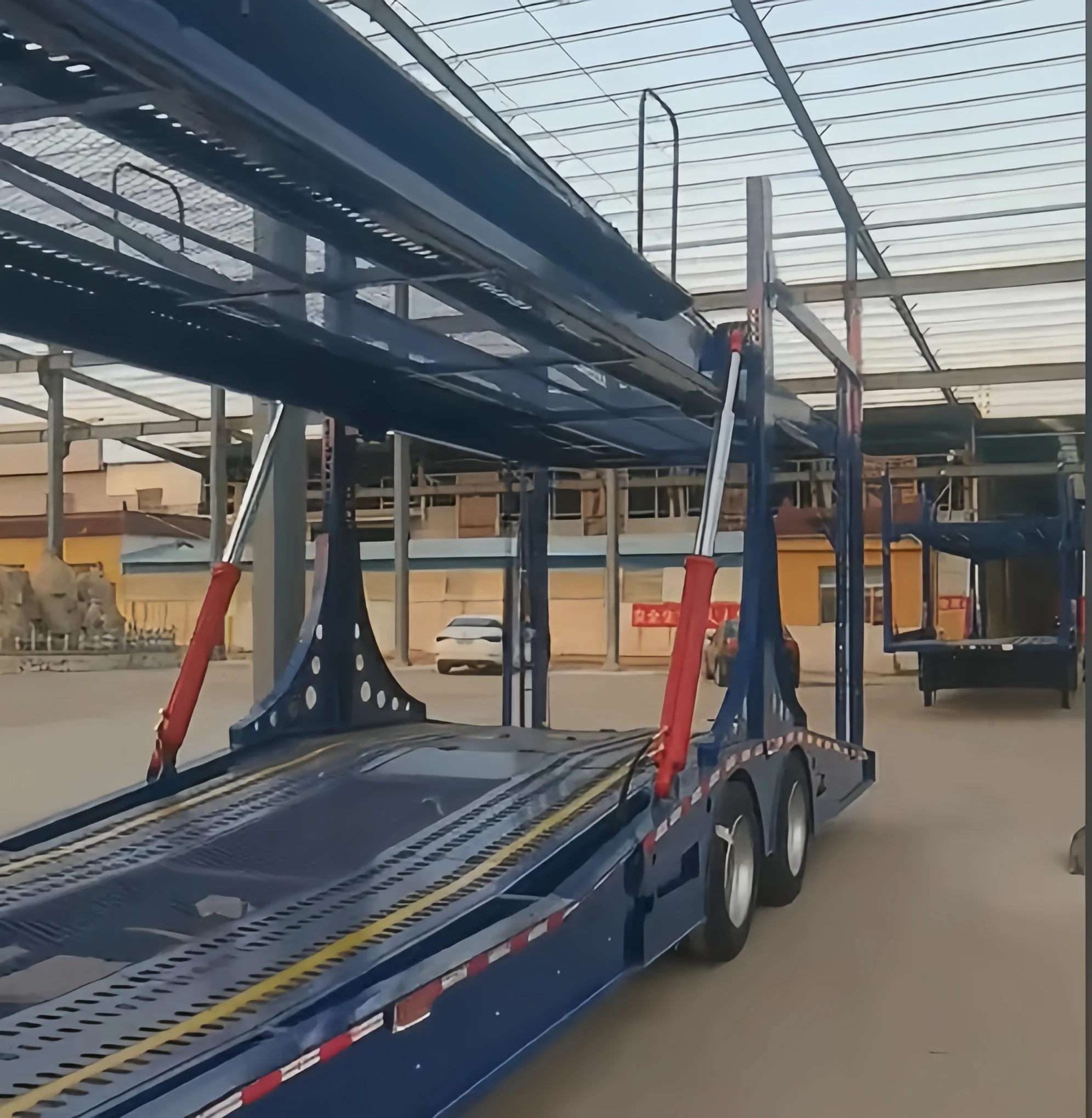

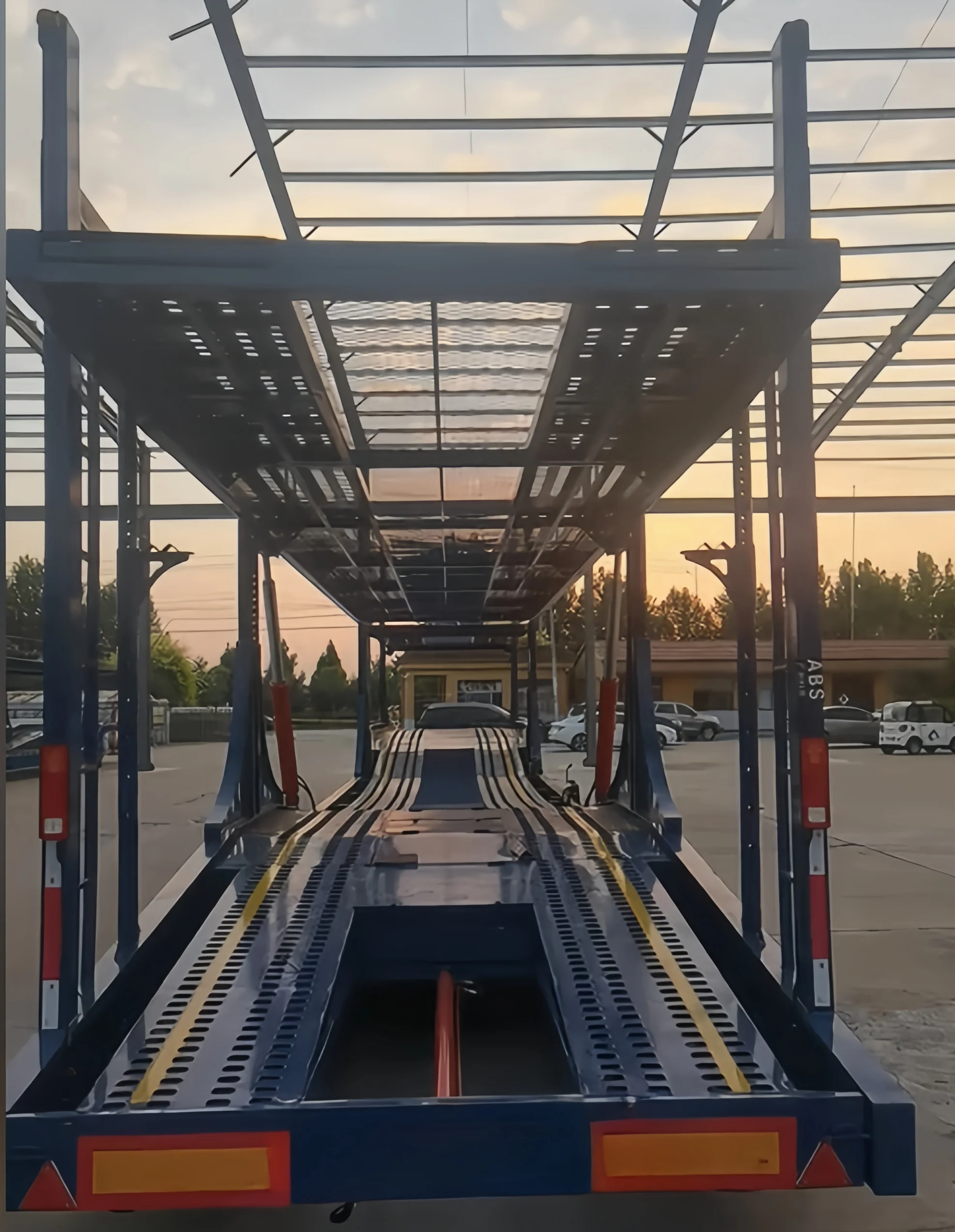

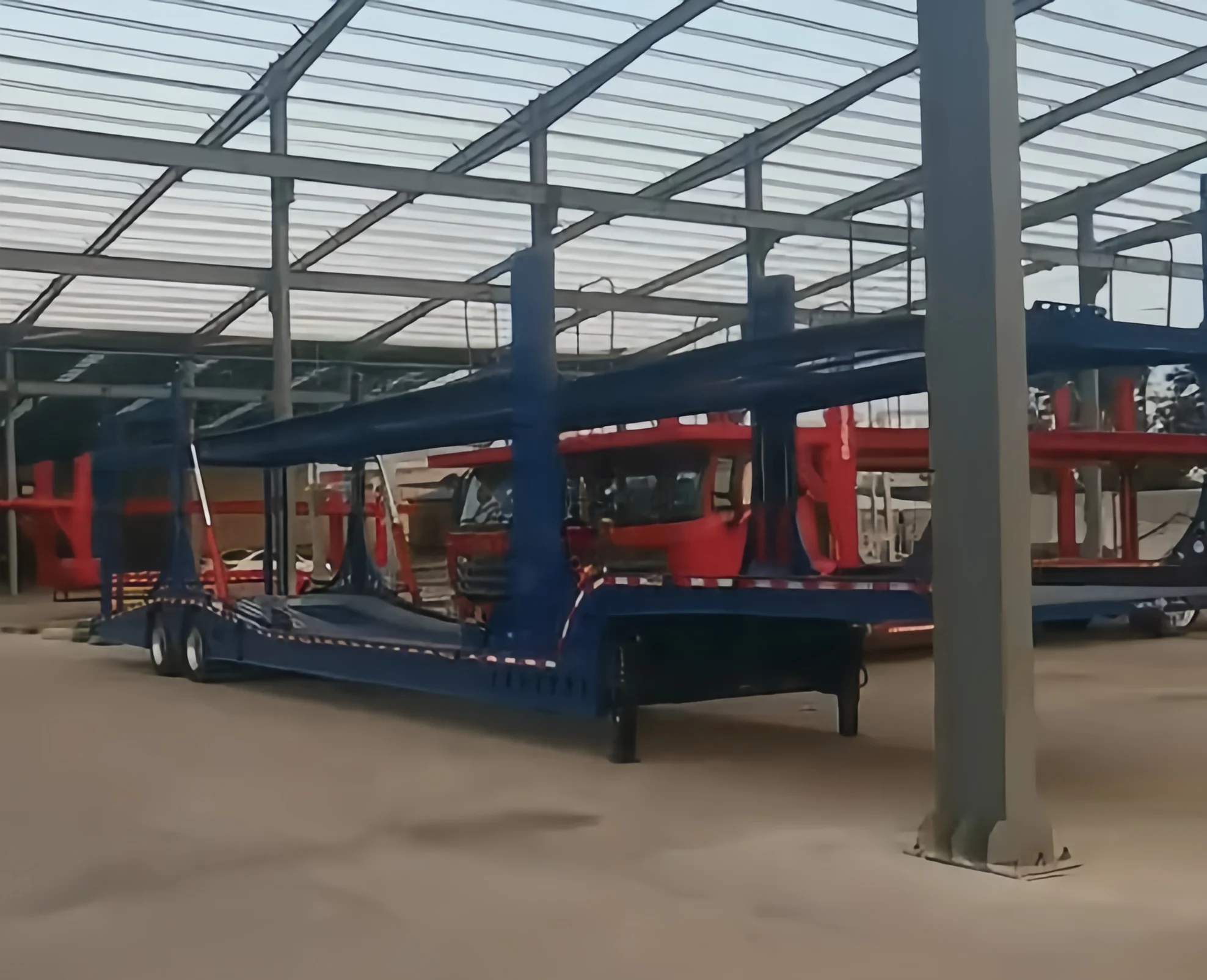

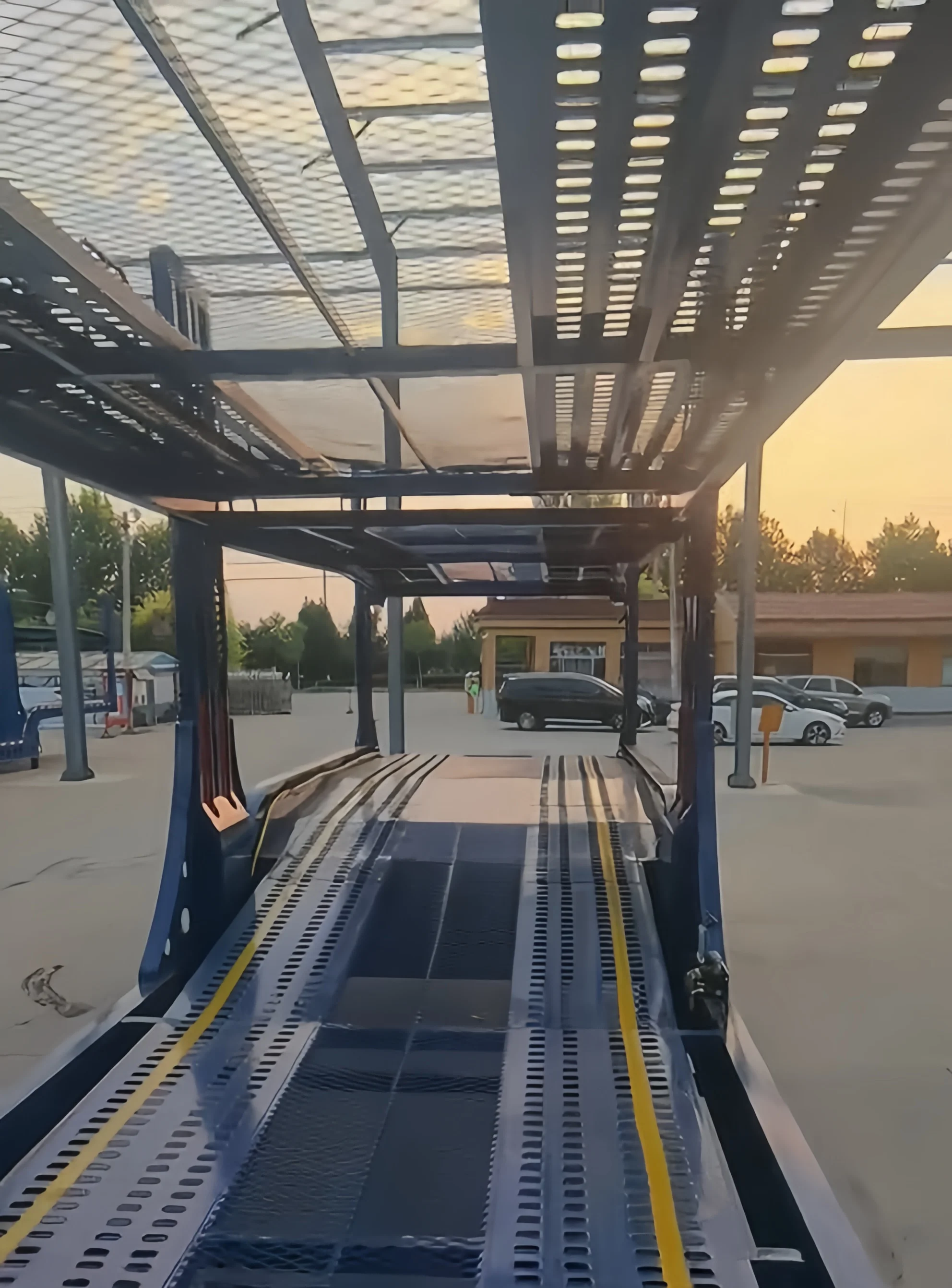

Car transporter

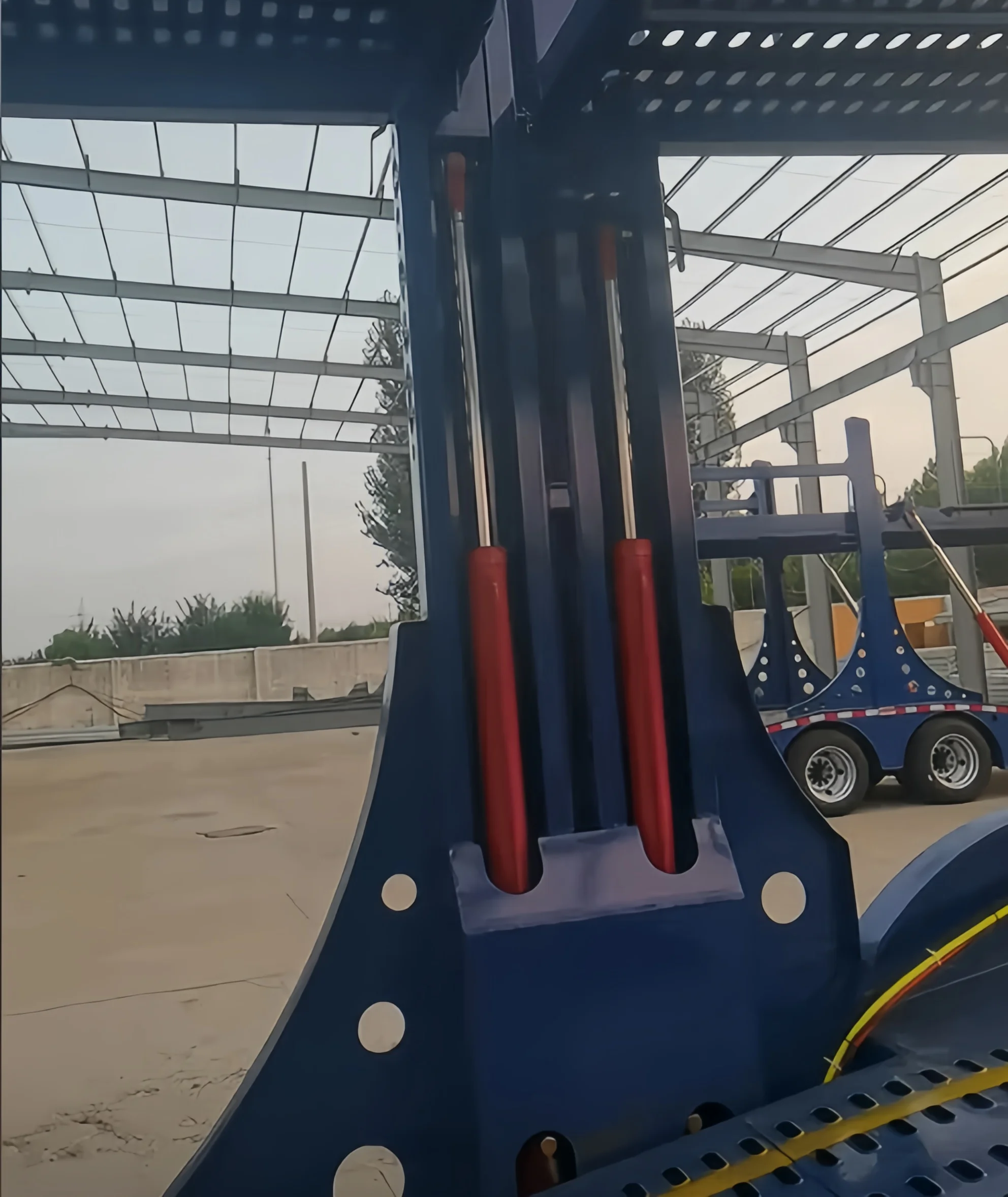

The semi-trailer with a fence structure design is used for the cargo part of the vehicle transport semi-trailer. It mainly carries cars, but can also carry vans, commercial vehicles, jeeps and other passenger cars. 1. The body is a rod and cabinet frame structure, with a light structure and light weight. Most of them are upper and lower loading platforms. The platform adopts a hydraulic cylinder to open and a wire rope pulley structure, with advantages such as stable lifting and lowering, and multiple height positioning. 2. Light structure: The whole vehicle adopts a truss structure, and the frame is loaded as a whole. There is no longitudinal
beam structure of a semi-trailer, and the deadweight is light, which is about 30% lighter than the deadweight of similar vehicles.
3. Safe and convenient operation: All loading and unloading platform lifting and lowering controls are reliable, and can be
clearly observed and accurately operated. 4. Suspension system: It adopts a unique leaf spring under-mounted suspension system
with variable cross-section leaf springs, and has good driving smoothness.
3. Safe and convenient operation: All loading and unloading platform lifting and lowering controls are reliable, and can be
clearly observed and accurately operated. 4. Suspension system: It adopts a unique leaf spring under-mounted suspension system
with variable cross-section leaf springs, and has good driving smoothness.
Specification
Car transporter | ||||||||
Dimension(Optional) | Axle No. | Rated Load (kg) | Tire No. | Tire Size | ||||
By Customer Needs | 2 | 40000 | 8 | 825R20 10.00R20 11.00R20 12.00R20 12R22.5 (Other Size Tire Contact Us) | ||||
3 | 60000 | 12 | ||||||
4 | 80000 | 16 | ||||||
other | other | other | ||||||
Main Beam Material | Q345B manganese plates, automatic submerged arc welded | |||||||
Axle | 2 Axles/6 Cars Loading 3 Axles/10 Cars Loading 4 Axles/More than 10 cars | |||||||
Rim | 8.00-20 /8.5-20/8.8-20/8.5-22.5/9.0-22.5 Various models available | |||||||
Outside Dimension L×W×H | 15800-21000x2400x3000 mm | |||||||
Suspension | Mechanical suspension or air suspension | |||||||

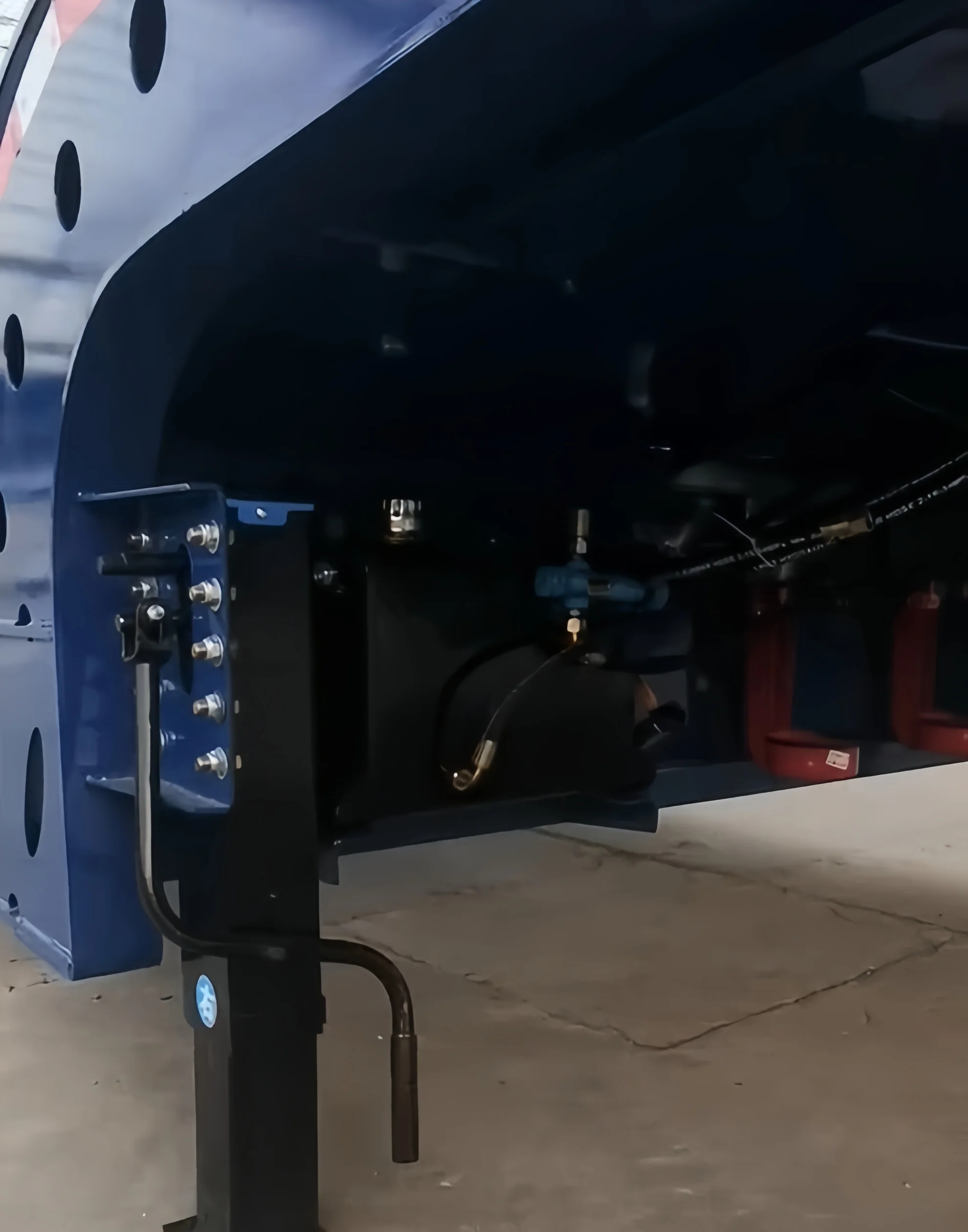

Landing Leg | Standard 28Ton | |||||||
King Pin | 2"(50mm)or3.5"(90mm) JOST | |||||||
Brake System | Double line brake system | |||||||
Brake Air Chamber | Automatic Air Chambers | |||||||
Floor Thickness | Steel Sheet 3mm thickness or diamond plate | |||||||
Electrical System | 24V,7core socket, lights according to European standards | |||||||
Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||||||
Accessories | 1 box of standard tools、2 sets spare tire carrier | |||||||
Painting | Complete chassis sand blasting to clean rust, 1 cost of anticorrosive primer, 2 coats of final paint | |||||||
Color | Customers Optional | |||||||
Company Profile
Shandong XingCe Automobile Co., Ltd., located in the beautiful spring city of Jinan, is a brand under Shandong ZhongCe Special Purpose Vehicle. Shandong ZhongCe Special Purpose Vehicle was established in 2014, with its factory situated in Shuipo Liangshan, and over 200 employees.
As an enterprise integrating production, research, and sales, Shandong ZhongCe Special Purpose Vehicle Co., Ltd. is listed in the Directory of the Ministry of Industry and Information Technology of the People's Republic of China. The company covers an area of over 68,000 square meters, with a production plant covering 32,000 square meters, equipped with top-notch production facilities and advanced assembly line operations.
We strictly control quality and adhere to ISO9001-2008 quality standards, aiming to enhance product manufacturing standards to meet customer needs. The company's new project of 5,000 special-purpose vehicles has commenced operation, utilizing advanced technology management and computer-aided design (CAD). With a foundation of "first-class equipment, first-class technology, and first-class products," the company is committed to providing quality services based on the principles of "people-oriented" and "honesty and integrity."
Product display

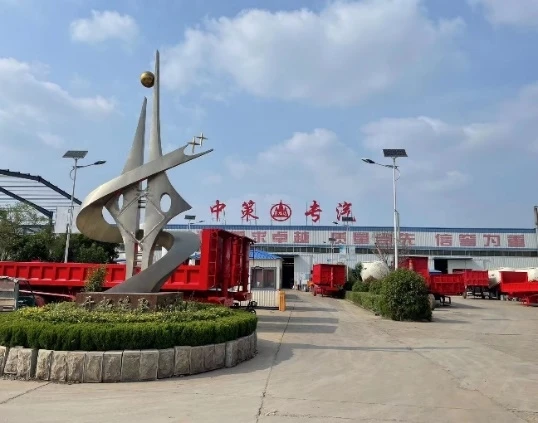

Factory show
Professional Design Team
Profile
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Our Advantages
1、Providing Diverse Choices: We offer a wide range of trailer types, including flatbed trailers, box trailers, low-bed trailers, and more, to meet the diverse needs and applications of our customers.
2、Customized Services: We provide customized trailer design and manufacturing services tailored to the specific needs and requirements of our customers, ensuring personalized solutions.
2、Customized Services: We provide customized trailer design and manufacturing services tailored to the specific needs and requirements of our customers, ensuring personalized solutions.
3、Technological Innovation: Through continuous technological innovation and product upgrades, we introduce advanced manufacturing processes and materials to provide our customers with higher quality and more competitive trailer products.
4、High-Quality After-Sales Service: Our timely and professional after-sales service, including maintenance, servicing, and technical support, ensures the smooth operation and use of our customers' trailers.
5、Risk Mitigation: Our trailers are safe and reliable, complying with relevant standards and regulations, thereby reducing operational risks for our customers and ensuring the safety of both goods and personnel.
Successful cases
International Market
Expanding into international markets and establishing new trade routes, Zhongce Trailers have garnered significant appreciation from companies and manufacturers across Africa. Our exceptional manufacturing standards ensure high-quality and reliable products that meet the diverse needs of our international clientele. This has not only enhanced our brand influence but also earned us a strong reputation in the global market.
