Product Overview
Description

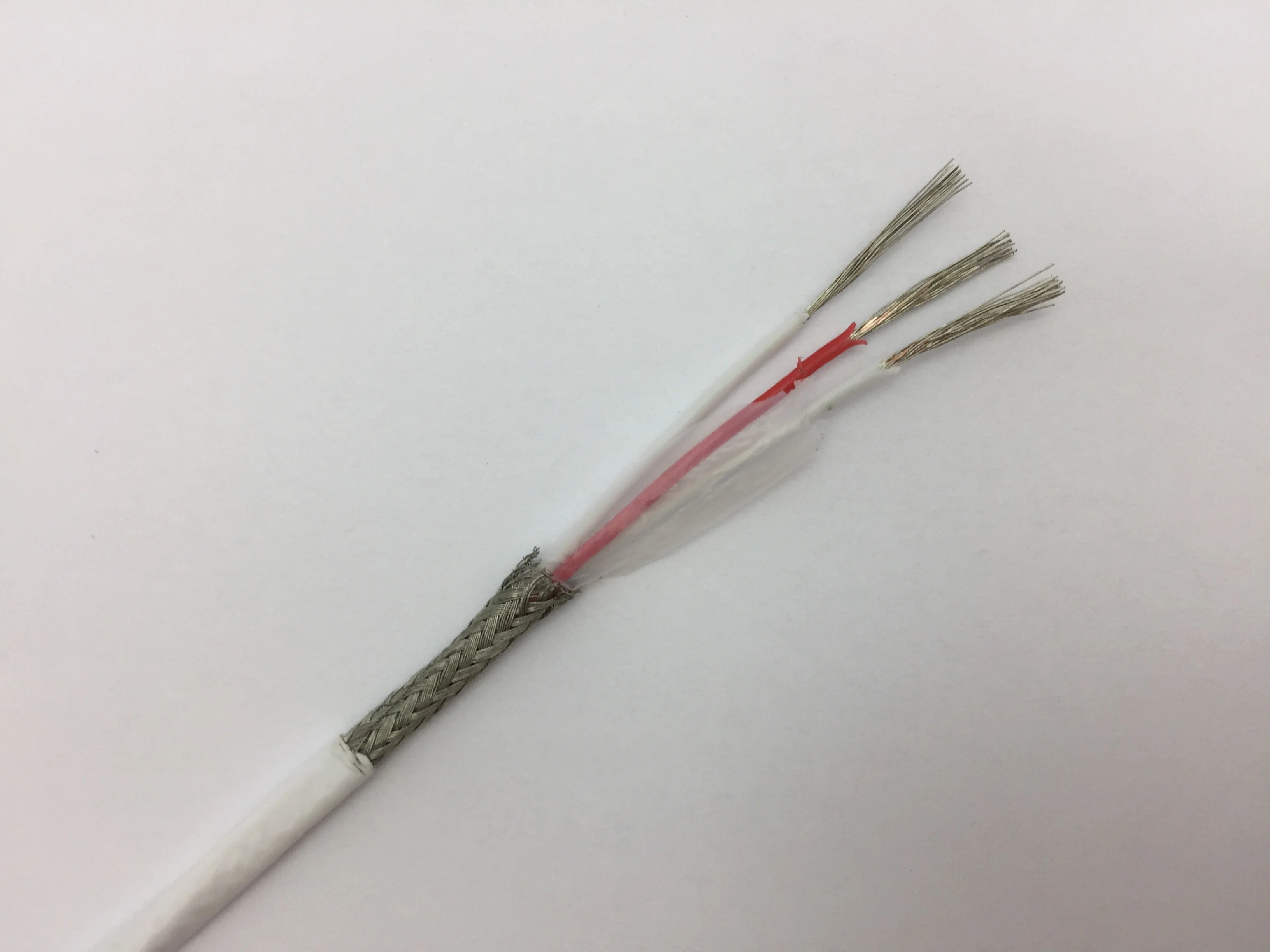

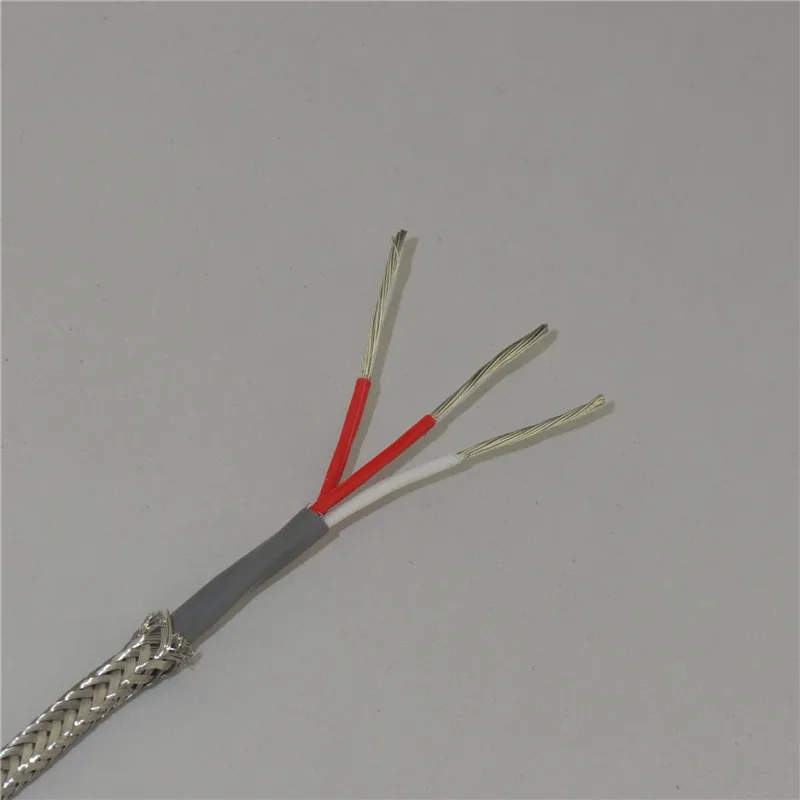

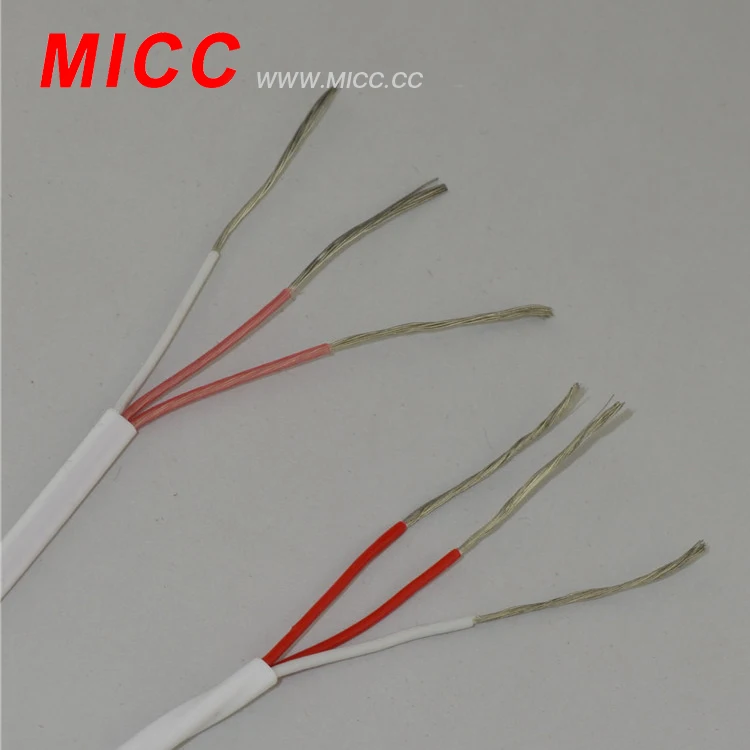

260degrees Thermocouple Wire Copper Size available Thermocouple Wire RTD-PFA/PFA-3*7/0.2mm
RTD Extension wire Type RTD-PFA/PFA-3*7/0.2mm
1, SUBJECT
This specification covers the requirements for PFA insulated, PFA sheathed RTD
extension cable, 3*7/0.2mm, stranded wire.
2, TECHNICAL FEATURES

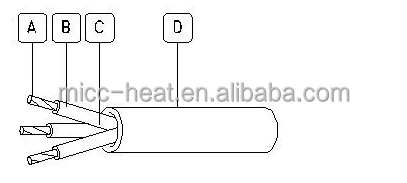

A. Conductors:
Stranded RTD extension wire
| Conductors Size(AWG) | NO.of Strands &Gauge |
| 24 | 7/0.2mm |
B. Insulation:
Extruded PFA ( 260℃)
| Nominal Insulation Thickness | 0.16mm±0.2 |
Color code:
Red/Red/ White(2 cores red and 1 core white)
C. Assembly:
Four conductors (cores) twisted construction.
D. Overall Jacket
Extruded PFA ( 260℃)
| Nominal Sheath Thickness | 0.24mm±0.2 |
| Color code | White |
3, DIMENSIONS AND TOLERANCES
| Dimensions/tolerances(mm) | Ø2.42±0.2 |
4, CALIBRATION TOLERANCE
| Temperature range | Standard tolerance | Special tolerance |
| 0º to 200ºC | ±2.2℃ or 0.75% | ±1.1℃ or 0.4% |

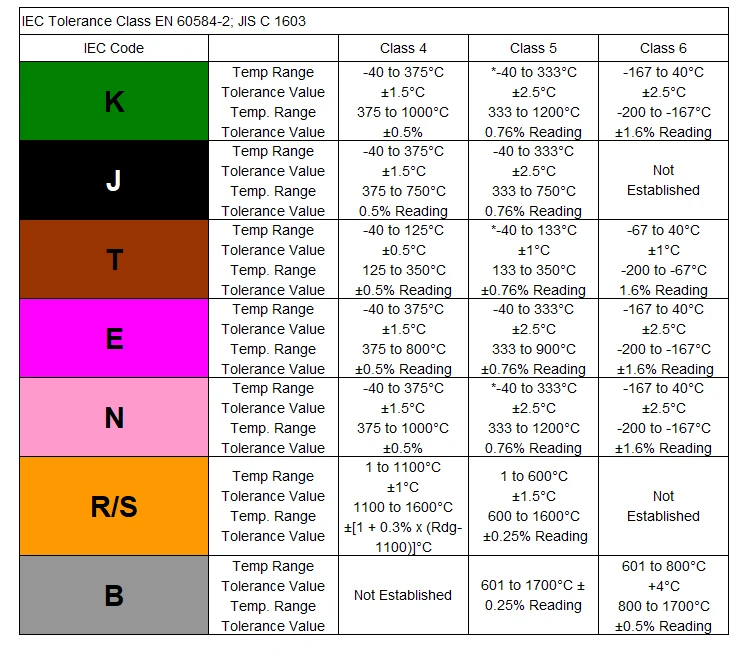

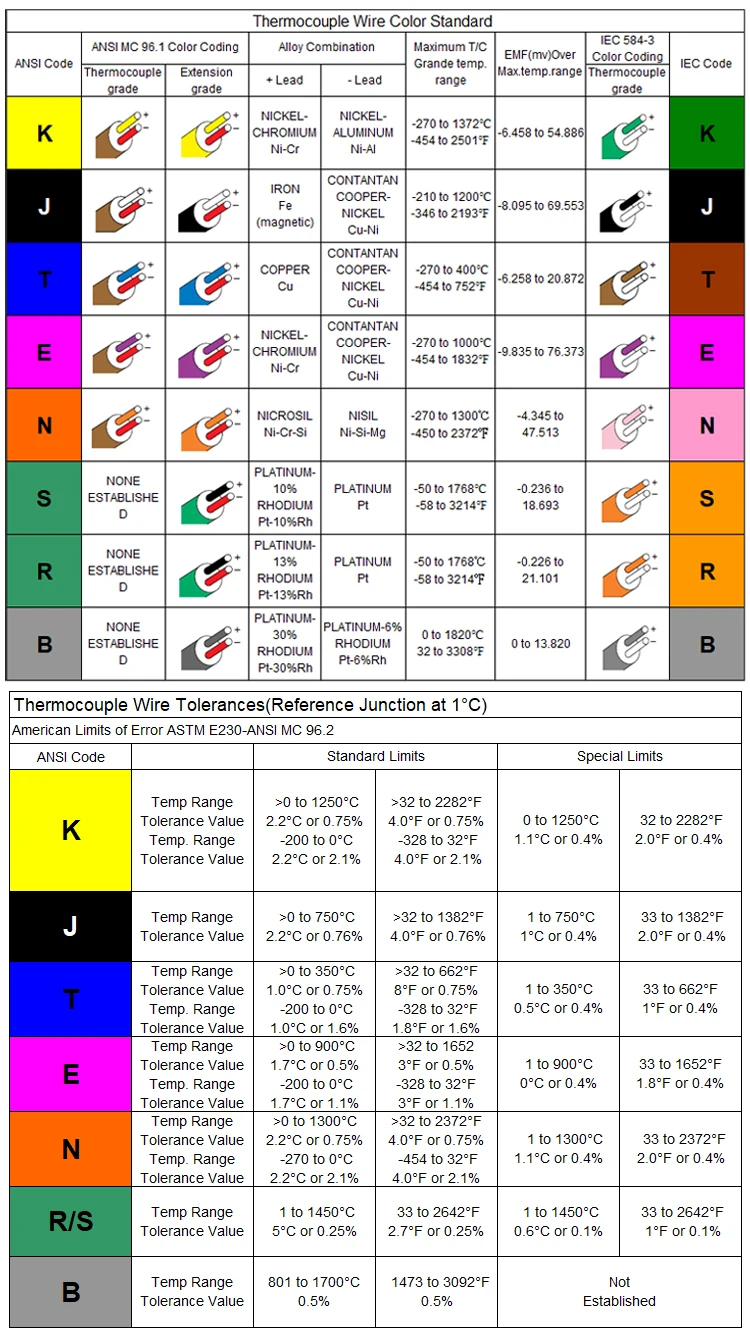

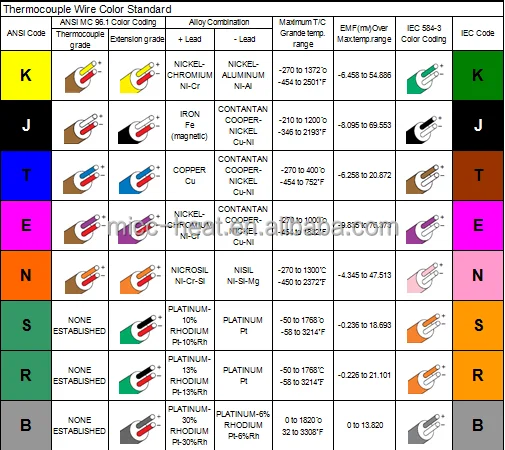

Color code table
JIS, DIN and others are also available.
Thermocouple wire
