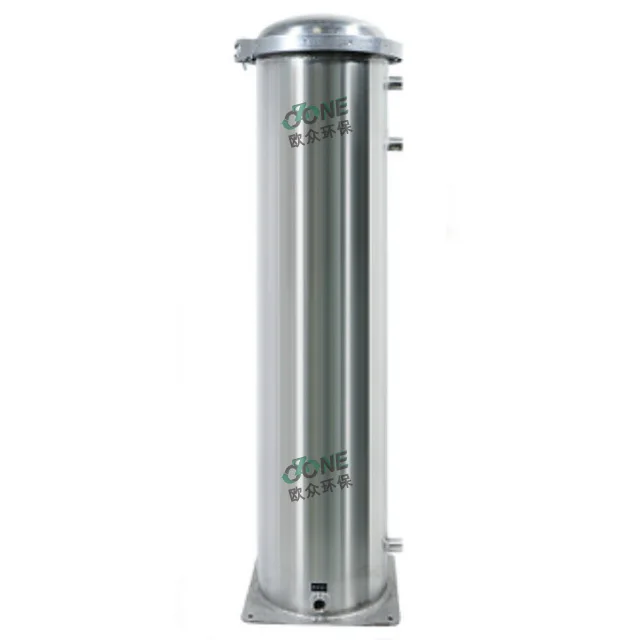

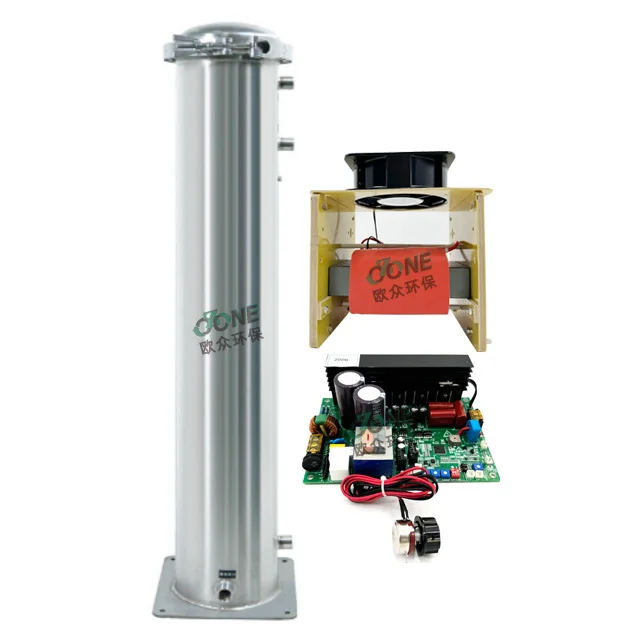

500G ozone tube ozone generator component

Share on (1601214780970):


Price:$3,900.00

Quantity:


Product Overview

Description


500G ozone tube ozone generator component









Features:
1. The ozone discharge chamber inside combined with several groups of ozone discharge tubes, called Honeycomb structure design;
2. The inner and outer electrodes both by SS316L material, housing with SS304;
3. High purity silica quartz tube;
4. High ozone concentration: ozone concentration can be up to 150Mg/L under pure O2, 10-25Mg/L under dry air;
5. High quality power supply to ensure life time and stable ozone capacity;
6. Accept with PLC control, with 0-10V or 4-20mA signal output.

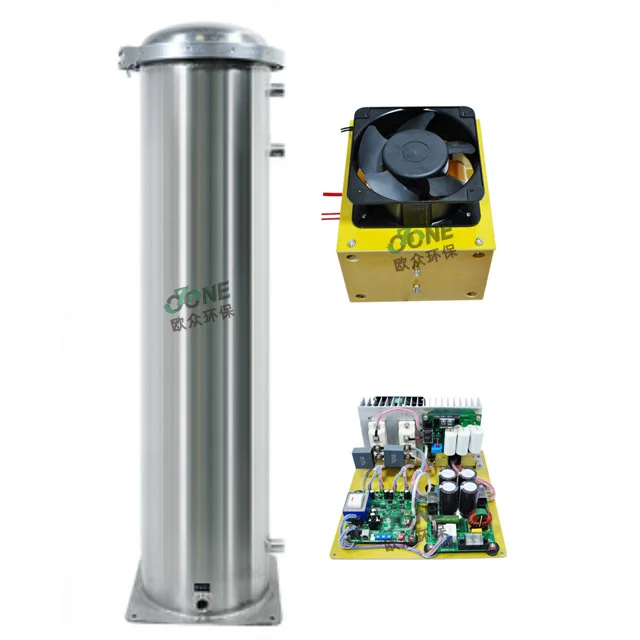

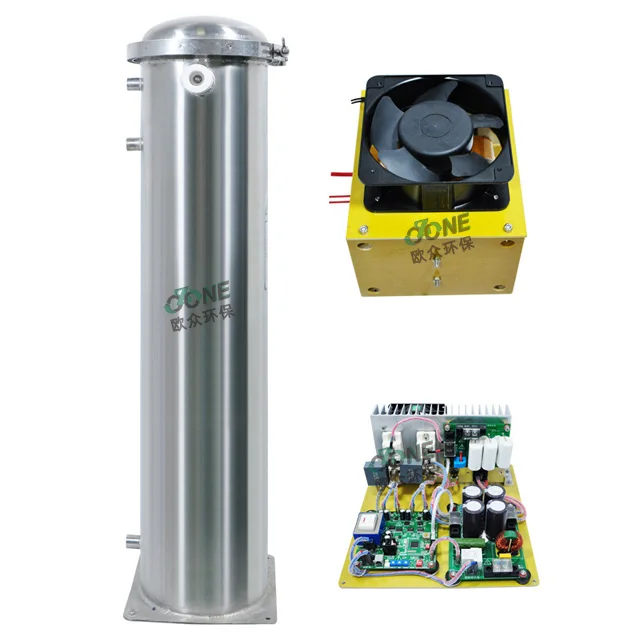

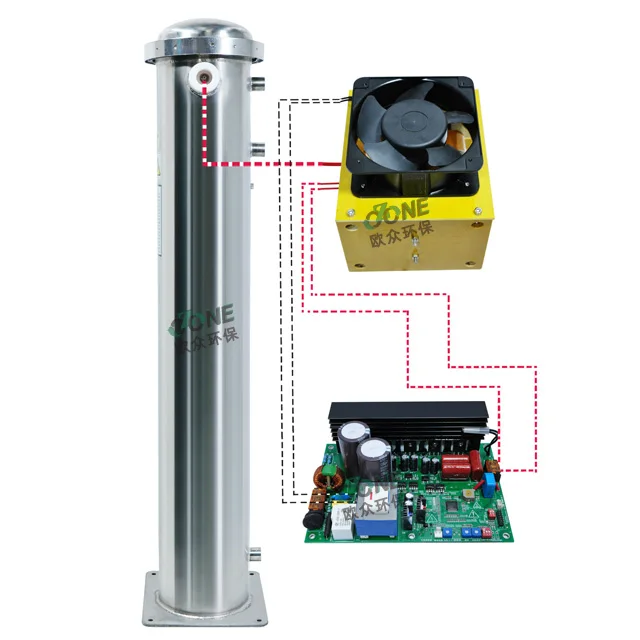

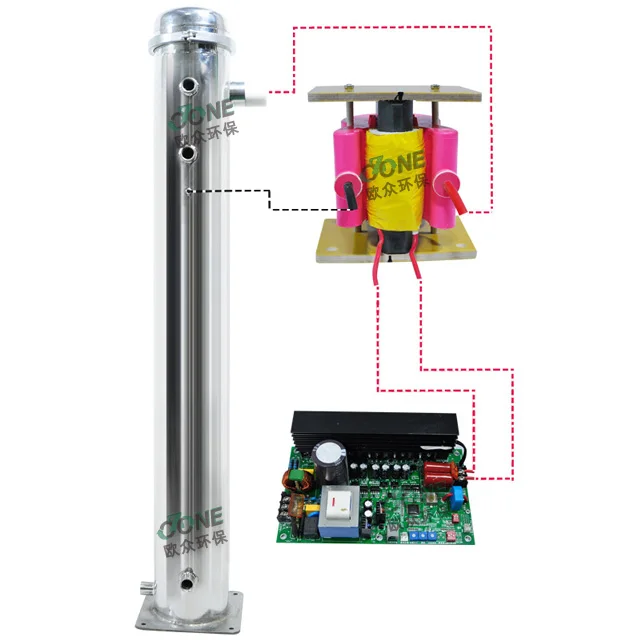

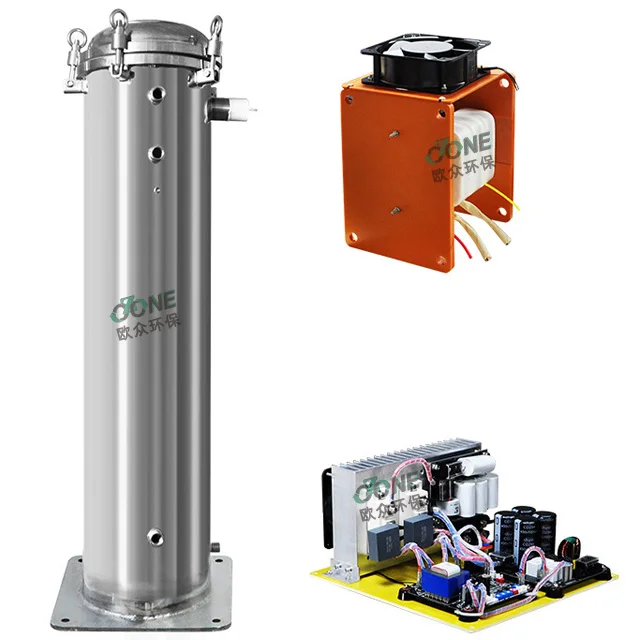

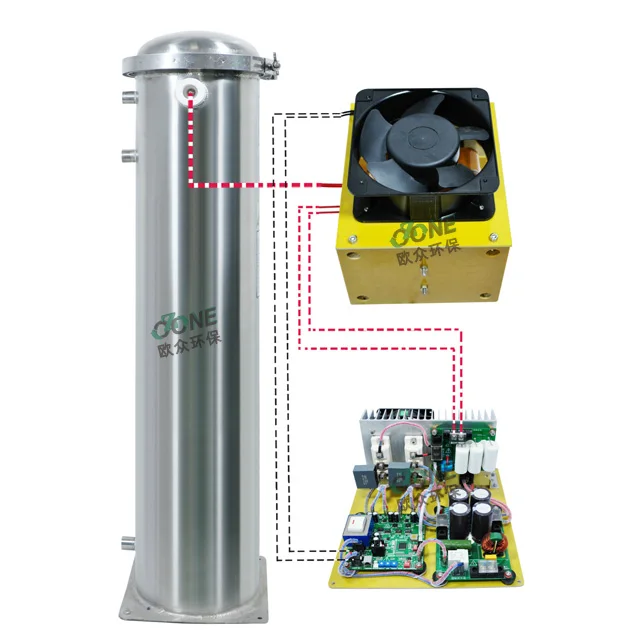

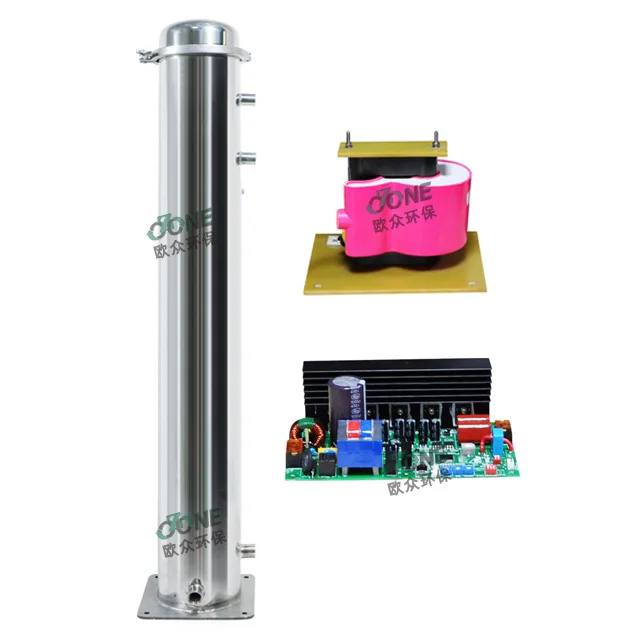

7. Three parts included: ozone discharge chamber, high voltage transformer, ozone electric card.

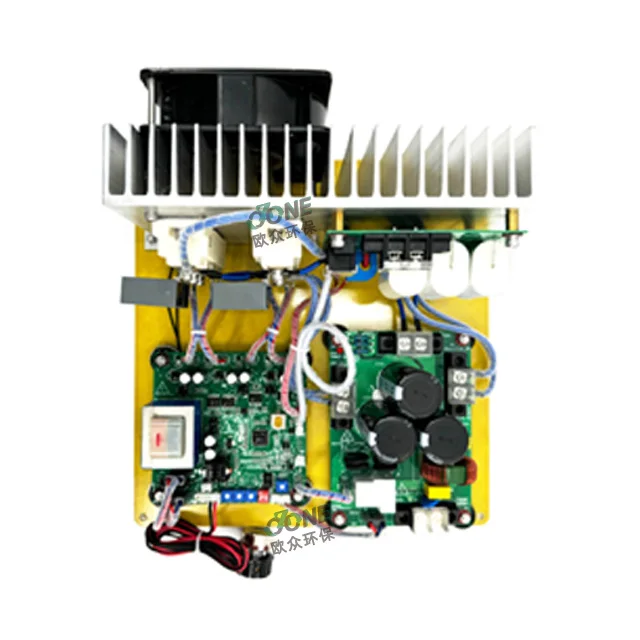

Features for high-voltage power supply:

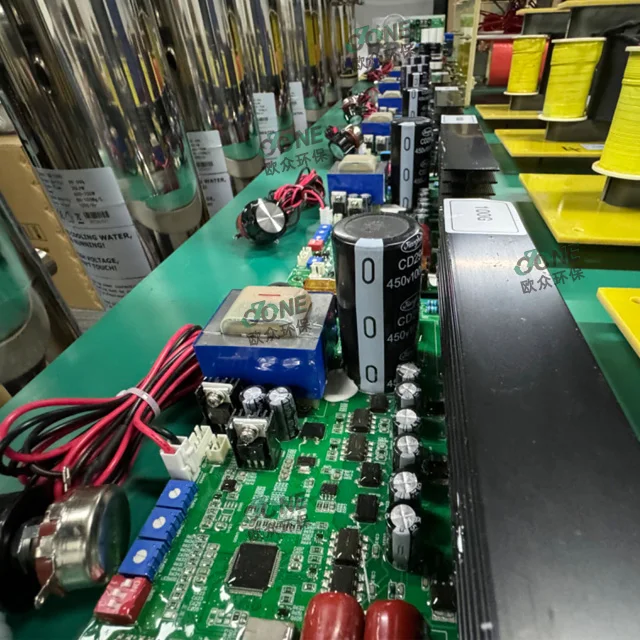

Military-grade variable-frequency and variable-voltage PCB circuit and vacuum epoxy high-voltage package;
IGBT drive, auto/manual bandwidth, slow start, (limiting surge current), over-voltage protection, converter overheating protection, output short circuit and open circuit protection, sound and light warning.

Three proofings design.

It can be flexibly adapted to PLC control or customized.

Normally life time is >12,000 hours.

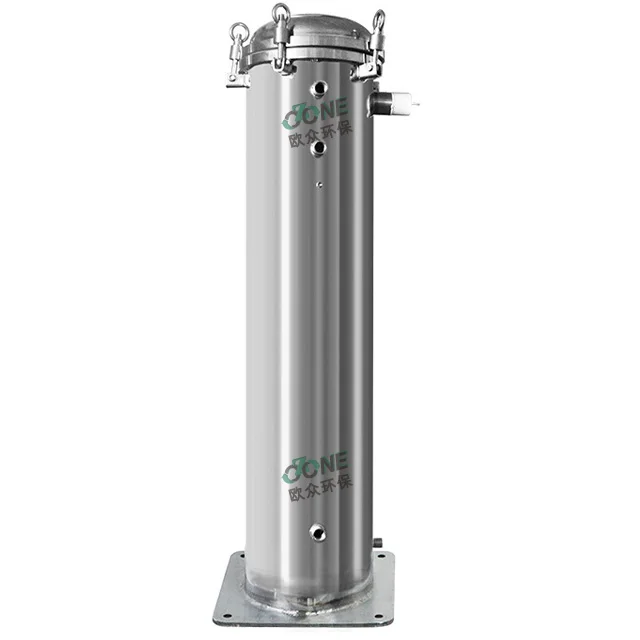

GO-AQ 400G-500G


Ozonedischarge chamber

ozone discharge chamber inside combined with several groups of ozone discharge tubes;

High purity silica quartz tubes;
Inner and outer electrodes both with SS316L;

By water cooling.

GO-AQ 400G-500G



GO-AQ 100-300G 01GO-AQ 300G 04GO-AQ 100G 03GO-AQ 200G 06GO-AQ 200G 05GO-AQ 200G 03GO-AQ 100G 02GO-AQ 400G-500GGO-AQ 100G 01GO-AQ 400G 03GO-AQ 200G 04GO-AQ 200G 01GO-AQ 300G 02GO-AQ 100-300G 03GO-AQ 100-300G 02GO-AQ 300G 01GO-AQ 400G 02GO-AQ 300G 03GO-AQ 400G 01GO-AQ 200G 02GO-AQ 300G GO-AQ 300G









































































item


Water cooled quartz ozone generator


Model


GO-AQ 500G


Ozone concentration by pure O2


50Mg/L - 150Mg/L


Ozone concentration by dry air


10Mg/L - 25Mg/L


Power


4.0-5.0Kw


Water inlet/outlet size


1/2''

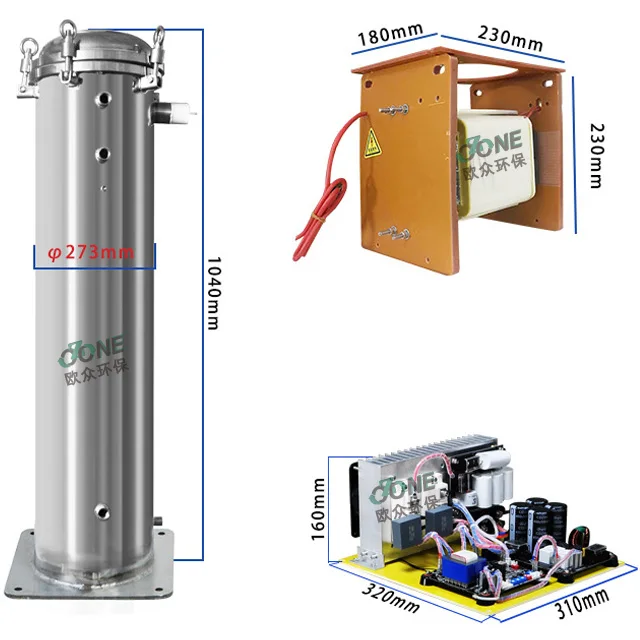

High voltage transformer size


230*180*230mm


PCB size


310*320*160mm


Ozone discharge chamber size


300*300*1410mm


Core Components


Ozone cell, High voltage transformer, Ozone electric card


Brand Name


OZOSUPPLIER


Size


0.3CBM


Warranty


1 Year


Ozone housing material


SS304

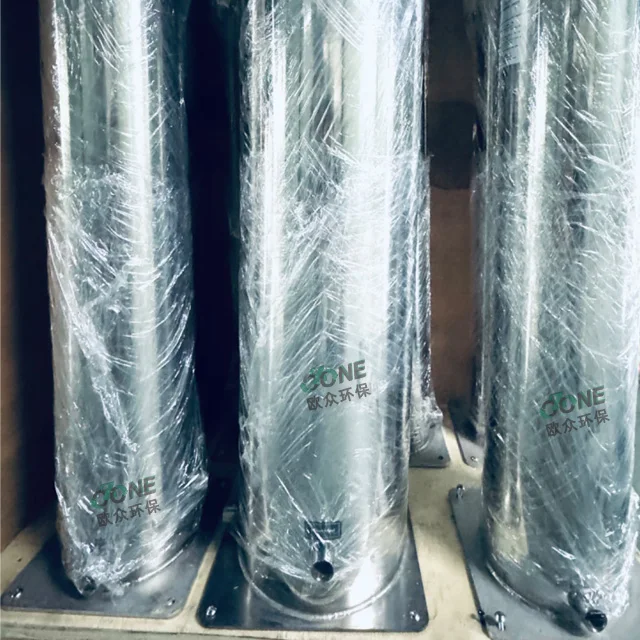

Packaging & Shipping
