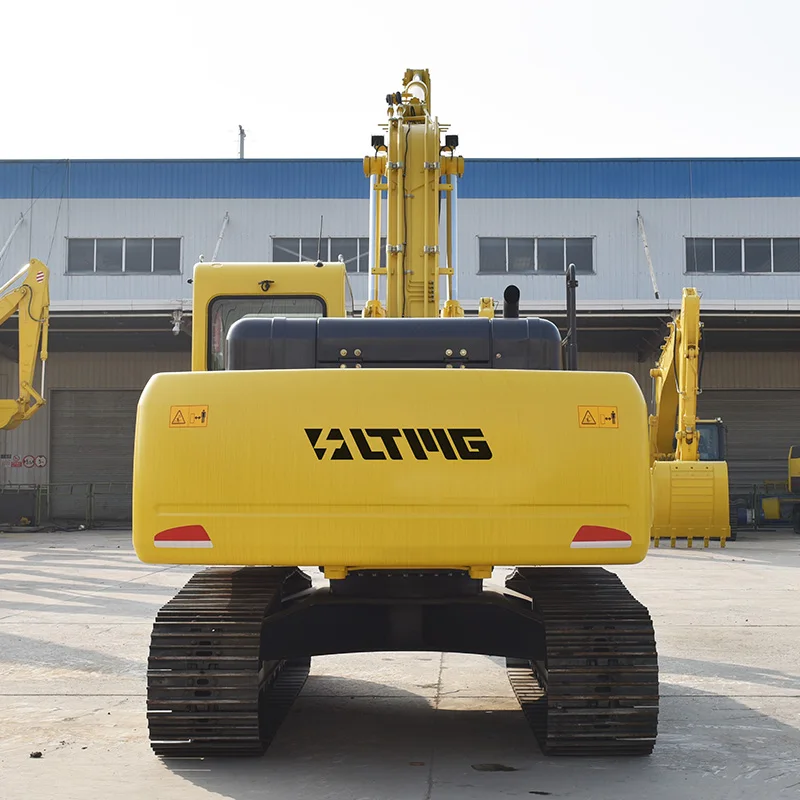

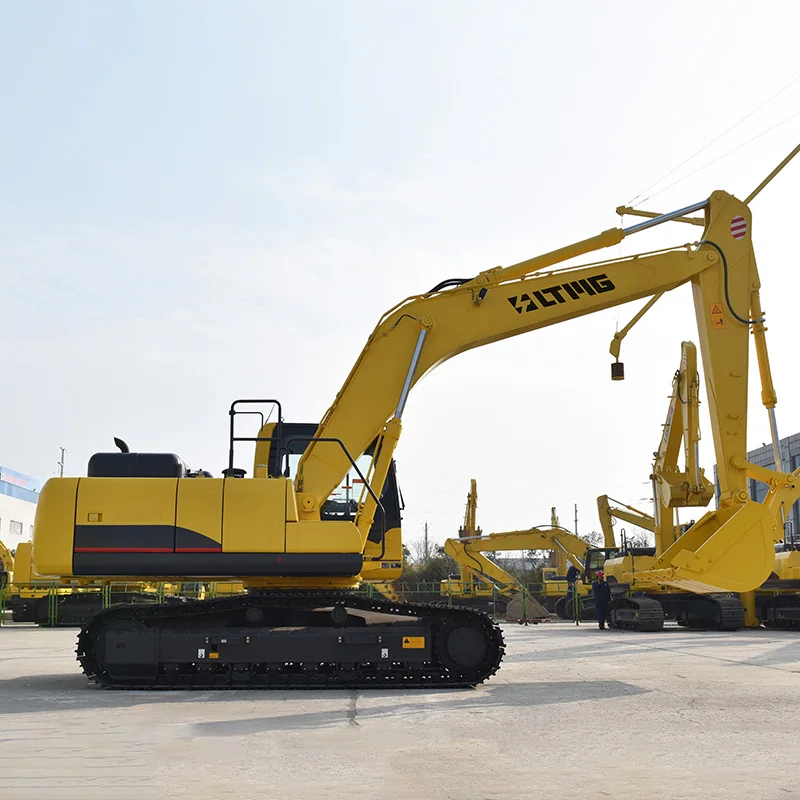

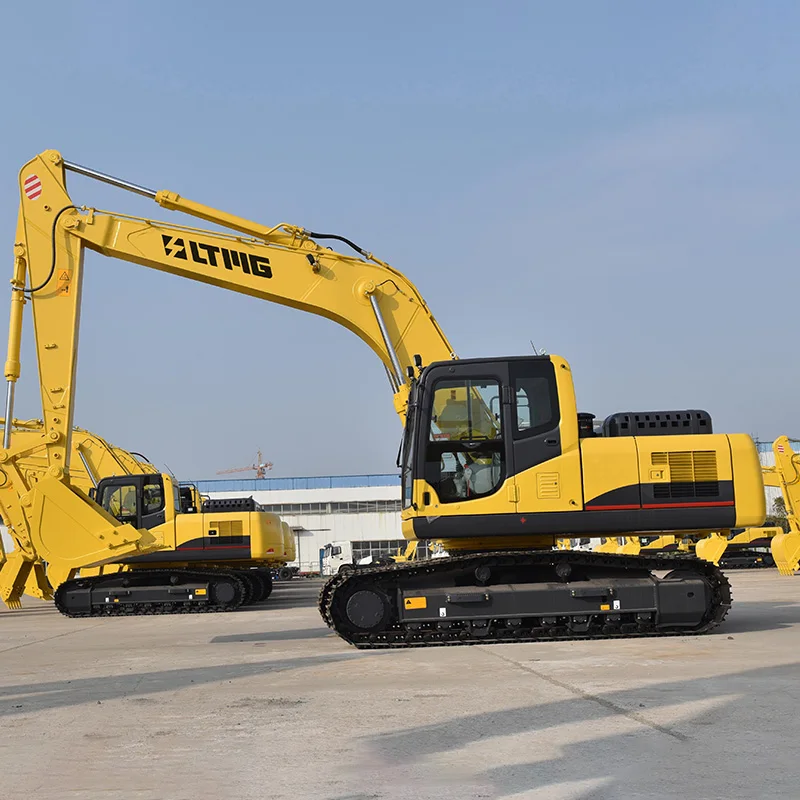

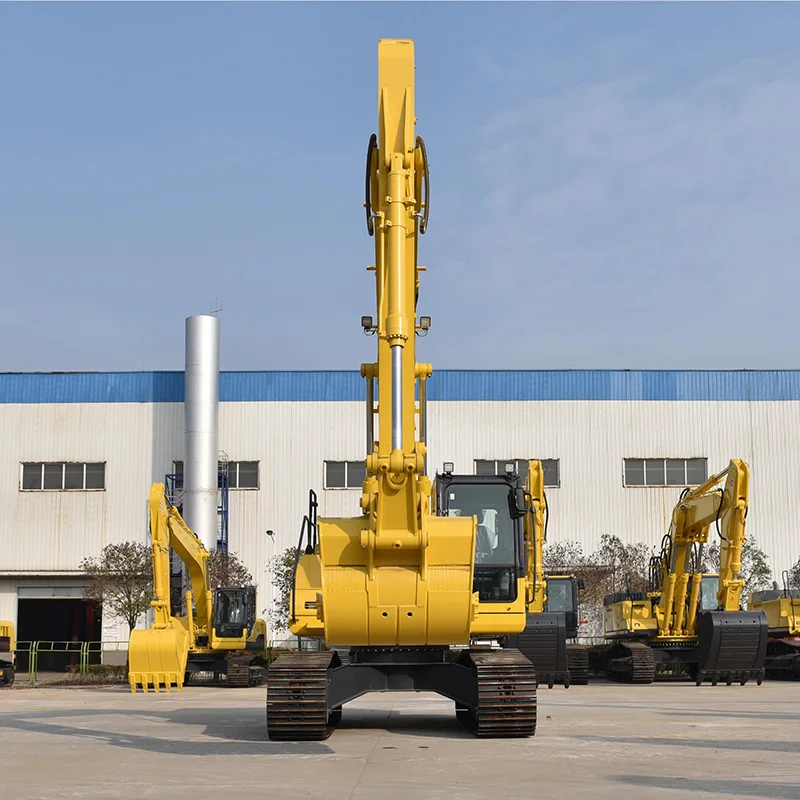

Crawler excavator Digger 220 21ton 22ton 23ton Original paint earthmoving machine Hyundai for Sale
- Category: >>>
- Supplier: Shandong Ltmg Heavy Machinery Co. Ltd.
Share on (1601215345613):
Product Overview
Description

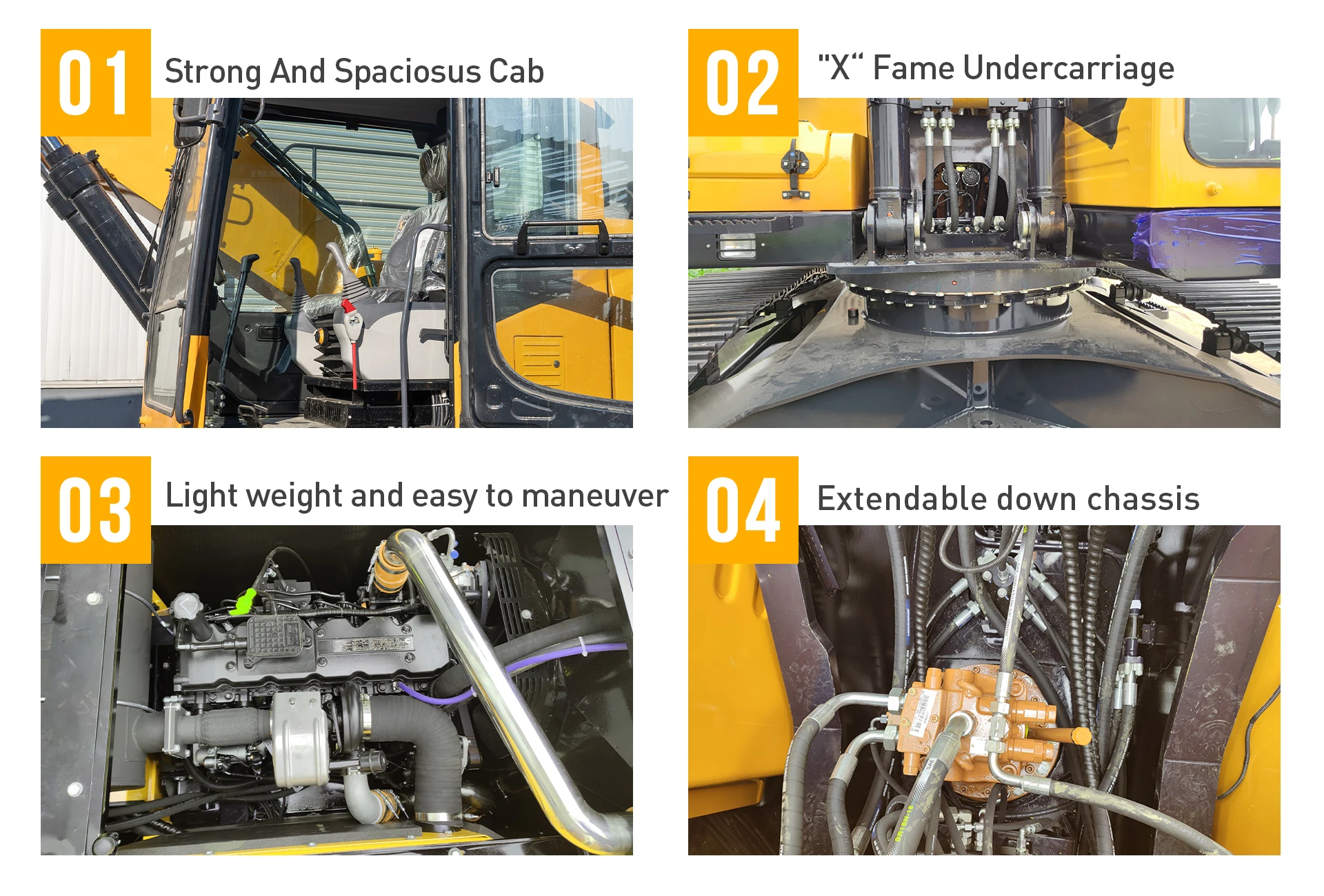

Advantages
Product Paramenters
Model | LTE220 |
Total Weight(T) | 21.8 |
Bucket capacity(M³) | 1 |
Engine model | DongFeng Cummins 6B5.9 |
Rated power(Kw/r/min) | 133/2000 |
Max displacement(L/min) | 235*2 |
Working pressure(Mpa) | 34.3 |
Hydraulic pump mode | K3V112DT |
Hydraulic tank volume(L) | 246 |
Walking speed (high/low)(km/h) | 6.8/3.2 |
Swing speed(r/min) | 10.7 |
Climbing ability(° ) | 35 |
Arm digging force(KN) | 159 |
Ground specific voltage(KPa) | 45.3 |
Maximum excavation height(mm) | 9237 |
Maximum unloading heigh(mm) | 6526 |
Maximum excavation depth (mm) | 6603 |
Maximum vertical arm mining depth(mm) | 5262 |
The distance when digging 2.5 horizontal plane(mm): | 6413 |
Maximum excavation distance(mm) | 9898 |
Maximum excavation distance on the ground (mm) | 9714 |
Minimum turning radius (mm) | 3800 |
Maximum height at minimum turning radius(mm) | 7605 |
Distance from the center of rotation to the rear end(mm) | 2720 |
Counterweight height (mm) | 2120 |
Grounding length (during transportation) (mm) | 5060 |
Total length(mm) | 9390 |
Overall width(mm) | 2780 |
Total heigh(boom top)(mm) | 3040 |
Overall height(top of cab)(mm) | 3120 |
counterweight ground clearance(mm) | 1065 |
Minimum ground clearanc(mm) | 468 |
Tail turning radius(mm) | 2720 |
Track grounding length(mm) | 3445 |
Track length (mm) | 4260 |
Rail guage (mm) | 2180 |
Track width (mm) | 2780 |
Track shoe width (mm) | 600 |
Turntable width (mm) | 2700 |
Arm length(mm) | 2900 |
Boom length(mm) | 5700 |
OEM/ODM

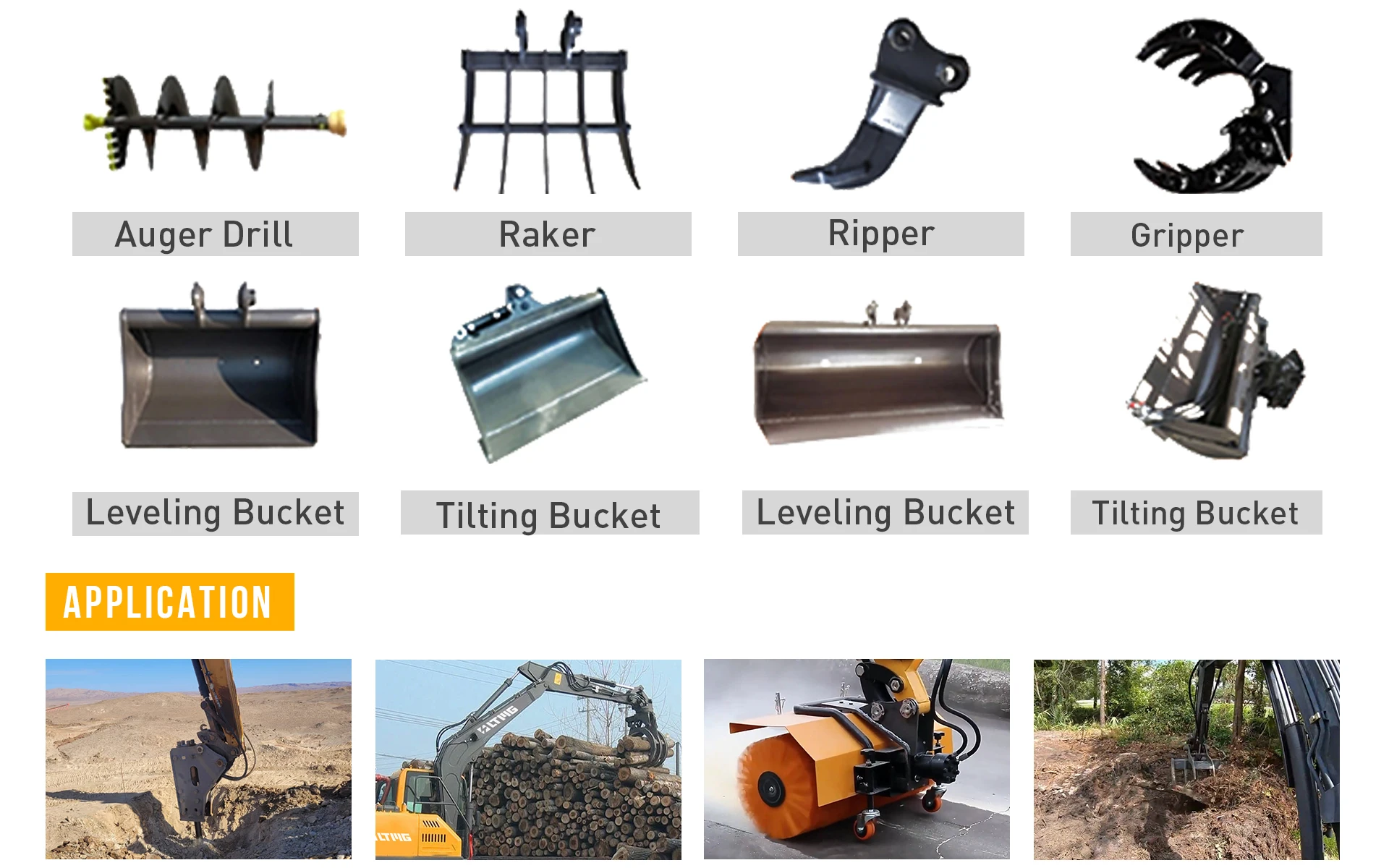

Optional Attachment
Shipping Plan
Factory Introduction

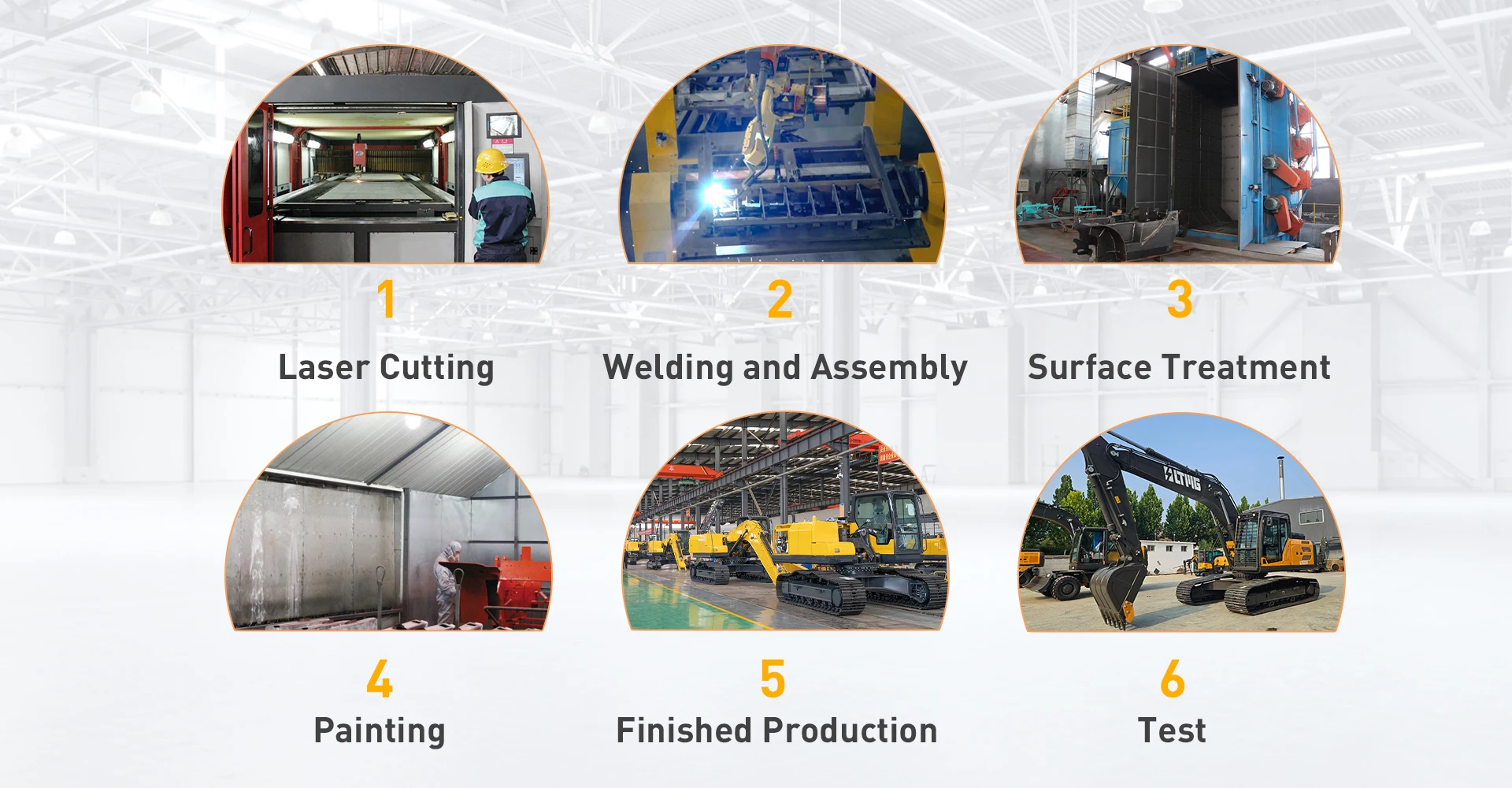

Production Progress
Certificate
Hot Products
Customer Feedback
Customer Sharing
FAQ
1. What certificates do your products have?
A: CE, ISO9001, SGS, etc. Full sets of certificates for customs clearance in different countries, other certificates required by customer is acceptable.
2. What kind of payment terms can be accepted?
A: Normally we can accept T/T, L/C, and western union, MoneyGram, Paypal can be negotiated.
3. Which incoterms 2010 terms can we work?
A: Normally we can worked on FOB, CFR, CIF, other terms like CPT, DDU can be negotiated.
4. What about the delivery time?
A: Within 10~20 days after receiving the deposit, customized configuration and accessories may be longer.
5. What about the warranty time?
A: 1 year or 2000 working hours which occured first. We provide free spare parts for repairing.
6. What about the Minimum Order Quantity?
A: The MOQ is 1 unit.
A: CE, ISO9001, SGS, etc. Full sets of certificates for customs clearance in different countries, other certificates required by customer is acceptable.
2. What kind of payment terms can be accepted?
A: Normally we can accept T/T, L/C, and western union, MoneyGram, Paypal can be negotiated.
3. Which incoterms 2010 terms can we work?
A: Normally we can worked on FOB, CFR, CIF, other terms like CPT, DDU can be negotiated.
4. What about the delivery time?
A: Within 10~20 days after receiving the deposit, customized configuration and accessories may be longer.
5. What about the warranty time?
A: 1 year or 2000 working hours which occured first. We provide free spare parts for repairing.
6. What about the Minimum Order Quantity?
A: The MOQ is 1 unit.
5.How long will our price be valid?
A: Basically,our price remains valid within 30 days. We only adjust our price based on two situations:
The rate of USD: RMB varies significantly according to the international currency exchange rates.
Manufacturers/Suppiier adjusted the parts and raw material price, because of the increasing labor cost, and raw material cost.
A: Basically,our price remains valid within 30 days. We only adjust our price based on two situations:
The rate of USD: RMB varies significantly according to the international currency exchange rates.
Manufacturers/Suppiier adjusted the parts and raw material price, because of the increasing labor cost, and raw material cost.
