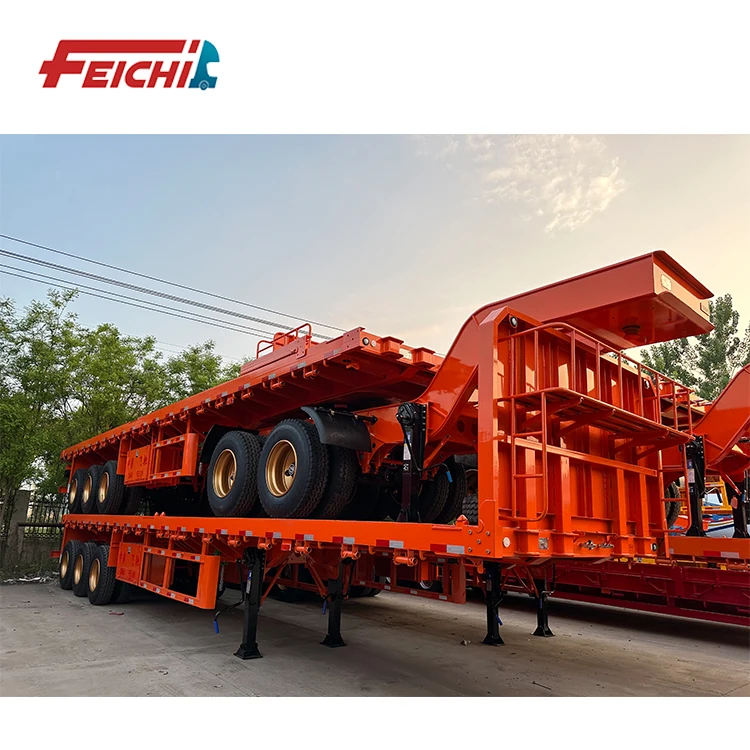

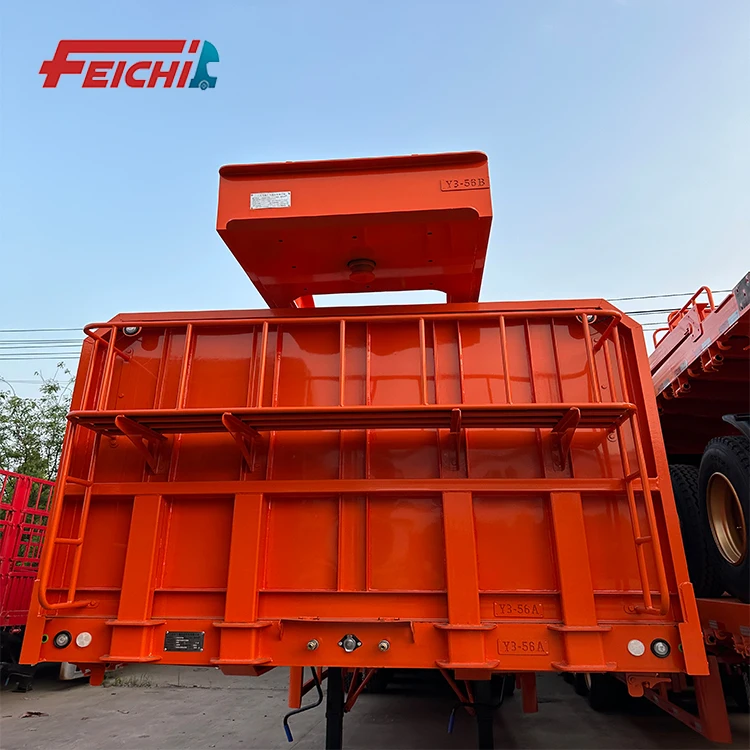

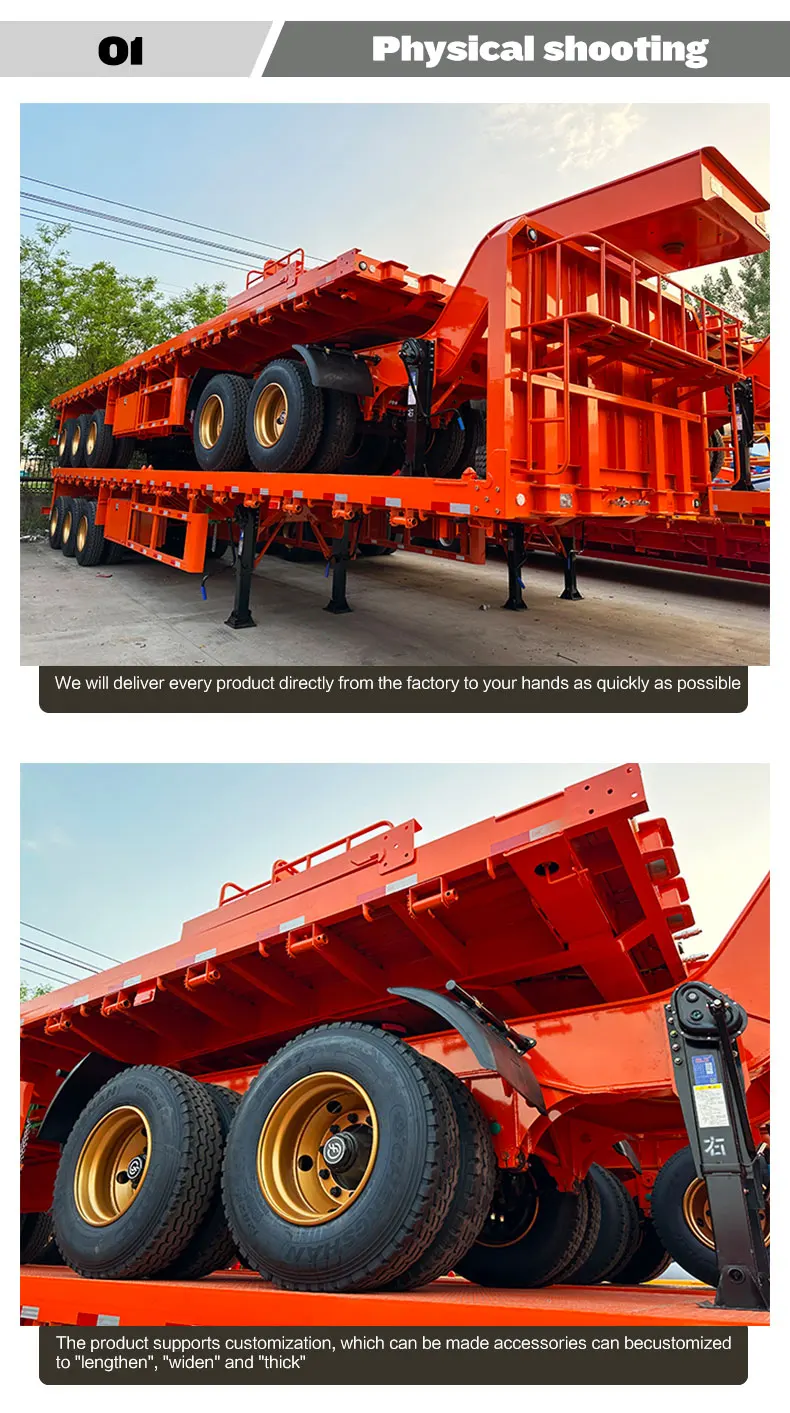

3 axle 40 ft 60 tons super link flatbed truck trailer container cargo transport flatbed semi trailer
- Category: >>>
- Supplier: Shandong Fei Chi Import And Export Co. Ltd.Shandong Ltd.
Share on (1601218521898):
Product Overview
Description
Product Paramenters:
Overall dimension | 12500*2500*1550mm(According to customer demand) | ||||||
Loading capacity | 30-150T | ||||||
Tare Weight | 6.5-10T | ||||||
Axle | 2 axles/3 axles/4 axles/Multi axle,13T/16T/20T BPW/FUWA/Fuhua | ||||||
Rim | 8.00-20/8.5-20/8.8-20 China Brand | ||||||
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specification can be Optional) | ||||||

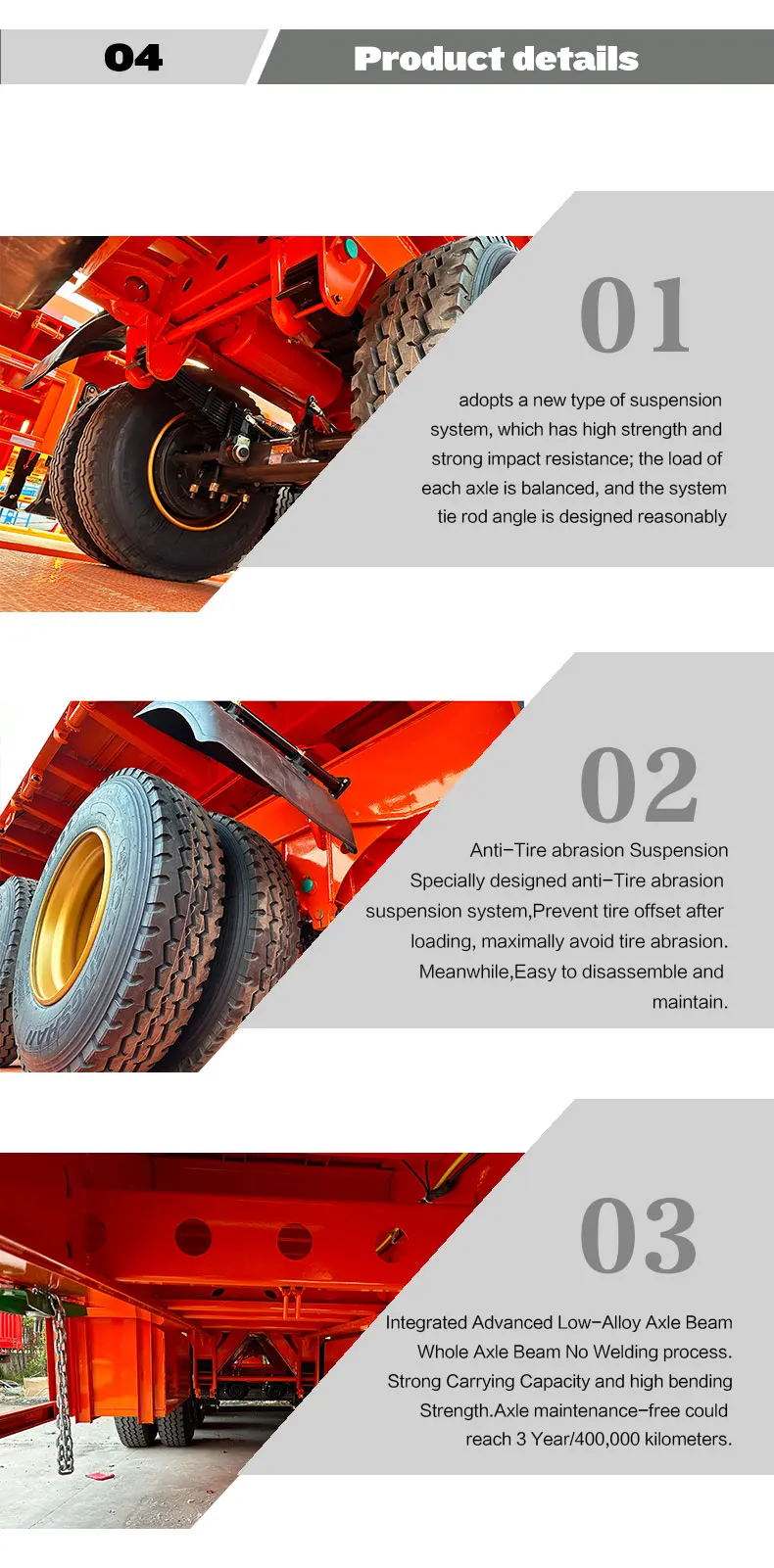

Suspension | Mechanical suspension(German Type or America Type) or Air suspension | ||||||
Spring leaf | 90(W)mm x 13(Thickness)mm x 10(Layer)/100mm x 12mm x 12(specification can be Optional) | ||||||
Wheel base(mm) | 6880+1310+1310. | ||||||
Kingpin | JOST brand 2.0 or 3.5 inch bolts type or Welding type | ||||||
Steel Spring | 8/8/8,10/10/10,12/12/12 pieces per axle | ||||||
The material of Main beam | Height:450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm, Material is Q345B Carbon Steel. | ||||||
Side beam | 16mm-25mm channel steel (Material is Q235 carbon steel) | ||||||
Brake chamber | 6 double brake chamber | ||||||
Landing gear | JOST/FUWA/Yahua brand 28T(two speed or single speed) | ||||||
Twist Locks | Four,Eight or Twelve pieces(lifting type or Twist Screw Type)Optional locks for loading containers | ||||||
Platform plate | 3mm Checkered steel plate | ||||||
Brake system | Dual Line braking system | ||||||
Electrical system | 24V, 7 pin socket,One set 7-core standard Cable | ||||||
Valve | WABCO/KANGJIAN valve | ||||||
