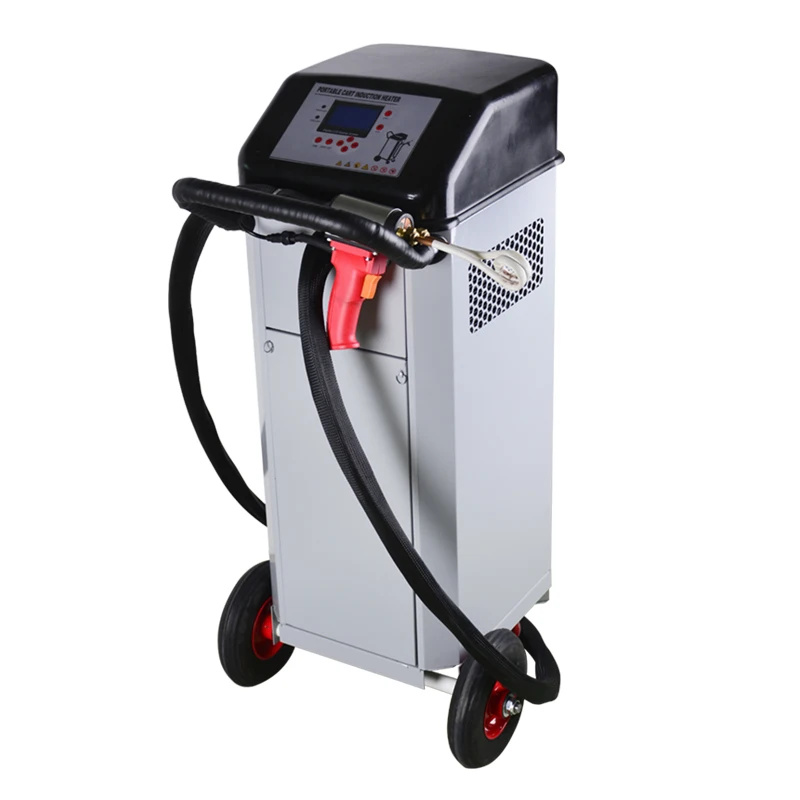

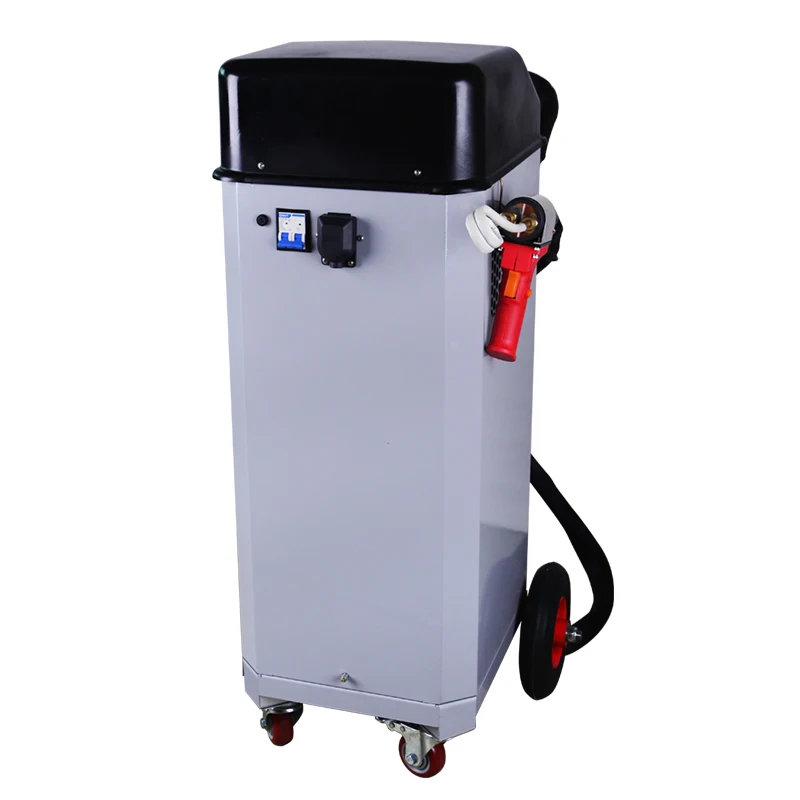

NEW 20KW High frequency induction heater Quenching and annealing equipment 220V High frequency welding machine

Product Overview

Description

Equipment Main Characteristics

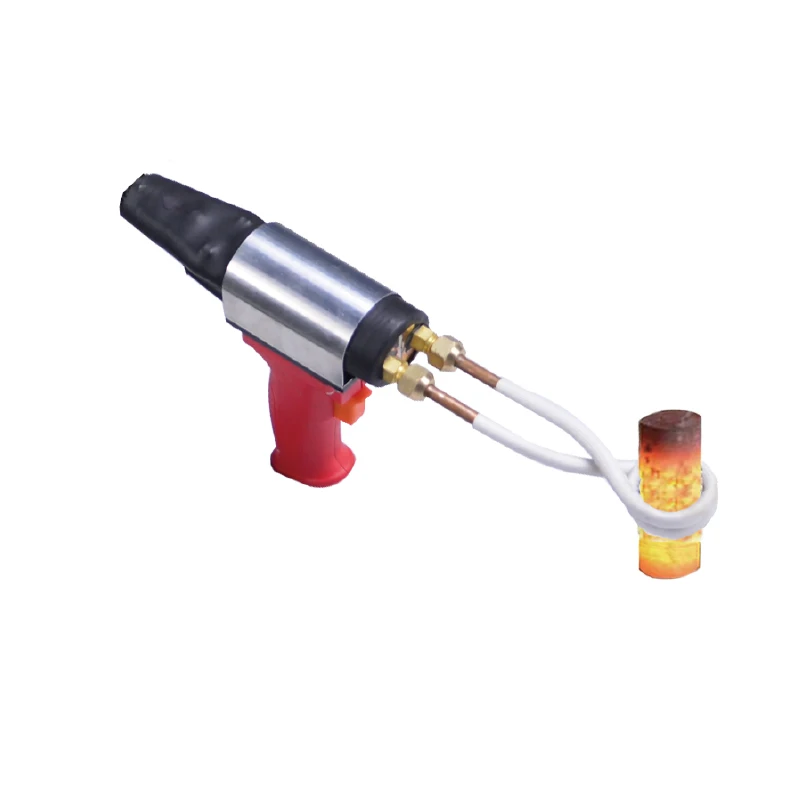

1.    Portable handheld heater with built-in water cooling system, mainly used for heating and welding various metal work-pieces, such as locally quenched work-pieces, sheet metal straightening and loosening, nut and clamping ring heating, lining and bearing straightening and dismantling, brazing copper pipes, annealing, etc.

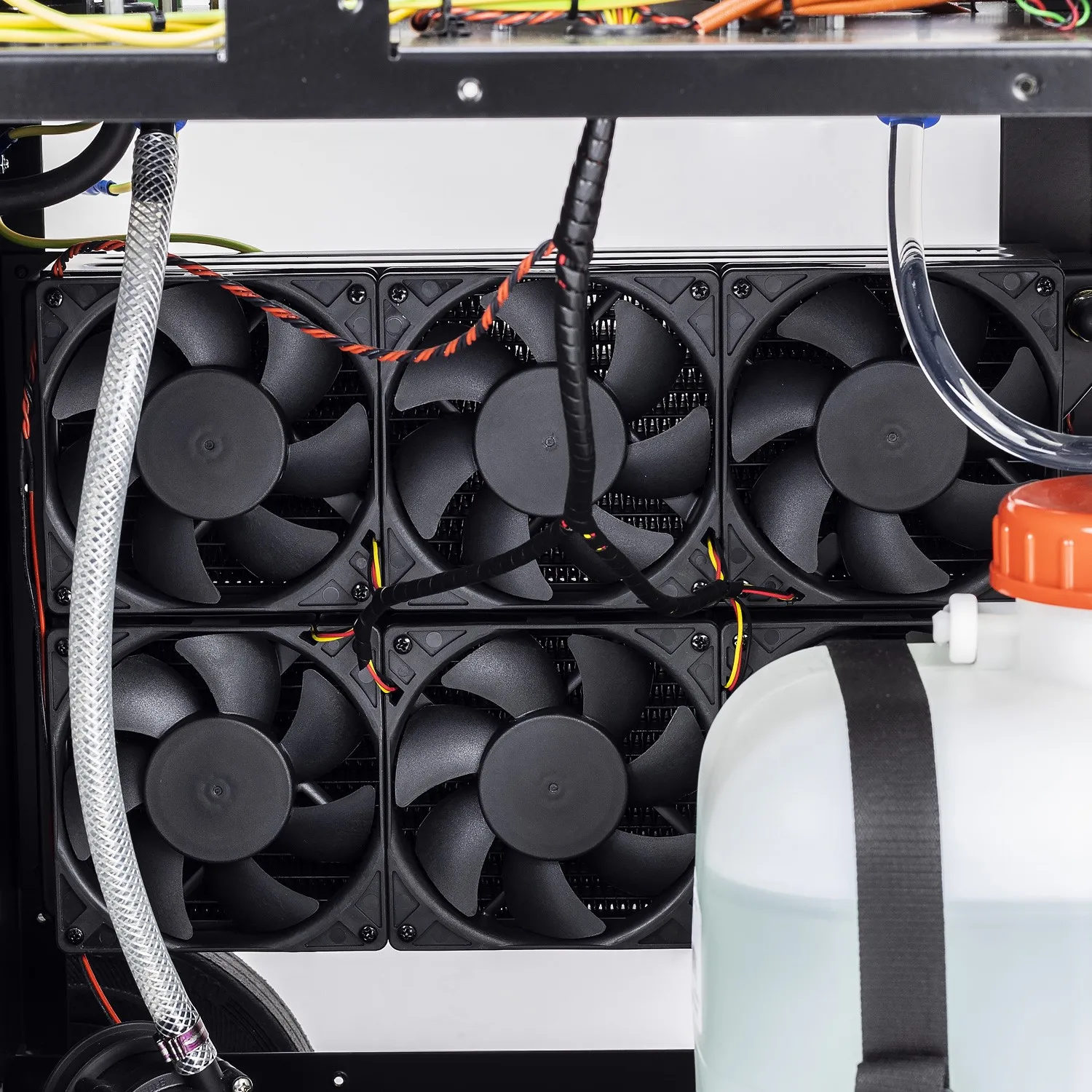

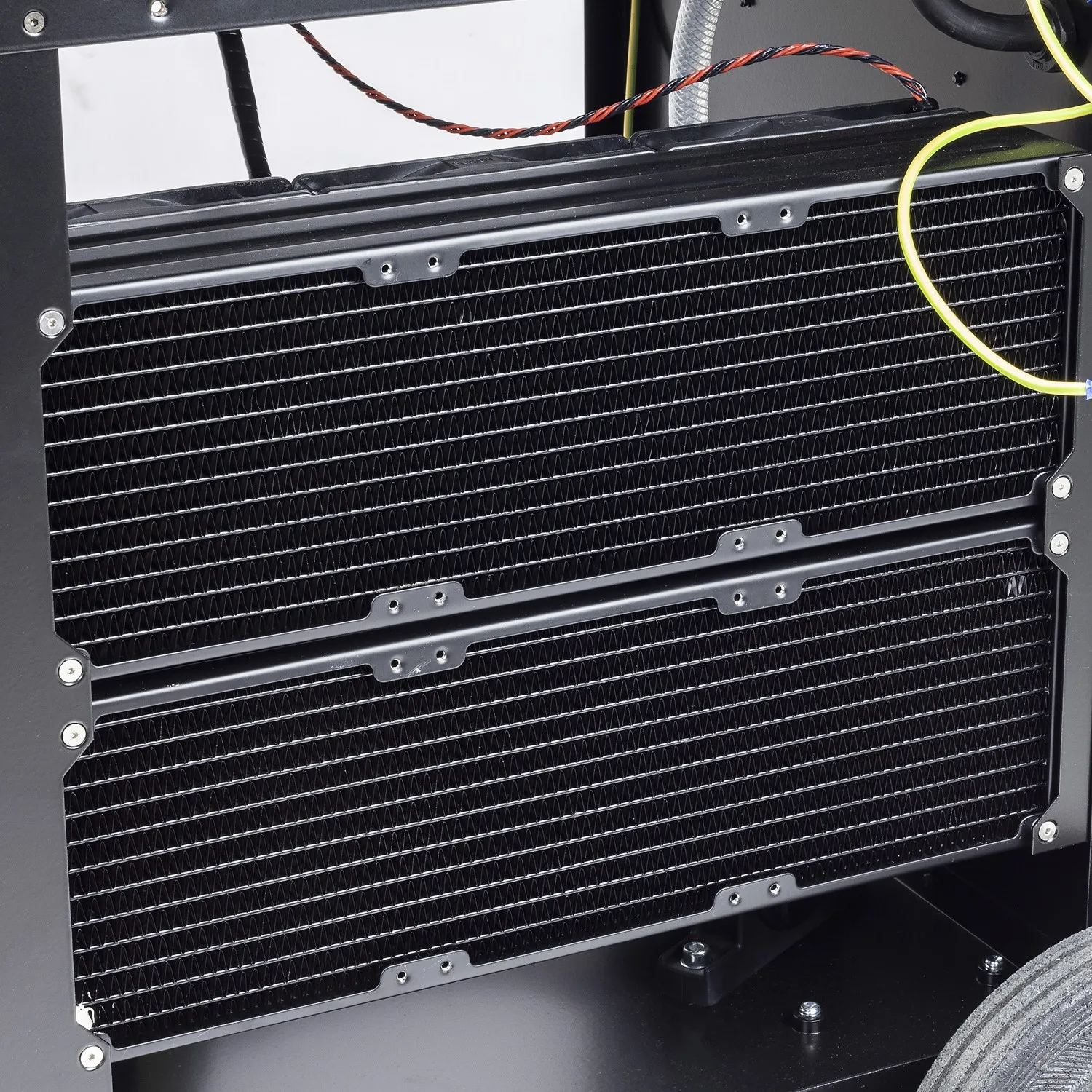

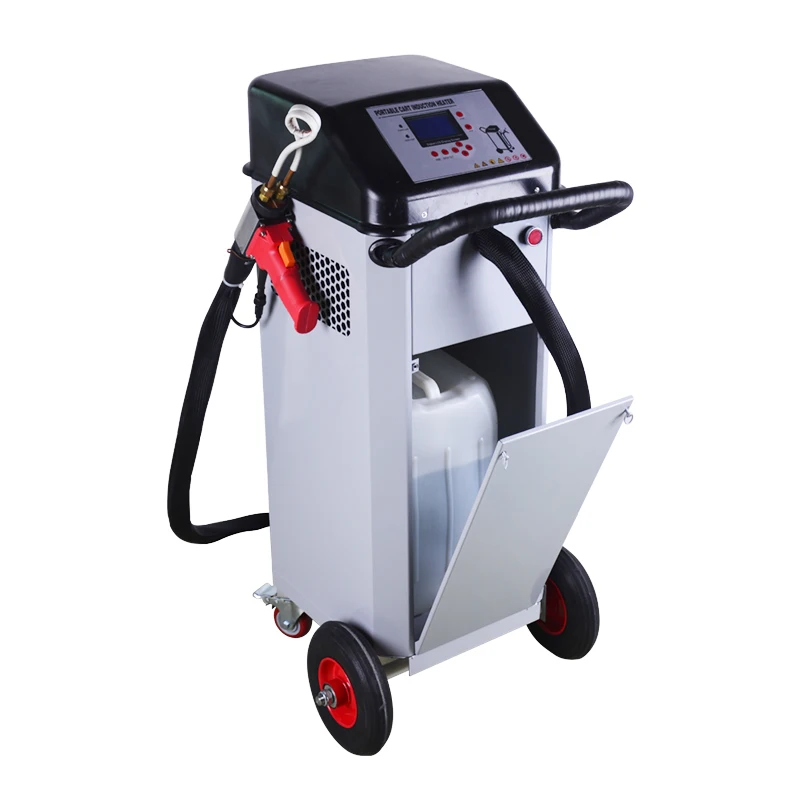

2.    The body is equipped with a water-cooled water tank and an air-cooled system, with-out the need for external water sources. It is compact and portable, with long reaching hose package and cabling means less need to move the machine. Just plug in the power supply and you can start using it!
3. Adopting imported MOSFETS and IGBT solid-state power modules and advanced frequency conversion technology.
4. Fully functional, including over current, over voltage, water shortage, and other fault status protection and display, providing higher reliability and durability.
5.    Simple design, easy installation, no need for debugging, and easy to use.
6.    The operation is simple, safe, and convenient to carry, especially suitable for tempo-rary heating of steel and brazing of copper materials.
7.    Mainly used for car repairs, trucks, construction machinery workshops, construction sites, etc.



Main Technical Parameters

Model No.	DW-1500W	DW-1800W	DW-2500W
Input Power Supply	210~240V,32A	210~240V,32A	210~240V,32A
Max Output Power	15KW	18KW	25KW
Induction Cable Length	3M	5M	5M
Cooling Type	Water cooler with fan
Continuous Operating Time	20Min	35Min	60Min
Water Tank Capacity	20L	35L	40L
Machine Weight	38KG	65KG	95KG
Machine Size	54*61*101CM	75*55*115CM	96*67*118CM
