Lightweight PU Cement Insulation Composite Sandwich Wall Panel/Board Production Machine Manufacturer
- Category: >>>
- Supplier: Hebei Guangxing Machinery Technology Co. Ltd.
Share on (1601219858601):
Product Overview
Description
Widely used for steel structure workshop, roofs of simple and easy movable houses, wall body, suspended ceilings of air
purification room, and separation. The rigid polyurethane foam has been recognized as the best building thermal insulation
material by international world today. It has low heat conductivity, and high bending resistance capacity. This rigid polyurethane
foam doesn’t absorb water or decay, and it cannot be damaged by insects and mice. It has good fire resistance, and large scope of
heat resistance. With the physical properties of polyurethane PU and our unique prescription, we combine high temperature
polyurethane with coating steel panel, thus compact forming is achieved.
purification room, and separation. The rigid polyurethane foam has been recognized as the best building thermal insulation
material by international world today. It has low heat conductivity, and high bending resistance capacity. This rigid polyurethane
foam doesn’t absorb water or decay, and it cannot be damaged by insects and mice. It has good fire resistance, and large scope of
heat resistance. With the physical properties of polyurethane PU and our unique prescription, we combine high temperature
polyurethane with coating steel panel, thus compact forming is achieved.
Item | Parameter | ||
Material | Type | Color steel sheet;galvanized sheet;Aluminum sheet | |
Thickness(mm) | 0.3-0.8 | ||
Width(Mpa) | ≤1250 | ||
Suitable size of panel | Length(mm) | 2000-18000 | |
Width(mm) | 500-1200 | ||
Thickness((mm) | 30-250(Not including height of corrugation) | ||
Production speed(m/min) | (Adjustable)3-15 | ||
Valid length of double belt conveyor(mm) | 12000-42000 | ||
Work pressure on pouring foam(Bar) | 150-200 | ||
Total power(kw) | 660kw/300kw | ||
Total size(Length×Width×Height) | 130000×15000×6000 | ||

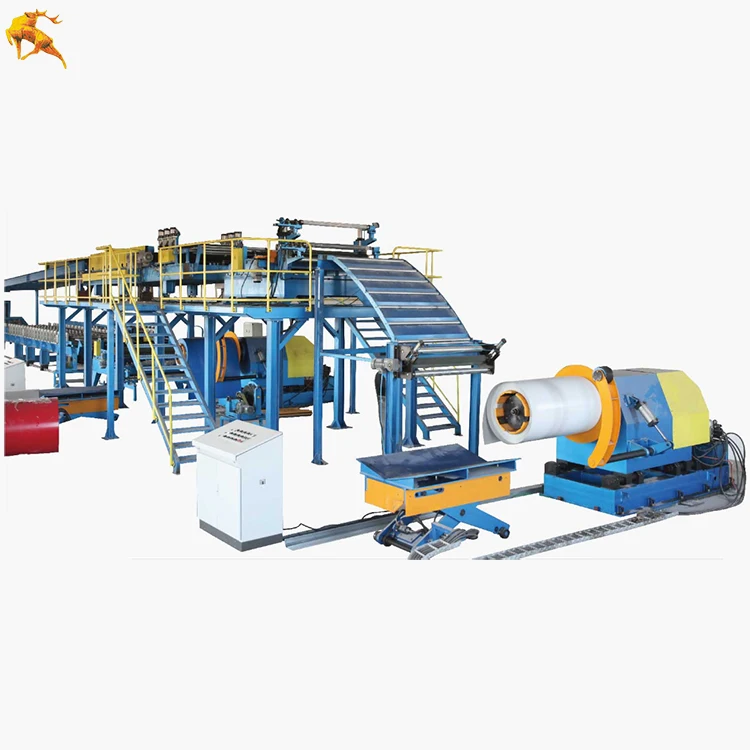

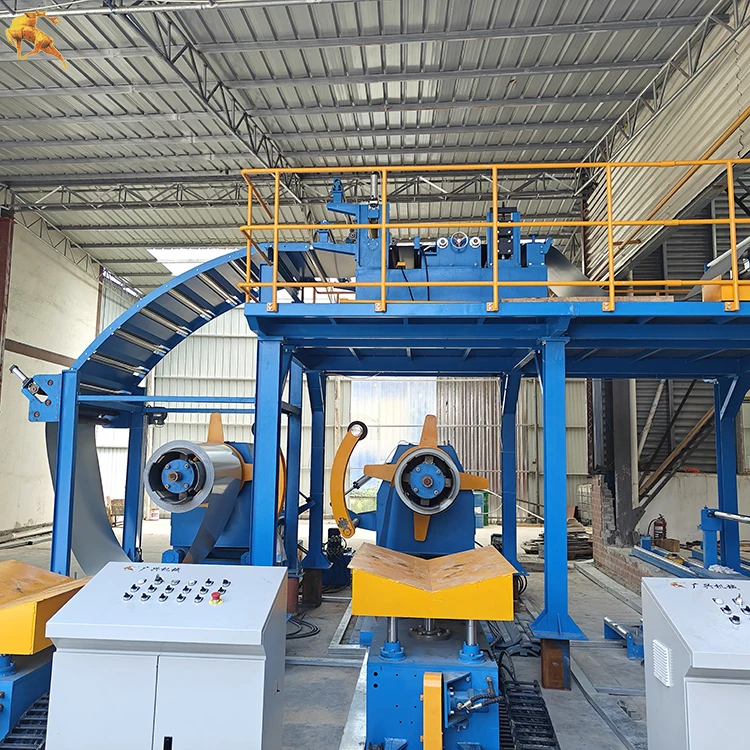

AUTOMATIC DECOILERS
Continuous feeding system ensures continuous high-speed operation.

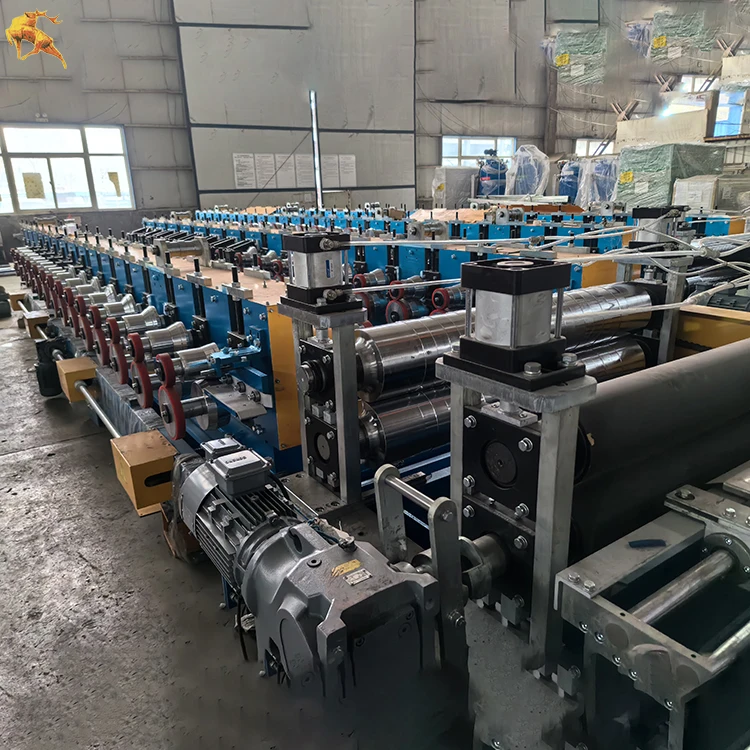

ROLL FORMING SYSTEM
The top plate is formed using a through-shaft roll forming machine, while the wall plate is formed using a cantilever roll forming
machine.(One roll forming machine can produce two types of panels,and the width is adjustable.)
machine.(One roll forming machine can produce two types of panels,and the width is adjustable.)
MULTI COMPONENTS HIGH PRESSURE PU vs PIR FOAMING SYSTEM
Key components such as metering pumps,flow meters, pressure sensors, high-pressure mixing heads, and control systems are all
sourced from imported brands to ensureflow accuracy and foam quality.
sourced from imported brands to ensureflow accuracy and foam quality.

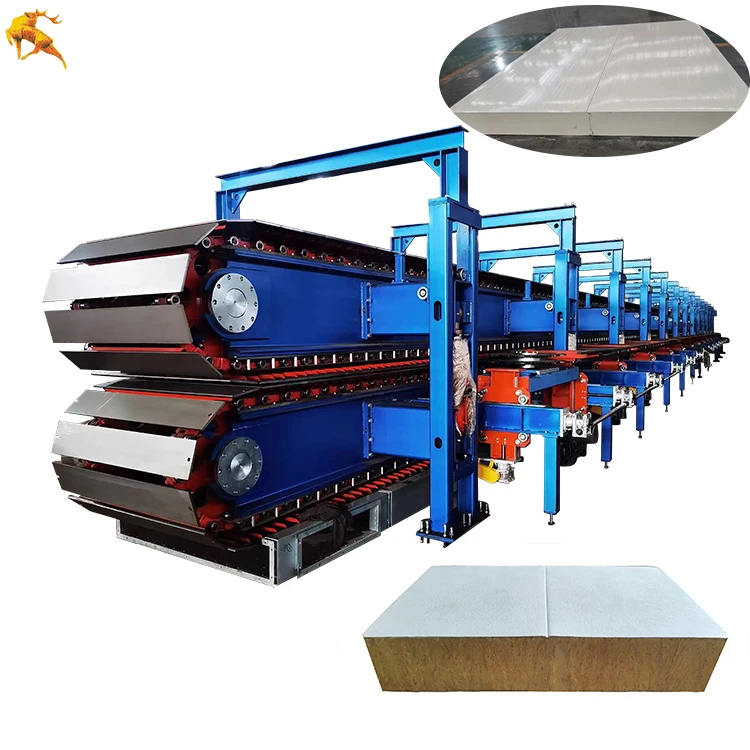

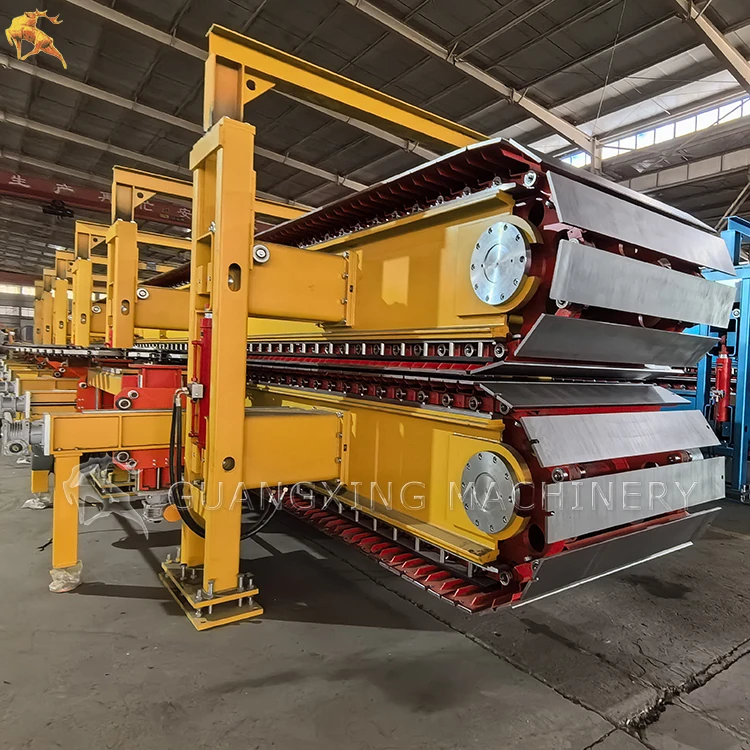

DOUBLE BELT CONVEYOR WITH HEATING SYSTEM
The geometry of the panel is formed duringmovement in the press, as a result of thereaction between chemical componentsand
restrictions on foam expansion. Thehorizontal planes of the press consist ofperfectly flat steel plates, which ensurea fixed
thickness of sandwich panels.The profile lock formation is providedby a system of side limiters.
restrictions on foam expansion. Thehorizontal planes of the press consist ofperfectly flat steel plates, which ensurea fixed
thickness of sandwich panels.The profile lock formation is providedby a system of side limiters.
BAND SAW CUTTING SYSTEM
The cutting section with a disk saw isequipped with a chip removal system.The saw speed is synchronized withthe line speed,
allowing sandwichpanels to be cut at maximum speed,even panels up to 2 meters long.
allowing sandwichpanels to be cut at maximum speed,even panels up to 2 meters long.
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
A: Honest business with competitive price and professional service on export process.
2. What's the lead time？
A: According to the order quantity, big order need negotiation.
A: According to the order quantity, big order need negotiation.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
A: Sure,welcome to you visit our factory at any time.
5.What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc.
A: We receive Escrow, T/T, West Union, Cash and etc.
