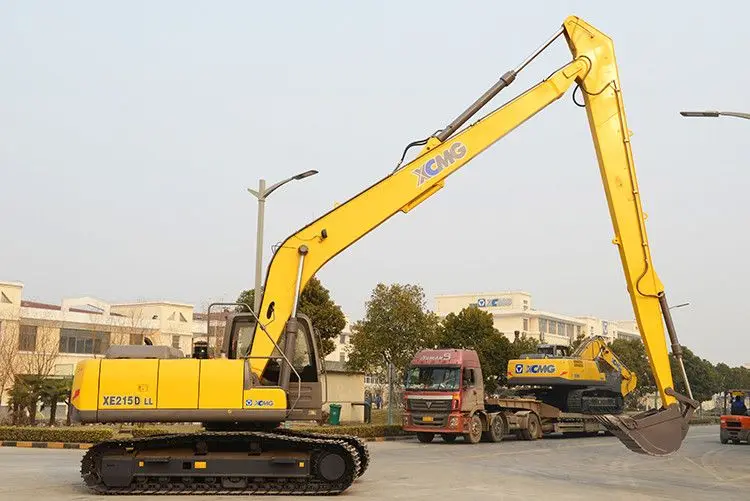

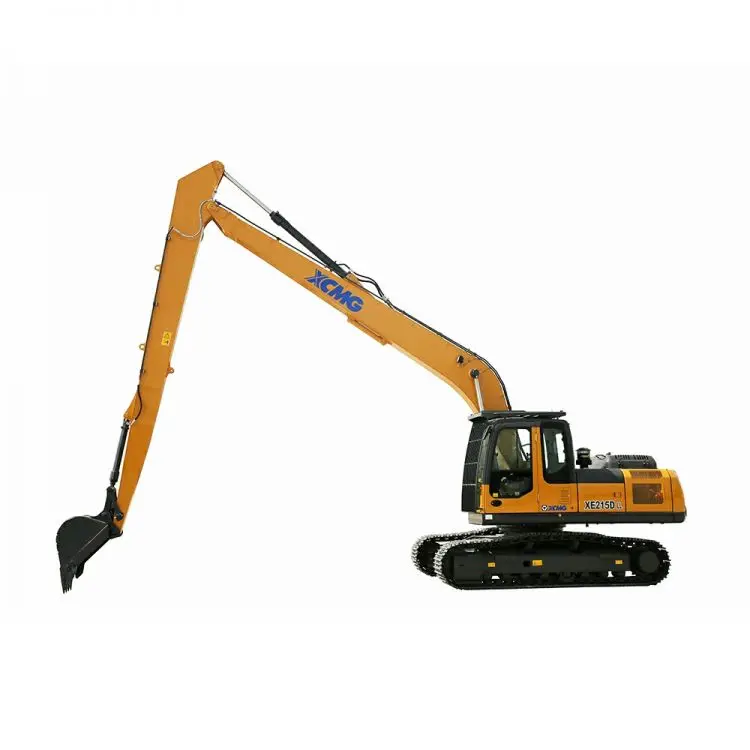

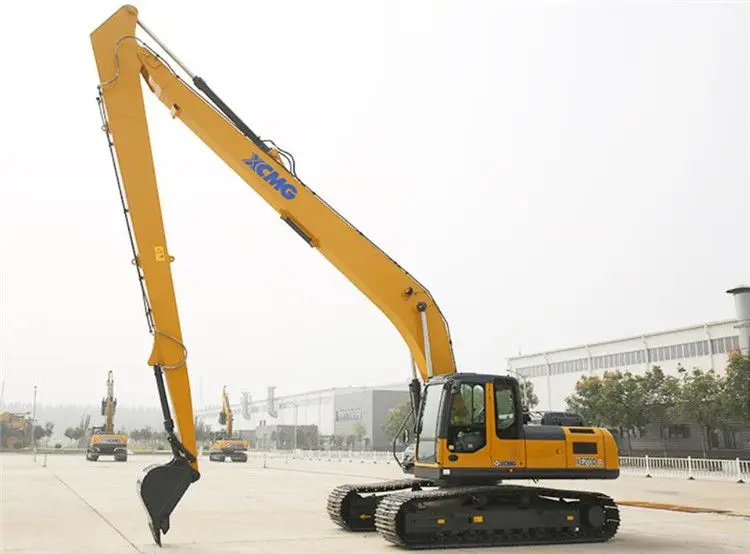

XCM G 21ton XE215DLL long reach boom arm crawler excavator for sale
- Category: >>>
- Supplier: RISEN Construction Machinery (Shanghai) Co. Ltd.
Share on (1601219971286):
Product Overview
Description
Hot Product Links
Product Description
1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
Main Parameter
| Sales model | Unit | XE215DLL | |
| Operating weight | Kg | 23900 | |
| Bucket capacity | m³ | 0.4 | |
Engine | Model | / | QSB7 |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo-charging | / | √ | |
| No. of cylinders | / | 6 | |
| Output power | kw/rpm | 135/2050 | |
| Maximum torque/speed | N.m/rpm | 740/900-1600 | |
| Displacement | L | 6.7 | |
Main performance | Travel speed | km/h | 5.4/3.1 |
| Swing speed | r/min | 11.8 | |
| Gradeability | ° | ≤30 | |
| Ground pressure | kPa | 38.6 | |
| Bucket digging force | kN | 78.7 | |
| Arm digging force | kN | 57 | |
| Maximum traction | kN | 184 | |
Hydraulic system | Rated flow of main pump | L/min | 2×225 |
| Main safety valve pressure | MPa | 34.3/37 | |
| Travel system pressure | MPa | 34.3 | |
| Rotary system pressure | MPa | 27.5 | |
| Pilot system pressure | MPa | 3.9 | |
Oil Capacity | Fuel tank capacity | L | 400 |
| Hydraulic tank capacity | L | 220 | |
| Engine oil capacity | L | 19.5 | |
Appearance size | Overall length | mm | 12140 |
| Overall width | mm | 3190 | |
| Overall height | mm | 3130 | |
| Width of platform | mm | 2830 | |
| Track length | mm | 4255 | |
| Overall width of chassis | mm | 3190 | |
| Track width | mm | 800 | |
| Length to center of rollers | mm | 3462 | |
| Track gauge | mm | 2390 | |
| Counterweight clearance | mm | 1050 | |
| Min. ground clearance | mm | 486 | |
| Min. tail swing radius | mm | 2844 | |
| Track height | mm | 942 | |
Working scope | Max. digging height | mm | 13500 |
| Max. dumping height | mm | 11150 | |
| Max. digging depth | mm | 11610 | |
| Maximum depth cut for 2240mm(8 ft) level bottom | mm | - | |
| Max. vertical wall digging depth | mm | 8800 | |
| Max. digging radius | mm | 15430 | |
| Min. swing radius | mm | 4730 | |
Standard configuration | Length of boom | mm | 8140 |
| Length of arm | mm | 6335 | |
| Bucket capacity | m³ | 0.4 | |
Optional configuration | Length of boom | m³ | / |
| Length of arm | m³ | / | |
| Bucket capacity | m³ | / | |
Our Factory
RISEN ConstructionMachinery (Shanghai) Co., Ltd is engaged in developing, manufacturing andexporting construction machines in the areas of building, mining, energy andlogistic engineering. Offering 8 major categories, 38 product line and morethan 1000 models, RISEN is able to provide complete equipment package to theclients from all walks of life.We are a wholesaler of many brands in China, a professional exporter of construction machinery and a one-stop solution provider. Our team has over 15 years of experience in this field.
From the factory to our customer's destination, we will conduct all-round supervision.We can also helpto sign purchase ordercontracts, test product quality, guarantee timelydelivery, and accomodate special orders.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.

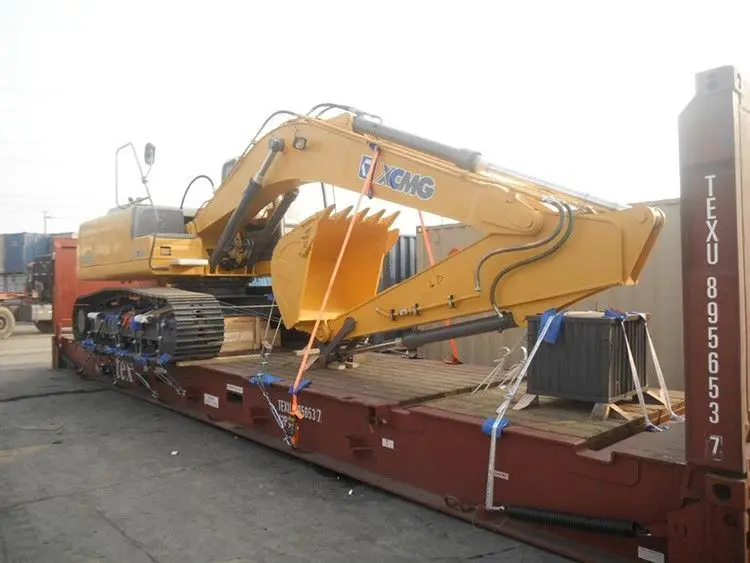

What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
