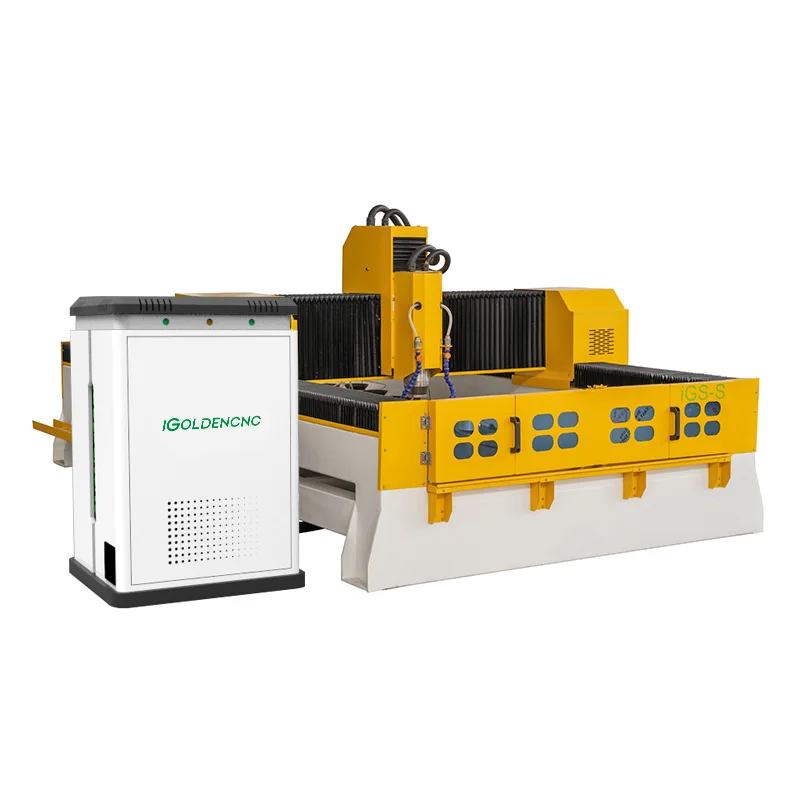

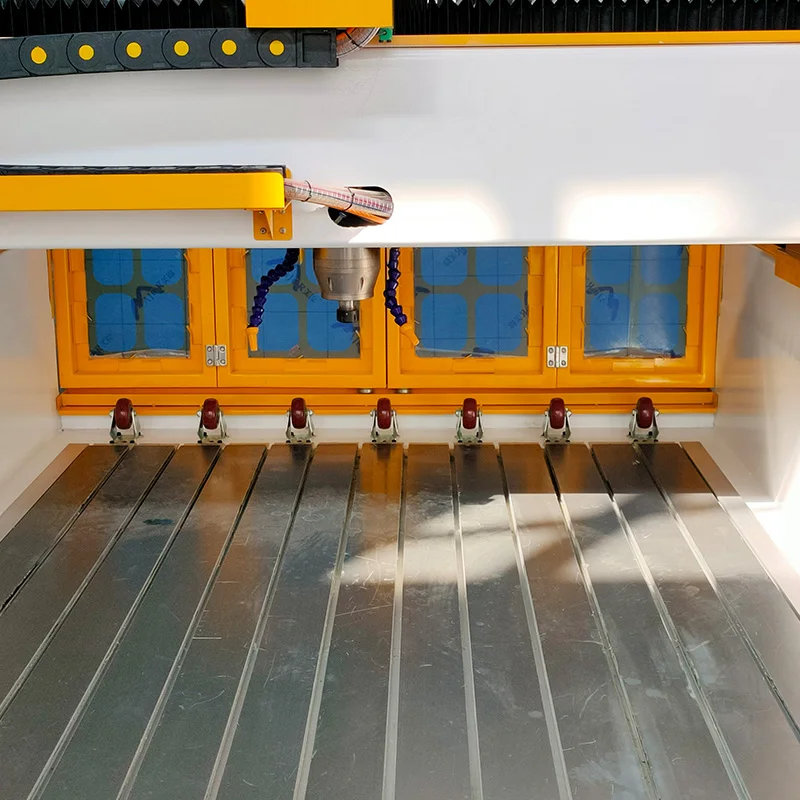

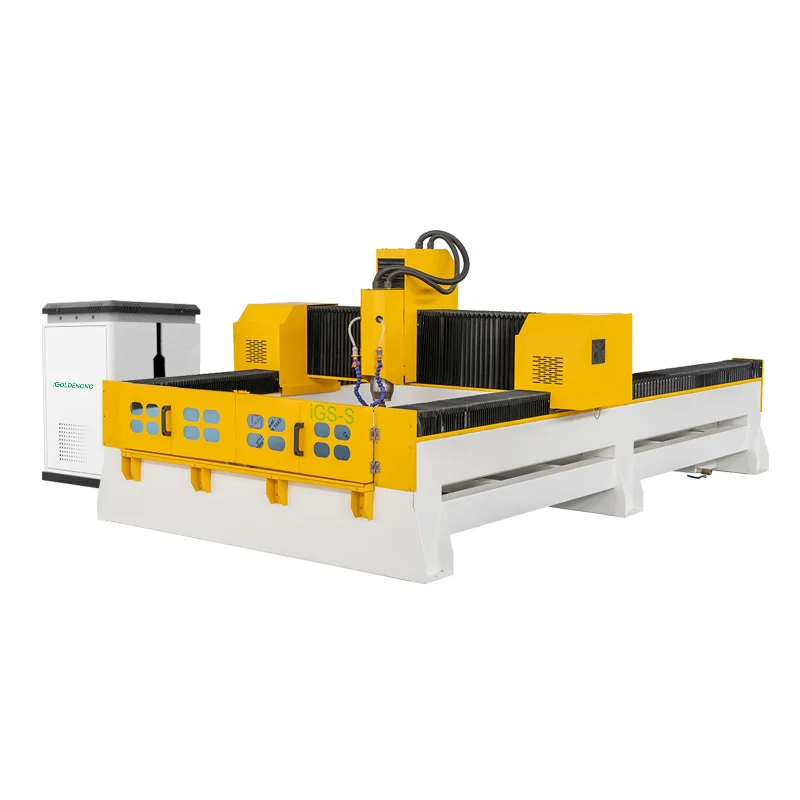

High speed granite stone carving cutting machine

Product Overview

Description

China High speed granite stone carving cutting machine



Features

1.Solid gantry,well structure of lathe bed,stable and high speed,high accuracy.

2.Highspeed air cooling spindle and high performance subdivision driver ensure work stably for long time.

3.With easily-learned sofware,conveniently check the moving path

of tool,and adjust the processing depth of Z axis and the speed of motor.

4.Vacuum table with great absorption strengt,high efficient for mass production, cutting speed over 20m/min. Low vibration and smooth motion ensure higher work piece quality.





Parameter

Item	Description		Option
Model	IG-1325		Customize sizes available
Work area	1300x2500x400mm
Table size	1485x3000mm
Transmission	X/Y rack and pinion drive, Z ball screw drive
Motor	Stepper motor		Delta s/Yaskawa / Panasonic servo
Spindle	Power	3kw/4.5/5.5/7.5kw	4.5kw/5.5kw/6kw
	Cooling	Water cooling	air cooling
	speed	0-18000rpm
Table type	T-slot		Vacuum table
Travel Speed	0-25m/min
working speed	0-15m/min
Reposition Accuracy	0.005mm
Control System	Nc-studio		DSP / Mach3 / Syntec
Command code	G code,HPGL,U00,mmg,plt,
Design software	ARTCAM/TYPE3/ CAD/CAM
Working Voltage	AC380v 3phase/50HZ
Temperature	0-45℃

  Application



1.Wood working: Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board,mahjong table,computer table .
2.Advertising: Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products
3.Model industry: It can engrave on the metal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble, sand, plastic board PVC materials, wood board etc.
4.Other field: It can engrave many image, embossment,and widely used in artistic industry.

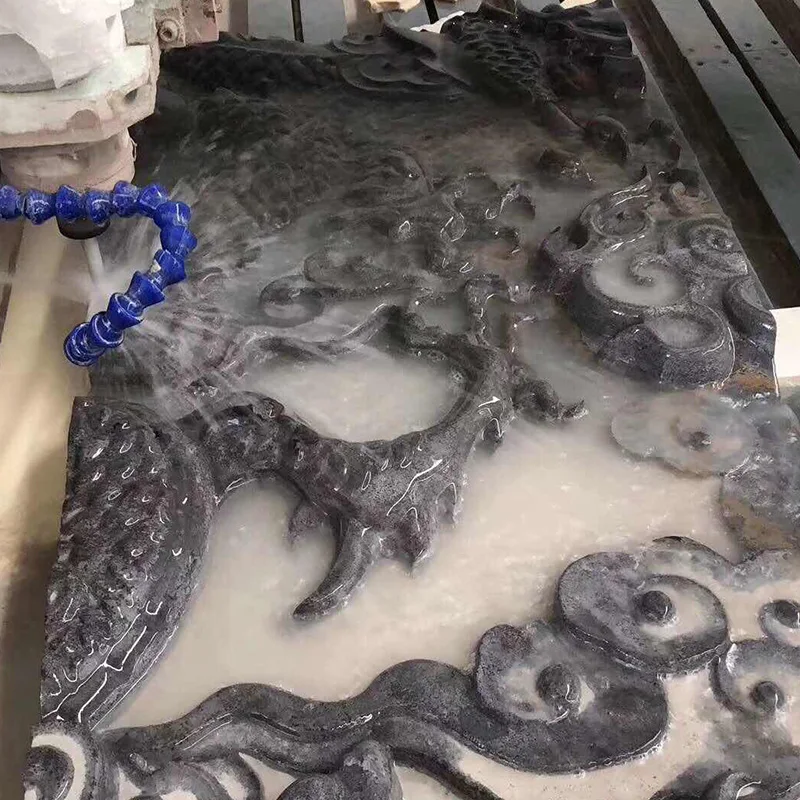

 Samples

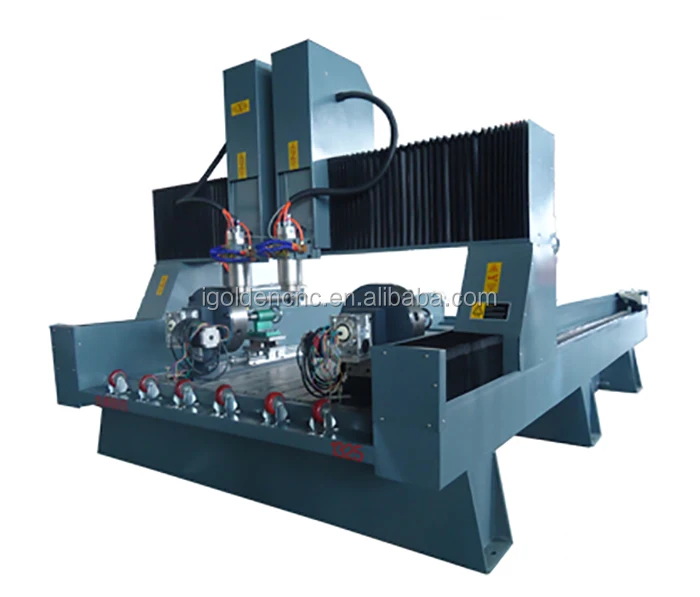

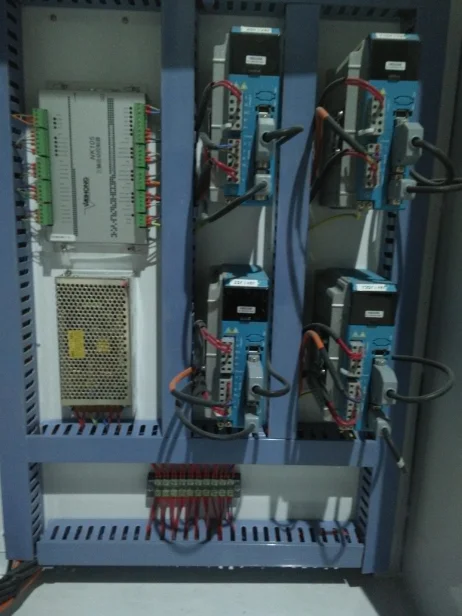

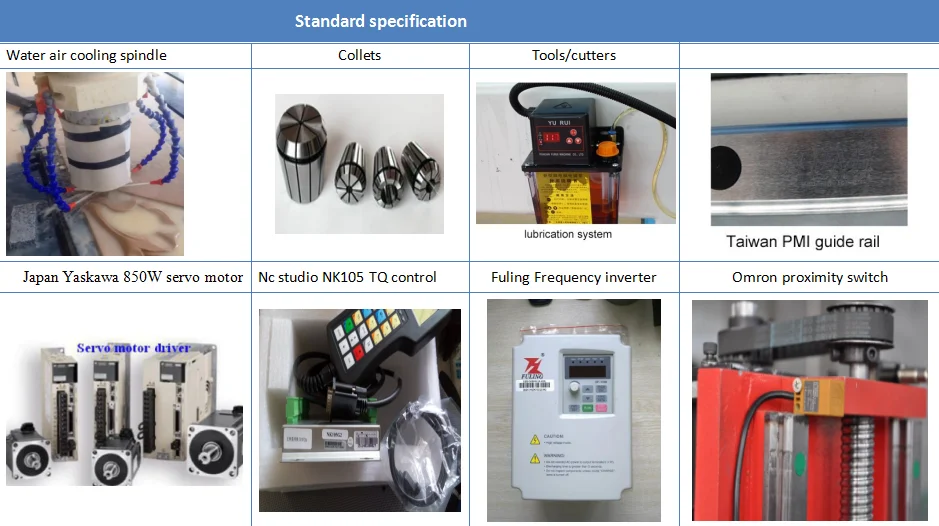

 Machine detail :

FAQ



Q1: Please tell me what’s material you want to cutting or engraving  by router cnc?
 And what’s MAX size of carved material ?

Do you mainly engrave or cut?

If cut,What is your Max.cutting thickness?

would you mind showing me your sample pictures?



Q2: How about your company’s control system for router cnc?
We set up a special QUALITY CONTROL DEPARTMENT inside of the factory.Therefore there is a strict control for each process,and we have regulated the standards for welding process, machining process, assembly process, manufacturing process and packaging process,etc.



Q3:  Does router cnc comes with software?
we offer Type3, ArtCAM software with machine.





Delivery and Transport:



We can send machine to your port or door address by sea or airplane.



Pls kindly tell us your near port or address with postcode.





Warranty and Service:



Two year warranty for machine



We offer online service 24 hours all day Skype, Email and so on.



English manual and Video CD for manchine using and maintance.



Stone engraving machine production process:











Our workshop:
