Diesel Engine Trailer Concrete Pump 50M3 H Electric Mini Concrete Pump Machine, Mini Concrete Pump , Concrete Pump For Sale
- Category: >>>
- Supplier: Hebei Zhongke Jiantong Machinery Equipment Co. Ltd.
Share on (1601221379660):
Product Overview
Description
Product Description

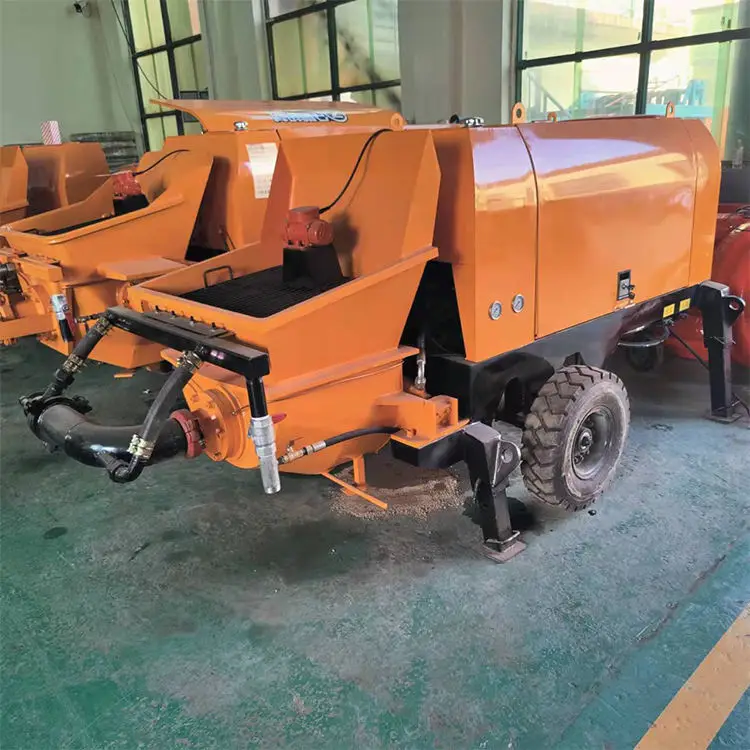

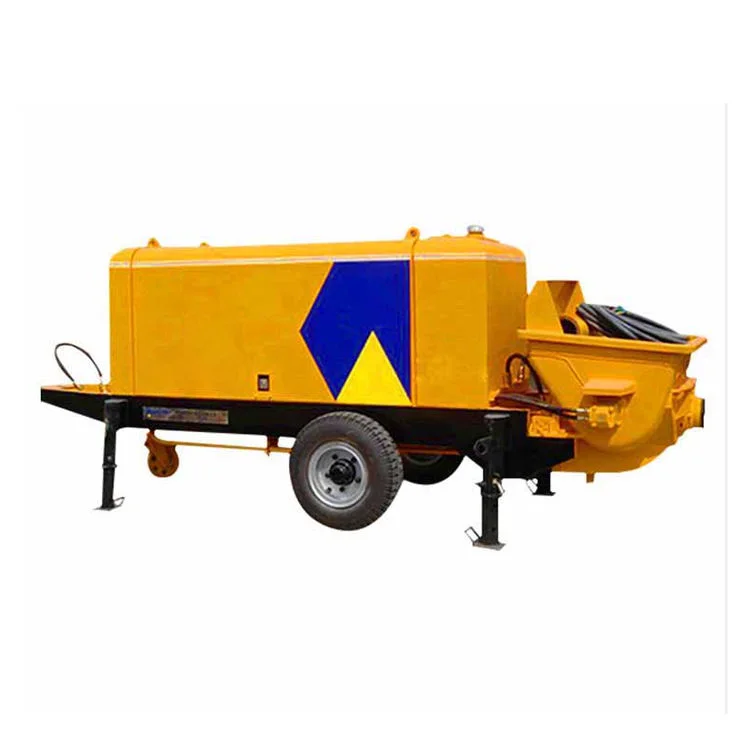

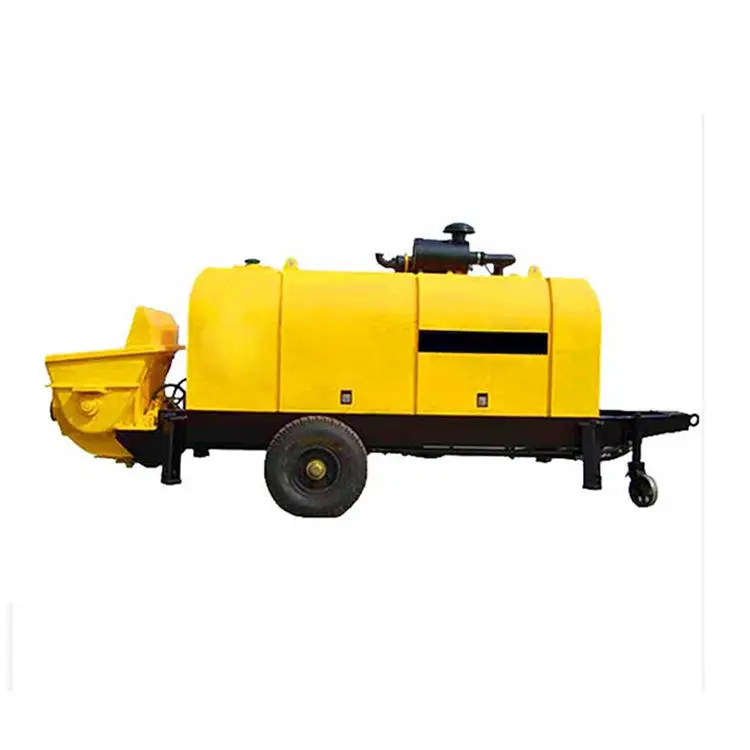

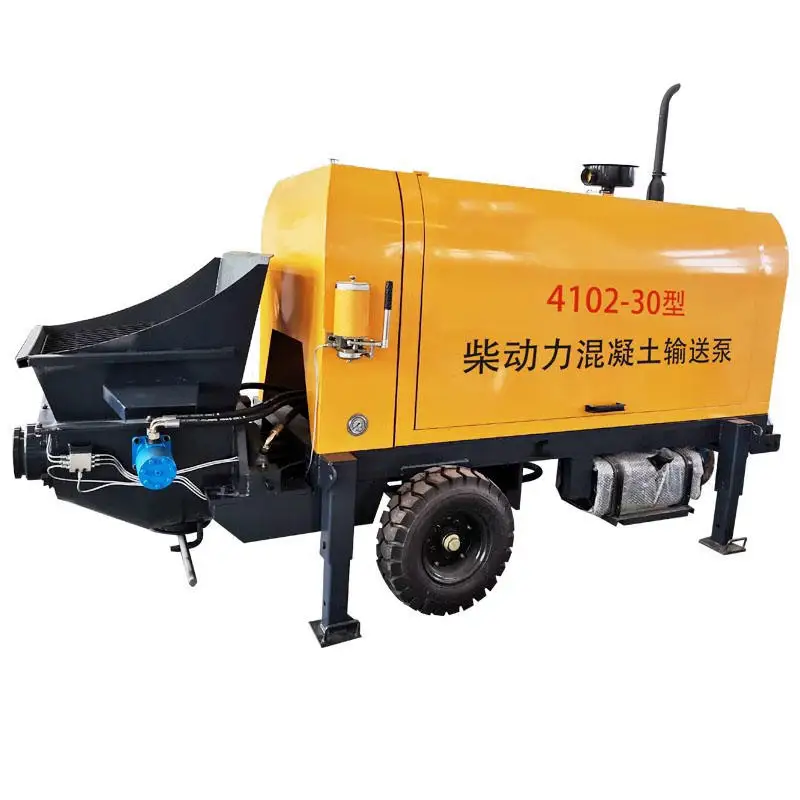

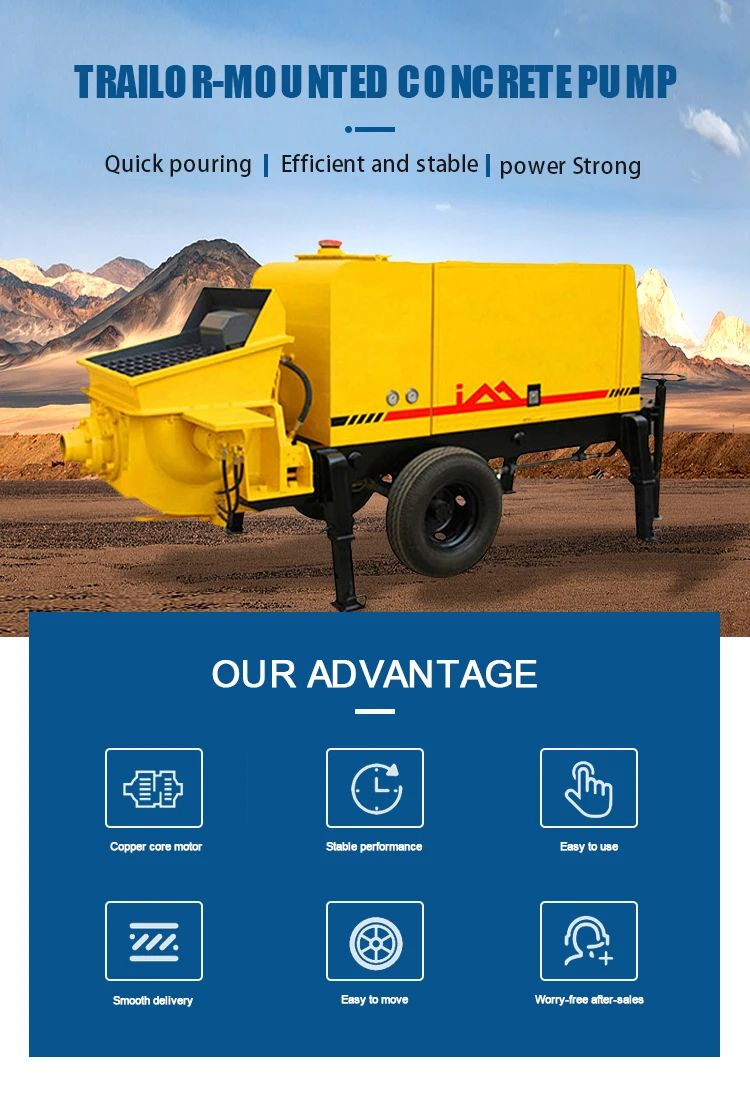

CONCRETE PUMP Also called trailer mounted concrete pump or concrete trailer pump, is the kind of small concrete pump mounted on the move able trailer to to convey concrete to hard to access flexibly. concrete pump trailer is specially designed and engineered with latest differential pressure induction control technology to keep reliability, simplify and efficiency.

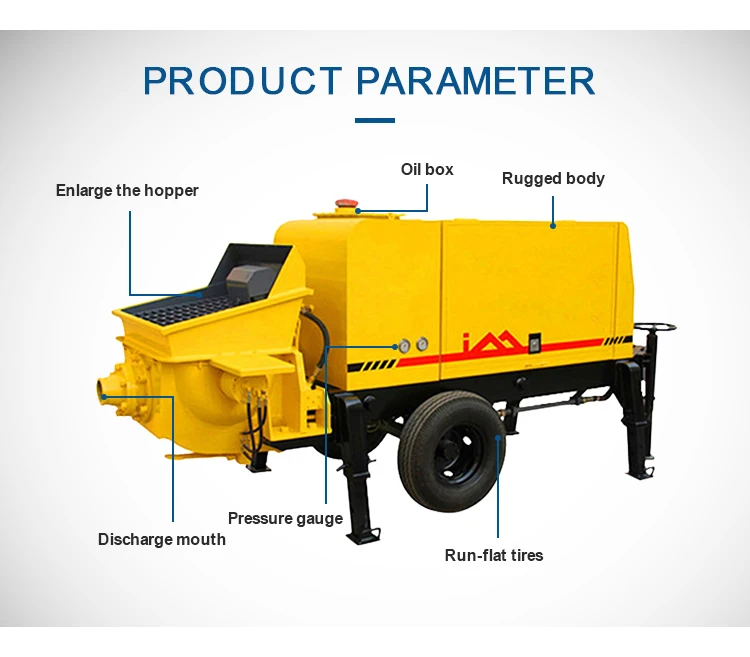

Product parameter
| Model | ZK-10 | ZK-20 | ZK-40 |
| Driving mode | Self-propelled(electric) | Drag-and-drop | Drag-and-drop |
| Motor Power | 15KW(National standard) | 22KW(National standard) | 55KW (National standard) |
| Working form | Hydraulic piston | Hydraulic piston | Hydraulic piston |
| Concrete throughput | 10m³/h | 20m³/h | 40m³/h |
| Largest aggregate size | <15mm | Type A <15mm, Type B <30mm | <30mm |
| Duct diameter | 75/80mm | 75/80mm | 75/80mm |
| Bore/stroke | 120/400mm | 120/500mm | 160/800mm |
| Machine weight | 720kg | 1050kg | 2700kg |
| Product usage | Conveying mortar fine stone | Conveying fine stone concrete | Conveying mortar fine stone |
| Dimension | 2000*700*1050mm | 2350*820*1150mm | 4500*1500*1700mm |
| Theoretical max. conveying distance | Vertical 30m Parallel 60m | Vertical 50m Parallel 80m | Vertical 240m Parallel 550m |

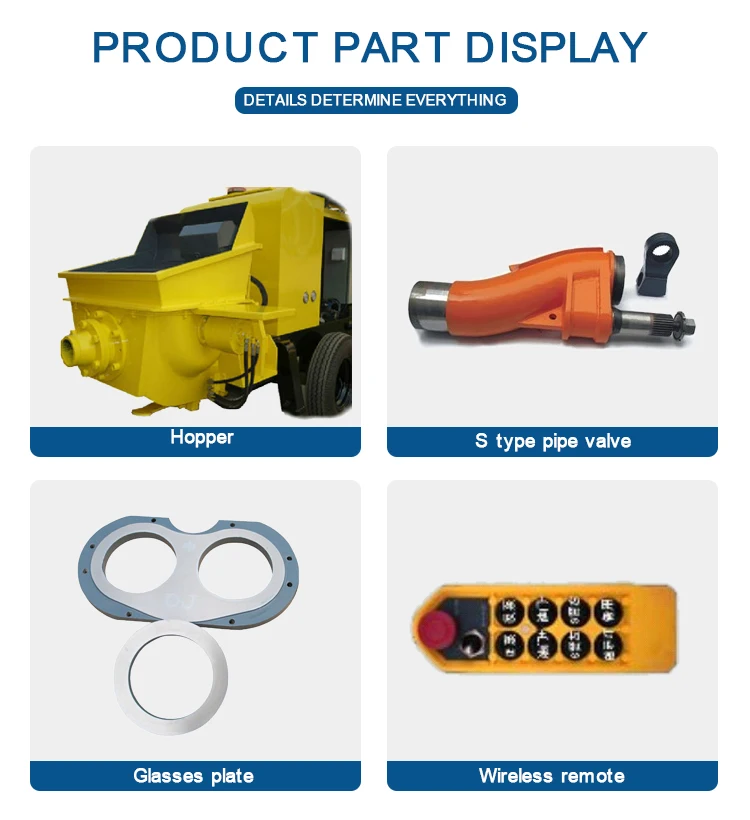

Product Details

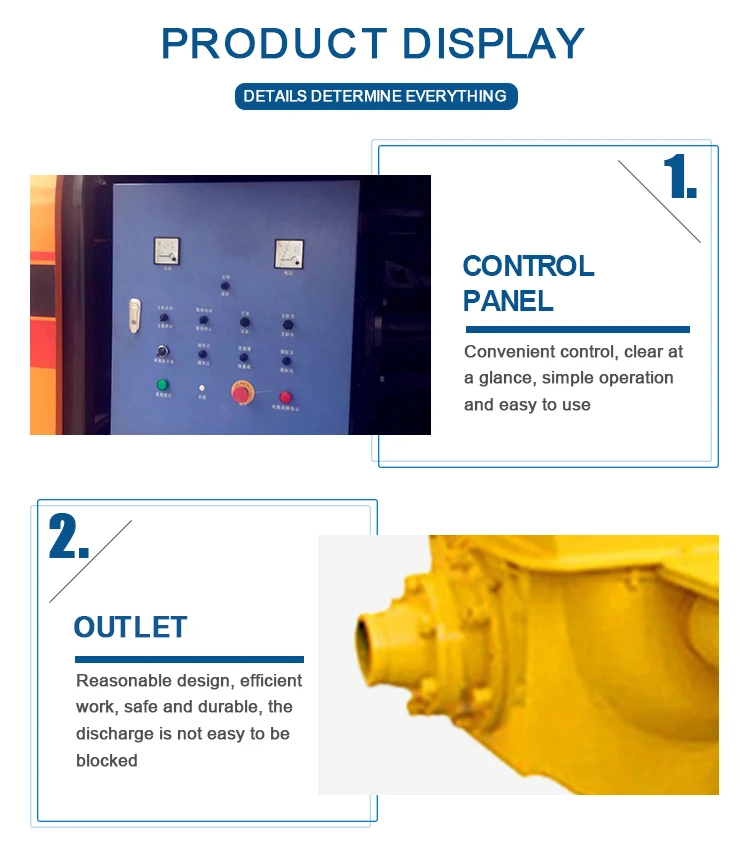

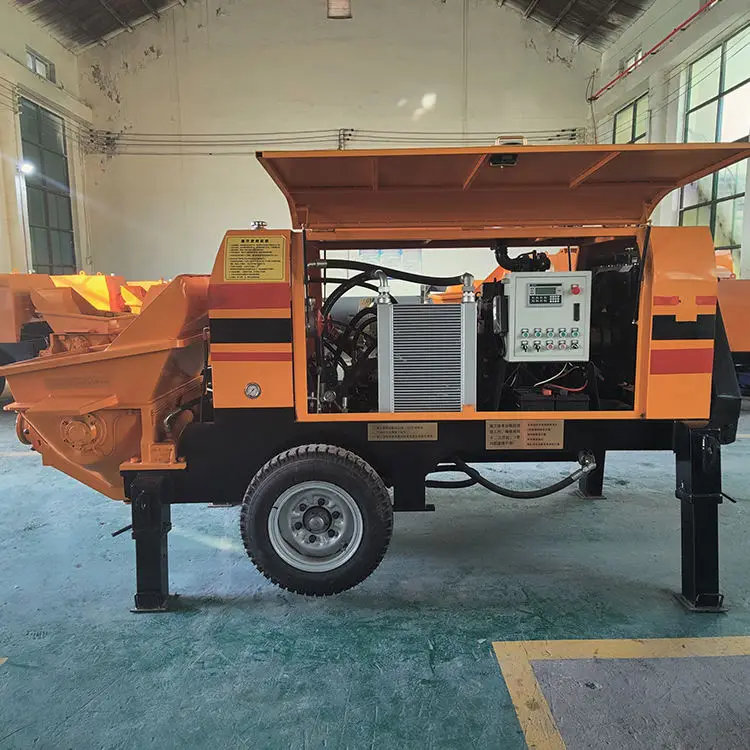

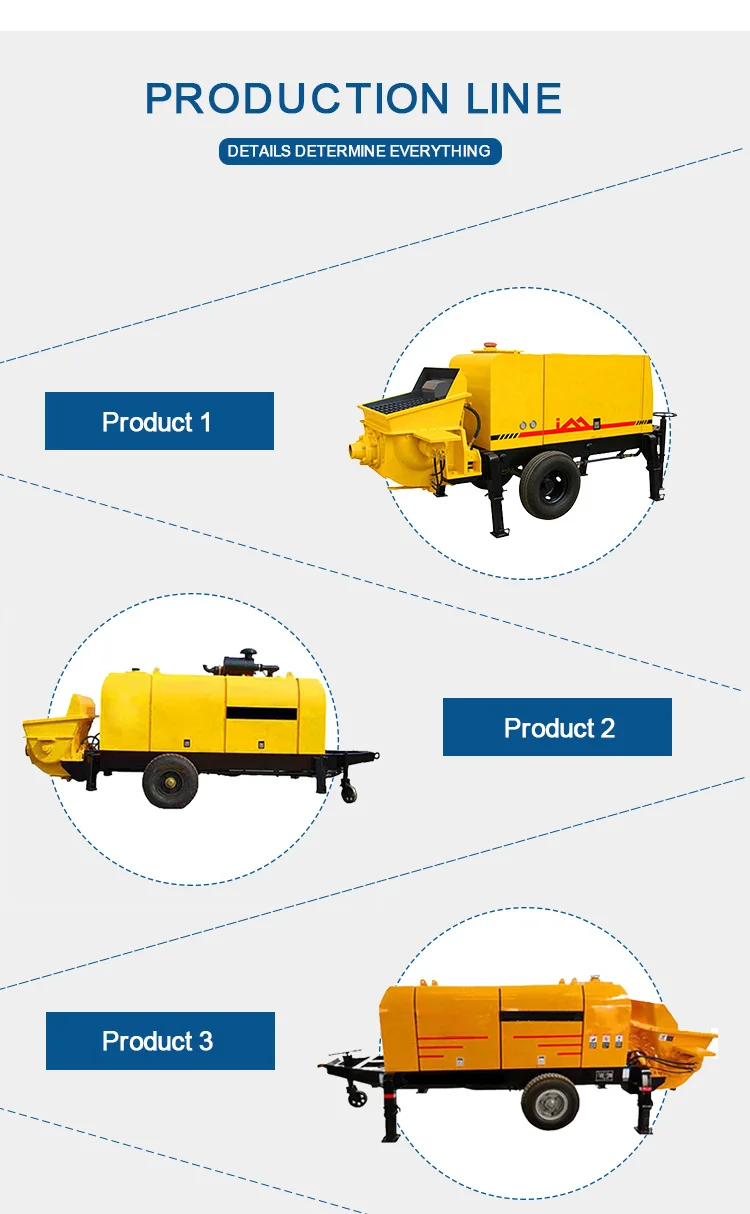

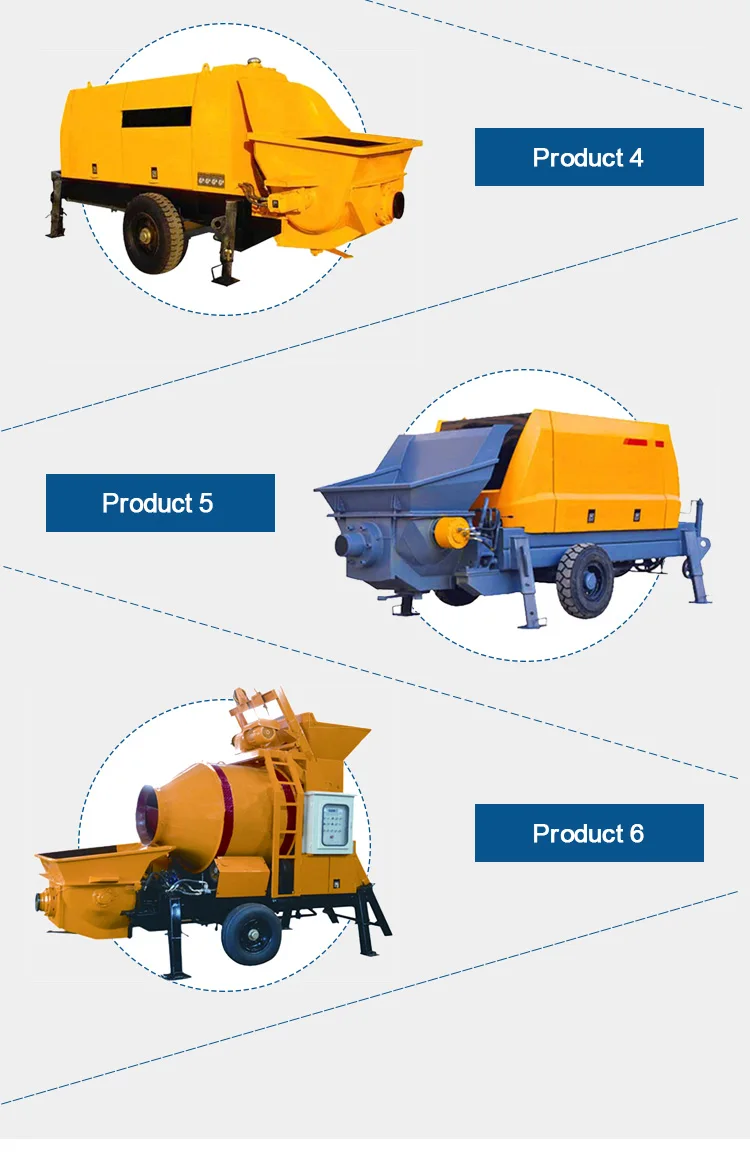

Product Display
Customer Feedback

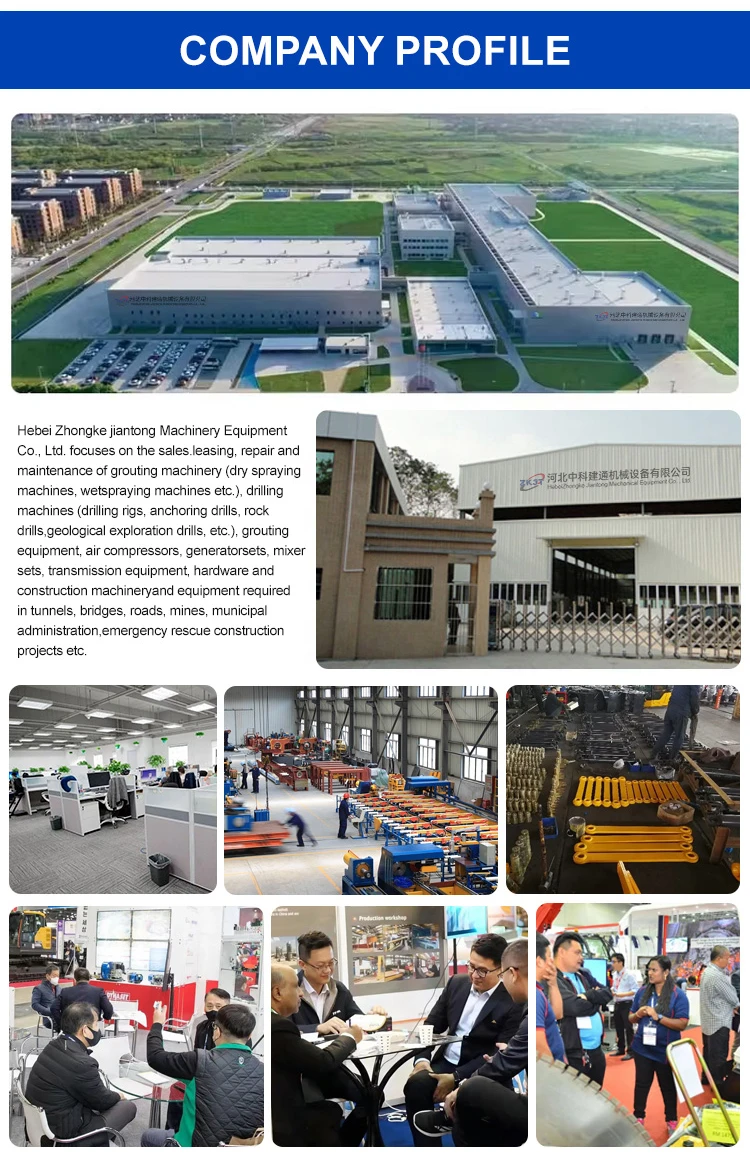

Company Information

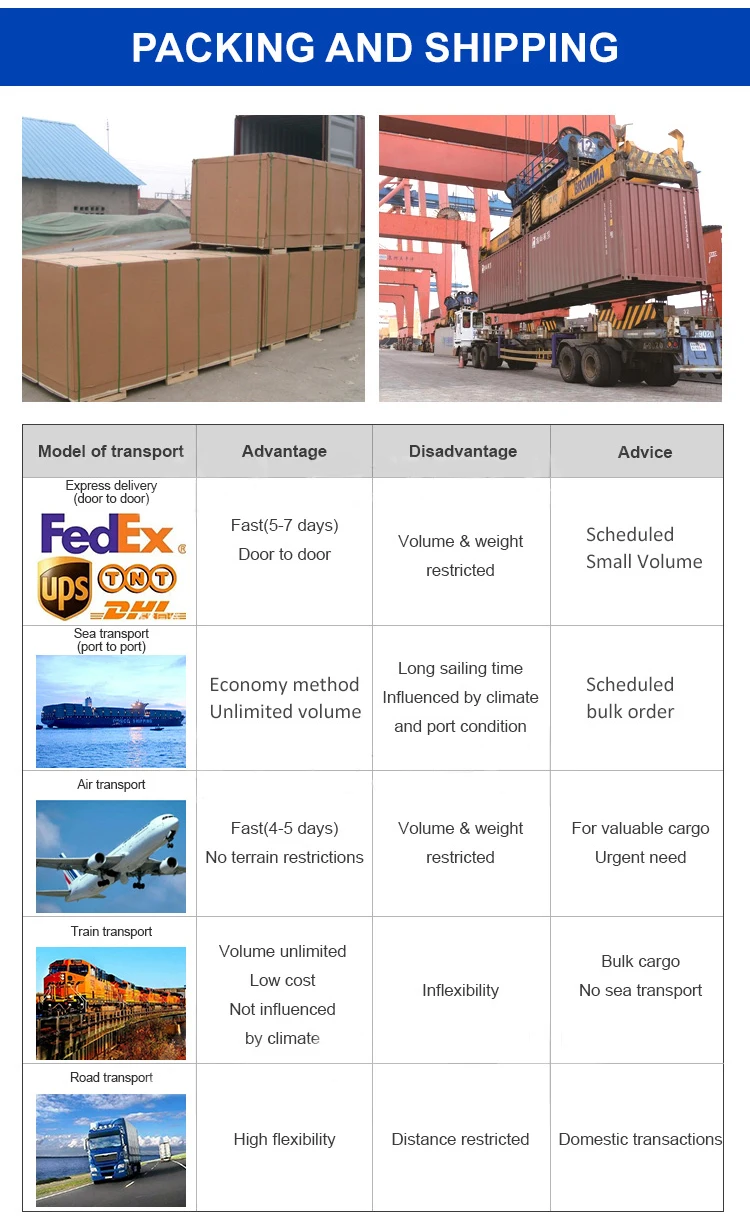

Packaging & Shipping
FAQ
Q1. Are you original manufacture?
Yes,we are a manufacturer.
Q2. What is the delivery time ?
Generally we need 7-10 days to produce the machine after prepayment .If in stock, we will ship within 1-3 days.
Q3. How about the warranty ?
We supply 3YEARS warranty .
Q4. How should we do if the machine broken ?
You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q5. How should we do if parts are broken ?
We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea of by air .Or deliver with the next order
Q6. What kind terms of payment can be accepted?
T/T, L/C, Western Union is available.
Q7. Do you support customization?
Yes ,sir ,no problem .
Q8. How do you pack the machines ?
Generally ,we pack them in export wooden cases ,we make sure it is safe for transportation .
