Steel Wire Ropa Barrier Highway Guardrail
- Category: >>>
- Supplier: Xiamen Chuangying Import& Export Co. Ltd.
Share on (1601222585682):
Product Overview
Description
Product Description
Product Name | High Quality Expressway Guardrail |
Material | High Tension Steel |
Surface Treatment | Hot Dipped Galvanized |
Color | Standard Bright Silver |
Cable Structure | 3×7 Class ( also1x7,1x19, 6x7 ) |
Cable Diameters | 10-30mm |
Cable Numbers | 3, 4, 5, 6 or custom |
Zinc coating thickness | 100 g/m2 Min. or custom |
Tensile Strength | 2,000 to 9,000 lb (1570Mpa, 1670Mpa,1770Mpa,1870Mpa ,1960Mpa, etc) |
Application | Highway Guardrail, Road Safety, Cable Barrier, Wire Rope Safety Barrier etc. |

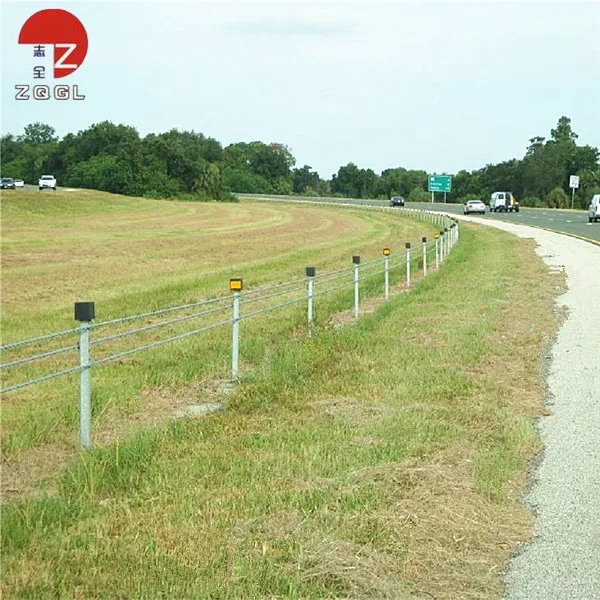

About Cable Barrier

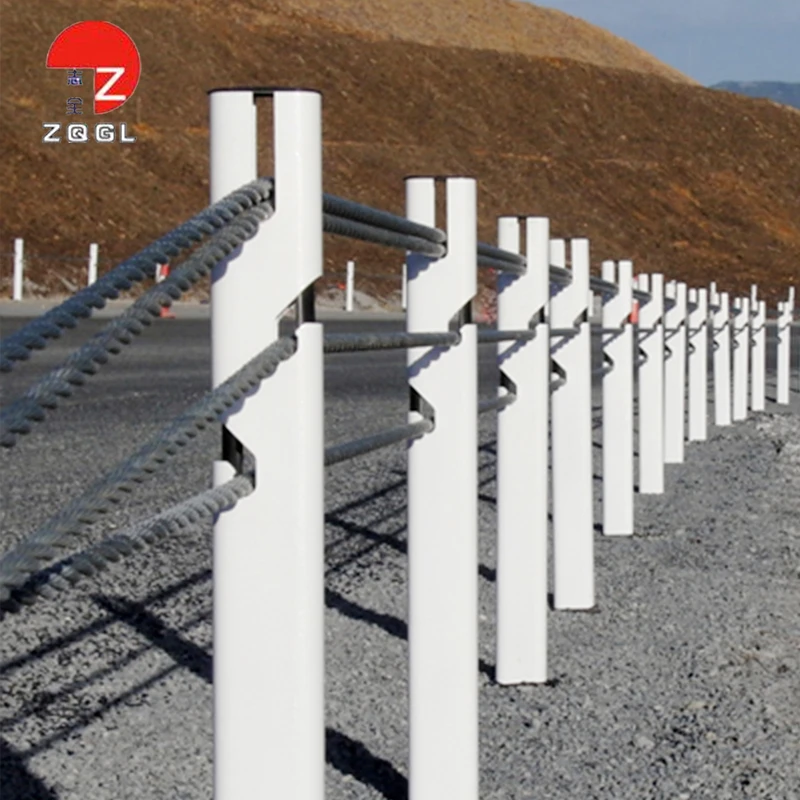

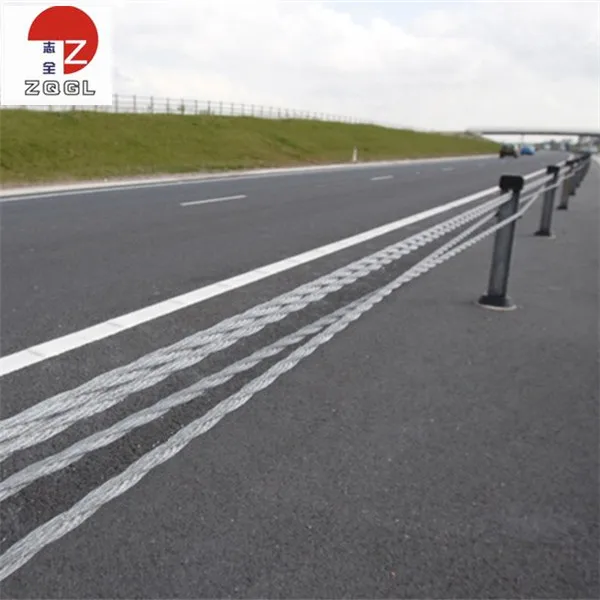

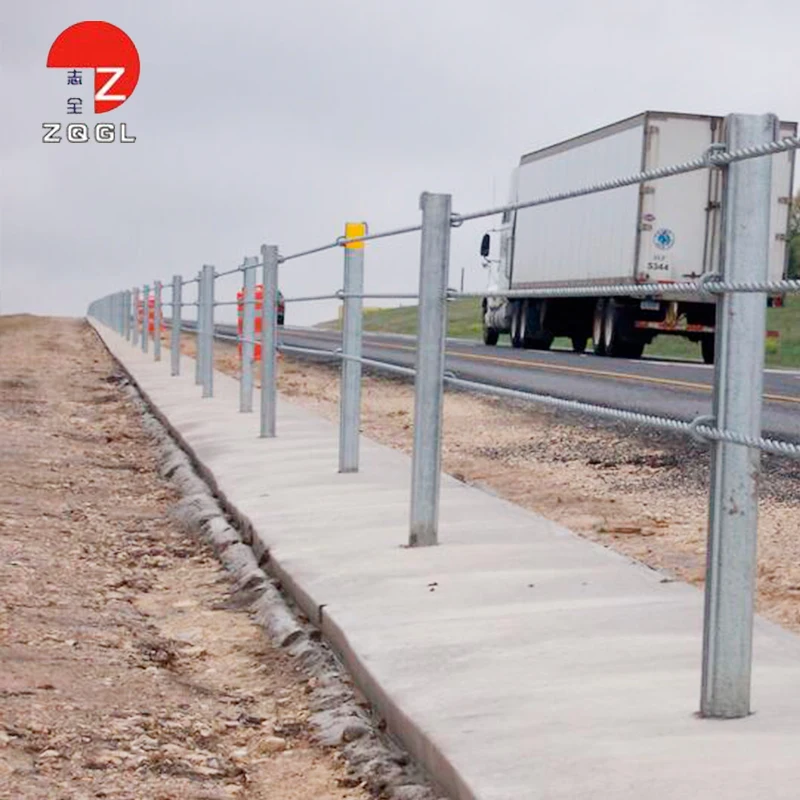

A Cable Barrier,also known as cable guardrail,or wire rope safety barrier(WRSB),is a type of roadside or median safety traffic barrier/guard rail.It consists of pre-tensioned steel wire ropes mounted on posts that are driven into the ground. This barrier system composed with chiefly hot dipped galvanized three,four,five or six high tensile steel wire ropes,steel posts and terminals offering excellent rust resisting and corrosion resisting property.
【Advantages】
● Low cost, Easy to install and repair
● Less impact on accident car and the persons inside
● Cable tension and Post space can be adjusted
● Prevent vehicles from running off the road effectively
● Absorb most sudden impact energy during collision
● Can be reused after accident by somehow repairment
● Anti-rust, anti-corrosion and anti-aging
● Good looking for open scenic spots
【3x7 Galvanized Steel Wire Ropes】
Model of Pre-stretched 18mm/19mm diameter 3x7 galvanized steel wire ropes are commonly used in roadside cable guardrails.A 3x7 steel wire rope has three strands, each strand is made up of 7 identical wires wound around a center, meanwhile the wire ropes are galvanized for keeping the cable free of corrosion and rusting.
Rope Diameter (mm) | Wire Diameter (mm) | Strengthg Grade (Mpa) | Theoretica L Weight (kg/m) | Zinc Thickness (g/M2） |
10 | 1.6 | ≥1370Mpa | 0.34 | ≥220 |
11.3 | 1.8 | ≥1370Mpa | 0.43 | ≥220 |
12.6 | 2.0 | ≥1370Mpa | 0.53 | ≥220 |
13.9 | 2.2 | ≥1370Mpa | 0.65 | ≥230 |
16 | 2.54 | ≥1370Mpa | 0.86 | ≥230 |
18 | 2.86 | ≥1370Mpa | 1.09 | ≥250 |
19 | 3.0 | ≥1370Mpa | 1.20 | ≥250 |
20-25 | 1.49-2.51 | ≥1370Mpa | 1.49-2.51 | ≥250 |

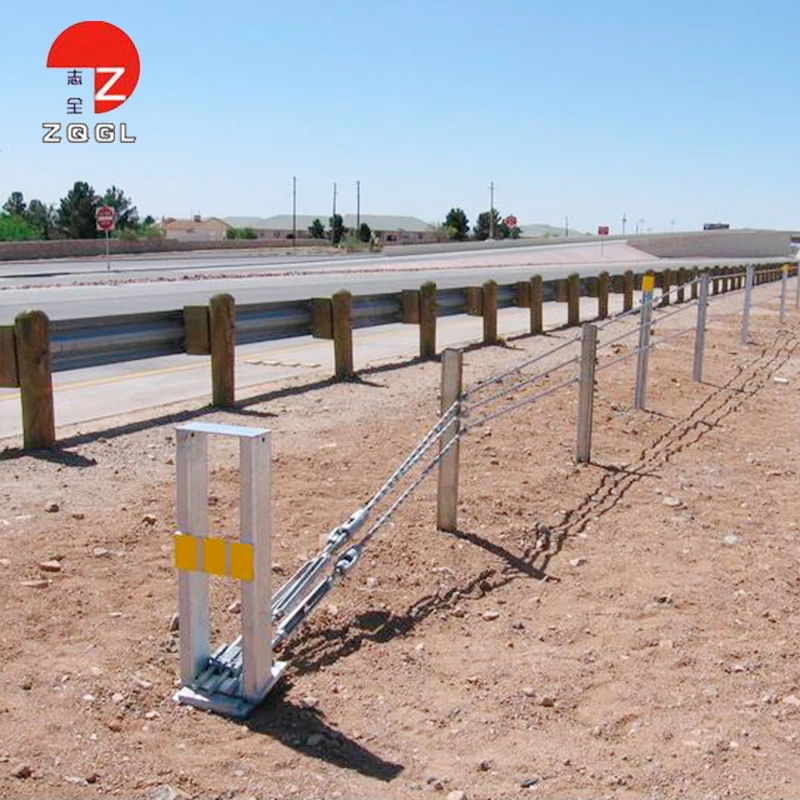

【Install of Cable Barriers】
1.Cable numbers: three or four cables are commonly used,five or six cables are used for reinforced guard railings.
2.Space distance:posts often installed with spacing from 6.3 to 32.6 ft,the longer spacing the higher deflection distance.
3.Tensioning: Cables are fixed on the post and tightened to specific tension as per local environment.After tension, the reflection will be reduces and the ability to preventing vehicles from skidding off the road can be enhanced. Normally the tensions values range approximately from 2,000lb to 9,000lb.

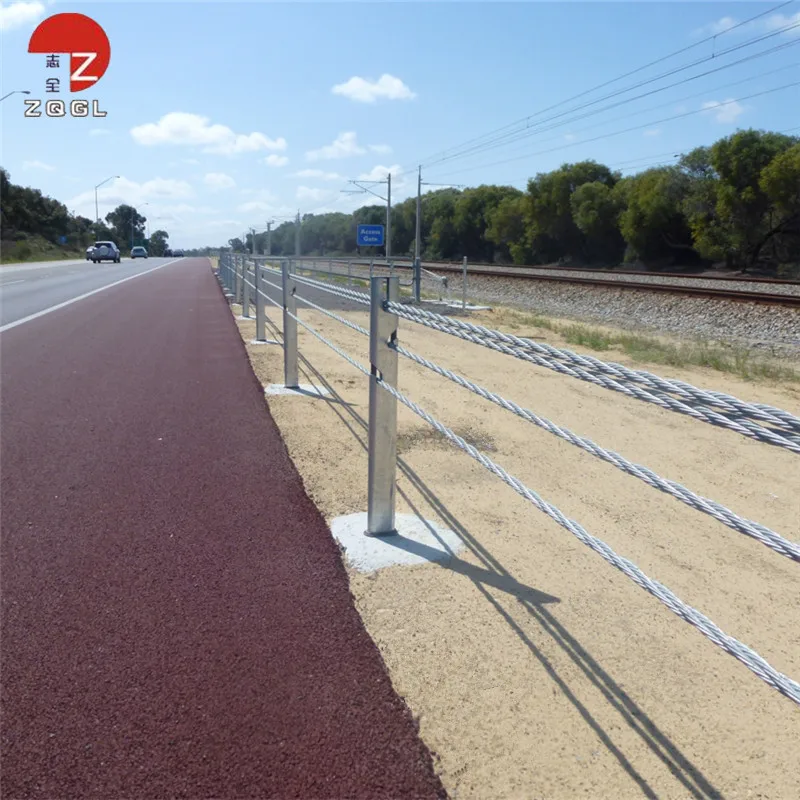

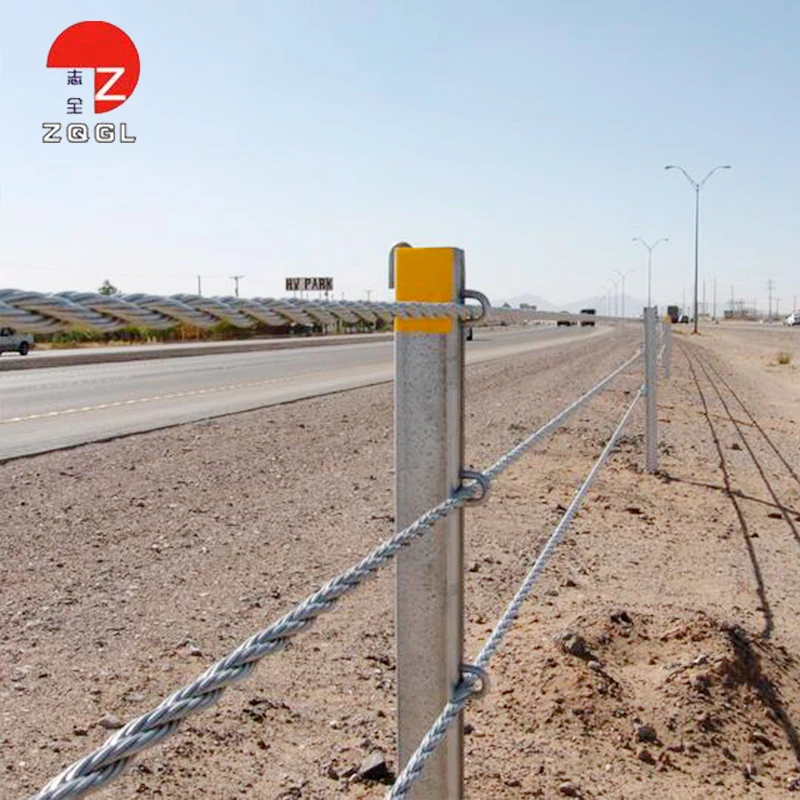

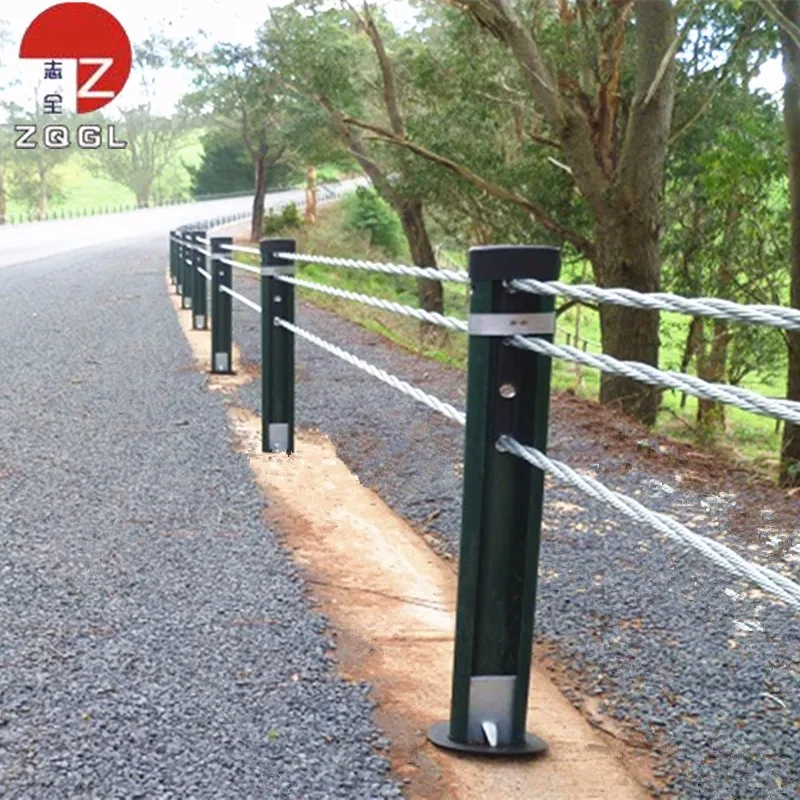

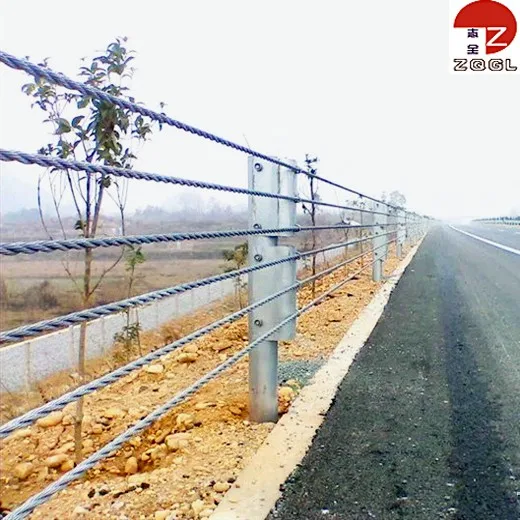

Products Show
Zinc (galvanized) coated steel cable is the most common type of cable. It offers moderate corrosion resistance, and remains ductile over long periods when running over sheaves. Galvanized cable is stronger than stainless steel cable.
Packing & Delivery
Packing Details :1000/1500 meters wire ropes will be wrapped in wooden reel,or as customers' requirements.
Delivery Details : 10-20 days after receipt of payment.
Reel size: L720mm x H980mm;
Reel weight: 40kgs/pc
Our Company
The Leading Company in the field of Highway Cable Barrier
ZQGL has an annual output of 5,000 tons of highway cable barriers. The Company also supply posts in various shapes ( U type / Round type / Rectangle type ) and post caps, offset blocks, bolts and nuts, cable anchors and other accessories in connection with cable barriers.
Certifications
ISO9001:2008
Beijing ZhongLian TianRun Certification Center(ZLTR) certify that the Quality Management System of the above arganization has been assessed and found to be in accordance with the requirement of the standard: GB/T9001-2008/ISO9001:2008.
