horizontal screw belt mixer powder powder mixer powder and slurry liquid mixer

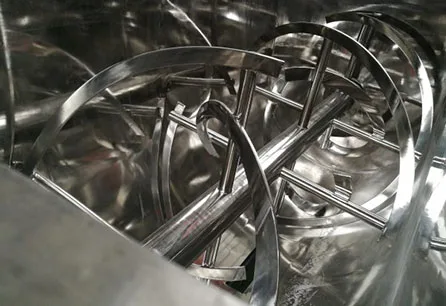

Working Principle

Under the movement of the spiral belt of the stirring shaft,the inner and outer spiral belt flips the material in a wide range,the inner spiral belt moves the material from both sides to the inside,so that the materials is mixed back and forth,and the other part of the material is pushed by the spiral belt, along the axial radial mobement,thus forming a convection cycle. Materials in a relatively short period of time to obtain rapid and uniform mixing.

Performance characteristics:

1, The machine is a horizontal cylinder,inside and outside the two-layer spiral belt with a unique structure,smooth operation,low noise.

2, Fast mixing speed,high mixing uniformity,more adapatable to thick,paste-like mixing.

3, Atomized liquid,can be set up nozzle.The horizontal body can be equipped with movable door for cleaning by users.

Widely used:

chemical,pharmaceutical, food,compound fertilizer,health products,dyes,pigments,rubber,building materials,milk powder,feed, additives,breeding,biological engineering, fine chemical,creamics,refractory materials,rare earth,plastic glass and new materials,nuclear energy materials and other industries of solid-solid (i.e. powder and powder), solid-pulp (i.e. powder and slurry liquid) material mixing.

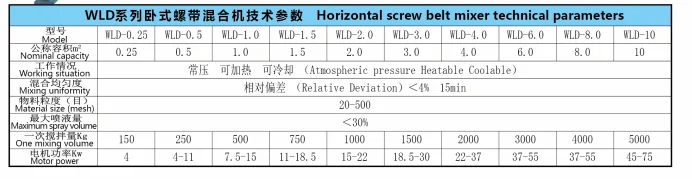

Technical Parameter

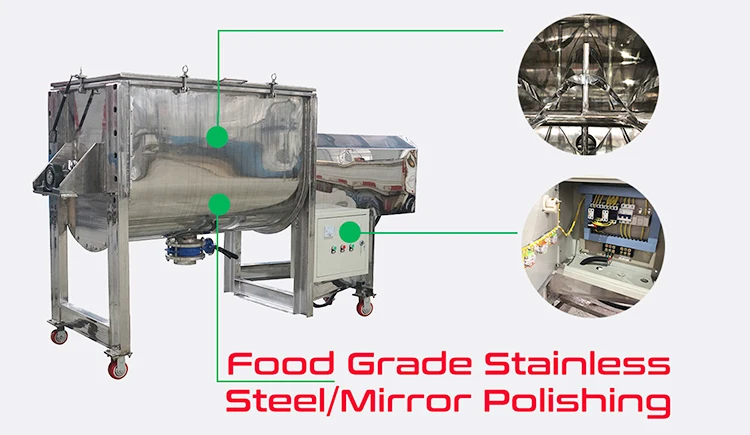

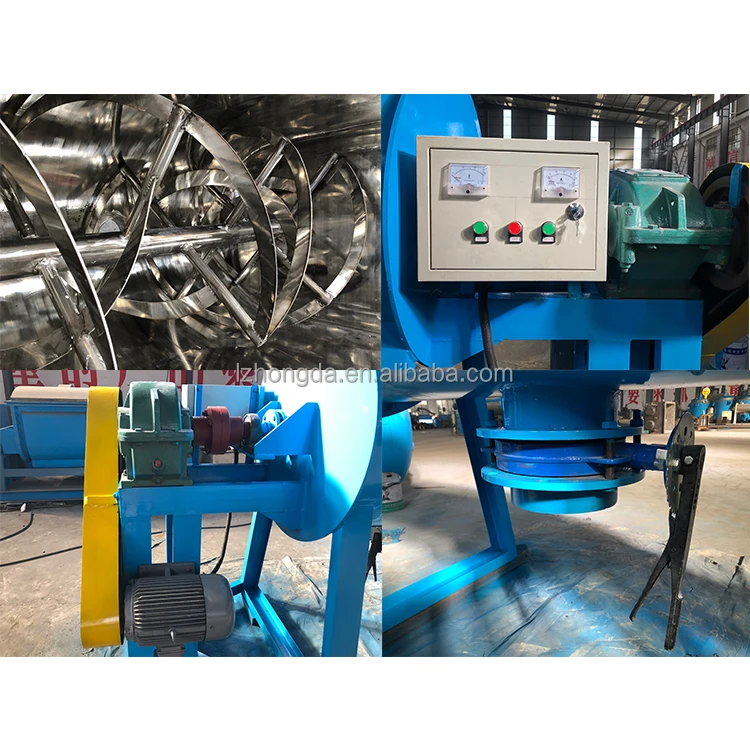

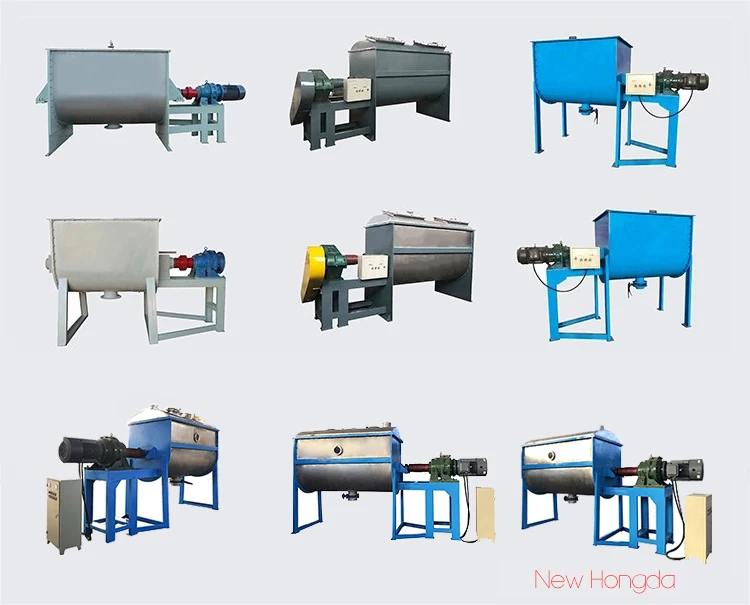

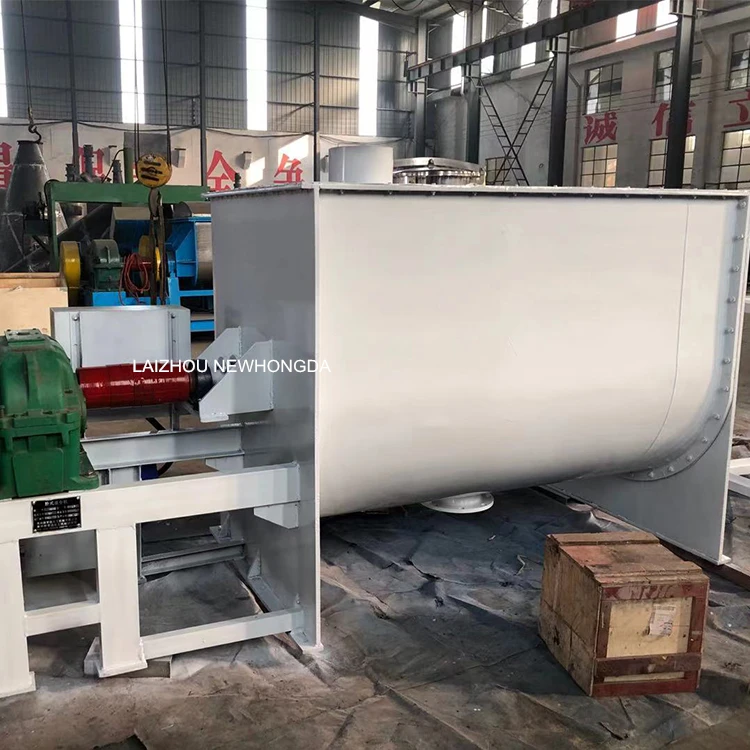

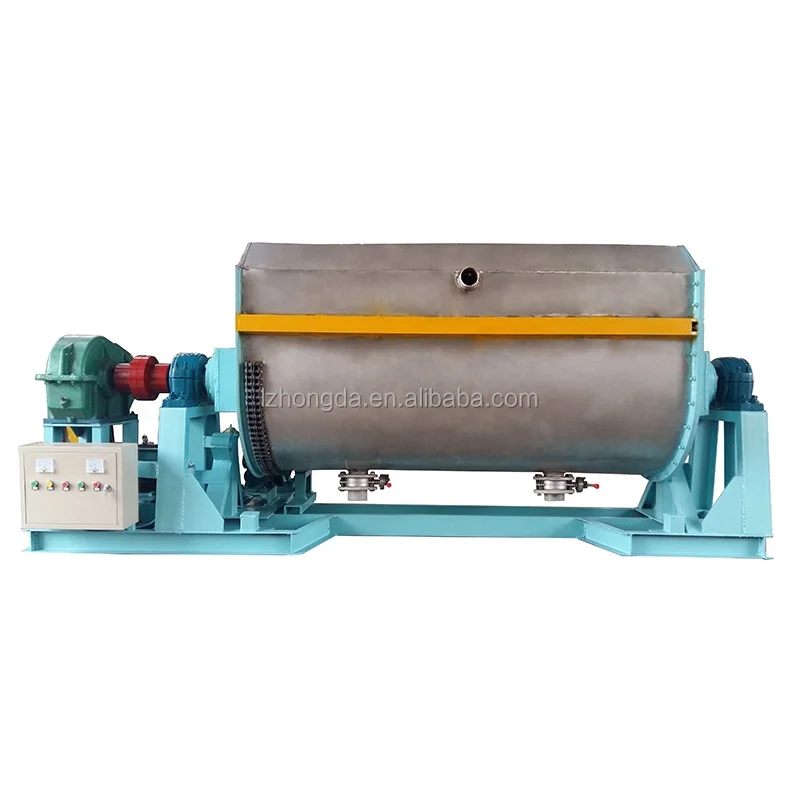

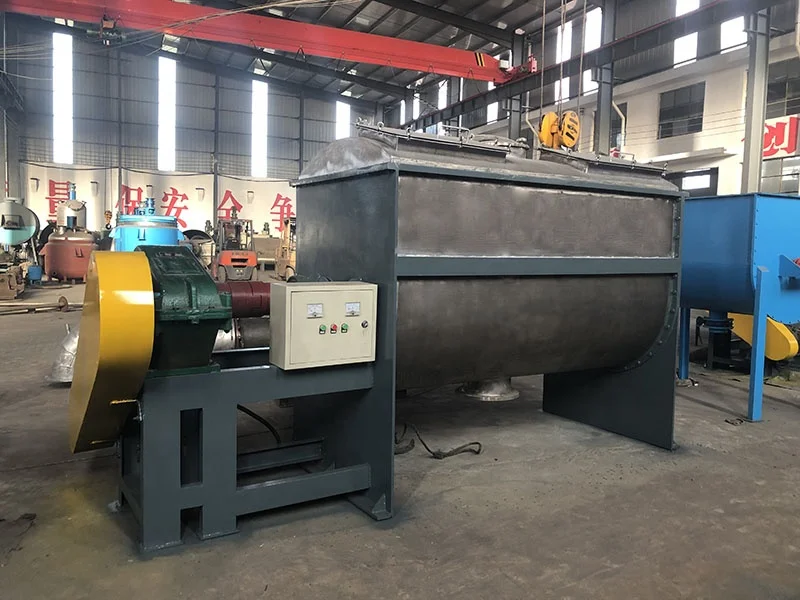

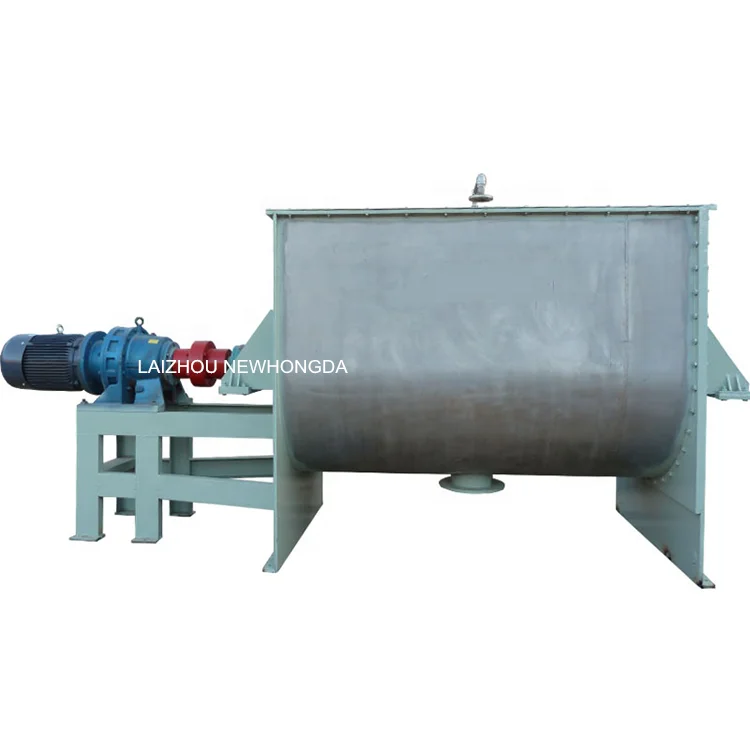

Product pictures show

Application

Category

1. Horzontal screw belt mixer

2. Horizontal plough knife mixer

3. Non-gravity

4. V-mixer

5. High speed mixer

6. Cantilever double spiral conical mixer

7. Double planetary power mixer

8. Double planetary mixer
