Heavy Duty 5 x 5m Welding Manipulator TIG MIG Large Pipe Tube welder welding manipulator for seam welding
- Category: >>>
- Supplier: Jinan Scnc Machinery Co. Ltd.Jinan Ltd.
Share on (1601224057612):
Product Overview
Description

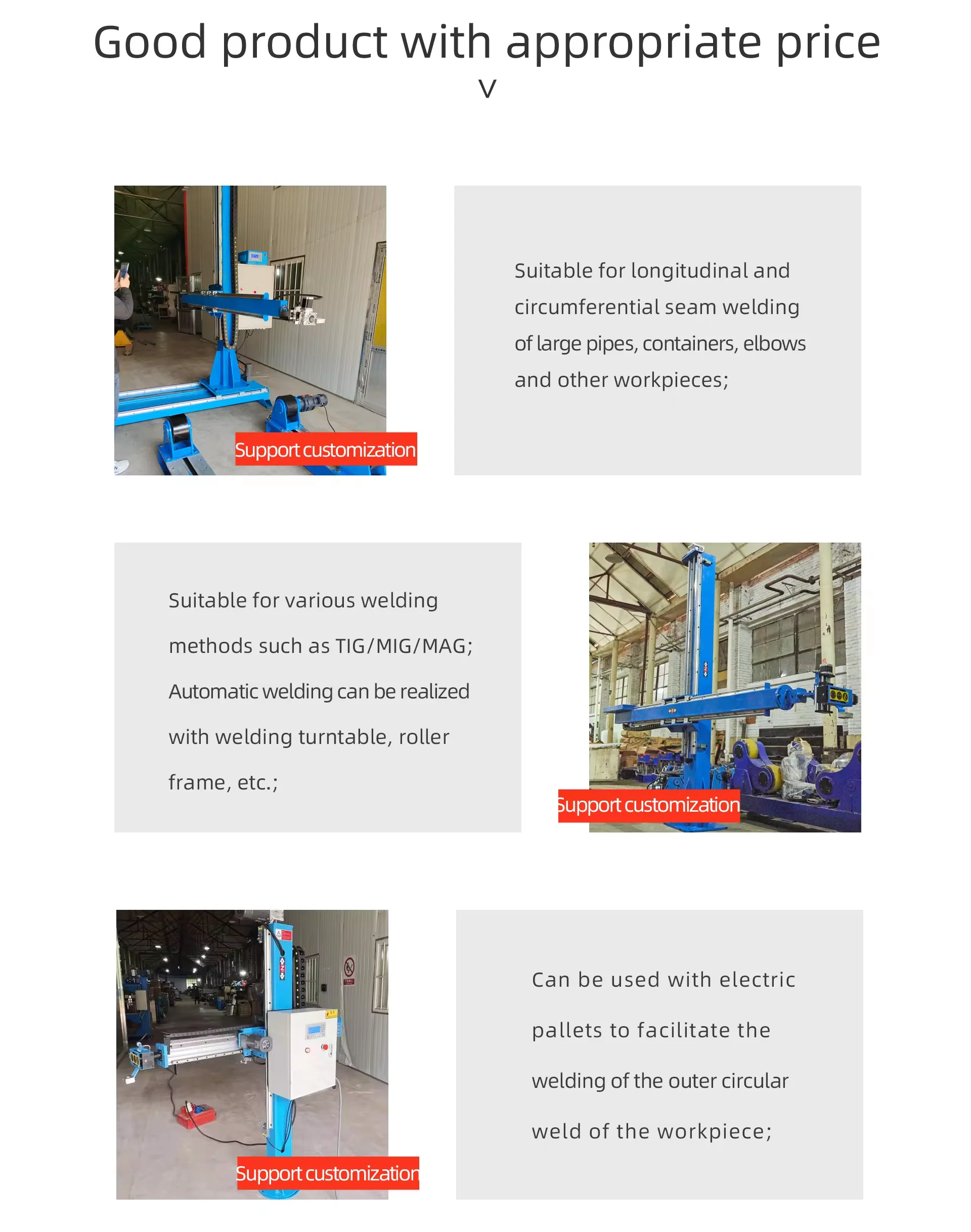

Product Display

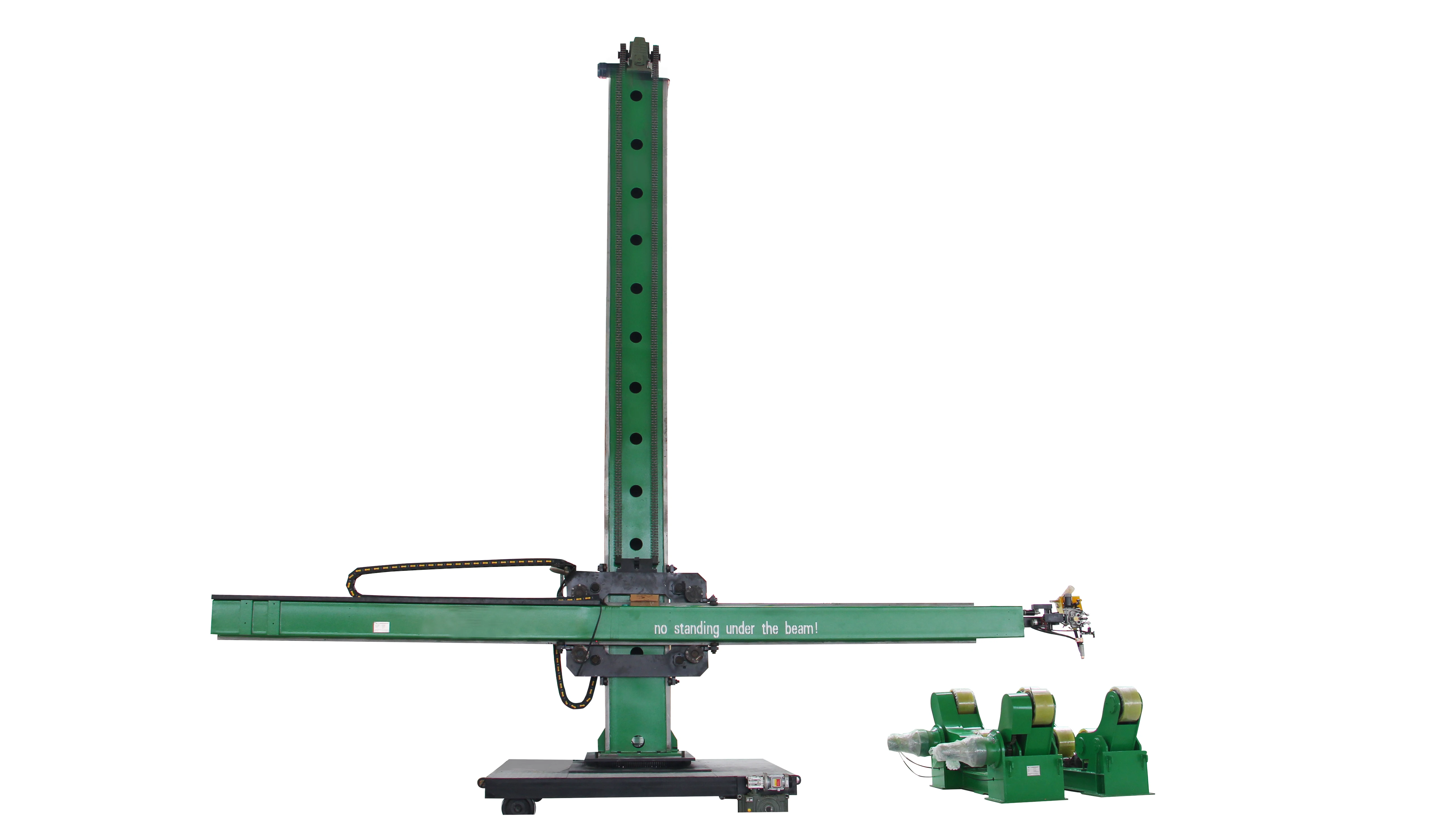

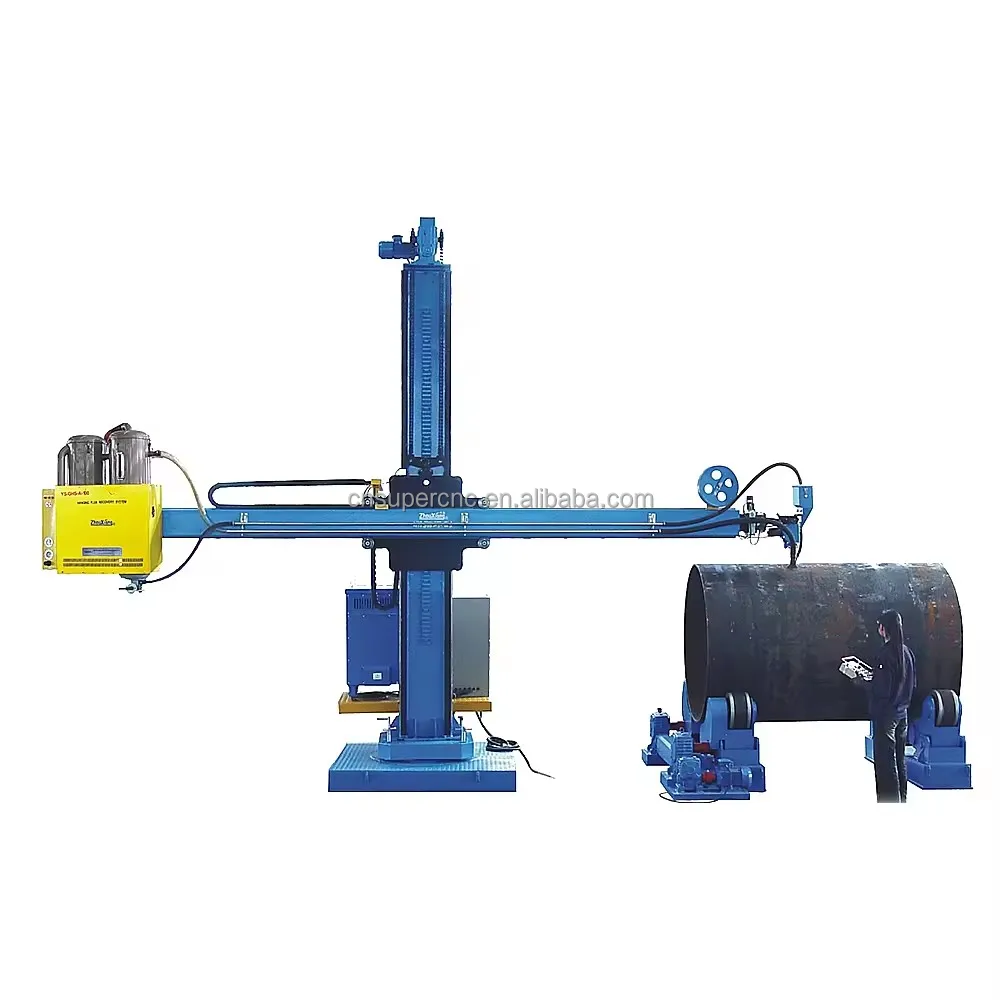

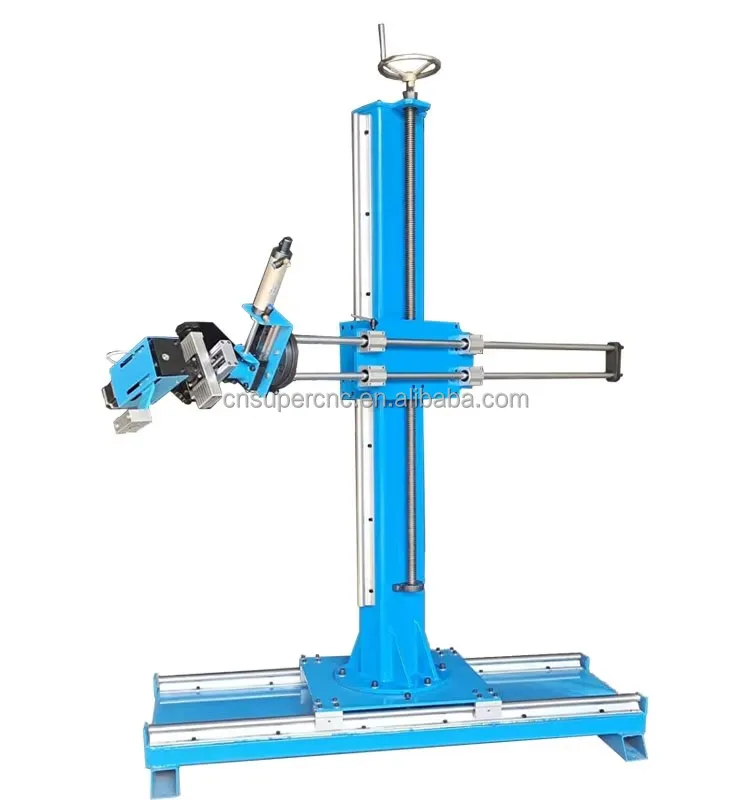

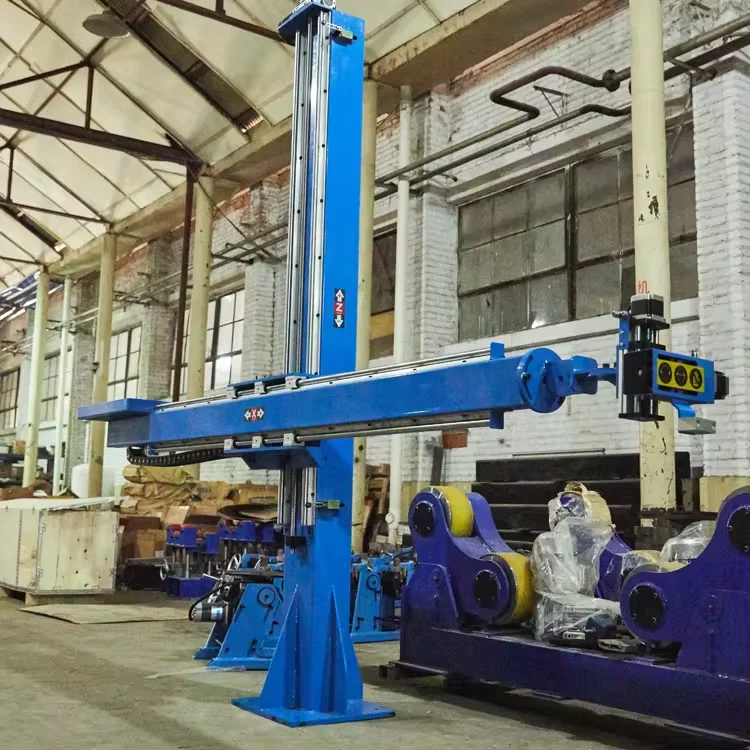

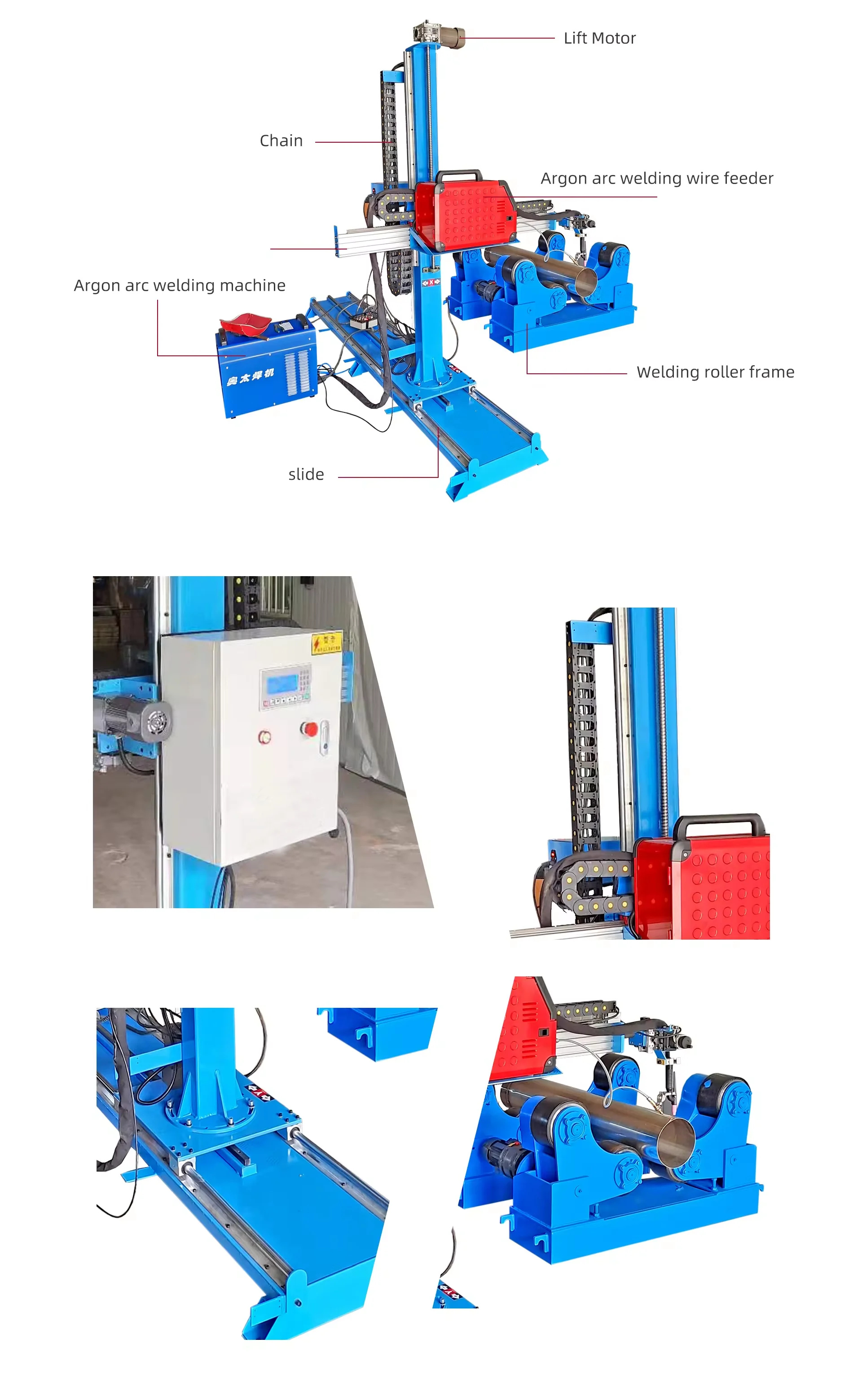

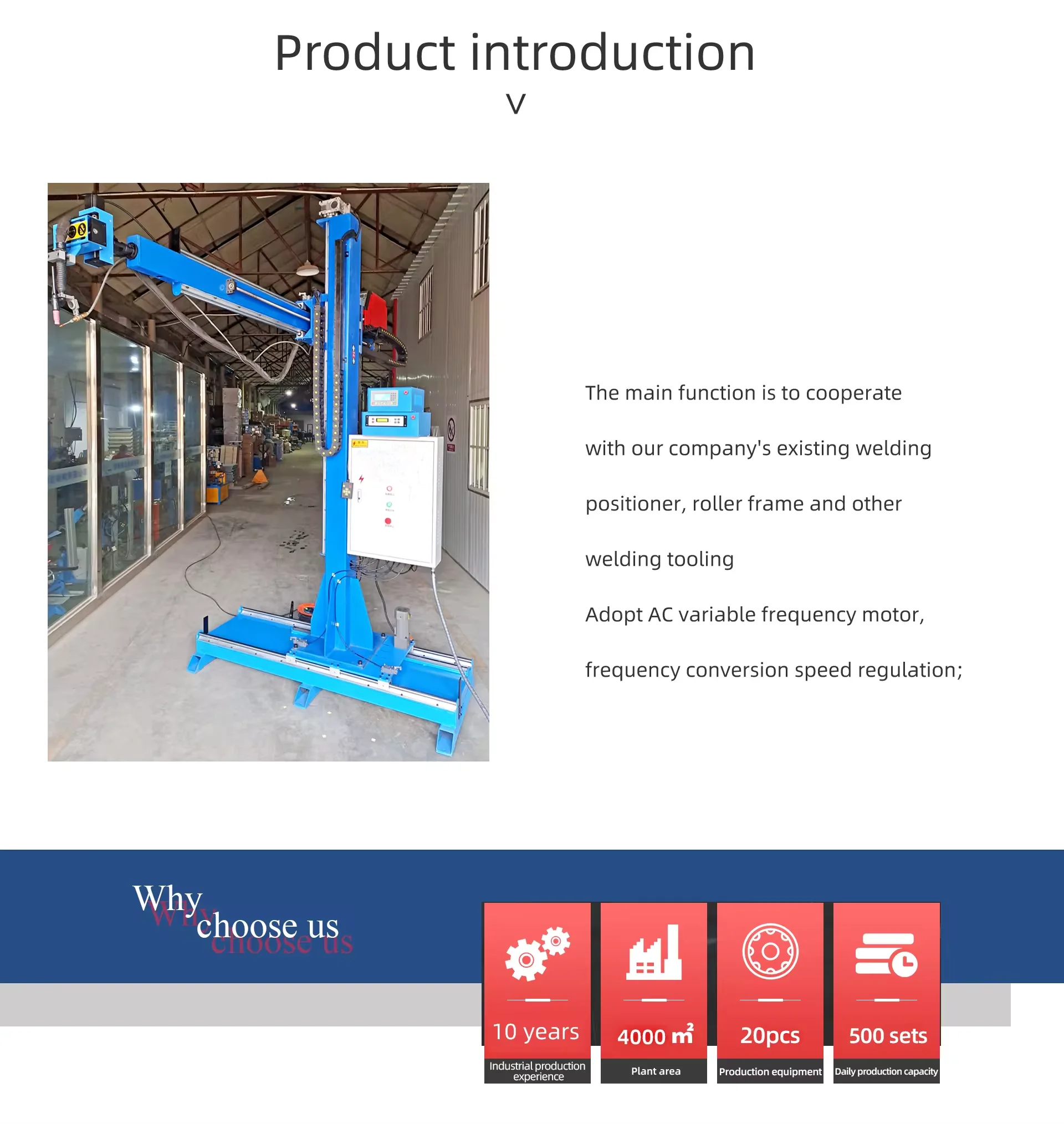

5X5 Column and Boom Welding Manipulator
5X5 column and boom welding manipulator
1. Both the column and the boom adopt the integral box structure, which has high mechanical strength, good stability and compact structure.
2. The boom telescopic adopts AC motor frequency conversion stepless speed regulation, the starting torque is large, the
speed is stable, the network voltage fluctuation is ± 10%, and the welding speed fluctuation value does not exceed ± 3%.
3. The boom telescopic adopts gear and rack pair meshing transmission, with high transmission precision, no crawling and no jitter.
4. After the guide rail is welded, the stress is relieved by vibration aging. After planing and milling, the service life is
long and the stability is good.
5. The lifting and lowering of the boom and the bracket adopt the chain constant speed lifting method. The lifting is smooth,
uniform, and has a high safety factor. The column is equipped with a rebalancing device and a safety anti-falling
self-locking device.
6. The bracket is equipped with a walking pulley assembly and a boom walking reducer, and a double-row chain and an anti-fall
safety device are connected to the bracket plate. The double-row chain for lifting is connected to the balance weight through
the reducer at the top of the column.
7. The boom movement adopts frequency conversion stepless speed regulation. The speed range is wide, the operation is stable, and
it has multiple protections of overvoltage, overcurrent, overload and overheating.
8. The boom and the carriage are lifted and lowered by 5000 mm at a constant speed, and the boom is telescopically adjusted by
3000 mm through the stepless adjustment of the carriage.
9. The column rotation is electric type, driving the boom can make ± 180 ° rotation, which can conveniently load and unload the
workpiece and change the operation direction. The slewing bearing installed at the lower end of the column drives the slewing
bearing to complete this task. In order to make the column and the boom have better stability in the working state, a slewing
manual locking system is installed on the side of the slewing bearing.
10. The bottom end of the manipulator is equipped with a walking trolley mechanism, and the walking trolley is electric. Both ends
of the trolley are equipped with rail plates. The trolley is filled with counterweights and telescopic legs are installed on
the side of the trolley to prevent accidental tipping of the operating machine.
11. Equipped with multi-function hand-held, hanging operation manual control box, which can operate the boom lifting, boom
telescoping, speed regulation, and control the fine adjustment of the "X" axis "Y" axis of the machine head. .
12. The control system reserves welding linkage interface and roller linkage interface (which can be linked with the welding positioner and welding roller frame produced by our company);
2. The boom telescopic adopts AC motor frequency conversion stepless speed regulation, the starting torque is large, the
speed is stable, the network voltage fluctuation is ± 10%, and the welding speed fluctuation value does not exceed ± 3%.
3. The boom telescopic adopts gear and rack pair meshing transmission, with high transmission precision, no crawling and no jitter.
4. After the guide rail is welded, the stress is relieved by vibration aging. After planing and milling, the service life is
long and the stability is good.
5. The lifting and lowering of the boom and the bracket adopt the chain constant speed lifting method. The lifting is smooth,
uniform, and has a high safety factor. The column is equipped with a rebalancing device and a safety anti-falling
self-locking device.
6. The bracket is equipped with a walking pulley assembly and a boom walking reducer, and a double-row chain and an anti-fall
safety device are connected to the bracket plate. The double-row chain for lifting is connected to the balance weight through
the reducer at the top of the column.
7. The boom movement adopts frequency conversion stepless speed regulation. The speed range is wide, the operation is stable, and
it has multiple protections of overvoltage, overcurrent, overload and overheating.
8. The boom and the carriage are lifted and lowered by 5000 mm at a constant speed, and the boom is telescopically adjusted by
3000 mm through the stepless adjustment of the carriage.
9. The column rotation is electric type, driving the boom can make ± 180 ° rotation, which can conveniently load and unload the
workpiece and change the operation direction. The slewing bearing installed at the lower end of the column drives the slewing
bearing to complete this task. In order to make the column and the boom have better stability in the working state, a slewing
manual locking system is installed on the side of the slewing bearing.
10. The bottom end of the manipulator is equipped with a walking trolley mechanism, and the walking trolley is electric. Both ends
of the trolley are equipped with rail plates. The trolley is filled with counterweights and telescopic legs are installed on
the side of the trolley to prevent accidental tipping of the operating machine.
11. Equipped with multi-function hand-held, hanging operation manual control box, which can operate the boom lifting, boom
telescoping, speed regulation, and control the fine adjustment of the "X" axis "Y" axis of the machine head. .
12. The control system reserves welding linkage interface and roller linkage interface (which can be linked with the welding positioner and welding roller frame produced by our company);

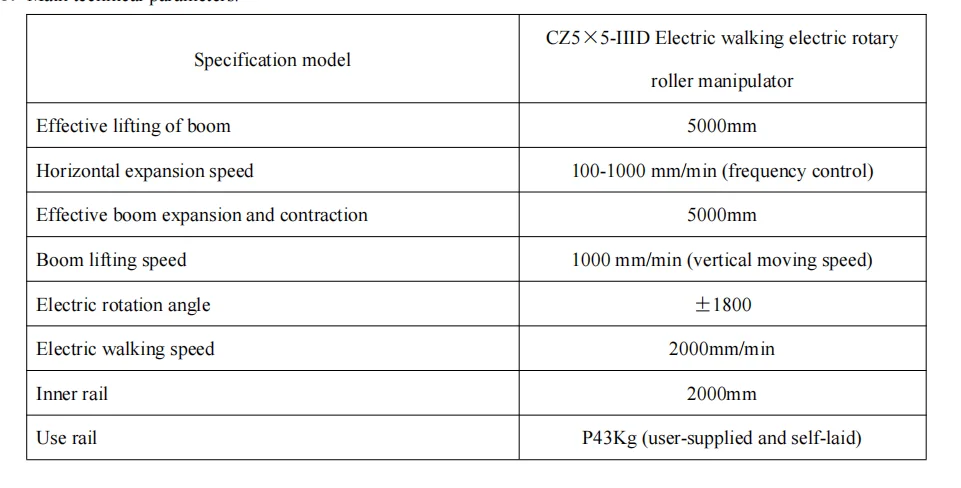

Specification model | CZ5×5-IIID Electric walking electric rotary roller manipulator |
Effective lifting of boom | 5000mm |
Horizontal expansion speed | 100-1000 mm/min (frequency control) |
Effective boom expansion and contraction | 5000mm |
Boom lifting speed | 1000 mm/min (vertical moving speed) |
Electric rotation angle | ±1800 |
Electric walking speed | 2000mm/min |
Inner rail | 2000mm |
Use rail | P43Kg (user-supplied and self-laid) |

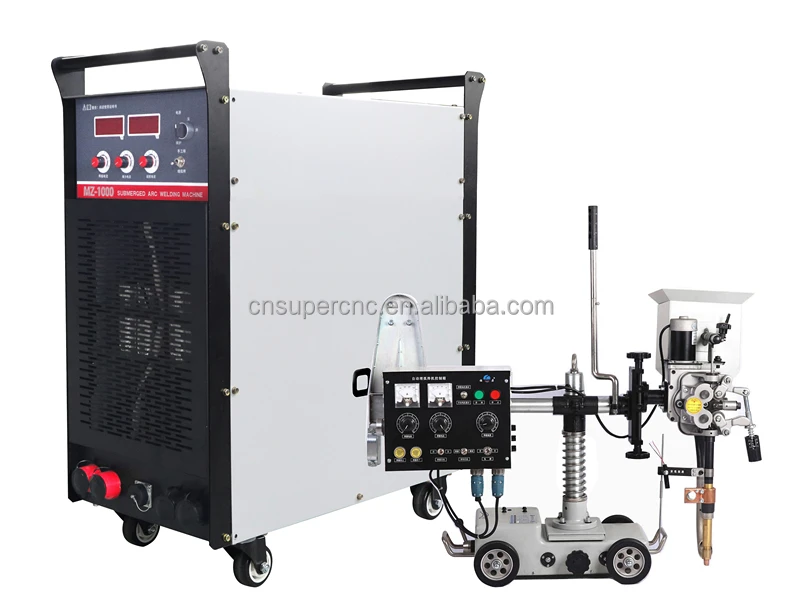

MZ-1000 Submerged WELDING MACHINE
* Soft switching inverter technology, energy saving and reliable, light weight, small size, easy to move.
* Two characteristics: constant current and constant pressure.
* Welding of thick wire, thin wire, core, belt pole, double wire and single arc can be realized.
* Parameters such as arc starting and arc extinguishing can be accurately set.
* It has protection functions such as overheating, open circuit and short circuit.
* Can store 10 sets of welding specifications, saving adjustment of welding specifications.
* Rich peripheral interface, easy to form a special welding machine.
* Two characteristics: constant current and constant pressure.
* Welding of thick wire, thin wire, core, belt pole, double wire and single arc can be realized.
* Parameters such as arc starting and arc extinguishing can be accurately set.
* It has protection functions such as overheating, open circuit and short circuit.
* Can store 10 sets of welding specifications, saving adjustment of welding specifications.
* Rich peripheral interface, easy to form a special welding machine.
Type No. | MZ-630IV | MZ-1000IV | MZ-1250IV | MZ-1500IV | |||||
Rated input voltage / frequency | 3 Phase 380V±10% 50Hz | ||||||||
Rated input capacity (KVA) | 34 | 55 | 69 | 82 | |||||
Rated input current (A) | 51 | 83 | 115 | 130 | |||||
Rated output voltage (V) | 44 | ||||||||
Rated load duration (%) | 100 | 100 | 100 | 60 | |||||
Output no-load voltage (submerged arc / hand arc) (V) | 89/83 | 84/82 | 92/88 | 92/88 | |||||
Current adjustment range (A) | 50~630 | 50~1000 | 50~1250 | 60～1500 | |||||
Voltage adjustment range (V) | 20~50 | ||||||||
Power factor | ≥0.88 | ||||||||
Welding wire diameter (mm) | 1.6~4.0 | 2.0~6.0 | 2.0~5.0 | 2.0～6.0 | |||||
Enclosure rating | IP21S | ||||||||
Insulation class | H/B | ||||||||
Dimensions LxWxH (mm | 708×336×584 | 788×366×815 | 788×366×846 | 788×366×846 | |||||

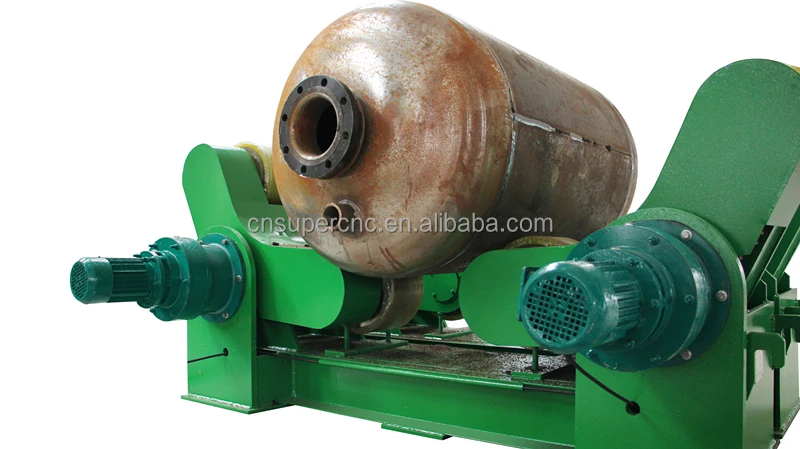

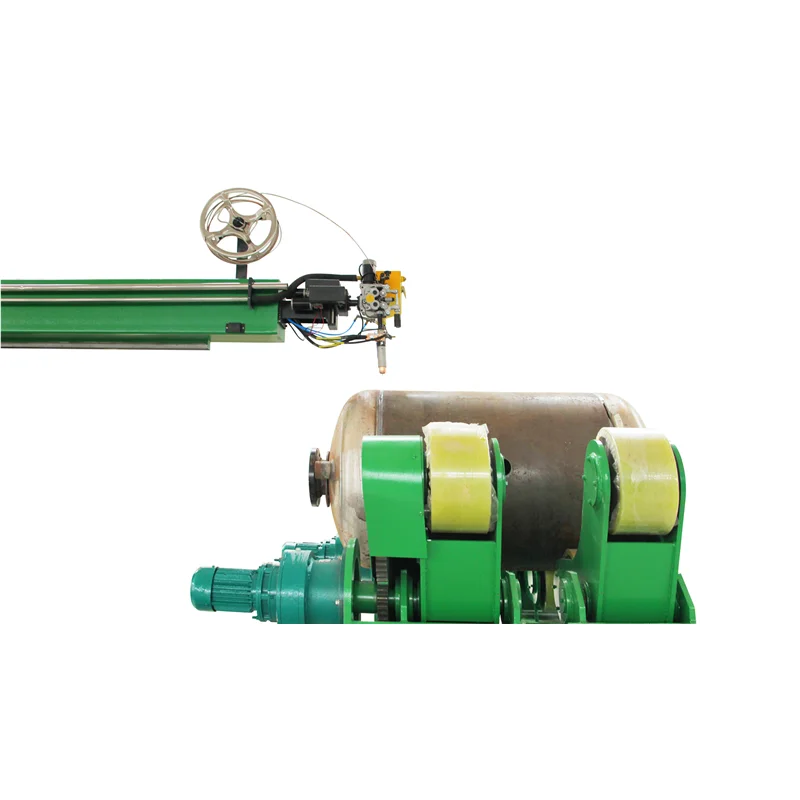

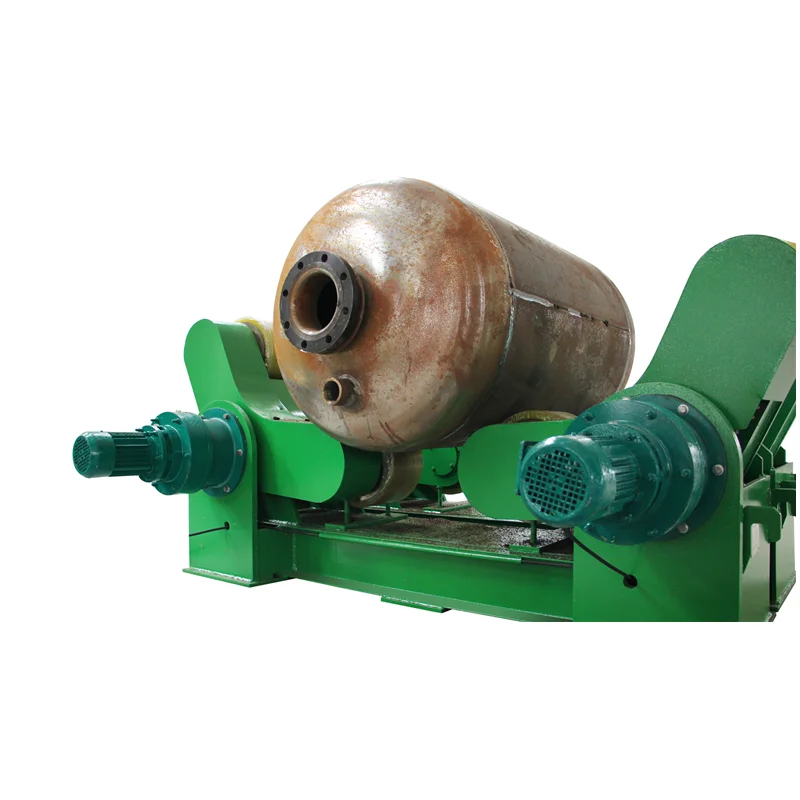

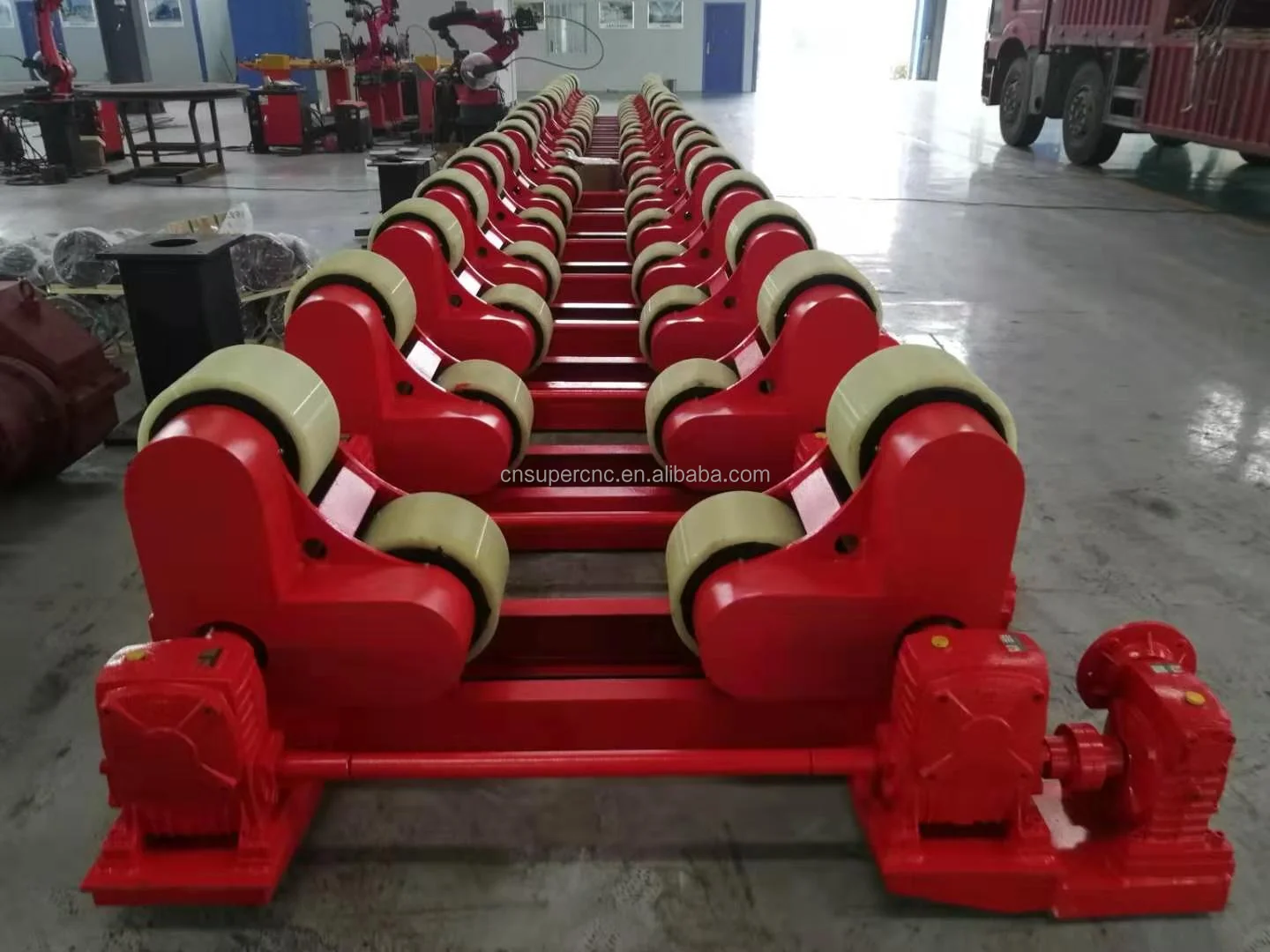

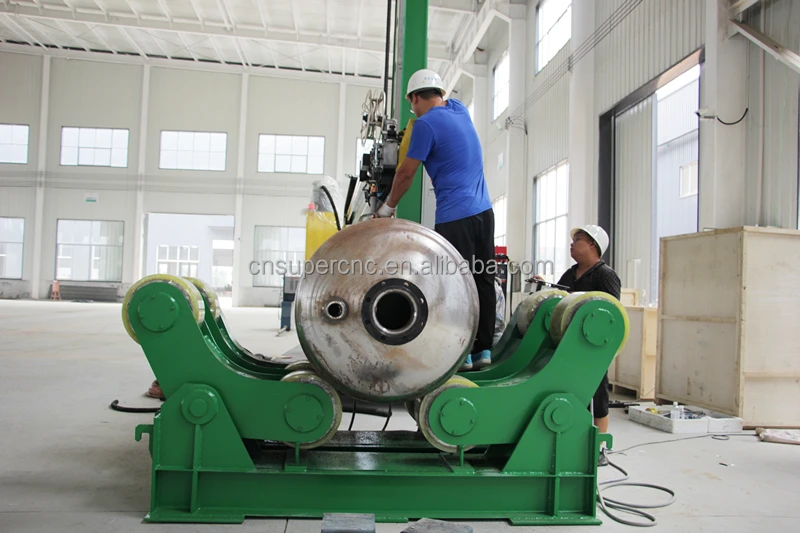

Pipe Welding Rotator
Mechanical part
* The SC-ZT10T welding rotator is composed of an active frame and a driven frame. It does not need to make and install the foundation. It is easy to move and can be used directly on the workshop floor.
* The activeand driven frames adopt steel-steel structure support, with good comprehensive performance and large bearing capacity. After welding, the base of the roller frame is treated with stress relief to ensure long-term use without deformation.
* The activeand driven frames have two rollers, and the four rollers on the driving frame are all synchronous driving wheels. The roller is installed in the side plate assembly. The roller adopts all-polyurethane wheel, which has greater load-bearing capacity and good wear resistance.
* Self-aligning welding rotatorswing arm adapts to workpieces of different diameters. The rotary axis of the roller assembly clamp frame has a strong rigidity. When the workpiece is placed on the roller assembly, the good fit clearance between the rotary shaft and the shaft hole can ensure that the clamp frame opens with the workpiece at an appropriate angle.
* Each axis hole of theactive and driven welding rotator is processed by a carding and boring machine at a time, the parallelism of each axis is good, and the amount of movement is small. The high-quality bearings produced by well-known domestic manufacturers are installed in the roller assembly. The grease used in the bearings is lithium-based grease, which has high lubrication performance.
* The four rollerof the active frame are fully toothed, and the transmission gear and the drive reducer are connected as a "十" coupling. The use of this type of coupling is reliable in transmission, the transmitted torque is large, and the difference can be small The shaft degree is compensated appropriately.
* All the transmission roller are made of high-quality steel, and the processed gear teeth are surface-quenched, which has high hardness and wear resistance, which can ensure that the roller are not used for a long time. On the outside of the transmission gear, a gear guard is installed.
Electrical part
* Adopt frequency conversion stepless speed regulation control, high running accuracy, large starting torque, stable running,with multiple protection functions such as over-voltage, over-current, overload, overheating and so on.
* The functions of forward, reverse, stop and speed adjustment on the operating manual control box are all concentrated on it,and the operation is simple and convenient (can be integrated with the company's operating machine for integrated control)
* The fragile and main electrical components in the manual control box and the control cabinet are selected from well-known brand products.
* The internal and external components of the electric control cabinet are clearly marked. The wire numbers of all terminals and the interconnected wires have the same wire number, and the labels are the same as the labels on the random data.
* The safety index of the electrical control system meets the requirements of GB4064-1983.
* The SC-ZT10T welding rotator is composed of an active frame and a driven frame. It does not need to make and install the foundation. It is easy to move and can be used directly on the workshop floor.
* The activeand driven frames adopt steel-steel structure support, with good comprehensive performance and large bearing capacity. After welding, the base of the roller frame is treated with stress relief to ensure long-term use without deformation.
* The activeand driven frames have two rollers, and the four rollers on the driving frame are all synchronous driving wheels. The roller is installed in the side plate assembly. The roller adopts all-polyurethane wheel, which has greater load-bearing capacity and good wear resistance.
* Self-aligning welding rotatorswing arm adapts to workpieces of different diameters. The rotary axis of the roller assembly clamp frame has a strong rigidity. When the workpiece is placed on the roller assembly, the good fit clearance between the rotary shaft and the shaft hole can ensure that the clamp frame opens with the workpiece at an appropriate angle.
* Each axis hole of theactive and driven welding rotator is processed by a carding and boring machine at a time, the parallelism of each axis is good, and the amount of movement is small. The high-quality bearings produced by well-known domestic manufacturers are installed in the roller assembly. The grease used in the bearings is lithium-based grease, which has high lubrication performance.
* The four rollerof the active frame are fully toothed, and the transmission gear and the drive reducer are connected as a "十" coupling. The use of this type of coupling is reliable in transmission, the transmitted torque is large, and the difference can be small The shaft degree is compensated appropriately.
* All the transmission roller are made of high-quality steel, and the processed gear teeth are surface-quenched, which has high hardness and wear resistance, which can ensure that the roller are not used for a long time. On the outside of the transmission gear, a gear guard is installed.
Electrical part
* Adopt frequency conversion stepless speed regulation control, high running accuracy, large starting torque, stable running,with multiple protection functions such as over-voltage, over-current, overload, overheating and so on.
* The functions of forward, reverse, stop and speed adjustment on the operating manual control box are all concentrated on it,and the operation is simple and convenient (can be integrated with the company's operating machine for integrated control)
* The fragile and main electrical components in the manual control box and the control cabinet are selected from well-known brand products.
* The internal and external components of the electric control cabinet are clearly marked. The wire numbers of all terminals and the interconnected wires have the same wire number, and the labels are the same as the labels on the random data.
* The safety index of the electrical control system meets the requirements of GB4064-1983.
Specification model | SC-ZT 10T | SC-ZT 20T | SC-ZT 30T |
Bearing (T) | 10 T | 20T | 30T |
Roller material | Polyurethane | 0.75×2 | 0.75×2 |
Roller diameter (mm) | 300 | 300 | 300 |
Roller width (mm) | 140 | 140 | 200 |
Workpiece range (mm) | 450～4000 | 600～4000 | 450～4000 |
Motor power (kw) | 0.75×2 | 0.75×2 | 0.75×2 |
Roller linear speed mm / min | 60～1000 | 60～1000 | 100～4000 |
2240 Integral machine for flux transportation and recovery
* The product is specially suitable for transverse arm type welding manipulator. It consists of hanging flux automatic recovery conveyor, flux hopper and connecting hose. The automatic flux recovery conveyor is the main machine, which is suspended at the tail end of the beam, and is connected to the small hopper of the head and the flux recovery suction port through the stainless steel recovery pipe, conveying pipe and hose installed on the side of the beam, thus forming the automatic flux recovery and Conveyor system.
* The machine is an electro mechanical integration device. When the flux inside the host is insufficient, the device will have an alarm prompt.
* The machine is an electro mechanical integration device. When the flux inside the host is insufficient, the device will have an alarm prompt.
Working power | 380V-3P-50Hz |
Motor Power | 2.2kw |
Fan negative pressure | 235mbar |
Recovery distance | 6-8m |
Recovery speed | 16升/min |
Flux capacity | 40L |
Air pressure | 0.4 ~0.8 MPa |

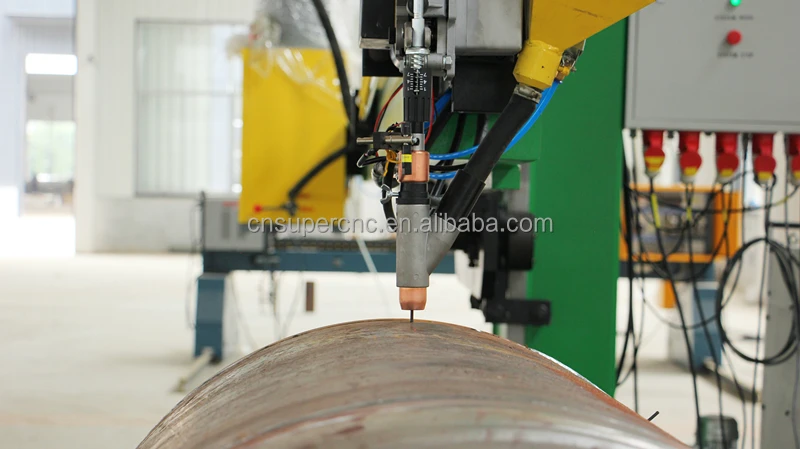

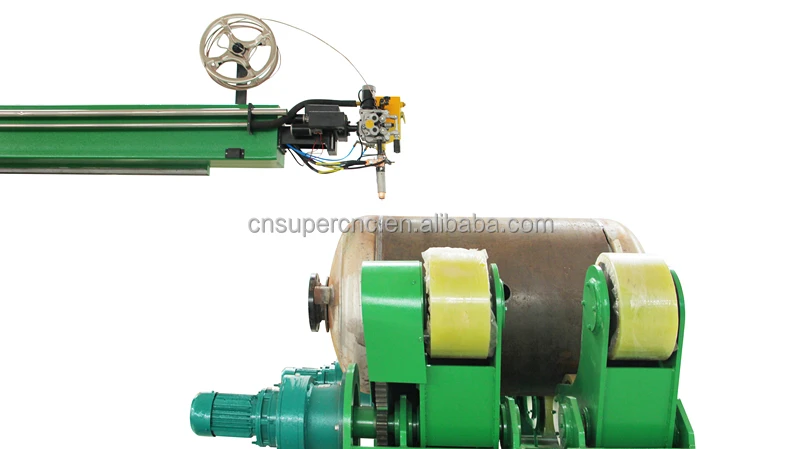

Electric suspension machine head
Suspension submerged arc welding wire feed machine head adopts planetary gear reduction system, large wire feed torque, high wire feed stability, eccentric design of welding torch assembly, strong conductivity, welding wire correction mechanism to ensure that the wire rod extends vertically;
Multi-function control button
Machine equips with multi-function control button,can control the machine with electric waling along X AND Z axis lifting,SAW welding machine working,flux transportation and recovery working,welding pipe rotator working with different working speed,realized welding manipulator welding machine,rotator working together
Electricity walking motor
Machine equips with large power walking motor ,ensure the machine with auto running
Welding machine electricity connection
Machine equips with SAW1000 Submerged arc welding machine,working controlled by machine control system
Other Smaller Size For Option
