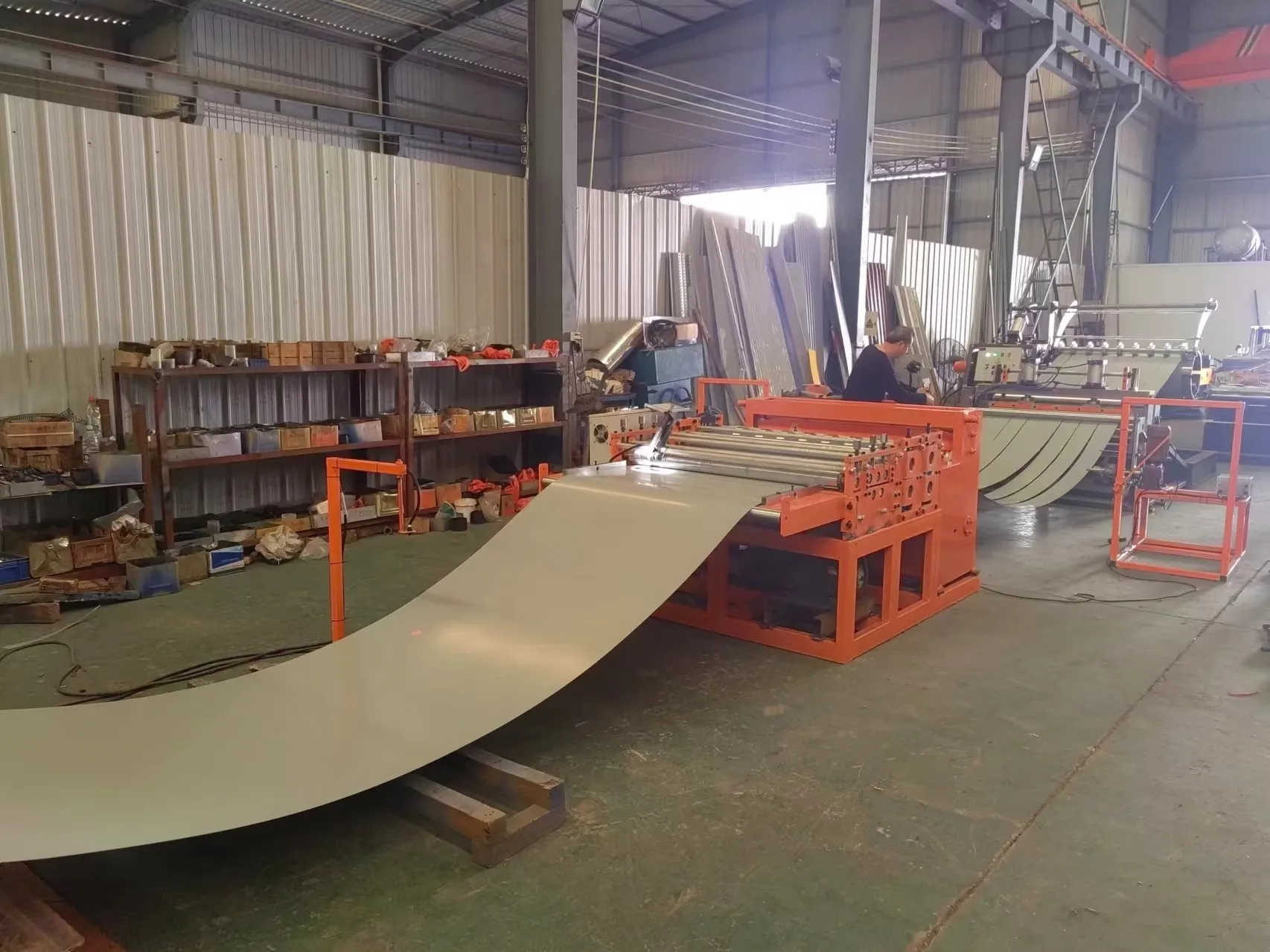

simple slitting cutting line cut to length line slitting cutting machine with recoiler

Product Overview

Description

  The max material thickness:1mm, commen using 0.5mm

   Max width of the coil:1250mm, 8 pcs slit max





        Main section



(1)  5tons hydraulic uncoiler 1set

(2)  With Main flattening slitting cutting  machine; 1 set

(3) Pneumatic Tension device  1set

(4) 5tons Hydraulic  recoiler 1 set

(5) 2 set scrap rewinder;

(6) PLC control system

(7) Hydraulic system

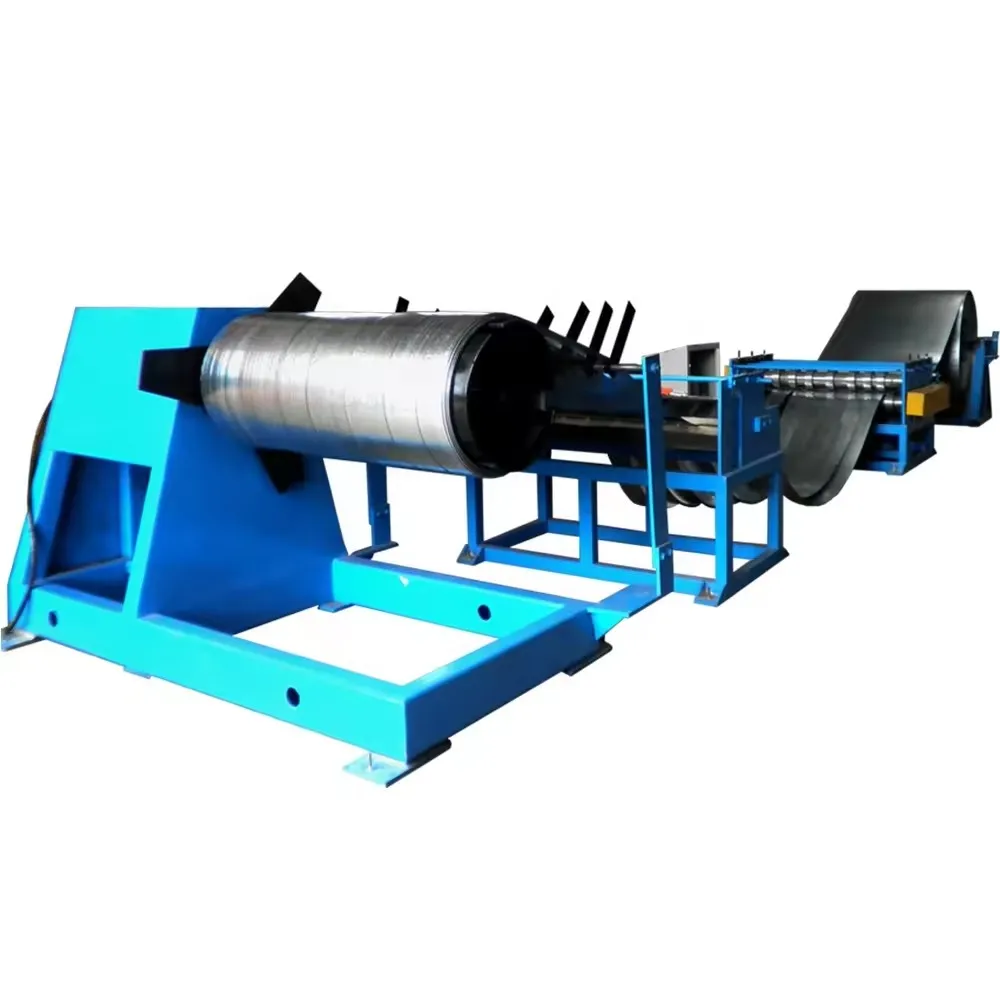

For  5tons hydralic uncoiler detail:

Hydraulic system expand coil inner hole, Hydraulic Pump motor for Uncoiler: 3KW

Frequency Inverter to regulate turning speed, Motor: 3KW

Controlling System for automatically expand and Decrease, and the coiler automatically to rotate

Frequency Changer for control work speed

 Inner Diameter: 470-560mmmm;

 Out Diameter: Max.1250mm;

 Max. Loading: 5MT;

 Max. Width for Coil: 1250mm











For Main flattening slitting cutting  machine detail



 Flattening Device with 5 rollers (up 2 rollers and down 3 rollers);

 Material  feed guide section

 Motor cutting way, motor power 1.5KW;cutter material:Cr12 Heat treatment

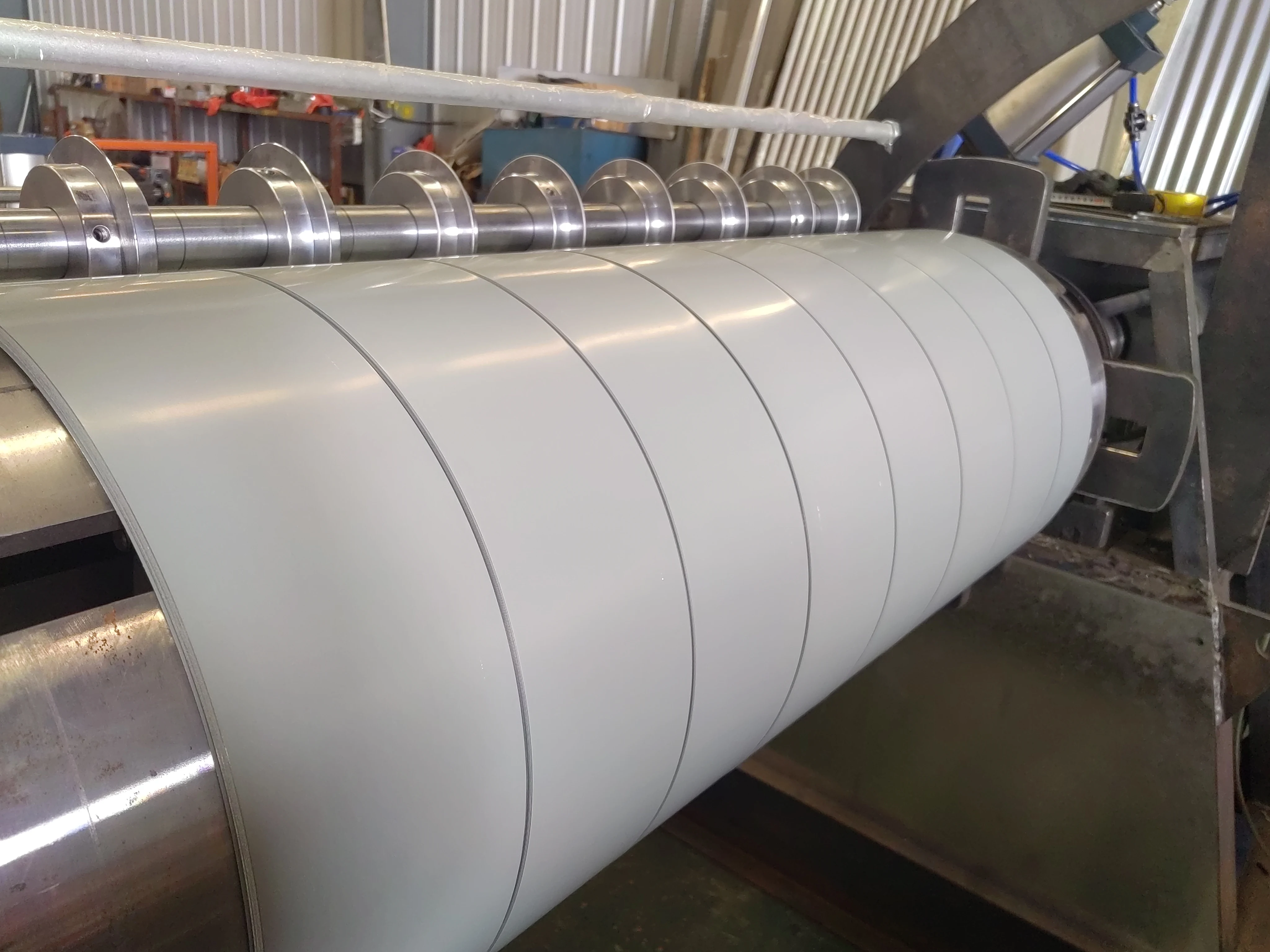

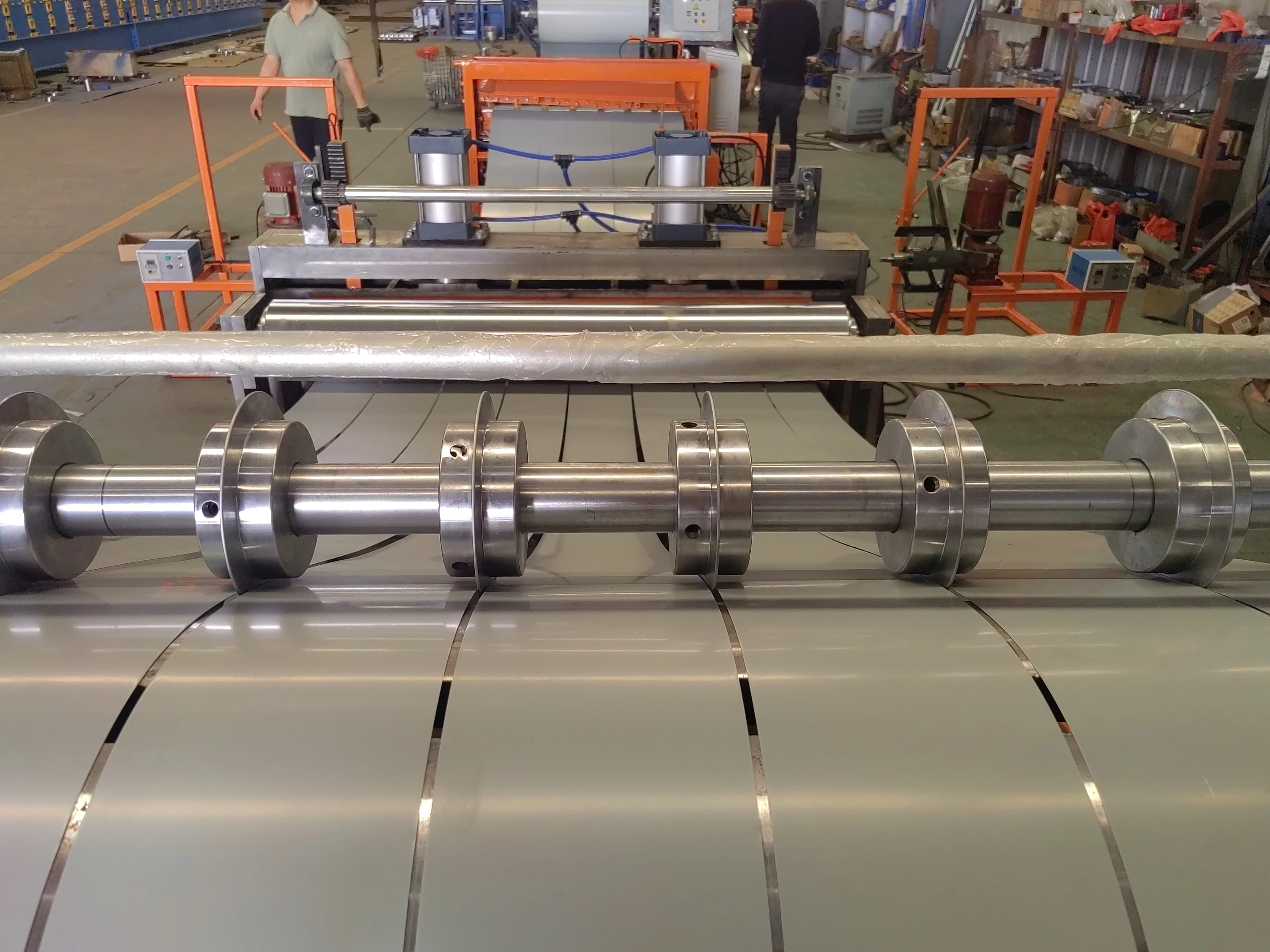

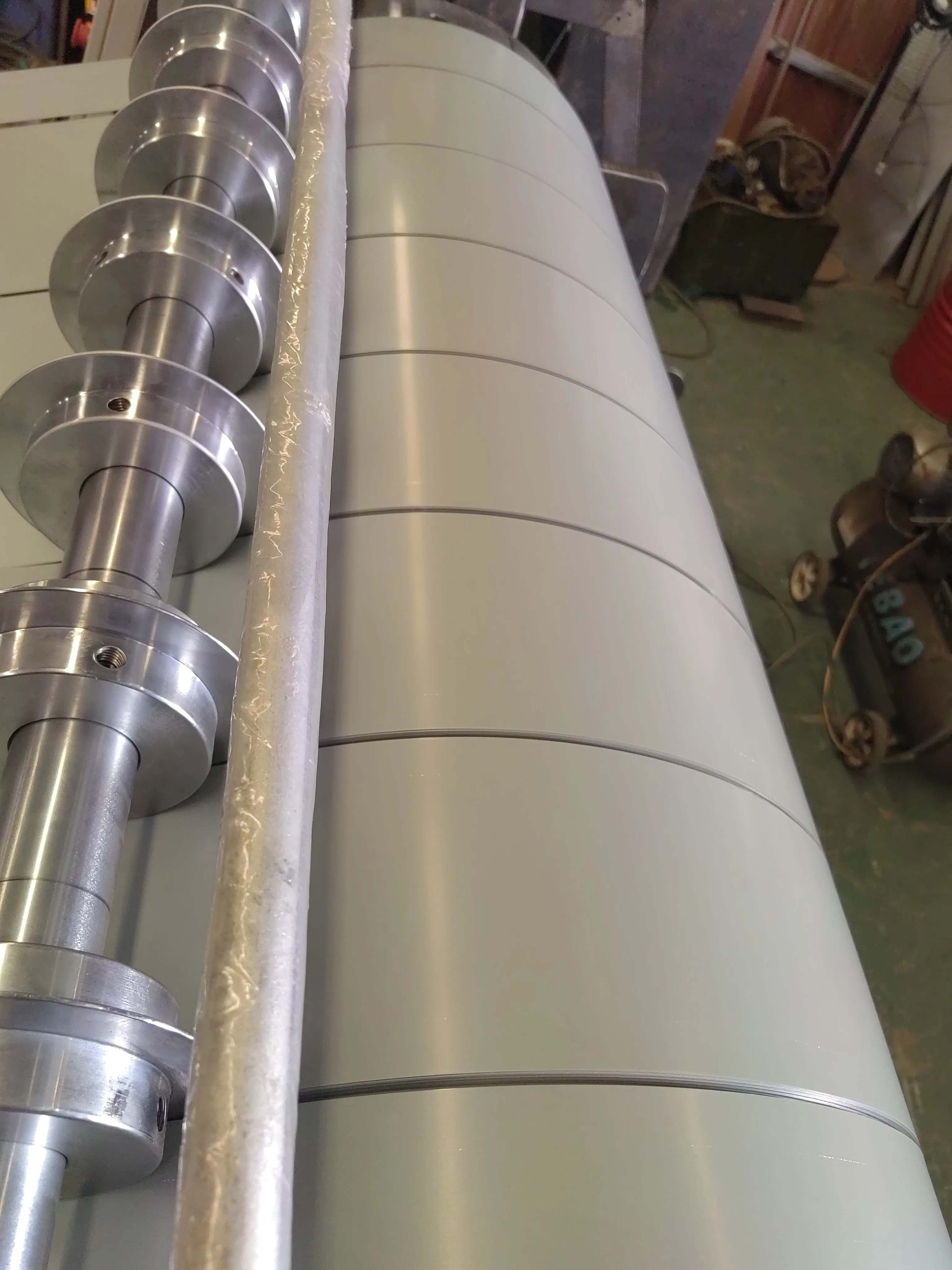

 8 sets slitting cutter,material Cr12,Heat treatment for 8pcs slit

 PLC Computer Controlling System With Touch Screen(Delta brand)



 Pneumatic Tension device with the Material  feed guide section,Hydraulic system



5Tons Hydraulic recoiler, Hydraulic Pump motor for recoiler: 3KW

Frequency Inverter to regulate turning speed, Motor: 3KW





Roller material: 45# steel, CNC lathes, hard Chrome Coated with 40Cr Shafts Precision Machined, fine Polished



The color of the machine:Blue or depend on the customers



PLC Control System detail

Control the quantity & cutting length automatically.

Combined with:PLC, inverter, Touch Screen, Encoder
