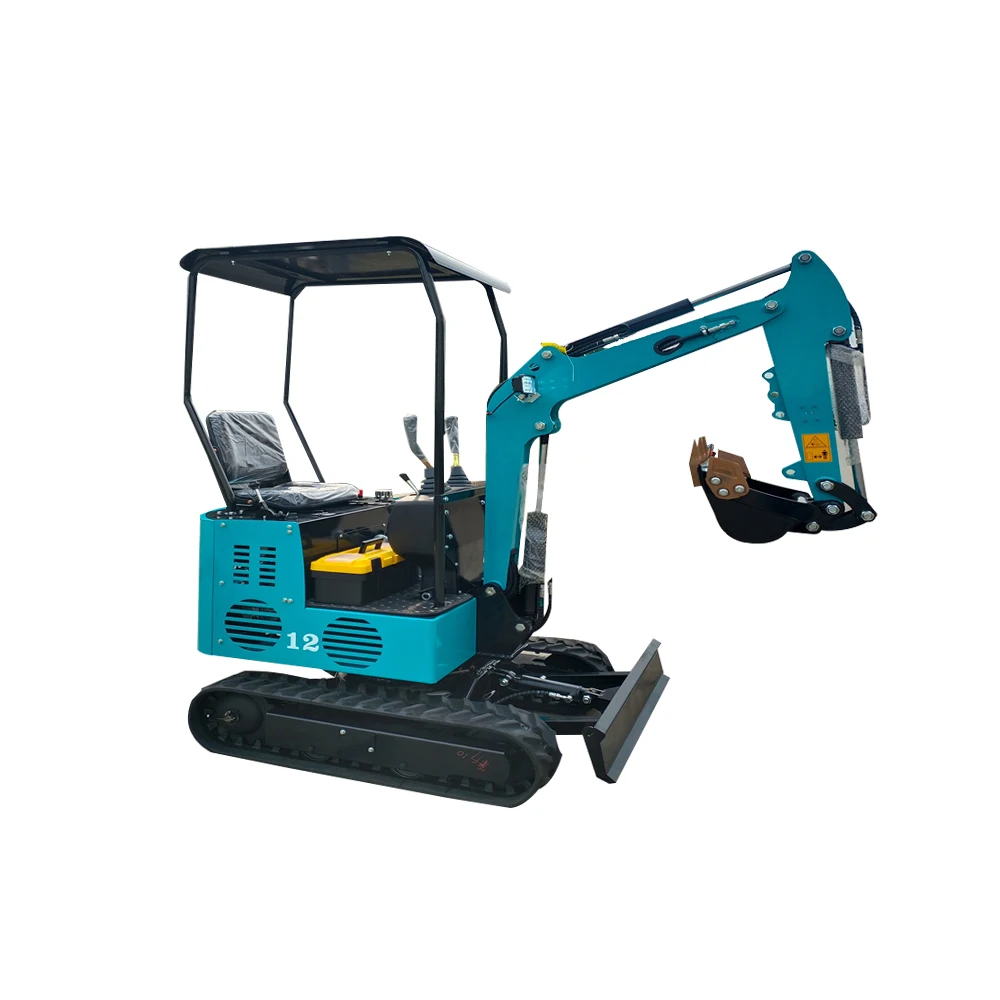

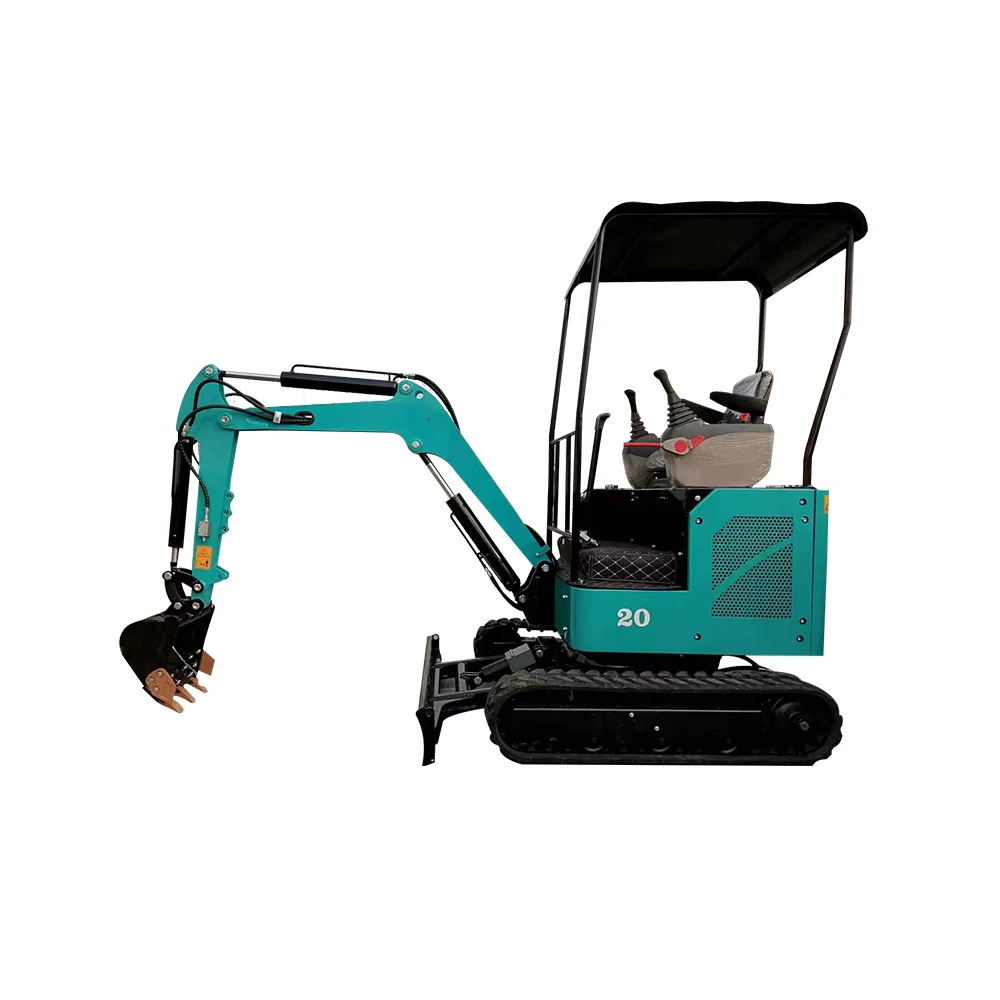

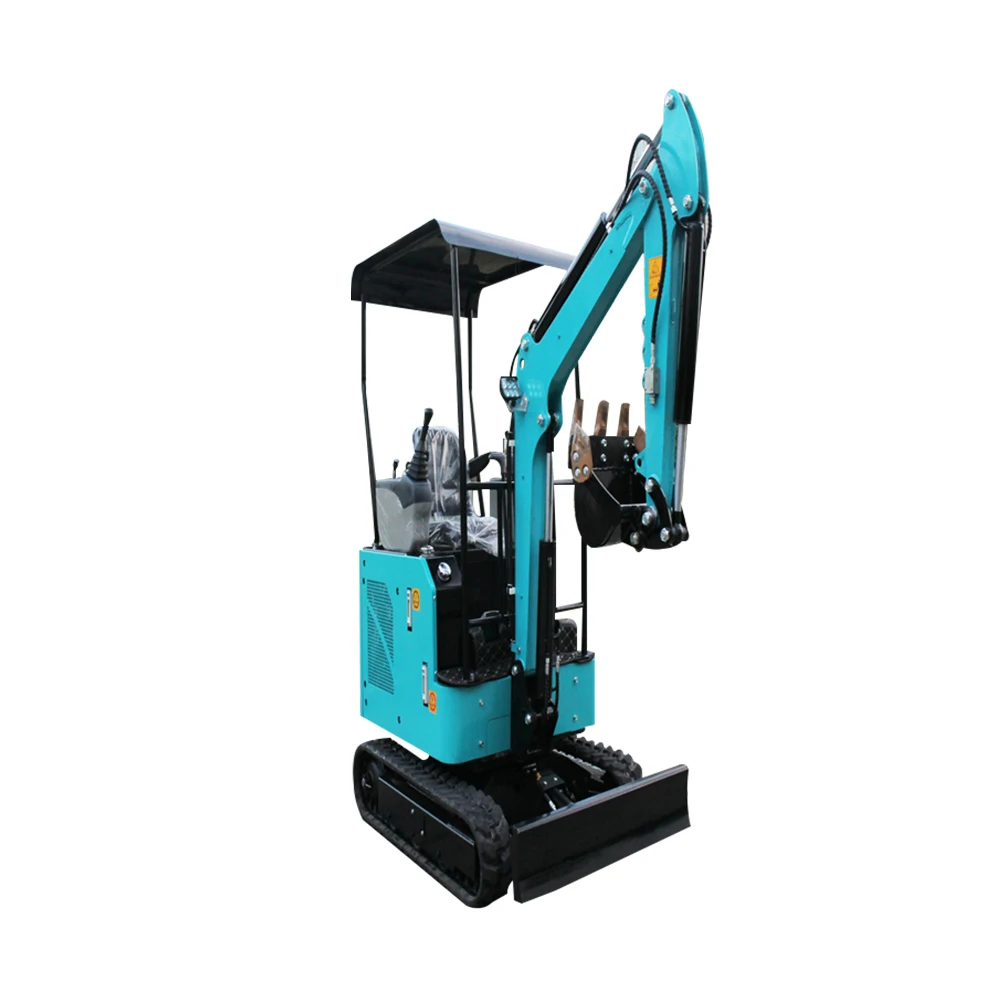

Factory Directly Chinese 1 Ton 2 Ton Micro Excavator China Wholesale Hydraulic Small Digger
- Category: >>>
- Supplier: Jining Xinta Heavy Industry Machinery Co. Ltd.
Share on (1601224901308):
Product Overview
Description
Product Information
Mini excavator refers to a type of excavator used in construction sites with small workload and narrow operating space. The tonnage of small excavators is usually between 1 ton and 6 tons, which is smaller in size and more compact in structure compared to large excavators, and can operate on narrow construction sites.

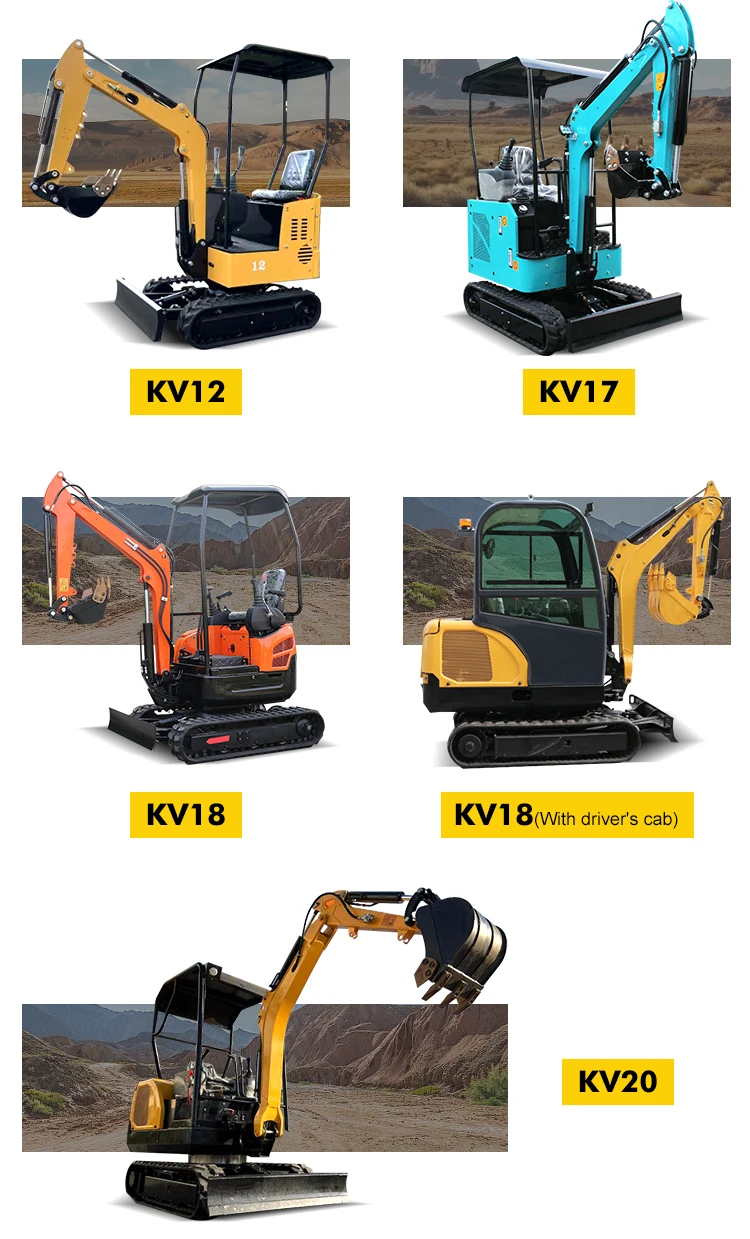

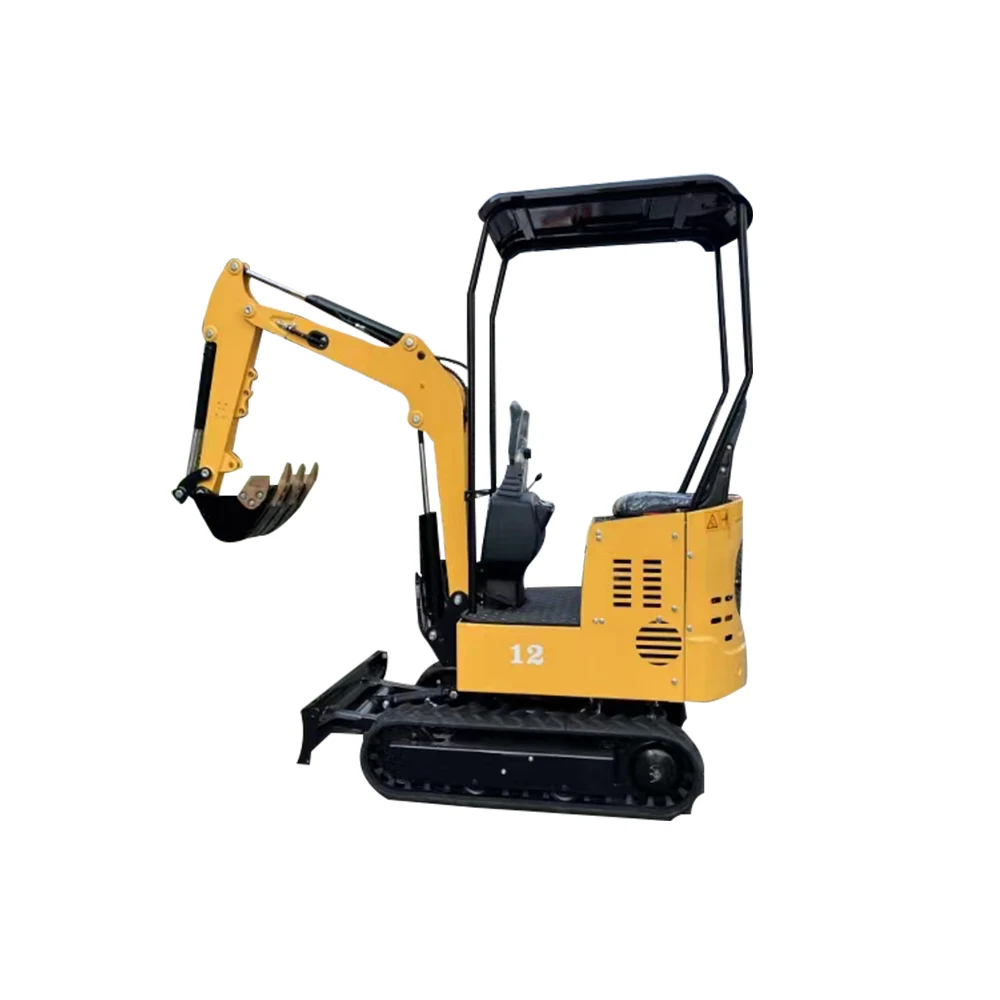

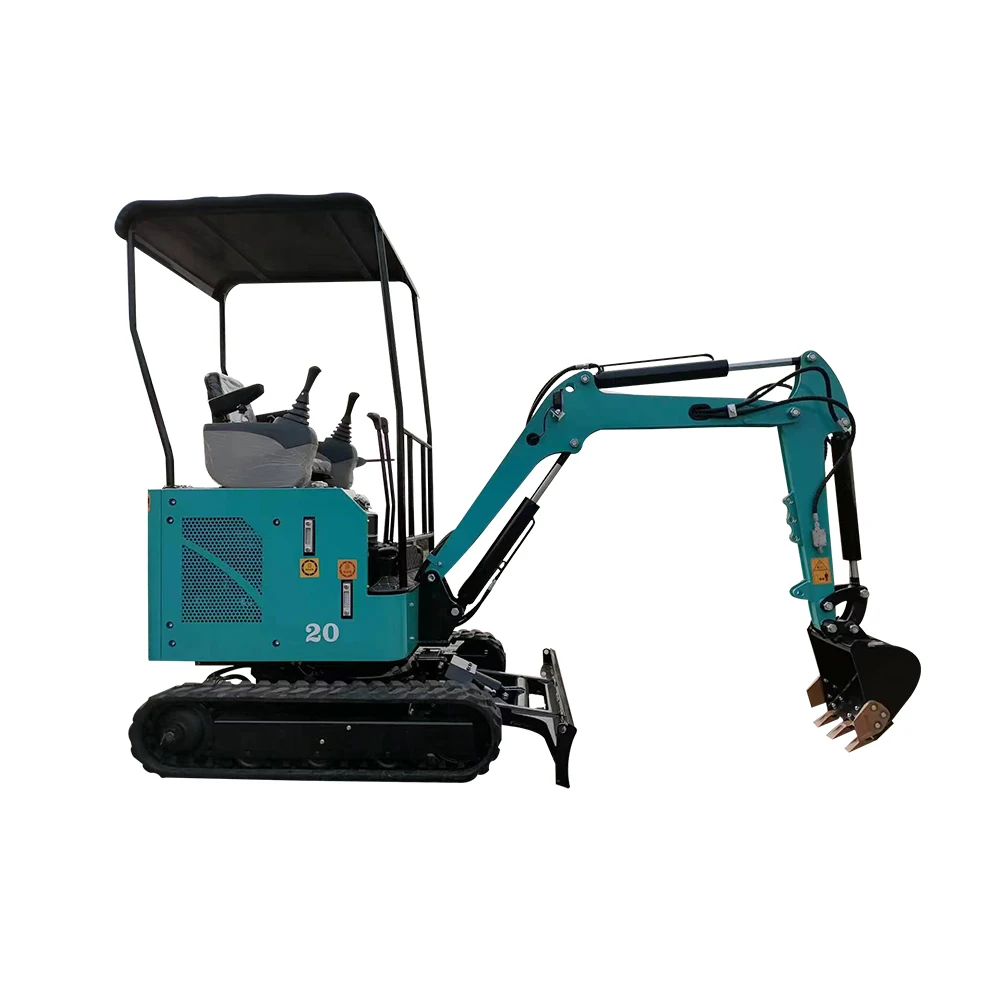

Model | Kv12 | Kv17 | Kv18 | KV18（With driver's cab） | Kv20 | ||||
Bucket capacity | 0.025m³ | 0.025m³ | 0.025m³ | 0.025m³ | 0.035m³ | ||||
Chassis width | 930mm | 1100mm | 1100mm | 1100mm | 1100mm-1400mm | ||||
Climbing ability | 40° | 40° | 40° | 40° | 40° | ||||
Fuel tank capacity | 3.5L | 18L | 15L | 15L | 16L | ||||
External dimensions | 2200*930*2200mm | 2400*1100*2200mm | 2200*1100*2200mm | 2200*1100*2200mm | 3550*1100/1400*2203mm | ||||
working pressure | 16Mpa | ||||||||
Engine power | 13.5kw | 20kw | 10.3kw | 10.3kw | 18.2kw | ||||
Maximum excavation height | 2550mm | 2550mm | 2700mm | 2700mm | 3016mm | ||||
Maximum dumping height | 1600mm | 1900mm | 1900mm | 1900mm | 2133mm | ||||
Maximum excavation depth | 1650mm | 1884mm | 3280mm | 3280mm | 3800mm | ||||
Maximum excavation radius | 1190MM | 3031mm | 1636mm | 1636mm | 1645mm | ||||
Vehicle weight | 950kg | 1150kg | 1500kg | 1500kg | 2000kg | ||||

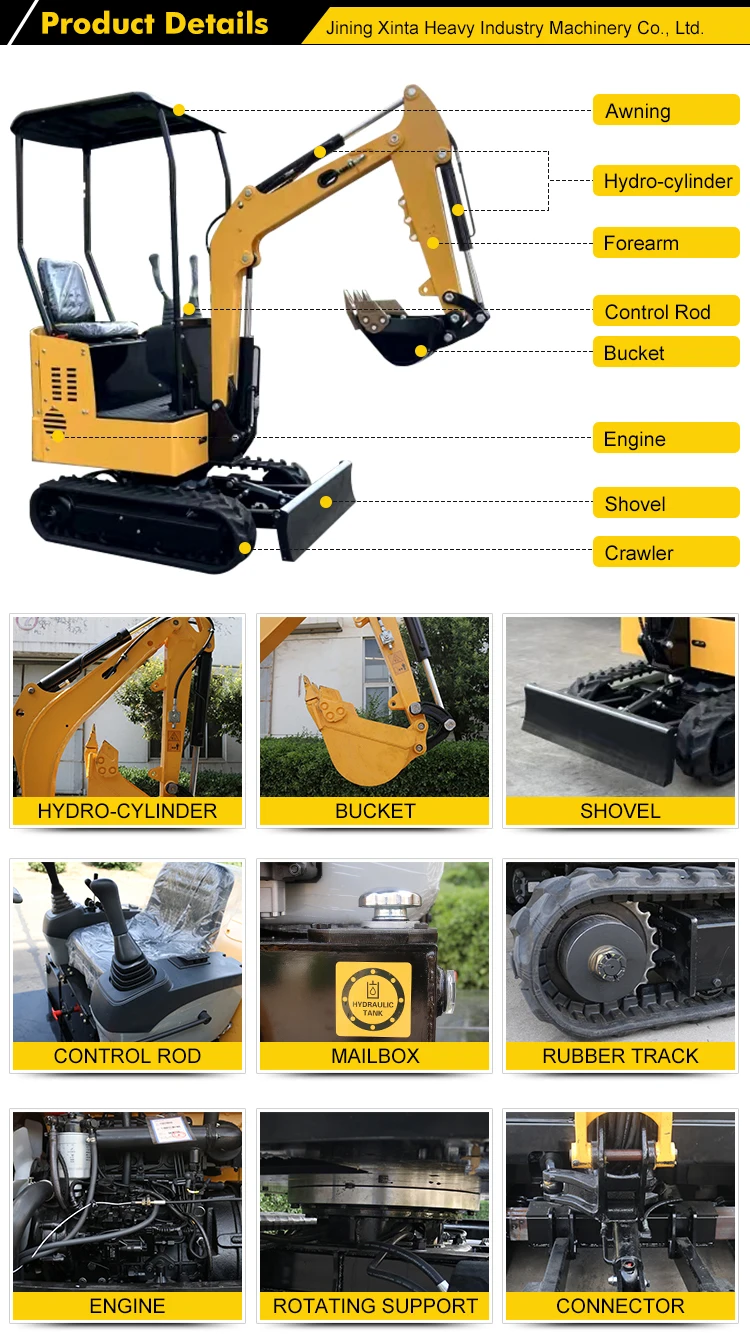

Product Show
Product Feature
1. Compact and flexible: Small excavators are compact in size and can easily enter narrow work spaces in cities, such as streets, courtyards, construction sites, etc., to maximize their production capacity.
2. Easy to operate: The cab design is user-friendly, and the layout of the operating handle and buttons is reasonable, making it easy for operators to quickly get started
3. Efficient and energy-saving: Using high-quality engines and optimized hydraulic systems to achieve efficient energy conversion and transmission, reducing energy consumption. At the same time, the low fuel consumption characteristics of small excavators also reduce operating costs.
4. Strong adaptability: able to adapt to various complex terrains and working environments, such as muddy, rugged and other harsh road conditions, ensuring the smooth progress of construction.
2. Easy to operate: The cab design is user-friendly, and the layout of the operating handle and buttons is reasonable, making it easy for operators to quickly get started
3. Efficient and energy-saving: Using high-quality engines and optimized hydraulic systems to achieve efficient energy conversion and transmission, reducing energy consumption. At the same time, the low fuel consumption characteristics of small excavators also reduce operating costs.
4. Strong adaptability: able to adapt to various complex terrains and working environments, such as muddy, rugged and other harsh road conditions, ensuring the smooth progress of construction.
Packing&Delivery

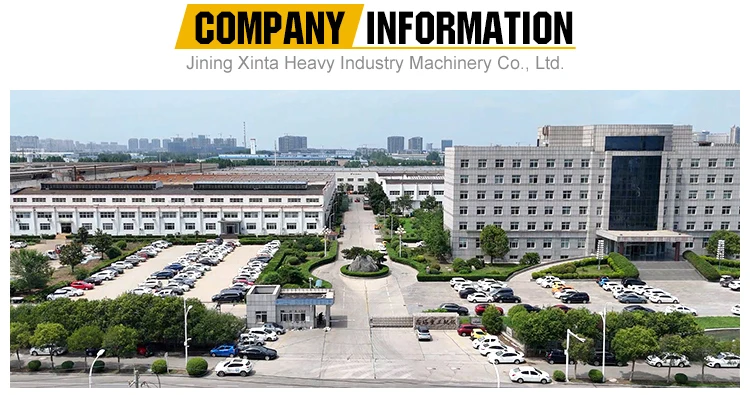

Company Information
Jining Xinta Heavy Industry Machinery Co., Ltd. was established in 2016 and is located in the historic city of Jining, which has Confucian culture and thought. The company covers an area of 200 acres, has fixed assets of billions of yuan, more than 200 employees, and more than 20 engineering and technical personnel. The company has a long history in the research, processing, production, and sales of agricultural machinery. Its products comply with CE certification/EPA
certification/ISO quality certification and are exported to Europe, America, Southeast Asia, Central Asia, and other countries andregions to establish stable cooperative relationships. We have independent research and development capabilities, complete processing technology, spacious workshop scale, precise processing equipment, and strict management. We are a large enterprise integrating design, research and development, production, and sales, mainly producing remote-controlled lawn mowers,excavators,rollers, etc.
certification/ISO quality certification and are exported to Europe, America, Southeast Asia, Central Asia, and other countries andregions to establish stable cooperative relationships. We have independent research and development capabilities, complete processing technology, spacious workshop scale, precise processing equipment, and strict management. We are a large enterprise integrating design, research and development, production, and sales, mainly producing remote-controlled lawn mowers,excavators,rollers, etc.
FQA
Q1: Are you trading company or manufacturer?
We are factory. We can design and manufacture products with our patent, Welcome to visit our factory.
Q2: How to guarantee customers get the goods smoothly after they pay?
We joined the trade assurance, you can place the order by trade assurance, and the deposit will given to Alibaba. If we don't delivery products on time, the deposit will return to you.
Q3: How do you ensure the quality of your products?
Generally, our machines are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with best quality.
Q4:How would the goods be shipped?
We can ship it by sea or by land
Q5:What method of payment do you accept?
A:We accept ACP,Western Union,T/T,pay pal,money gram,Secure Payment.
We are factory. We can design and manufacture products with our patent, Welcome to visit our factory.
Q2: How to guarantee customers get the goods smoothly after they pay?
We joined the trade assurance, you can place the order by trade assurance, and the deposit will given to Alibaba. If we don't delivery products on time, the deposit will return to you.
Q3: How do you ensure the quality of your products?
Generally, our machines are the most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with best quality.
Q4:How would the goods be shipped?
We can ship it by sea or by land
Q5:What method of payment do you accept?
A:We accept ACP,Western Union,T/T,pay pal,money gram,Secure Payment.
