OUY Hydraulic Piston Seal High Quality Oil Resistant Chain Adjust Seal 50*80*12
- Category: >>>
- Supplier: Xingtai Puxiang Sealing Technology Co. Ltd.
Share on (1601225293142):
Product Overview
Description
Products Description
Name | OUY oil seal | ||||||
Material | PU | ||||||
Properties | Oil/High tempreture/Waterproof/Wear-resistant | ||||||
Color | Black+White/Beige | ||||||
Size | Customized | ||||||
MOQ | 1000 pieces | ||||||
Usage | Hydraulic Used | ||||||
Advantage | High resistance to high temperature High abrasion resistance Low compression set Easy installation | ||||||
Package | PE+carton | ||||||
Port of loading | Tianjin, Shanghai, Guangzhou | ||||||
Delivery ways | By air/sea/train/express | ||||||

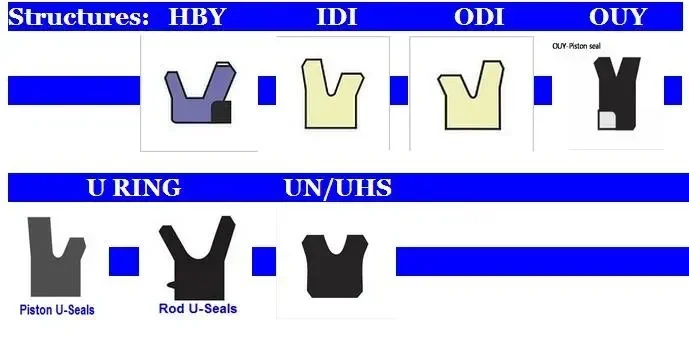

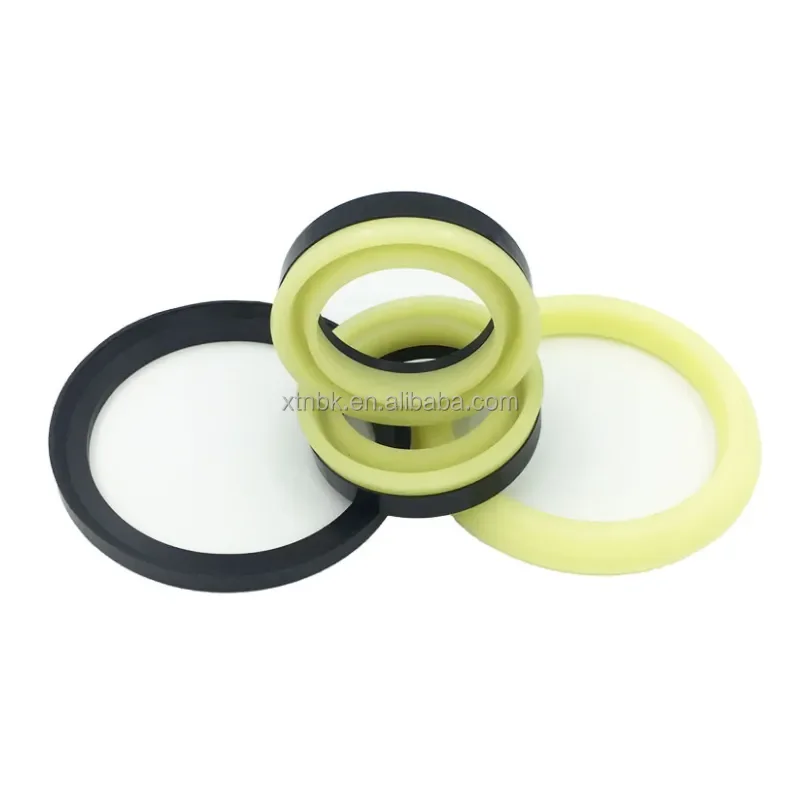

Adjuster Seal Ouy Ouyk Odi Piston Oil Seal For Excavator OUY Oil Seal
Piston Seals or Piston Rings are used in hydraulic cylinders for fluid sealing and are designed to ensure that pressurised fluid
does not leak across the cylinder head as the system pressure pushes the piston down the cylinder bore.
The choice of piston seal is decided by the way in which the cylinder operates. For a cylinder which is exclusively single-acting,
capable of sealing dynamic pressure from one side (unidirectional), it is always best to choose the type of seal designed to
provide optimum sealing qualities for single-acting functions. The best sealing capacity of a double-acting cylinder, capable of
sealing dynamic pressure from both sides (bidirectional), is achieved by choosing a double-acting seal. A piston design where two
single-acting seals on the piston for a double-acting cylinder are used can easily give rise to a breakdown. The reason is that a
very high pressure can be trapped between the seals. Piston seals, both single and double-acting, can be designed for and used
with integrated or separate back-up rings and guide rings.
Piston Seals or Piston Rings are used in hydraulic cylinders for fluid sealing and are designed to ensure that pressurised fluid
does not leak across the cylinder head as the system pressure pushes the piston down the cylinder bore.
The choice of piston seal is decided by the way in which the cylinder operates. For a cylinder which is exclusively single-acting,
capable of sealing dynamic pressure from one side (unidirectional), it is always best to choose the type of seal designed to
provide optimum sealing qualities for single-acting functions. The best sealing capacity of a double-acting cylinder, capable of
sealing dynamic pressure from both sides (bidirectional), is achieved by choosing a double-acting seal. A piston design where two
single-acting seals on the piston for a double-acting cylinder are used can easily give rise to a breakdown. The reason is that a
very high pressure can be trapped between the seals. Piston seals, both single and double-acting, can be designed for and used
with integrated or separate back-up rings and guide rings.
products | OUY regulator seals |
material | PTFE polyurethane rubber, nitrile rubber |
features | Resistant to oil, weather, abrasion and solvents |
hardness | 70 - 90 Coast A |
temperature | 30~+210°C |
velocity | 1.5 m/s |
color | Black, white |
MOQ | 20 pcs |
usability | In stock |
Ship date | 2-3 days after payment |
Port of loading | Tianjin |
Delivery method | Air freight, sea freight, express, etc |
Payment terms | Bank transfers, Western Union, credit cards, PayPal, etc |

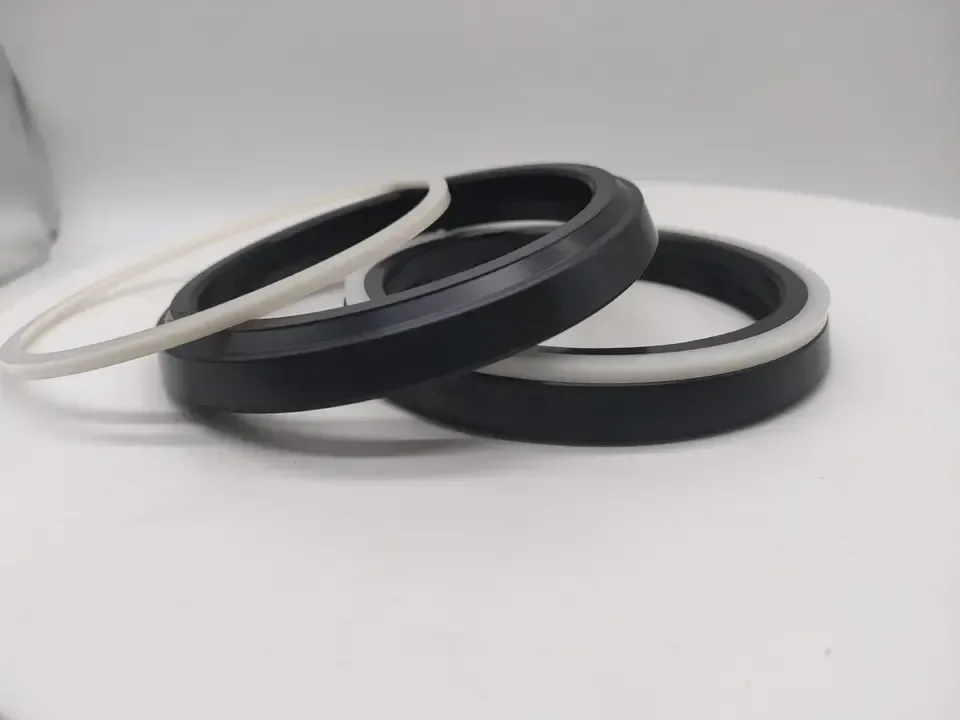

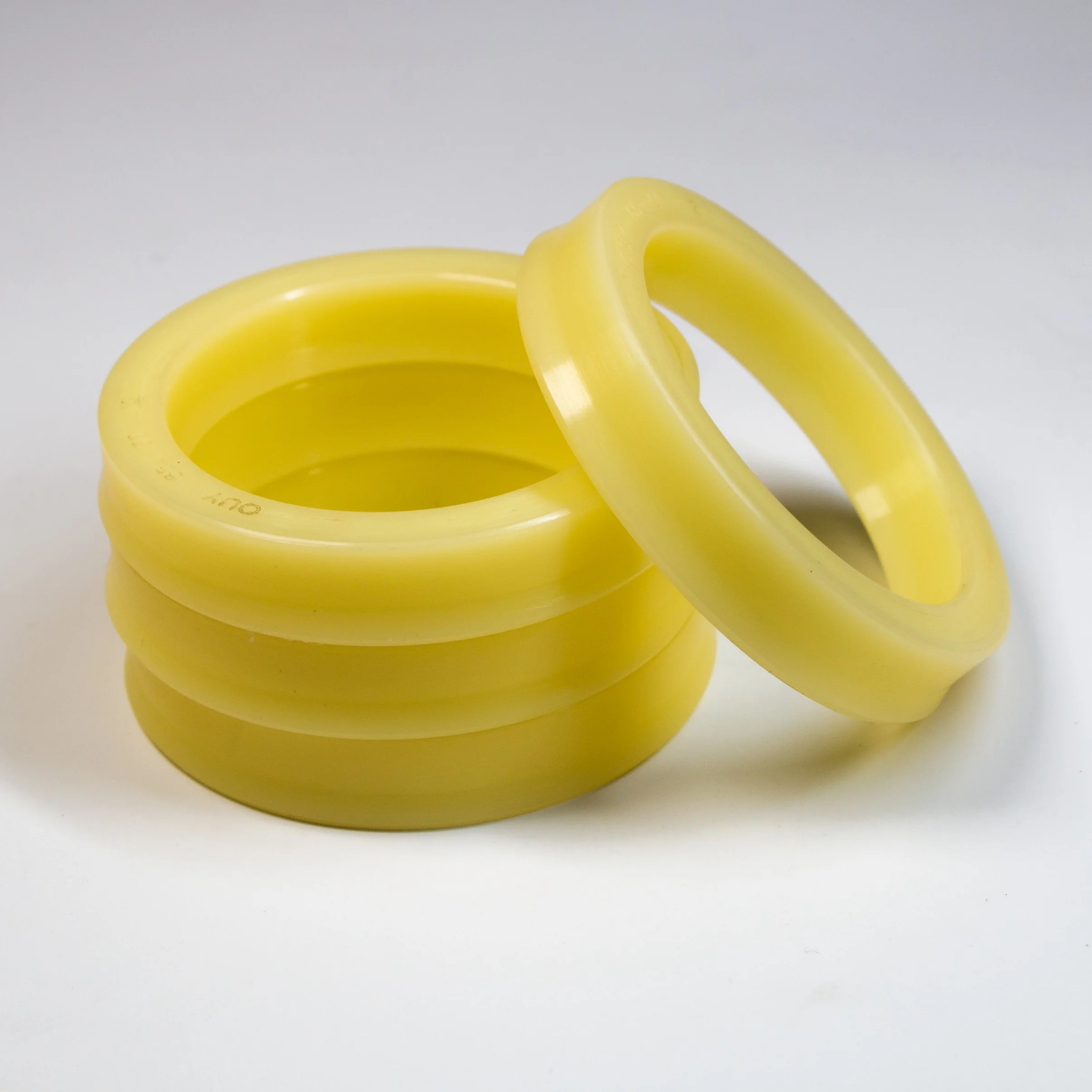

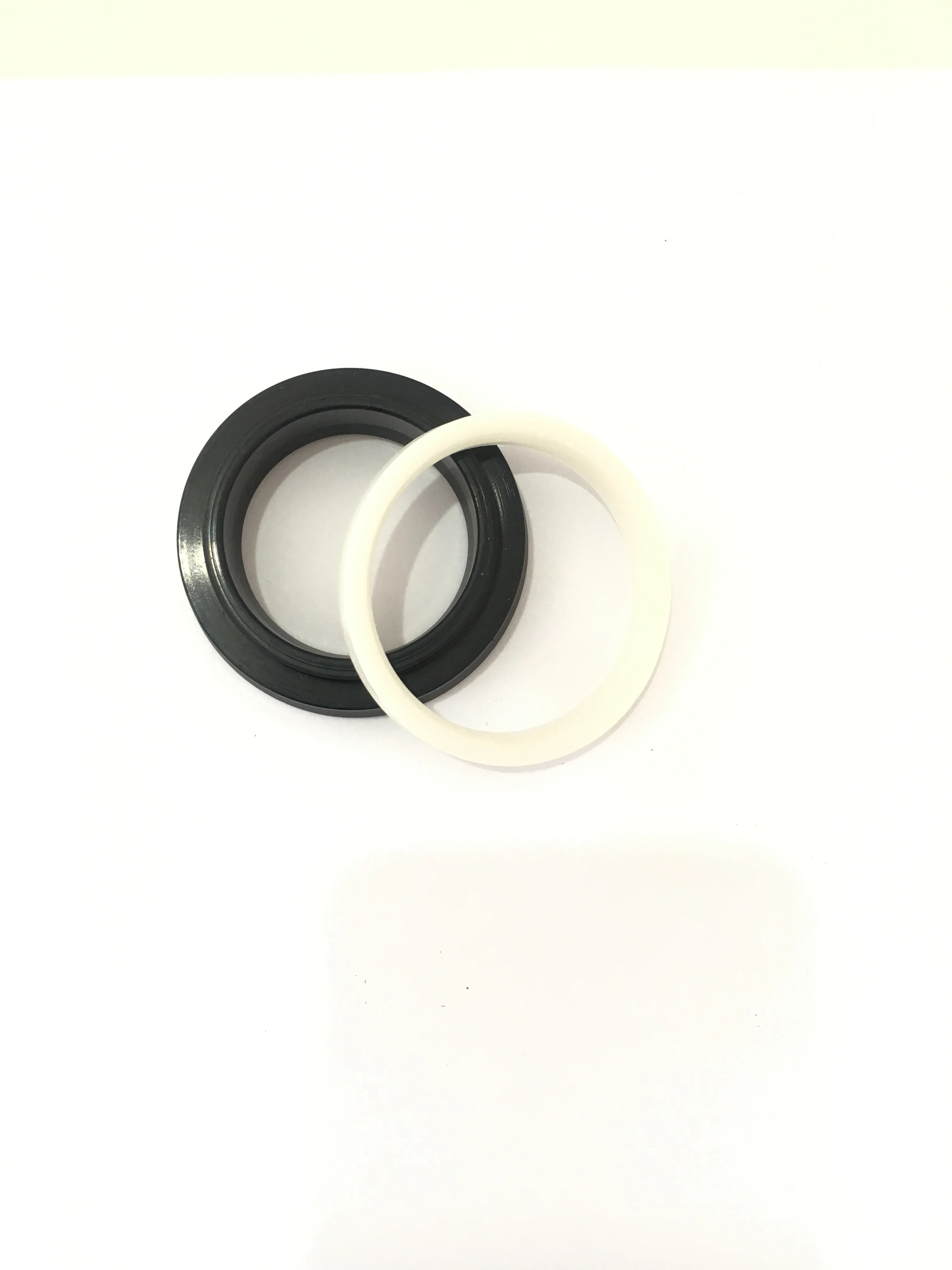

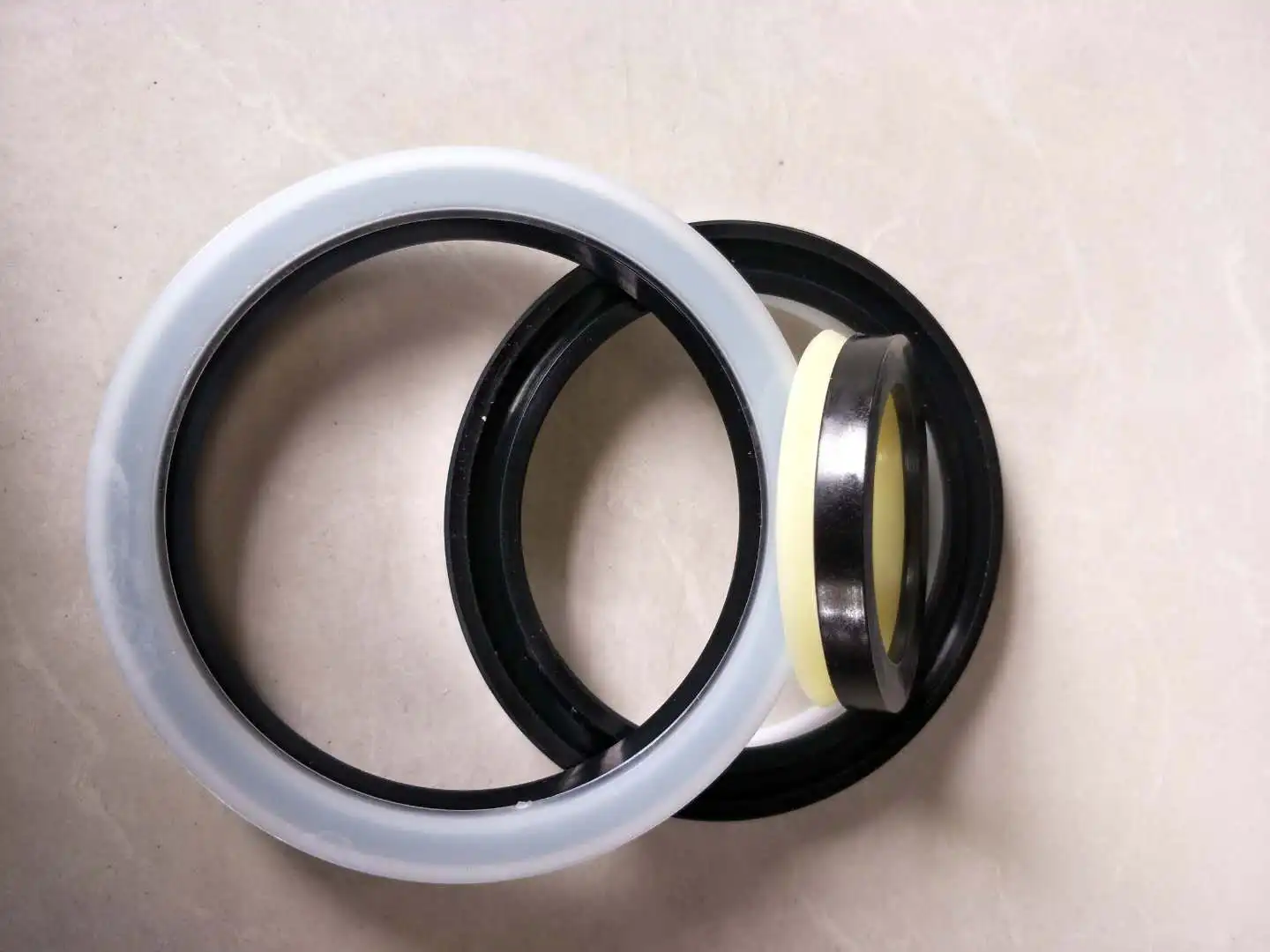

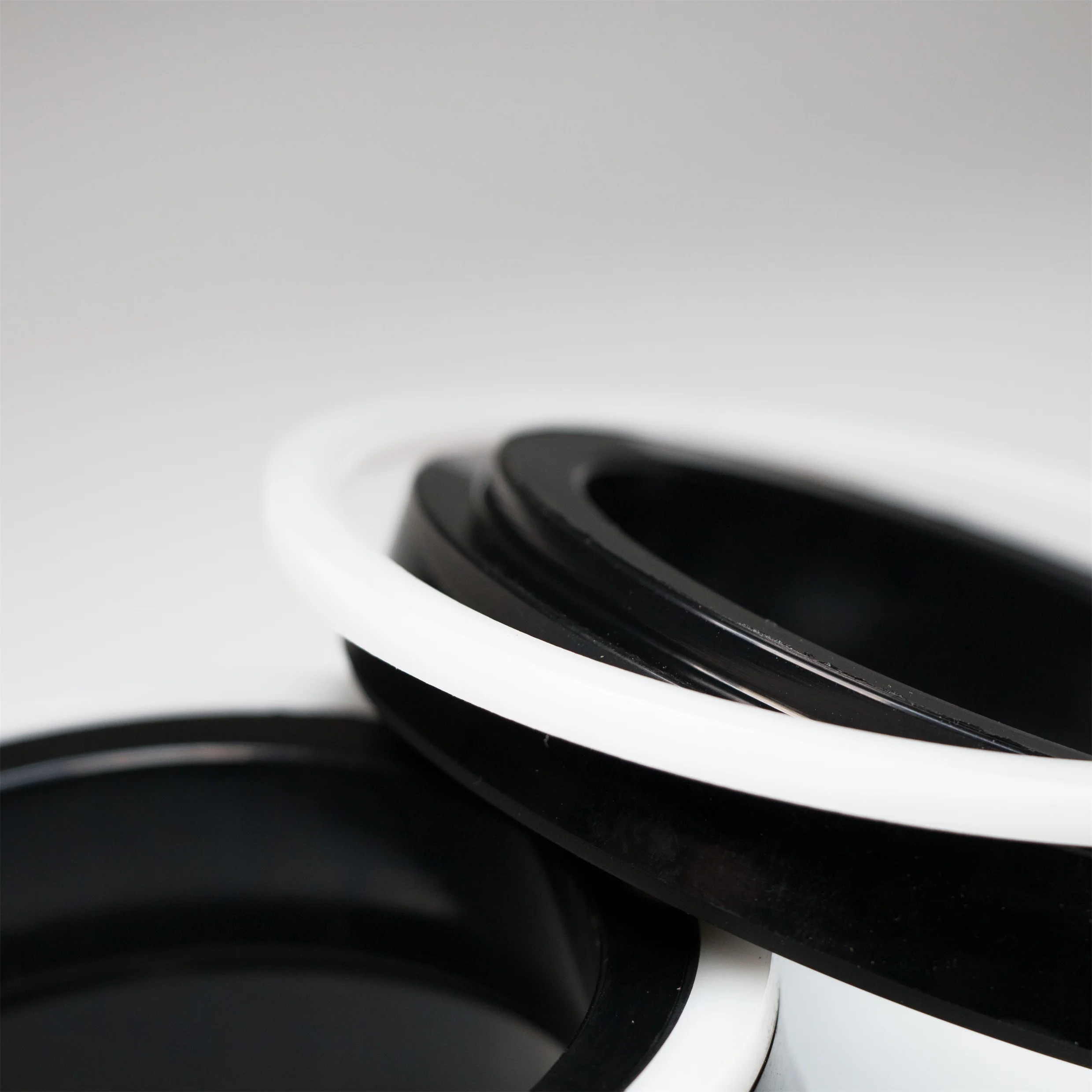

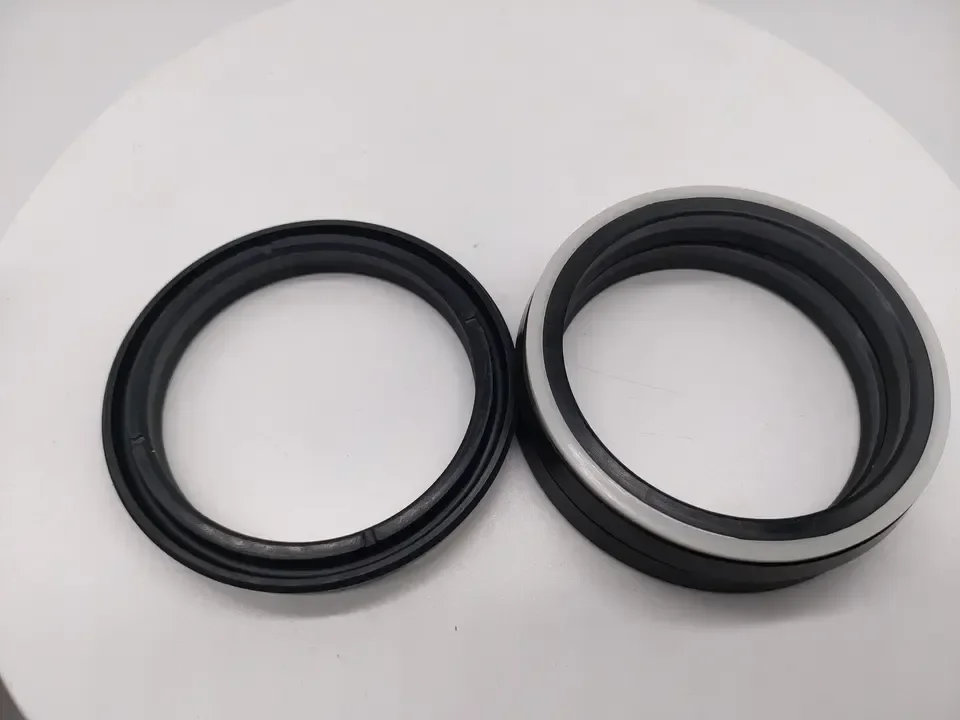

Details Images

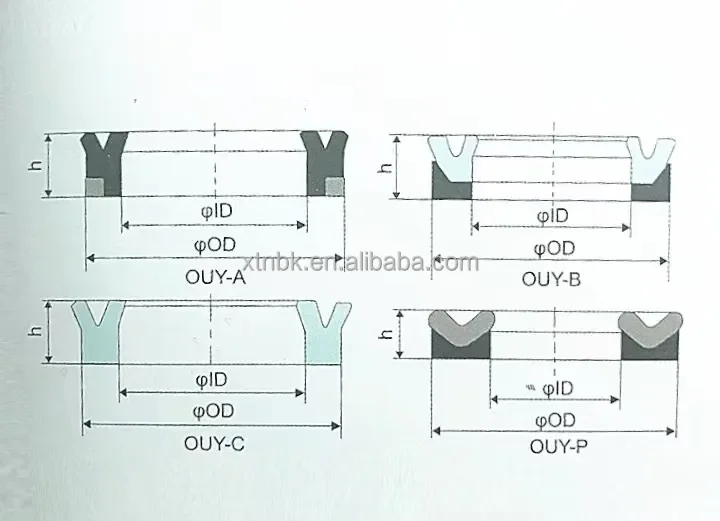

Specification and model table
20*35*12 | 64*80*12 |
25*40*12 | 65*75*8 |
30*45*12 | 65*90*18 |
34*50*15 | 70*85*12 |
35*50*12 | 70*90*12 |
35*60*15.5 | 70*90*15 |
40*70*12 | 75*95*12 |
45*60*12 | 75*100*18 |
45*70*15.5 | 80*90*8 |
45*75*14.5 | 80*95*12 |
47*80*16 | 80*100*12 |
50*65*12 | 85*105*12 |
50*80*12 | 90*105*9 |
54*70*12 | 90*105*12 |
55*70*12 | 90*110*12 |
55*80*18 | 100*120*12 |
55*85*12 | 110*130*12 |
60*75*12 | 130*150*12 |
Our Service and Working Process
Pre-sales stage: We have sales representatives to communicate with customers, understand the needs of customers, and according to ours
Experience and ability to initiate draft proposals for client review. By reviewing, analyzing, and improving proposals, we will:
Finalize our proposal with the client.
Production phase: We have very strong experience in the construction machinery parts business and downstream/upstream partnerships. Under the standard of customized quality
Our good production scheduling will ensure timely delivery of our customers' seals and seal kits
。
After-sales: We will record the customer information of each sale and continue to communicate effectively even after the transaction.
We will review the entire process to enhance our experience and ensure that we can serve our customers better and better.
Experience and ability to initiate draft proposals for client review. By reviewing, analyzing, and improving proposals, we will:
Finalize our proposal with the client.
Production phase: We have very strong experience in the construction machinery parts business and downstream/upstream partnerships. Under the standard of customized quality
Our good production scheduling will ensure timely delivery of our customers' seals and seal kits
。
After-sales: We will record the customer information of each sale and continue to communicate effectively even after the transaction.
We will review the entire process to enhance our experience and ensure that we can serve our customers better and better.
Company Profile
Xingtaipu wants to seal technology Co., Ltd. offer all kinds of rubber molded. Specializing in the production of all kinds of hydraulic seals, all kinds of cylinder oil seals, tensioning cylinder oil seals. The products are: OR.IUH.OUY.ODI.IDI.VA.BRT.N4W.WR.DKB.DKBI.DLI.OK seal, SPGA sealing ring, and TCN high pressure oil seal, as well as various wheel hub oil seals. for usage in various industries.whatever your goals for your component or product, we have the expertise and equipment to deliver.We strictly follow the needs of each customer: quality,specification, size and quantity to arrange processing and production. Our engineers could recommend sizes according to using,draw the drawings according to samples, even help to design it. OEM and ODM are welcome,you could get satisfied service there,7 days and 24 hours quick reply.There are more than 60 QC staff to control the quality.Every product will be 100% checked before shipping.If the order goods have problem, we will solve it within 24 hours, and we will replace the product for you without any cost.
our company always insists on survival by quality and development by efficiency. Meet the needs of consumers with excellent after-sales service. Warmly welcome friends from all walks of life to visit our company to discuss trade.
our company always insists on survival by quality and development by efficiency. Meet the needs of consumers with excellent after-sales service. Warmly welcome friends from all walks of life to visit our company to discuss trade.
Product packaging
FAQ
Q1: I wonder if you accept small orders?
A1:Pls fell free to contact us no matter how many products you want, we will try our best to get the best price for you.
Q2:Can you do OEM?
A2:We accept all OEM orders, just give us your design, we will make samples for you soon.
Q3:Can you do design for me?
A3:We have experienced designers, according to your requirement, we can add your company logo, website, phone number or any of
your ideas on the products or on the box... Just tell me your ideas, and let me do it for you.
Q4:Can you supply me samples?
A4:Yes, we can, but you should pay for the freight cost and sample fee.
Q5: What's the shipping way?
A5:Regarding the small quantity orders or the urgent needed products , we can send them by air or courier, and the large quantity
orders are shipped by sea according to your demands.
Q6: When can I get the quotation?
A6:We usually quote you within 24 hours in getting your inquiry. If you are very urgent to get the quotation, please call us or
tell us in your email, so that we could focus your inquiry priority.
Q7: How long to delivery the products?
A7:If it is the stocked item , we can delivery in 3 days,
If it is not, normally it will about 15 to 35 days depond on the quantity of the order.
A1:Pls fell free to contact us no matter how many products you want, we will try our best to get the best price for you.
Q2:Can you do OEM?
A2:We accept all OEM orders, just give us your design, we will make samples for you soon.
Q3:Can you do design for me?
A3:We have experienced designers, according to your requirement, we can add your company logo, website, phone number or any of
your ideas on the products or on the box... Just tell me your ideas, and let me do it for you.
Q4:Can you supply me samples?
A4:Yes, we can, but you should pay for the freight cost and sample fee.
Q5: What's the shipping way?
A5:Regarding the small quantity orders or the urgent needed products , we can send them by air or courier, and the large quantity
orders are shipped by sea according to your demands.
Q6: When can I get the quotation?
A6:We usually quote you within 24 hours in getting your inquiry. If you are very urgent to get the quotation, please call us or
tell us in your email, so that we could focus your inquiry priority.
Q7: How long to delivery the products?
A7:If it is the stocked item , we can delivery in 3 days,
If it is not, normally it will about 15 to 35 days depond on the quantity of the order.
