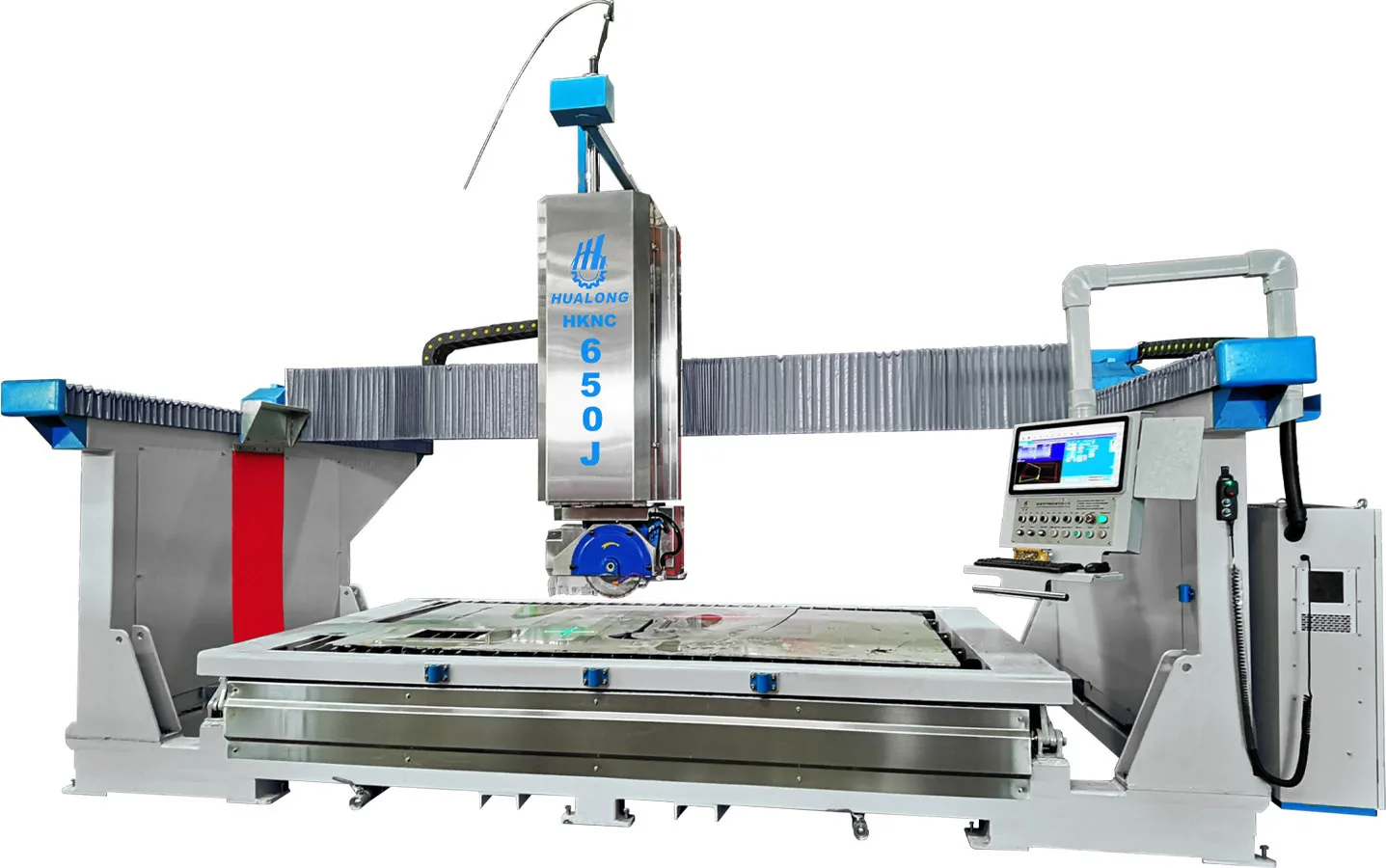

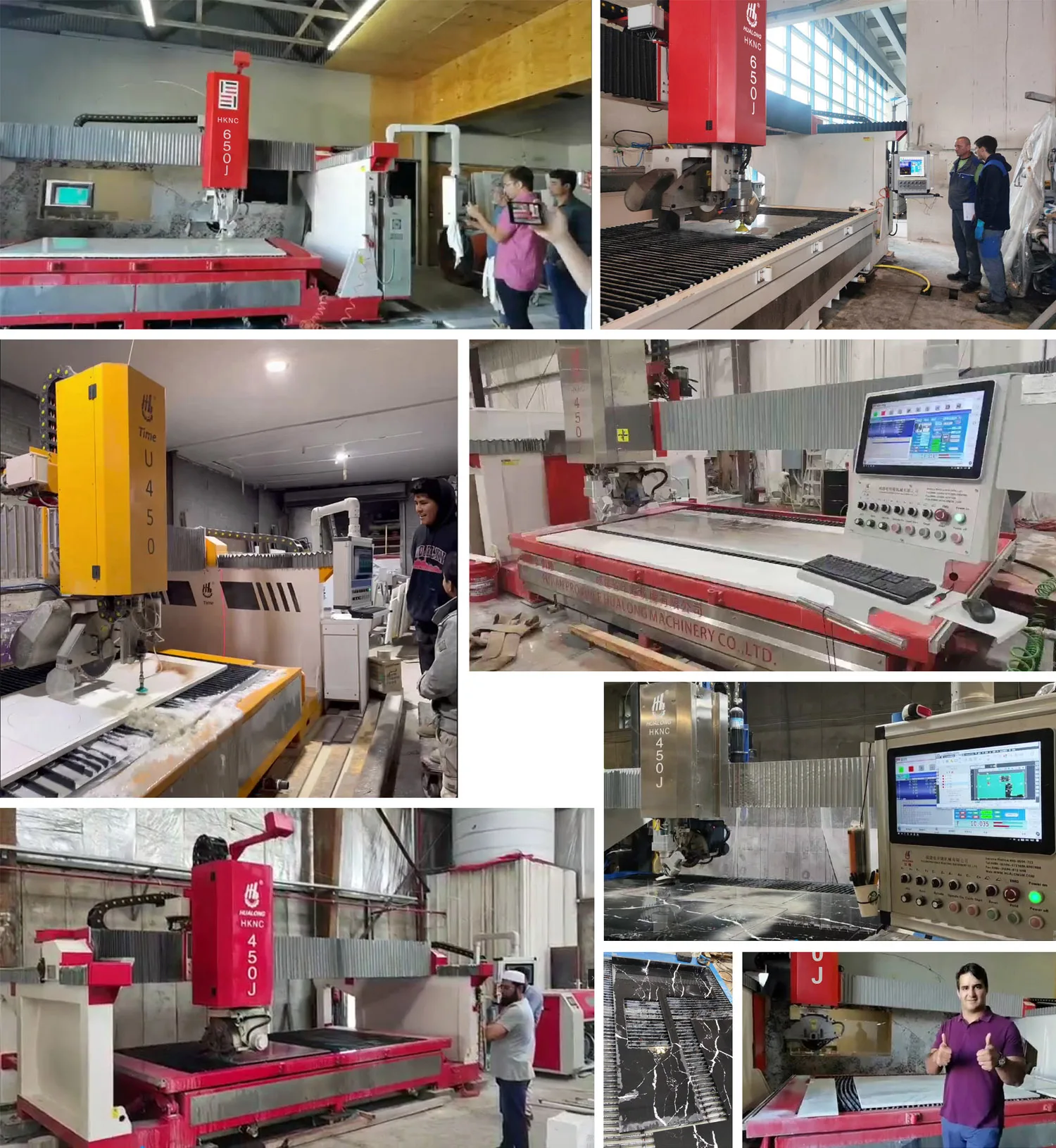

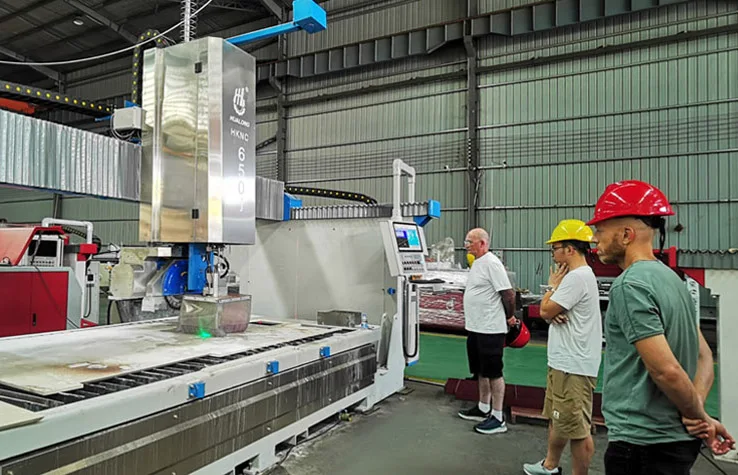

5 Axis Stone CNC Sawjet HKNC-650J
with top of the line Italian CNC control system ESA, is a fully automated dual-use machine, a combination of a 5-axis CNC saw and a 5-axis CNC waterjet, which is gone together constructing the revised concept system for cutting granite, marble, quarts, limestone and the rising new ceramic material.
CNC saw is used for cutting stone slabs, countertops and sinks, blade profiling, and more.
The waterjet cutting head is perfect for mitering and cutting through different materials into precision intricate shapes and angles, ideal for cutting porcelain, stone, marble and granite inlay patterns.
The waterjet cutting head is perfect for mitering and cutting through different materials into precision intricate shapes and angles, ideal for cutting porcelain, stone, marble and granite inlay patterns.
Main Features

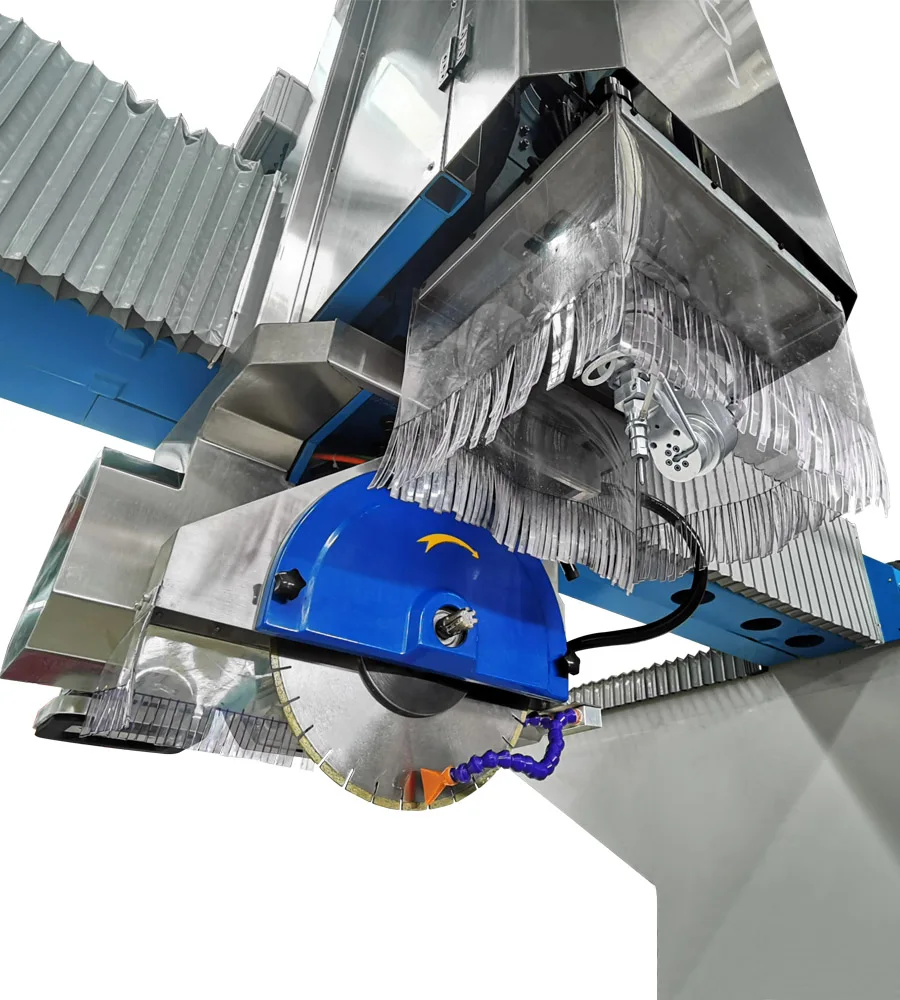

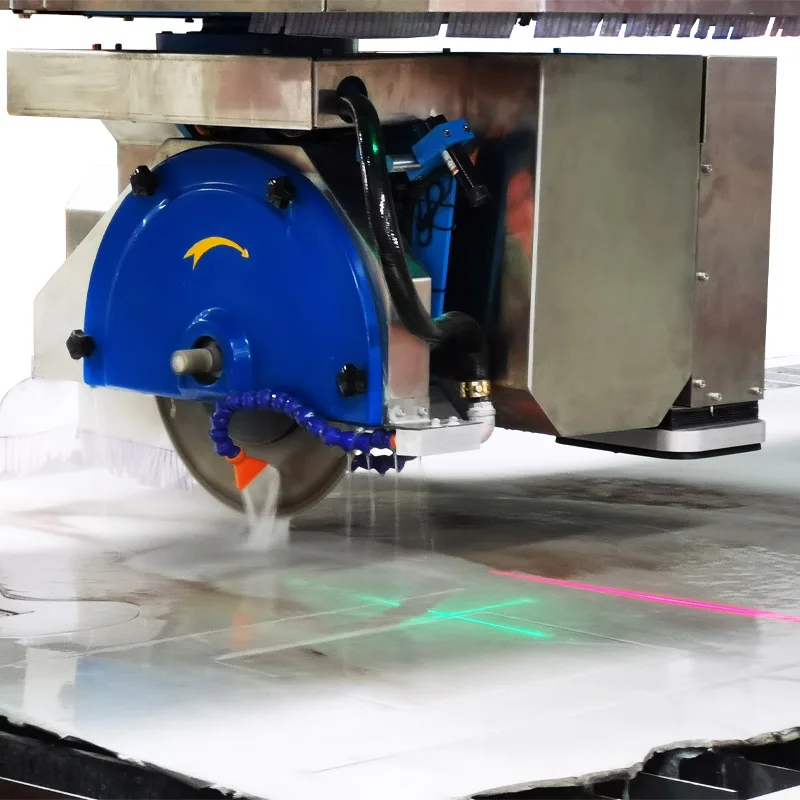

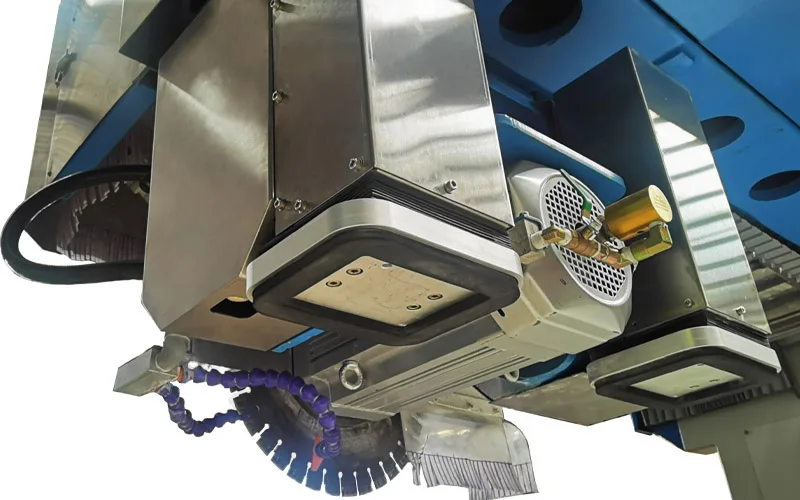

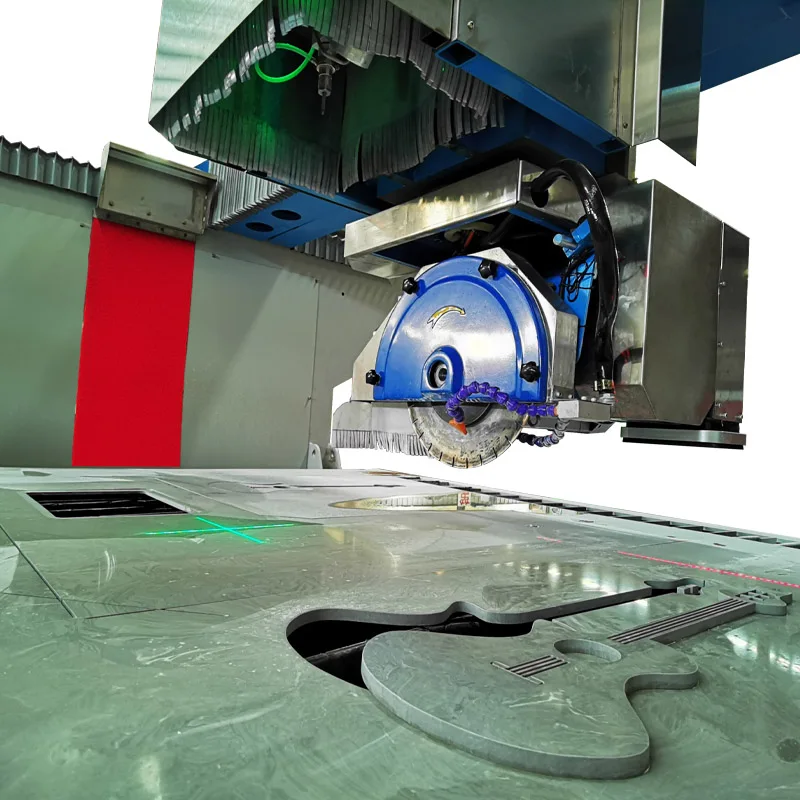

5-axis Saw --- this machine is a fully interpolated 5 axis bridge saw
* Automatic head rotation from 0° to 360° combined with automatic blade tilting from 0° to 90° makes it suitable for large production runs, at the same time containing costs.
* It can implement different complex curved surface processing and combines the cutting and optional functions of drilling, milling, engraving into an oganic whole.

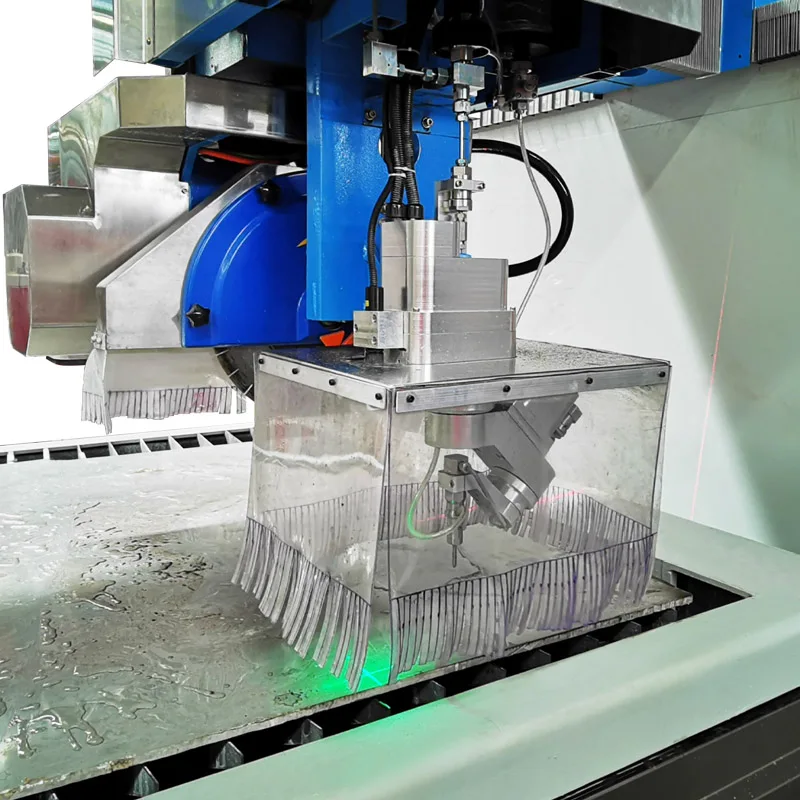

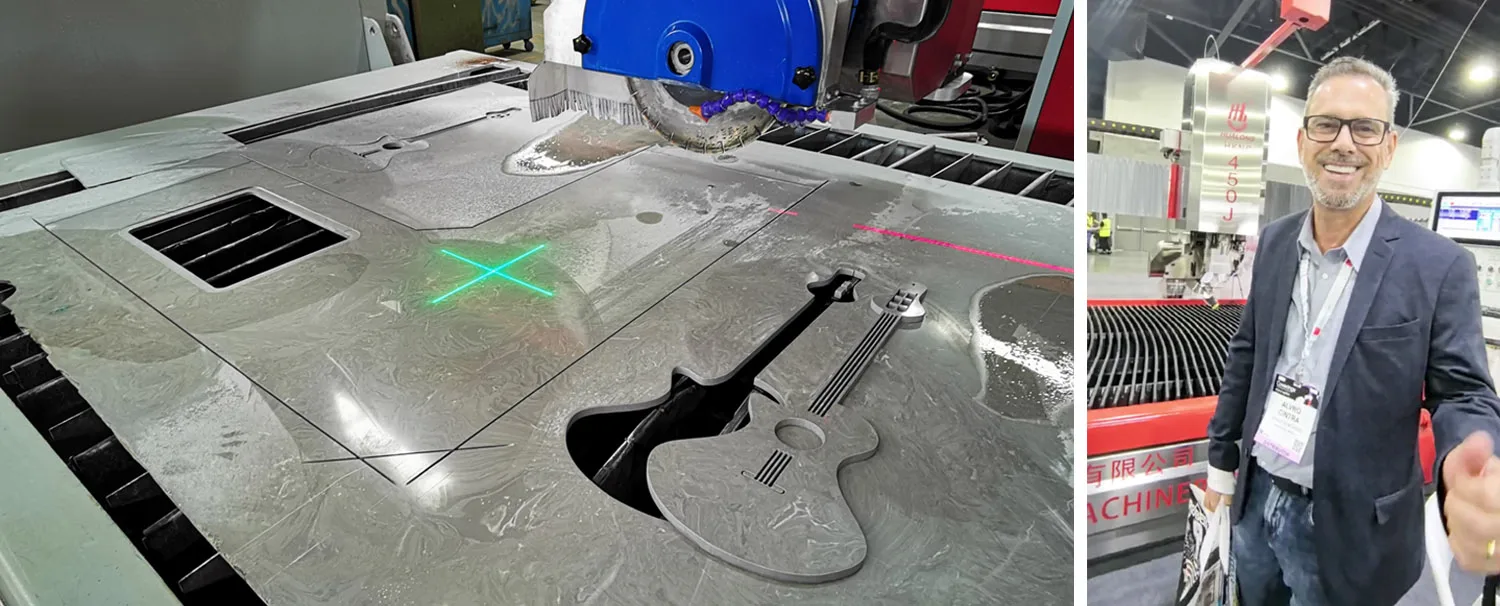

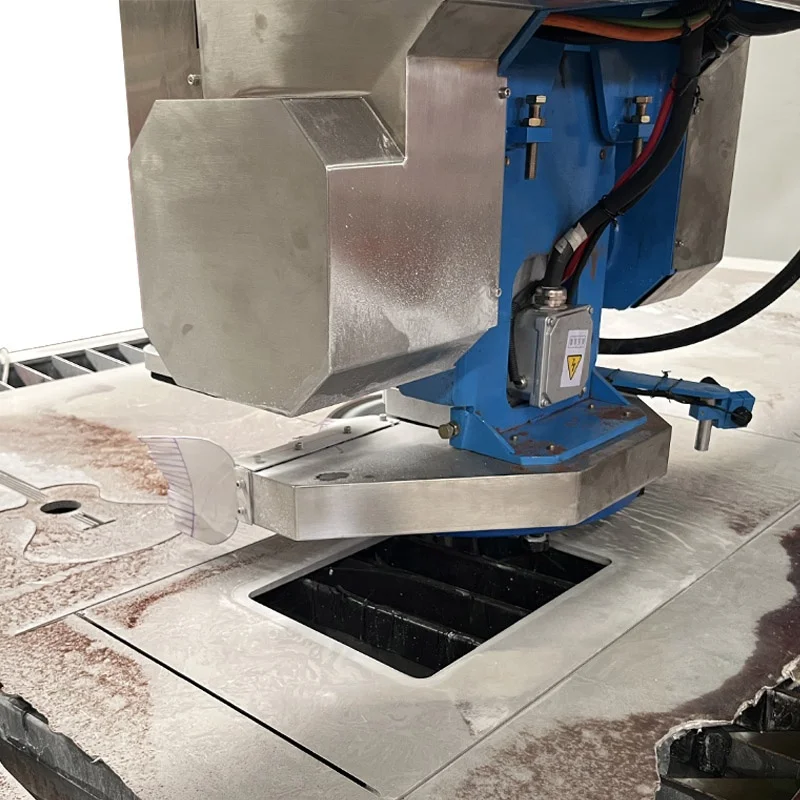

5-axis Waterjet ---this machine is a fully interpolated 5 axis waterjet either
* Automatic head rotation from 0° to 360° combined with automatic Abrasive Cutting Head tilting from 0° to 60° for precise
inside-corner fabrication for mitered edge.
* It can implement different complex curved surface processing and combines the cutting and optional functions of drilling, milling, engraving into an oganic whole.
5-axis Waterjet ---this machine is a fully interpolated 5 axis waterjet either
* Automatic head rotation from 0° to 360° combined with automatic Abrasive Cutting Head tilting from 0° to 60° for precise
inside-corner fabrication for mitered edge.
1) 5 axis linkage control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Y axis is moved by a gantry system, which guarantees a perfect square of the bridge
4) The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks.
2) Easy to use interface with 19" color touch-screen.
3) Y axis is moved by a gantry system, which guarantees a perfect square of the bridge
4) The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks.
5) CNC Sawjet & bridge saw can quickly do easy cuts in manual, the machine also can import and work with DXF (AutoCAD) files
6) Working platform can tilt 85 degrees, easy for slabs loading.
7) Photo slab for nesting and avoiding defects.
8) Nesting manual / automatic to optimize slab surface usage
9) RTCP tool point tracking function ensure precision machining easy.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
6) Working platform can tilt 85 degrees, easy for slabs loading.
7) Photo slab for nesting and avoiding defects.
8) Nesting manual / automatic to optimize slab surface usage
9) RTCP tool point tracking function ensure precision machining easy.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
TECHNICAL DATA FOR HKNC-650J | ||||
Diameter of saw blade | ø350-ø650 | mm | ||
Dimension of working platform | 4100x2200 | mm | ||
X axis stroke | 3500 | mm | ||
Y axis stroke | 2000 | mm | ||
Z axis stroke | 500 | mm | ||
Max. cutting thickness | 190 | mm | ||
Power of saw blade motor | 15 | kw | ||
Power for abrasive waterjet | 37 | kw | ||
Max. operating water pressure | 60,000 | psi | ||
Water pressure required | 35 | psi | ||
Water consumption | 11.4-16.7 | l/min | ||
Gross weight | 10000 | kg | ||
Dimensions (L x W x H) | 6200x3900x3400 | mm | ||

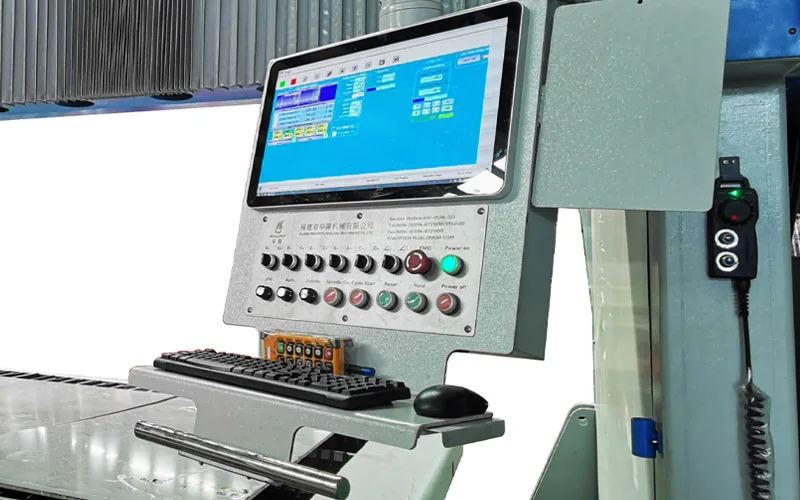

Control system -- CNC
Brand: Esa
Original: Italy
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job
easy, perfect and high efficient.
Software - Pegasus CAD/CAM
Brand: Pegasus
Original: Italy
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.
* Easy to Use -- Very user-friendly, it does not require any advanced computer skill.
* Reliable -- Frequent updates and high-quality support.
* Powerful -- Different modules and tools for plenty of technologies and machinings.
Slab Image Capture (Optional)
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.
acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to
be machined; it is also possible to qualify the slab edge geometrically.
Slab Thickness Detector (optional)
System to automatically detect the thickness of the slab.
Blade Presetting Unit (optional)
Origin: China
System to automatically detect the thickness of the slab.
System to automatically detect the thickness of the slab.
Fixing Bar (optional)
Keep the working piece not moving during processing.
Vacuum Manipulator (Optional)
The manipulator for workpiece handling, material saving and nesting.
It has two vacuum cups, enableing a lift capacity of 200kgs.

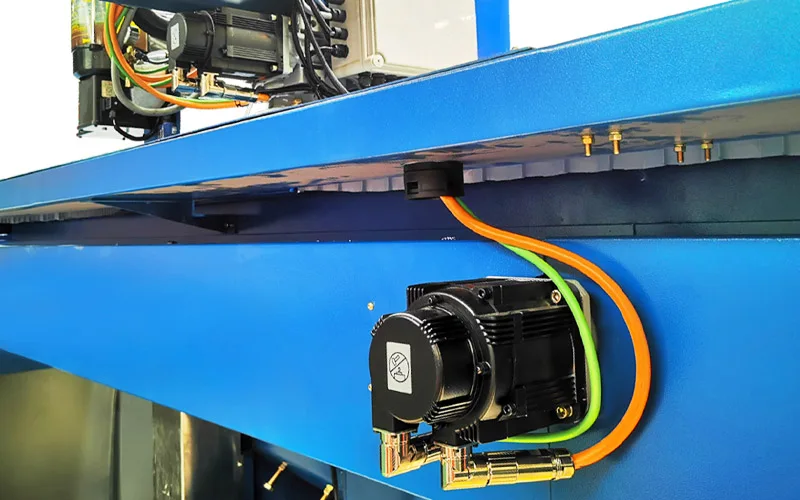

Digital Servomotor
Brand: ESA
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa’s CNCs,
creates a reliable controlling power for X, Y, Z and C axises
Electric Cabinet
Branded electric companets such ESA, Schneider, Yaskawa, Sanch are adopted to ensure stable performance.
Electro-spindles
of high quality controlled by an inverter allowing the adjustment of the nr. of revolutions from 0 to 6000 rpm, so
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
granting the use of blade and diamond tools such as a core drill or milling cutter. The tool change is of manual type.
Internal water passage
Linear Guide
Brand: Hiwin Original: Taiwan, China
Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
