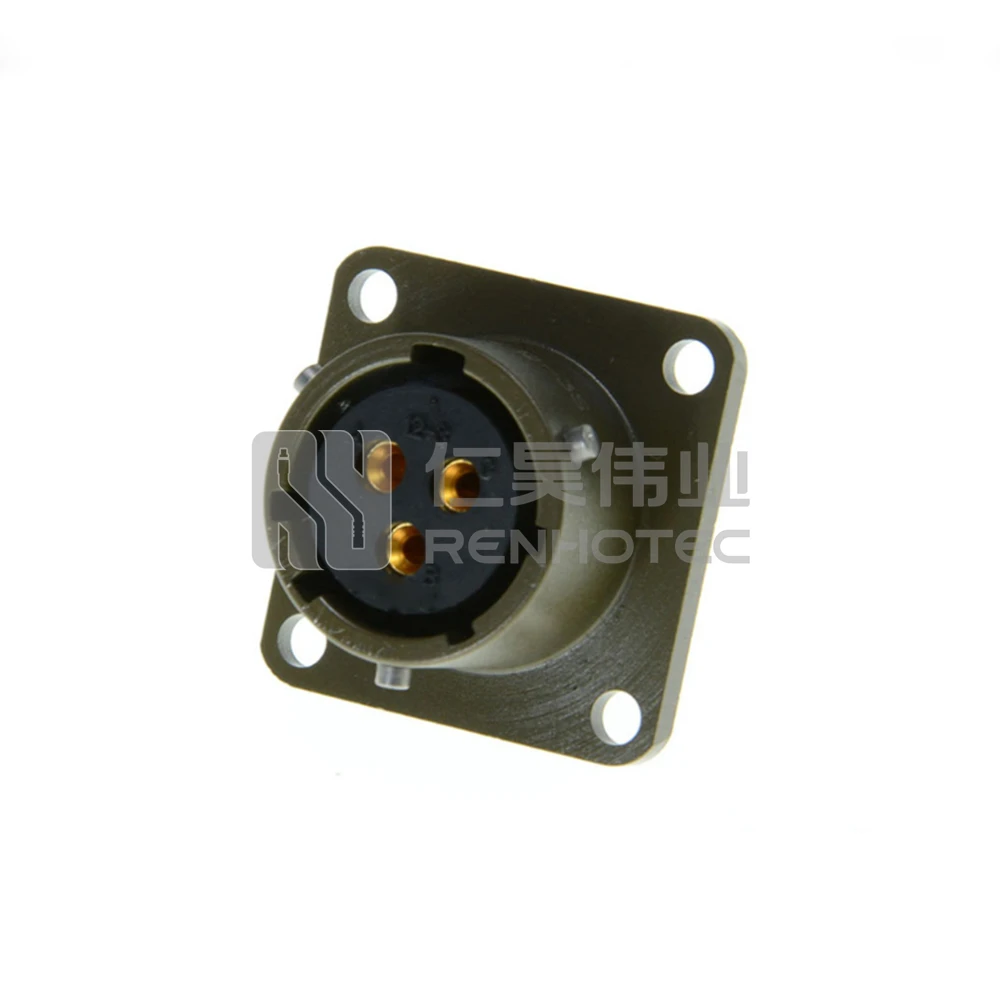

MS3112E12 3S 3 Pin Bayonet Coupled Panel Mount Socket Mil C 26482 Assembly
- Category: >>>
- Supplier: Shenzhen Renhotec Technology Electronics Co. Ltd.
Share on (1601226120664):
Product Overview
Description

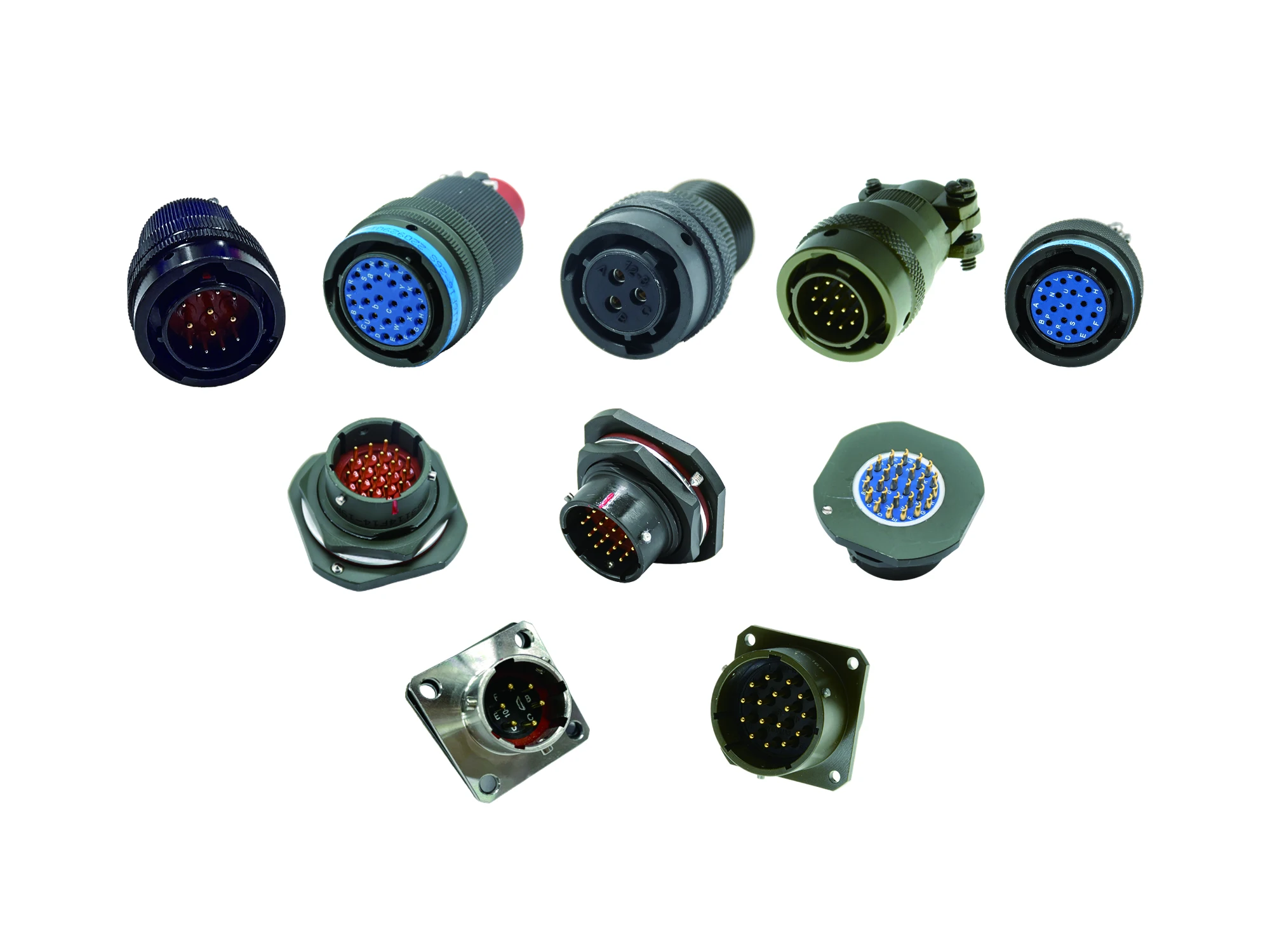

Full Series : MIL-DTL-26482 Connector
All types of Circular Connector from OEM Manufacturer in China
All types of Circular Connector from OEM Manufacturer in China
Product Description
MIL-DTL-26482 connectors

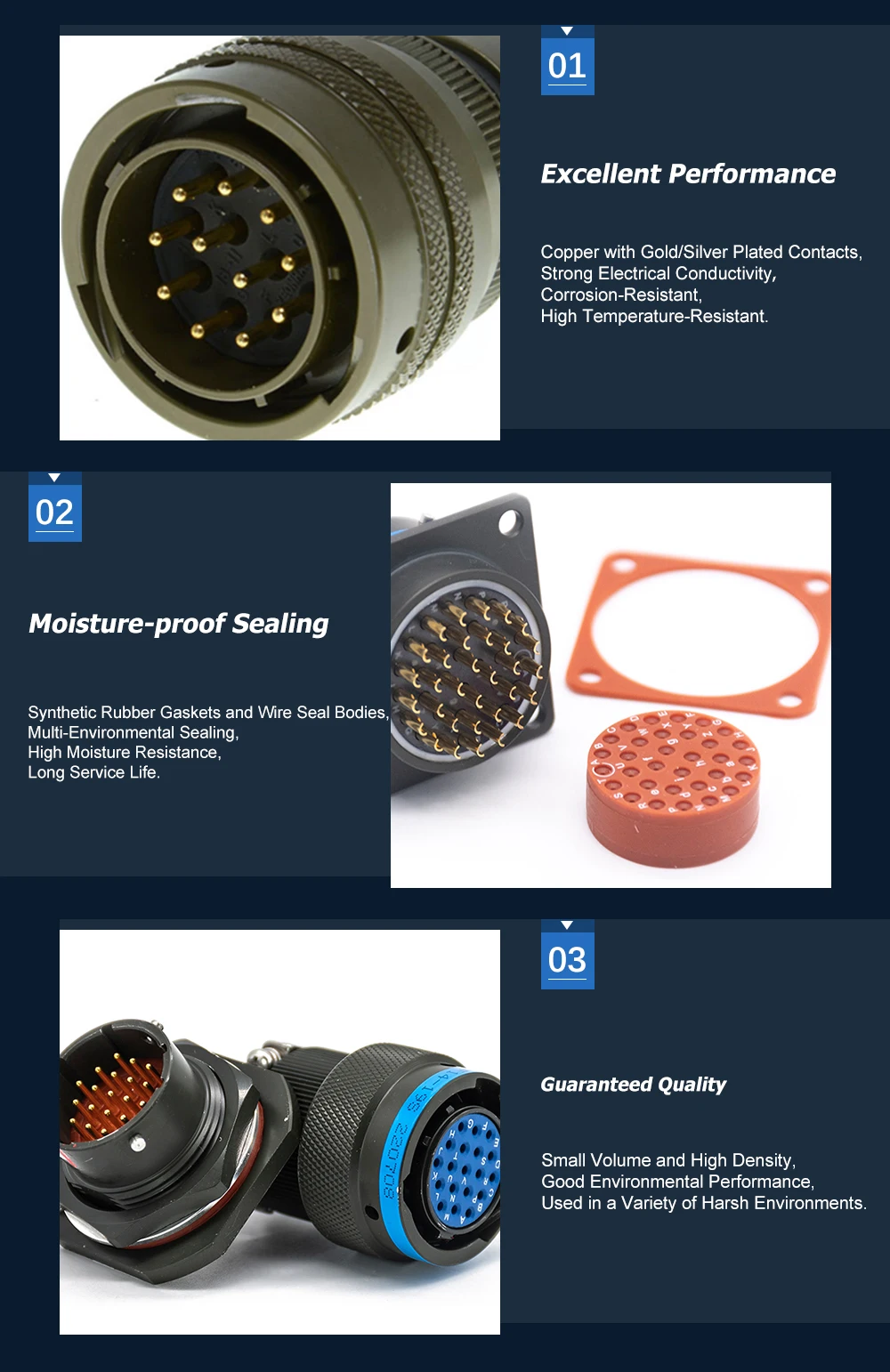

MIL-DTL-26482 connectors are the basis for many industrial interconnect applications. This series of connectors features solder contacts and bayonet or "quick disconnect" coupling for heavy duty connectors. They are IP67 rated for harsh environments and are ideal for vacuum chambers and other commercial applications. The bayonet mechanism provides quick and easy coupling, especially when the connector is in an awkward or hard-to-reach location.
Renhotec Model MIL-DTL-26482 bayonet connectors are interchangeable and intermateable with a wide range of industry-standard bayonet connectors designed around the MIL-DTL-26482 and/or conforming to the VG 95328 standard.
Renhotec Model MIL-DTL-26482 bayonet connectors are interchangeable and intermateable with a wide range of industry-standard bayonet connectors designed around the MIL-DTL-26482 and/or conforming to the VG 95328 standard.
MIL-DTL-26482 Connector | ||

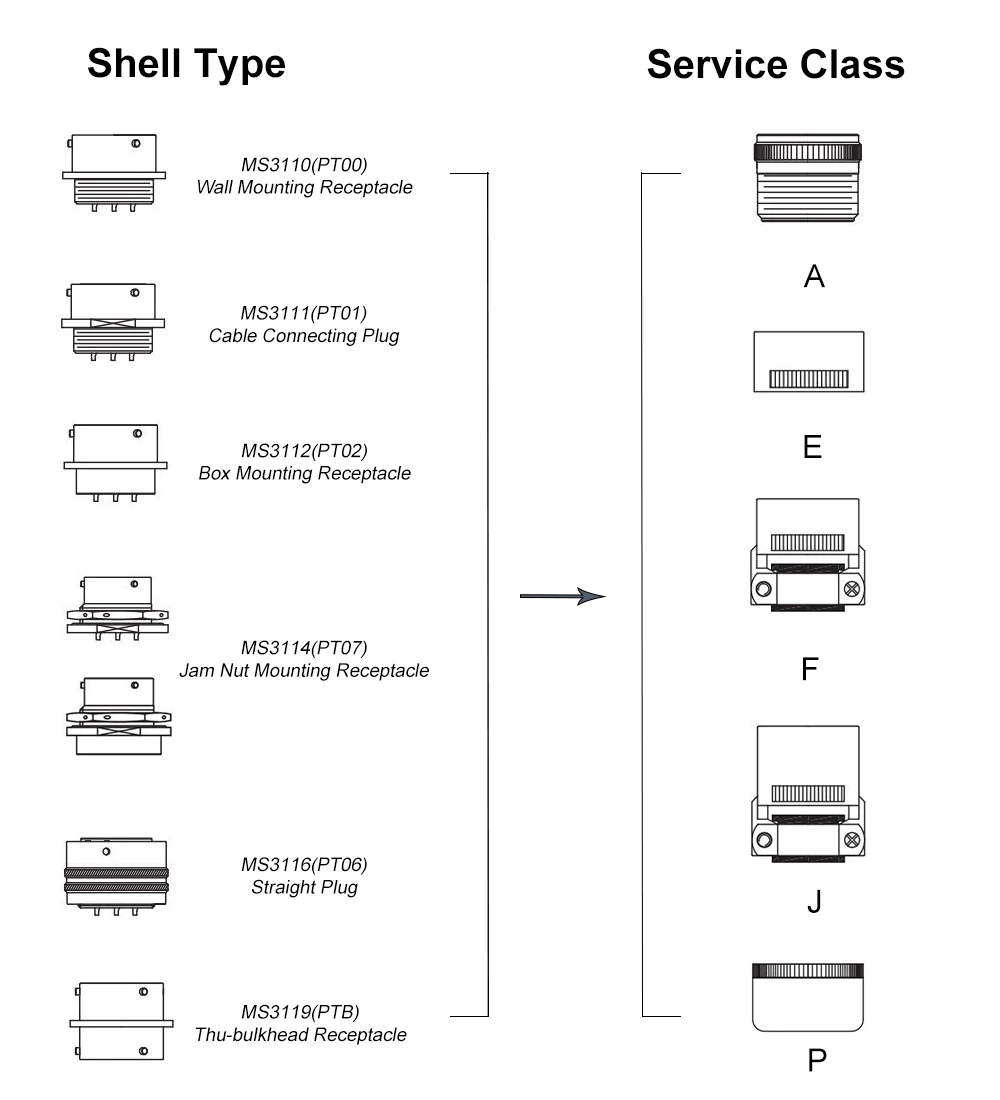

Shell Type | MS3110(PT00) / MS3111(PT01) / MS3112(PT02) / MS3114(PT07) / MS3116(PT06) / MS3119(PTB) | |
Connector Type | Plug / Socket | |
Number of Positions | 2 / 3 / 4 / 5 / 6 / 8 / 10 / 11 / 12 / 14 / 15 / 16 / 18 / 19 / 26 / 32 / 41 Pin | |
Orientation | Straight | |
Shell Size | 8 / 10 / 12 / 14 / 16 / 18 / 20 / 22 / 24 | |
Type of Fastening | Bayonet | |
Mounting Type | Cable Mount / Panel Mount | |
Mounting Feature | Flange / Bulkhead | |
Material | ||
Shell Material | Aluminum | |
Shell Plating | Galvanized / Olive Green Galvanized / Olive Green Chromate Passivated | |
Contact material | Copper Alloy | |
Contacts plated | Gold Plated | |
Insulation material | Synthetic Rubber | |
Electrical Performance | ||
Rated Voltage | 600V / 1000V / 850VDC / 1275VDC | |
Rated Current | 7.5A / 22A / 23A | |
Insulation Resistance | ≥5000 MQ to 25° C and 65 % HR max. | |
IP Rating | IP67 | |
Mechanical Operation | ＞500 Mating Cycles | |
Ambient Temperature | -65℃ to +175℃ | |

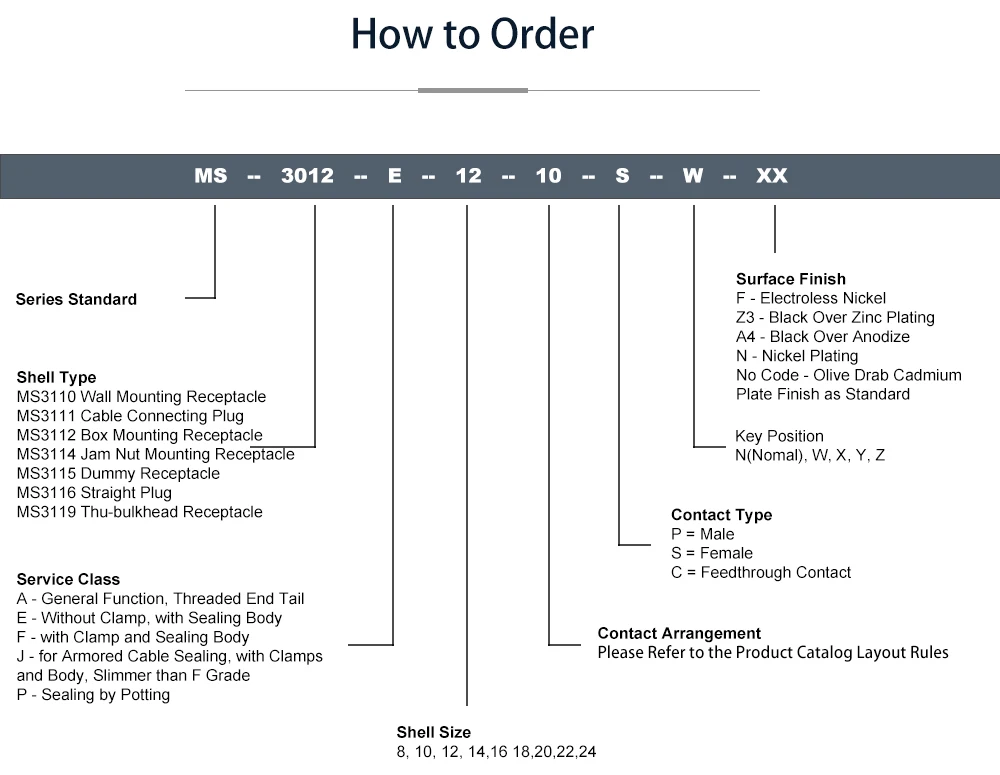

How to Order
Application Industry

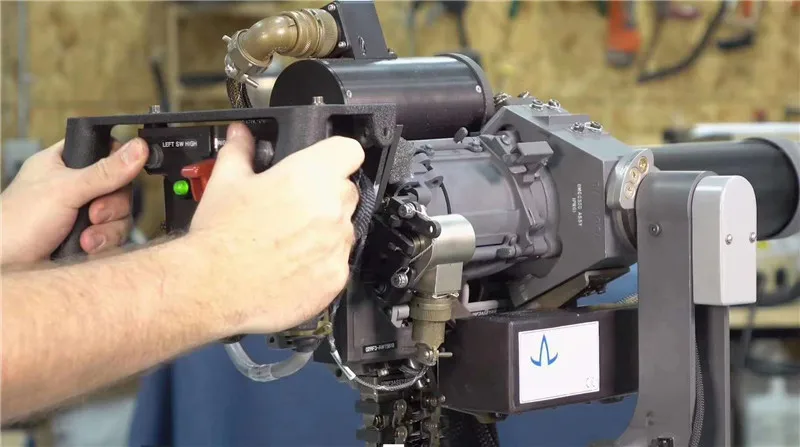

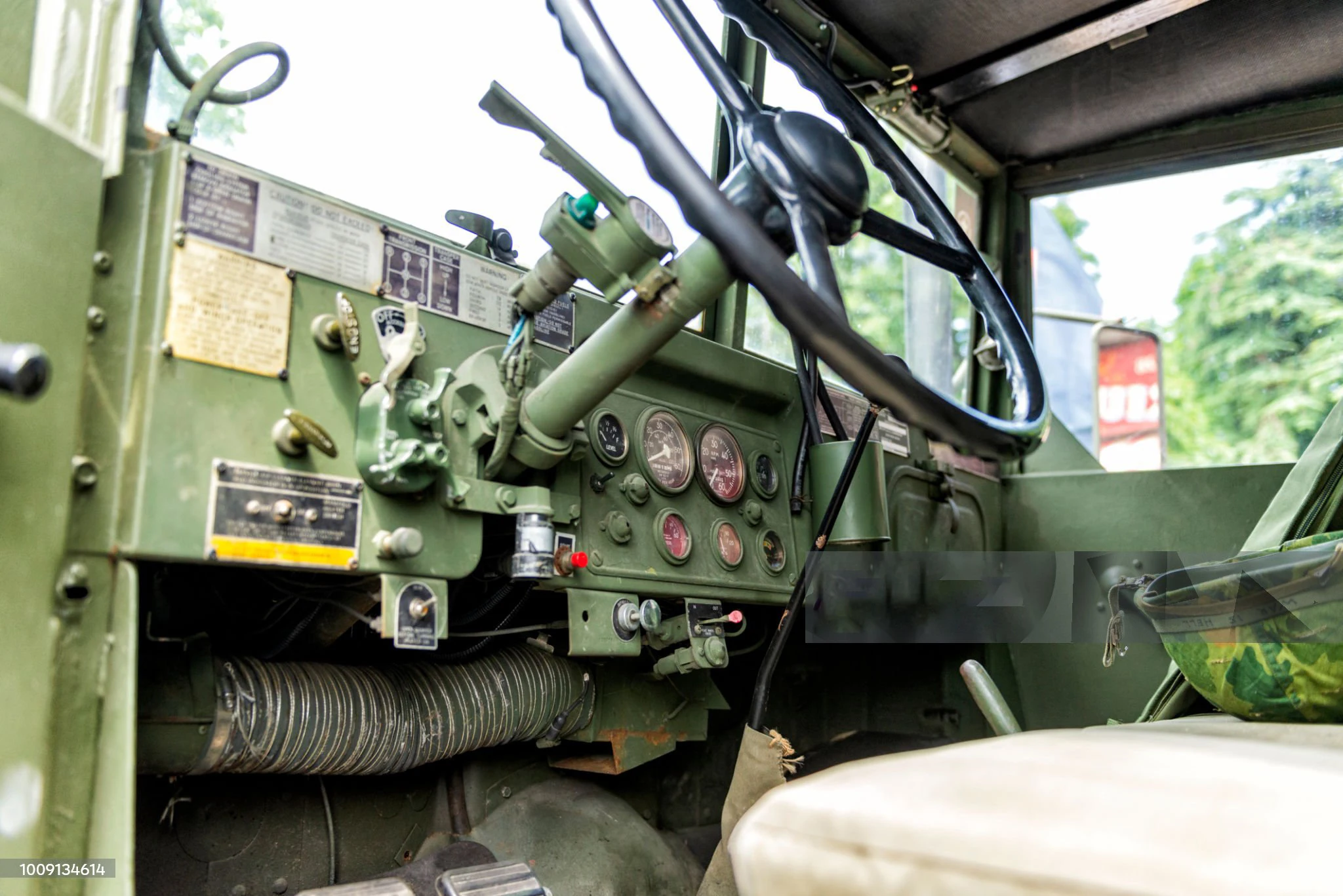

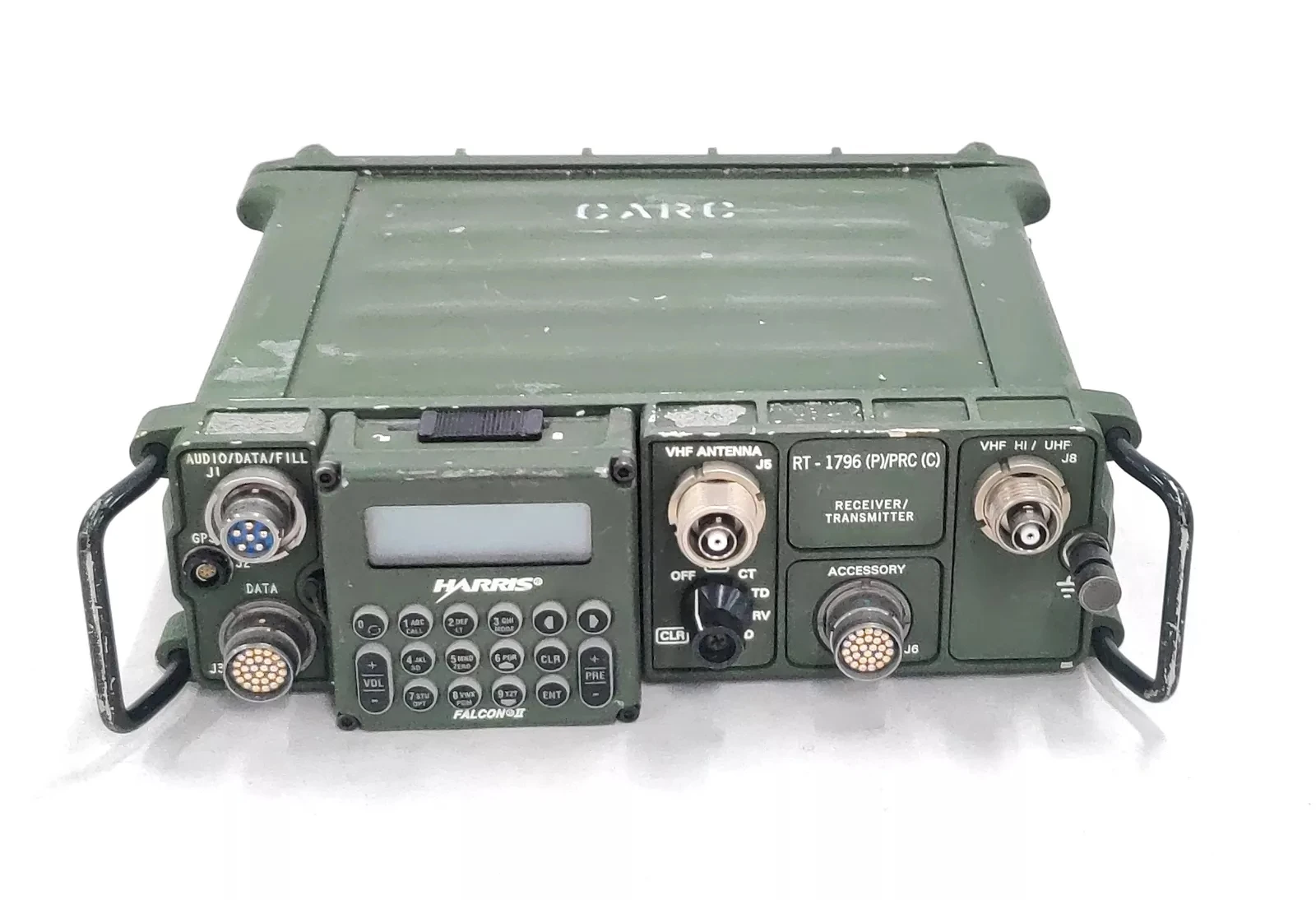

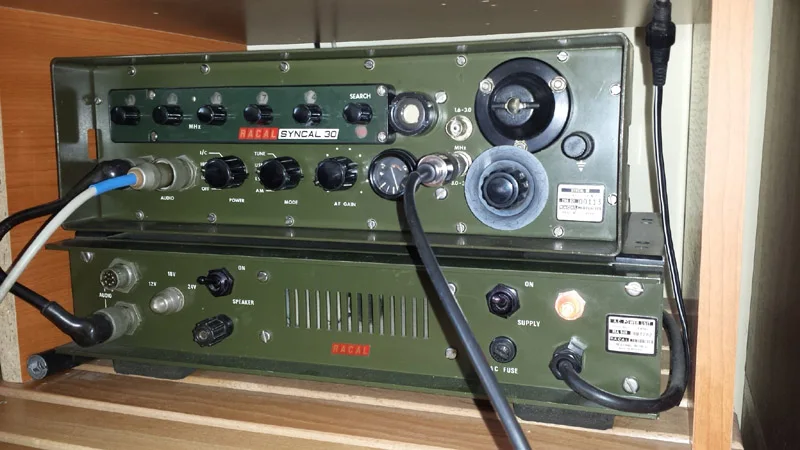

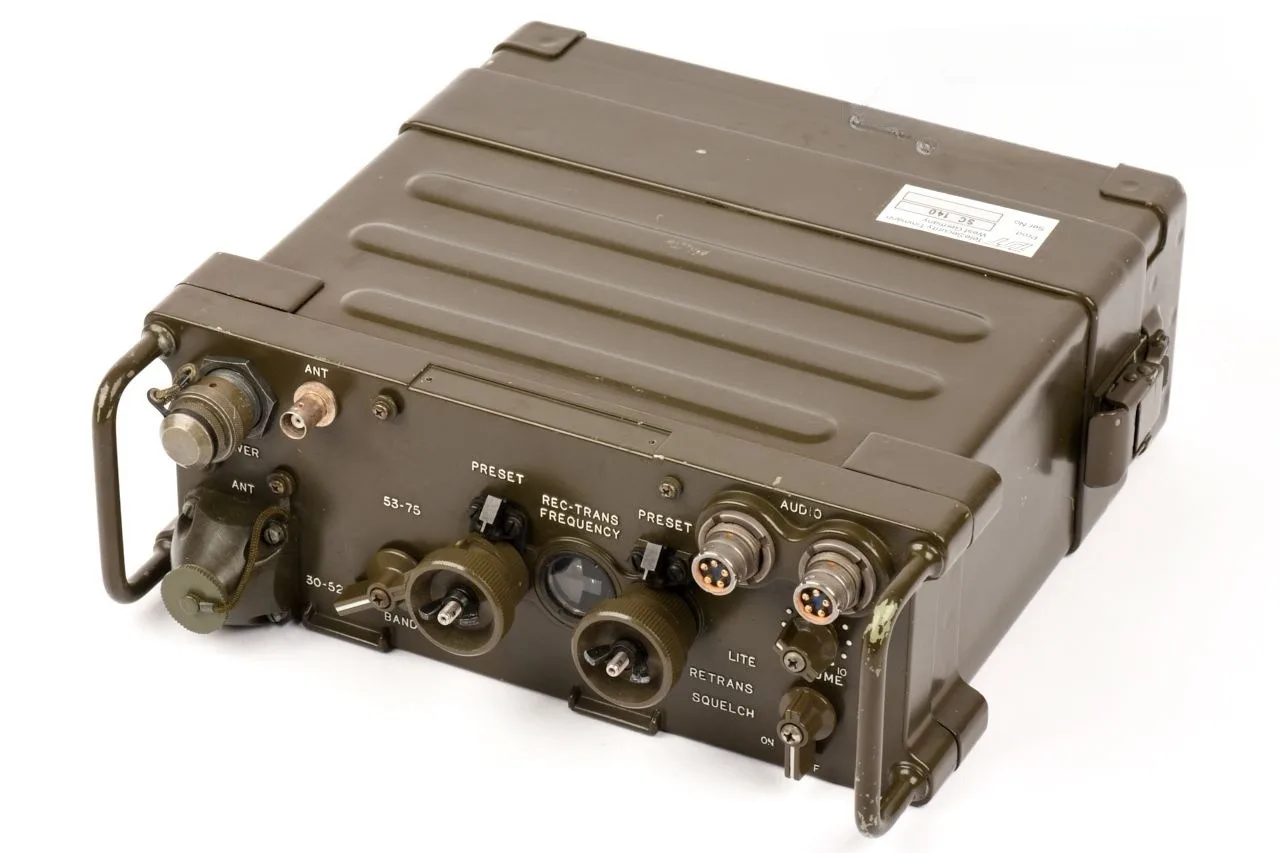

The MIL-DTL-26482 is an environmental connector for use in a variety of harsh environments such as humidity, sand, and salt spray. It is commonly used in a variety of industries such as aerospace, automotive, medical equipment, industrial control and monitoring where high demands are placed on the product.
About Us
- RENHOTEC Have More Than 16+ Years Experience on Electronic Connectors and HasAchieved Good Reputation in the Industry.
- We Acquired ISo 9001 , ROHS , IP Waterproof Test, Environment and Management SystemsCertification to Ensure High Quality. Please Contact Us Free for More Details if lnterested.
- In Addition, You Are Always Welcome to Visit Our Office and Factory for Face to FaceConversation!
100+
Countries and Areas
300+
Technician
20000+
M2 Production Workshop
Home
E-mail: sale@renhotec.com Tel: 0086-769-81100186 Web: www.renhotecpro.com
