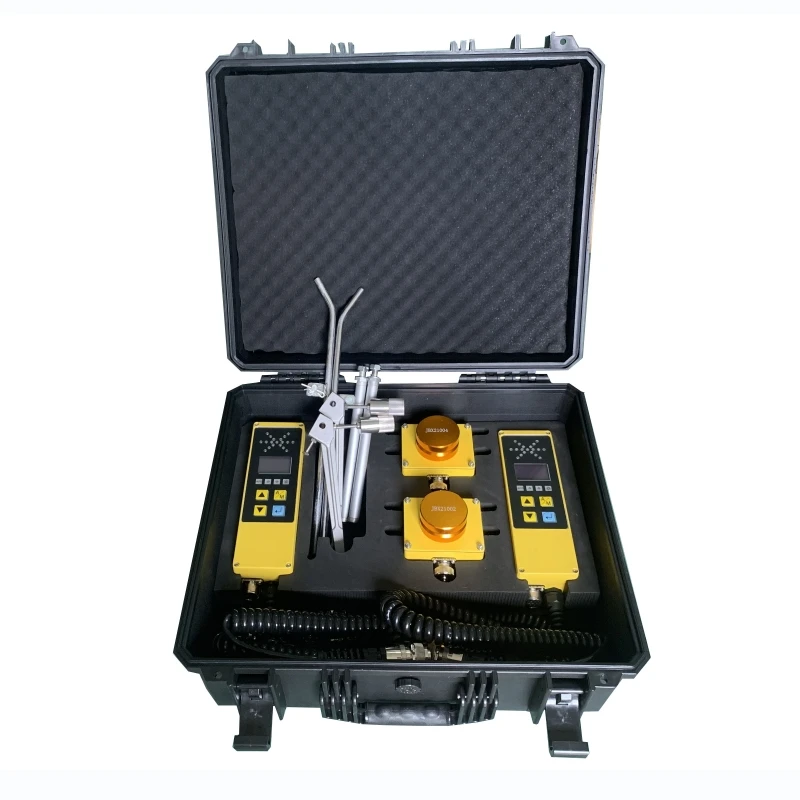

SMC 0328 Leveling Instrument Flexible and efficient ultrasonic automatic leveling system paver equipment
- Category: >>>
- Supplier: Jiangsu Siming Engineering Machinery Co. Ltd.
Share on (1601227943937):
Product Overview
Description
Product description
The ultrasonic automatic leveling system is based on advanced micro-processing technology and adopts CAN bus technology to ensure the safety of the system to the greatest extent. It is suitable for special working conditions such as strong electromagnetic interference, high temperature, high humidity, and high dust on the engineering site. Flexible and efficient control system. Ultrasonic automatic leveling system is an important supporting instrument for paver. In recent years, it has gradually replaced other traditional leveling instruments, providing a stronger guarantee for further improving the construction quality of paver.
Technical Parameters | ||||||||
Power supply voltage | 10-30VDC | |||||||
Output current | meet the requirements of the solenoid valve coil | |||||||
Control output | NPN or PNP | |||||||
Resolution | contact type 0.5mm (at the slider) | non-contact type 0.3mm | ||||||
Working temperature | -20°C+85°C | |||||||
matters need attention | Whether it is equipped with transverse slope sensor, without transverse slope, transverse slope separately quoted | |||||||
Leveling instrument features:
1. The digital leveling instrument separates the signal part and the output part originally integrated in the analog leveling, and connects through the data line, so the performance is more stable.
1. The digital leveling instrument separates the signal part and the output part originally integrated in the analog leveling, and connects through the data line, so the performance is more stable.
2. The display of the controller is more intuitive. Even if it is working at night, if there is a fault, it can be found as soon as possible, so that the fault can be solved faster.
3. The controller has high-level and low-level outputs, which can meet the needs of different paver machines, so there is no need to replace the instrument.
parameters to meet the requirements of on-site paving construction.
5. When you need to adjust the thickness, you only need to adjust it with the up and down keys, which is easy to use.
5. When you need to adjust the thickness, you only need to adjust it with the up and down keys, which is easy to use.
1.Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,
3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.
4.Q: What about the warranty time?
A:: 12 months after shipment .
5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
