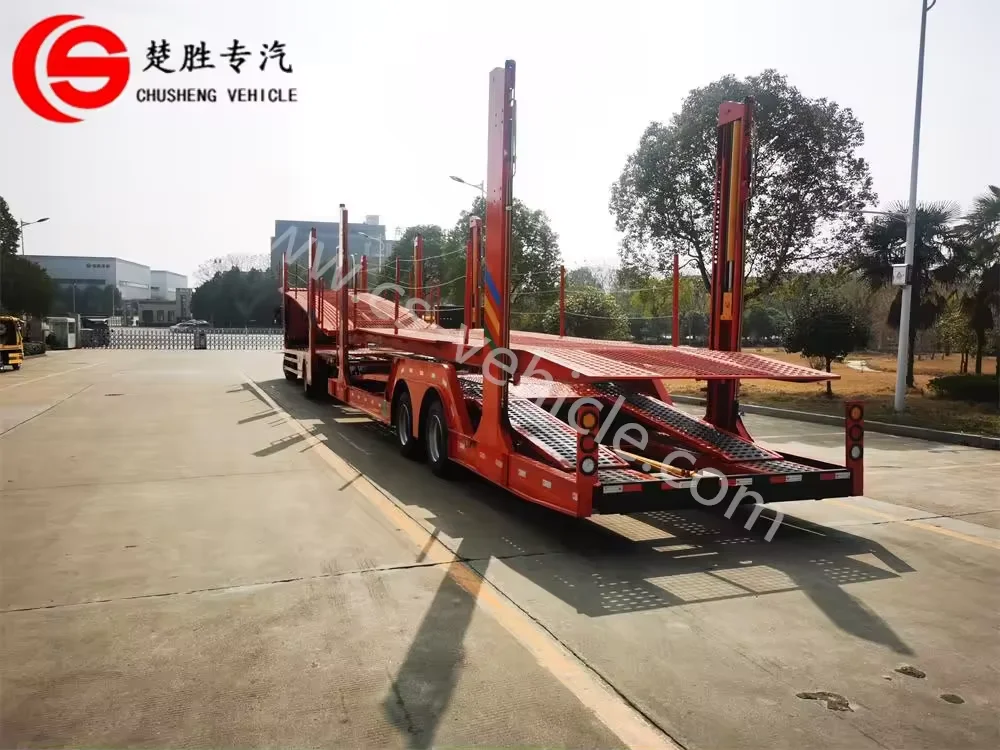

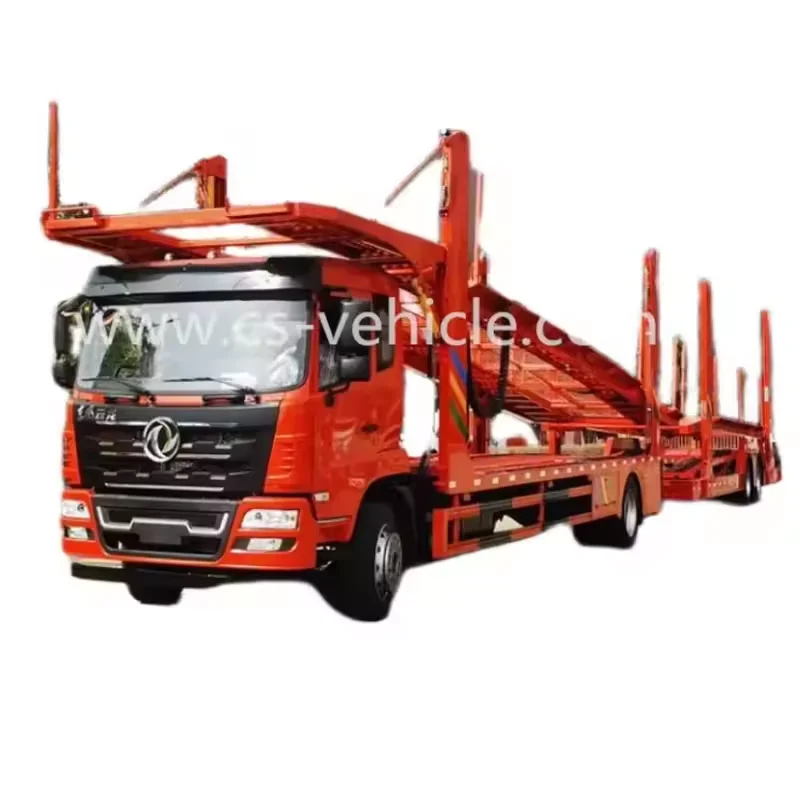

2 /3 Axles Car Carrier Trailer Car Transport Semi Trailer Double Deck Car carrier trailer for sale
- Category: >>>
- Supplier: Chusheng Vehicle Group Co. ltdChusheng ltd
Share on (1601228362082):
Product Overview
Description
Product Description
XGCS two and tri axles car carrier skeletal structure semi trailer with best quality and price
a.Lowbed semi car carrier trailer ,is made from the high standard Q235 and Q345 steel ,the frame bream is well welded by the submerged-arc welding machine ,we also have DOUBLE VERTICAL PLATE design for choose ,it's for carrying heavey machine up to 100tons .the trailer is well polished by the shot blasting machine before paint . For export ,we only use famous parts ,such as JOST brand kingpin and Landing legs ,Germany WABCO brand brake .
Specification
Overall Length 23500mm
Overall Width 2800mm
Overall Height 4009mm
Payload 10 cars
SPECIFICATIONS | |||
Main Construction | Overall skeletal structure, Hydraulic lifting double-deck, Telescope rear ladder | ||
I Beam &Chassis | Overall loading chassis; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. | ||
Axle | 3 axles | ||
BPW 13 ton | |||
Suspension | Heavy duty mechanical suspension | ||
Hydraulic | 3 sets Hydraulic Cylinder | ||
Leaf Spring | 9-piece leaf spring. | ||
King Pin | JOST brand 2” Bolt-in King Pin | ||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
Wheel Rim | 8.25-22.5 steel wheel rim, 13 pieces | ||
Tire | 11R22.5 with one spare tire, 13 pieces | ||
Spare Tire | One sets of spare tire | ||
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks | ||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
Accessories | One standard tool box,hand-drive block | ||
Tractor type | HOWO | ||
Trailer model num. | SGZ9170TCL | ||
Packaging & Shipping
Our Services
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company Information

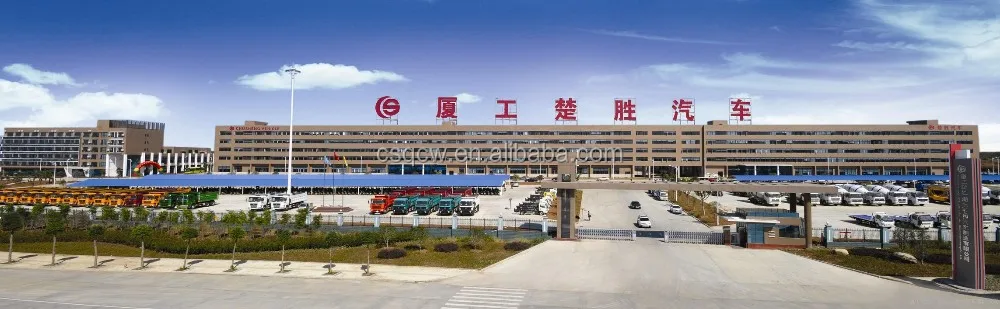

1. Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
