Product Overview
Description
Product Description

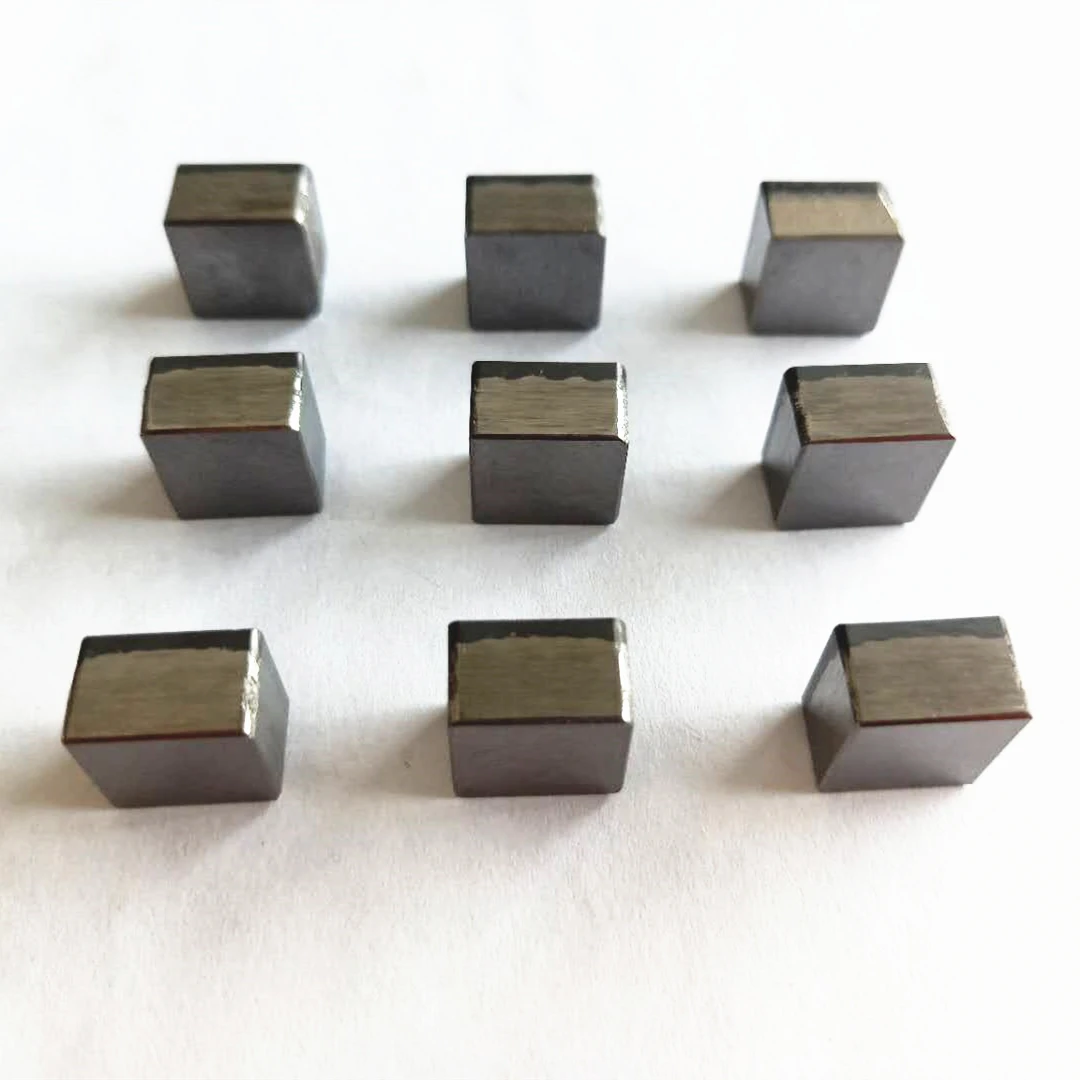

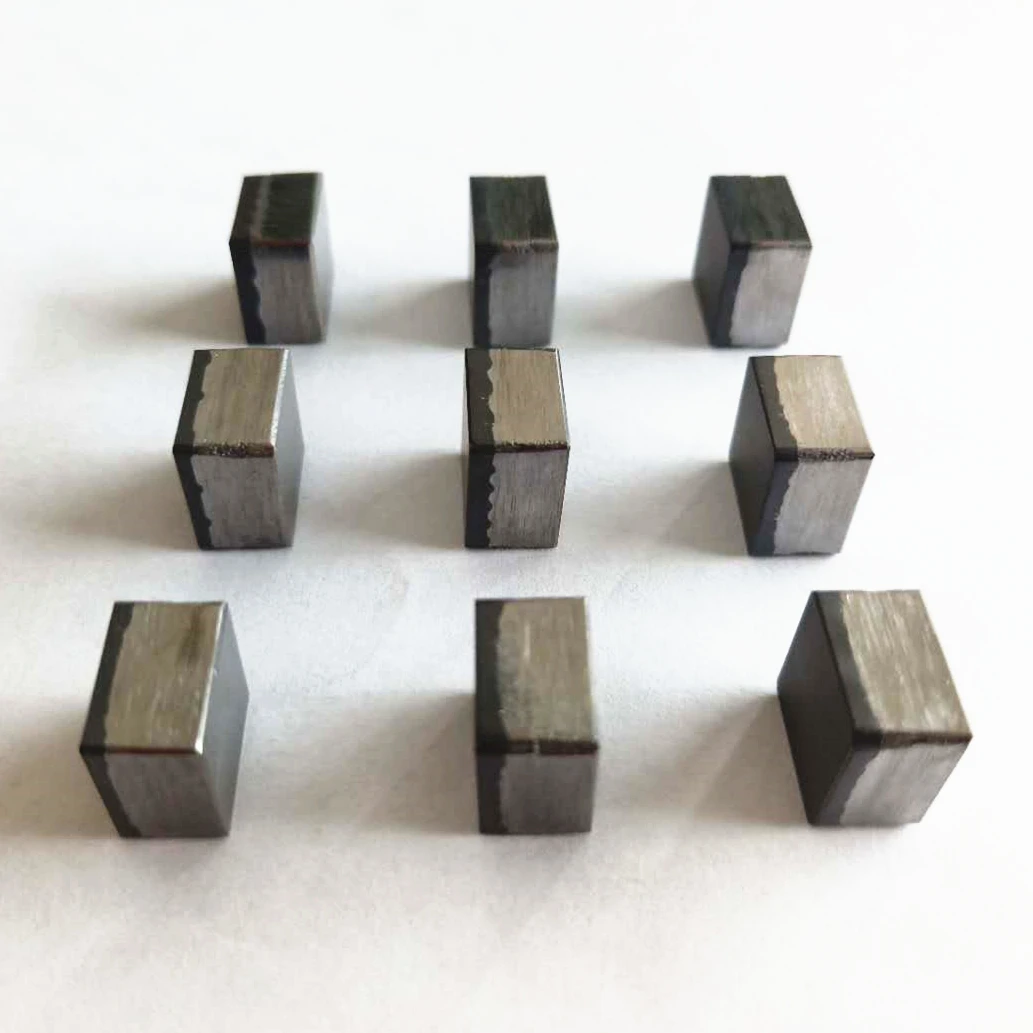

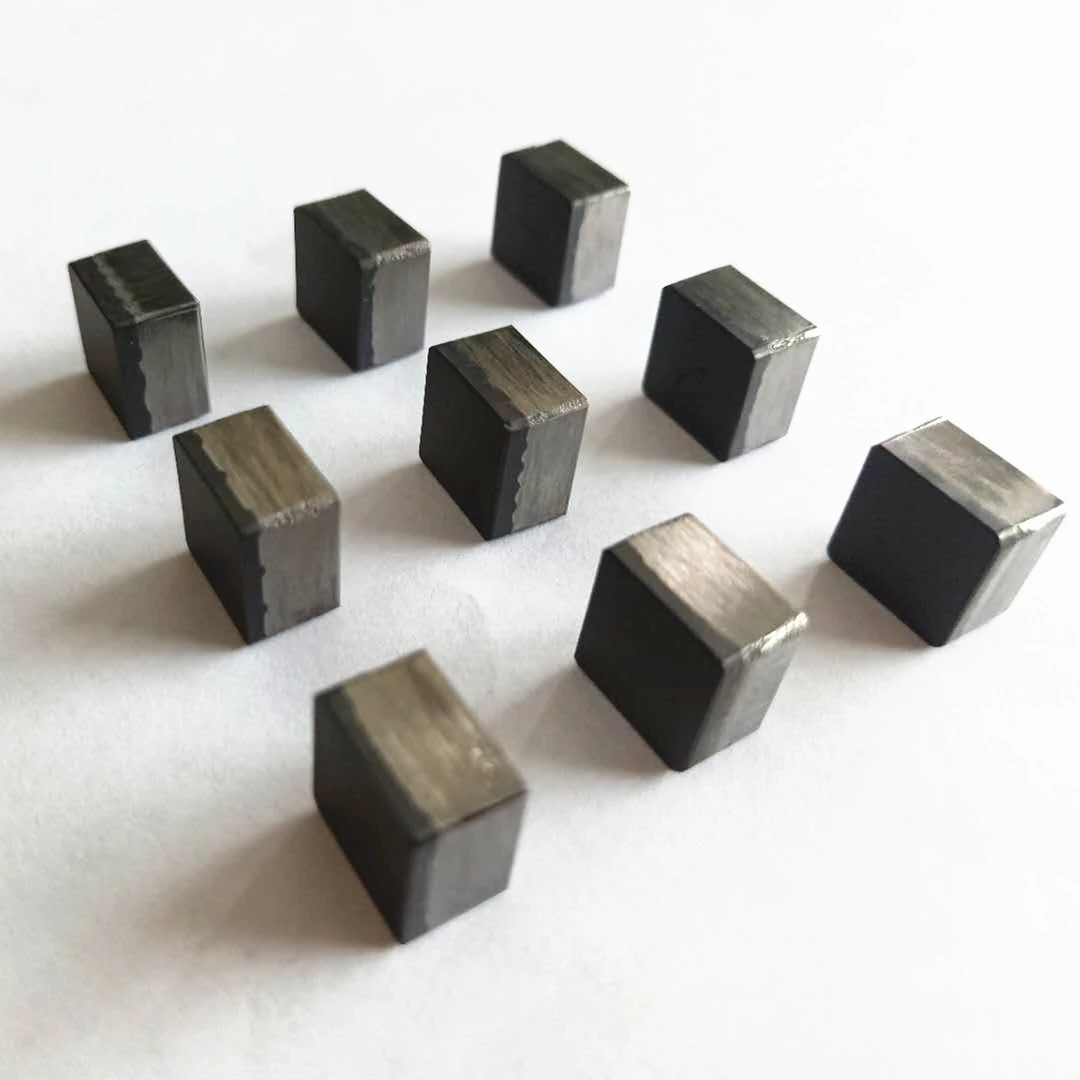

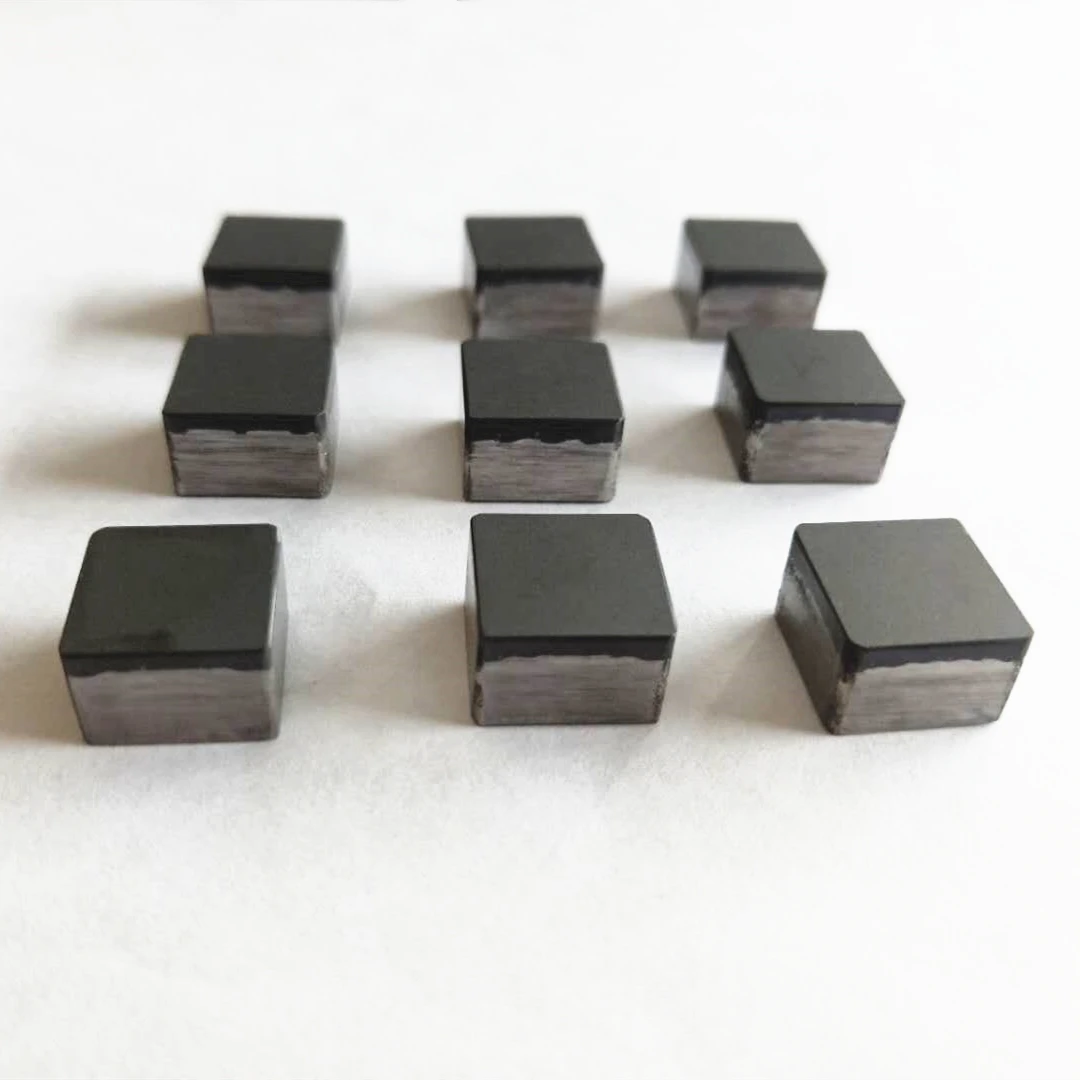

Square Shape PDC Cutter
Square Shape PDC Cutter is designed to cut and drill tubulars, as well as tiles and brick. This kind of PDC cutter has a large cutting area with a strong blade shaft, which ensures high efficiency while drilling and reduces the manufacturing cost. This product is applicable to various industries such as construction, mines, tunnels and so on.Materials: Polycrystalline Diamond Compact (PDC)
Product Components:
Micron sized particles of synthetic diamond, sintered and integrally bonded to a cemented tungsten carbide substrate using a high-temperature/high-pressure process.
Specifications
Many trials indicate that the new cutting element is efficient at removing rock, and a bit equipped with these elements requires less mechanical specific energy (MSE) during drilling than does a bit with a conventional PDC cutter. In addition, the reduced cutting forces reduces bit torque and thus improves the drilling tools’ life and the bit directional performance.
Product Name | Square Shape PDC Cutter | ||||||
Size | According to your drawings | ||||||
Application | Drilling and Cutting | ||||||
Detailed Images

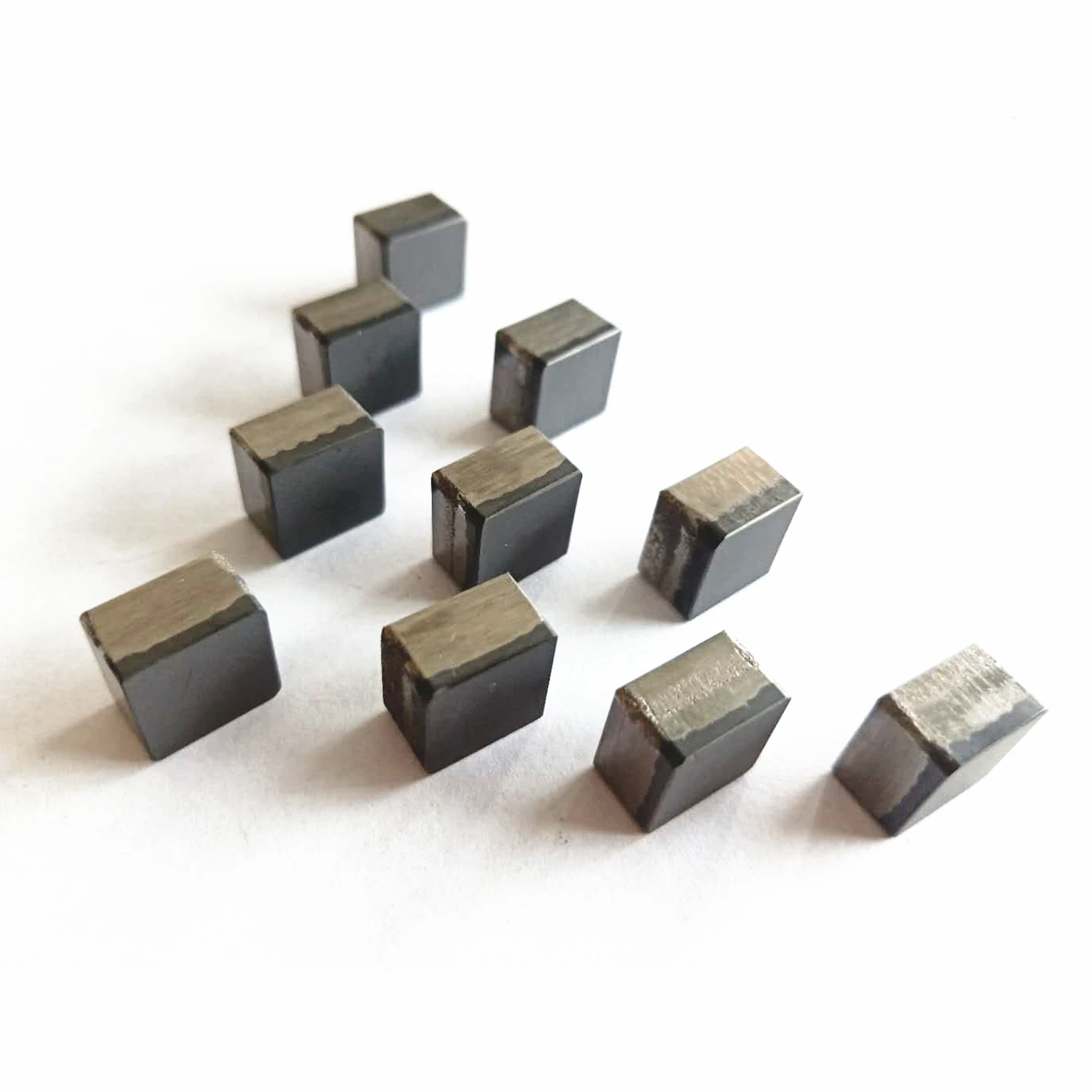

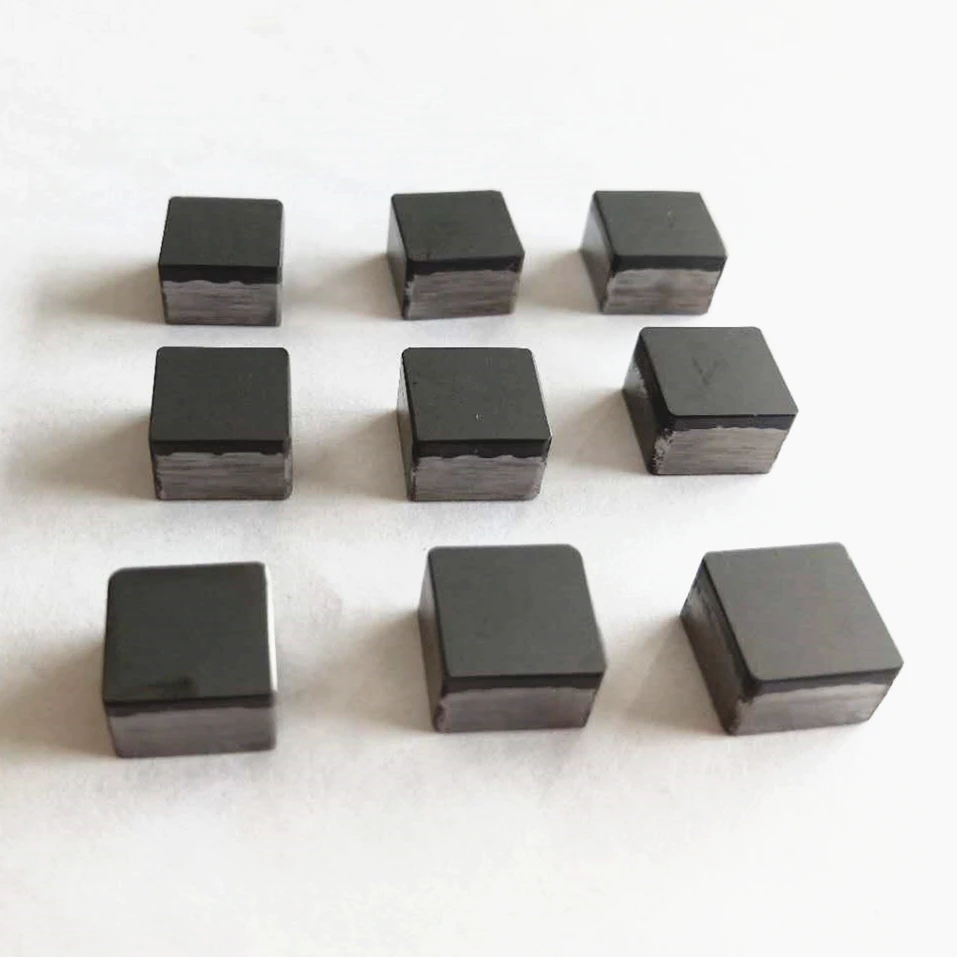

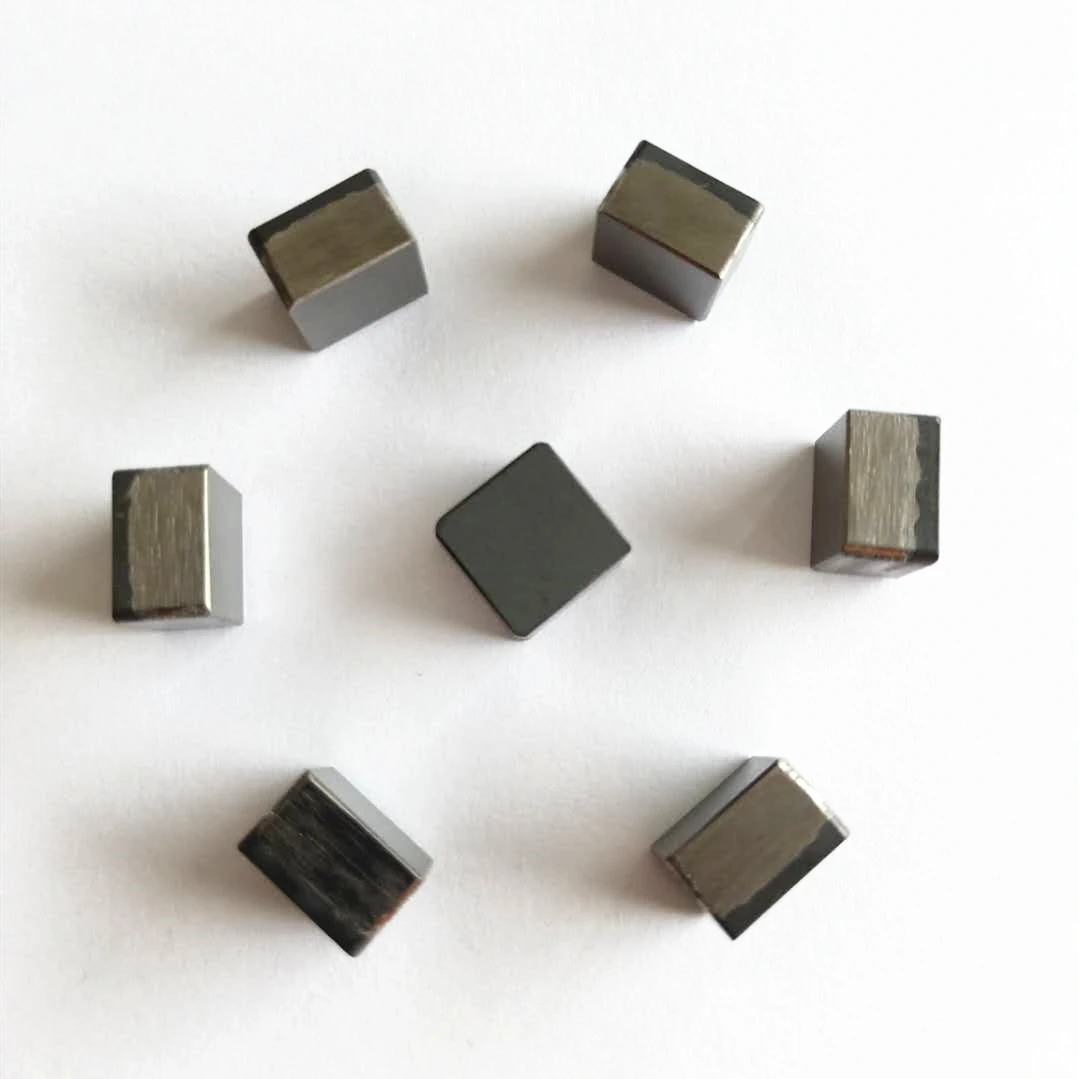

Product Show
Simplicity Redefined: A Practical and User-Friendly Product that Defies Convention.
Code | Diameter(mm) | Total Height(mm) | PCD Thickness | Shape |
1313 | 13.44 | 13.2(8.2+5.0) | 1.5-2.5 | Round with tip |
1308 | 13.44 | 8.0(4.0+3.0) | 1.5-2.5 | Round with tip |
808 | 8 | 8 | 1.5-2.0 | Round with tip |
1313 | 13.44 | 13.2 | 1.5-2.0 | Round |
1308 | 13.44 | 8 | 1.5-2.0 | Round |
1304 | 13.44 | 4 | 1.2-1.5 | Round |
1008 | 10 | 10 | 1.5-2.0 | Round |
808 | 8 | 8 | 1.5-2.0 | Round |
1/2 1308 | 1/2 1308 | 8 | 1.2-1.5 | Cutted |
1/4 1308 | 1/4 1308 | 8 | 1.2-1.5 | Cutted/Fan |
The diamond drill bit is used in nearly all applications including geothermal energy drilling, mining, water well and natural gas drilling and oil well drilling. Total depths range from 100′ to 20,000′. PDC drill bits are used extensively in natural gas drilling.
Customizable Flexibility
Prompt Shipping
Quality Assurance
Affordable and Cost-Effective

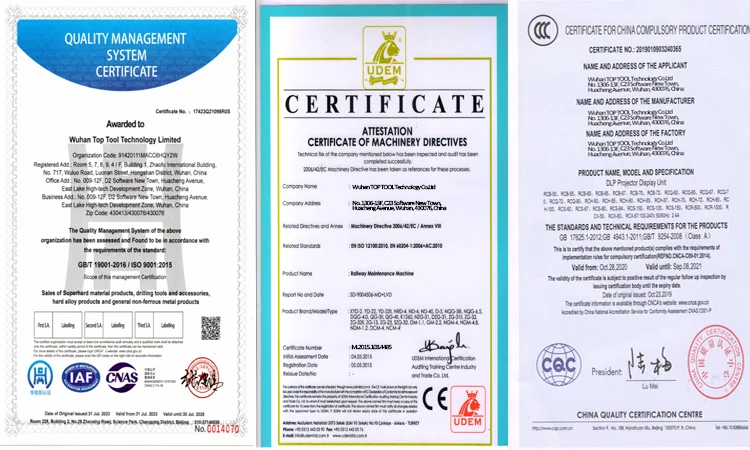

Certificate
Related Products
Packing&Shipping

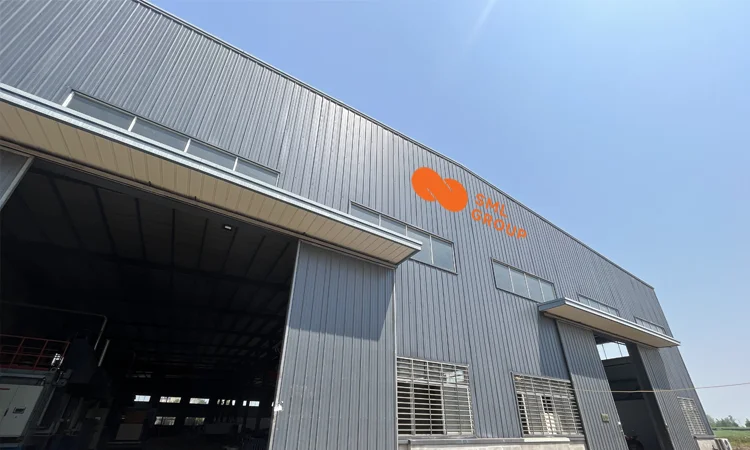

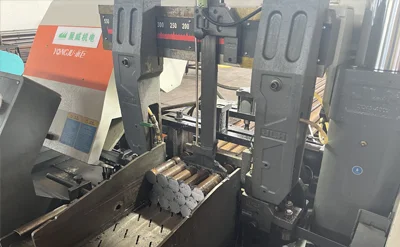

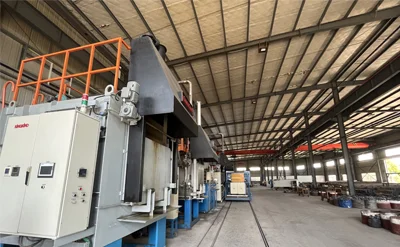

Company Introduction
SML Group stands out as a distinguished conglomerate of companies, firmly focused on mechanical engineering within the commercial and service sectors. Within the SML Group,
Suburb Tools takes the lead as a drilling brand, specializing in the professional manufacturing of top-quality drilling accessories. Flint, it boasts an impressive array of flagship products, including laboratory-grown diamonds and accessories, PDC cutters, and CNC cutters (CBN/CVD/PCD/MCD). Tungsten Delicates, another proud division of the group, excels in providing high-temperature refractory metal products such as tungsten, molybdenum, and titanium, offering both customized and standard options to cater to diverse industry needs.
