low cost turnkey solution solar robot automated solar production line cable for solar production line
low cost turnkey solution solar robot automated solar production line cable for solar production line
low cost turnkey solution solar robot automated solar production line cable for solar production line
low cost turnkey solution solar robot automated solar production line cable for solar production line
low cost turnkey solution solar robot automated solar production line cable for solar production line
low cost turnkey solution solar robot automated solar production line cable for solar production line
low cost turnkey solution solar robot automated solar production line cable for solar production line

low cost turnkey solution solar robot automated solar production line cable for solar production line

Share on (1601229834612):


Price:$155,000.00-185,000.00

Quantity:


Product Overview

Description



Details Images

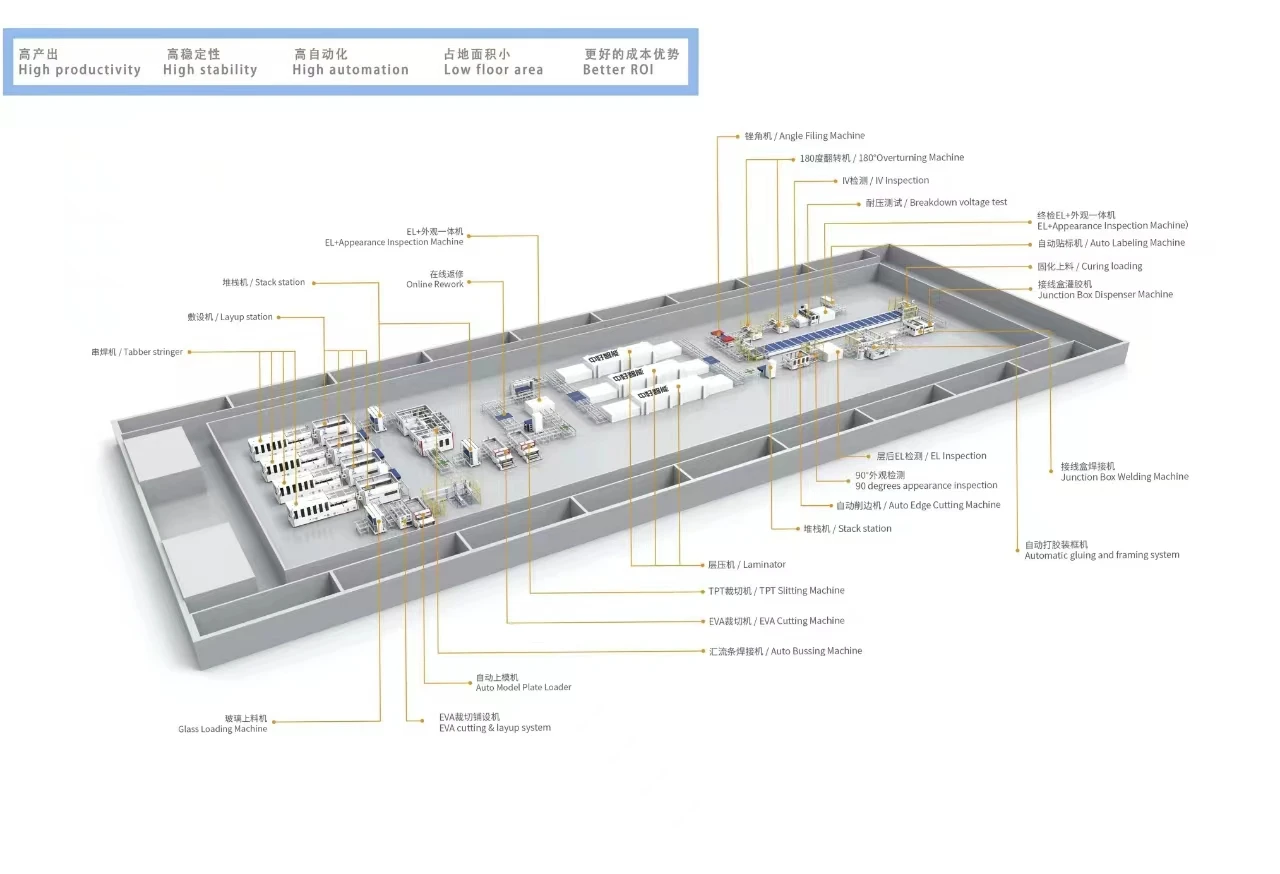

PRODUCT SPECIFICATIONS


No.
Equipment name
Description
1


Solar Cell sorting machine
1. Capacity: 720pcs/h;
2. Applicable cell type: 4BB~6BB MBB,max cell size: 210mm*210mm,
3. Breakage ratio: ≤0.1% Grade A solar
cell
4. Solar cell thickness: 140-300μm
5. Solar Simulator light level:A+A+A+
6. Spectral range: 300-1200nm
7. Flash time:
10-150ms
8. The range of irradiance: 200-1200W/m²
2
Automatic solder strip cutter
1. Usage: Solder strip cutting
2. Cutting precision: ±0.1mm
3. Cutting Length: 20-999mm
4. Cutting Efficiency: 6-8km/H
5. Max cutting width:8mm
6. Power: 180W
3

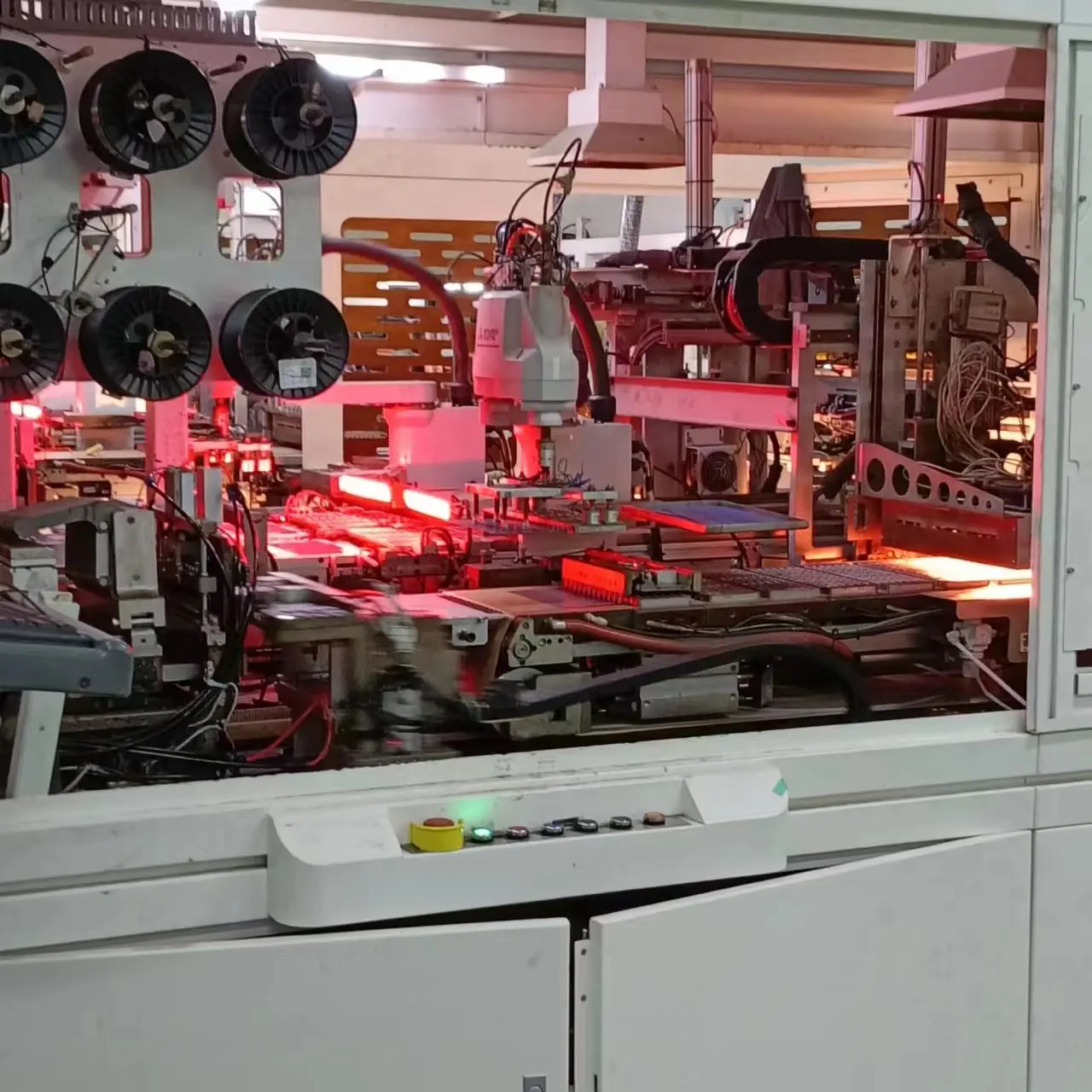

Solar cell stringer
1. Applicable Cells: 26~156x156mm 26~166x166mm, 30~182x182mm 30~210x210mm Cell thickness: not less than 160μm 2. Applicable Solder
strip: thickness: 120μm~250μm Width: 0.6~2.0mm (0.6~0.9 for 9bb cells~10bb cells, 1.0mm for 6bb cells, 1.2mm for 5bb cells)
3.String parameter : Max length of the string: 2000mm (Negotiable) Cell interval: 1.0-5.0mm ±0.2mm adjustable Bus bar number: 5bb,
6bb, 9bb, 10bb,12bb
4. Soldering speed: 1800pcs/h
4
Automatic EVA/TPT cutting machine
1. Feeding speed:70m/min
2. Cutting length: 1mm-100m
3. Cutting Width: 0.1mm-1400mm
4. Precision: 0.1mm
5
Solar module defector tester (EL)
It's used for defect inspection of crystalline silicon, which can mark the artificial defects
1. Max module dimension:2400*1400mm
2. Production Capacity: 5s/pc
3. Camera resolution: 2400W
4. The camera type: COMS
5. Exposure time: 1~30s(Adjustable)
6
Automatic solar module laminator
1. Annual Capacity: 550w/pc*1pc/times*3.3times/h*22h/day*330days≈13MW/year x 4set≈50MW/year.
2. Effective dimension: 2600*1500
3.Power:13.5KW
4. Voltage: 380V, three phase, five wire
5. Heating method: Electric heating
7
IV tester
Measurable parameters: I-V curve, short circuit current, open circuit voltage, peak power, peak power point voltage, current,
constant voltage point current, fill factor, conversion efficiency, series resistance, parallel resistance
1. Max. Illuminated
Area: 2400mm×1400mm
2. Production Capacity: 6s/Pcs (Typical value)

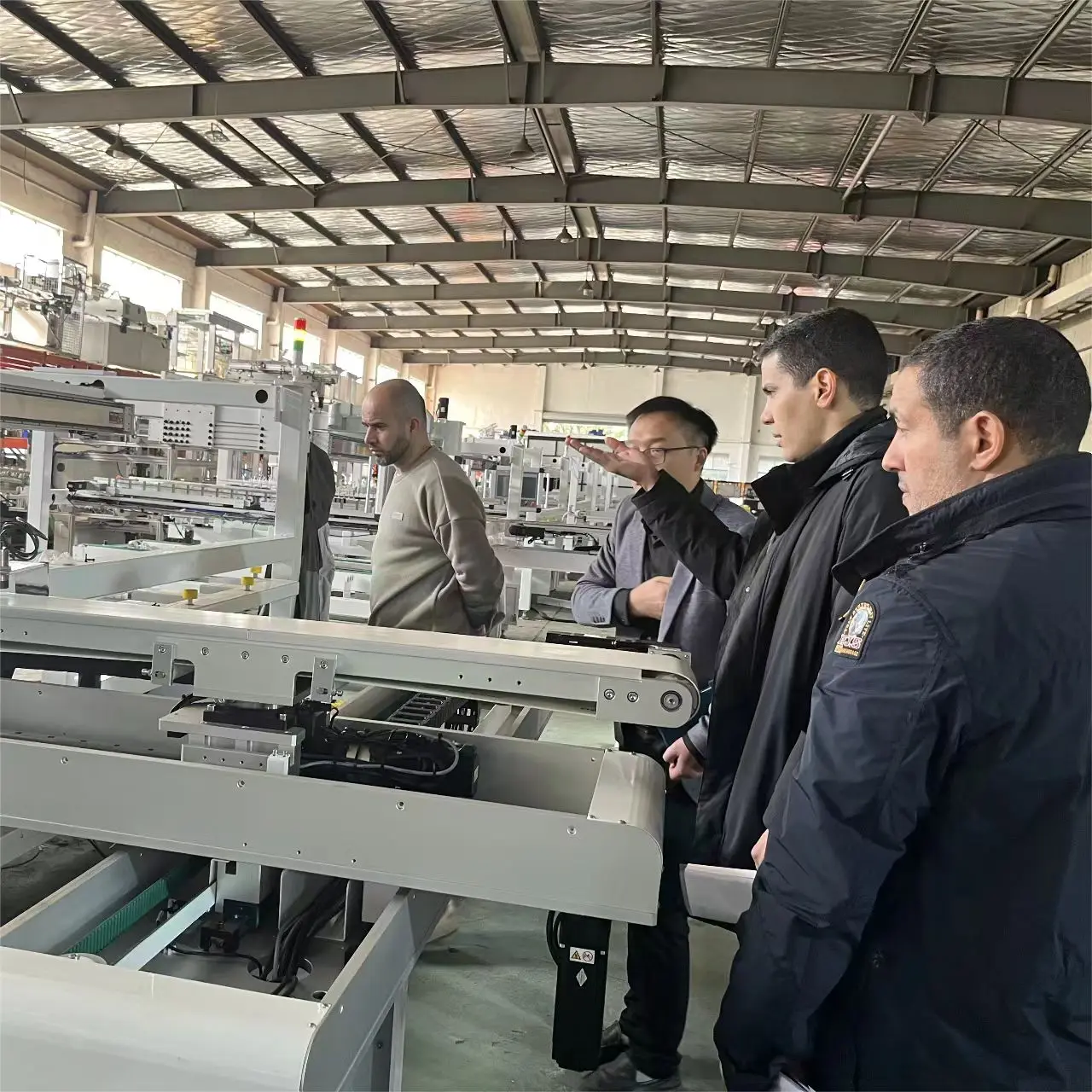

Successful Project


Project in Thailand
Project in India
Project in Russia

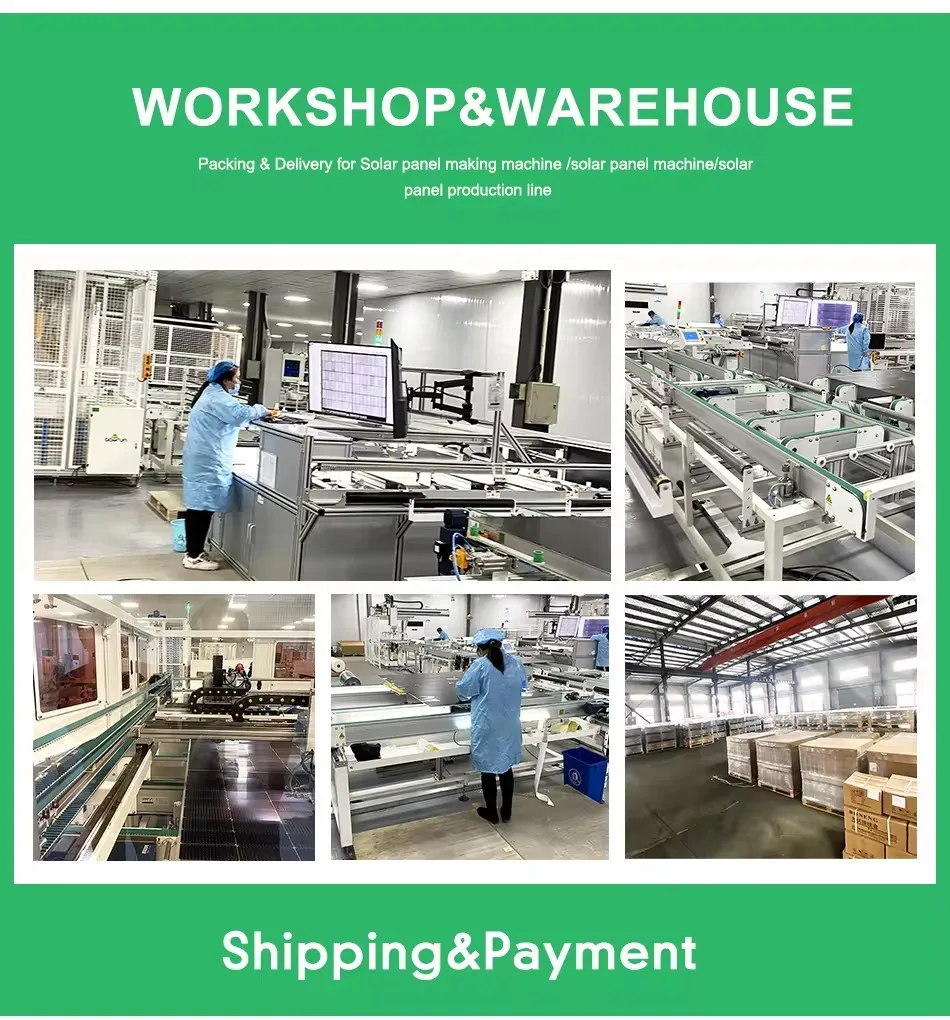

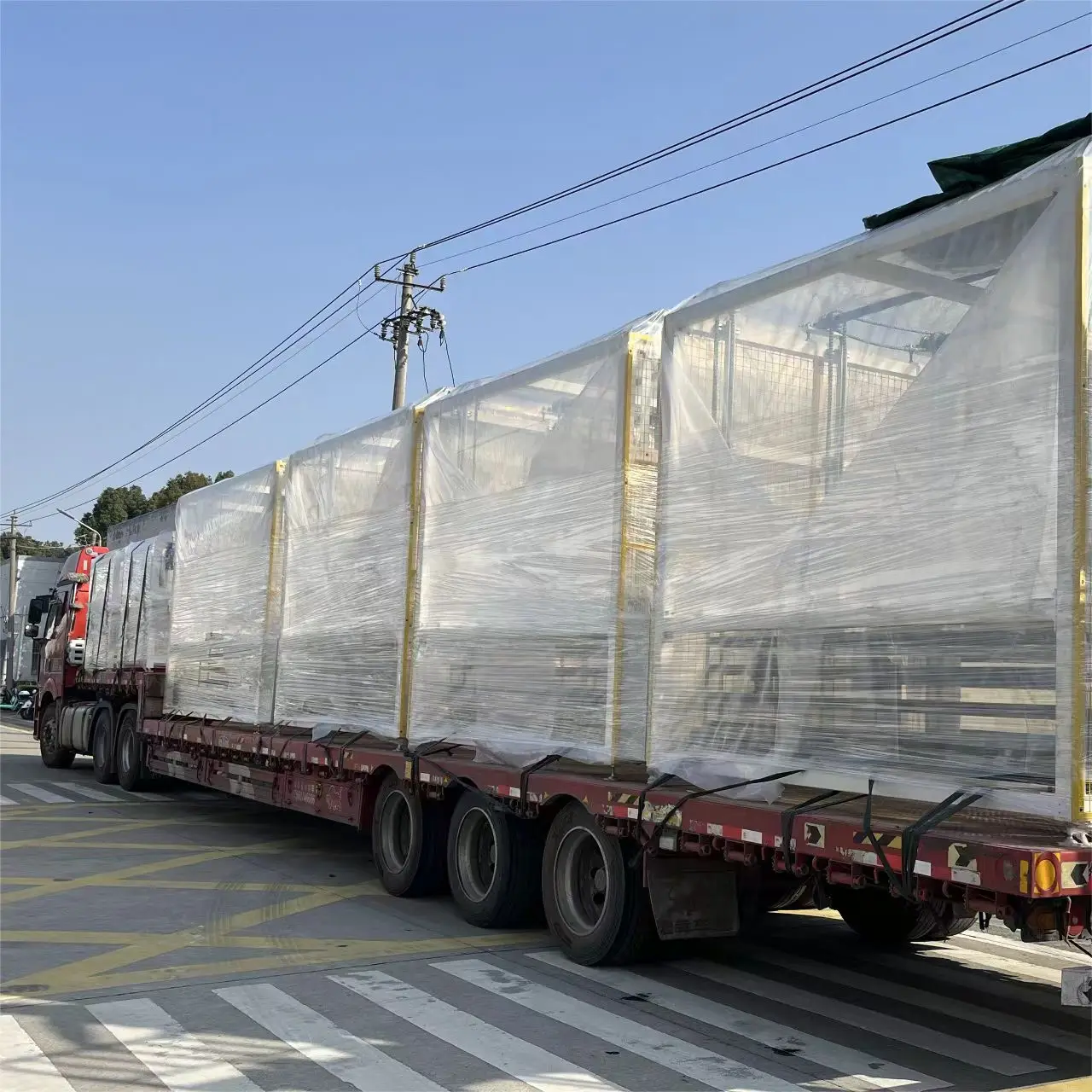

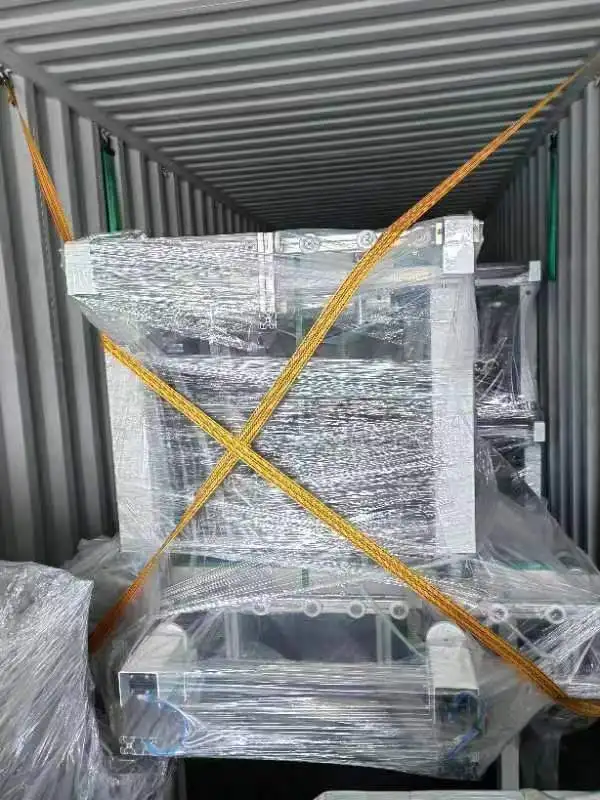

Packing & Delivery






Delivery time: Around 45~90 days after received the advance payment.
Quality assurance : 1 year Operational and maintenance manuals of all equipment are in English.


SALES AND SERVICE NETWORK

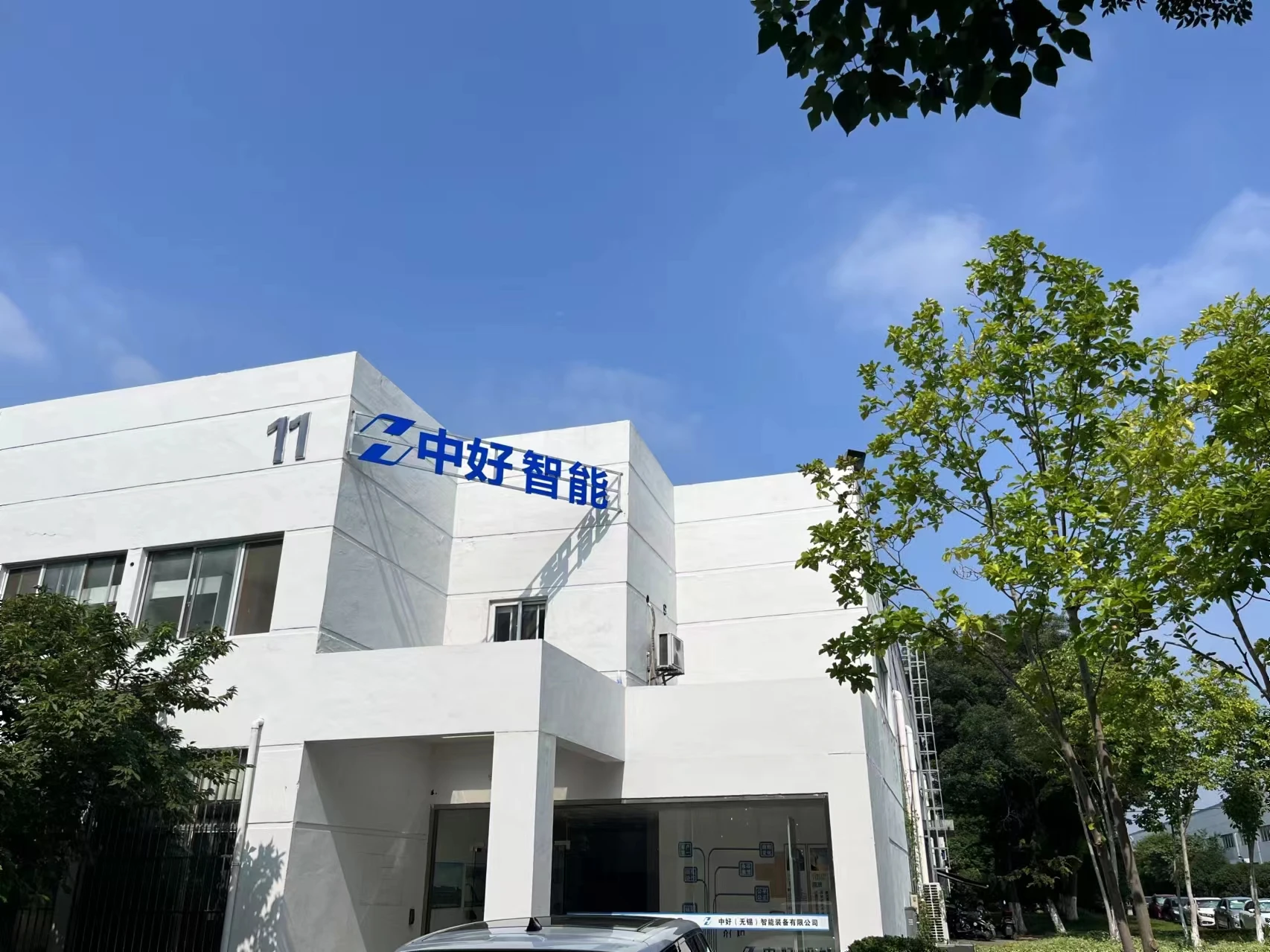

Company Profile








Zhonghao (Wuxi) International Trade Co., Ltd. is committed to the most advanced technology research of robot technology, drive technology, linear transmission technology, and good secondary development applied to industrial automation and photovoltaic intelligent equipment; Zhonghao has been adhering to the development concept of "create quality, build the future together", with rich experience in production line planning, leading technology application, excellent quality requirements and service for the sales concept, for our customers to contribute the most optimized, the most efficient component automation production line solutions and the best cost-effective products. Since the development of Zhonghao, the company has accumulated more than 100 independent invention patents and utility model patents. And rated as Wuxi City to keep good faith advanced enterprises.


Our Advantages




1. The machine has four linkages, which are input level, lamination level, curing level, output level.
2. A hydraulic lifting systems is used, imported linear guide rail, low noise, smooth operation.
3. The whole equipment control system, highly precise temperature control, convenient to operate and stable performance.
4. Nice shape, high performance and high automation make it easy to operate the automatic encapsulation of solar modules


FAQ


Q1: Who are we?
A: We are located in Wuxi City, Jiangsu Province, China. After years of development, we have our own technical R&D department andcan improve our products continuously.

Q2: How can we guarantee the quality?
A: Always executing rigorous final Inspection and testing before shipment; We accept on-site checking by Third party before shipment.

Q3: If we do not know how to use the machine, can you teach us?
A: Yes, we will. We will offer Operation Manual along with our goods.During installation, we will train your staff to operate the
machine.

Q4: When the machine can't work well, what should I do?
A:Please inform us once you got the failure report, our engineer will reply you within 24-hours. If remote instruction couldn’t solve the problem. We also could assign our engineer to your site under our agreement.

Q5: What else can you buy from us?
A1:Specific functional equipment, such as: Automatic Stringer, Automatic cell string laying machine, Automatic bussing machine, EL tester, IV tester and so on.
A2: Semi-automatic production line, full-automatic production line and Turnkey solutions of Solar module production line.
