Manufacturer factory price Trailer Concrete Pump HBT8016DK with spare parts for sale
- Category: >>>
- Supplier: Evangel Industrial (Shanghai) Co. Ltd.
Share on (1601231182074):
Product Overview
Description
Products Description

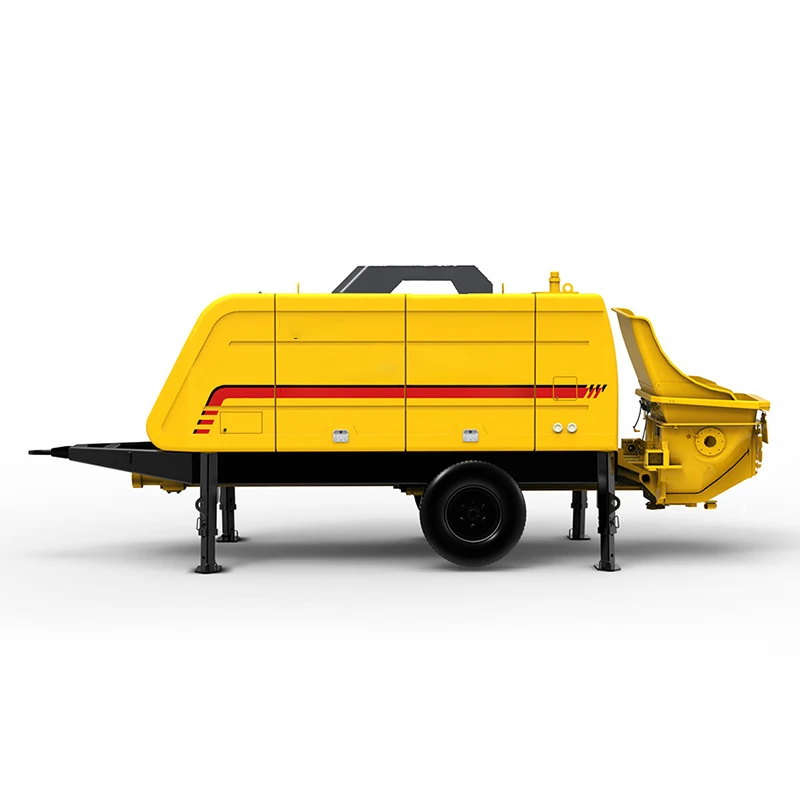

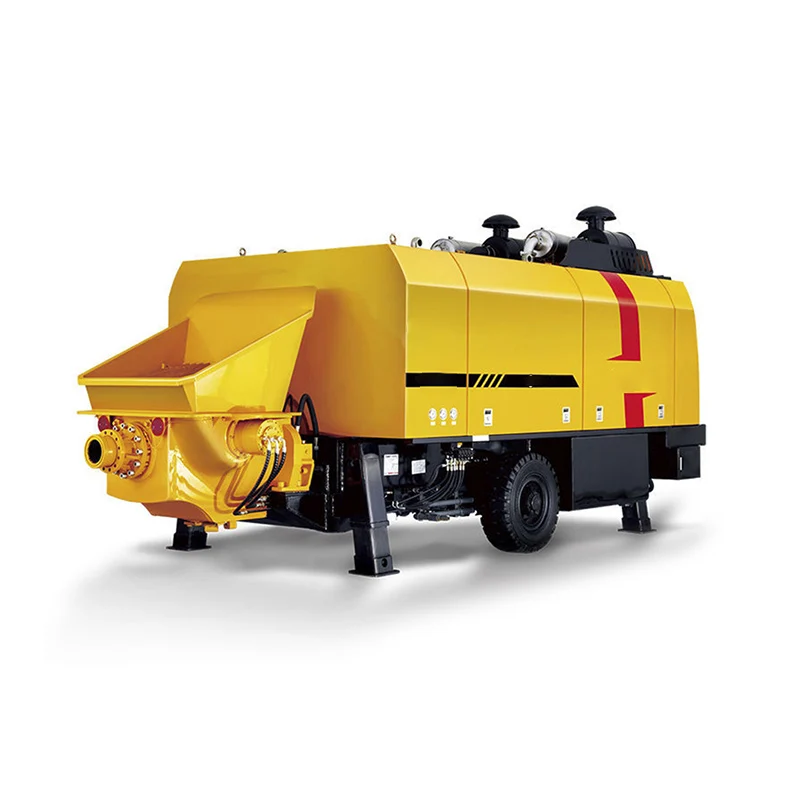

HBT8016DK
High Efficiency Concrete Trailer
Advantages:
1. Powerful machine adopts diesel engine (made in China).
2. Import generator is optional.
3. The high quality hydraulic valves and oil pump use German products.
4. The valve for change-over from high pressure to lower pressure is designed to be easily controlled, which can adjust the condition of the pump easily in accordance with the requirement of job site. Dismantle the tube is not necessary so that it can avoid the pollution.
5. Advanced hydraulic system which change direction hydraulically can run without electrical part.
6. Concrete piston can run back to washing tank, which can easily change the piston and be convenient for maintenance.
7. Tungsten steel glasses shaped plate and cutting ring guarantee long using life.
8. Hydraulic outriggers make easily positioning.
9. Pump can be easily washed.
1. Powerful machine adopts diesel engine (made in China).
2. Import generator is optional.
3. The high quality hydraulic valves and oil pump use German products.
4. The valve for change-over from high pressure to lower pressure is designed to be easily controlled, which can adjust the condition of the pump easily in accordance with the requirement of job site. Dismantle the tube is not necessary so that it can avoid the pollution.
5. Advanced hydraulic system which change direction hydraulically can run without electrical part.
6. Concrete piston can run back to washing tank, which can easily change the piston and be convenient for maintenance.
7. Tungsten steel glasses shaped plate and cutting ring guarantee long using life.
8. Hydraulic outriggers make easily positioning.
9. Pump can be easily washed.
Product Paramenters
project | unit | parameter |
Dimensions (L×W×H) | mm | 6558 x2100 x2545 |
Maximum total mass | kg | 6628 |
Theoretical displacement | ||
Low pressure state | m 3 /h | 80 |
High pressure state | m 3 /h | 50 |
Theoretical delivery pressure | ||
Low pressure state | MPa | 9 |
High pressure state | MPa | 16 |
S valve reversal times | ||
Low pressure state | Times/minute | 19±1 |
High pressure state | Times/minute | 11±1 |
Conveying cylinder inner diameter×stroke | mm | φ230x1600 |
Hopper volume | m 3 | 0.8 |
Engine power | kW/r/min | 132/1480 |
Hydraulic system | ||
Main pump displacement | ml/r | 280/260 |
Hydraulic oil tank volume | L | 600 |
High and low voltage switching form | automatic | |
Reach depth | m | 23.7 |
Front outrigger transverse span | mm | 7280 |
Rear outrigger transverse span | mm | 6600 |
Outrigger longitudinal span | mm | 6860 |
Delivery pipe diameter | mm | 125 |
Remote control distance | m | 100 |
Placing boom slewing range | ° | 370 |
