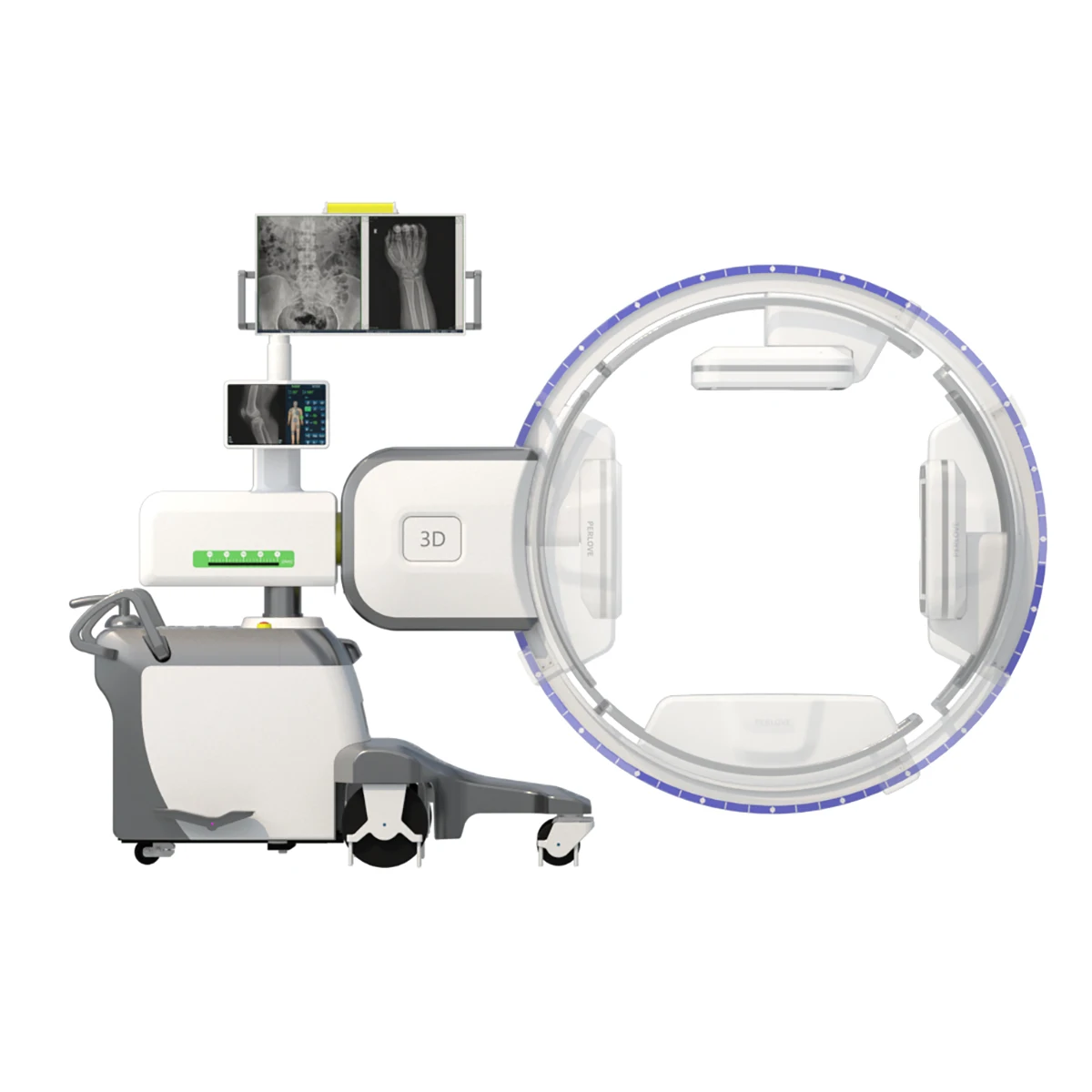

Medical Mobile 5kW HF Digital 3D C arm X Ray Machine for Orthopedics Surgery

Main Technical Specifications

Main Technical Specifications

Combined high frequency and high pressure generator

High frequency inverter power supply and combined tube

Power 5.6kW

Focus size: 0.6mm( small focus )/1.2mm( large focus )

Heat capacity of tube cover: 480kJ ( 648kHU )

Anode heat capacity: 60kJ（81kHU）

Inverter frequency: ≥200kHz

Continuous perspective: With manual, automatic perspective mode, perspective current 0.2～10mA

Intelligent optical field virtual pre-synchronization technology can realize the adjustment of irradiation field under the
condition of no exposure, reduce radiation area and avoid unnecessary radiation.

Intelligent filter recognition switch, with at least three filter modes, inherent filter, additional filter and variable filter,
among which four types of variable filter are optional.

Intelligent frame exchangeable pulse perspective technology, automatically adjust the pulse frequency, perspective moving objects
can also get clear sharp images, while ensuring the image quality and greatly reduce the exposure dose.

X ray control system

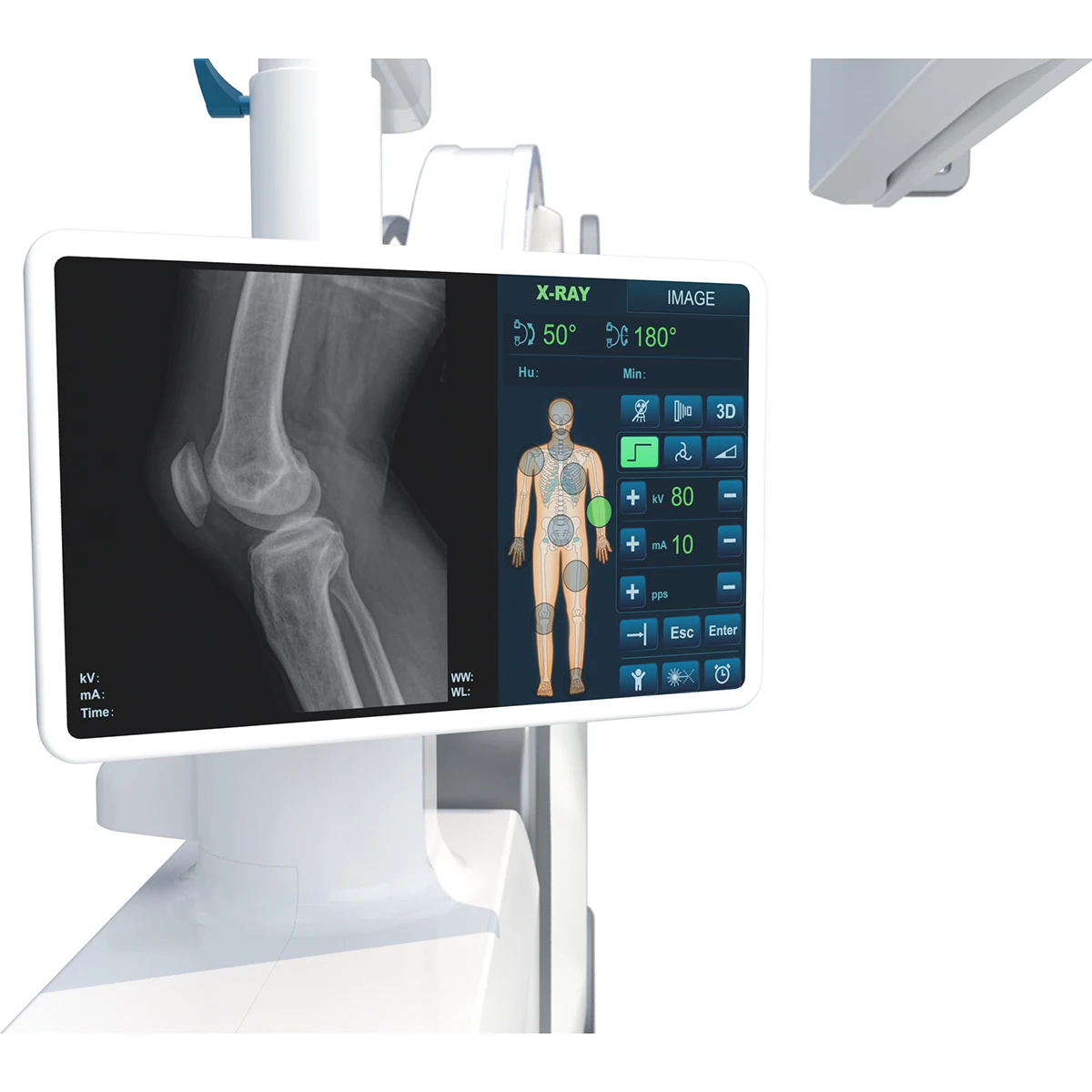

The system has a color human body graphic LCD touch screen, real-time adjustment of exposure parameters

Tube voltage: 40-120kV

Maximum tube current: 10mA( continuous perspective ）; 50mA( pulse perspective)

Maximum pulse acquisition rate 25f/s

Maximum photographic current: 80mA

Dynamic plate detector: Amorphous silicon CsI flat panel detector

Collection size: ≥1024x1024

Pixel size: ≤205um

Spatial resolution: ≥2.0LP/mm

Dynamic adjustment range: ≥16bit

Filter grid density: ≥80L/cm, pluggable

Intelligent multi-dimensional laser positioning system, integrated support design

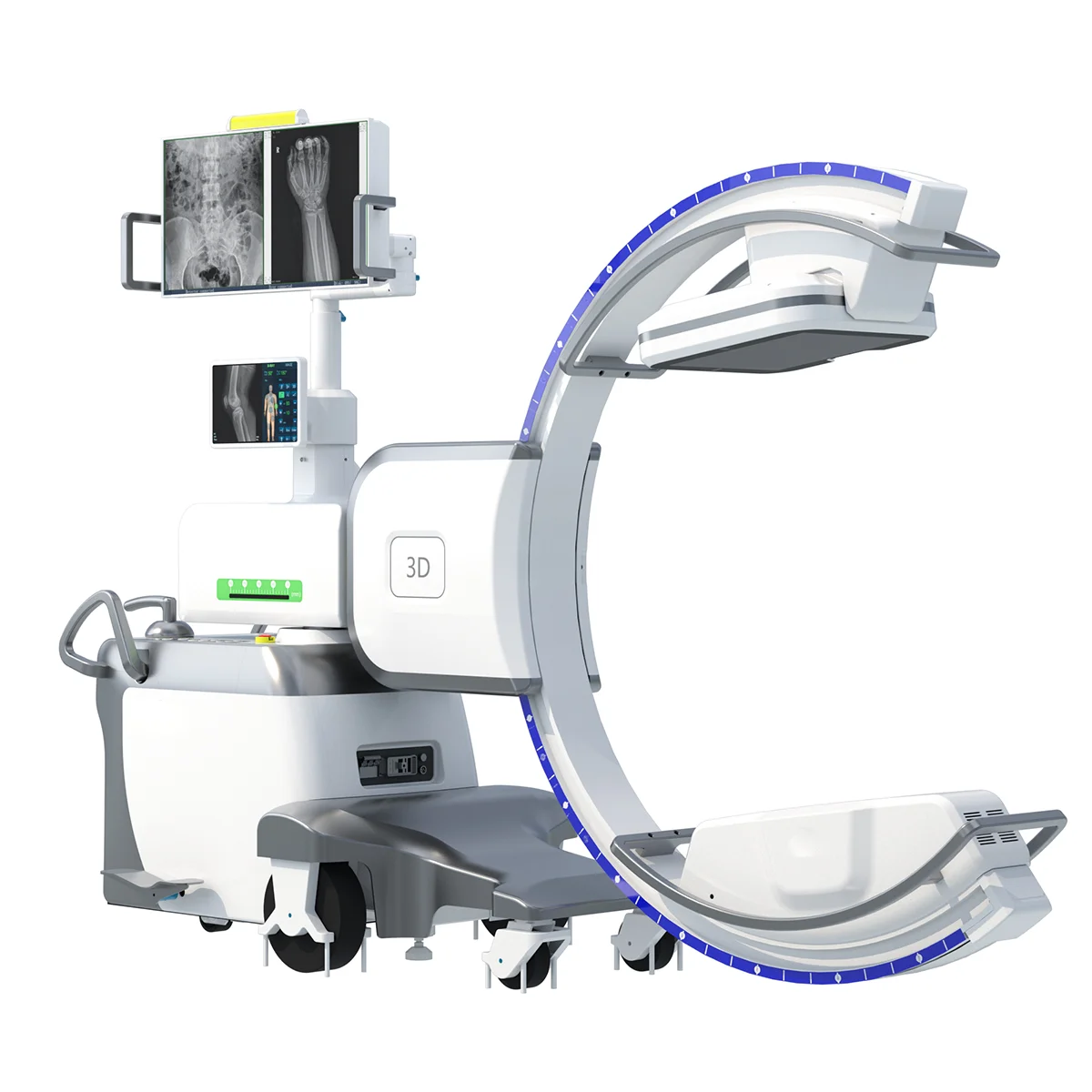

C arm frame system

Along the arc sliding ≥130°

Slip angle ≥-35°~+95°

Left and right swing ≥±15°

C-arm rotates around the horizontal axis ≥±180°

Pillar lift: electric, stroke≥400mm

The distance from focus to screen: ≥1000mm

C arm opening size: ≥780mm

C arm arc depth: ≥740mm

Horizontal extension: ≥200mm

The rack is equipped with self-balancing function, and can be locked freely at any position without sliding.

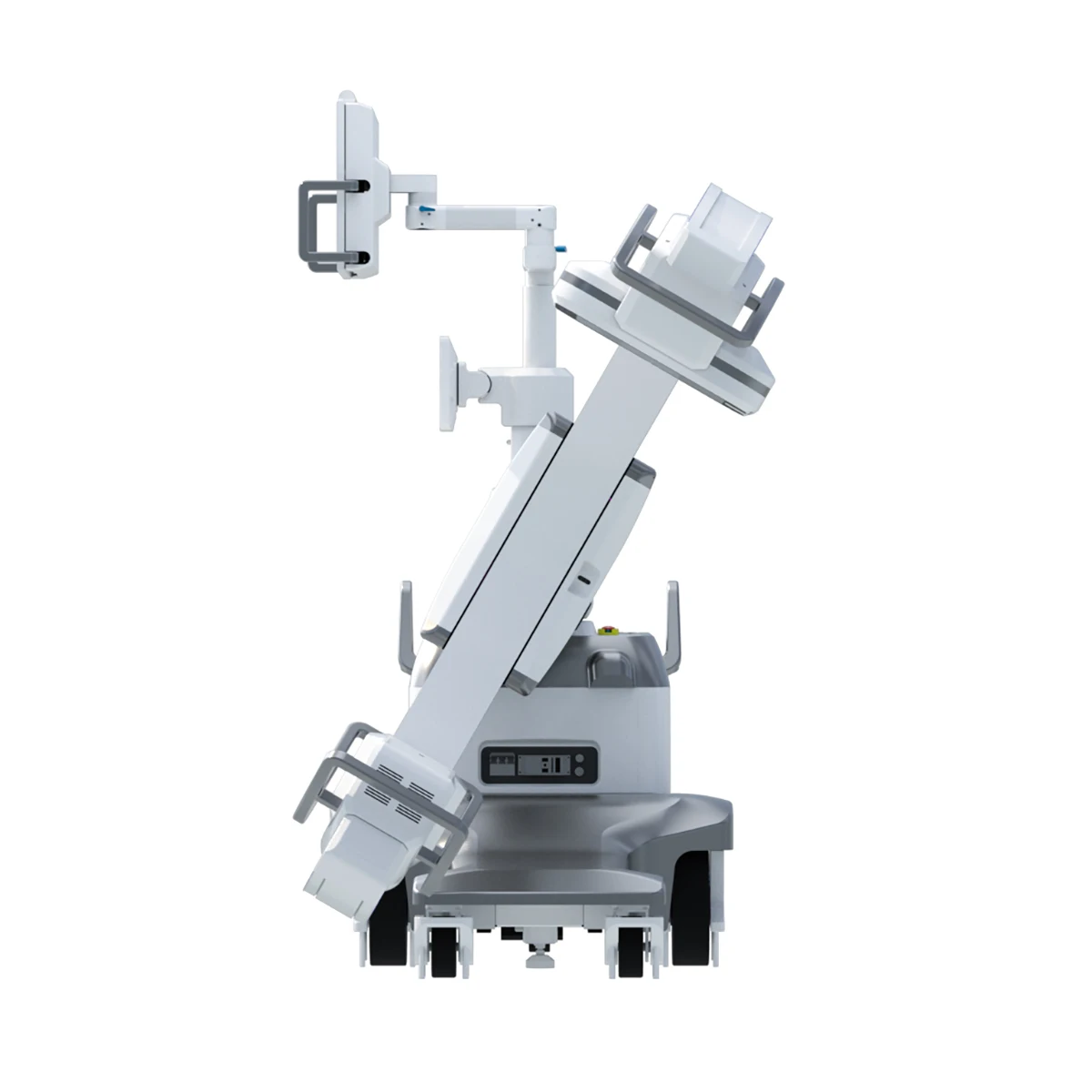

6D Multi-dimensional motion system

Intelligent and colorful control system, X-ray outgoing warning light is displayed synchronously by c-arm machine and workstation

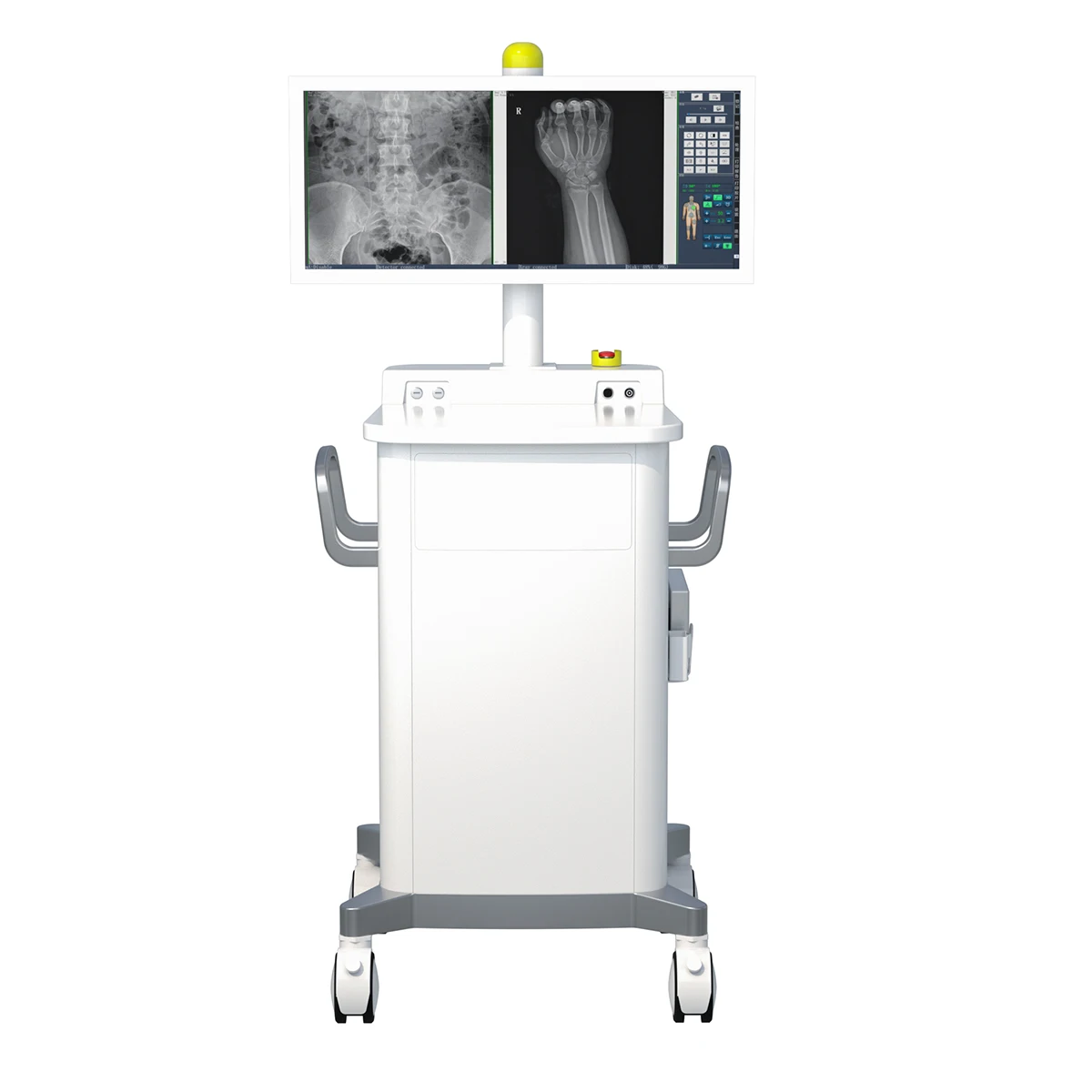

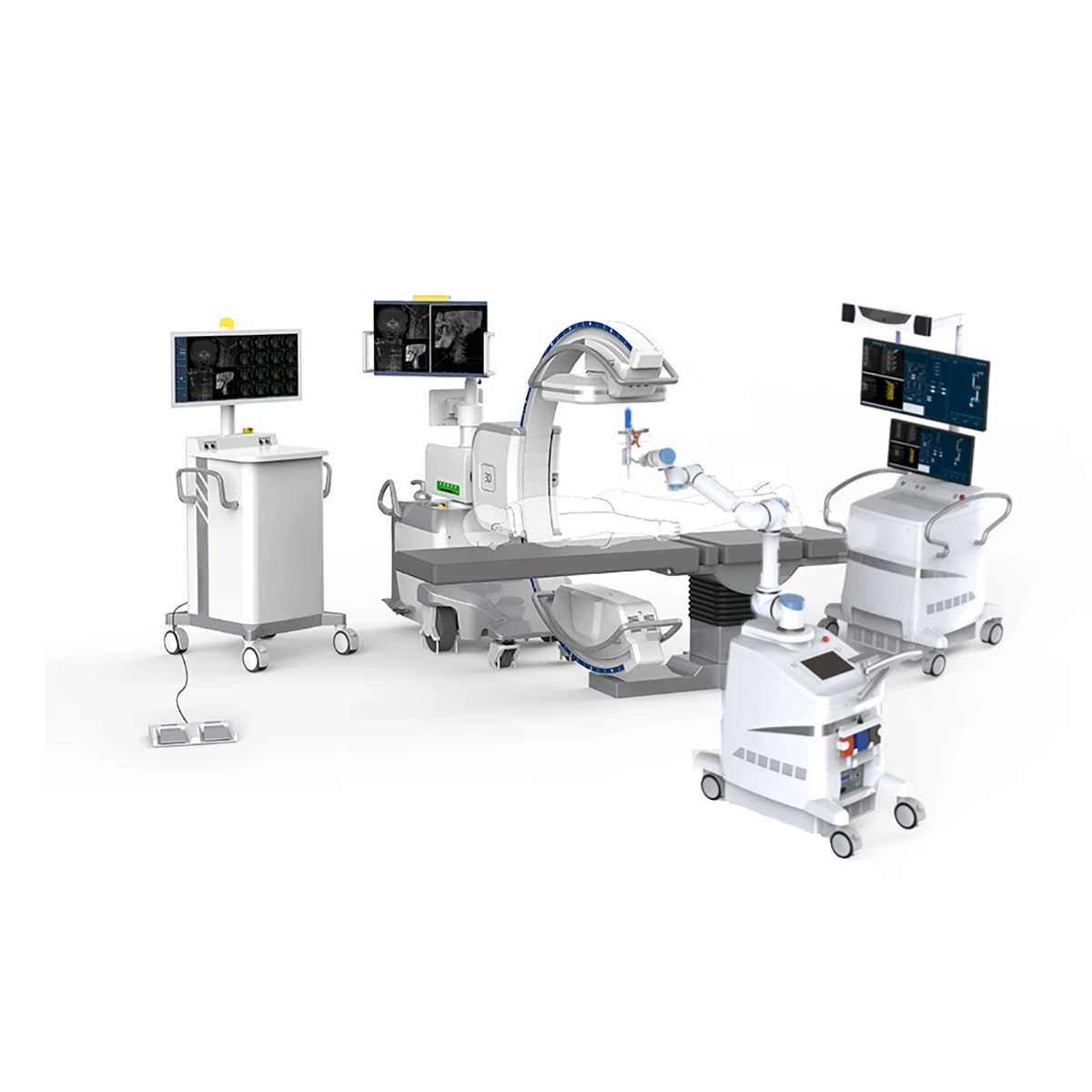

Workstation system ( Hardware function )

Optiplex7080MT I7-10700/8G/128G+1T/DVDRW/R5 430 2G/WIN10 system, 30 inch high contrast dual-screen monitor

It can store more than 180000 images quickly

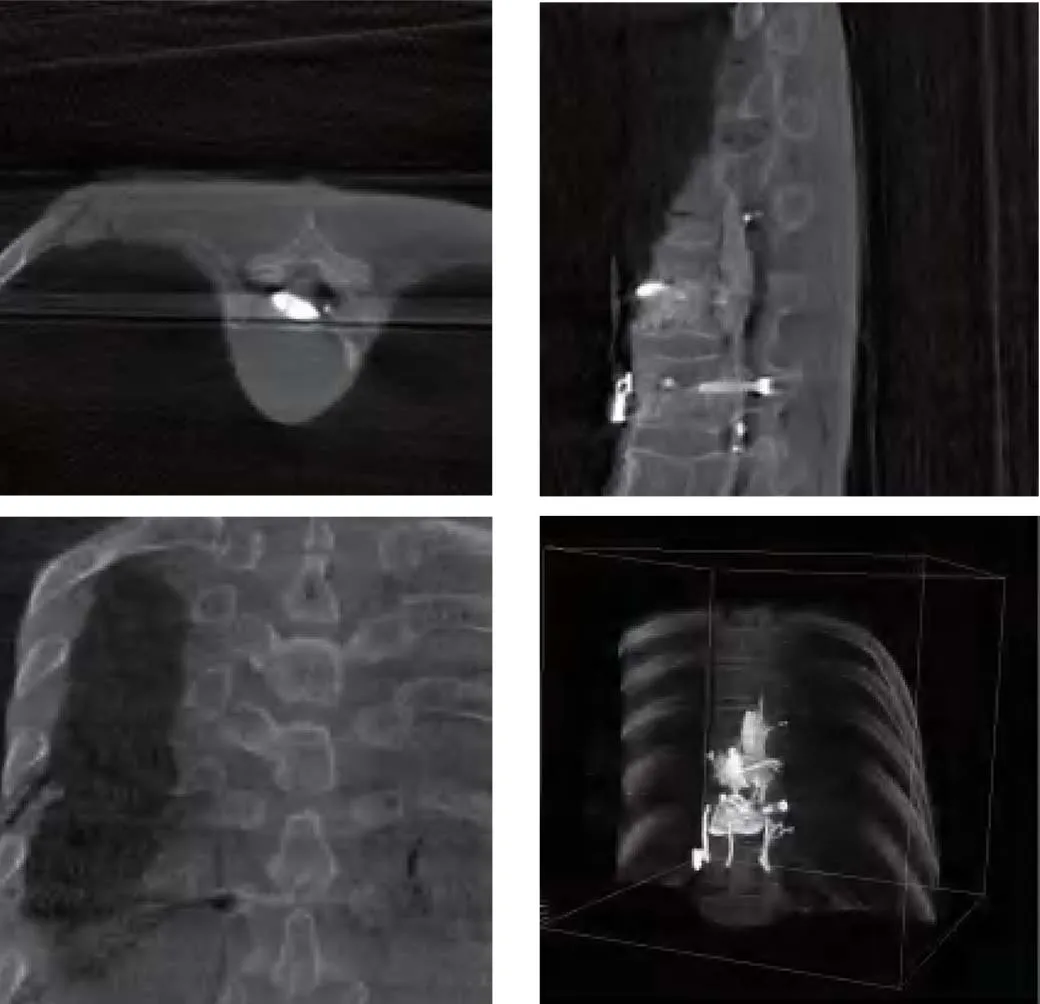

Workstation system ( software function )

The workstation system has real-time image processing and post-processing, can collect and playback continuous image.

The workstation system has real-time image sharpening, window width, window level, noise reduction, gain, rotation, brightening
adjustment and other image processing functions

Group vision assisted diagnosis

The workstation system has eight pre-selected modes (abdomen, vertebra, hips, limbs, etc.) for automatic dose fluoroscopy.

The workstation adopts wired/wireless design, the workstation and the equipment adopt wired /WIFI6 wireless synchronous
transmission, flexible, convenient, safe and reliable.

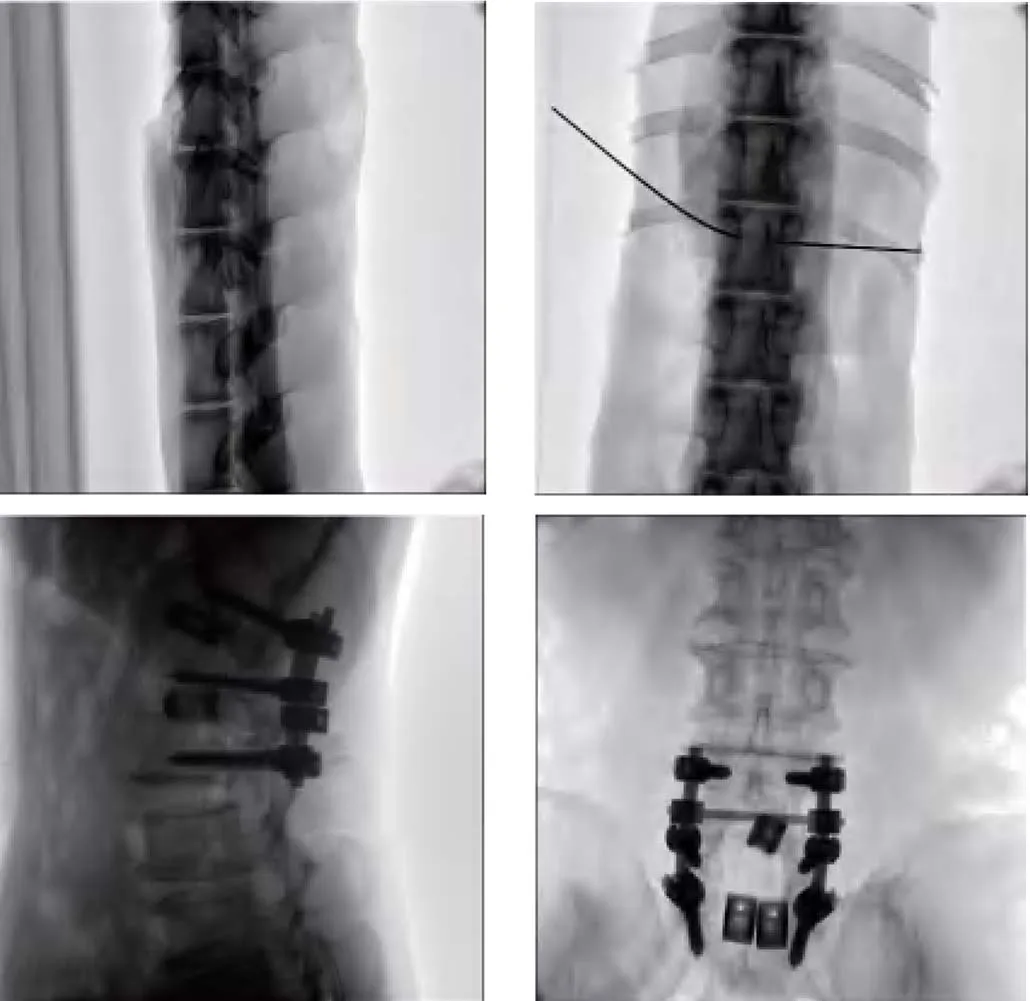

Metal artifact removal technology to remove artifacts caused by metals such as metal nails or metal stents.

Smart contour recognition technology can take a high-definition image even when the patient body part is on the edge of the
detector.

Intelligent tilt image correction technology, can correct in 360°full frame, according to the doctor’s observation needs.

Other requirements

The system can adjust the exposure parameters with two screens

Equipment technical service standards

The machine warranty: 1 year
