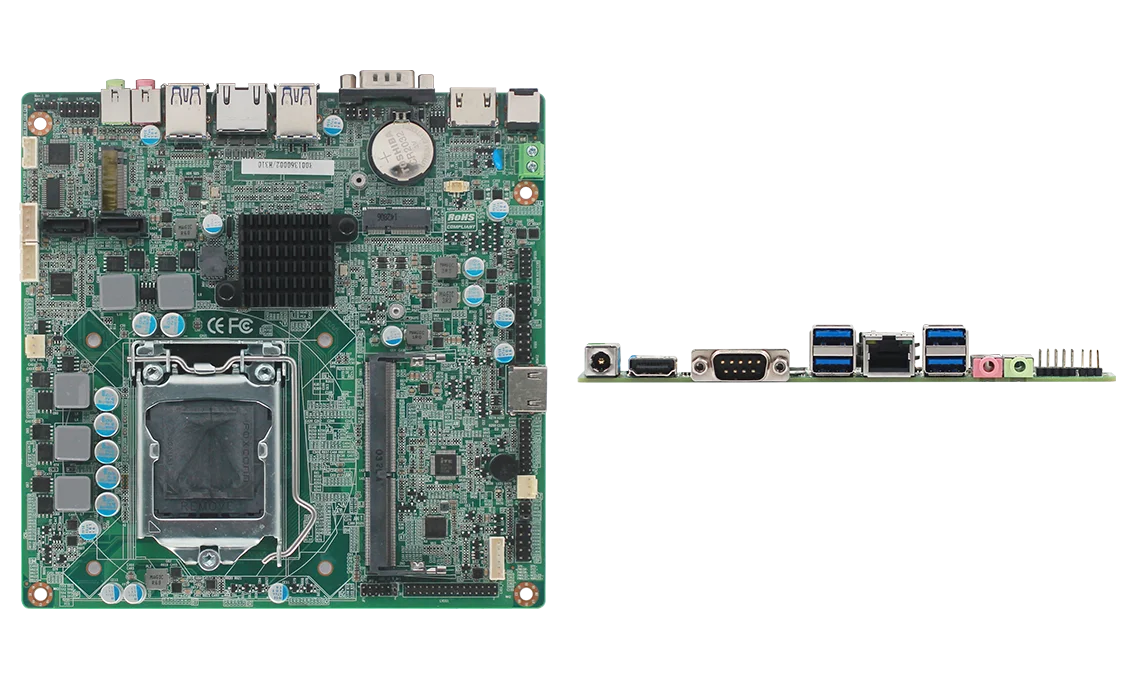

Zunsia Industrial Motherboard Intel 8th 9th LGA1151 Core i3 i5 i7 Pentium CPU H310 PC Board Mini Itx Motherboard with Sim Slot
Zunsia Industrial Motherboard Intel 8th 9th LGA1151 Core i3 i5 i7 Pentium CPU H310 PC Board Mini Itx Motherboard with Sim Slot
Zunsia Industrial Motherboard Intel 8th 9th LGA1151 Core i3 i5 i7 Pentium CPU H310 PC Board Mini Itx Motherboard with Sim Slot
Zunsia Industrial Motherboard Intel 8th 9th LGA1151 Core i3 i5 i7 Pentium CPU H310 PC Board Mini Itx Motherboard with Sim Slot
Zunsia Industrial Motherboard Intel 8th 9th LGA1151 Core i3 i5 i7 Pentium CPU H310 PC Board Mini Itx Motherboard with Sim Slot
Zunsia Industrial Motherboard Intel 8th 9th LGA1151 Core i3 i5 i7 Pentium CPU H310 PC Board Mini Itx Motherboard with Sim Slot
Zunsia Industrial Motherboard Intel 8th 9th LGA1151 Core i3 i5 i7 Pentium CPU H310 PC Board Mini Itx Motherboard with Sim Slot

Zunsia Industrial Motherboard Intel 8th 9th LGA1151 Core i3 i5 i7 Pentium CPU H310 PC Board Mini Itx Motherboard with Sim Slot

Share on (1601234748844):


Price:$115.00

Quantity:


Product Overview

Description





Products Description


◆ Adopt Intel 8/9th genneration Core,Pentium,Celeron,serial processor;
◆ 1*DDR4 SO DIMM 260 Socket,MAX 32G;
◆ 2*HDMI,1*DB9 COM,1*LVDS/EDP(EDP OR LVDS optional);
◆ Onboard dual-channel power amplifier, each channel supports 6W 8Ω speaker;
◆ 1*Realtek RTL8111H 10M/100M/1000M adaptive network card;
◆ 1*DB9 COM,support RS232 or 1*RS485 plug pin(Function selection by jumper);
◆ 1*KEY-Msocket,support M KEY 2240/2260/2280 NVMe protocol or SATA SSD
◆ 1*KEY-E socket,support E KEY 2230 WIFI,support CNVi protocol;






Processor
CPU
Support intel 8th/9th Core, Pentium, Celeron series processors
CPU Package
Intel LGA 1151
Chipset
Intel H310
BIOS
EFI BIOS

RAM
Technology framework
Single channel DDR4-1866/2133/2400/2666 1.2V RAM, Max support 32G
RAM Socket
1*DDR4 SO-DIM MMemory slot,





Video
Graphic controller
Integrate INTEL HD Core graphics card Graphics card model is related to CPU
Dual LVDS or EDP
LVDS Support dual channel 24 bit output, Maximum resolution 1920 x 1200,EDP Maximum supported resolution 4096*2304@60Hz(LVDS or
EDP display Tow choose one)
HDMI
HDMI Maximum supported resolution 4096*2160@30Hz
Double display support
LVDS/EDP+ HDMI1,LVDS/EDP+ HDMI2,HDMI1+HDMI2 Synchronous or asynchronous display
Three Display support
LVDS/EDP+HDMI1+HDMI2 Synchronous or asynchronous display

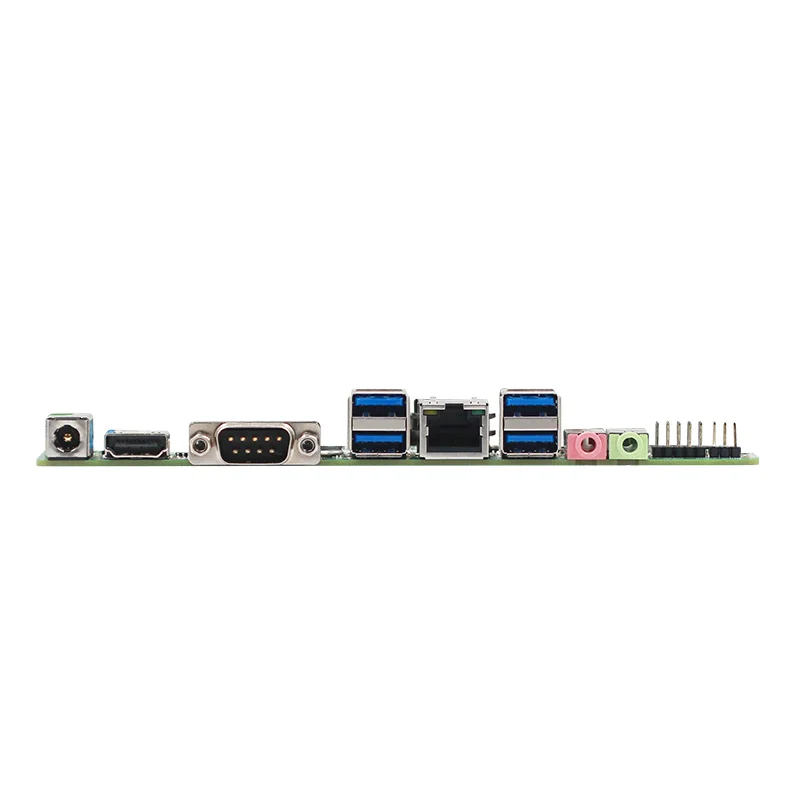

I/O Panel
Ports
1*DCIN,1*DB9,2*HDMI,1*LAN,4*USB3.1,1*LINE OUT,1*MIC
Network
CONTROLLER
1*Realtek RTL8111H,10M/100M/1000M Adaptive network card
Audio
CONTROLLER
EALTEK HD ALC662 Audio (MIC+ Left and right channels SPK)
Super I/O
CONTROLLER
IT8613E
Hardware Monitoring
Watchdog timer
0-255sec,sample code optional
Cooler
Aluminum Alloy heat sink with Fan Support automatic and manual fan speed adjustment)


Input/Output Interface
USB
2*USB3.0
Serial ports
1*DB9 COM,support RS232 or 1*RS485 1X2 2.0 pin(Two choose one,Switch by changing resistance and jumping cap)
PS/2
1*PS/2 Pin interface (support PS/2 Keyboard and mouse)
GPIO
8bit GPIO Pin, Providing routines, Free definition ,3.3V@24mA level
Expansion Bus
M.2
Support M.2 CNVi protocol WIFI

Storage
SATA
2* standard SATAIII port, maximum speed 6Gb/s
M.2 NVMe/SATA
NGFF_SSD1:support M KEY 2240/2260/2280 NVMe protocol or SATA SSD
Power Supply
Power Type
Single input DC power,DC12V(8A-16A), 95W TDP CPU match≥180W power supply,65W TDP CPU match ≥120W power supply)

Working Environment
Working temperature
-20℃ ~ +60℃
Storage temperature
-40℃ ~ +85℃
Working humidity
0% ~ 90% relative humidity, No condensation
Storage humidity
0% ~ 90% relative humidity, No condensation
OS support
OS
Windows10 Linux
Measure
Measure
170 x 170 mm
Weight
0.5KG
Certification
CE,RoHS,FCC

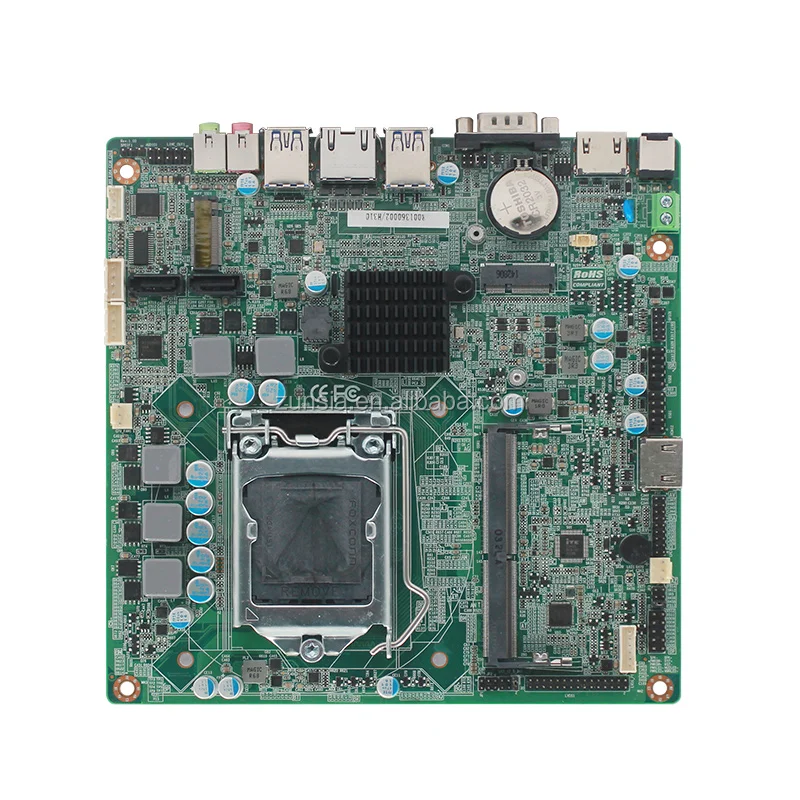

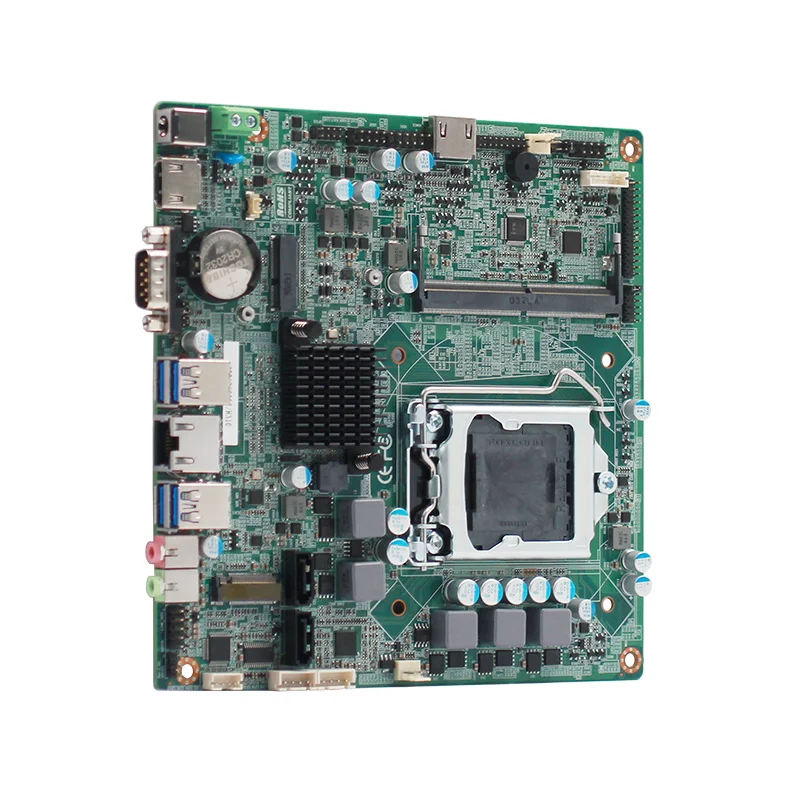

Details Images




Our Services


1.Quality: we check every product carefully before the delivery, and provide 2 years warranty time, if you find problems please contact us in time.
2.Design: we could do design as customer requirement.
3.Packages: the carton with your own logo are available.
4.Other Support: about the product performance and safety knowledge, you also can consult our engineer




Company Profile






Package&Delivery






FAQ


Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visitour factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster Express: DHL TNT UPS by air for samples and middle order Reasonable Express: delivery by sea for large order;
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
