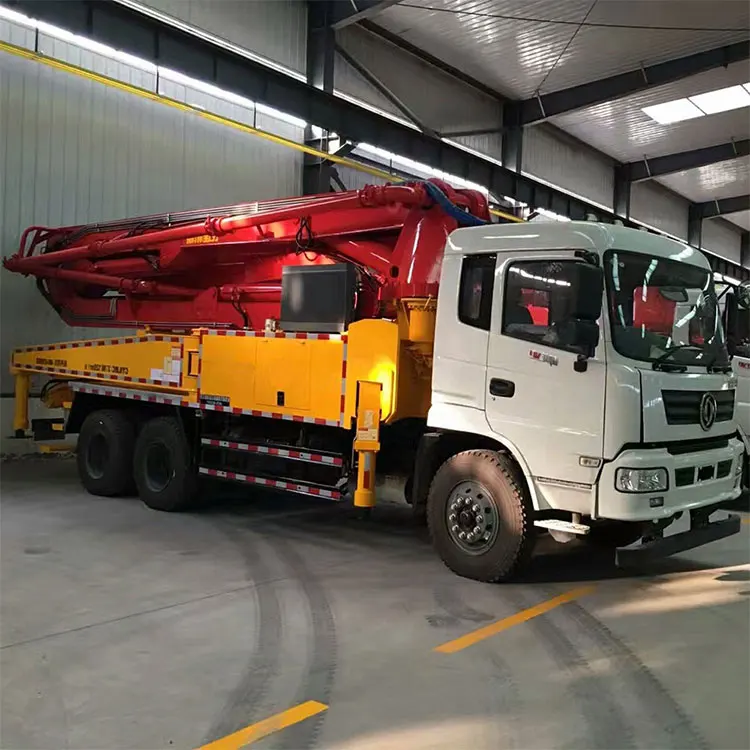

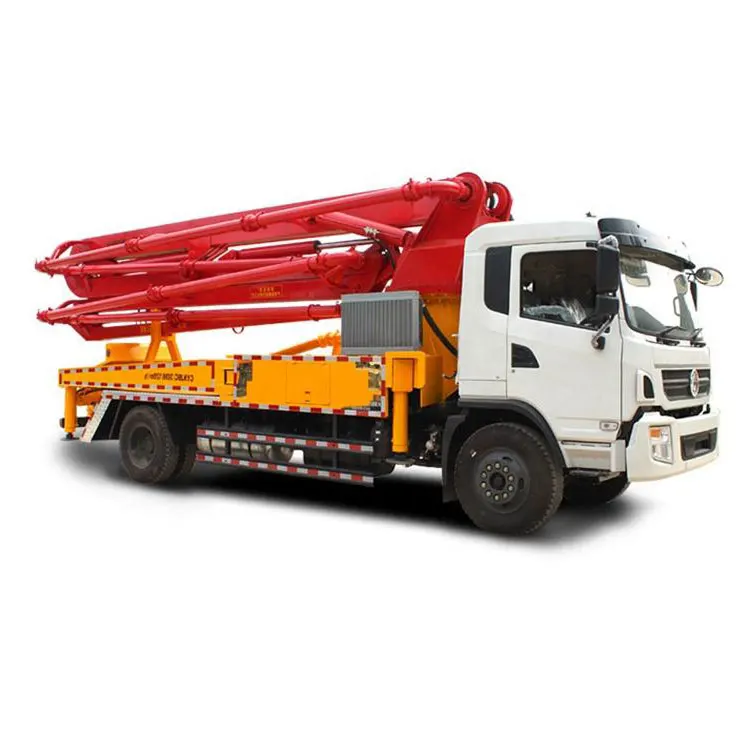

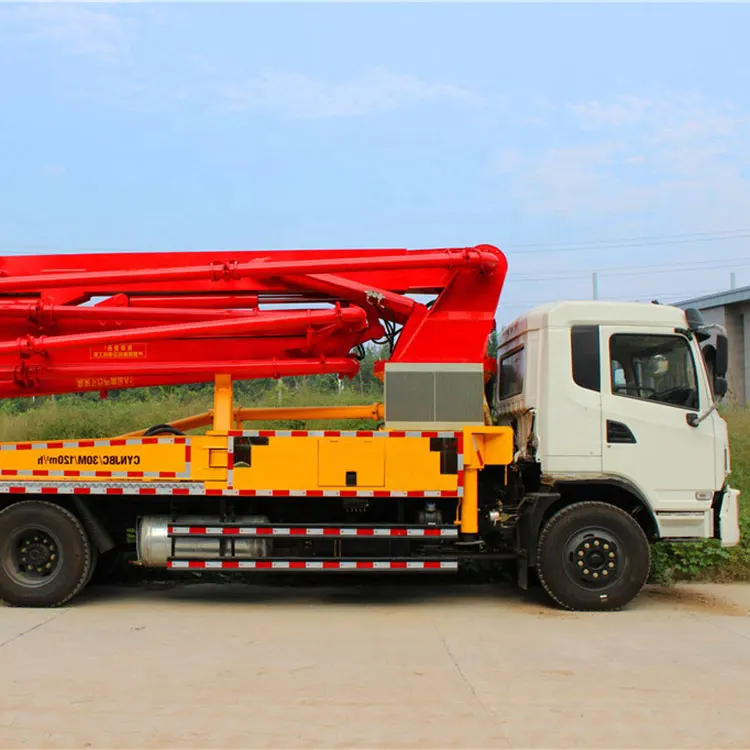

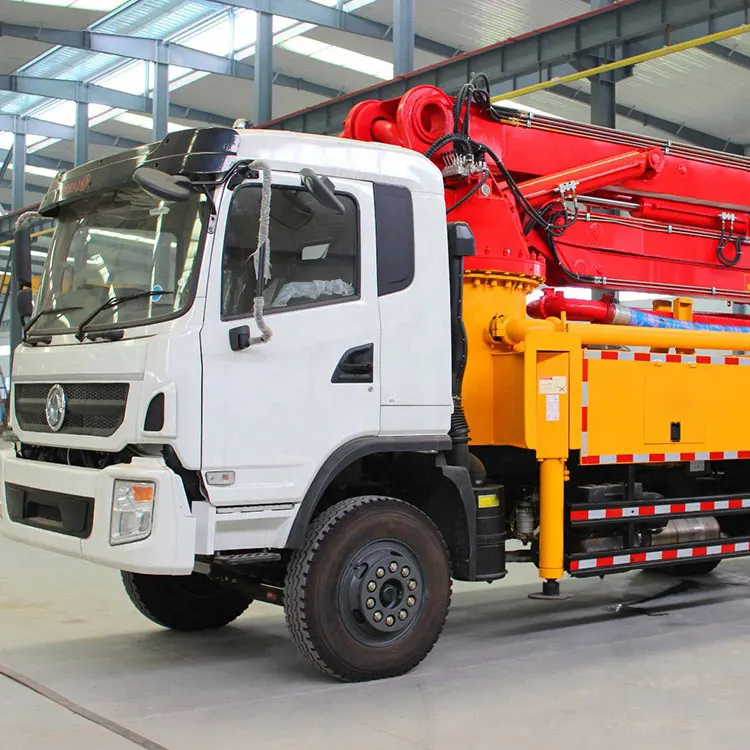

Di Hai Structure Pouring Pump Truck 30M Mounted Concrete Pump for Construction Site Concrete Pump Truck
- Category: >>>
- Supplier: HENAN DI HAI MACHINERY CO. LTDHENAN LTD
Share on (1601237199800):
Product Overview
Description
Product Description

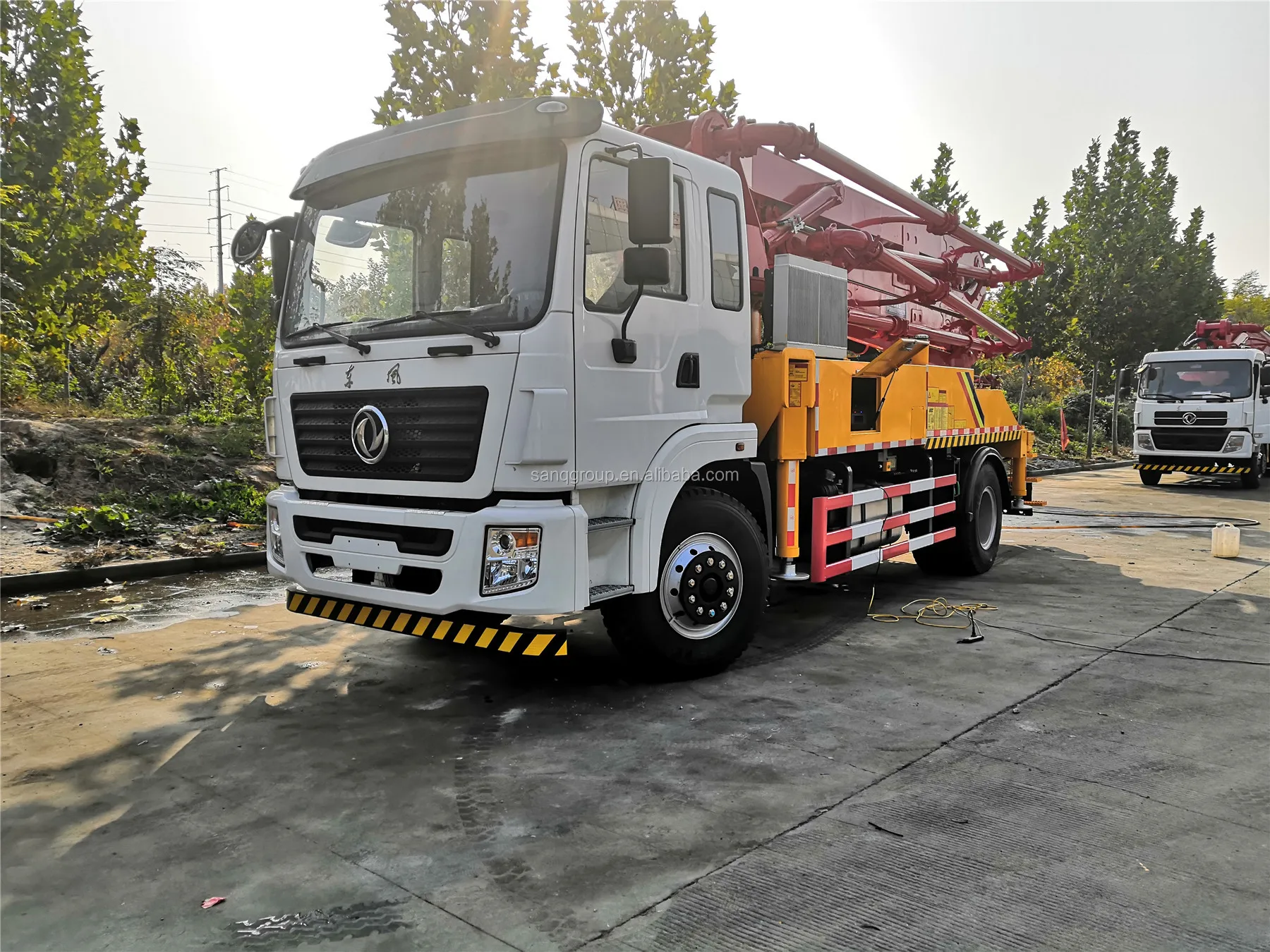

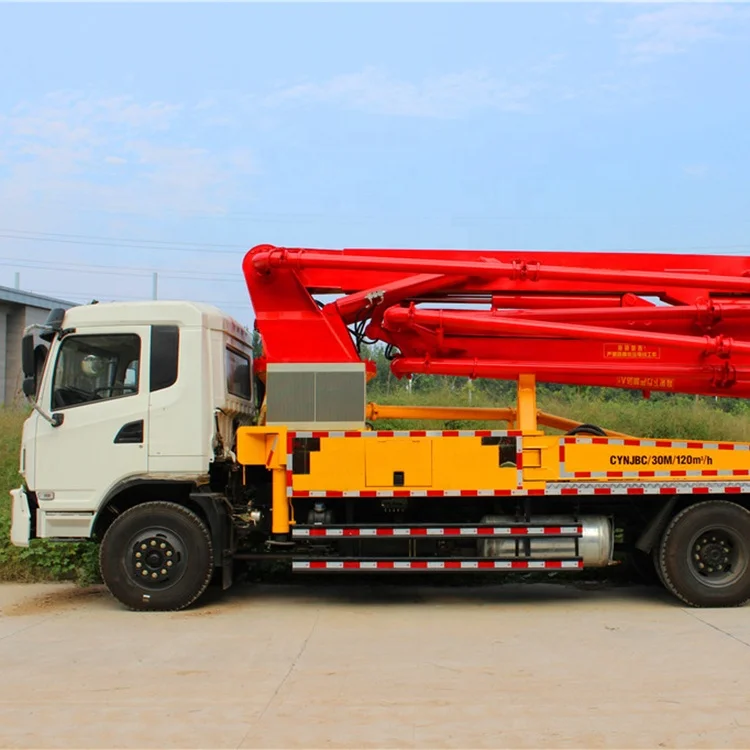

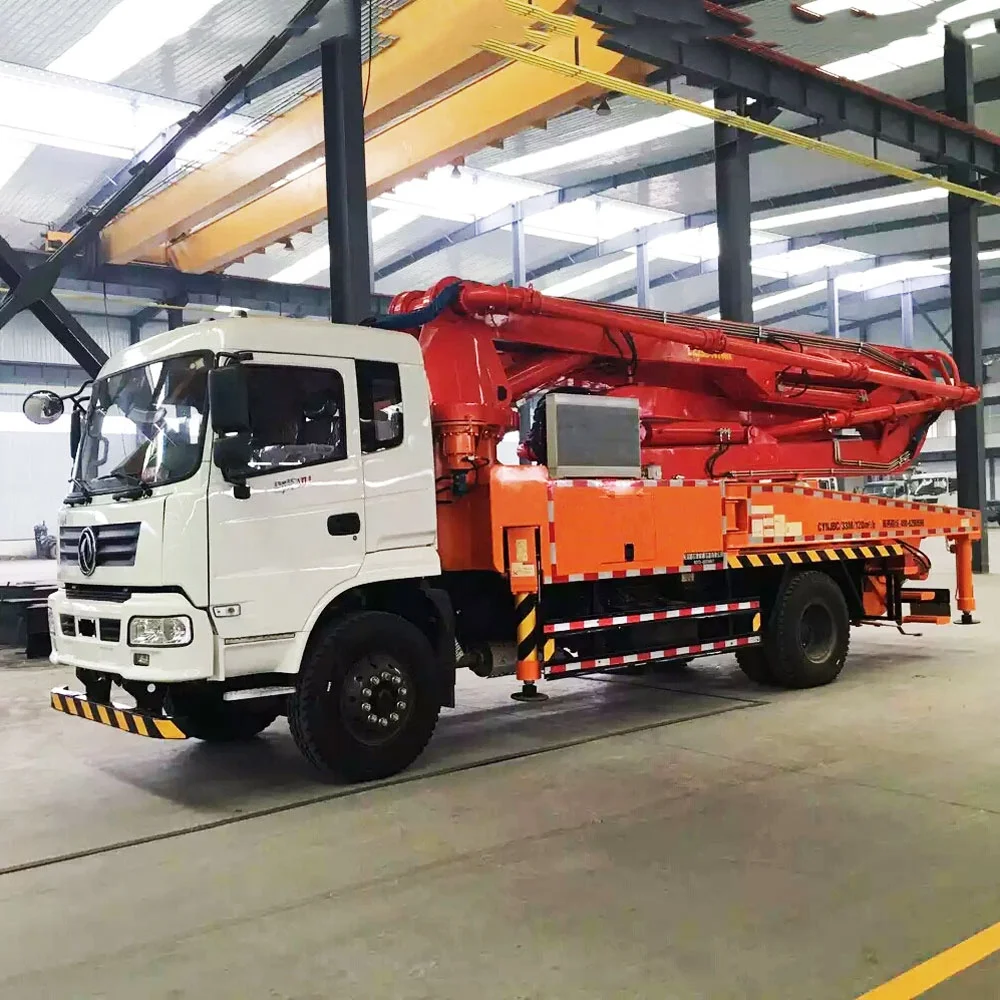

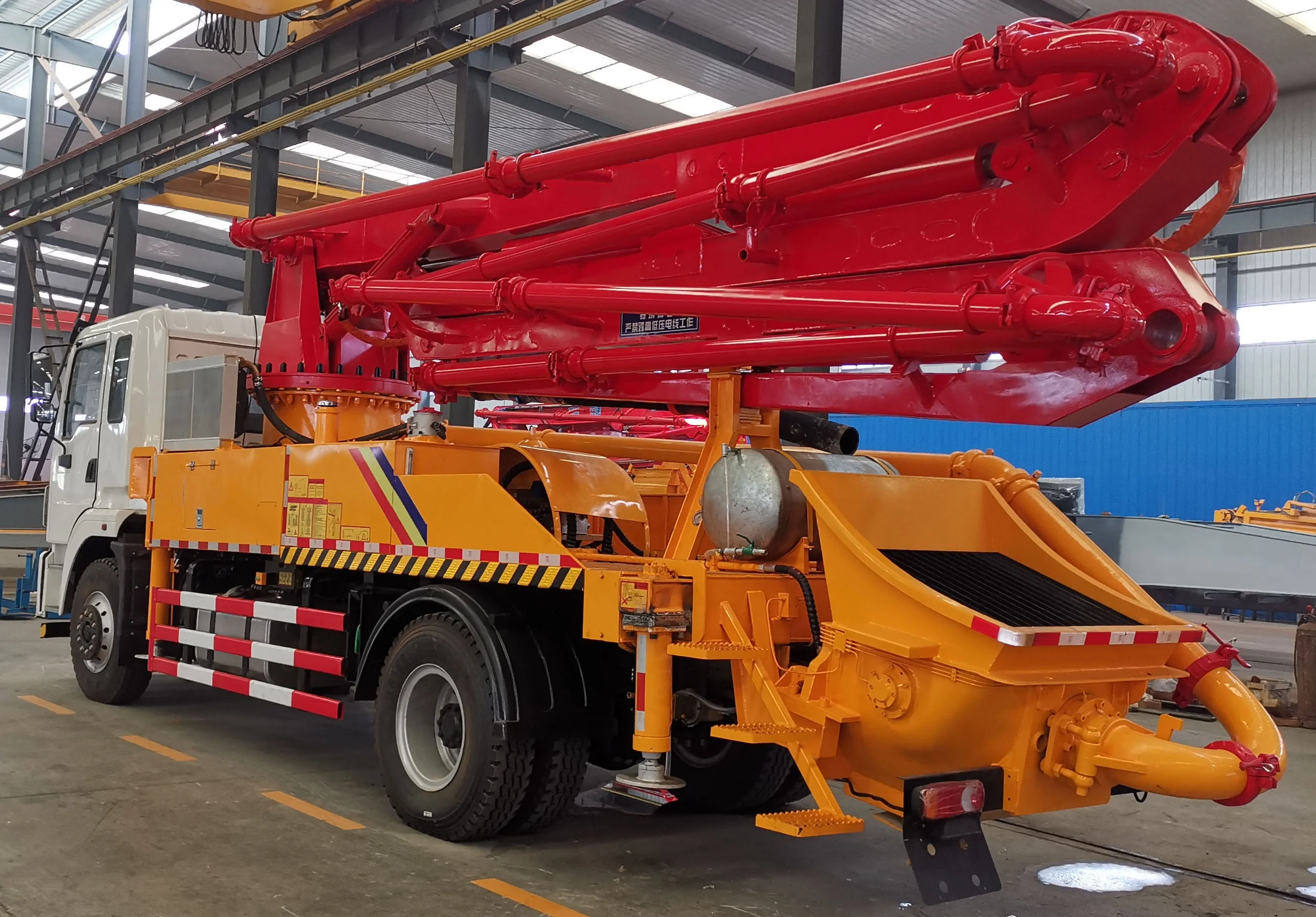

Concrete Pump Truck
Concrete Pump Truck is a kind of machinery, that is transformed based on truck chassis, and uses continuous pressure to pump concrete along the pipeline. It is composed of a pump and delivery tube.

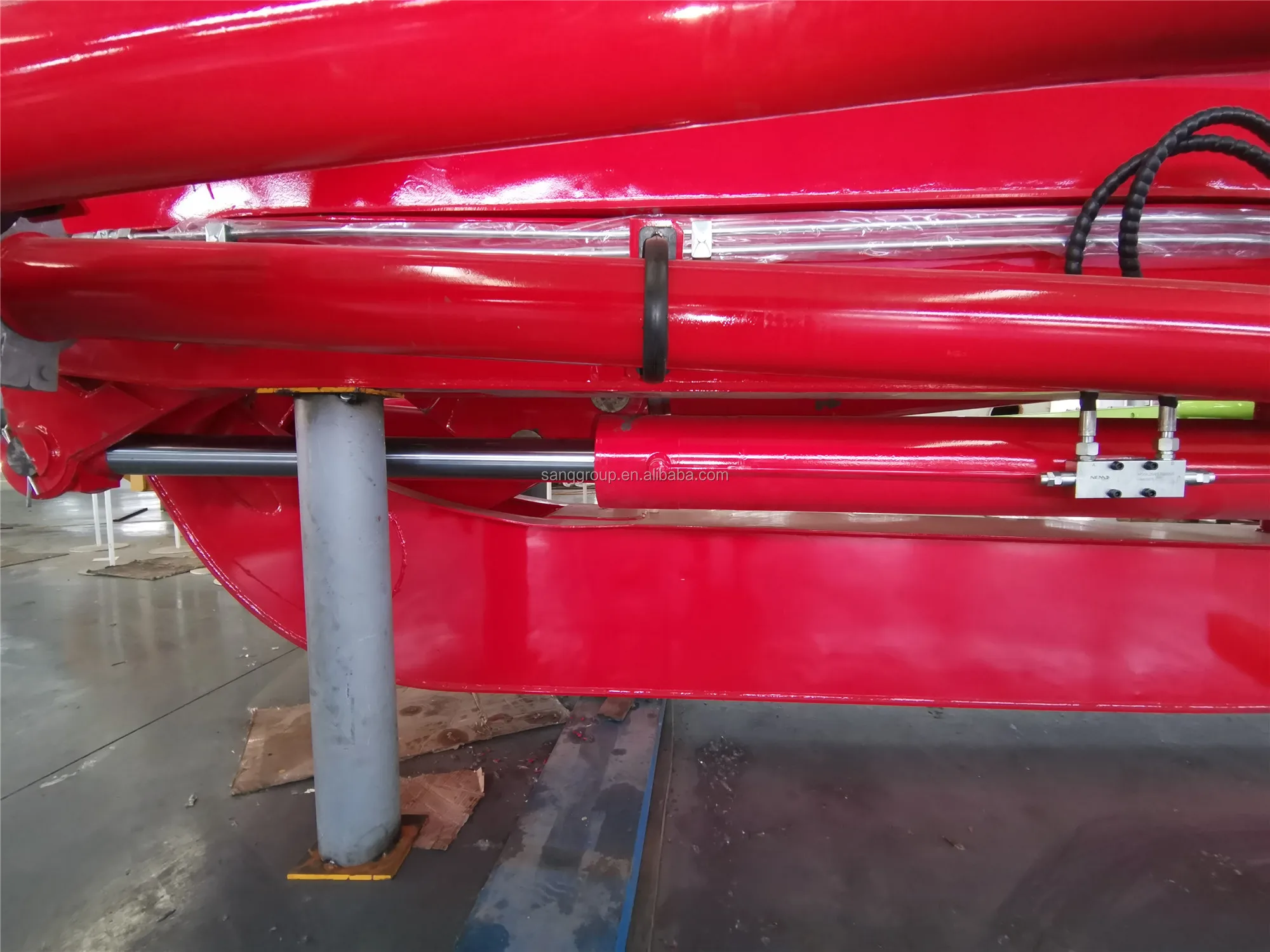

The Jib structure system is based on finite element analysis, dynamic analysis and test, and accurate data support. The material adopts high-strength Alloy Steel plates, all materials and welding lines by 100% non-destructive technology ensure the jib structure is reasonable and highly reliable. "M" type arms with speed step-less adjustment, pressure compensation and load sensing proportion control system ensure the arm runs freely and excellent operating performance.
Specification
Position | Specification | 25M | 47 | |
Chassis | Chassis | Dongfeng | ||
Emmission | Eruo 5 | |||
Engine | Yuchai | |||
Engine Power/Speed | 160kw/2000rpm | 330P/2000 rpm | ||
Wheel Base | 4700mm | 4350+1350 | ||
Max Driving Speed | 80km/h | 80 km/h | ||
Approach/departure angle | 21°/11.5° | 24.6°/15.6° | ||
Tyre | 9.00R20 16PR | 11.00R20 16PR | ||
Boom System | Max. Vertical Height | 25.2m | 47 m | |
Horizontal Placing Radius | 21.6m | 42.5 m | ||
Boom Rotation Angle | 90/180/360/540° | 90/180/180/230/215° | ||
Boom Control Mode | Load-sensing Proportional Control | |||
Boom Folding Type | M Mode (4 Booms) | RZ Mode (5 Booms) | ||
Rotation Angle | 360° | |||
Front Leg Cross Distance | 5350 mm | 8500 mm | ||
Back Leg Cross Distance | 5350 mm | 9400 mm | ||
longitudinal Distance between Front and Back Leg | 6100 mm | 9000 mm | ||
Leg Open Mode | X_H | X | ||
End Hose Length | 3000 mm | |||
Concrete Conveying Pipe Diameter | 125 mm | |||
Electrical Control System | Control Power | 24v | ||
Control Mode | Bus PWM | |||
Work Voltage | 24v | |||
Electrical Appliance | Omron | |||
Wireless Remote Control | Germany HBC/ Ohm/ Shanghai Ji Jing | |||
Hydraulic Transmission System | Hydraulic System Type | Open | ||
Working Pressure | 31.5Mpa | 31.5Mpa | ||
Main Hydraulic Pump | Rexroth | Rexroth | ||
Main Hydraulic Pump Model | A11VO190 | A11VLO260 | ||
Main Oil Pump Displacement | 190 | 260 | ||
Main Electro-Hydraulic Valve | American Eatan | |||
Oil Sunction and Return Oil Filter Element | Liming Hydraulic | |||
Boom Multitandem Valve | HAWE/ Italy/ Shanghai Ji Jing | |||
Boom Balance Valve | HBS Italy | Rexroth / HBS | ||
Boom Oil Pump | Rexroth / HBS | |||
Safety Valve | World Famous Brand | |||
Hydraulic seal of oil cylinder | USA Parker | |||
Hydraulic Oil Tank Volume | 450 L | 550 l | ||
Hydraulic Oil Cooling Type | Air Cooling | |||
Main Oil Cylinder | Xieli / Zhengkun | |||
Transfer Case | STIEBEL / Stub Chi | |||
Rotary Reducer | China Brand | China Brand | ||
Hose Coupler | American Eatan | American Eatan | ||
Cleaning System | Air Pressure or Plunger Pump | |||
Dimension & Weight | Length | 9445 mm | 11350 mm | |
Width | 2300 mm | 2500 mm | ||
Height | 3535 mm | 3950 mm | ||
Weight | 15.8 tons | 28 tons | ||

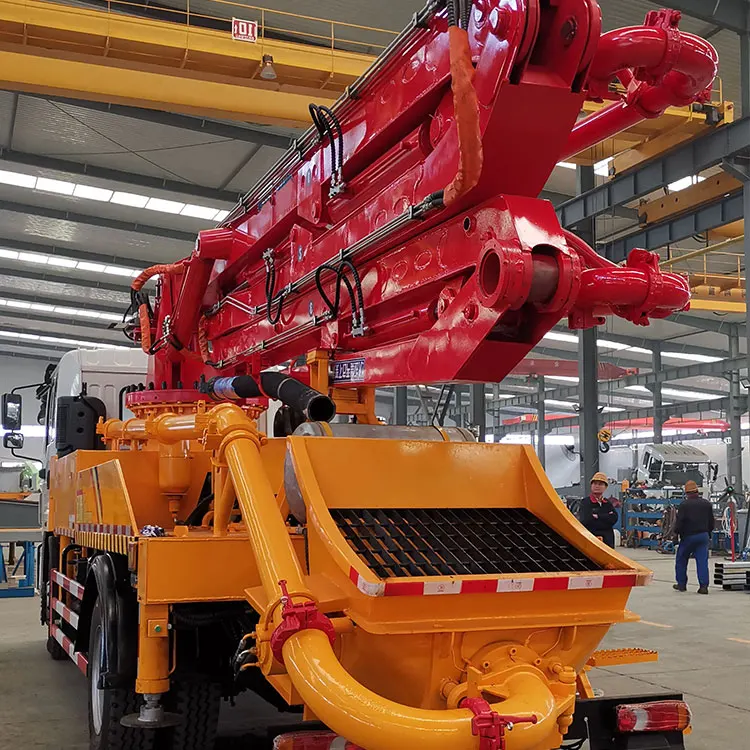

Pump System | Distribution Valve Mode | S Valve | ||
Piston Brand | Zoomline / SANY | |||
Max. Concrete outlet pressure(High/low pressure) | 10.5 | 10.5/14 Mpa | ||
Delivery Cylinder Inner Diameter/Stroke | 200/1200, 1450 | 260/1600 mm | ||
Max. Filling Height | 1450 | 1450 mm | ||
Hopper Volume | 0.65 | 0.65m3 | ||
Concrete Slump | 160-220 | 160-220 mm | ||
Max. Aggregate Size | 40 | 40 mm | ||
Lubricating Way | Central Lubrication | |||
Di Hai truck-mounted concrete pumps adopt 8 core technologies of one button stabilization, boom anti-vibration, energy saving, anti overswing, fault self diagnosis, safety, smart boom system and highly wear resistant parts to ensure smooth pumping and safe operation. Fine production, rigorous tests and reliable components of world-renown brands gurantee your concrete pump with reach of 30-66 meters a long service life.
