CNC Metal cutting Fiber Laser Cutting Machine

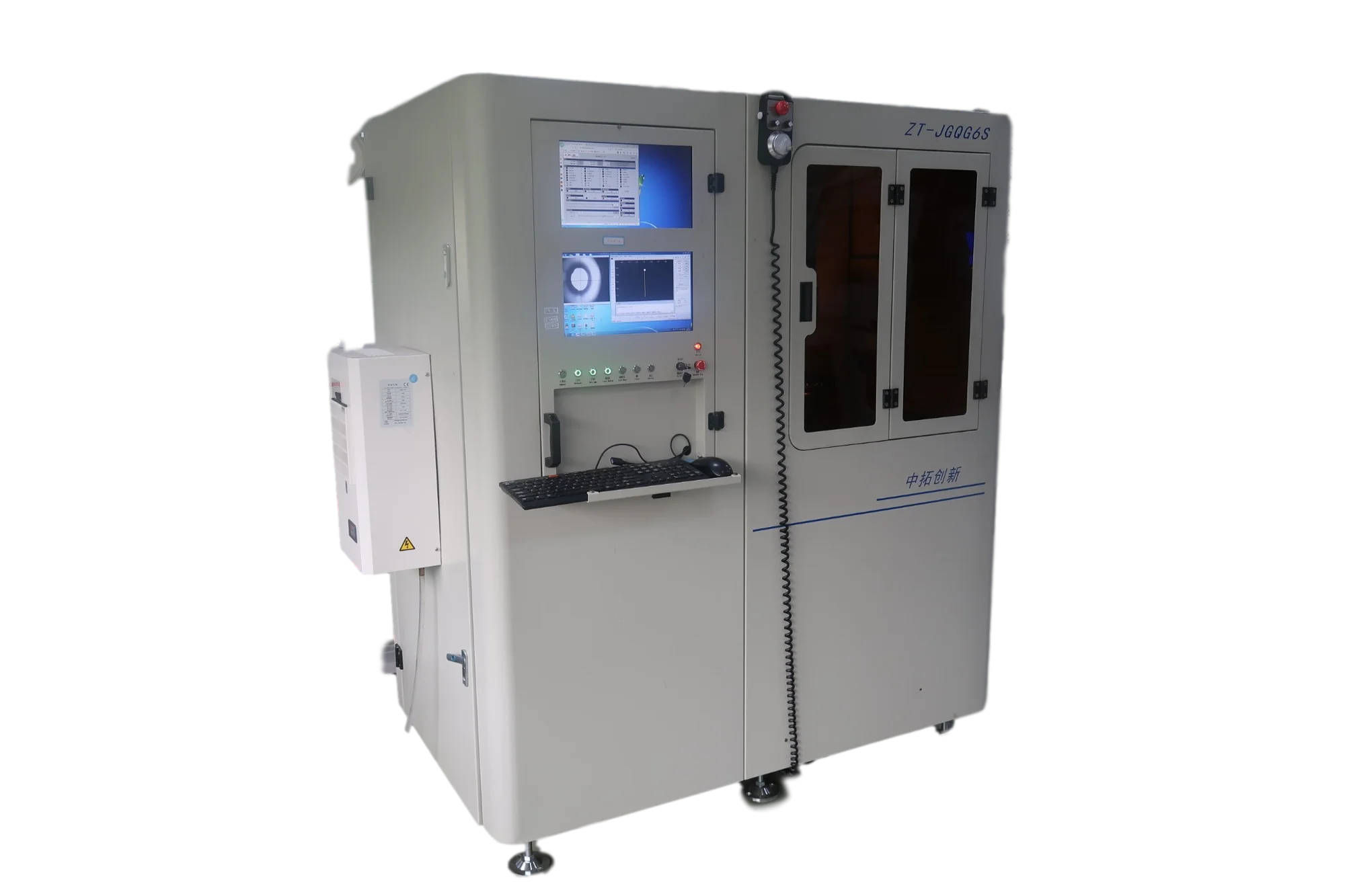

ZT-JG6S FIBER LASER CUTTING MACHINE
ZT-JG6S fiber laser cutting machine use a fiber laser source which it’s more stable than YAG. What’s more, it don’t need to do regularly maintains service than YAG. Reduce the dependency of operator’s skill with more efficiency .
MAIN FEATURES
And there is additional A axis as rotation axis, it can cut some of the tips with relief angles. Here the specification :
1. Use the imported original GERMANY fiber laser source, more stable , precision and durability with easy maintains
2. High precision efficiency cutting, and cutting width is 60% of YAG, and save material. Cutting width is 0.05-0.1mm
3. High cutting speed, it’s more than 1.5-2 times of YAG, and heating area is narrow. Cutting area is wide.
4. Closed loop control, and repetitive positioning accuracy ≤0.002mm.
5. Special chiller for laser head to ensure cutting accuracy , and easy operation.
6. 24 hours working, can cut any 2D design, and software can support manual and auto
7. Add A axis as rotation axis, and can cut relief angle products.
1. Use the imported original GERMANY fiber laser source, more stable , precision and durability with easy maintains
2. High precision efficiency cutting, and cutting width is 60% of YAG, and save material. Cutting width is 0.05-0.1mm
3. High cutting speed, it’s more than 1.5-2 times of YAG, and heating area is narrow. Cutting area is wide.
4. Closed loop control, and repetitive positioning accuracy ≤0.002mm.
5. Special chiller for laser head to ensure cutting accuracy , and easy operation.
6. 24 hours working, can cut any 2D design, and software can support manual and auto
7. Add A axis as rotation axis, and can cut relief angle products.
TECHNICAL PARAMETERS
Wave length | 1064μm |
Work Table | 200*200mm(Closed loop control) |
PageMaker | AutoCAD |
Max Output power | ≧450w |
Repeating Accuracy | ≤0.002mm |
Laser source | Fiber laser |
Table Travel | 200×200×50(mm) |
Load | 15kg |
Max Speed | 750mm/min |
Electric Power Capacity | 220v |
Cutting Width | Less than 0.15mm |
Heat Affected Zone | Less than 0.05mm |
Cooling | Water |
Dimensions | 1500*920*1640mm (L*W*H) |
Weight | 800kgs |
Name: Cutting lamp
Brand: CTSTC
Original: China

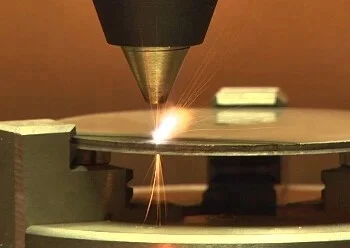

The laser source is fiber laser, and wavelength is 1064μM. It's a little different from the traditional YAG quality, 6S Laser system is
more precision and there is no chip even enlarge 100 times at microscope. The cutting thickness is 8-10mm.
Brand: CTSTC
Original: China
The laser source is fiber laser, and wavelength is 1064μM. It's a little different from the traditional YAG quality, 6S Laser system is
more precision and there is no chip even enlarge 100 times at microscope. The cutting thickness is 8-10mm.
Name: CNC Control
Brand: LENOVO
Original: China
Before cutting, just need to setting the data according to your drawing. It's full automatic, and you will see the cutting line and speed online.
Brand: LENOVO
Original: China
Before cutting, just need to setting the data according to your drawing. It's full automatic, and you will see the cutting line and speed online.
Name: Laser cutting
Brand: CTSTC
Original: China
The repositioning accuracy is 0.002mm, and cutting table is :200*200*50mm,even a bigger diameter can be cutted. Usually the 1.6mm
thickness PCD cutting speed is 180mm/min.
Brand: CTSTC
Original: China
The repositioning accuracy is 0.002mm, and cutting table is :200*200*50mm,even a bigger diameter can be cutted. Usually the 1.6mm
thickness PCD cutting speed is 180mm/min.
Pulse Width for PCD & PCBN:
Name: After cutting PCD & PCBN
Brand: ZT-JS6S
Original: China

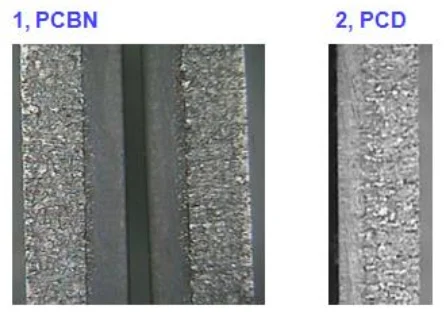

At 100 times enlarge microsope, you will see the part of PCD & PCBN, After cutting, there is no chip and cracks.
Name: After cutting PCD & PCBN
Brand: ZT-JS6S
Original: China
At 100 times enlarge microsope, you will see the part of PCD & PCBN, After cutting, there is no chip and cracks.

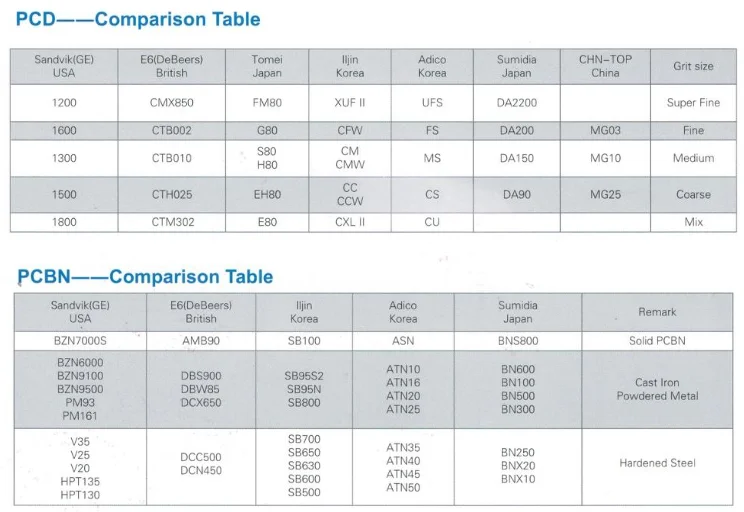

We are the distribute with world famous “PCD & PCBN Blanks”, below is PCD & PCBN Comparison table for reference:
* ILJIN
* ADICO
* HYPERSION
* ELEMENT 6
* TOMEI
* ILJIN
* ADICO
* HYPERSION
* ELEMENT 6
* TOMEI
Below is produce by our own factory:

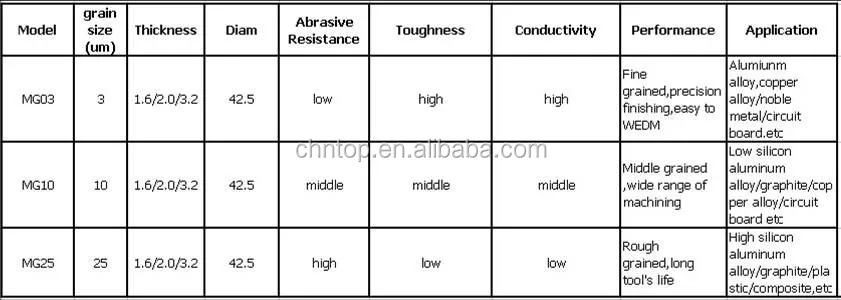

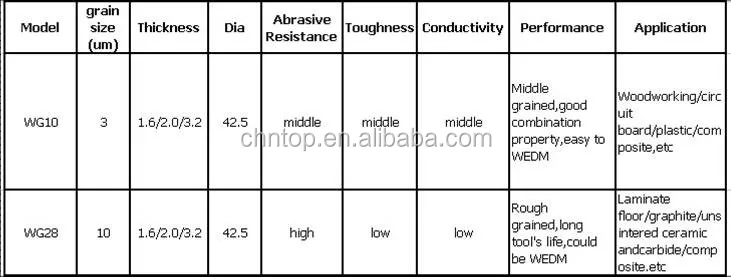

Brand: CT-S&T
Type: M series – machining nonferrous metals and nonmetal
W series – machining nonmetal, especially for wood working.
Brand: CT-S&T
Type: M series – machining nonferrous metals and nonmetal
W series – machining nonmetal, especially for wood working.
1, Our designer will make the drawing for customers confirmation as per their requirements and materials:
Cutting time: 30mins to 4hours, it’s depends on the thickness of material and the complexity of the design.
Cutting width: 0.05-0.15mm
2, Once confirmed the draw, we will using the Laser cutting machine to cut:
* The laser cutting is suitable for PCD/PCBN blank and ceramics
* Precision cutting delivery with 3 days
* Large stock for different brand material
* The laser cutting is suitable for PCD/PCBN blank and ceramics
* Precision cutting delivery with 3 days
* Large stock for different brand material
3, QC inspection: All of the goods are finished by Laser cutting machine, our QC department will do inspection one by one, and send to our warehouse if the quality is good.
PACKING:
Carton box - Wooden box
Carton box - Wooden box
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands, customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
Q: Are you trading company or manufacturer ?
A: We are manufactory for PCD,CBN diamond tools equipments and service, we have our own R&D team and production workshop. We can develop our customers' unique products according to their needs.
Q: How long is your delivery time?
A: Generally it is 2-3 days for CNC diamonds tools machining, and 45-60 days for machines.
Q: How about your after-sales system?
A: We have a comprehensive after-sales system, which can provide one-on-one online video service according to the needs of customers, and one-on-one service to solve customers' worries.
Q: How about your delivery date for PCD/PCBN blank?
A: 1), PCD/PCBN Blank, we have signed a Chinese agency agreement with international big brands, customers do not need to worry about genuine and delivery problems;
2), We can provide a wide range of products with PCD/ PCBN Blank, customers can choose goods according to different needs, we also have self-developed domestic PCD with high quality, the price is very competitive.
Q: How about the cutting thickness and width of Laser cutting machine?
A: 1), Cutting thickness, single-sided cutting maximum thickness of 4-5mm, double-sided cutting maximum thickness of 8 10mm.
2), Slit width: 0.05-0.15mm, accuracy can reach 0.01mm.
