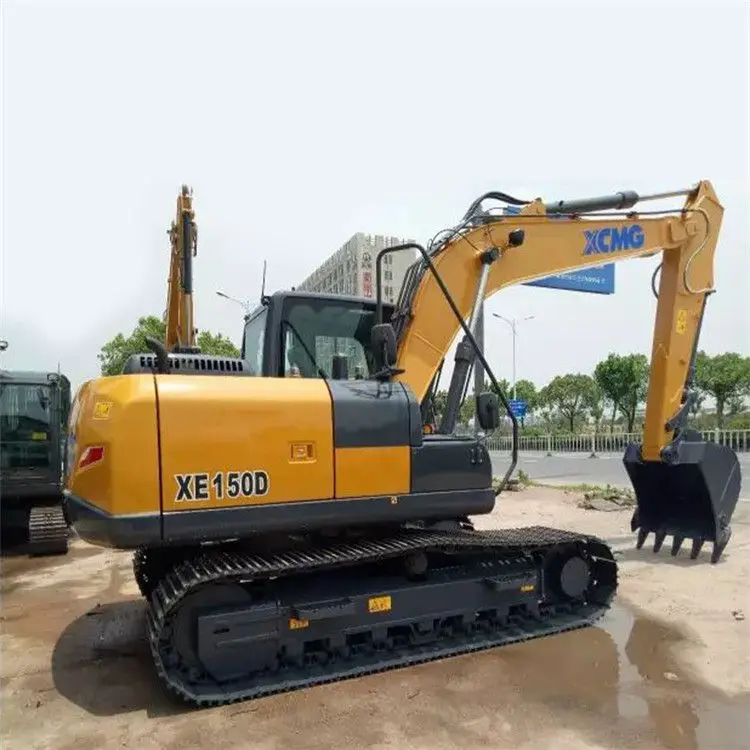

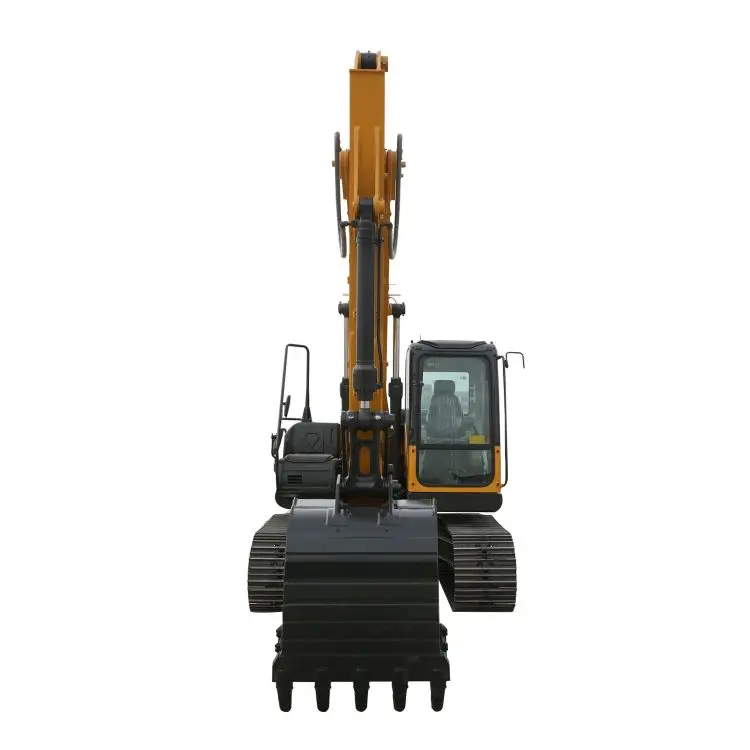

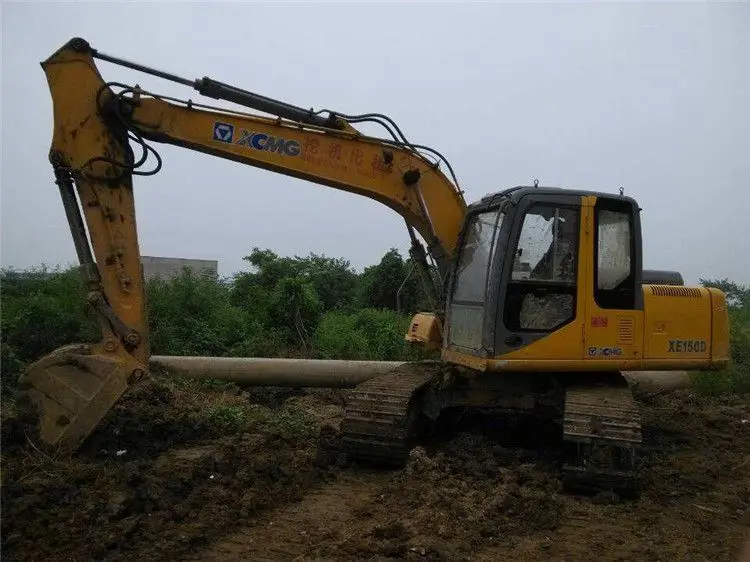

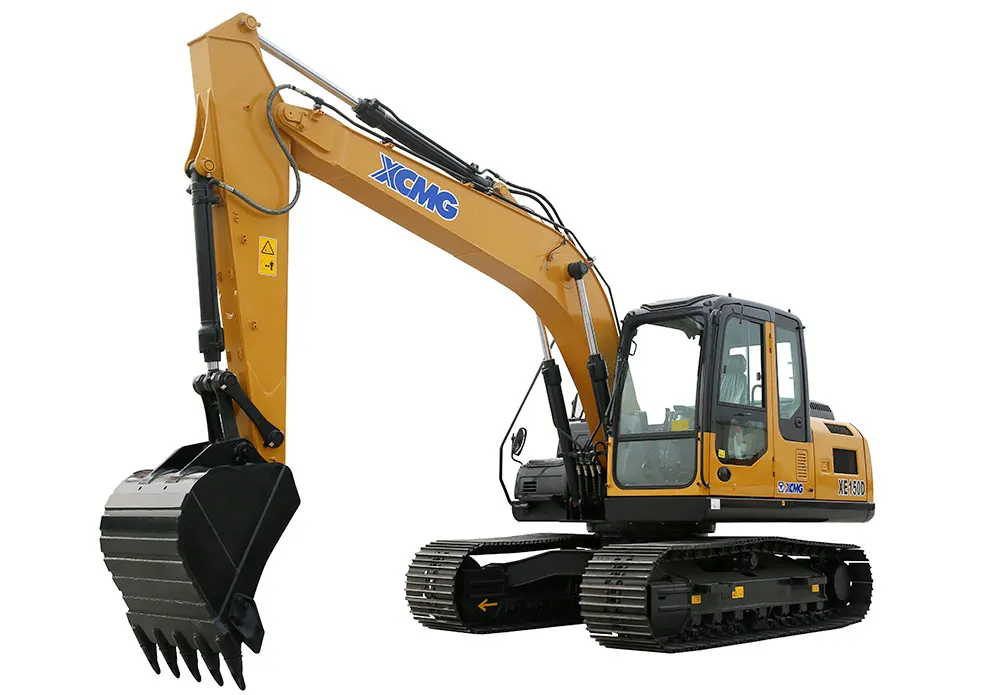

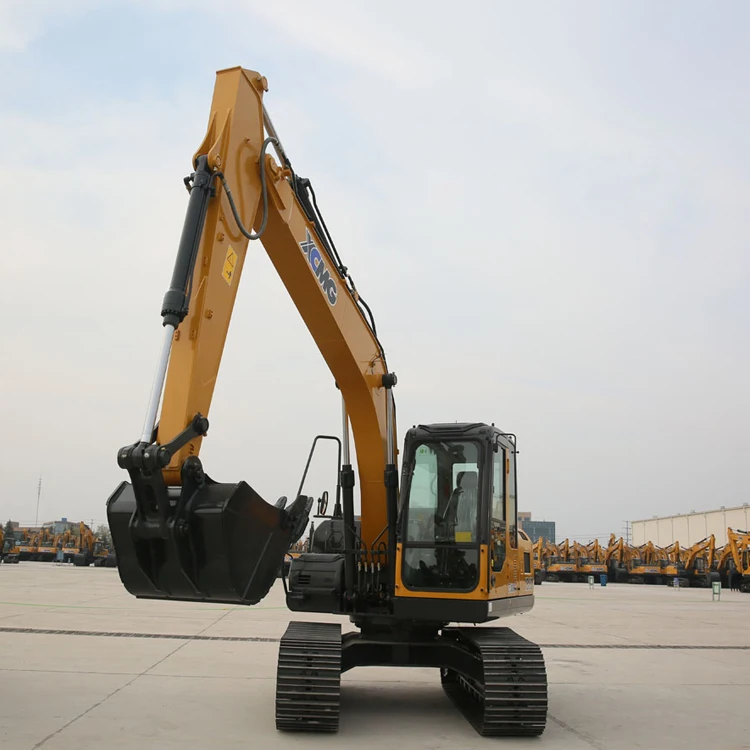

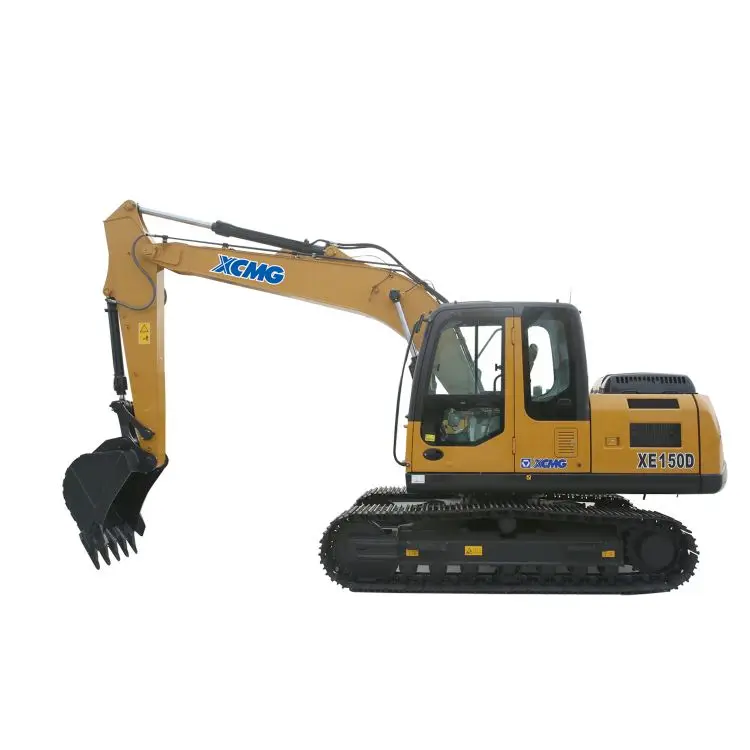

high quality xcm g 14ton crawler excavator XE150D
- Category: >>>
- Supplier: Shanghai Cemaq Construction Machinery Co. Ltd.Shanghai Ltd.
Share on (1601238411935):
Product Overview
Description
Hot Product Links
Product Description
| Description | Unit | Parameter value | |||
| Operating weight | kg | 14600 | |||
| Bucket capacity | m³ | 0.32~0.71 | |||
| Engine | Model | Engine | QSF3.8 | ||
| Style | Direct injection | --- | √ | ||
| Four strokes | --- | √ | |||
| Water cooling | --- | √ | |||
| Turbo-charging | --- | √ | |||
| Air to air intercooler | --- | √ | |||
| No. of cylinders | --- | 4 | |||
| Output power | kW/ r/min | 93/2200 | |||
| torque/speed | N.m | 500/1300 | |||
| Displacement | L | 3.76 | |||
| Main performance | Travel speed(H/L) | km/h | 5.3/3.2 | ||
| Gradeability | % | 70 | |||
| Rotary speed | r/min | 11.7 | |||
| Ground pressure | kPa | 37 | |||
| Bucket digging force | kN | 106.9 | |||
| Arm digging force | kN | 73.4 | |||
| Hydraulic system | Main pump | -- | K7V63DTP | ||
| Rated flow of main pump | L/min | 2×123.5 | |||
| Main safety valve pressure | MPa | 34.3/37 | |||
| Pressure of pilot system | MPa | 3.9 | |||
| Oil Capacity | Fuel tank capacity | L | 260 | ||
| Hydraulic tank capacity | L | 105 | |||
| Engine oil capacity | L | 11 | |||
| Appearance size | Overall length | mm | 7795 | ||
| Overall width | mm | 2590 | |||
| Overall height | mm | 2900 | |||
| Width of platform | mm | 2490 | |||
| Length of crawler | mm | 3658 | |||
| Overall width of chassis | mm | 2590 | |||
| Width of crawler | mm | 600 | |||
| Wheel base of crawler | mm | 2910 | |||
| Crawler gauge | mm | 1990 | |||
| Clearance under counterweight | mm | 948 | |||
| Min. ground clearance | mm | 477 | |||
| Min. rear-end swing radius | mm | 2325 | |||
| Working scope | Max. digging height | mm | 8649 | ||
| Max. dumping height | mm | 6185 | |||
| Max. digging depth | mm | 5535 | |||
| Max. digging depth at the range of level 8 feet | mm | 5324 | |||
| Max. vertical wall digging depth | mm | 4697 | |||
| Max. digging reach | mm | 8304 | |||
| Min. swing radius | mm | 2445 | |||
| Worker | Standard | Length of boom | mm | 4600 | |
| Length of arm | mm | 2520 | |||
| Bucket capacity | m³ | 0.61 | |||
| Optional | Length of boom | mm | |||
| Length of arm | mm | 2100/3010 | |||
| Bucket capacity | m³ | 0.32/0.4/0.71 | |||
| 0.52 | |||||
Our Team
Company Overview
Factory Overview
Successful Cases
Packaging & Shipping
From the factory to our customer's destination, we will conduct all-round supervision.We can also help to sign purchase order contracts, test product quality, guarantee timelydelivery, and accomodate special orders.
FAQ
Which countries do you export to?
Asia: India, Philippines, Thailand, Burma, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc. Middle East: Saudi Arabia,UAE, Jordan, Oman, Pakistan, Qatar, etc. Europe: Russia, Ukraine, Belarus, Bulgaria, etc. Africa: South Africa, Kenya, Congo, Ethiopia, Nigeria, Ghana, Algeria, Senegal, Tunisia, etc. South America: Brazil, Peru, Chile, Mexico, etc. Oceania: Papua New Guinea, Australia, etc.
What is the proportion of your products exported?
75% of our products are exported to all over the world.
What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers. TT, L/C, D/P, depending on the cooperation time, country and contract value.
What kind of logistic service do you supply?
A. Transportation: railway transportation, international through transport, including (international railway through transportation, Sea-rail intermodal through transportation, sea-land multimodal transportation. Means of transport : Container, LCL, FRC, ro-ro, bulk cargo, train carriage, truck, air plane.
B. Term: FOB,CIF, DAP, to door service, etc.
What spare parts can you supply?
All kinds of spare parts of XCM G, SHANTUI, ZOOMLION, SINOTRUCK, SHACMAN, LIUGONG, SDL G, LONKING, XGMA, CUMMIN S ENGINE, ZF GEAR BOX, etc.
