New Design 3D 5 Axis CNC Stone Bridge Saw cutting engraving stone machine for Quartz Granite Marble
- Category: >>>
- Supplier: Blue Elephant CNC Machinery Co. Ltd
Share on (1601239053401):
Product Overview
Description
Products Description
New Design 3D 5 Axis CNC Stone Bridge Saw cutting engraving stone machine for Quartz Granite Marble
Description

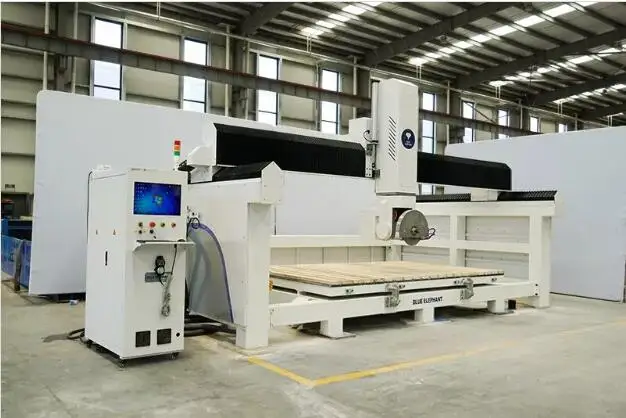

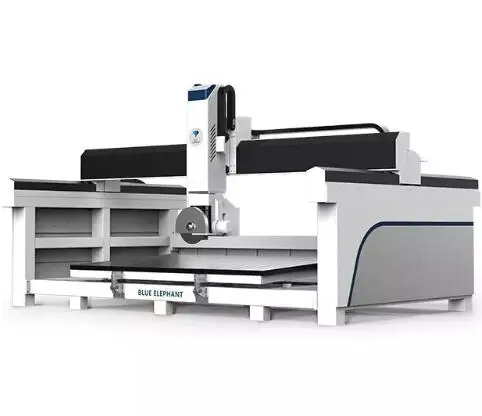

This stone CNC machining center can cut quartz, marble, granite, and rock slabs with a powerful saw blade. It combines a saw blade
and CNC router tools to achieve multiple advanced functions. For example, cutting and milling straight and inclined edges,
chamfering, cutting arc edges, polygon, edge milling, etc. The 5 axis bridge saw gains popularity in the stone processing plants,
kitchen countertop processing, background wall profiling, and other fields.
and CNC router tools to achieve multiple advanced functions. For example, cutting and milling straight and inclined edges,
chamfering, cutting arc edges, polygon, edge milling, etc. The 5 axis bridge saw gains popularity in the stone processing plants,
kitchen countertop processing, background wall profiling, and other fields.
Features
1. It adopts 5 axis bridge cutting head, which is independently researched and developed and adopts the cast rotating bracket. This ensures good stability and flexibility during operation.
2. This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.
3. It has built-in CAM software in the control system for the convenient of drawing designs and programming. Besides, it’s easy to learn the software to make designs.
4. The worktable can flip automatically up to 80 degrees, reducing human labor and facilitating the unloading process.
5. It is capable of cutting lengths of up to 2800mm, widths of 1200mm and thicknesses of 100mm.
6. The table automatically tilts up to 80 degrees. And the spindle is automatically rotated 90° or 360°by hydraulic pressure.
Product Paramenters
ES5-3220 5 axis CNC stone bridge saw | ||
Working travel | X, Y, and Z 3200*2000*400mm C axis ±360° A axis 0-90° | |
Moving speed | Xaxis 30m/min Yaxis 30m/min Zaxis 15m/min | |
Servo motor | Xand Y 1300W absolute servo motor Zaxis 1300W absolute servo motor with brake A and C 1000W absolute servo motor | |
Guide rail | X, Y, and Z: # 30 | |
Rack | X、Y 2MT-WIN | |
Worktable | Structure Square timber Worktable size 3200×2000mm Turning angle 0-80° Max. weight for turning 800KG | |
Saw | Dimension 450mm Max. cutting thickness 100mm | |
Ball screw | Z 3210PREYP | |
Reducer | X/Y: Japan SHIMPO | |
Saw motor | 11KW motor, rated: 3000r/min | |
Inverter | 15KW BRICH | |
Control system | Blue Elephant customized system (built-in CAM software) | |
Low-voltage electronics | French SCHNEIDER | |
Working air pressure | 0.7-0.8Mpa | |
Voltage | 380V/3P/50HZ | |
Overall dimension | 5.85×4.5×3.3m | |
Weight | 5.5ton | |
