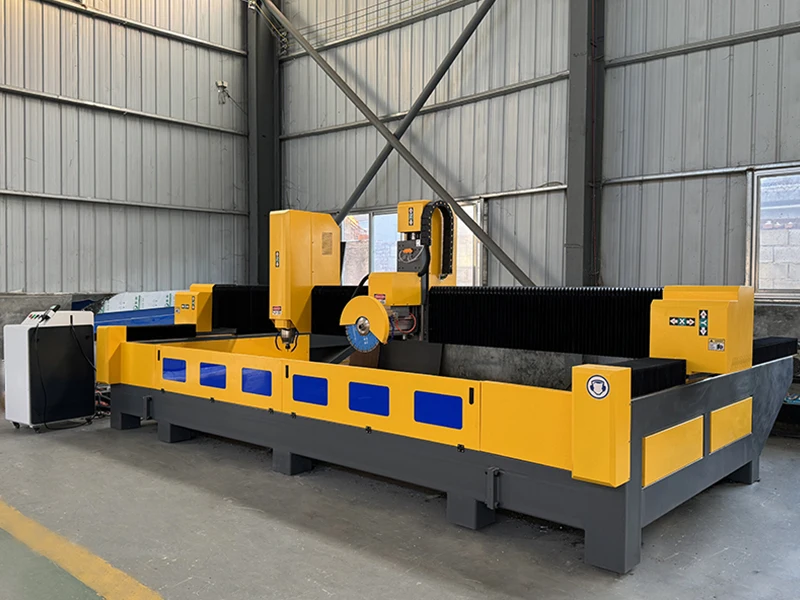

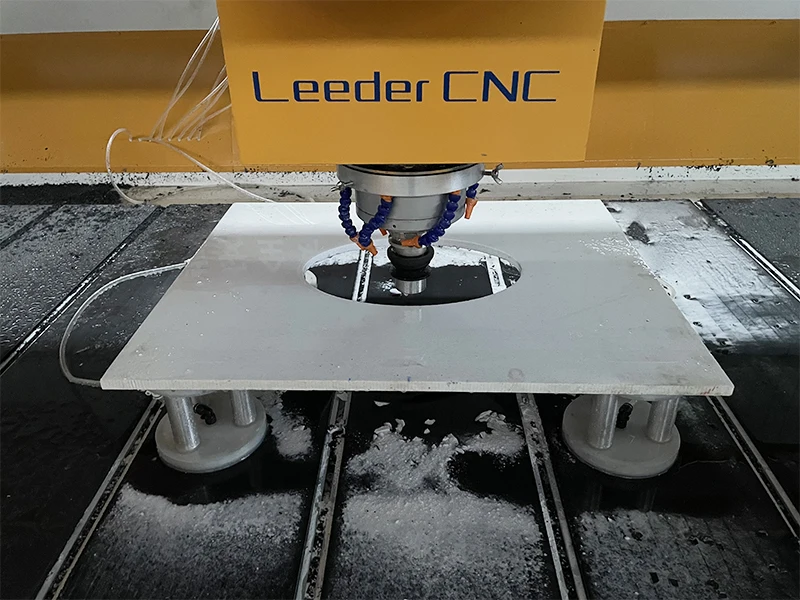

4 Axis 5 Axis Cnc Bridge Saw Stone Tile Cutter Saw Blade Cutting Machine For Marble Granite Quartz Kitchen Countertop
- Category: >>>
- Supplier: Jinan Leeder CNC Technology Co. Ltd.
Share on (1601239476175):
Product Overview
Description

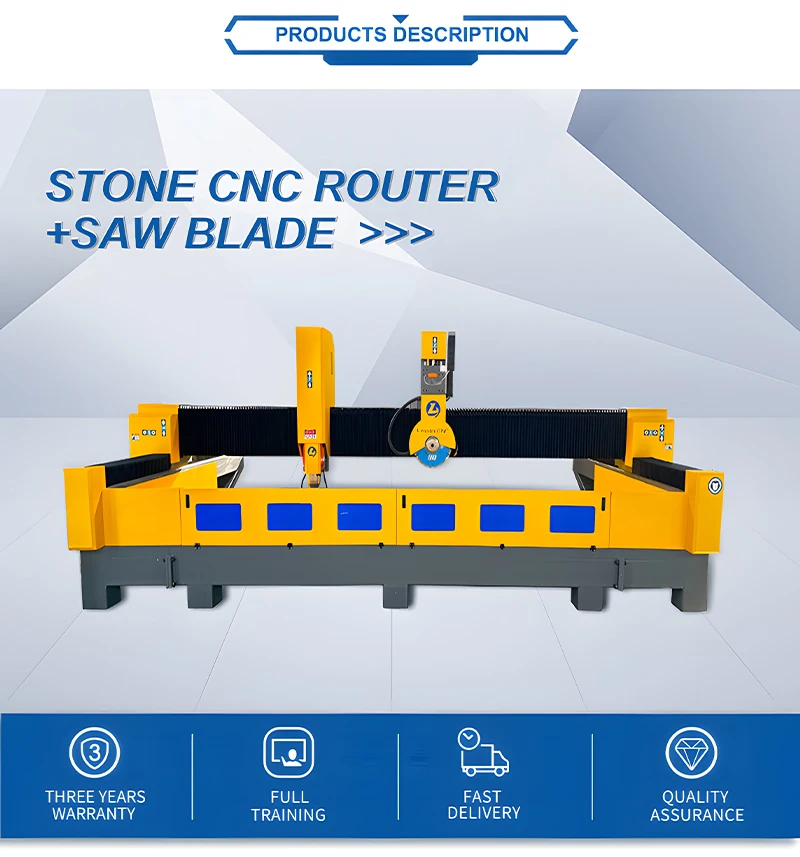

Product Description
Specification
X Y Working area | 3000*2000mm |
Z axis travel | 300mm, option: 500mm, 600mm, 700mm, etc. |
Spindle | 5.5kw HQD water cooling spindle |
Spindle speed | 24000rpm |
Driving motor | Servo motor and driver |
Saw Blade | 7.5kw (10 horsepower) |
Inverter | Fuling inverter |
Control system | Syntec/WEIHONG/DSP |
Interface | USB |
Table Surface | T-slot aluminum+stainless steel water tank |
Guide rail | Hiwin linear square guide rail |
Transmission | X/Y rack and pinion, Z ball screw |
Lubrication system | Manual lubrication system |
Tool Calibration | Automatic tool sensor calibration |
Cables | Germany Igus cables with CE, cUL certificate |
Compatible software | Artcam, Powermill, Fusion 360, etc. |
Command language | G Code & M Code |
Traveling speed | 40m/min |
Working speed | 0-20m/min |
Re-positioning accuracy | ±0.03mm |
Working voltage | 380V/220V, 50HZ/60HZ |

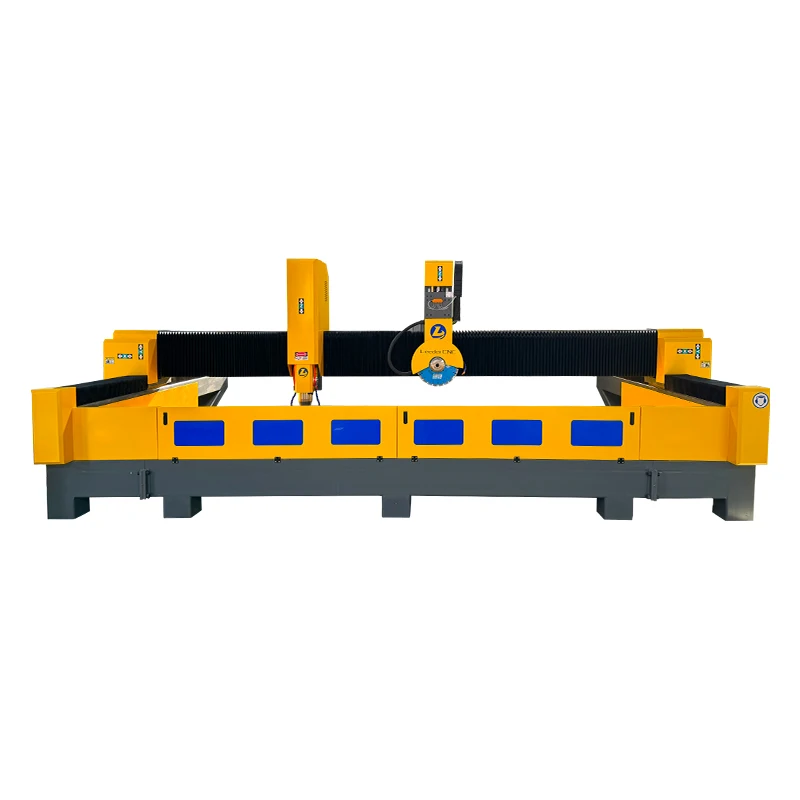

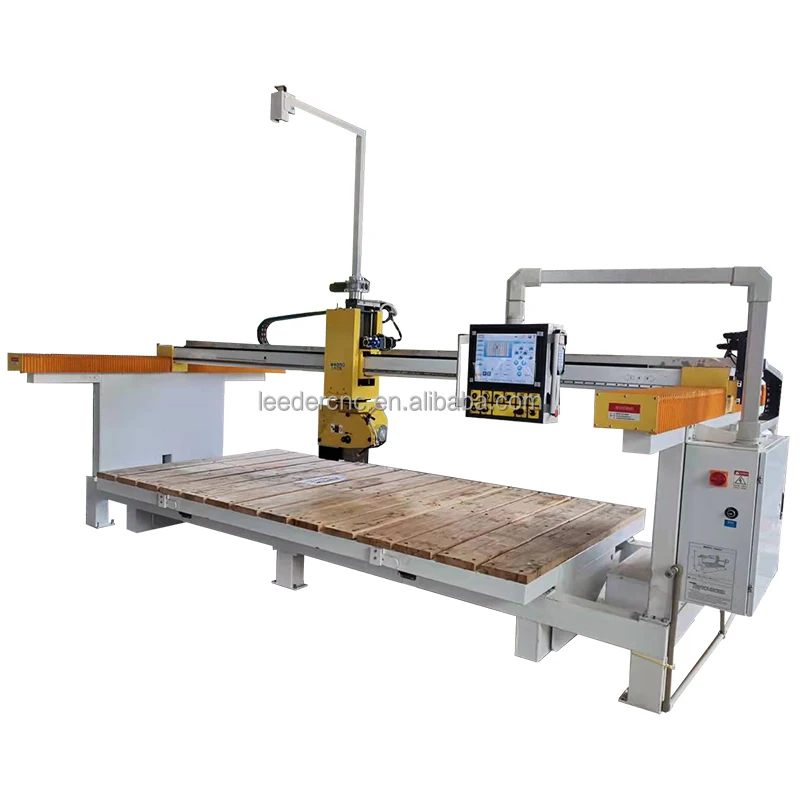

Details Images

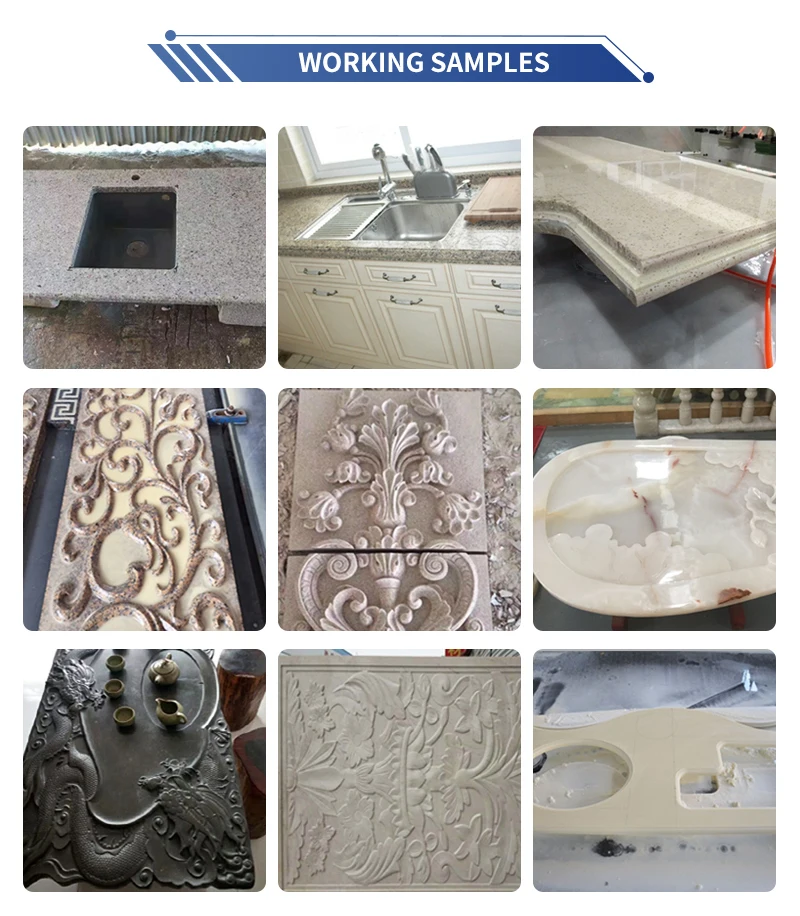

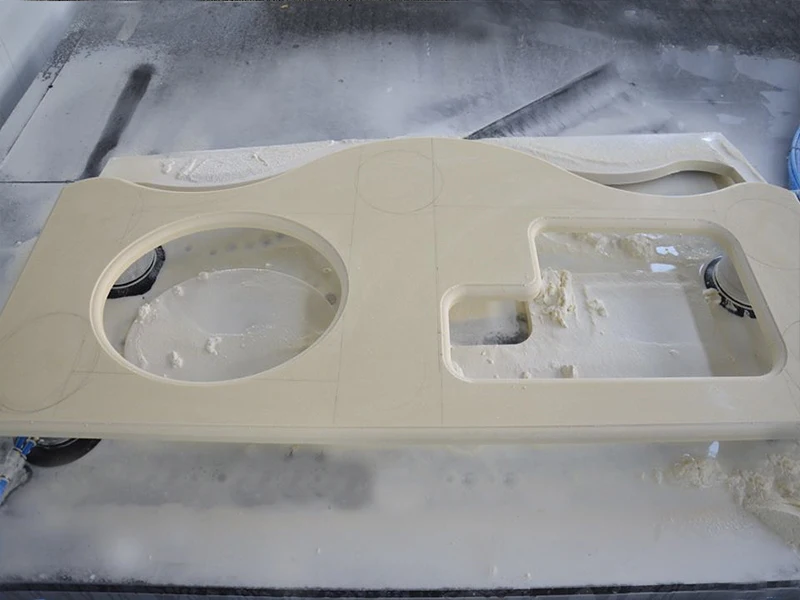

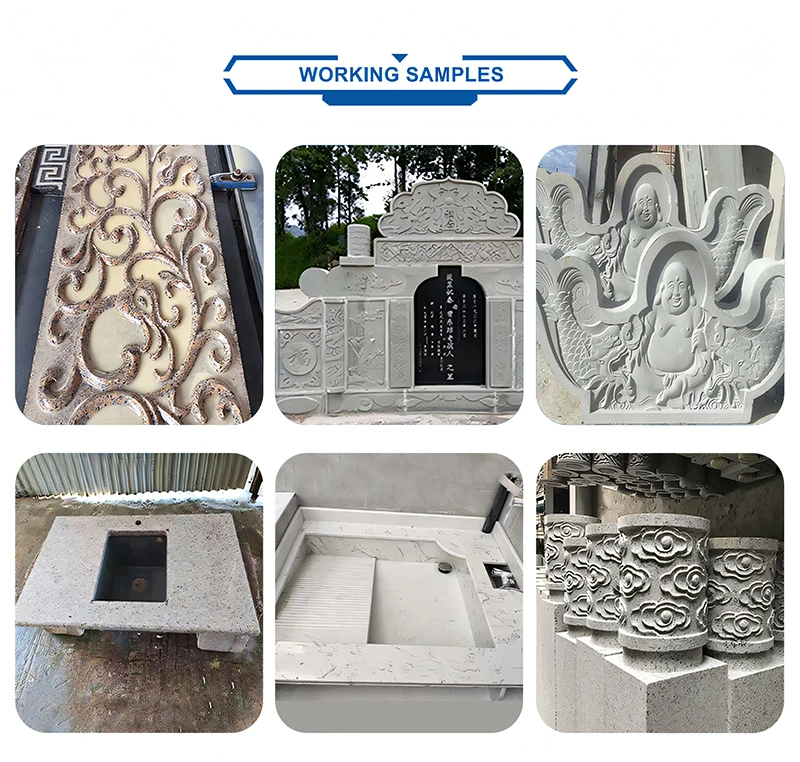

Working Sample

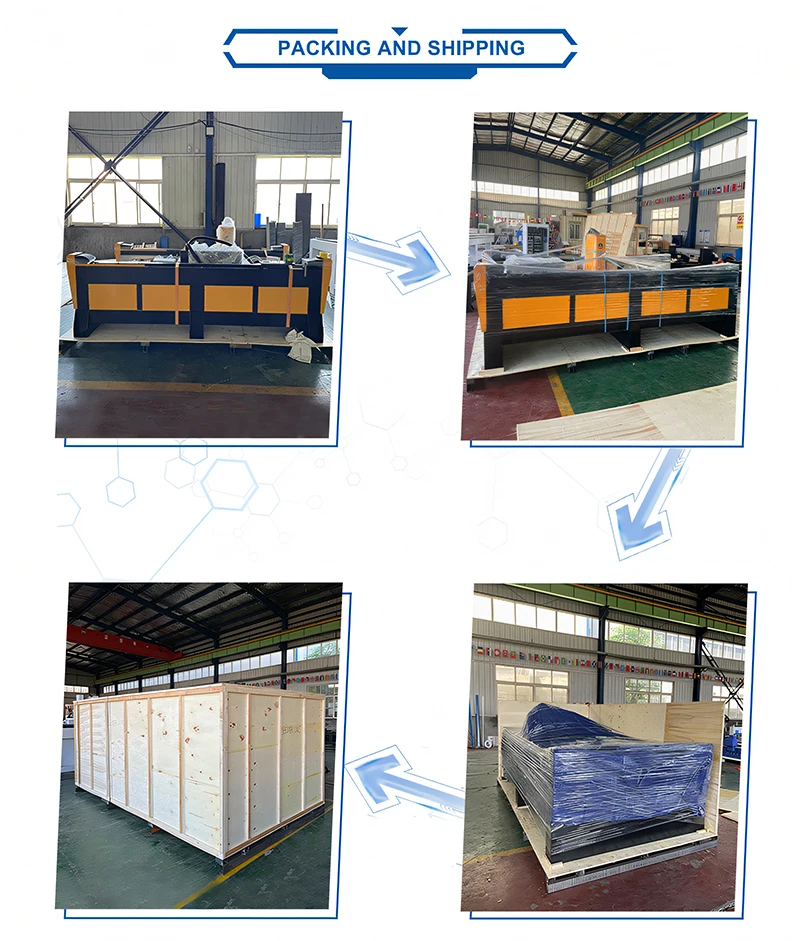

Packing & Delivery
Recommend Products

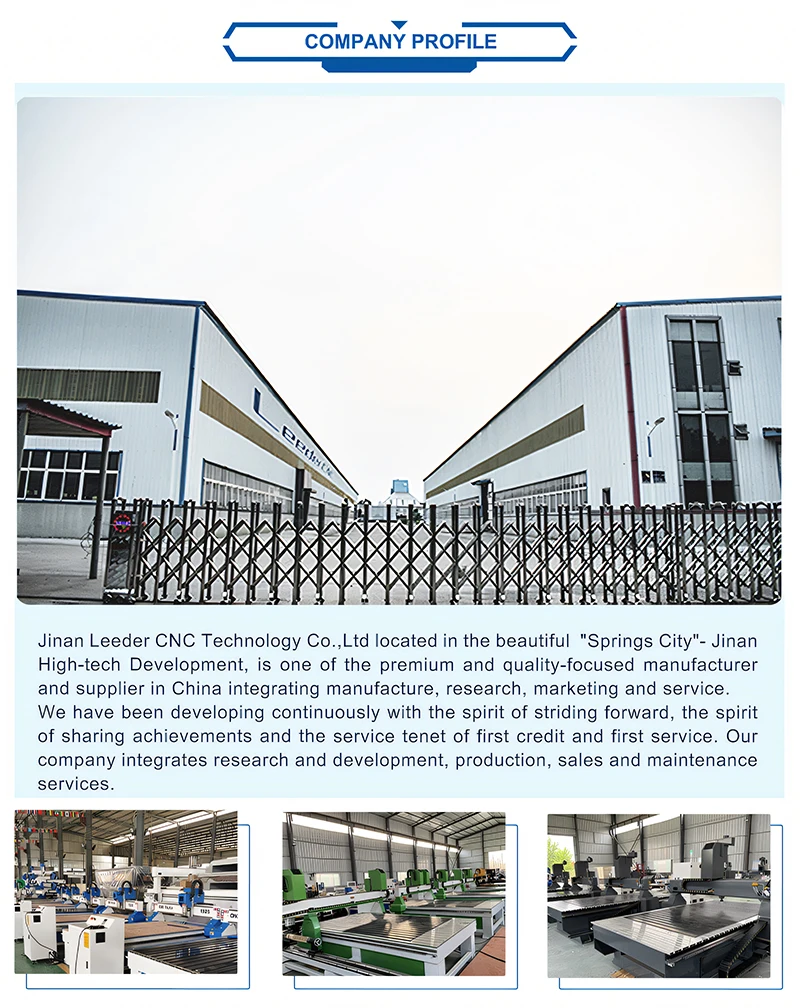

Company Profile
