1300 Celsius Butane Gas Soldering Iron Gas Burner Blow Torch Gun Portable Wireless Soldering Iron Pen Welding Gun Solder Tools

Product Overview

Description

Mini 1300 Celsius Butane Gas Welding Soldering Irons Welding Pen Burner Blow Torch Gas Soldering Iron Cordless Butane Tip Tool
Product Name	gas soldering iron pen
Material	main body; plastic, soldering iron tip; metal.
Color	translucent green
Filling capacity	8ML
Weight	about 69g
flame temperature	1300℃ (adjustable)
soldering iron temperature	450℃ (adjustable)
Fuel	pure butane GAS
Packing	Plug-in packaging

Portable pen type gas soldering iron/gas soldering iron/welding repair tools

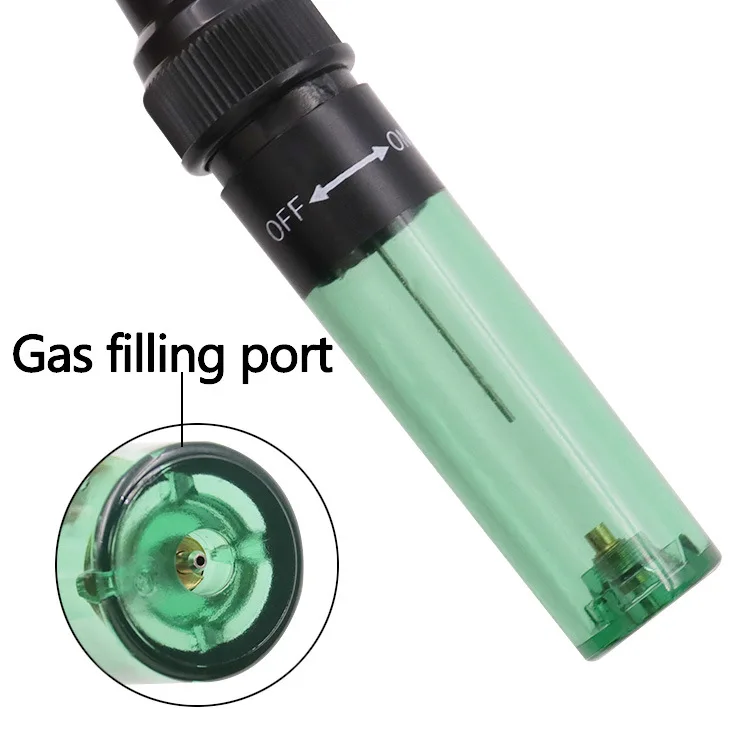

Filling gas



1. Fill it with gas, and make sure that the switch is turned off, and then replenish it.

2. Introduce the gas tank into the air hole and press down to inflate.

3. About 10 seconds, the gas filling can be completed, wait a few minutes, wait for the gas to stabilize, and then use it.

4. If there is a hissing sound in the tail after the gas is poured in, use the pen tip to slightly press into the air port to eliminate it.



Ignition

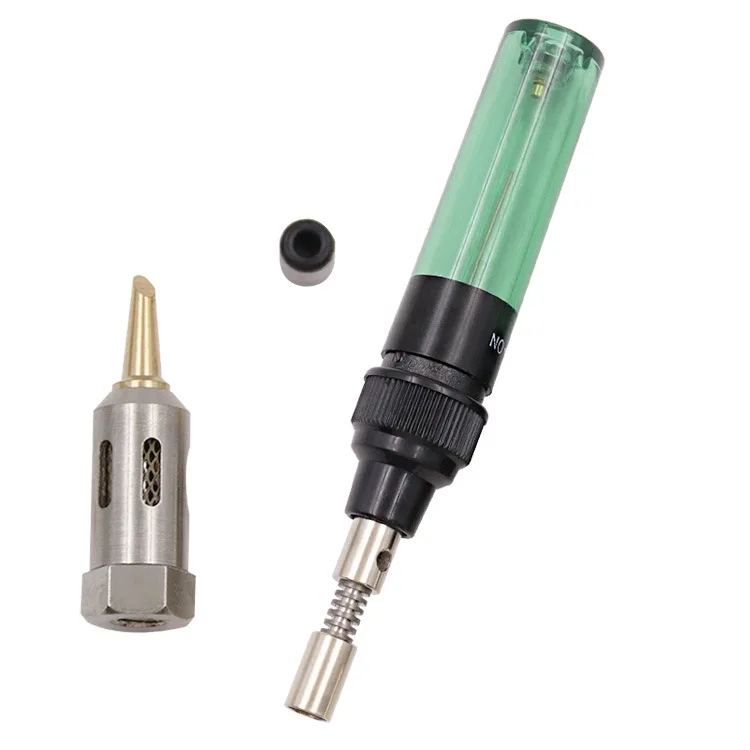

1. Replace the soldering iron tip

2. Push the switch to the ON position and hear a "hissing" sound.

3. Push the electronic switch to ignite.

4. After ignition, burn for 3 minutes. When the fire is extinguished, the soldering iron tip will continue to heat up.

5. Adjust the flame size;

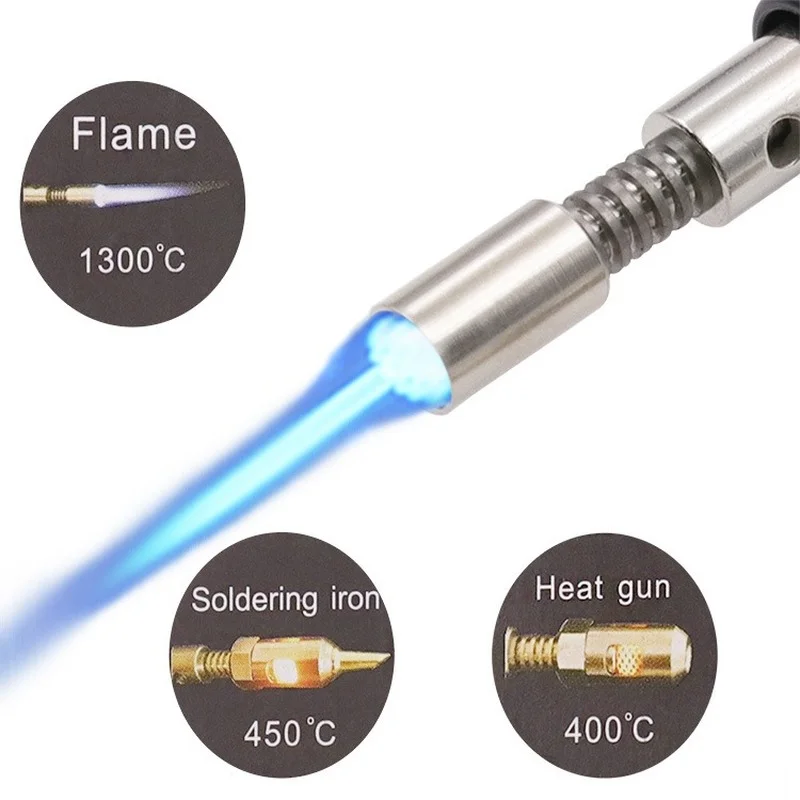

6. The temperature of this product is as high as 1300 degrees (the soldering iron temperature is 450 degrees). Please pay attention to safety when using it. Turn off the switch after use.

7. When using a gas soldering iron, please pay special attention to wait until the flame is completely eliminated and the object inside the soldering iron turns red before performing the operation to prolong the life of the soldering iron tip.

1. Replace the connector, please replace it after cooling down or replace it in advance.

2. The soldering iron tip in use is hot and hot, please do not touch it with your hands.

3. The adjustment knob can control the gas output and temperature, usually in the middle position.

4. After use, wait for it to cool down before storing, and don't store it in high temperature or direct sunlight.

5. Children are not suitable for use, and should be placed in a proper place when storing.

6. Please use high-quality canned gas for filling, keep away from the fire source when filling.

7. Because of the gas, there is more or less slag, so it is necessary to clean the nozzle frequently.

8. When cleaning, press the nozzle on the gas outlet of the gas tank to spray to achieve the cleaning effect.

9. Avoid heavy falls.
