Product Overview
Description
Is a kind of road crash barrier used for securing highway safety by preventing errant vehicles from sliding out of the roads and impacting the roadside buildings or other objects. So it is most commonly fixed on the side of the highways, dock areas, aisles, especially on curves and slopes for protection against run-off-road collisions.Our W-beam guardrail product is formed in accordance with the latest highway safety barrier technology for making sure its high durability and maximum strength. It is made of high quality steel, which reduces the impact force caused by mobile equipment to the maximum extent. Meanwhile, the zinc coating or PVC coating perfectly combined to the W-beam guardrail keeps the products free of damages of corrosion and rust.

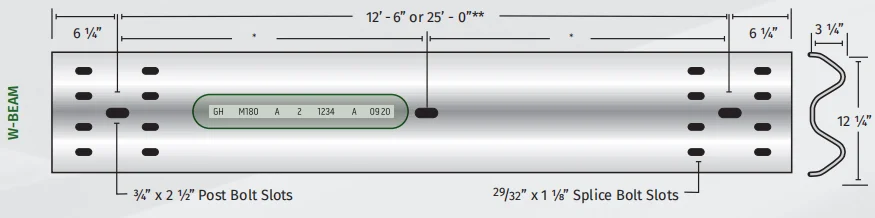

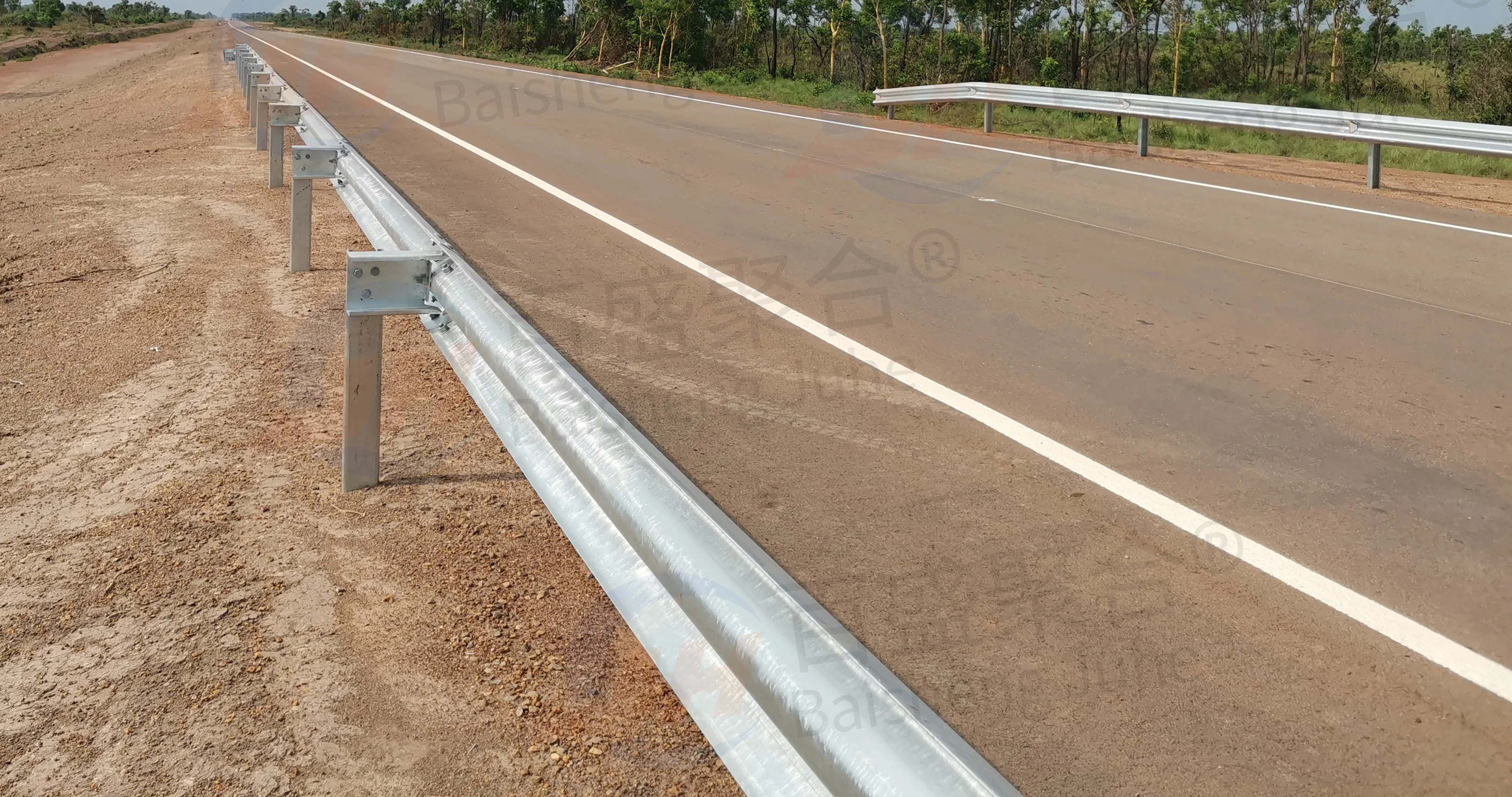

W-Beam Guardrail for Highways

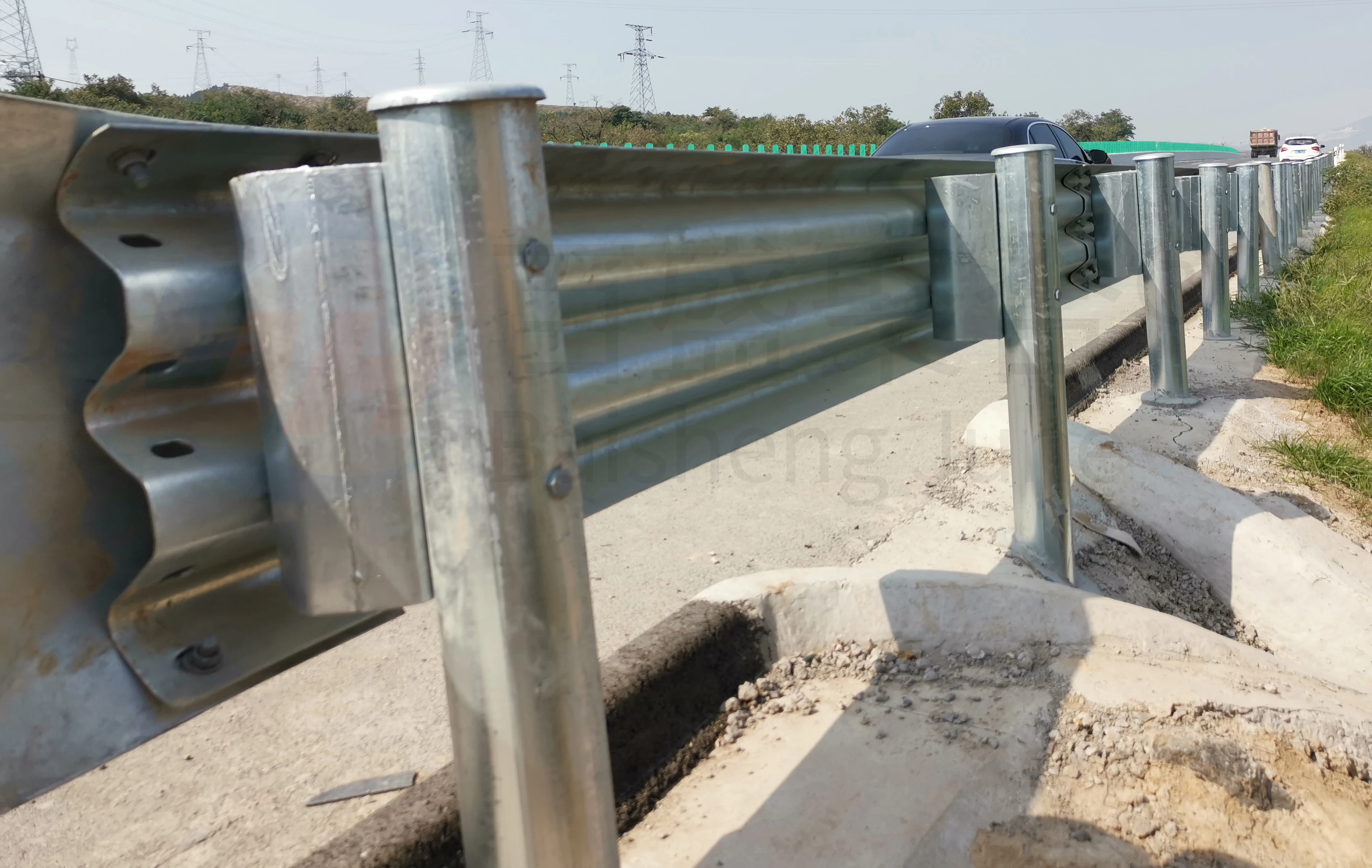

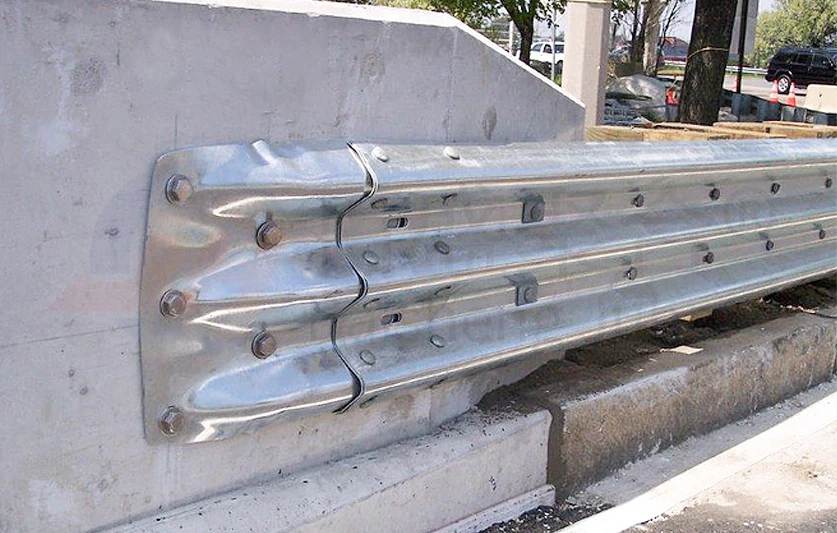

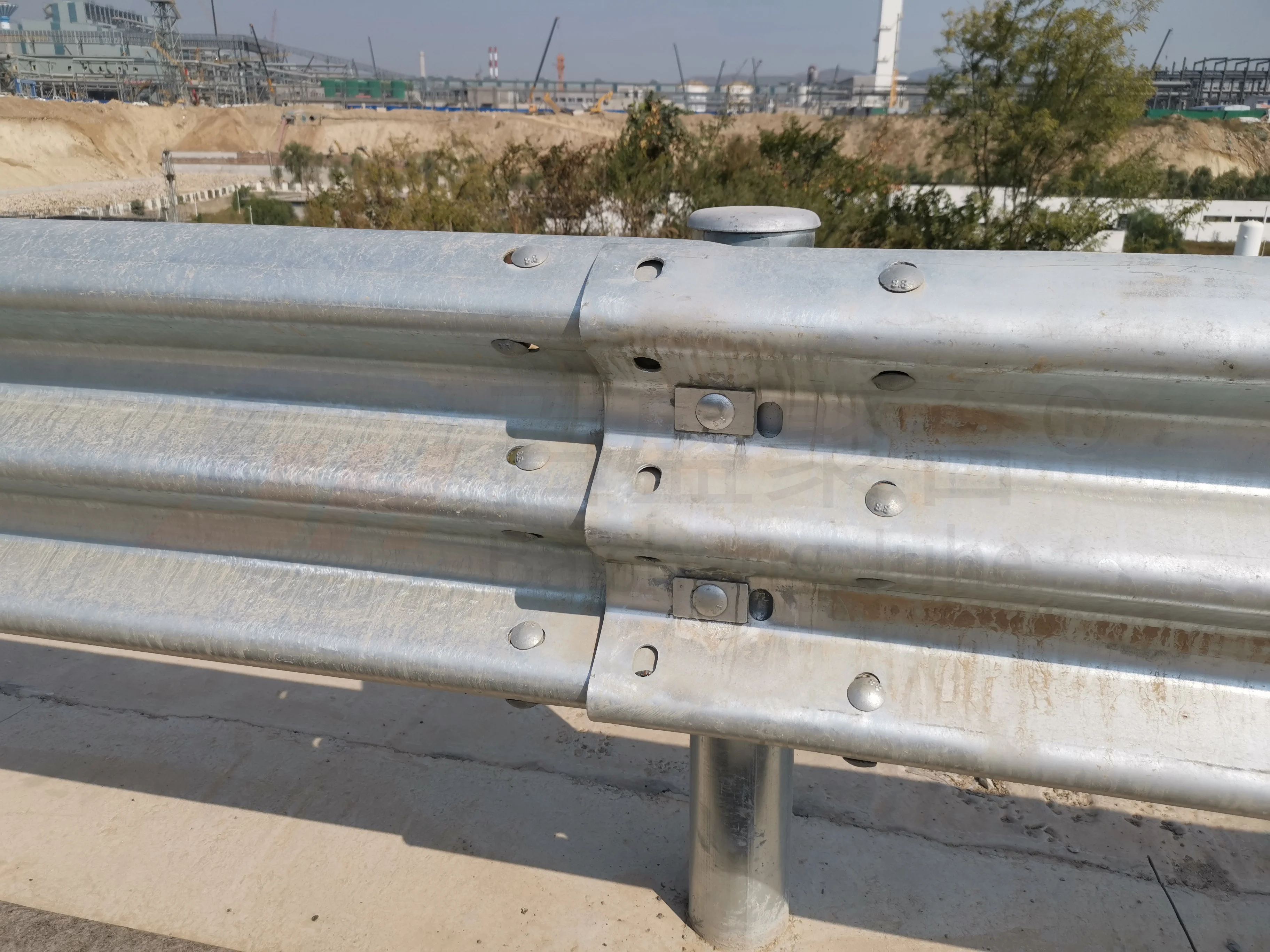

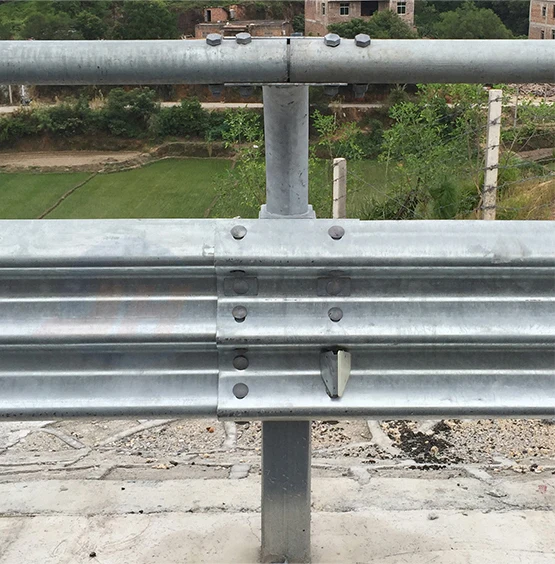

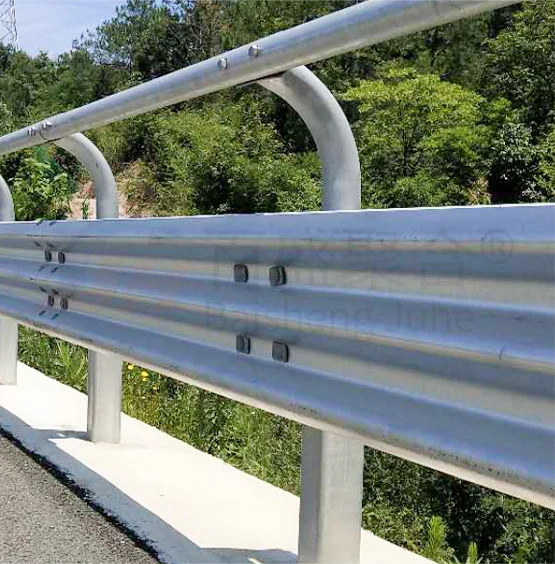

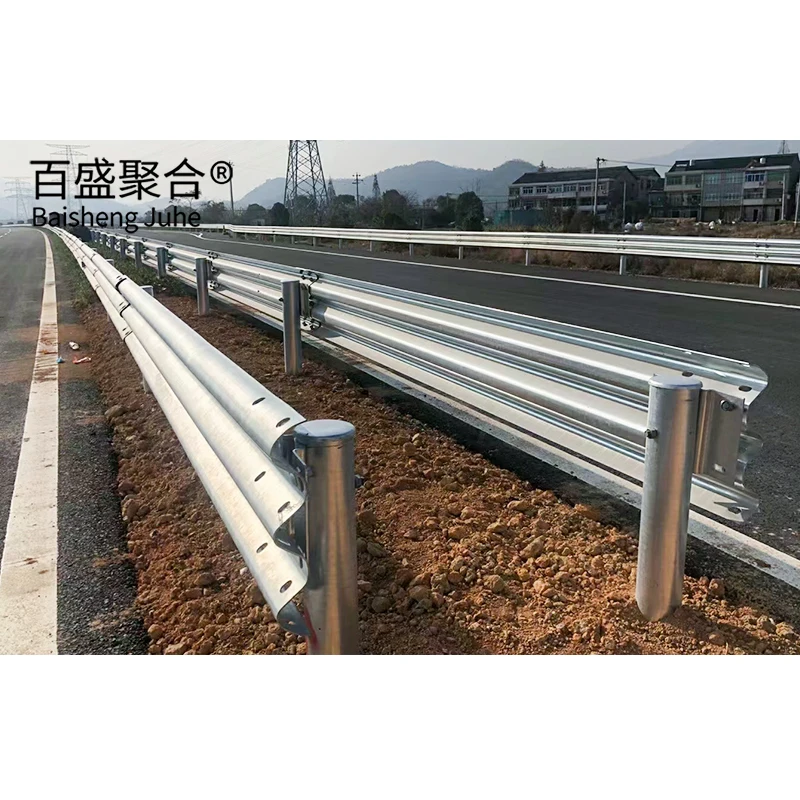

Thrie-Beam Highway Guardrail

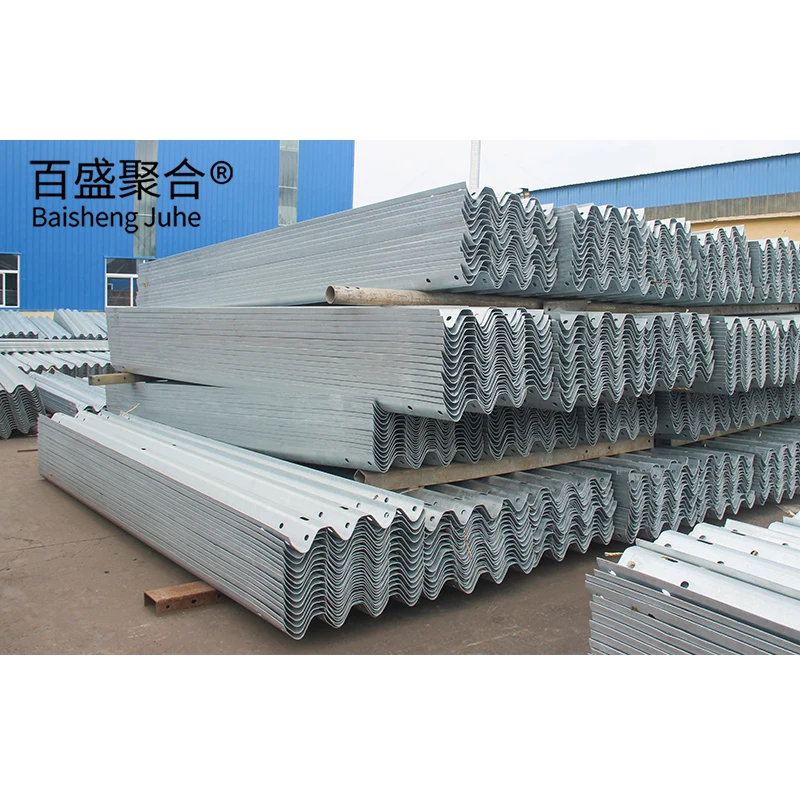

Galvanized guardrails

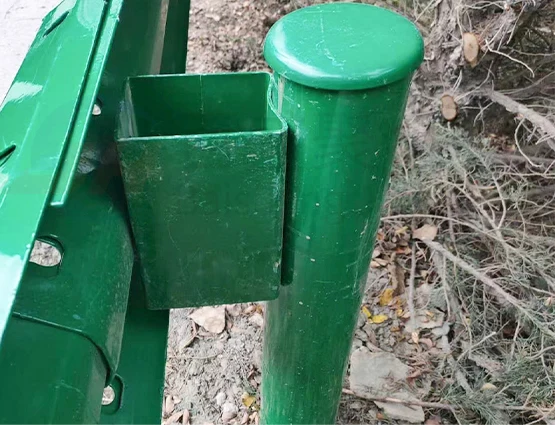

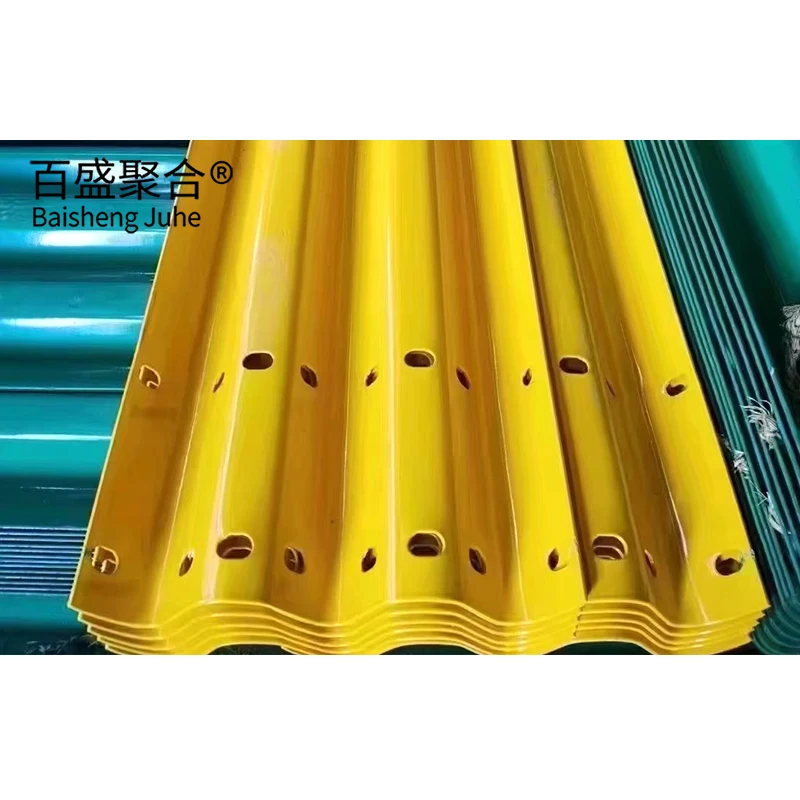

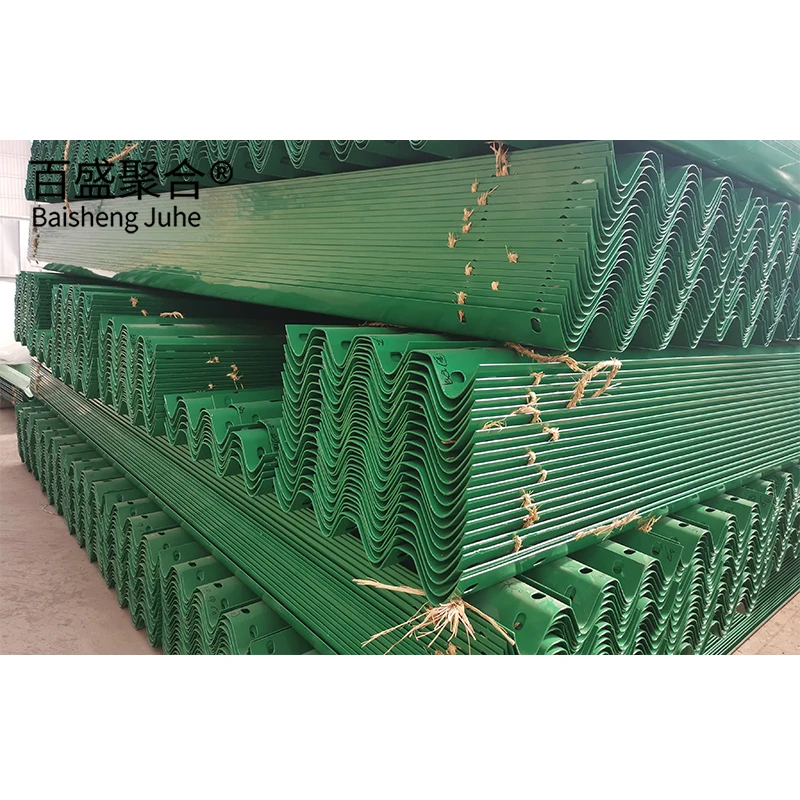

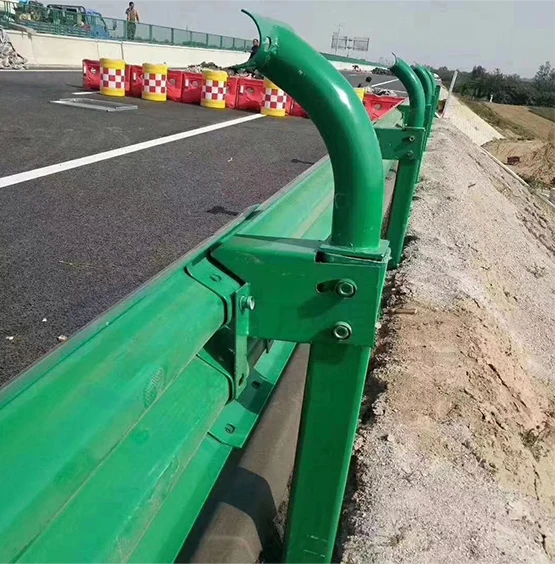

Spray paint guardrails
Convex & Concave Curved Guardrail Panels

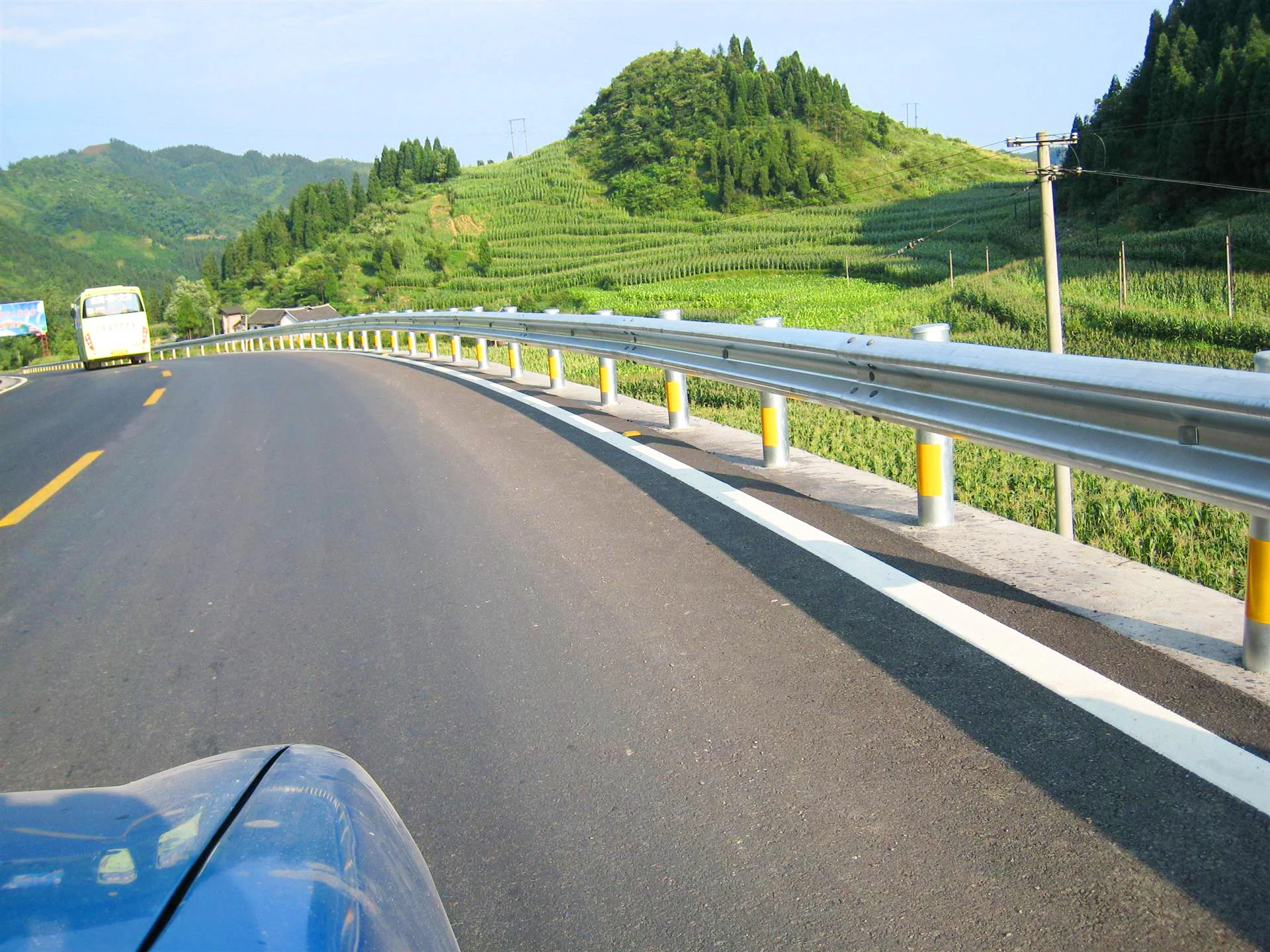

Curved W-beam guardrails

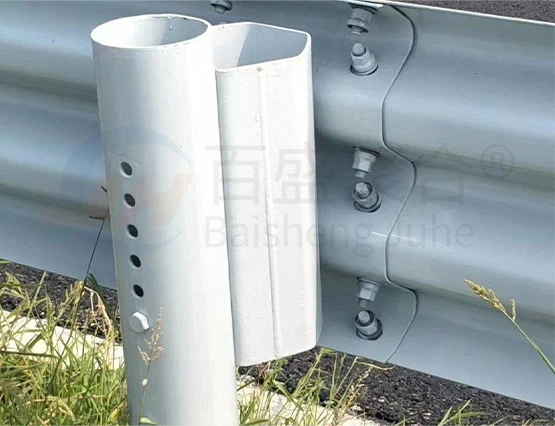

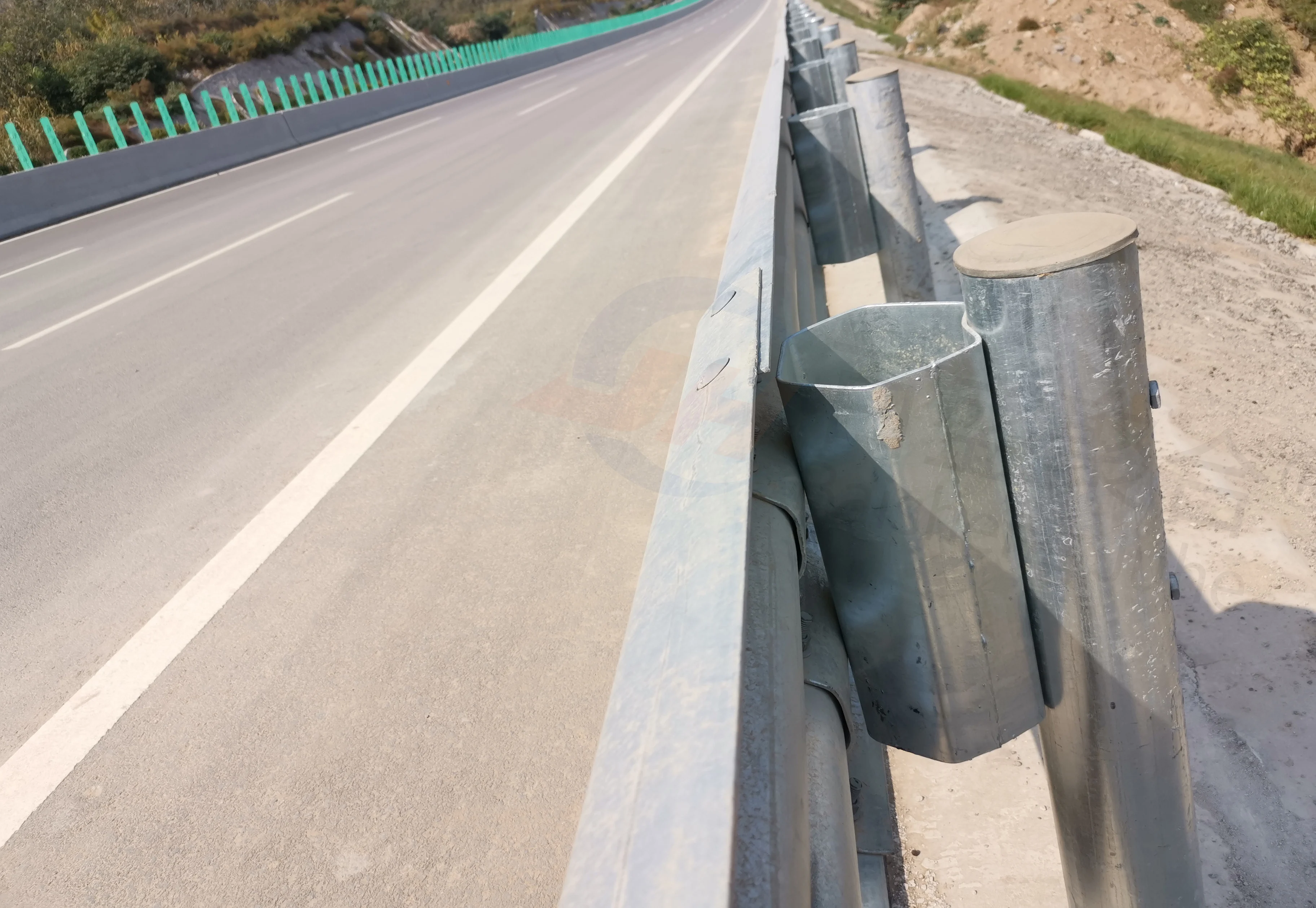

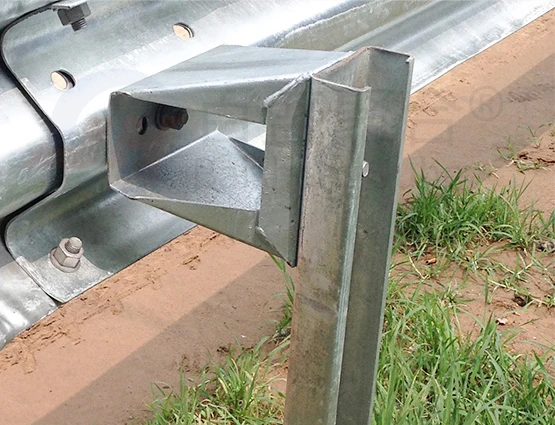

C post
U post
H post

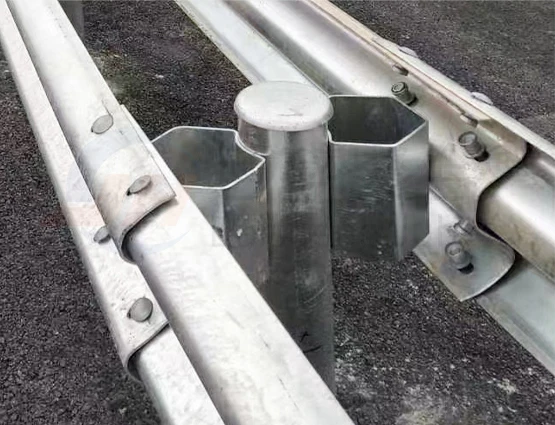

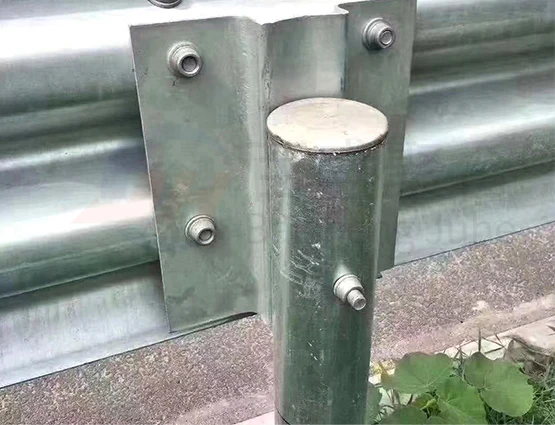

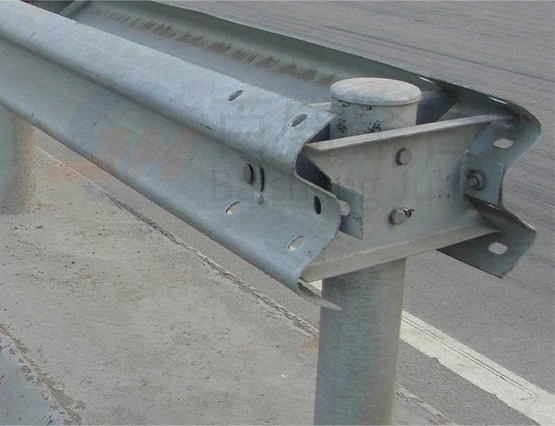

Round post

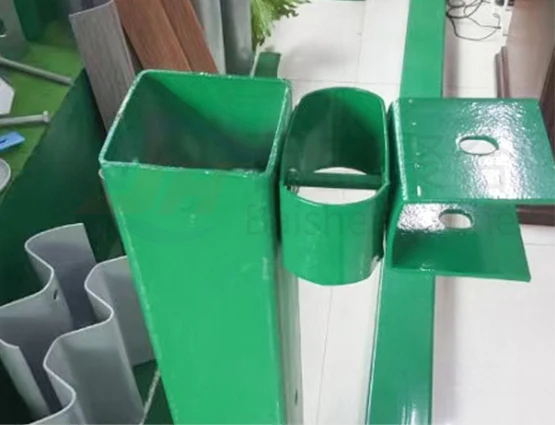

Square post
Sigma post

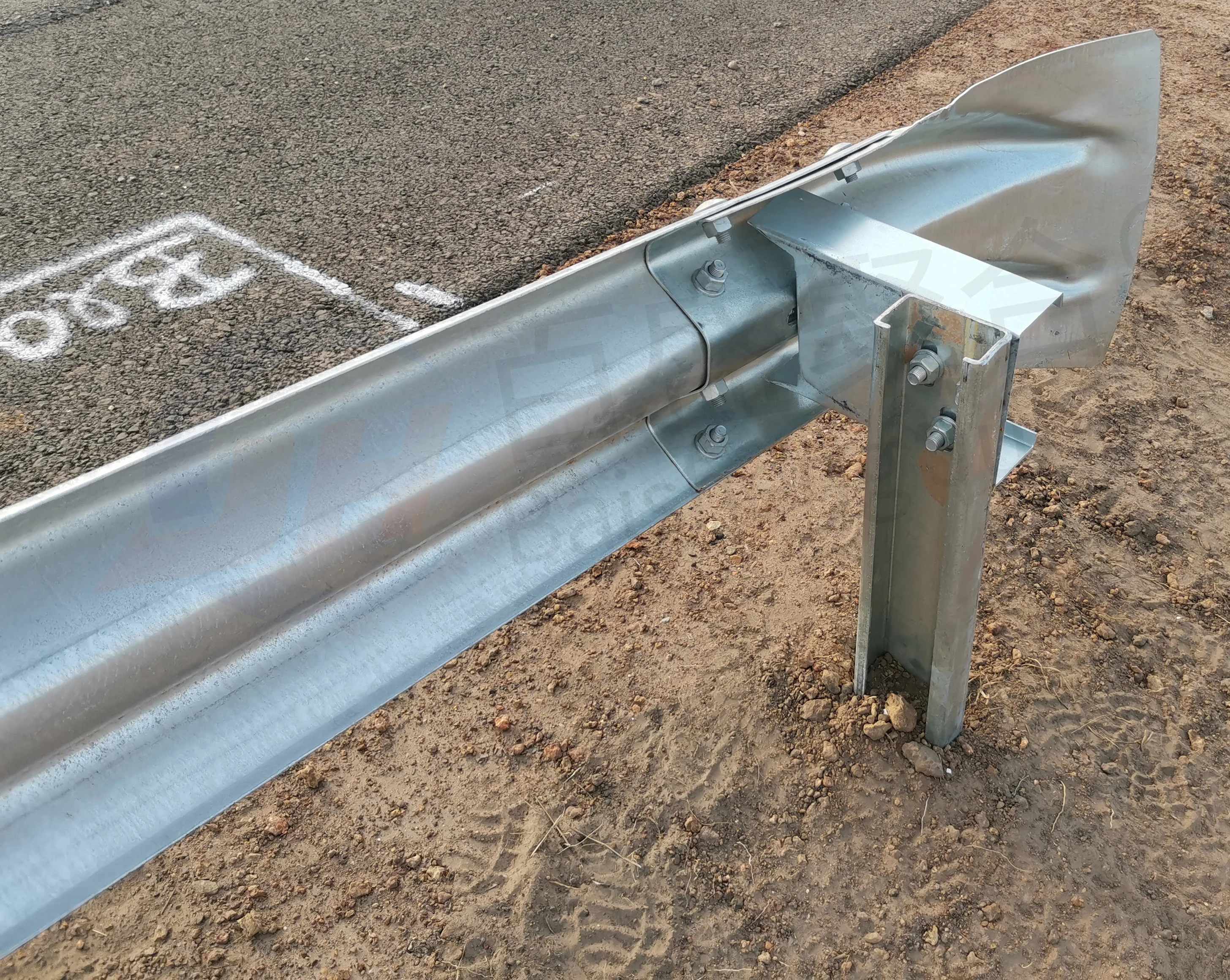

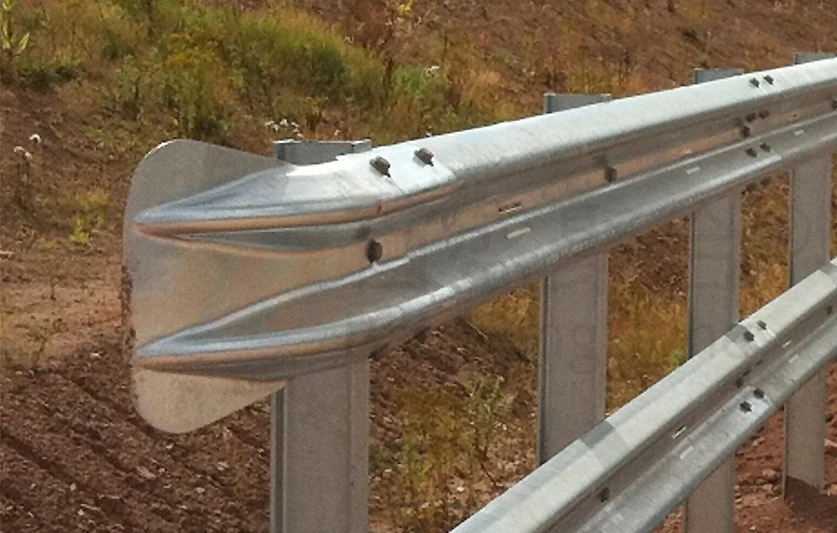

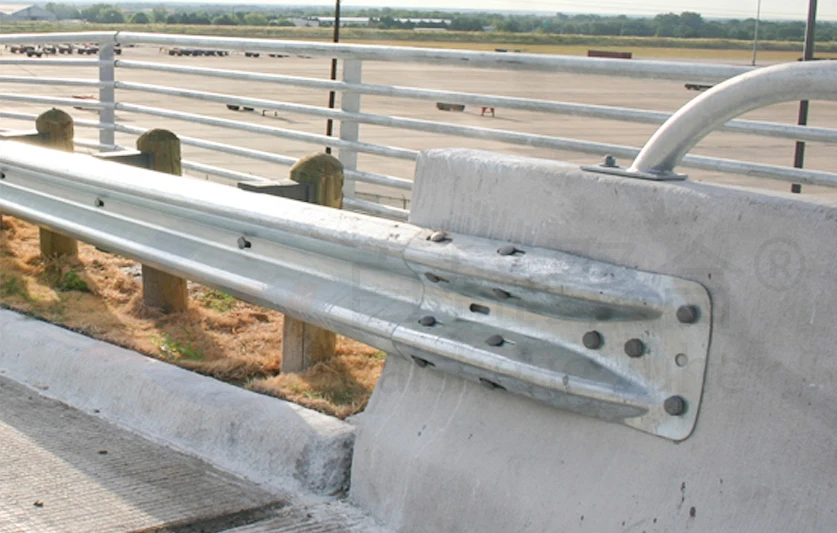

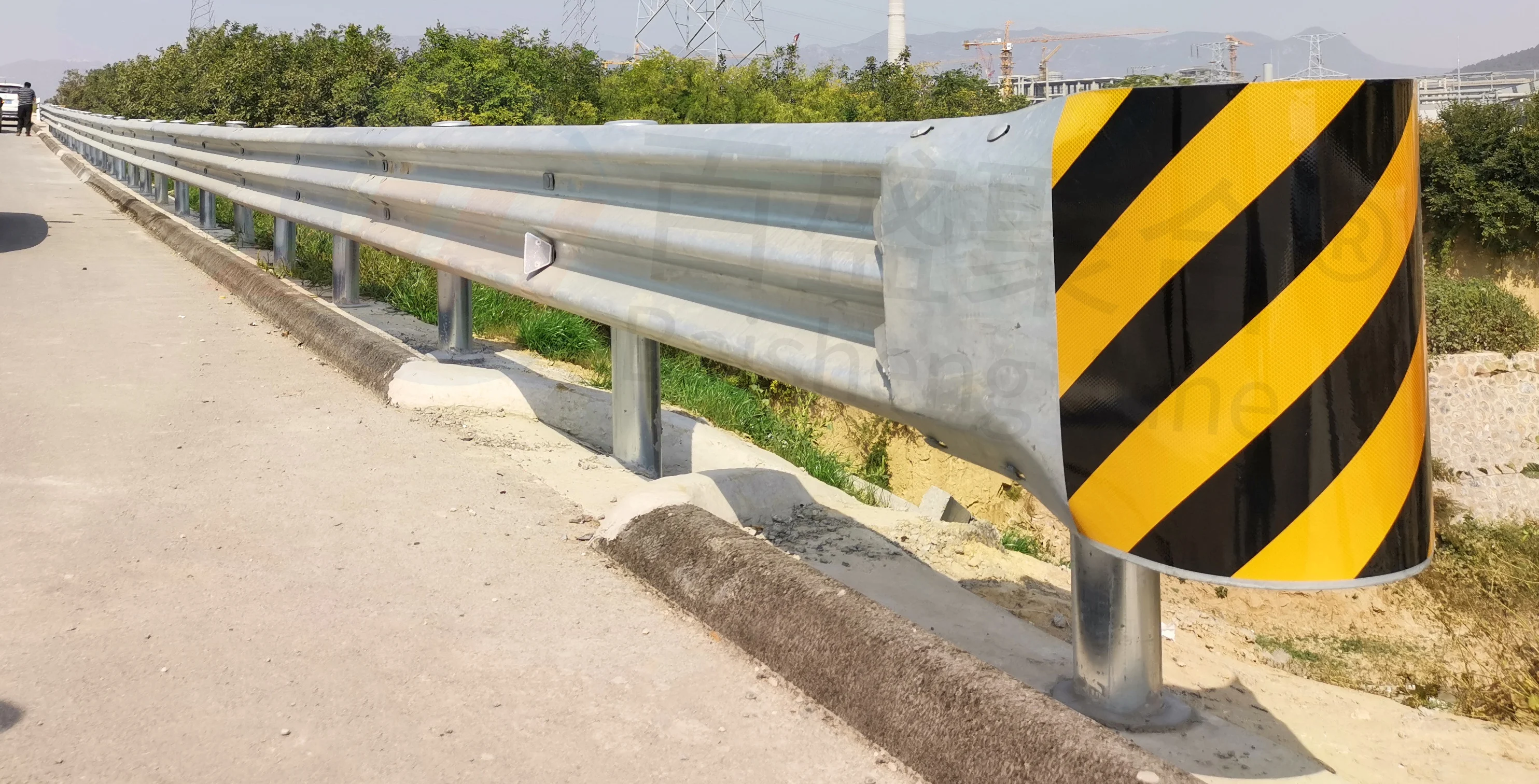

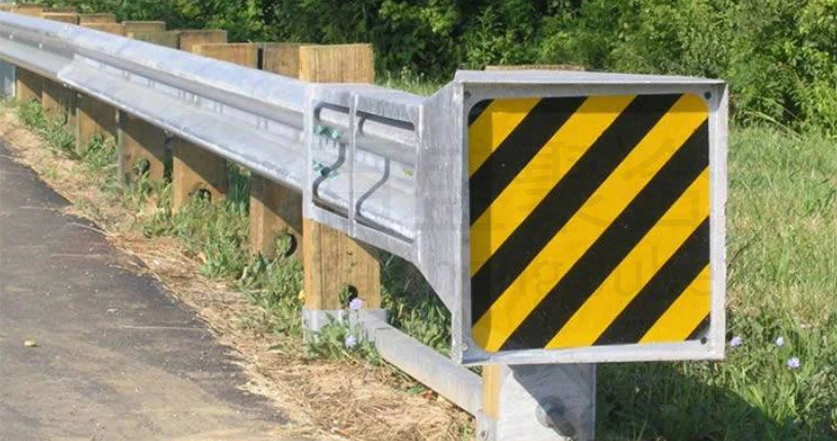

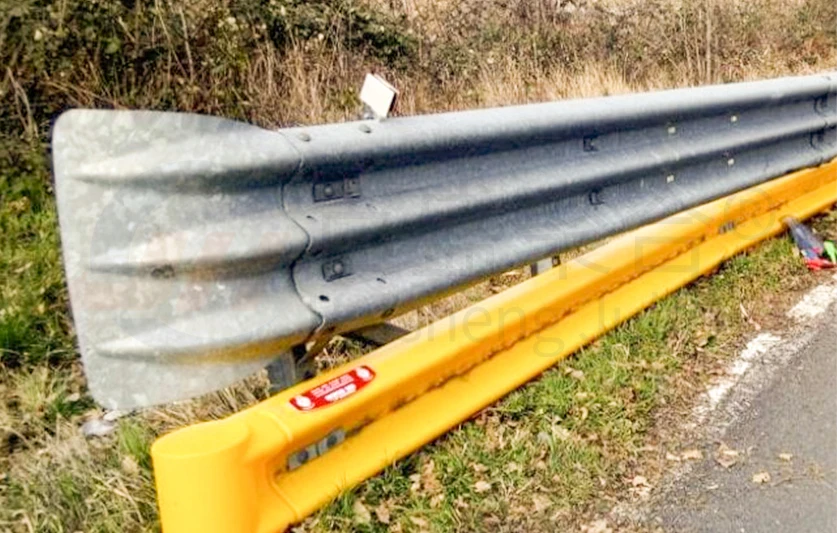

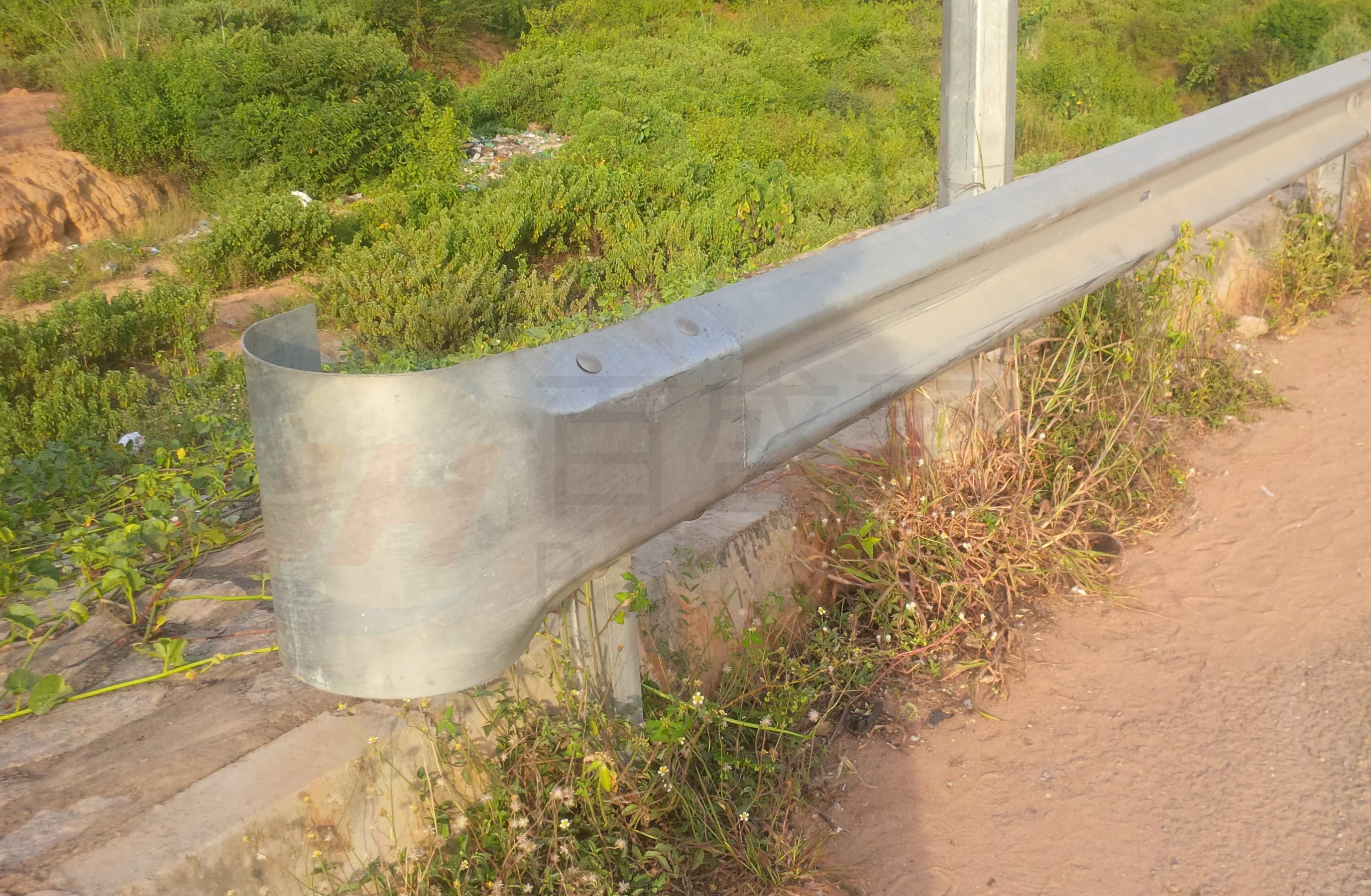

Highway guardrail end

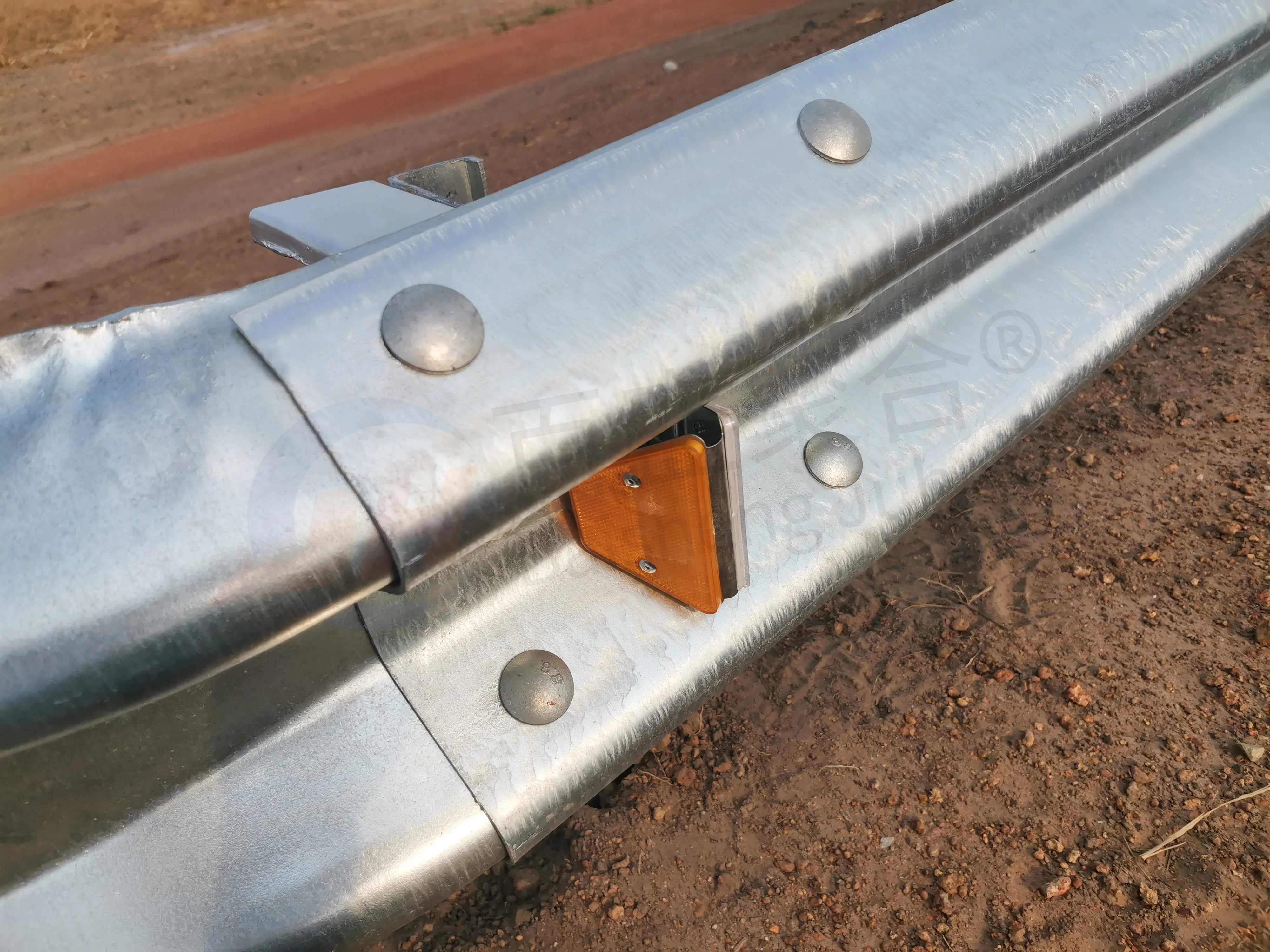

Highway guardrail accessorie
Bolts and nuts

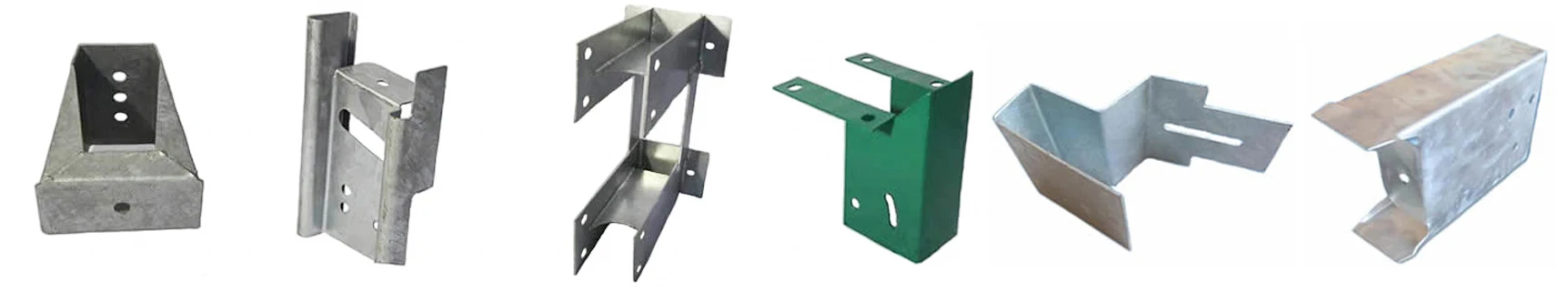

Offset blocks

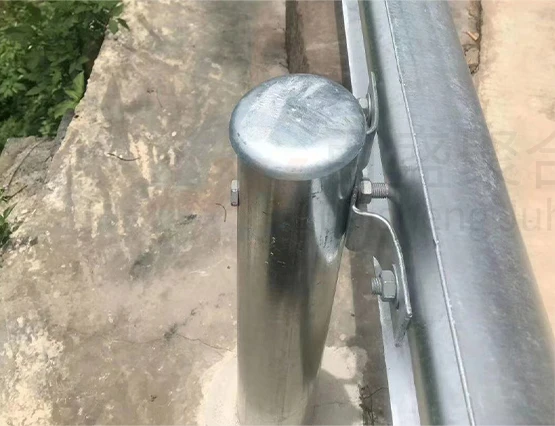

Cap
Spacer
Bridge columns
Product | Size (L * W * WW * WH * T） | Ordinary type Quantity per KM | Reinforced type Quantity per KM | Coating Treatment | ||||

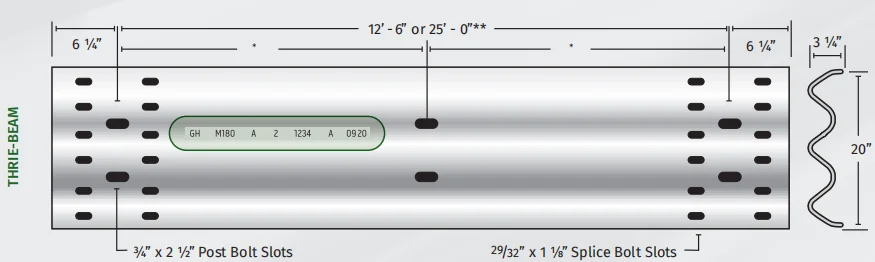

Thrie-beam | 4320*506*85*3/4 mm | 250 Pcs | 250 Pcs | Hot Dip Galvanized: 60-100μm; Powder spraying: Pre-Galvanized + Powder spraying 50-90μm; | ||||
Post | 2150*130*130*6mm/ 2150*140 * 4.5mm | 251 Pcs | 501 Pcs | |||||

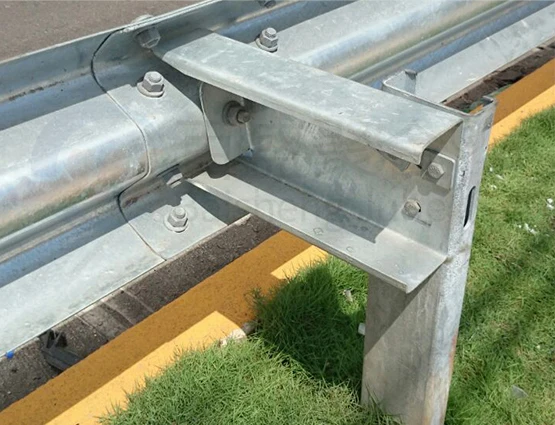

Bracket | 300*70*4/4.5mm | 251 Pcs | 501 Pcs | |||||
Spacer Block | 178*196*200*4.5mm | 251 Pcs | 501 Pcs | |||||
Post Cap | Φ140mm | 251 Pcs | 501 Pcs | |||||
Washer | 76*44*4mm | 251 Pcs | 501 Pcs | |||||
Bolts & Nuts | M16*35mm | 2000 Sets | 2000 Sets | |||||
Bolts & Nuts | M16*42mm | 251 Sets | 501 Sets | |||||
Bolts & Nuts | M16*150/170mm | 251 Sets | 501 Sets | |||||
Terminal End | R160 | 2 Pcs | 2 Pcs | |||||
Notes | 1.Shape:Three waves, Thrie-beam 2.Normal Specification: 4320*506*83*3mm. Other different sizes are available. 3.Highway guardrail Standards: JT/T281-2007，AASHTO M-180, RALRG620,SPS98S 4.Steel Material: Q235, Q345, S235JR, S275JR, S355JR 5. The thickness of the steel: 2.75mm, 3mm, 4mm or based on consumers’ request. 6. Surface treatment: hot-dip galvanized and galvanized plastic spraying coating. 7.Guardrail relevant parts: Post, Spacer (C, U,H, Round, Square and Sigma types etc) and Fasteners, Bolts & Nuts, Terminal,Reflectors 8. Certificate: ISO9001:2015 | |||||||
If you need more info, please feel free to contact us. →→ → Contact Us > | ||||||||

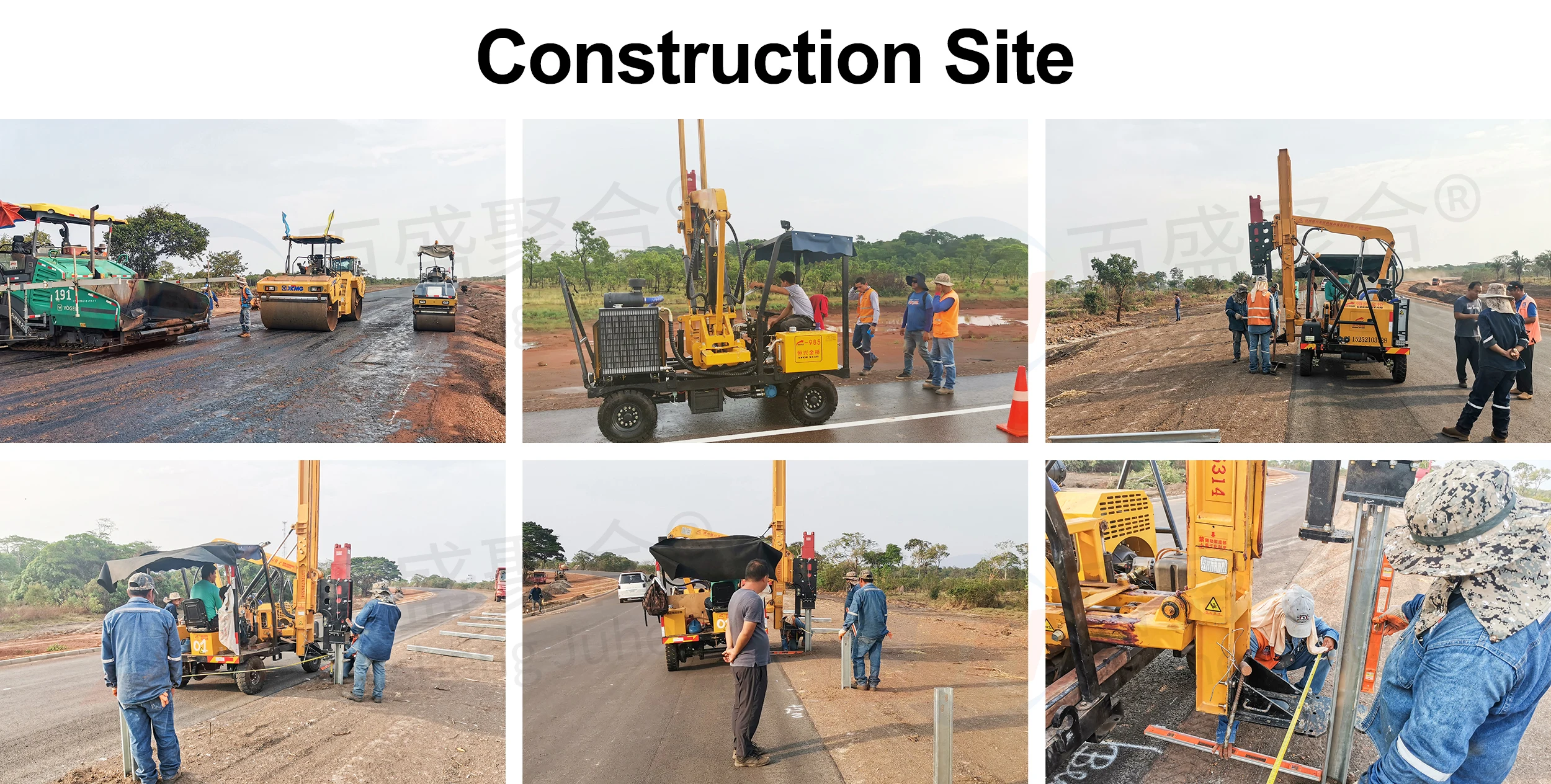

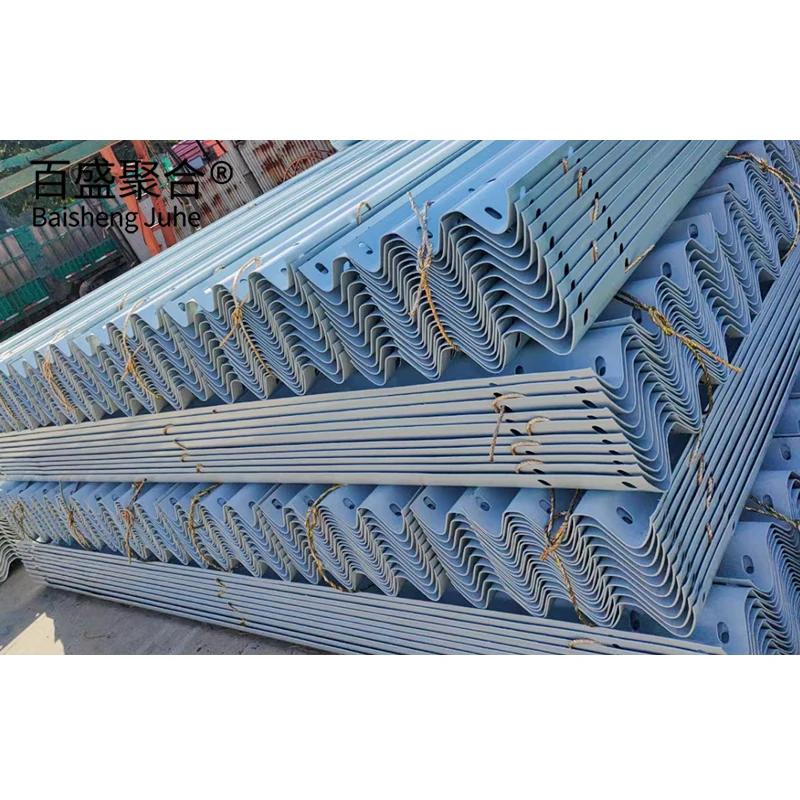

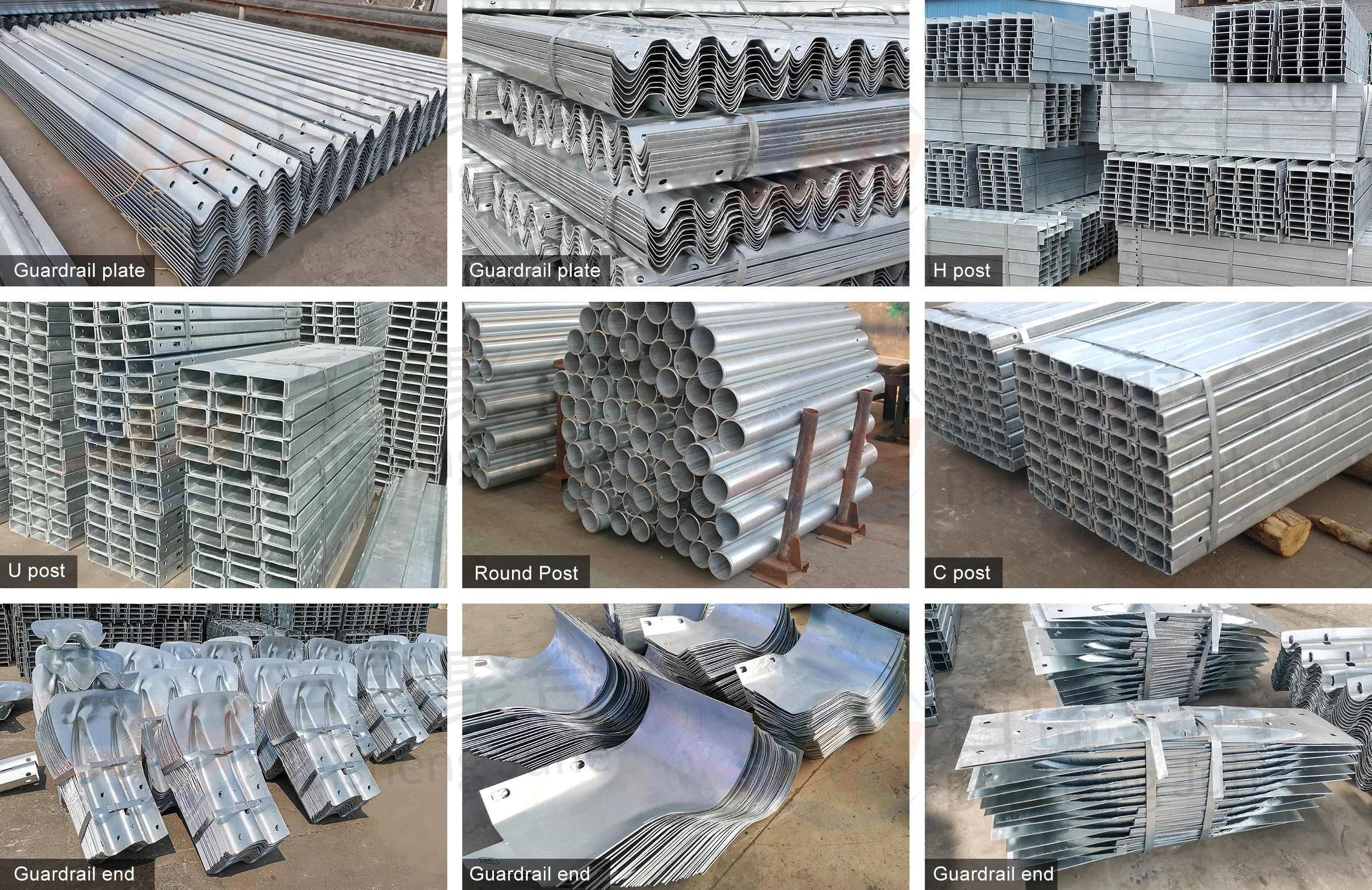

Factory real shots

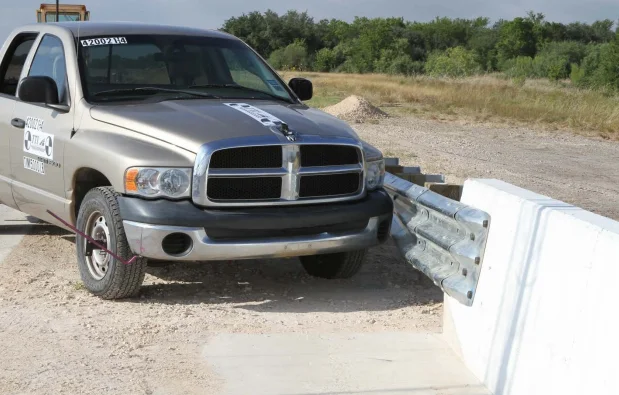

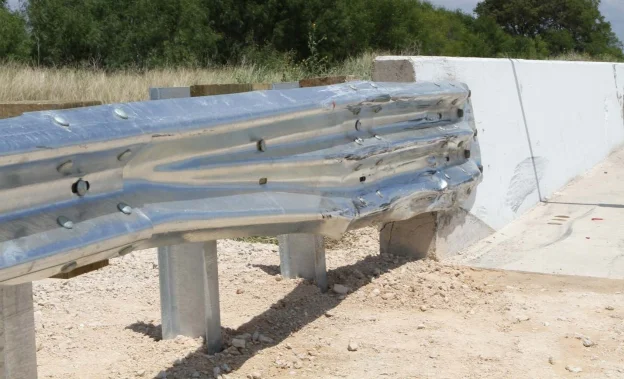

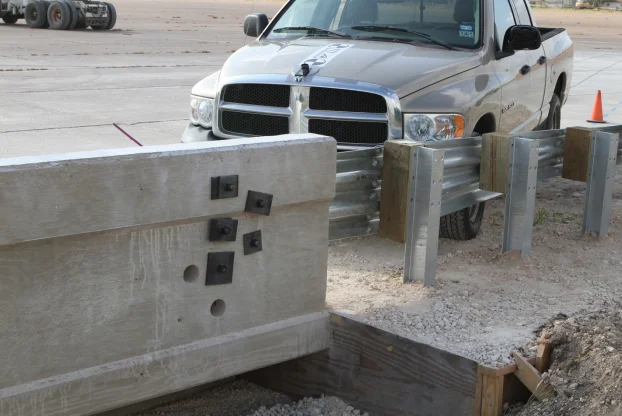

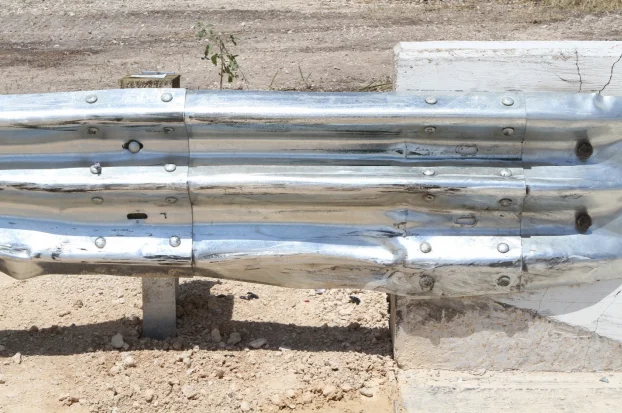

Crash test
* As part of the rewrite of NCHRP 350 [NCHRP Project 22-14(2)], the MGS Barrier was successfully tested
* With both the 5000-pound quad cab and 5000-pound 3/4-ton pickup trucks
* With the 2425-pound small car at the 31" rail height

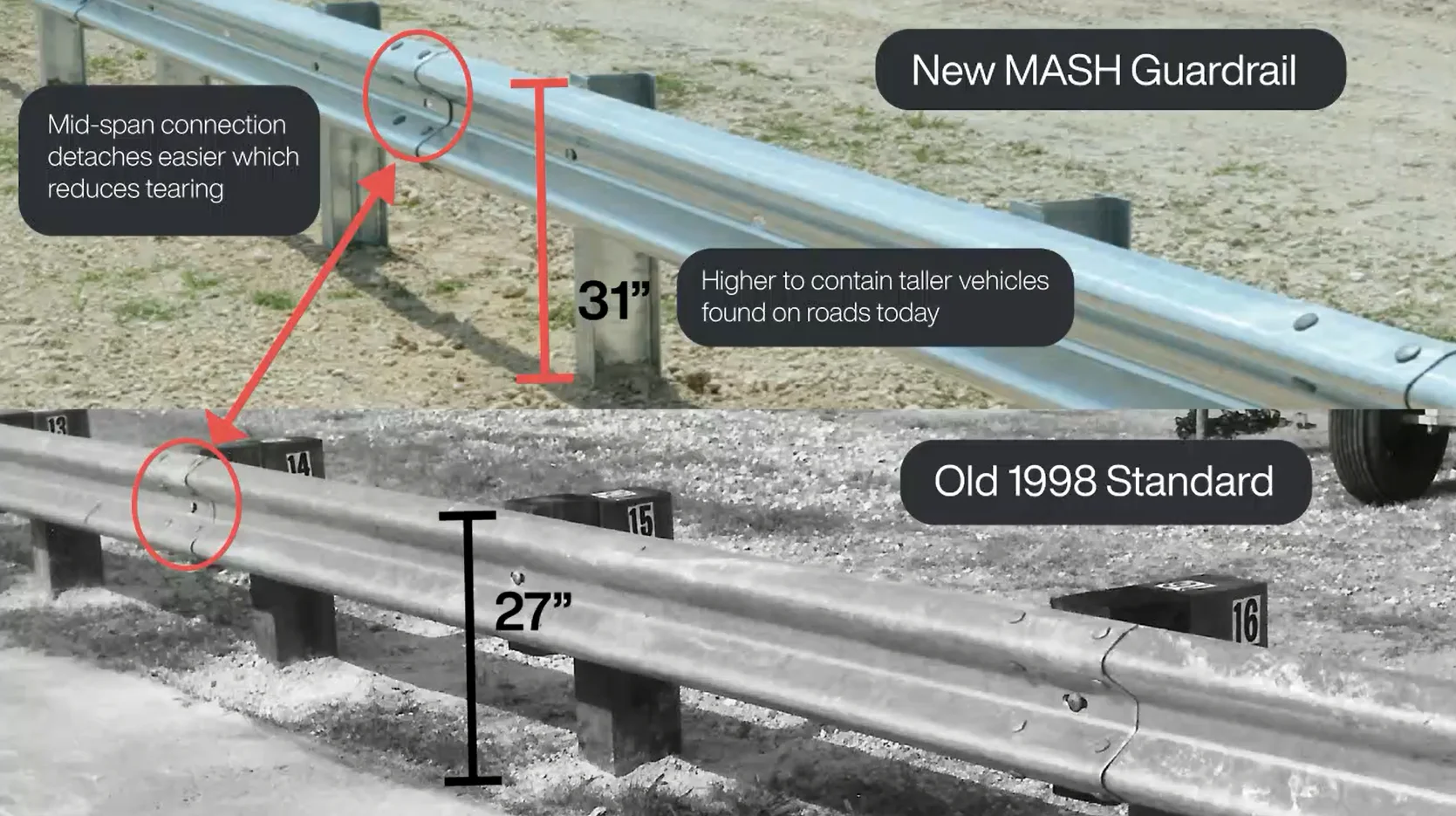

* The MGS Barrier has a greater construction tolerance: * Was tested to 31"
* Having all of the components of the MGS system tested at 27 5/8" allows the states to both set a construction tolerance 。for the rail system and to overlay the road without adjusting the system.
* Both tangent and flared terminals were tested in the MGS configuration as an option
* The MGS Guardrail Barrier offers many variables to accommodate the real-world site conditions.
* The SKT and FLEAT were successfully crash tested in the MGS configuration.
There is ongoing funding for the MGS barrier. The MGS system will be tested on a slope, with the posts set on the break line of a 2:1 slope. It will also be tested in a long span application with 3 missing posts.
* With the 2425-pound small car at the 31" rail height
* The MGS Barrier has a greater construction tolerance: * Was tested to 31"
* Having all of the components of the MGS system tested at 27 5/8" allows the states to both set a construction tolerance 。for the rail system and to overlay the road without adjusting the system.
* Both tangent and flared terminals were tested in the MGS configuration as an option
* The MGS Guardrail Barrier offers many variables to accommodate the real-world site conditions.
* The SKT and FLEAT were successfully crash tested in the MGS configuration.
There is ongoing funding for the MGS barrier. The MGS system will be tested on a slope, with the posts set on the break line of a 2:1 slope. It will also be tested in a long span application with 3 missing posts.
If you need more info, please feel free to contact us. →→ → Contact Us >
Company Information
SHANDONG JUHE STEEL CO., LTD
Shandong Juhe Steel Co., Ltd, was established in 2009, specializing in the production and exporting of highway guardrail and accessories. Juhe guardrails are successfully exported to Malaysia, Indonesia, Romania, Tanzania, Mozambique, Ghana, Chile, Bolivia, etc. Our main products include Highway Guardrail: W Beam, Steel Post (C-post, U-post, H-post, Round post and Sigma post, etc.), Bolts and Nuts, Spacer, Blockout and other related components; Bridge Guardrail, Roller Barrier, Traffic Sign, Road Painting. The standards are AASHTO, ASTM,EN lSO and Chinese National Standard. Customers' drawings and specifications can also be provided.
Now, Juhe Steel has 3 hot-dip galvanizing production lines and 2 electrostatic spraying lines. The annual production capacity can reach 80,000 tons of galvanized highway guardrail products. In addition, we have obtained ISO 9001, ISO 14001, lSO 45001 Certificates and CE Certificate. Mill Certificate, BV Factory Audit Report, SGS Test Report and SGS Inspection Report also can be provided.
Now, Juhe Steel has 3 hot-dip galvanizing production lines and 2 electrostatic spraying lines. The annual production capacity can reach 80,000 tons of galvanized highway guardrail products. In addition, we have obtained ISO 9001, ISO 14001, lSO 45001 Certificates and CE Certificate. Mill Certificate, BV Factory Audit Report, SGS Test Report and SGS Inspection Report also can be provided.
FAQ
1.Will you deliver the goods on time?
Yes,we promise to provide best quality products and delivery in time no matter if the price change lot or not, Honesty is our company's tenet.
2.How can I get your quotation as soon as possible?
The email and fax will be checked in 24 hours, meanwhile, the skype will be online in 24 hours
Please tell us the order information about quantity, Specification(steel type, material, size )and destination port, you will get the latest price.
3.How about the sample if i need?
The sample will be offered for free if you need, but the freight will be covered by our customer. If
we have cooperation, the freight will be covered by our company.
4.How about the MOQ?
Generally, the trail order will be accepted.The MOQ can be confirmed according to the different products. For example, the MOQ of PPGI will be 10MT.
5.How about the delivery time?
Within 15-30days after receiving the deposit or L/C at sight.
Of course, the detail will be confirmed by the quantity and the different products.
6.How to order?
Please send us your purchase order by email. Or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order.
7.What is shipment terms?
1. Container ship 2. bulk ship 3. Train
8.Do you have English Mill Test Certificates?
Yes,that is what we give gurantee to our clients
9.Do you accept the third party inspection?
Yes,absolutely we accept.
Yes,we promise to provide best quality products and delivery in time no matter if the price change lot or not, Honesty is our company's tenet.
2.How can I get your quotation as soon as possible?
The email and fax will be checked in 24 hours, meanwhile, the skype will be online in 24 hours
Please tell us the order information about quantity, Specification(steel type, material, size )and destination port, you will get the latest price.
3.How about the sample if i need?
The sample will be offered for free if you need, but the freight will be covered by our customer. If
we have cooperation, the freight will be covered by our company.
4.How about the MOQ?
Generally, the trail order will be accepted.The MOQ can be confirmed according to the different products. For example, the MOQ of PPGI will be 10MT.
5.How about the delivery time?
Within 15-30days after receiving the deposit or L/C at sight.
Of course, the detail will be confirmed by the quantity and the different products.
6.How to order?
Please send us your purchase order by email. Or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order.
7.What is shipment terms?
1. Container ship 2. bulk ship 3. Train
8.Do you have English Mill Test Certificates?
Yes,that is what we give gurantee to our clients
9.Do you accept the third party inspection?
Yes,absolutely we accept.
