Cheap Cutting Plasma Machine Prices Plasma Cutting Machine
$1,485.00-1,495.00

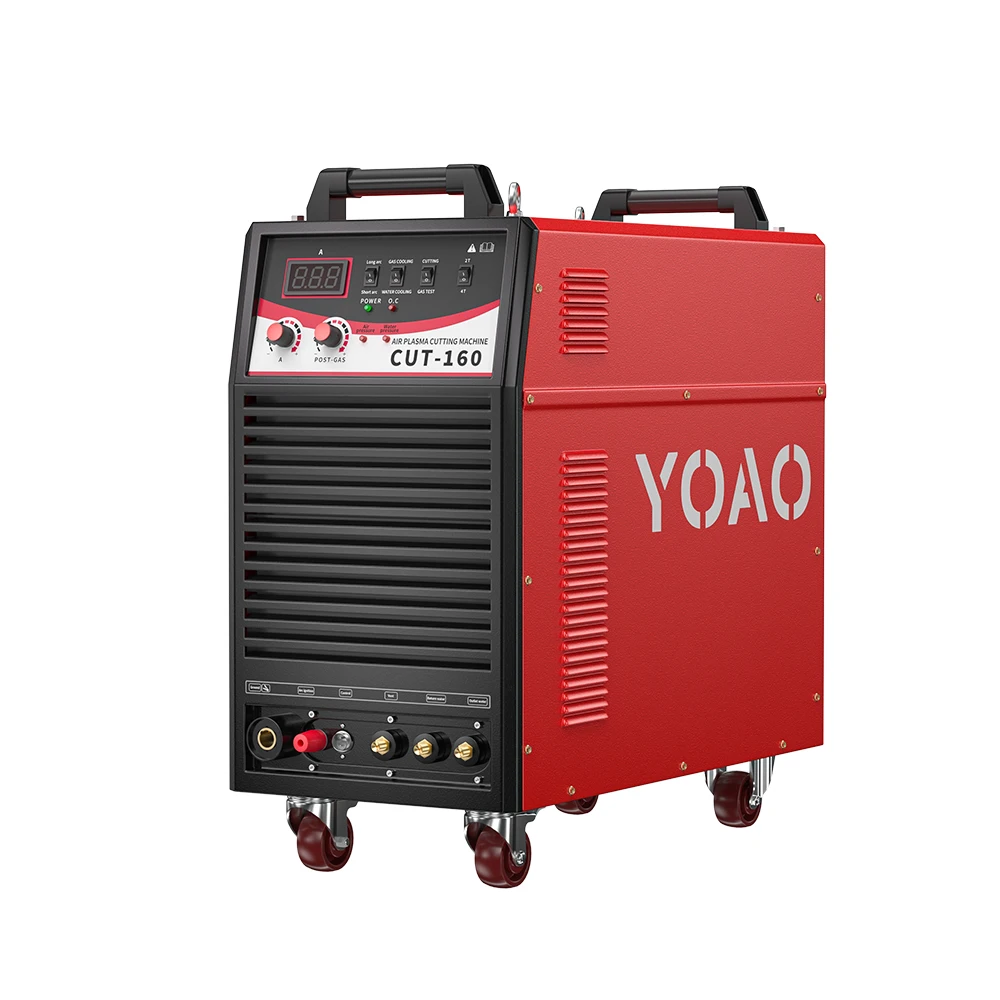

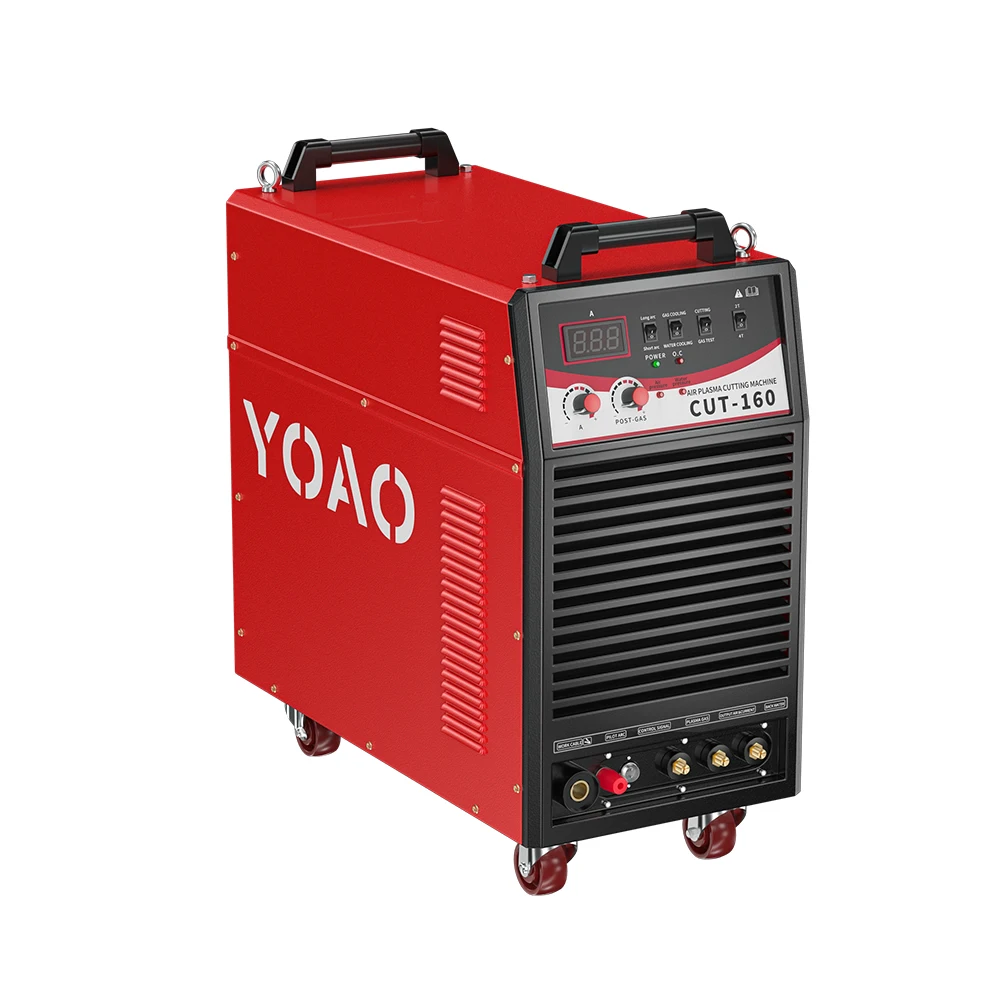

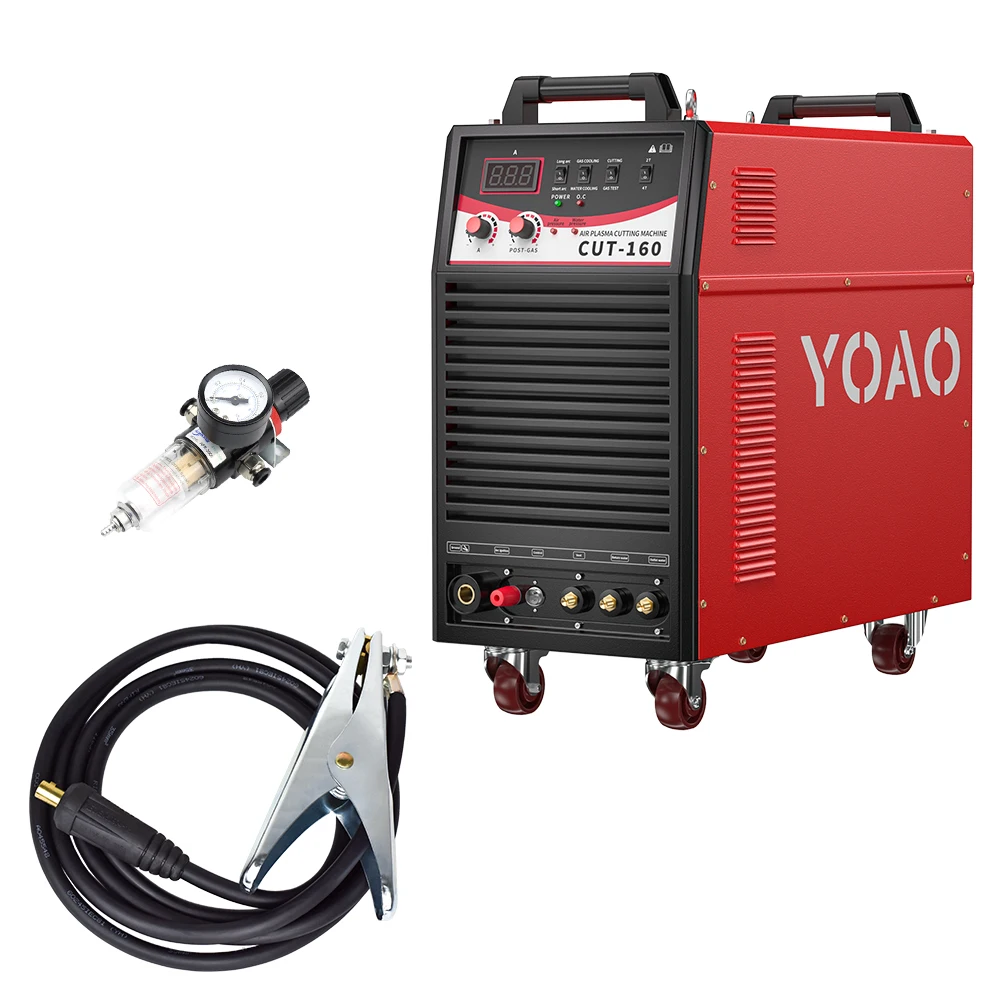

YOAO Hot New Products Air Plasma Cutting Machine Cut 160 IGBT Module Type LGK 160 Plasma Cutter
- Category: >>>
- Supplier: Shenzhen Hanghui Technology Co. Ltd.
Share on (1601240630721):
Product Overview
Description
Products Description
Item | Unit | Models | Models | |||||
CUT-160 | CUT-200 | CUT-300 | CUT-400 | |||||
Input Power | V/Hz | 3~380+15% 50/60 | ||||||
Rated Input Capacity | KVA | 21.2 | 46.5 | 70.4 | 92.3 | |||
Rated Input Current | A | 32.5 | 70.9 | 107 | 142 | |||
Rated Output Current | A | 160 | 200 | 300 | 400 | |||
Rated Output Voltage | V | 128 | 160 | 200 | 200 | |||
Rated Open Circuit Voltage | V | 308 | 360 | 370 | 370 | |||
Rated Duty Cycle | - | 100%(40C) | ||||||
Efficiency | - | 92% | 93% | |||||
Power Factor | - | 0.78 | 0.92 | |||||
Output Curent Adjust Range | A | 30~160 | 30~200 | 60~300 | 60~400 | |||
Arc Voltage Output Ratio | - | 1:1/1:20/1:50/1:100( Default 1:1 ) | ||||||
Quality Cut Thickness(Carbon Steel) | mm | 10(500mm/min ) | 20(500mm/min ) | 32(500mm/min ) | 40(500mm/min ) | |||
Severance Cut Thickness(Carbon Steel) | mm | 20(280mm/min ) | 25(280mm/min ) | 45(250mm/min ) | 50(270mm/min ) | |||
Handheld Severance Cut Thickness (Carbon Steel) | mm | 45 | 50 | 60 | 80 | |||
Plasma gas | - | Compressed Air | ||||||
Air Pressure | MPa | 0.5~0.8 | ||||||
Coolant Working Flow | L/Min | - | ≥2.7 | |||||
Torch Cooling Mode | - | Air Cooling / Water Cooling | ||||||
Arc Strike Mode | - | Non-Contact | ||||||
Power Source Cooling Mode | - | Air Cooling | ||||||
Insulation Grade | - | F | ||||||
Ingress Protection | - | IP21S | ||||||
Dimension(LxWxH ) | mm | 600*300*600 | 710*370*760 | 710*370*760 | 710*370*760 | |||
Weight | KG | 58 | 65 | 70 | 76 | |||
Features
1、It can advance the air, prolong the gas time, current rise time, prolong the service life of the cutting torch

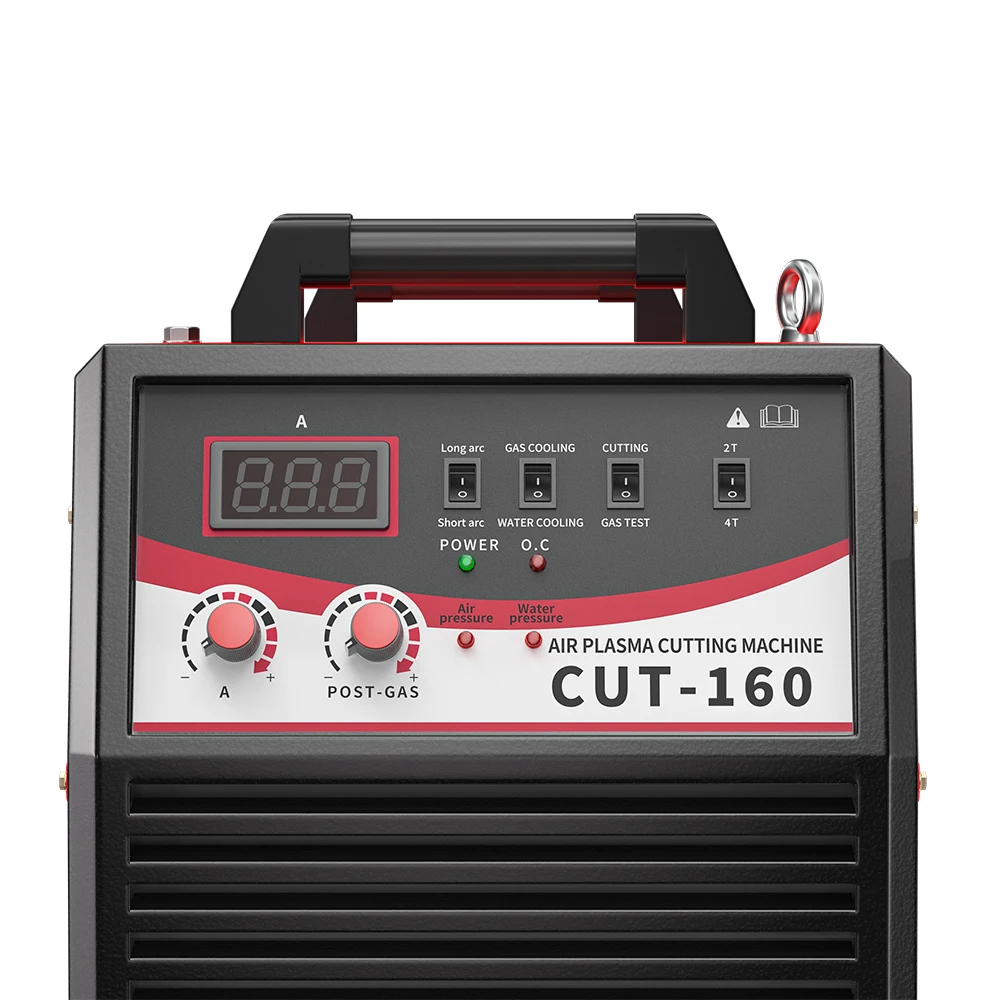

2、Simple parameter setting, accurate digital display real-time display current, coolant flow, gas pressure
3、With cutting torch consumption life monitoring function accurately record the arc times and cutting time

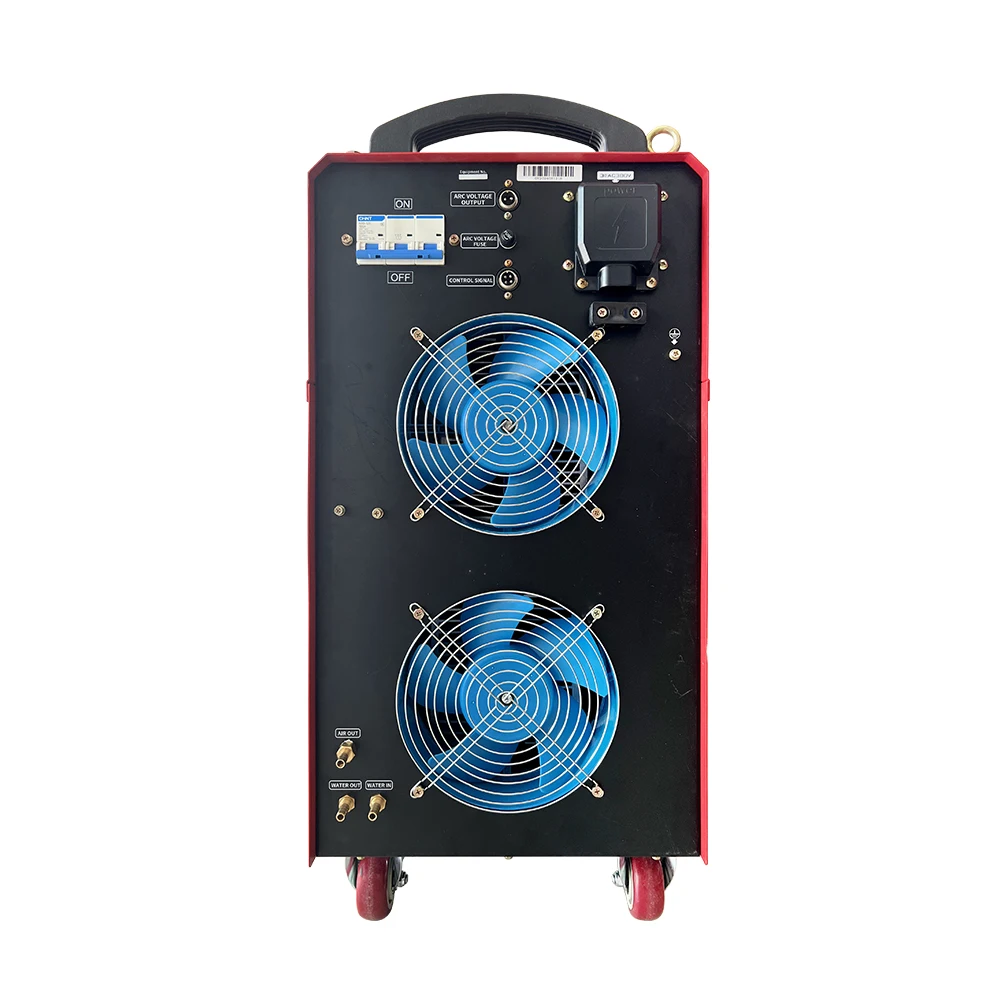

4、Only fan, effectively reduce the dust inside the machine, intelligent start at high temperature, improve the service life of the
fan, energy saving and consumption reduction
2、Simple parameter setting, accurate digital display real-time display current, coolant flow, gas pressure
3、With cutting torch consumption life monitoring function accurately record the arc times and cutting time
4、Only fan, effectively reduce the dust inside the machine, intelligent start at high temperature, improve the service life of the
fan, energy saving and consumption reduction
PLASMA CUTTING POWER SOURCE
Plasma arc cutting is a processing method that uses the heat of a high-temperature plasma arc to locally melt (and evaporate) the metal at the incision of the work piece, and uses the momentum of high-speed plasma to remove the molten metal to form an incision.
Why Choose Us
Quality & Engineering
YOAO WELDING delivers consistent quality from our ISO9001 certificated manufacturing facilities that you can rely on every turn.Our application-spefic engineers and dedicated R&D team are able to tailor solutions for optimal performance and value.
YOAO WELDING delivers consistent quality from our ISO9001 certificated manufacturing facilities that you can rely on every turn.Our application-spefic engineers and dedicated R&D team are able to tailor solutions for optimal performance and value.
About us
PROFESSIONAL WELDING EQUIPMENT MANUFACTURER SINCE 2013.
shenzhen zhongliang WELDING EQUIPMENT CO., LTD
- Address: Shenzhen, Guangdong Province, China
- Number of Staffs: 60 ~100 people
- Production Line: 5 lines
- Production Capacity: 30,000 Units/month
PROFESSIONAL WELDING EQUIPMENT MANUFACTURER SINCE 2013.
- Annual Production Value: US$10 Million ~ US$15 Million.
- Export Year: 2013
- Export Percentage: 80%- Annual Export Revenue: US$5 million ~US$10 million
- Number of Foreign Sales: 10 people
- INCOTERMS: FOB, CFR, CIF, DDP, DAP, EXW
- Nearest Port: Shenzhen
- Number of Foreign Sales: 10 people
- INCOTERMS: FOB, CFR, CIF, DDP, DAP, EXW
- Nearest Port: Shenzhen
PROFESSIONAL WELDING EQUIPMENT MANUFACTURER SINCE 2013.
- Average Lead Time: 35~ 45 working days
- R&D Center: SHENZHEN , CHENDU- R&D Capacity: OEM, ODM
- R&D Experience: Solution for WORLD TOP 500
- R&D Device: Oscilloscope, Thermosat & Others
- Number.of R&D Staff: 10 people
Certifications
Exhibition
Product packaging
FAQ
1. Q: Are you a factory or trading company ?
A: We're a group company including 3 factories 。
YOAO is the professional manufacturer of producing welding machines and plasma cutter.
2. Q: Where is your factory located ?
A: Our factory is located in Bao'an District Shenzhen city, 1 hour from Hong Kong airport or Shenzhen Beirailway station, 1.5 hour from Guangzhou Airpot.
3. Q: What certificates do you have ?
A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.
4. Q: What's your delivery time ?
A: Usually, it will take 35 days after we confirming the sales contract and details.
5. Q: What kind of payment terms do you accept ?
A: T/T or L/C at sight.
A: We're a group company including 3 factories 。
YOAO is the professional manufacturer of producing welding machines and plasma cutter.
2. Q: Where is your factory located ?
A: Our factory is located in Bao'an District Shenzhen city, 1 hour from Hong Kong airport or Shenzhen Beirailway station, 1.5 hour from Guangzhou Airpot.
3. Q: What certificates do you have ?
A: We have gained the certificate of CE, EMC, ROHS, CSA, SAA and ISO9001.
4. Q: What's your delivery time ?
A: Usually, it will take 35 days after we confirming the sales contract and details.
5. Q: What kind of payment terms do you accept ?
A: T/T or L/C at sight.
