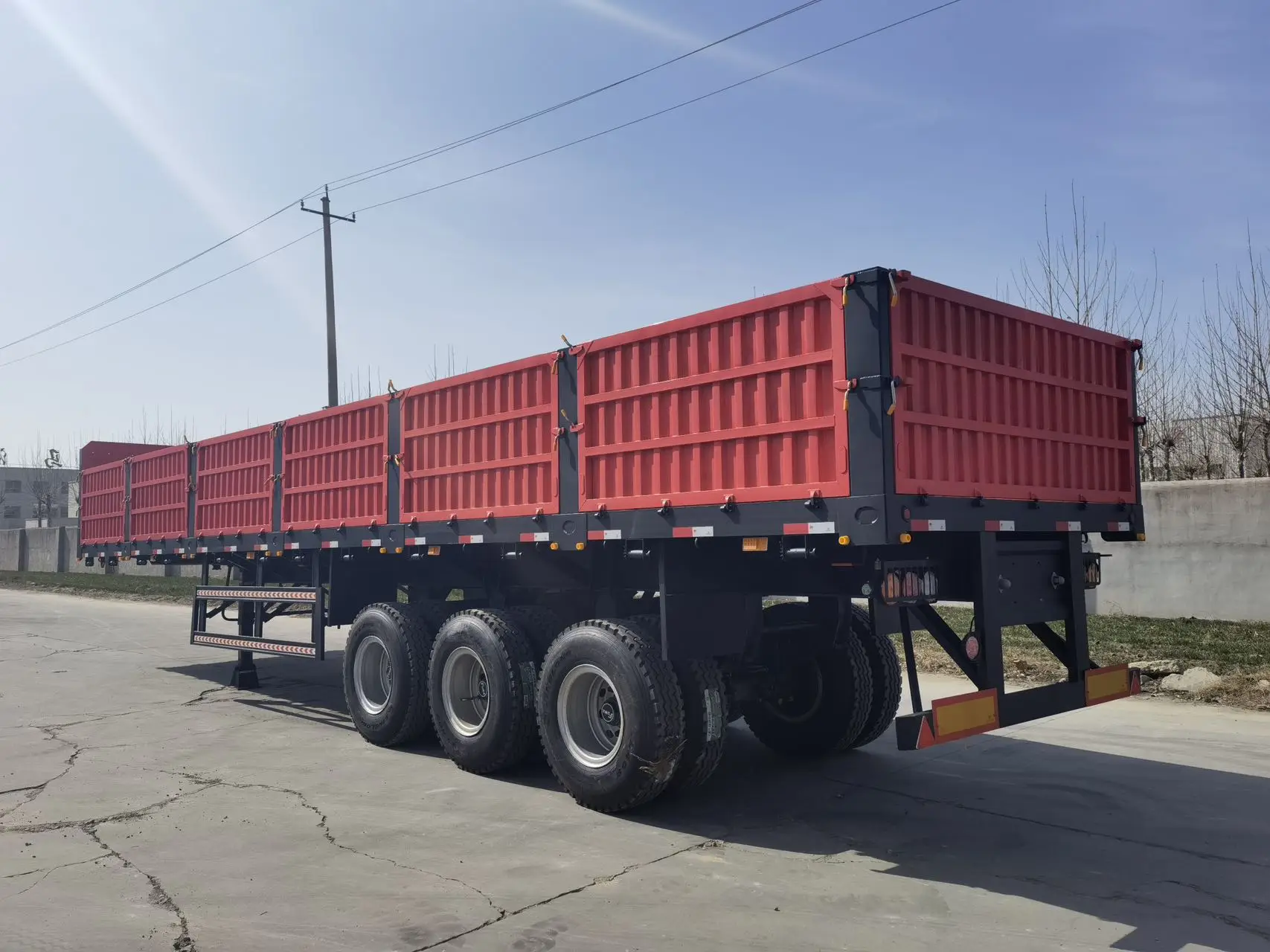

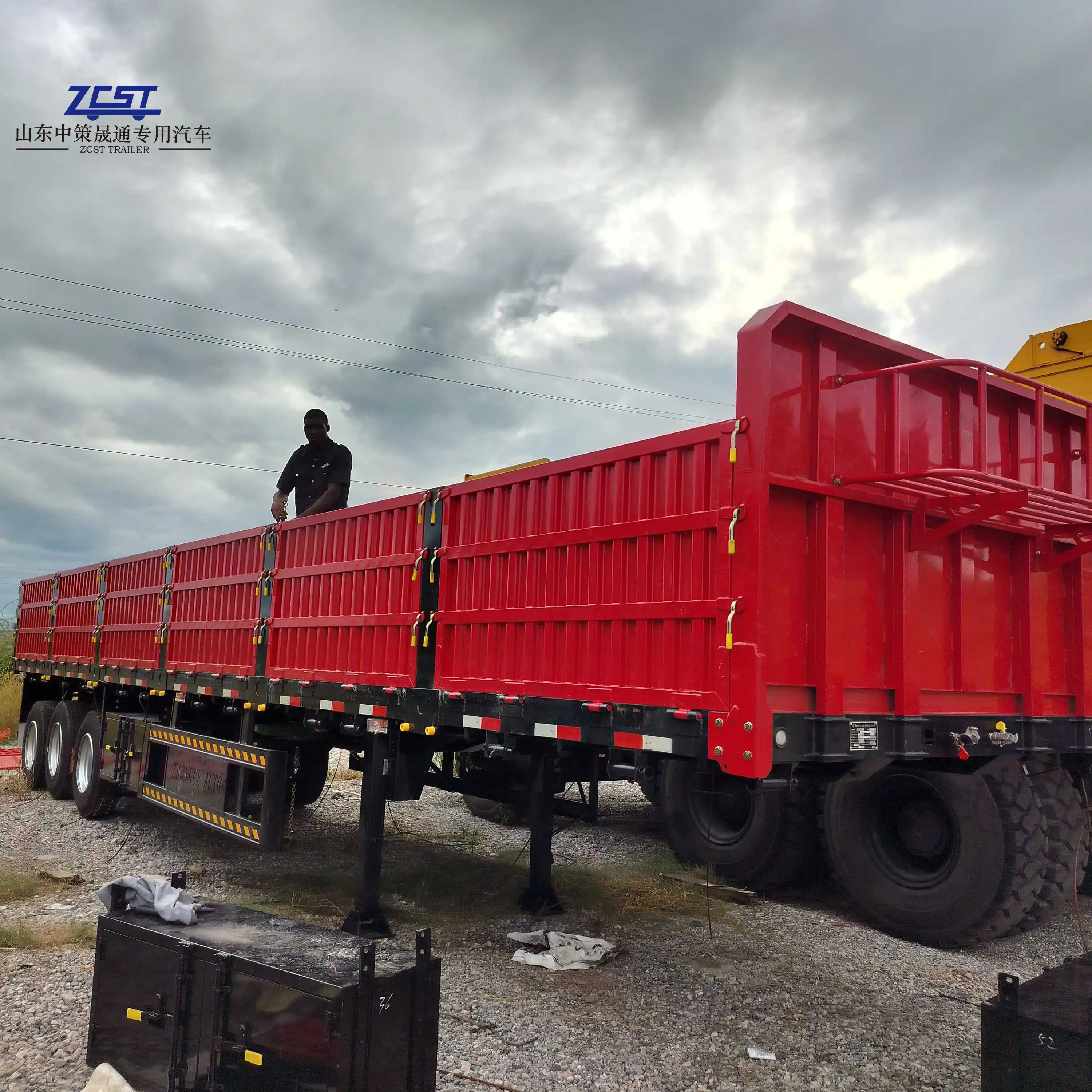

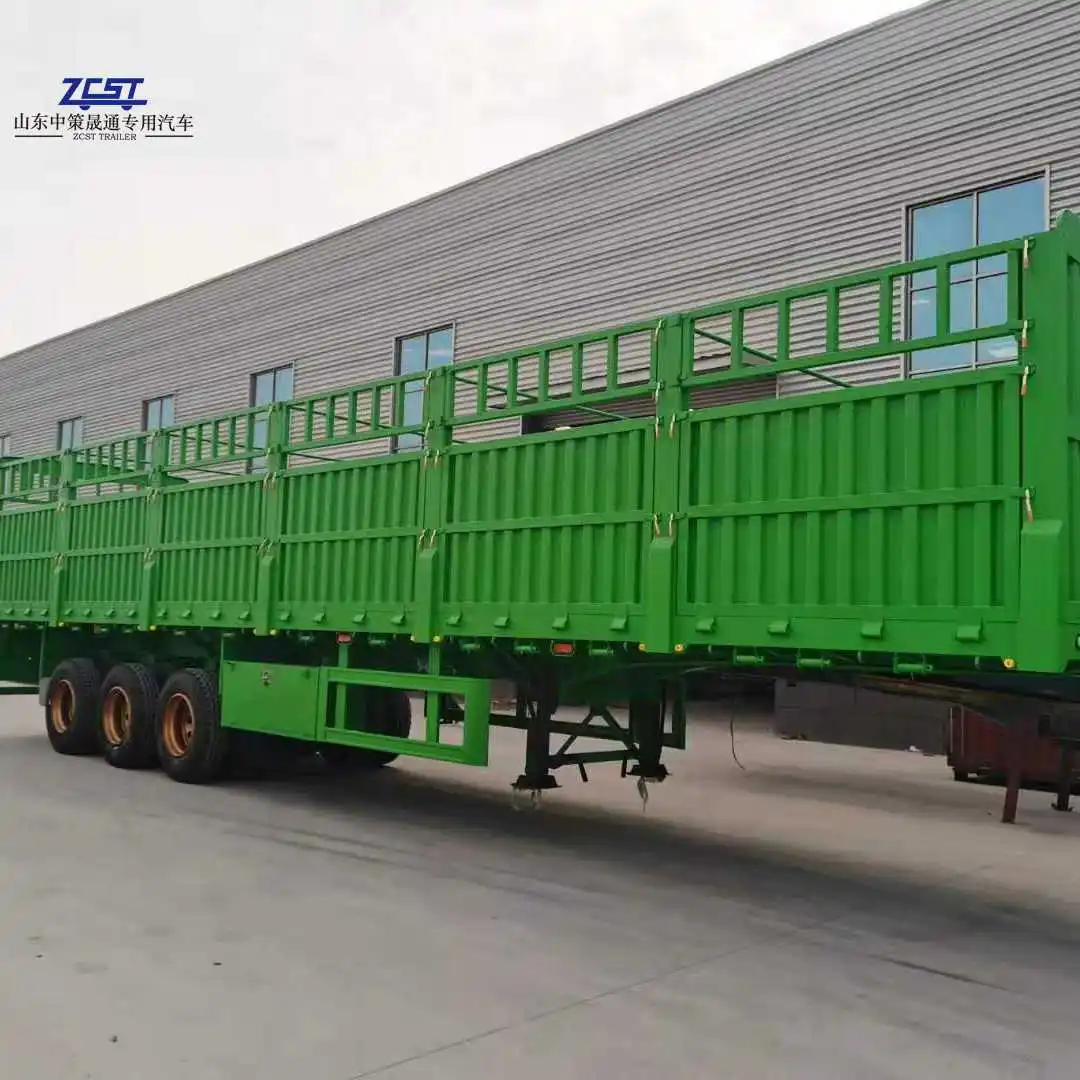

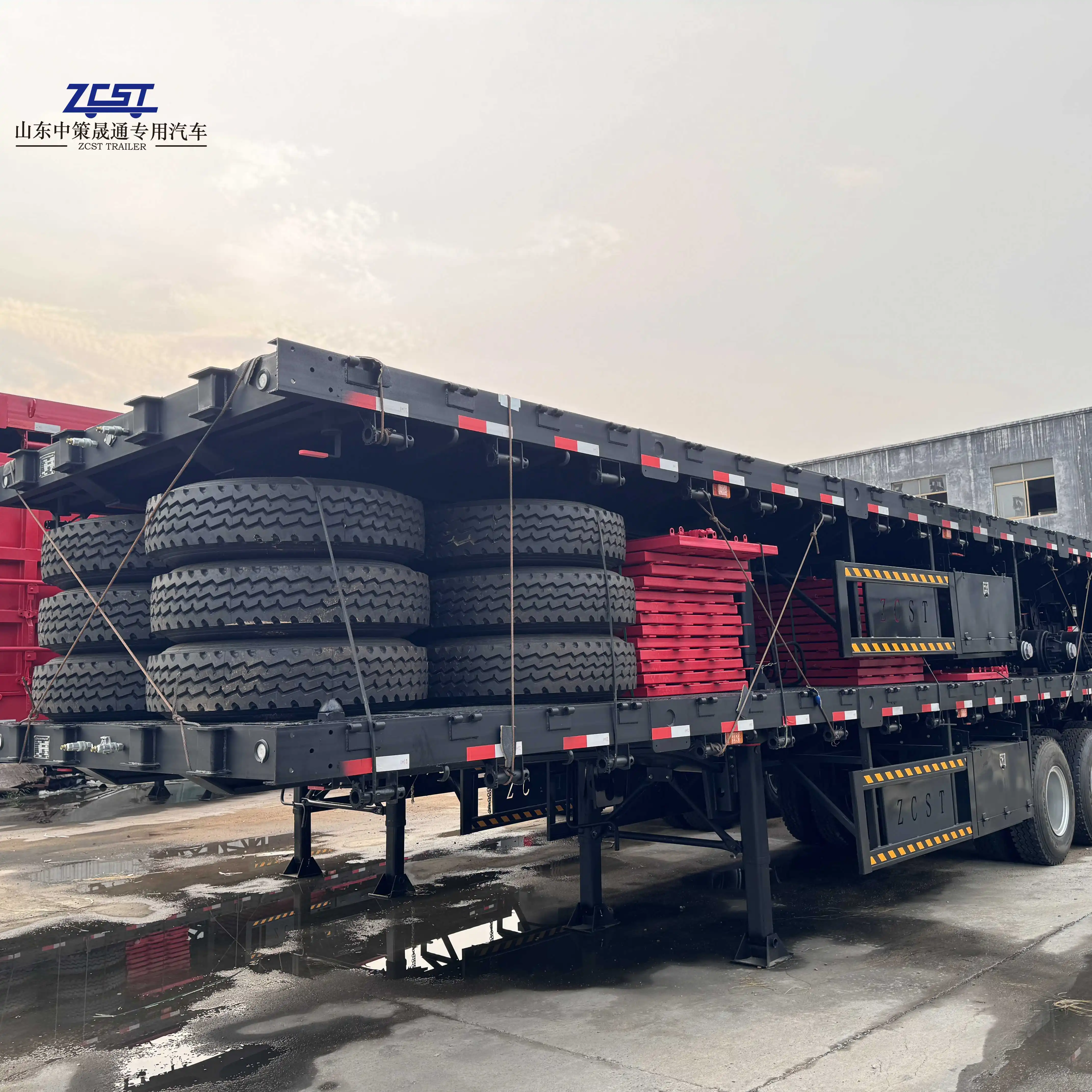

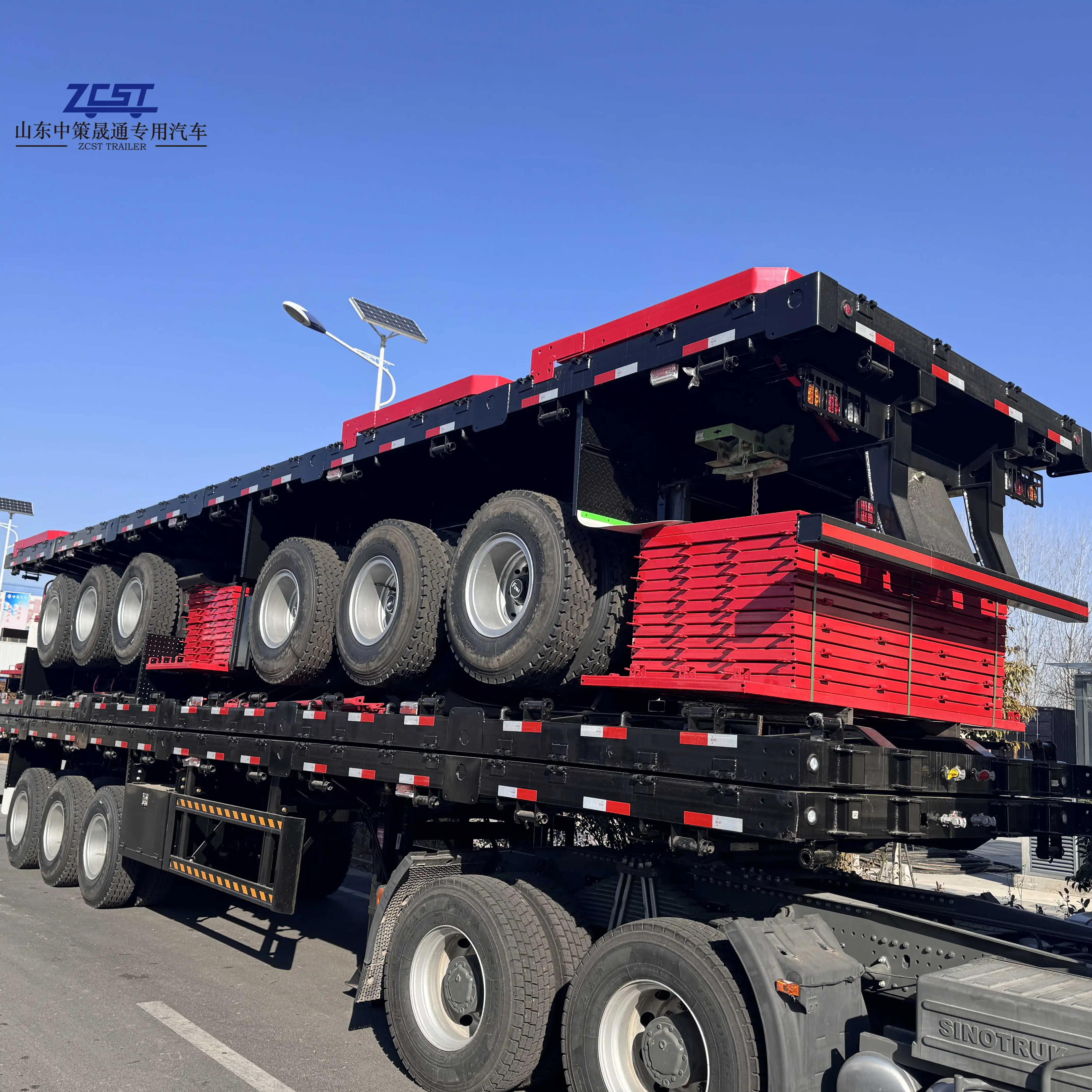

Hot Sale 2 & 3 Axles Semi Trailer Iron Cargo Flatbed Sidewall Semi Trailer with Hot Selling Features
- Category: >>>
- Supplier: Shandong Zcst Auto Holdings Co. Ltd.Shandong Ltd.
Share on (1601240953924):
Product Overview
Description
Products Description
Product Paramenters
Trailer Model | Sidewall semi trailer |
Overall dimension | 12500 *2500 * 3000mm((According to customer demand)) |
Tare Weight | 5T--11T |
Loading Weight | 30-70T |
Axle | 13T/16T/20T BPW or FUWA or EAST |
Wheelbase(mm) | 6780+1310+1310 or other |
Suspension system | Mechanical Spring or Air Suspension System |
Steel Spring | 90(W)mm*13(Thick)mm*10 Layer |
Frame | Height: 450mm-520mm, |
upper plate thickness is 16mm-25mm, | |
middle plate thickness is 8mm-12mm, | |
down plate thickness is 16mm-25mm; | |
Heavy duty and extra durability designed; | |
Opting for high tensile steel Q345B welded by | |
automatic Submerged-Arc processes Height I beam. | |
Tire Type | 12R22.5, 11.00R20, 12.00R20, 315/80R22.5 |
Rim | 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20 |
Twist Locks | 12 units (lifting type or Twist Screw Type) Optional locks for loading containers |
Traction Pin | 2” or 3.5” |
Spare Wheel Bracket | 2 sets(Patent type) |
Tool Box | 2 sets(waterproof type) |
Landing Leg | heavy duty 28ton landing leg |
Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); |
One piece of 45L air tanks | |
Brake air chamber | Six double chamber |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) | |
Tail lamp with turn signal, brake light & reflector,side lamp etc. | |
Electrical system | One set 6-core standard Cable. |
Painting | Sandblasting, rust prevention, two primer, two finish |
Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. |

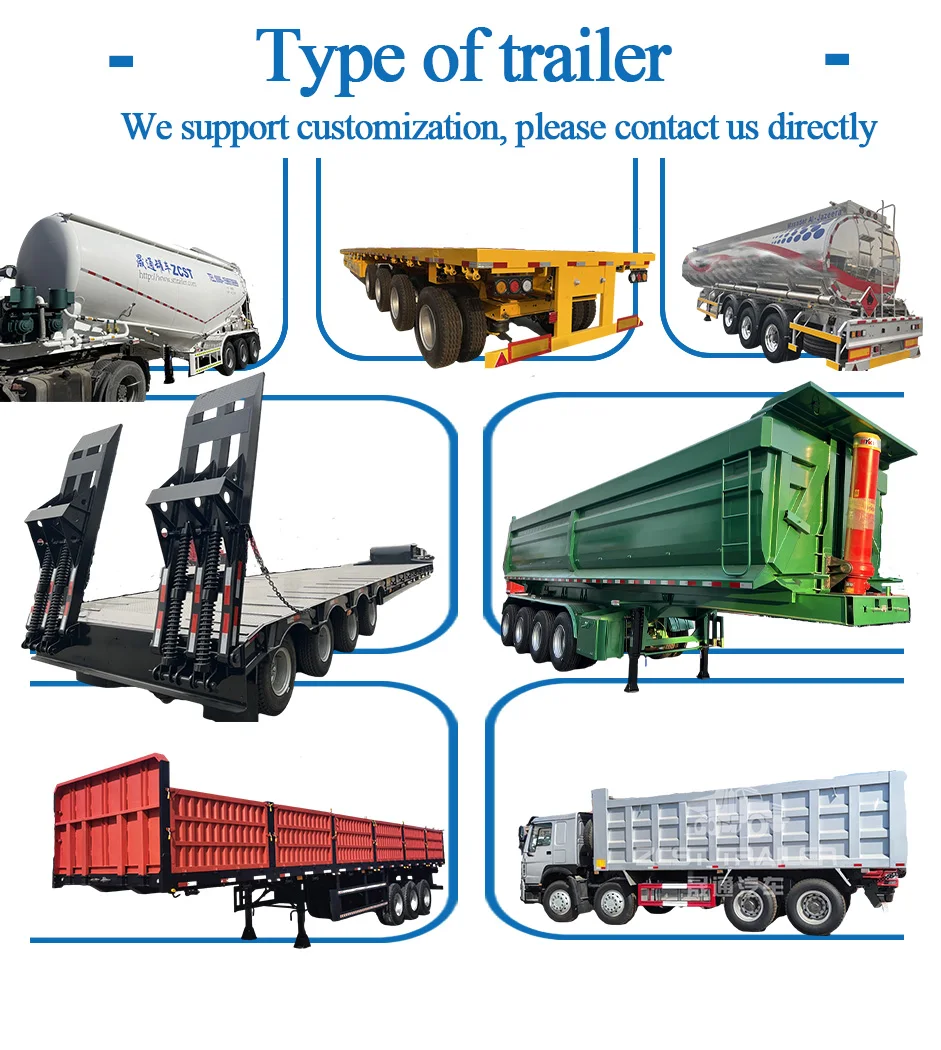

Type of trailer
Why Choose Us

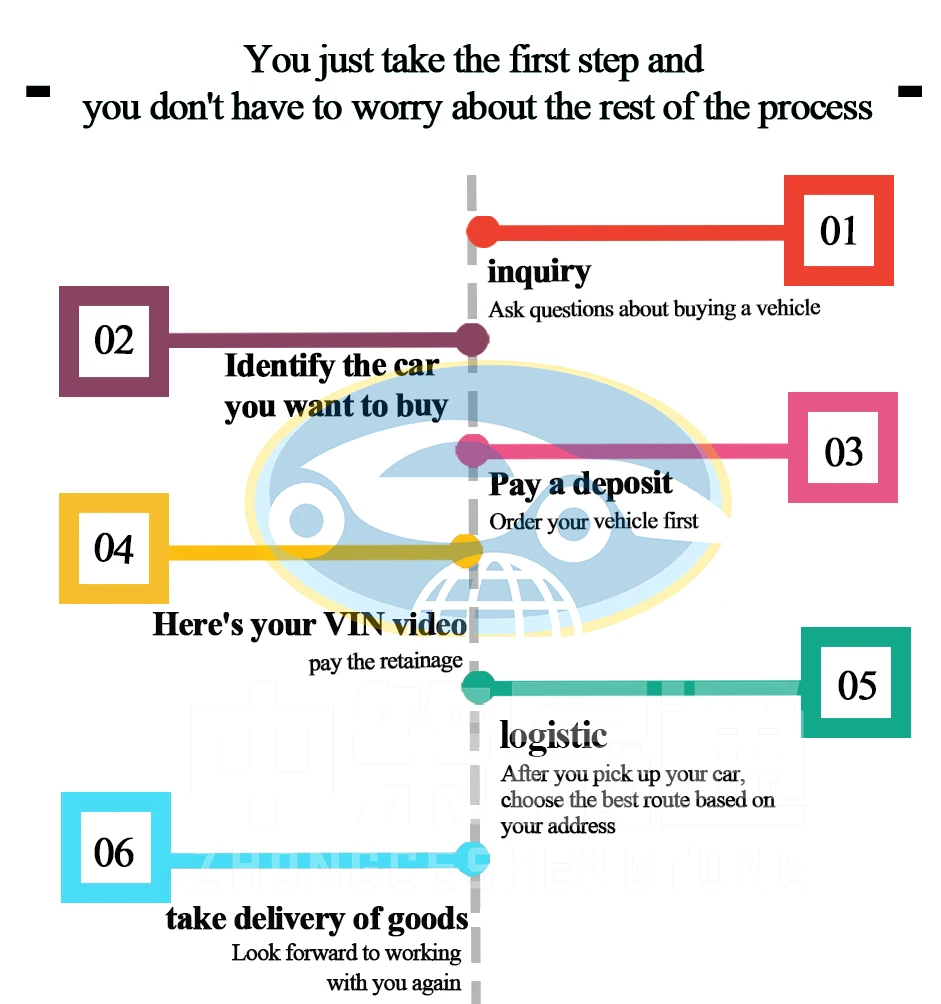

Trailer purchase process
How to find us
