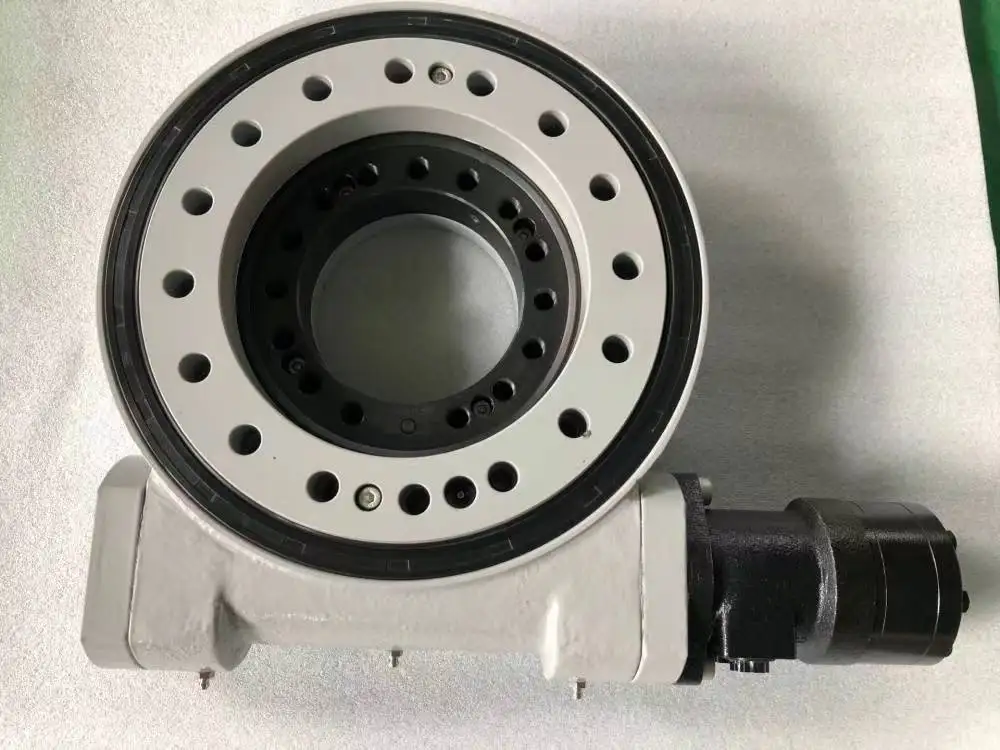

Worm Gear Slew Drive WEA5 WEA12 WEA25 Slewing Drive for Solar Panel Hydraulic Slew Drive
- Category: >>>
- Supplier: Luoyang Jiawei Bearing Manufacturing Co. Ltd.Luoyang Ltd.
Share on (1601241243592):
Product Overview
Description
Product Description
Worm gear slewing drive and worm structure is often used to transfer motion and power between two staggered shafts.Worm gear and worm in the middle plane is equivalent to gear and rack, worm and screw shape is similar.
Mechanism Characteristics:
1. Large transmission ratio can be obtained, which is more compact than the staggered helical gear mechanism.
2. The meshing surfaces of the two wheels are in line contact, and the bearing capacity is much higher than that of the staggered shaft helical gear mechanism.
3. Worm drive is equivalent to spiral drive, multi-tooth meshing drive, so the drive is stable and has little noise.
4. Self-locking.When the leading Angle of the worm is less than the equivalent friction Angle between the meshing gears, the mechanism has self-locking property, and can realize reverse self-locking, that is, only the worm drives the worm, but not by the worm wheel drives the worm.Such as in the lifting of the use of self-locking worm mechanism, its reverse self-locking can play a role in safety protection.
Mechanism Characteristics:
1. Large transmission ratio can be obtained, which is more compact than the staggered helical gear mechanism.
2. The meshing surfaces of the two wheels are in line contact, and the bearing capacity is much higher than that of the staggered shaft helical gear mechanism.
3. Worm drive is equivalent to spiral drive, multi-tooth meshing drive, so the drive is stable and has little noise.
4. Self-locking.When the leading Angle of the worm is less than the equivalent friction Angle between the meshing gears, the mechanism has self-locking property, and can realize reverse self-locking, that is, only the worm drives the worm, but not by the worm wheel drives the worm.Such as in the lifting of the use of self-locking worm mechanism, its reverse self-locking can play a role in safety protection.

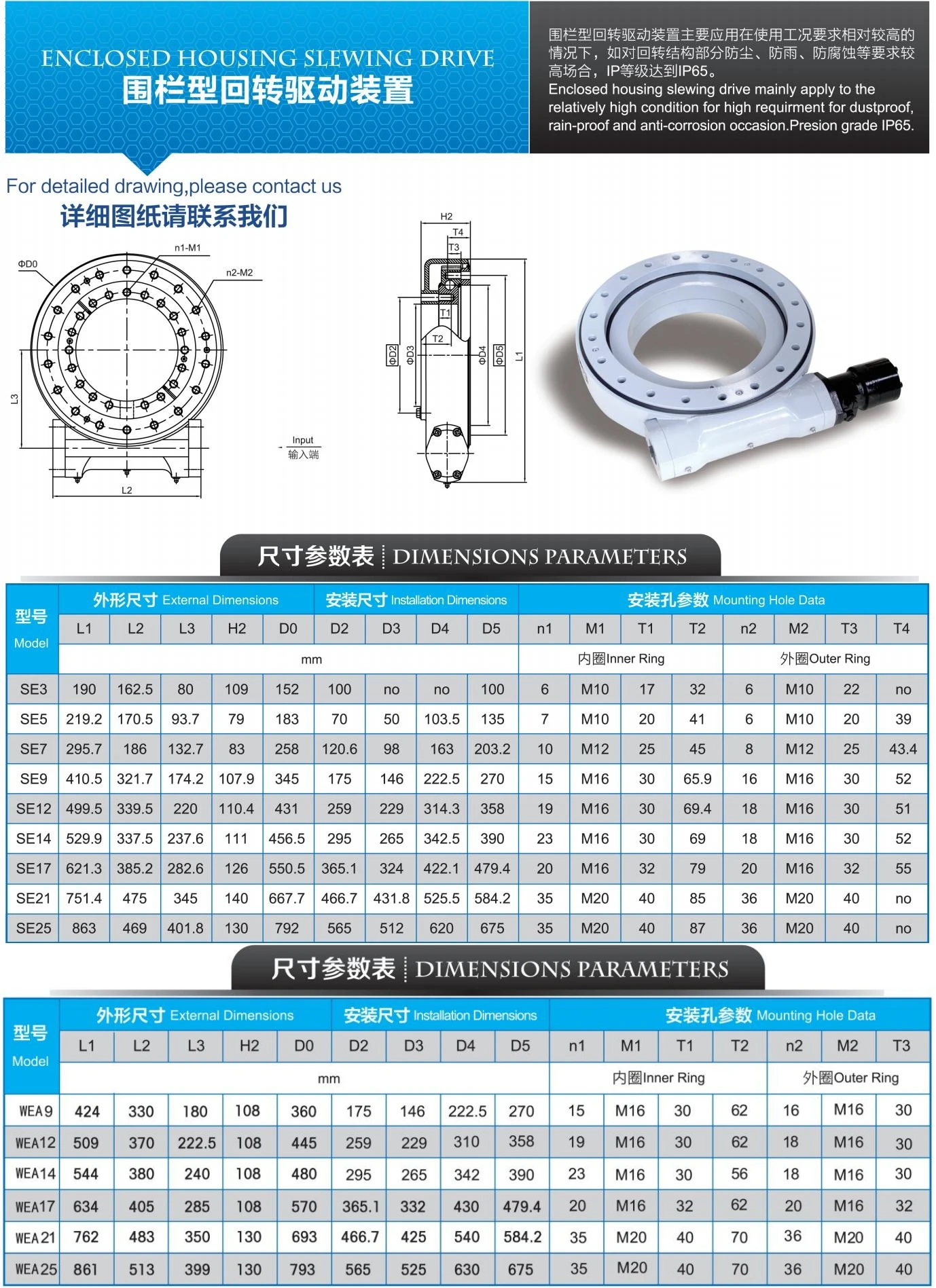

Model | SDE, SE, WEA, VH, SP, SI Series |
Brand | LYJW |
Type | Single/Dual Axis |
IP Class | IP65 |

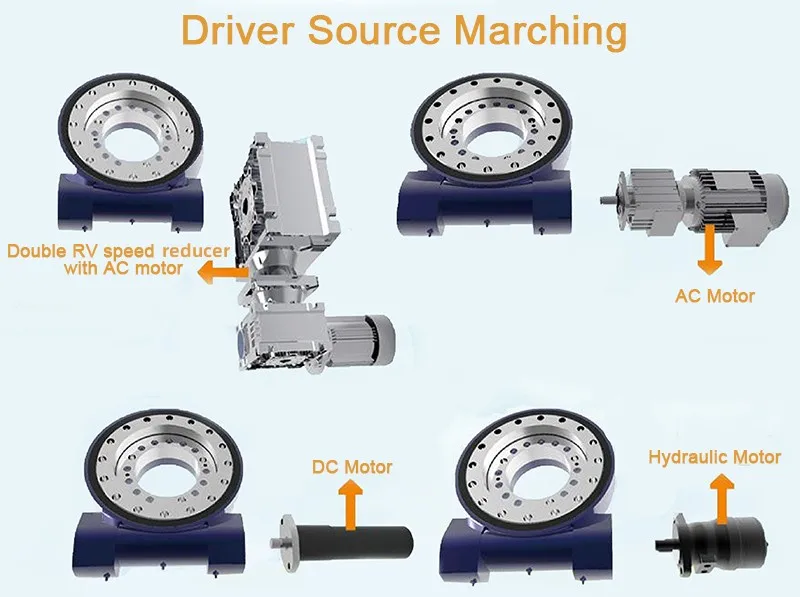

Motor | No motor Hydraulic motor DC motor AC motor |
Application | -Solar energy, Construction equipment, Radar, Robot etc. |
Main Products

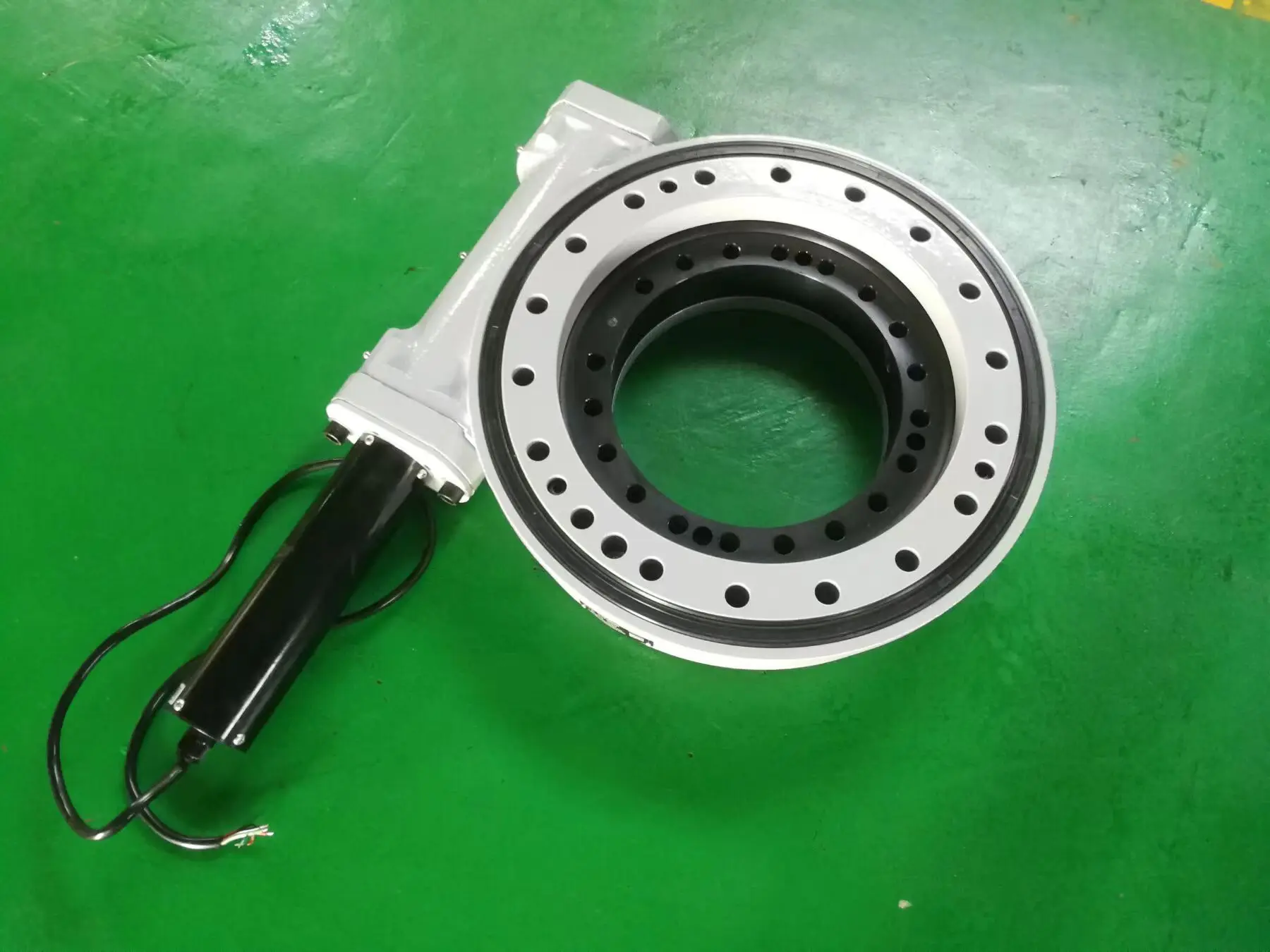

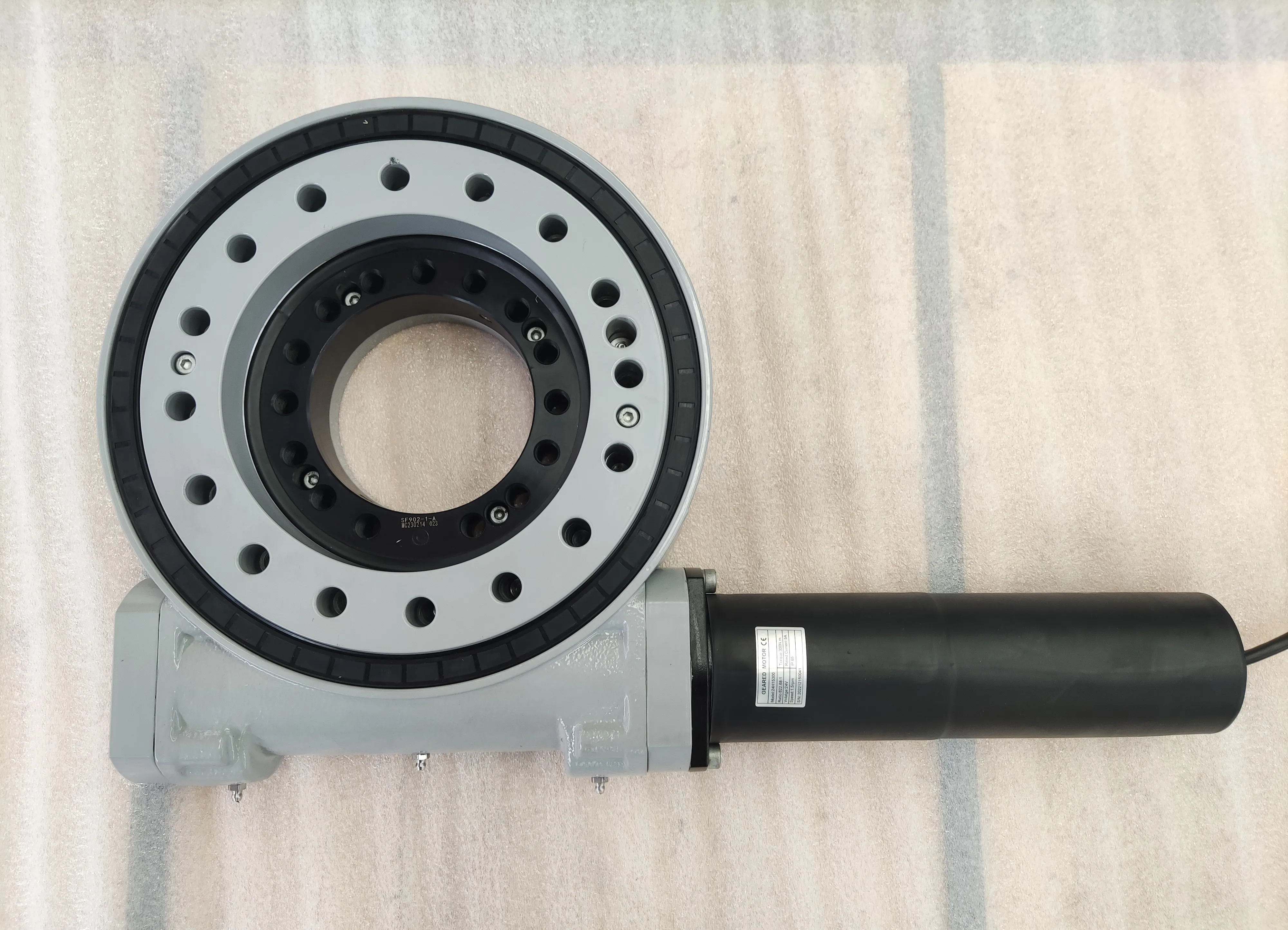

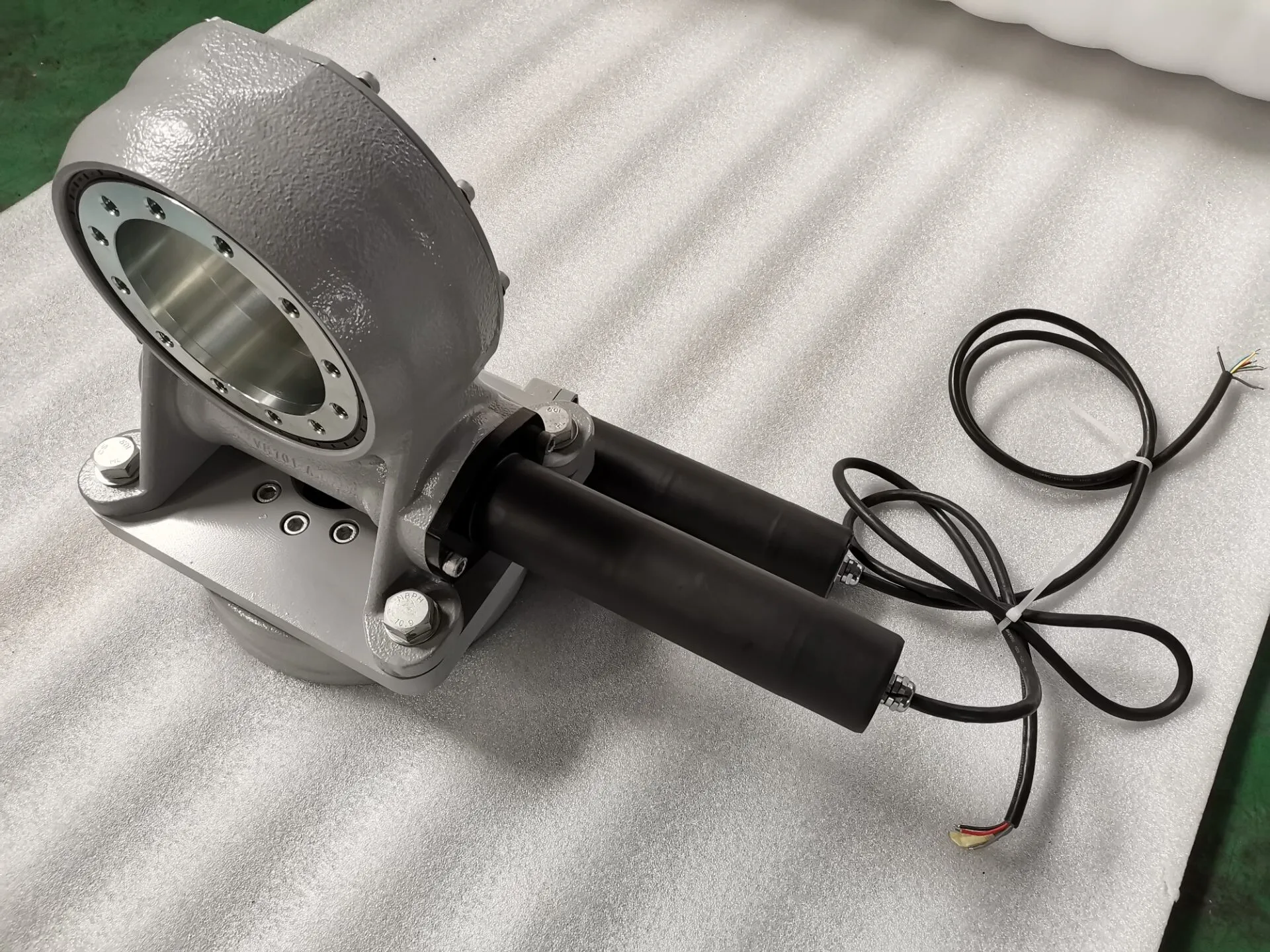

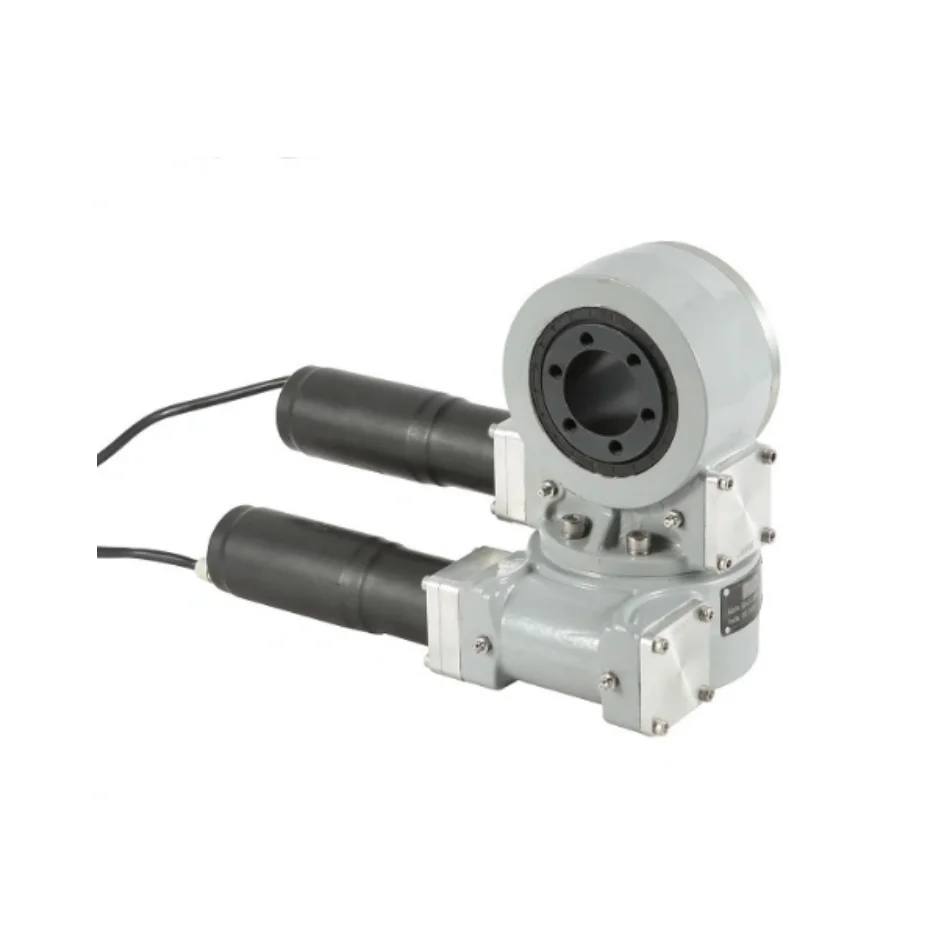

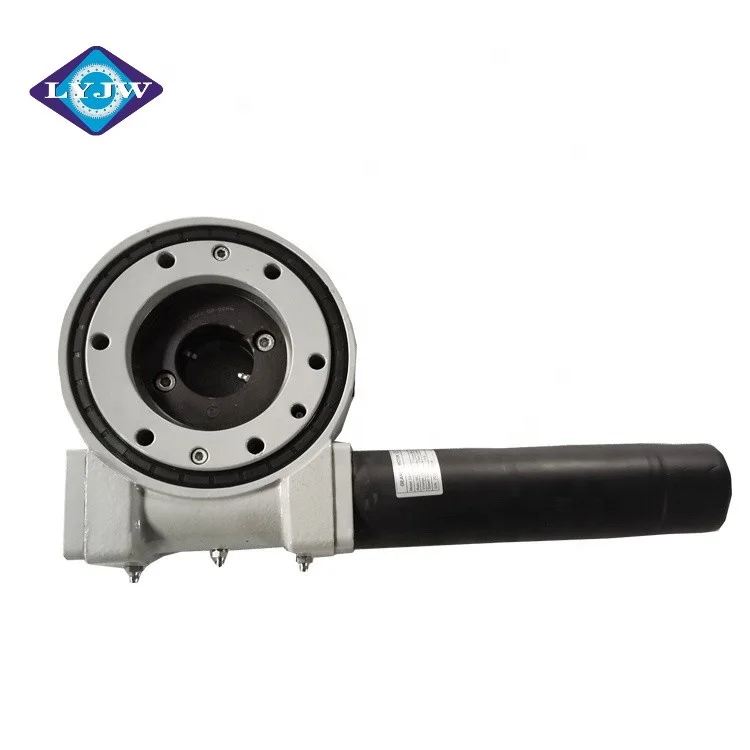

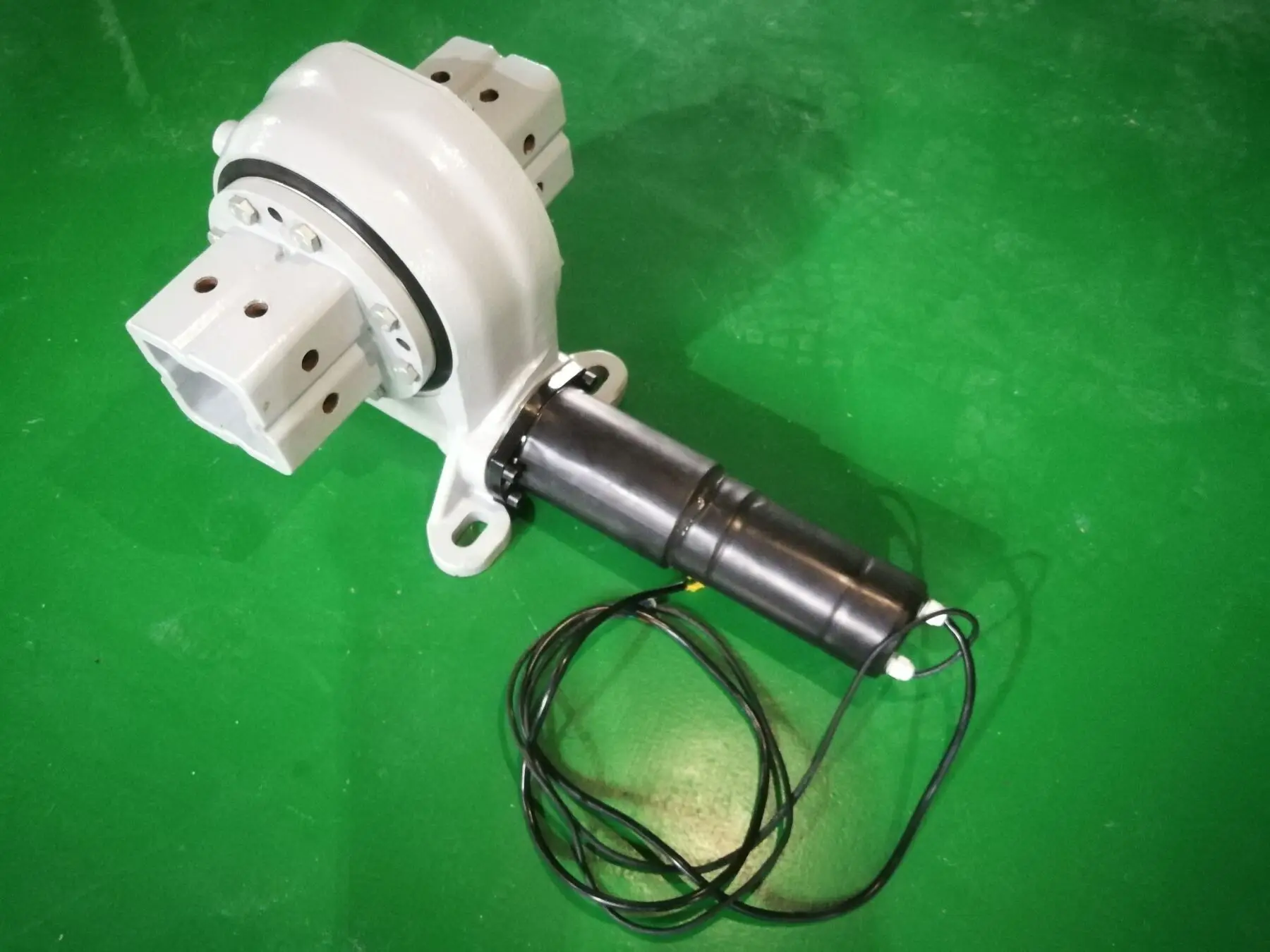

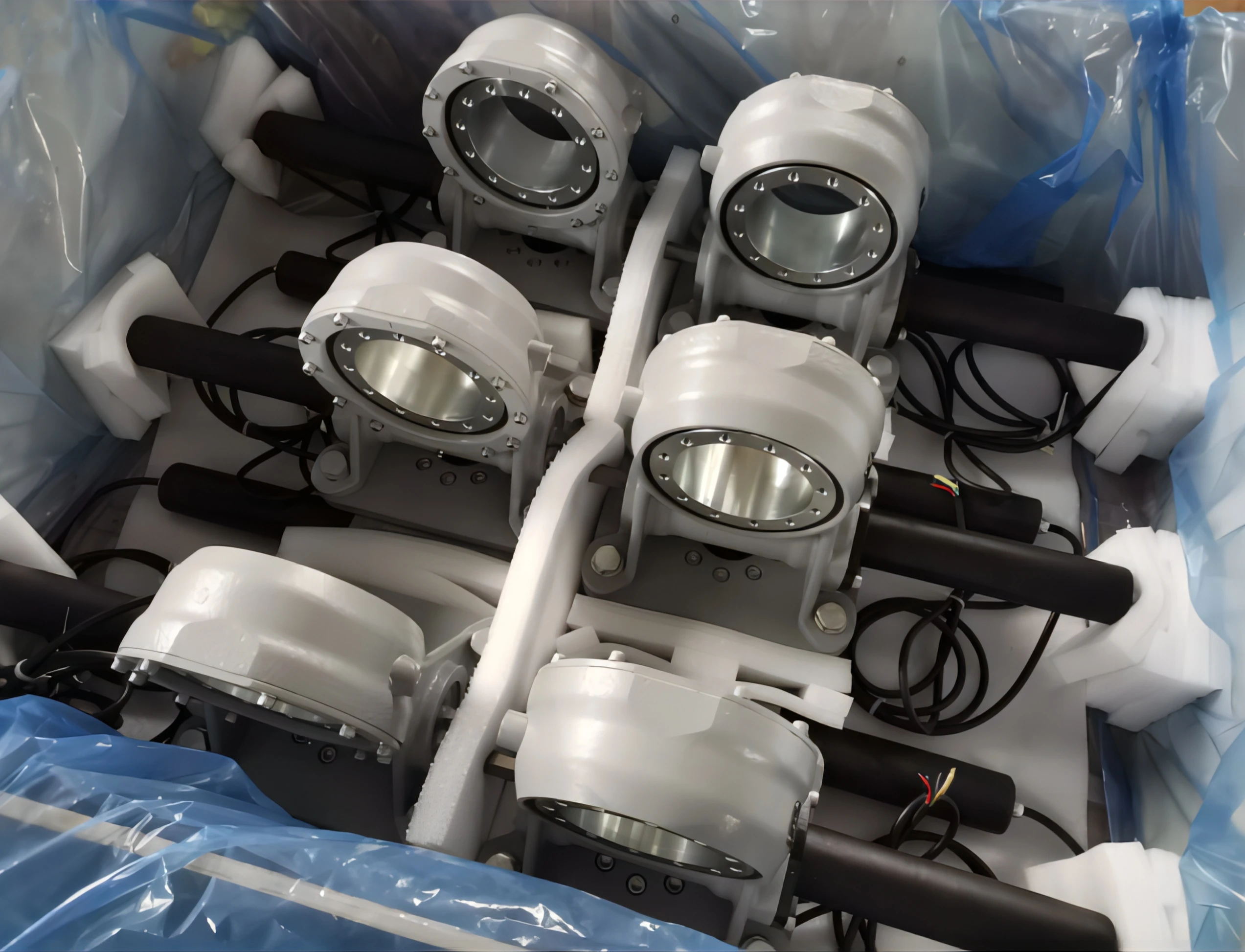

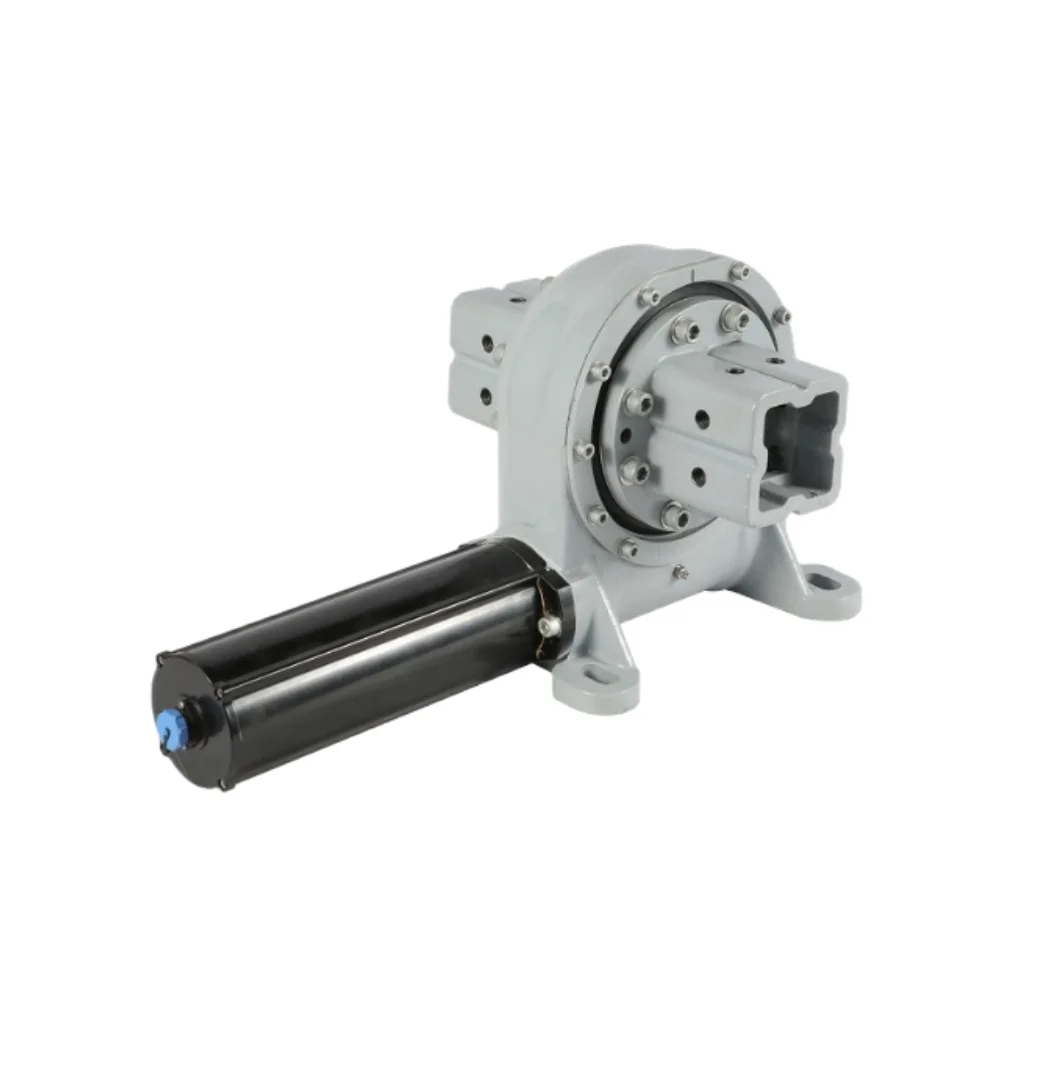

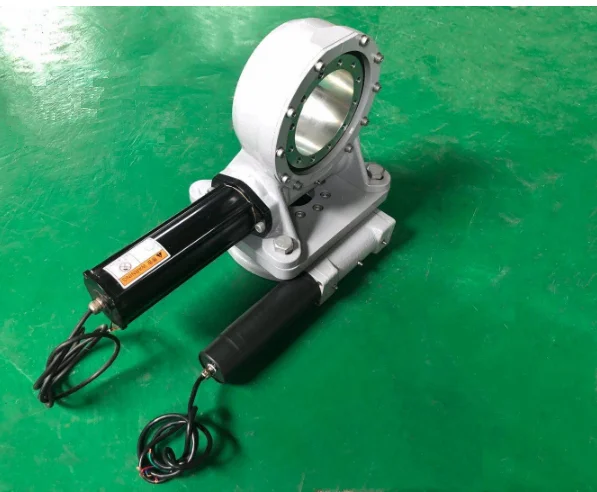

SE VE Series Single Axis Worm Drive and Dual Axis Slewing Drive With 12V 24V DC Motor For Solar Panel/Tracking System

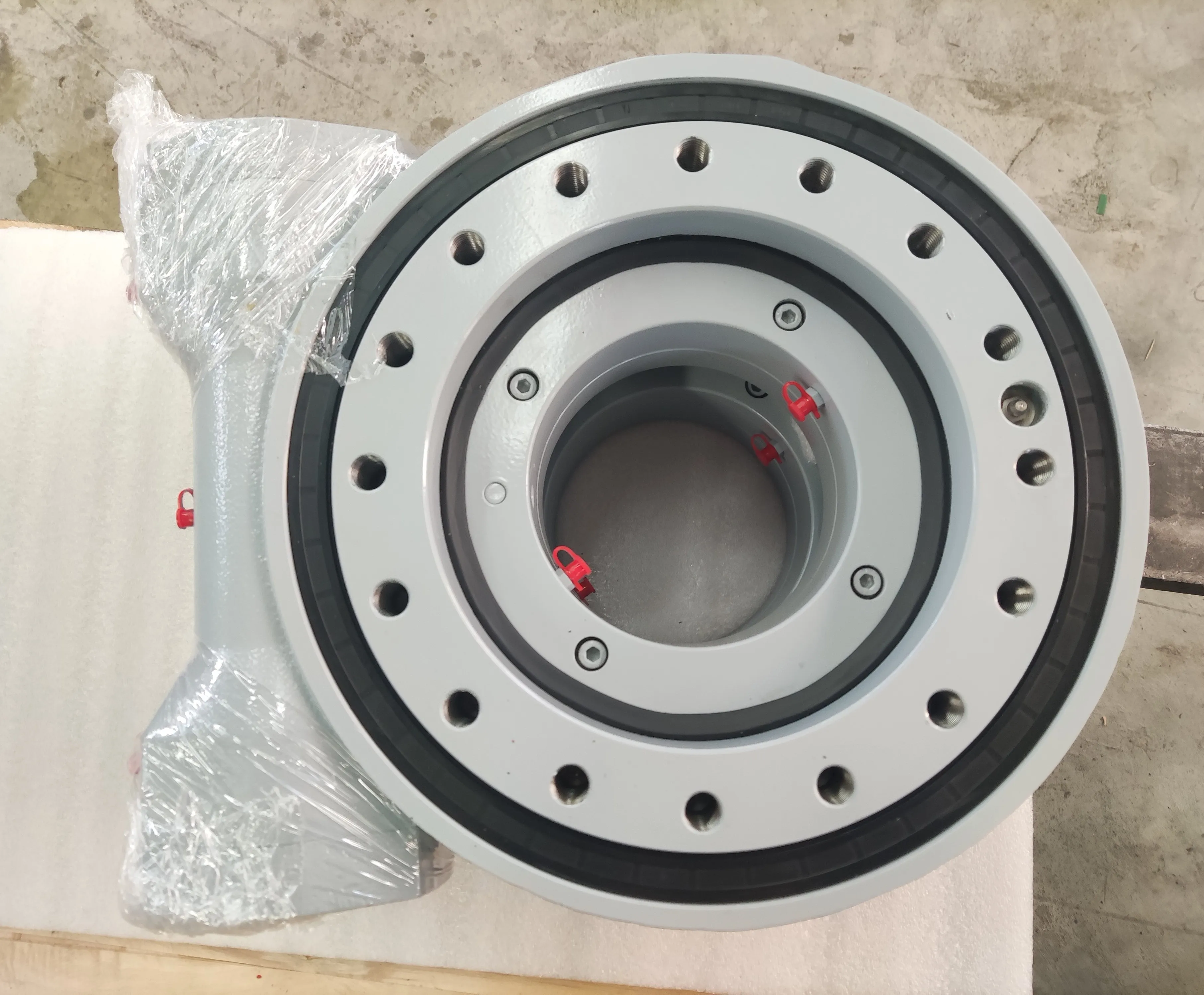

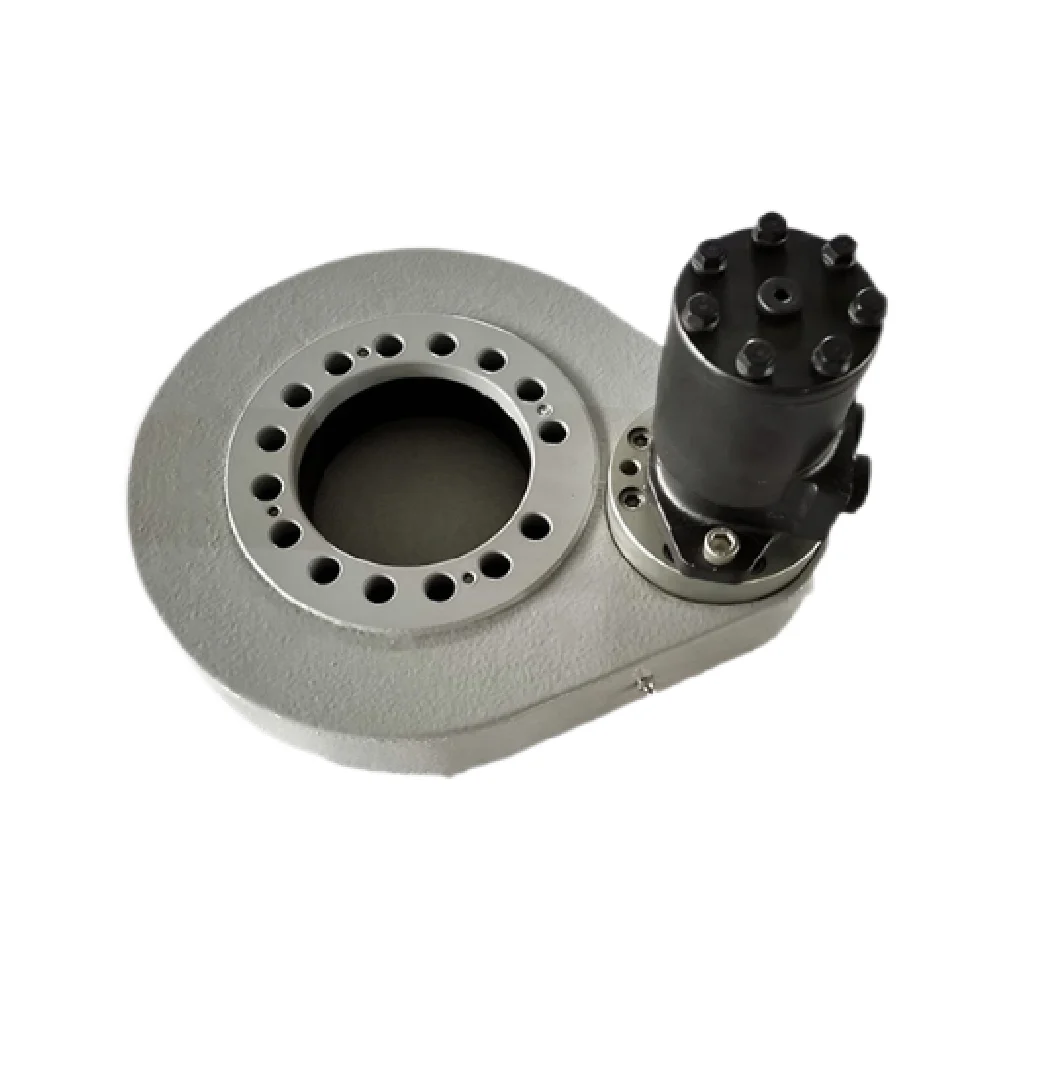

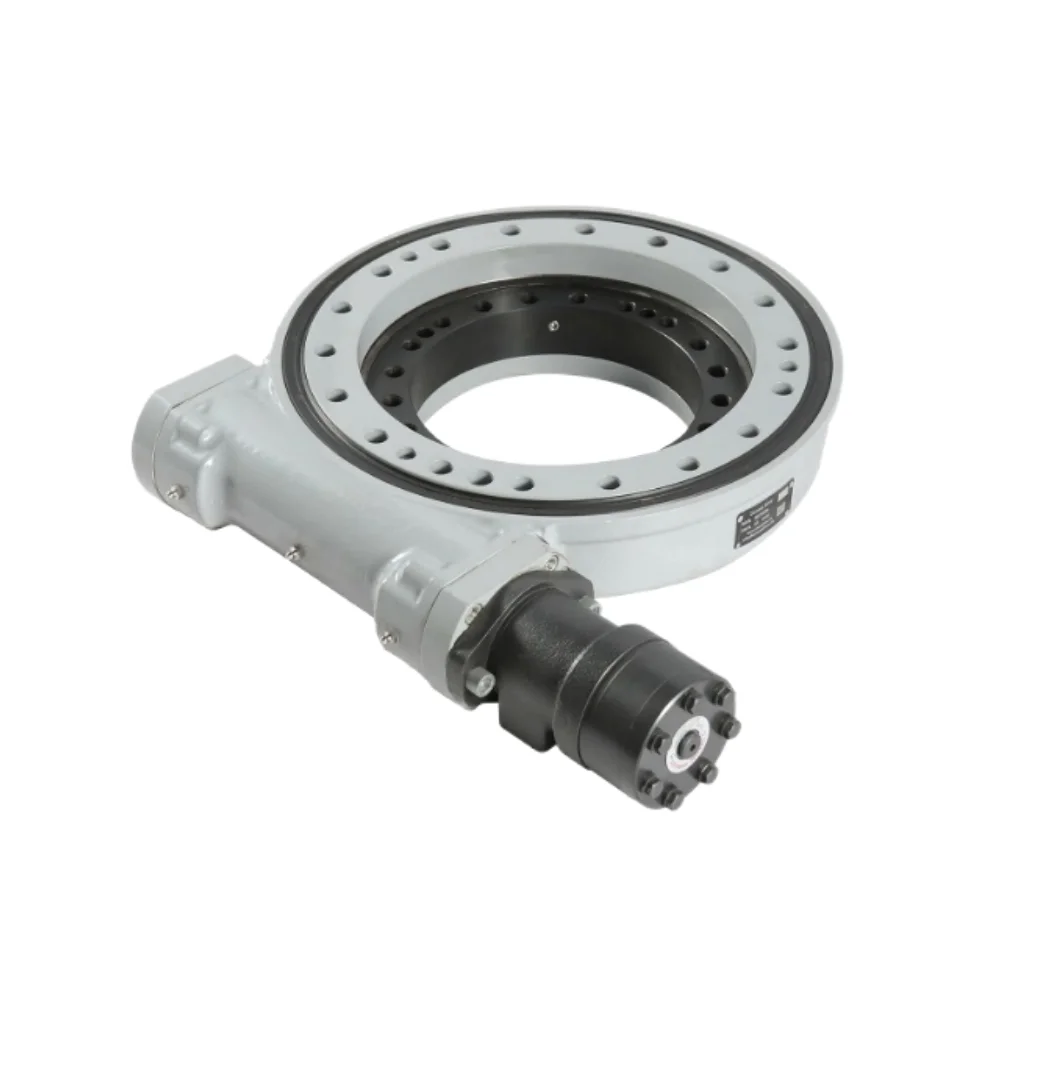

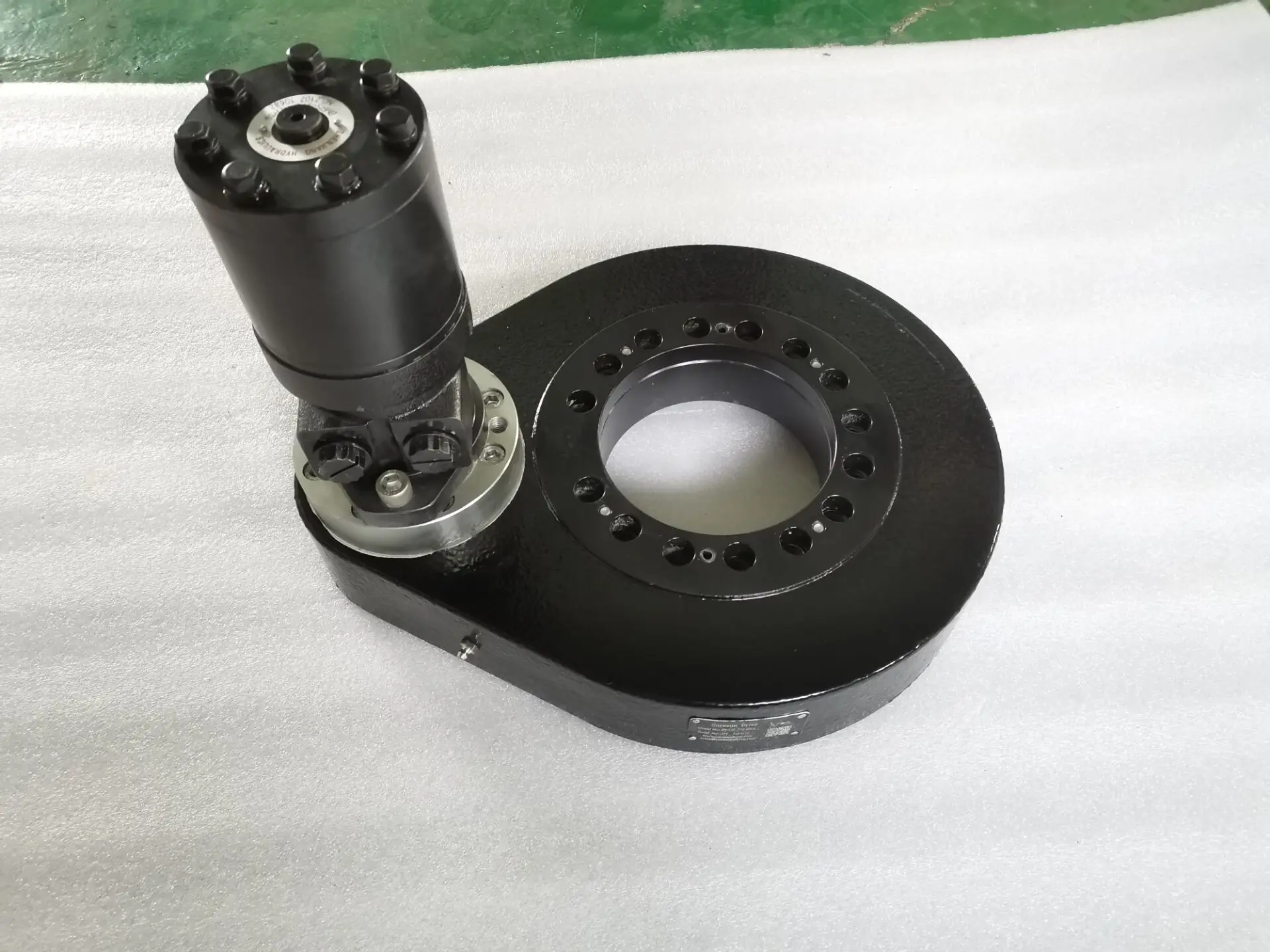

WEA SP Series Single And Double Worm Gear/Slew Drive With Hydraulic Motor For Industrial Machinery
Other Non-standard And Customized Slewing Drive As Per Client's Requirement
Why Choose Our Slewing Drive
1. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2015 and GB/T19001-2008. 2. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.
3. With abundant raw materials and high production efficiency, the company can supply products to customers as quickly as possible and shorten the time for customers to wait for products.
4. Our internal quality control includes first inspection, mutual inspection, in-process quality control and sampling inspection to ensure product quality. The company has complete testing equipment and advanced testing method.
5. Strong after-sales service team, timely solve customer problems, to provide customers with a variety of services.
6. ISO and CE certificate for quality guarantee
Our Services & Strength
1.Raw material from reliable suppliers;
2.Production process is in strict accordance with ISO9001 Quality Management System .
3.Strict in-process quality control and 100% finished product inspection before delivery;
4.Third party product inspections are acceptable upon customer request.
5.Adoption of standardized product design process and APQP, PPAP, FEMA for application analysis

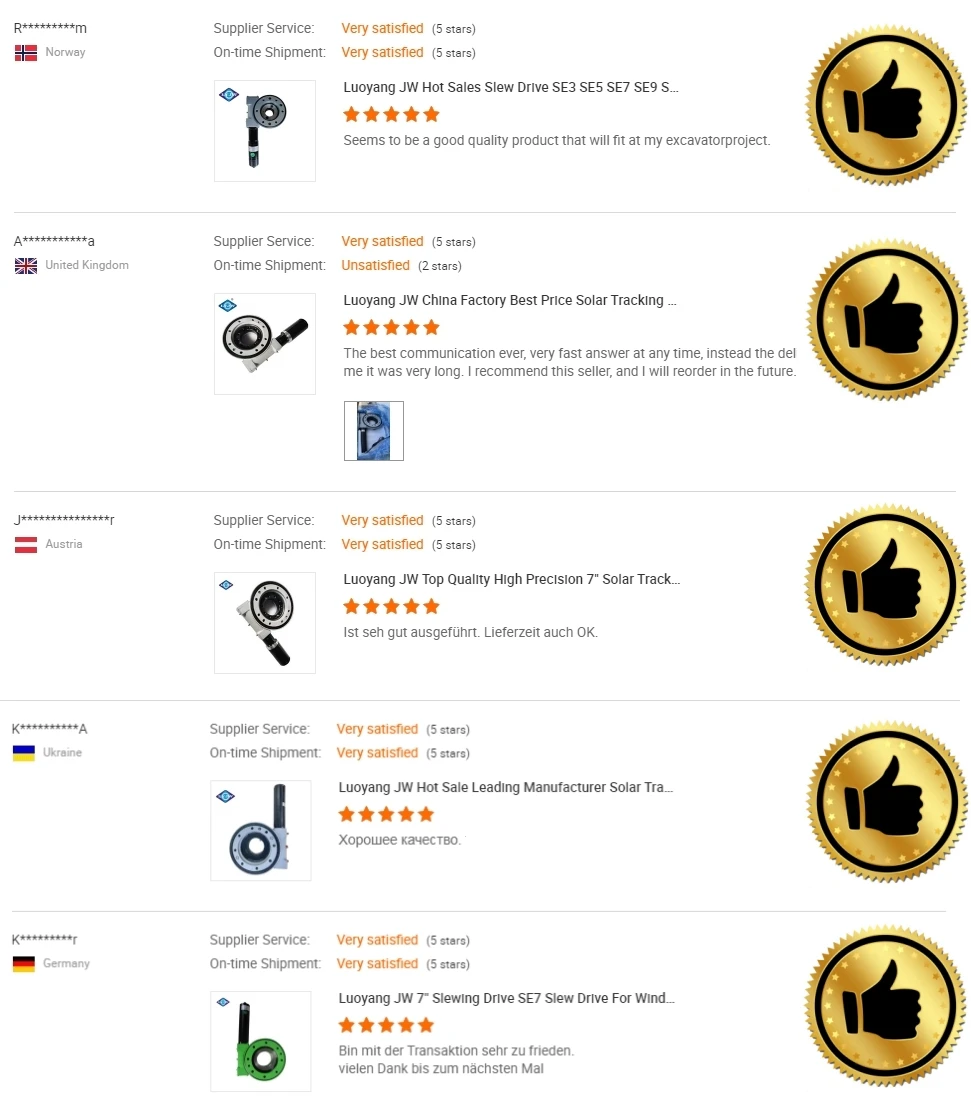

Customer Comment

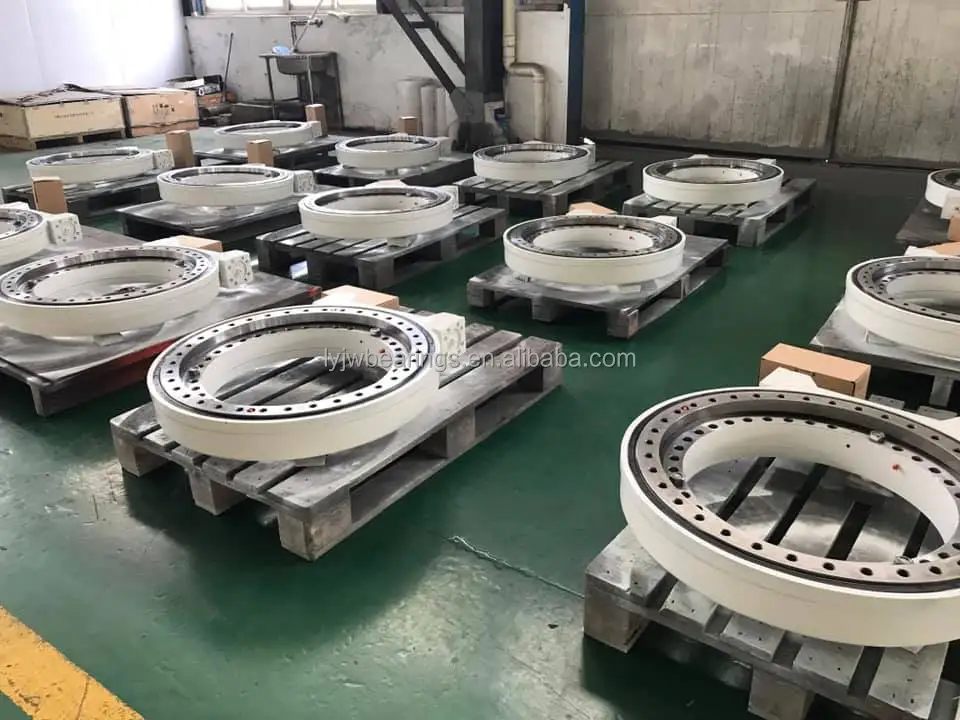

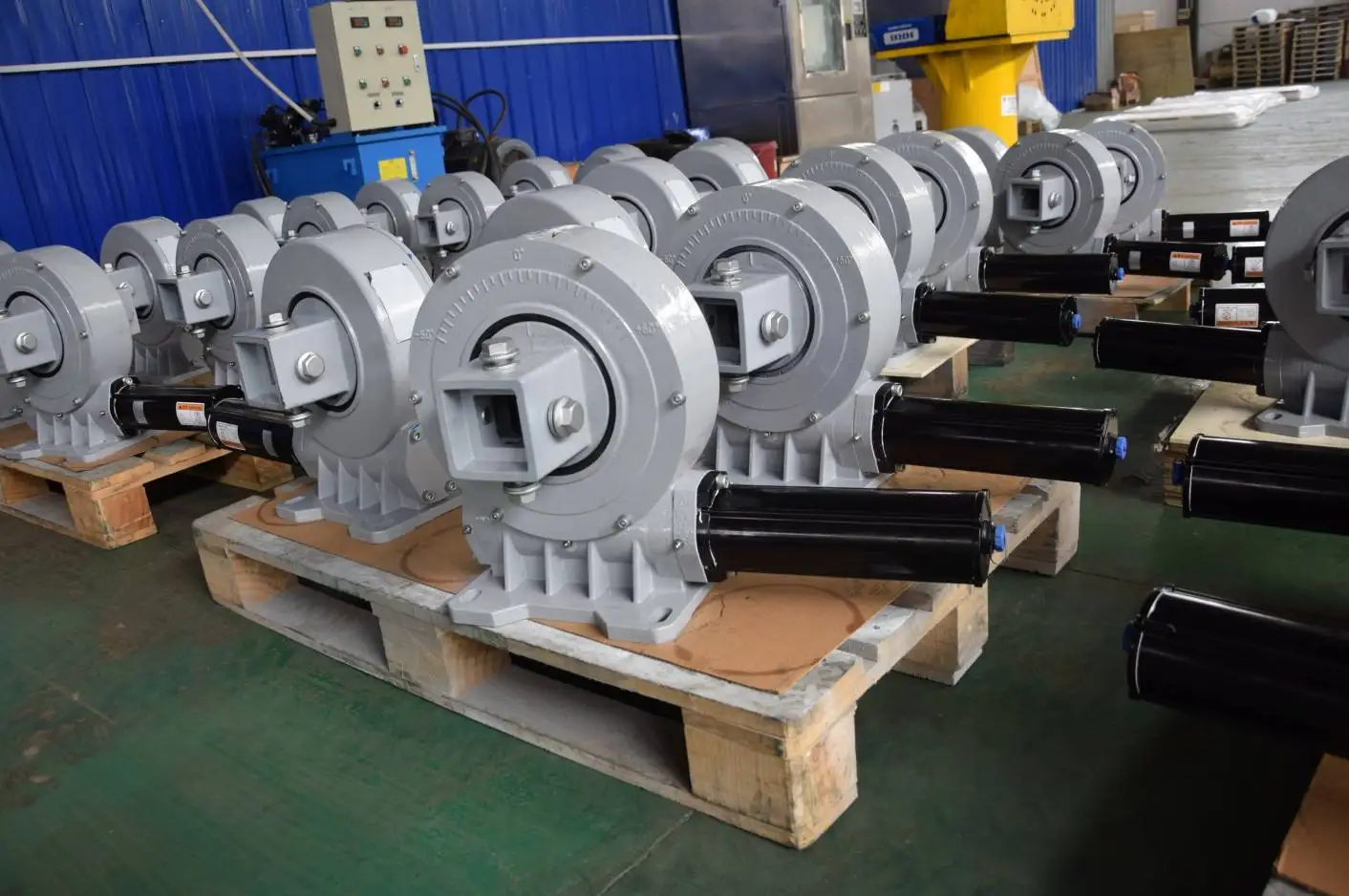

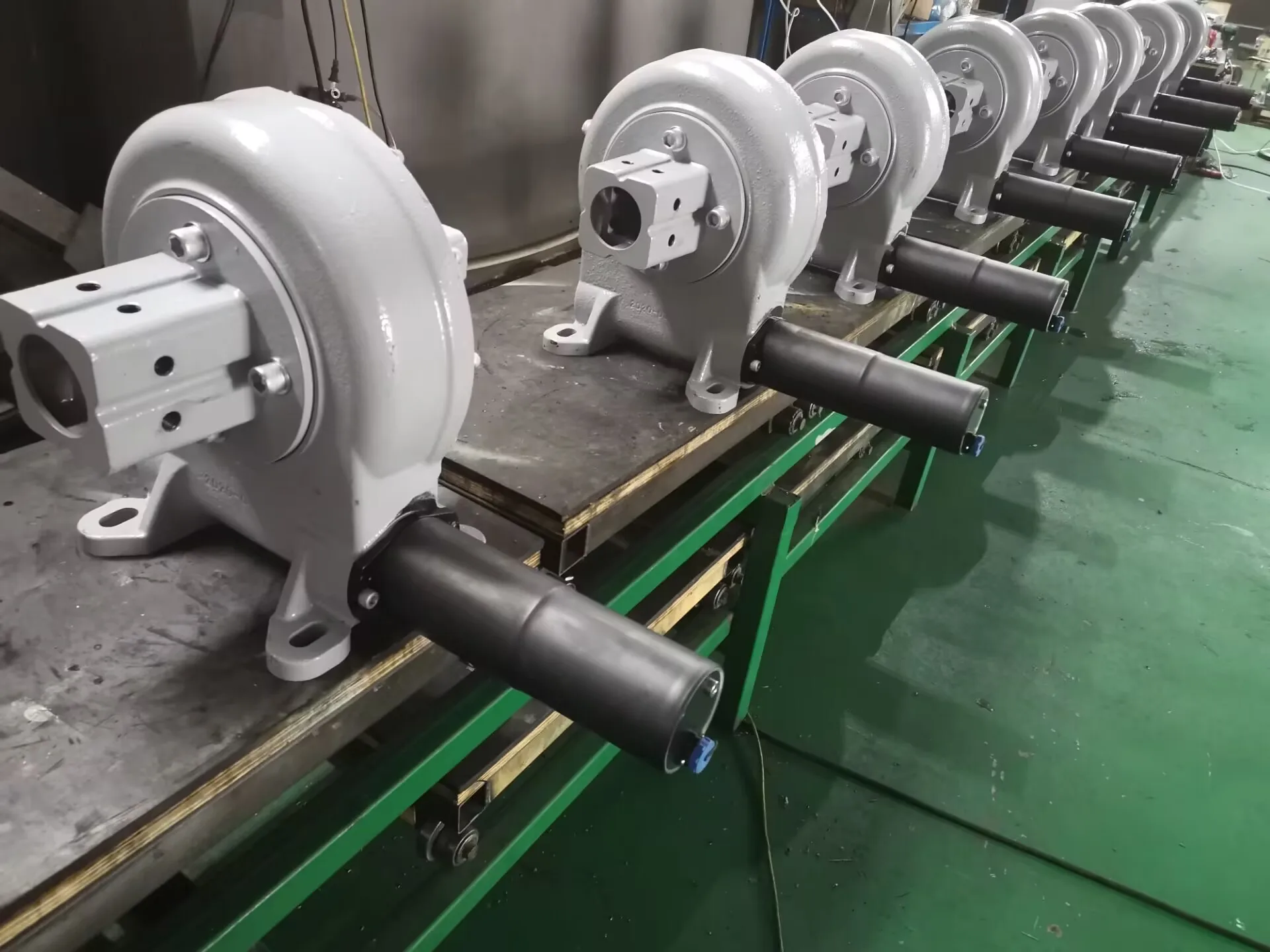

Manufacturing Technique

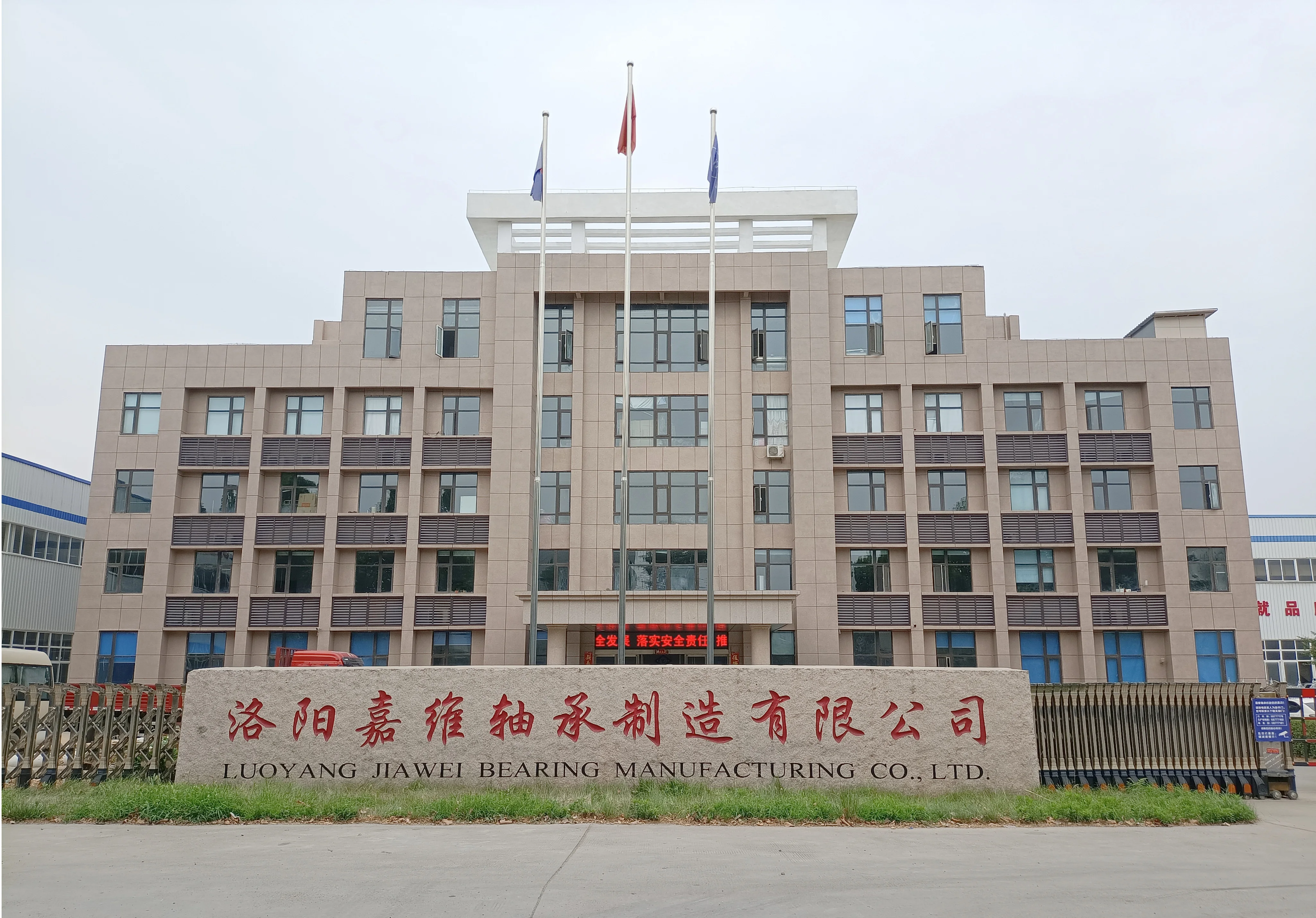

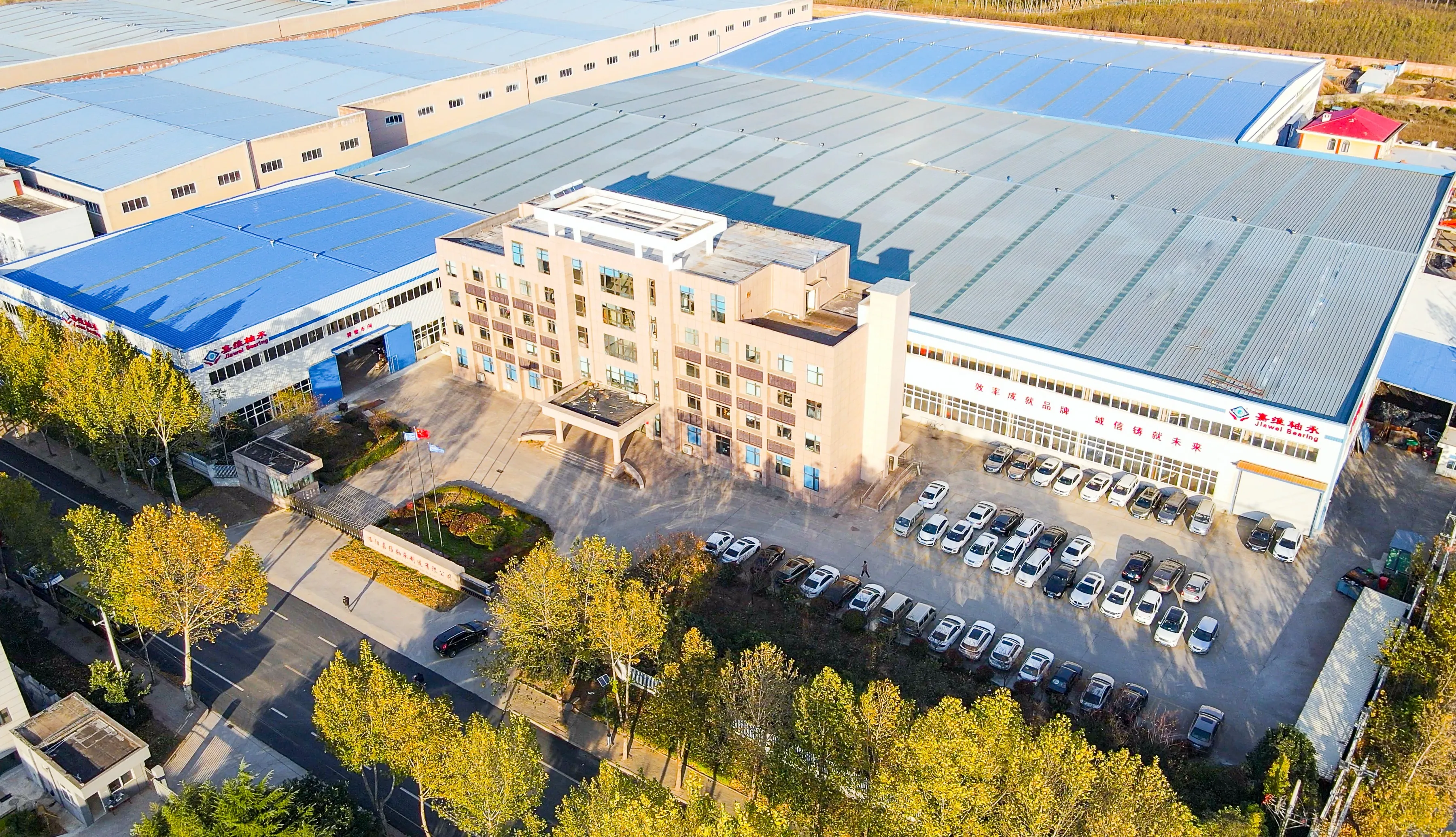

Company Profile
Established in 1998, Luoyang Jiawei Bearing Manufacturing Co., Ltd. (LYJW) is a professional manufacturer of slewing bearings and we can design and manufacture single-row ball slewing ring bearing, double-row ball slewing ring bearing, three-row roller slewing bearing, ball-roller combination slewing ring, crossed roller bearing, crossed tapered roller bearing, slew drives and custom bearings. By virtue of expertise team, advanced manufacturing technologies and strict quality management system, LYJW takes the lead in the R&D of slewing bearings and custom bearings, which are designed with reasonable construction, light weight, good load carrying capacity and high versatility. The bearings’ diameters range from 200 to 15000mm and the accuracy class covers P0,P6,P5,P4, P2 . Our slewing bearings, slew drives, precision bearings and custom bearings are widely used in construction,engineering,mining, chemical, wind turbine, medical equipment, and many other industries.In 2008,
LYJW passed the ISO 9001-2015 Quality Management System Certification and actively explored overseas markets in that year, and exported our slewing ring bearings to Europe, America, Asia and many other countries and regions. In 2015, we passed CCS Certification and ABS Certification. Now, LYJW can manufacture CCS, ABS, BV, GL and other certified products.
Product Application
Slewing drives can be widely used for solar tracking system, (PV, CPV, HCPV and heliostat) and regular vehicles, such as man lifts, truck cranes, as well as modular vehicles.wind turbine and satellite dish. Our products are designed for long life working in hard environmental conditions.There are more than 10 different sizes, starting from 3' size to 37" inch size, among them are SE3 SE5 SE7 SE9 SE12 SE14 SE17 SE21 SE25 SE32/WEA7 WEA9 WEA12 WEA14 WEA17 WEA19 WEA21 WEA25 WEA37
Certifications
Contact Us
24 Hours Hot Sale Line | ||
Contact People | Darline | |
Wechat/Whatsapp | 0086 15225511839 | |
E-Mail Id | lyjw07@jw-bearing.com | |
