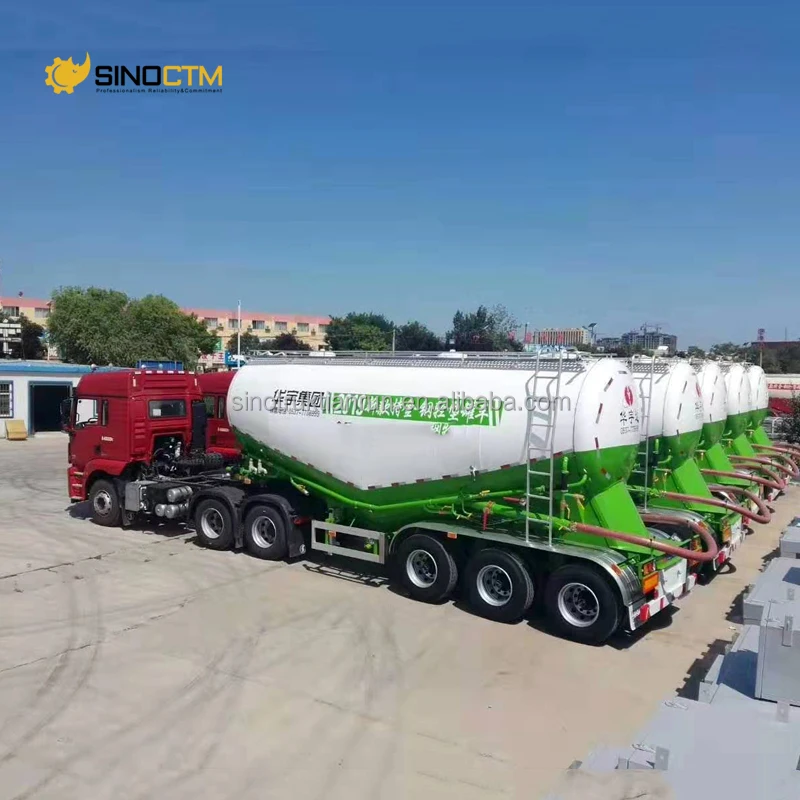

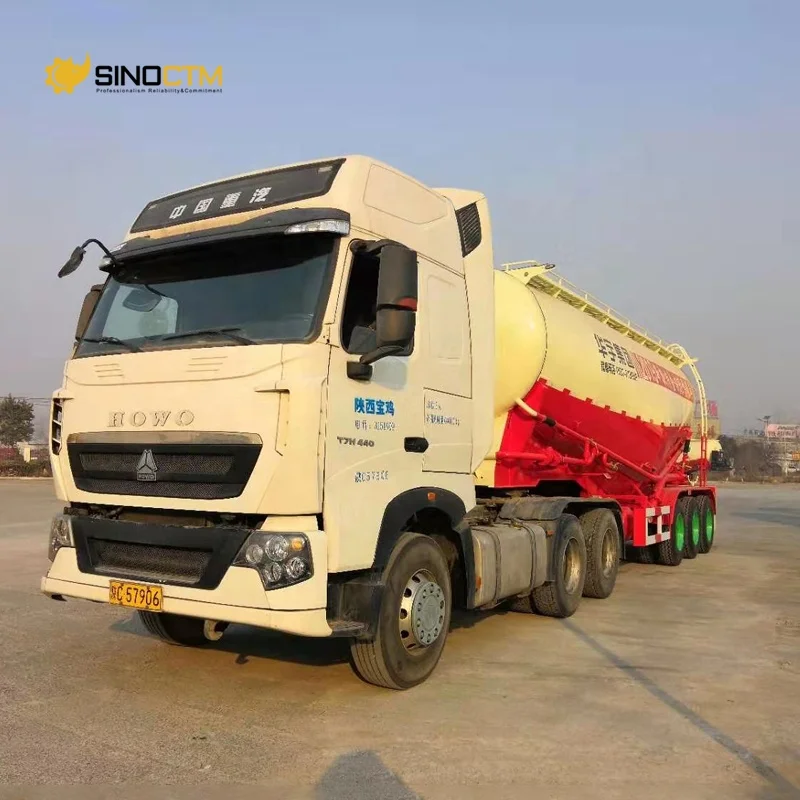

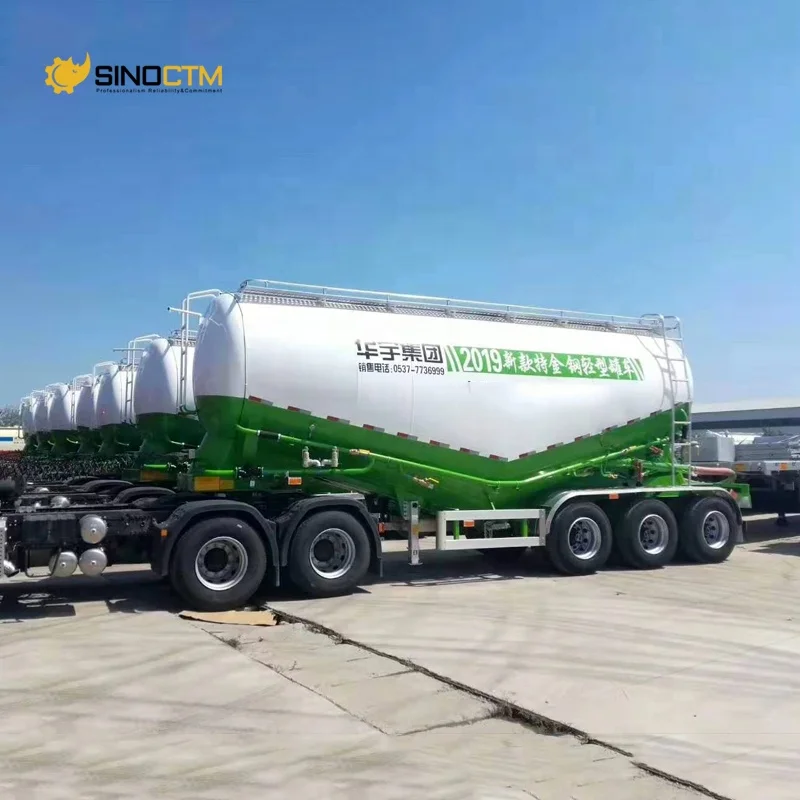

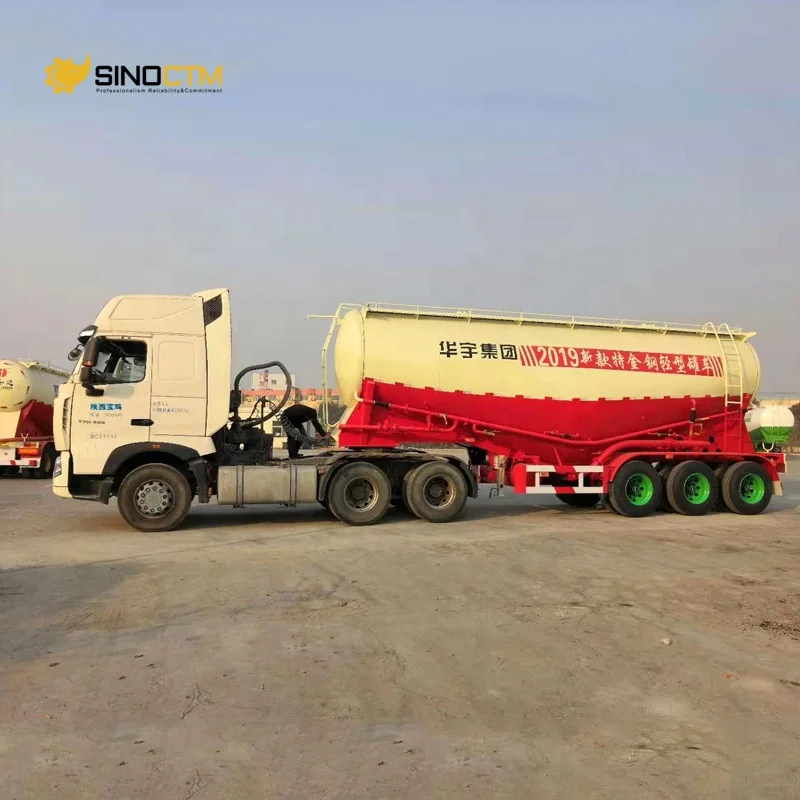

High quality 3 4 axle 40 tons 60 tons bulk cement tanker 45cbm cement bulk carrier transport cement bulk tank trailer
- Category: >>>
- Supplier: Jinan Tian Run Machinery International Co. Ltd
Share on (1601241683362):
Product Overview
Description
Product Description
Our Main Products Heavy Trucks and Construction Machinery. including Head tractor trucks(Prime movers), Dump
trucks(Tippers),Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks,Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and Excavator, Motor grader,Wheel loader, Roller loader.
trucks(Tippers),Concrete mixer trucks, Bulk cement trucks, Cargo trucks, Water/Oil tank trucks, Sprinkling trucks, Garbage trucks, Log carrier trucks, All-wheel drive trucks, Fire-fighting trucks,Refrigerator trucks, Crane Trucks, Concrete Pump Trucks, Semi-trailers, tank trailers and Excavator, Motor grader,Wheel loader, Roller loader.
Specification

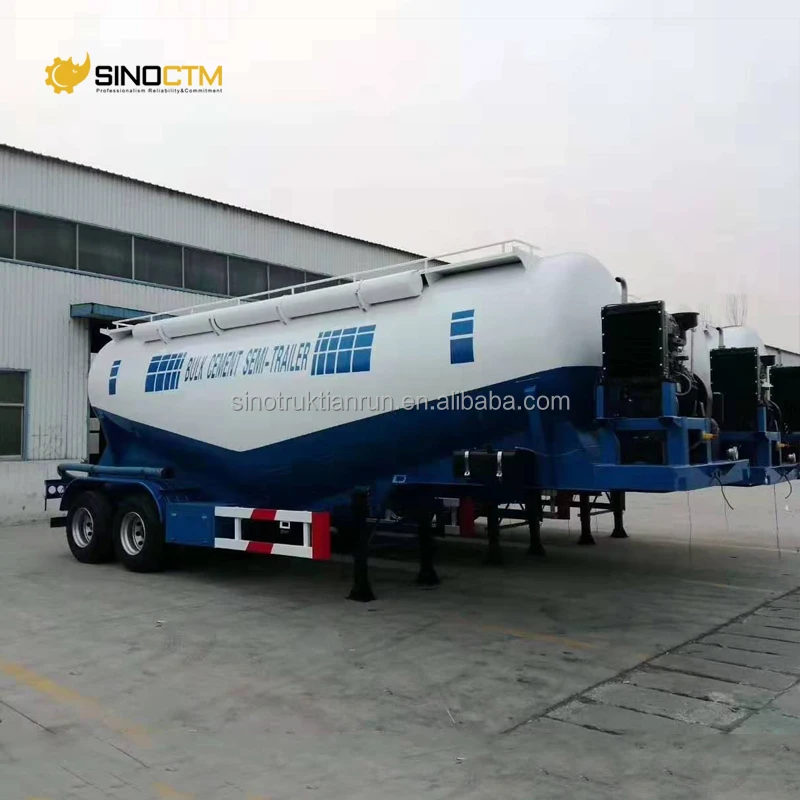

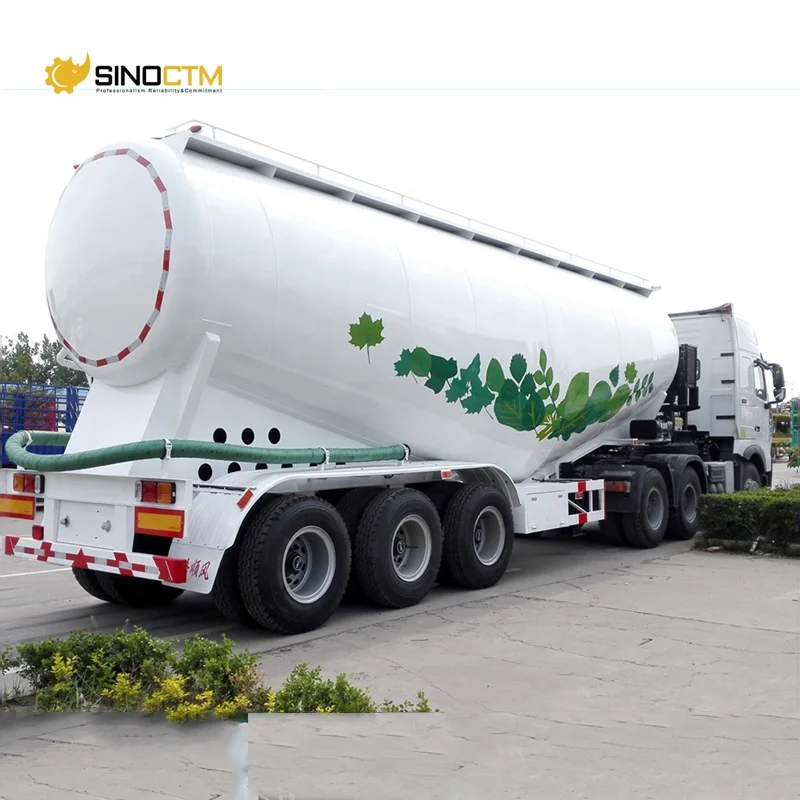

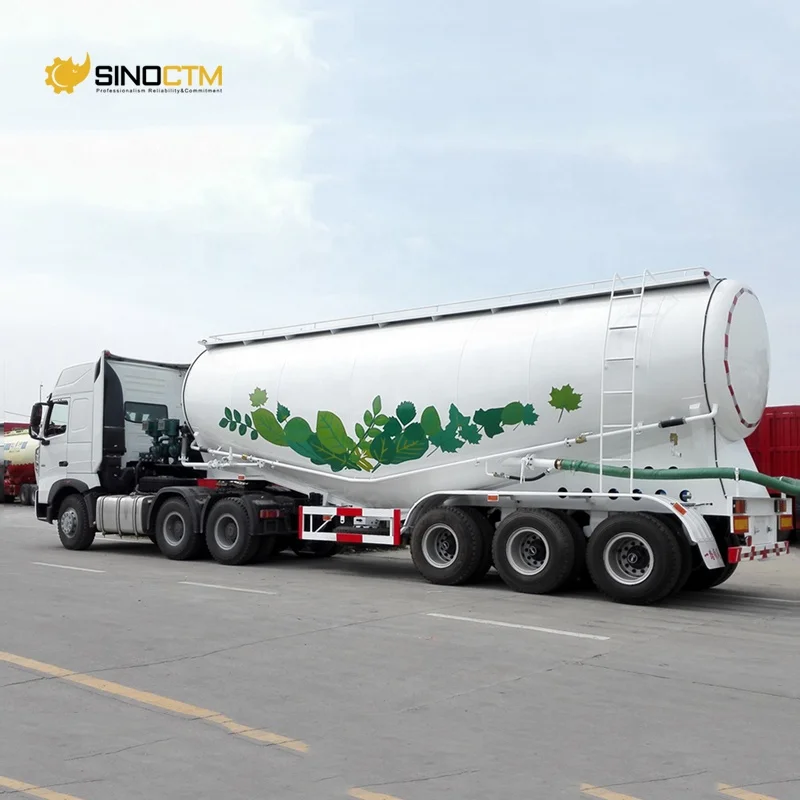

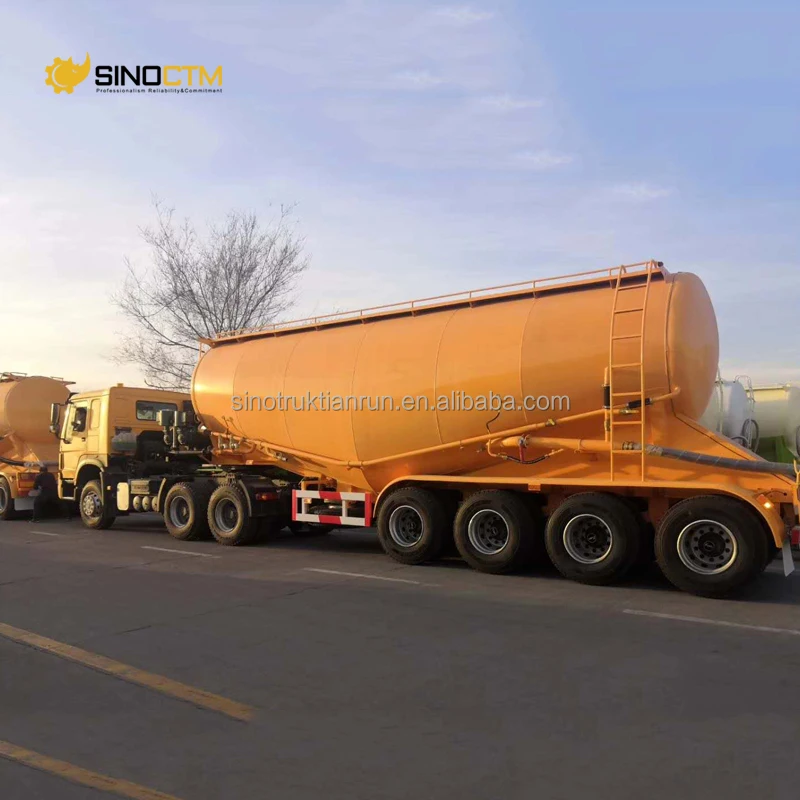

30CBM BULK CEMENT SEMI TRAILER | ||
Tare weight | 8000kg | |
Size | 10000*2500*4000mm | |
Volume | 30cbm | |
Loading Capacity | The load depends on the density | |
Tank body | T700 3MM | |
End plate | T700 3MM ball shape | |
Axle | 13ton *3 axles | |
Suspension | Mechanical suspension American type | |
Leaf spring | Leaf spring 10pcs*90mm*13mm | |
Manhole cover | 500mm manhole cover 2 sets | |
Tire | 12R22.5 *12units | |
Wheel rim | 9.0-22.5 *12pcs | |
Discharge valve | 4" disc valve | |
Discharge pipe | 4" seamless steel tube | |
Outlet pipe | 4" rubber hose. 6meters | |
Kingpin | JOST brand 2"/3.5" bolt-in king pin | |
Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear | |
Engine | WEICHAI brand model: 4102 | |
Air compressor | 37 KW, 0.2Mpa. 1000r/Min | |
Compartment | 1UNITS | |
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks | |
ABS | Optional | |
Air-charging system | 2" main hole.2" check valve .1.5" safe valve.0.4Mpa.gauge | |
Quadratic blow | 1" diameter check valve | |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint | |
Accessories | One standard tool box ,one spare tire carrier, one crank ,one shaft head wrench, | |
Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity. | |
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice | ||
Details Images

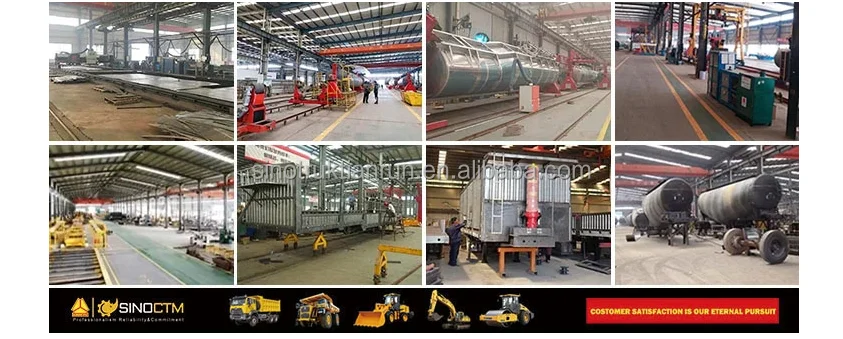

Advanced technology: Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.
Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.
Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.
Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.
Tool Box: Large capacity water-proof detachable tool box.
Chassis: To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.
Axle: High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.
Suspension: High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.
Tool Box: Large capacity water-proof detachable tool box.
Our Advantages
1 Factory price, more competitive than agent price.2 Quality: With SINOTRUK group inspection system, a series inspections are well
done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and
all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
done before the exportation.
3 Warranty: One year or 100 000k which comes to the first for the engine, gear box, and axles.
4 After-sales: Professional after-sales team sovle your difficult or special questions within 3working days or 5 working days, and
all spare parts are available for your urgent use.
5 Transportation: Professional logistics team work with international shipping company for your truck shipment successfuly.
Company Profile
SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china's first heavy duty truck. Our company belong to SINOTRUK sales department and we have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.
In 1960,sinotruk introduced technology using on engine and axle from Austria.Later,sinotruk established cooperation withGerman man
group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made
significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality anagement, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
group and wobaco company.Today,sinotruk has developed into china's largest heavy duty truck manufacturing base and made
significant contributions to the development of china's heavy duty truck industry and national economic growth.SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
We have not only the certificate and license of truck export and also strict quality anagement, fast and convenient channel of goods delivery, strict examination in quality and quantity of products, professional packing, professional and reliable loading goods, on-time delivery and competitive prices. If you want to buy these products, please contact us.
We sincerely hope to cooperate with you to expand market in your country!
Recommend Products
Main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle
3. Truck with crane / Truck mounted crane / Concrete Pump Trucks
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle
3. Truck with crane / Truck mounted crane / Concrete Pump Trucks
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
11.Log carrier trucks

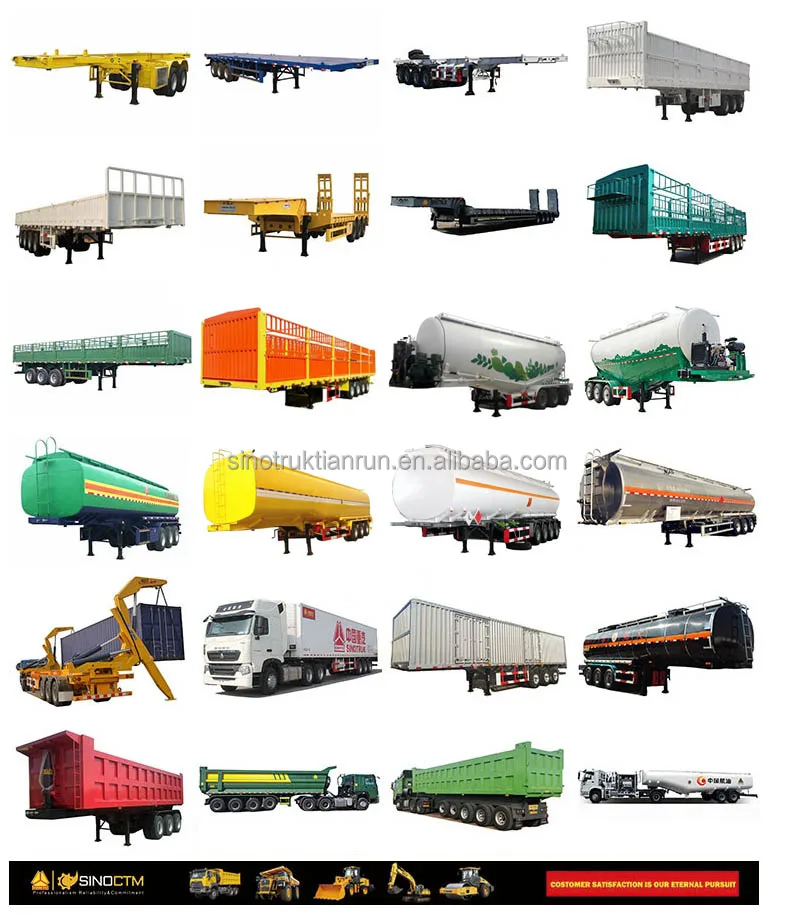

12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container
trailer)
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container
trailer)
13.Construction Machinery ( Excavator / Motor grader / Wheel loader / Roller loader)

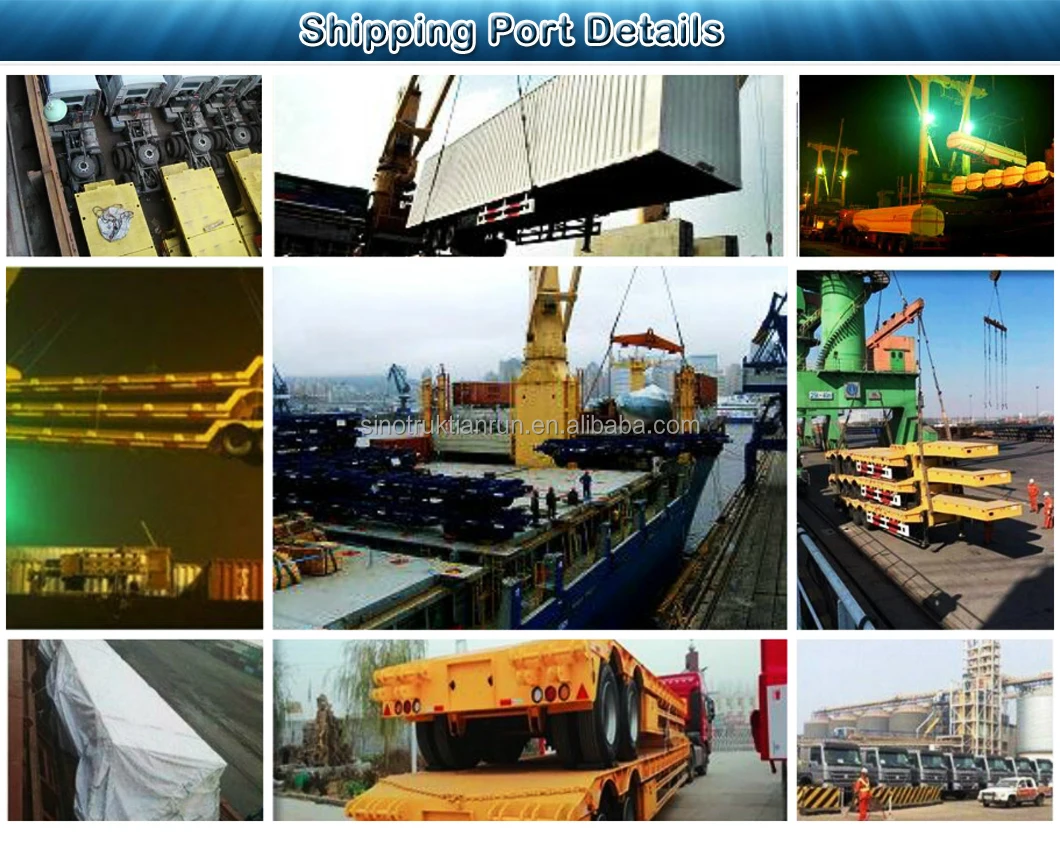

Packing & Delivery
Roll on roll off (RORO) ship
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport
trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
It's the specialized ship to transport cars and trucks, which has power wheel, it's the best way of truck transportation.
Bulk carrier ship
It's the specialized ship to transport grain, coal, ore, salt, cement ,etc, dry and bulk goods, can also used to transport
trucks,price is cheap, but the truck always be put on the deck, sea water will damage the truck painting.
Container ship
It's well-known shipping way, and also the highest cost among these three ways. Few sea port only container ship can arrive, so sometimes, we have to use container ship.
FAQ
Q1. What's your MOQ?
A1. One unit trailer or truck.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the
balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped
by containers
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of
your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery.
A1. One unit trailer or truck.
Q2. What is your terms of payment?
A2. T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the
balance.
Q3. What is your terms of shipment?
A3. Generally, we ship our truck by ro-ro ship , bulk cargo vessel, container etc. spare parts are packed in wooden cases, shipped
by containers
Q4. What is your terms of delivery?
A4. EXW, FOB, CFR, CIF
Q5. How about your delivery time?
A5. It will take 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of
your order.
Q6. Do you test all your goods before delivery?
A6. Yes, we have 100% test before delivery.
