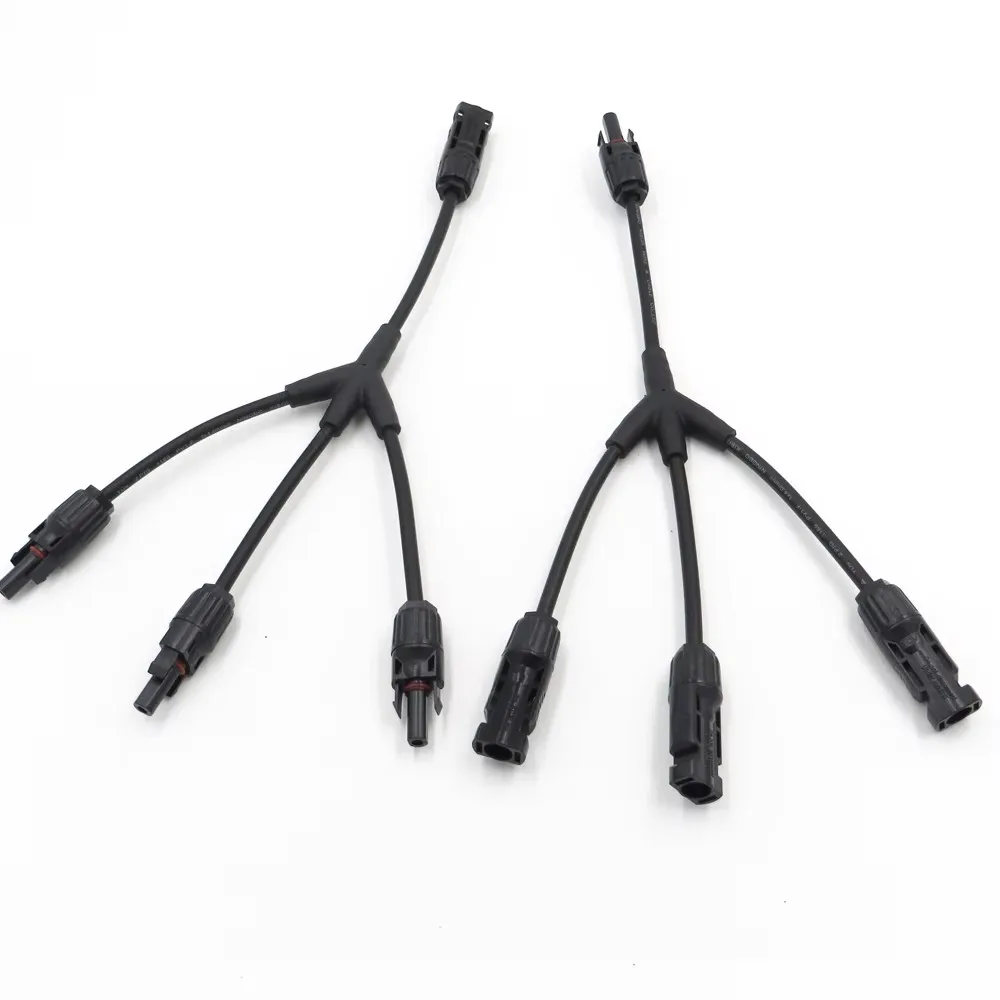

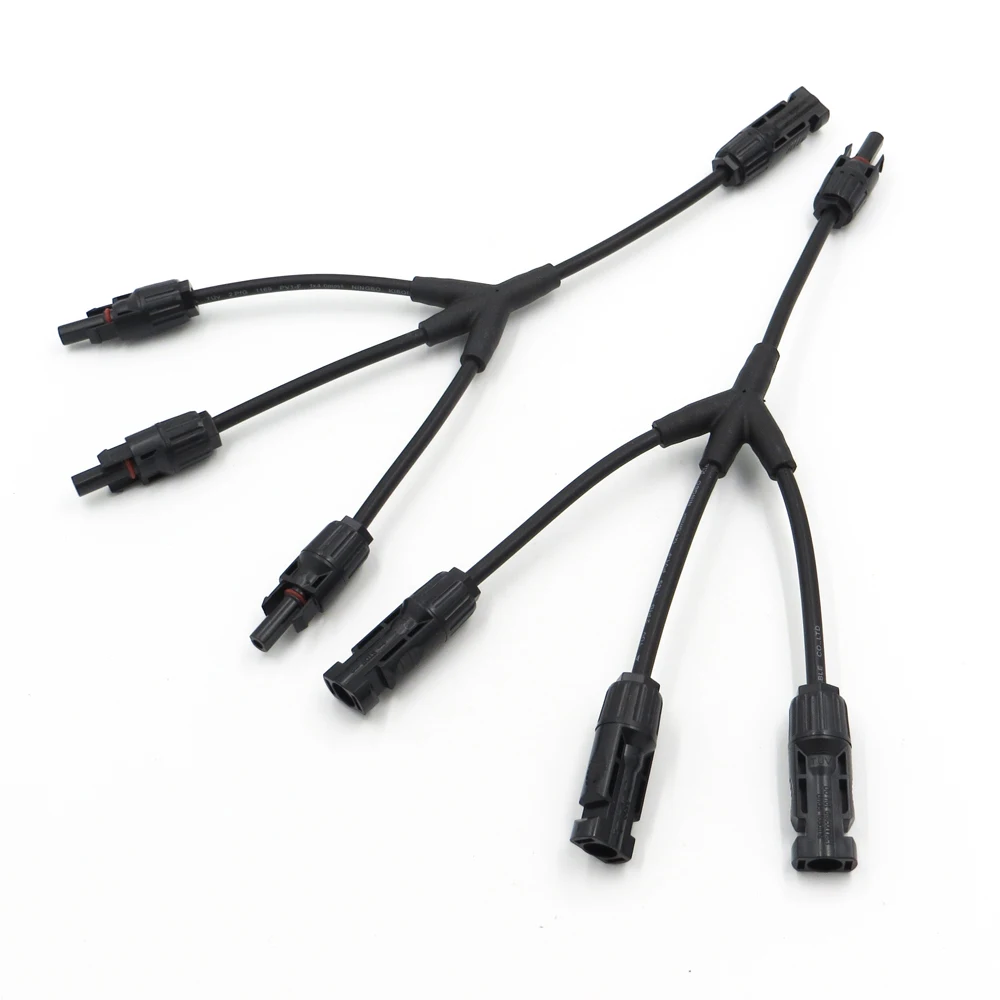

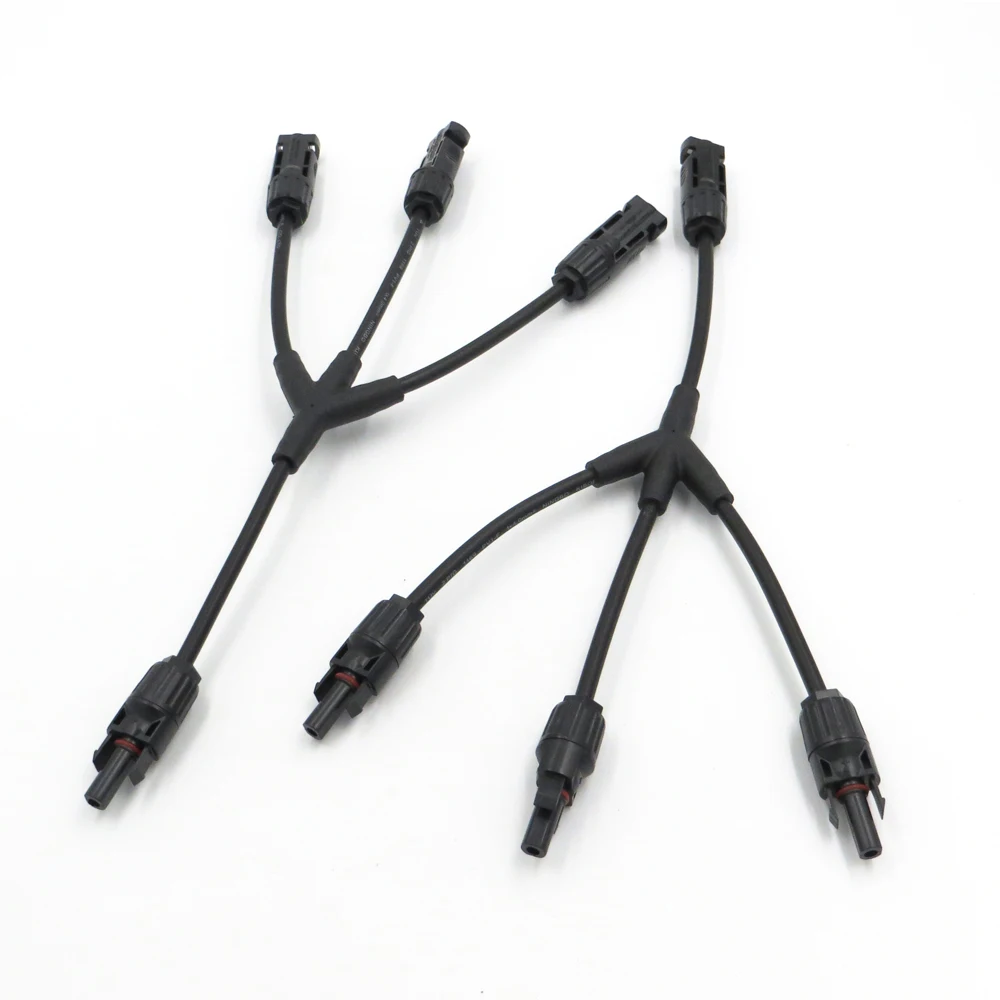

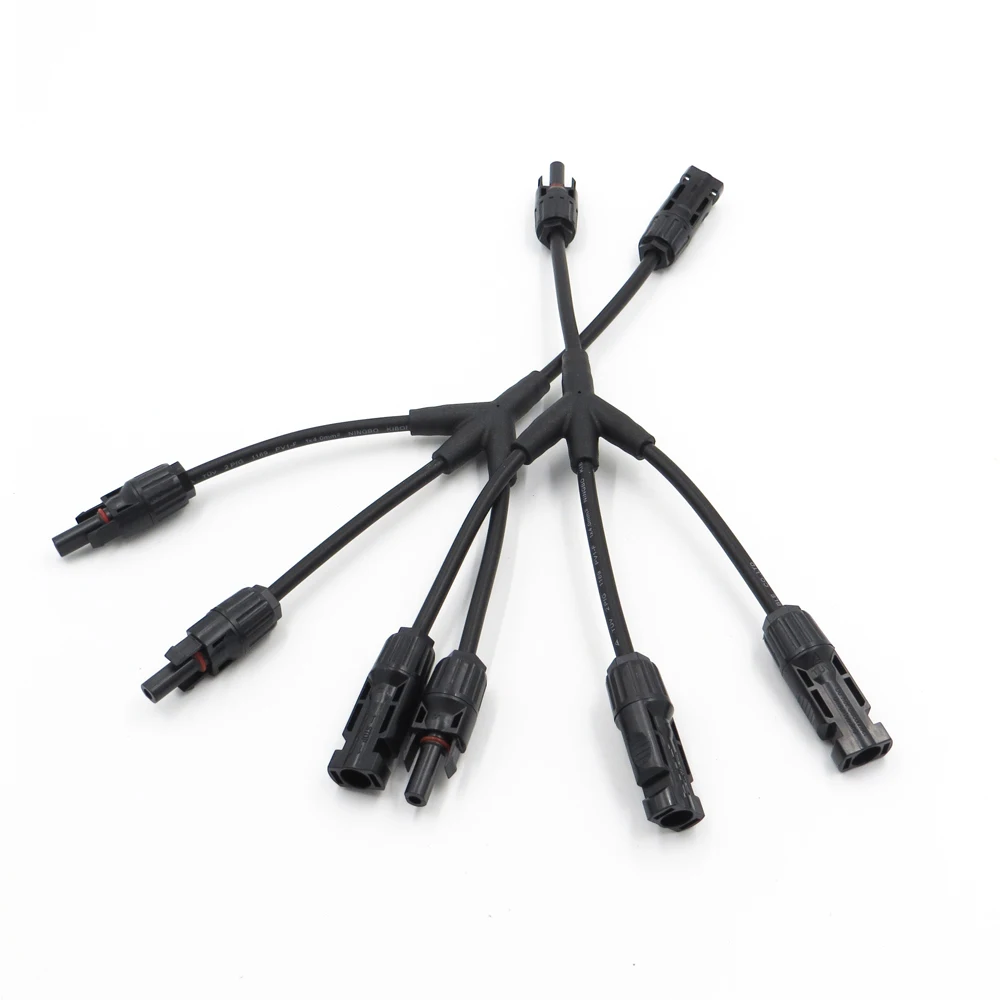

High quality IP68 1 to 3 branch 3Y 4mm2 solar connector 1000V 30A 3 1 Pair AC DC PV Cable Panel Conector for solar system
- Category: >>>
- Supplier: Ningbo Cinco Solar Co. Ltd.
Share on (1601242677412):
Product Overview
Description
Products Description

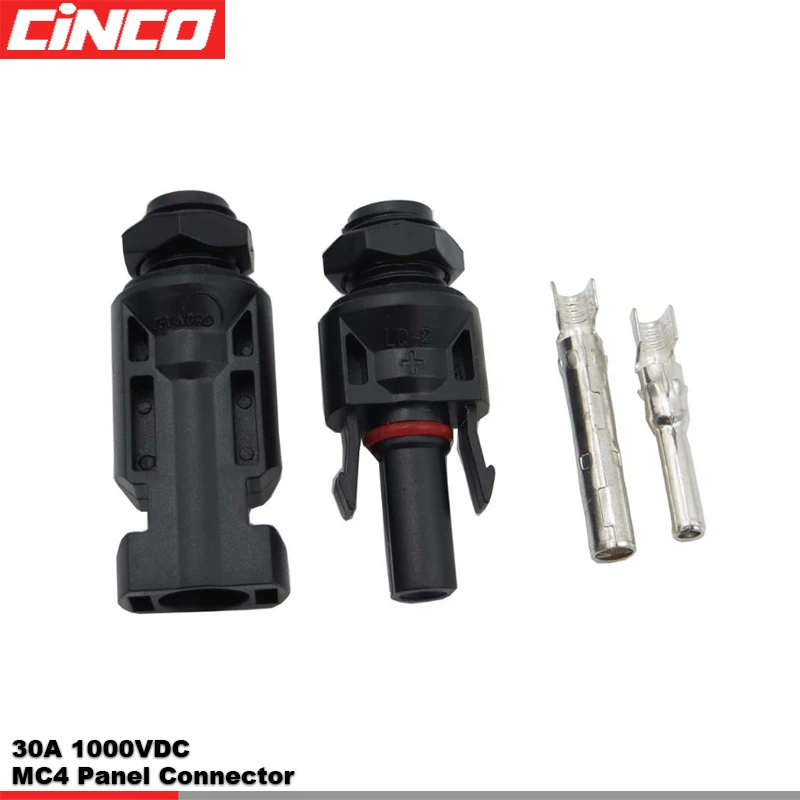

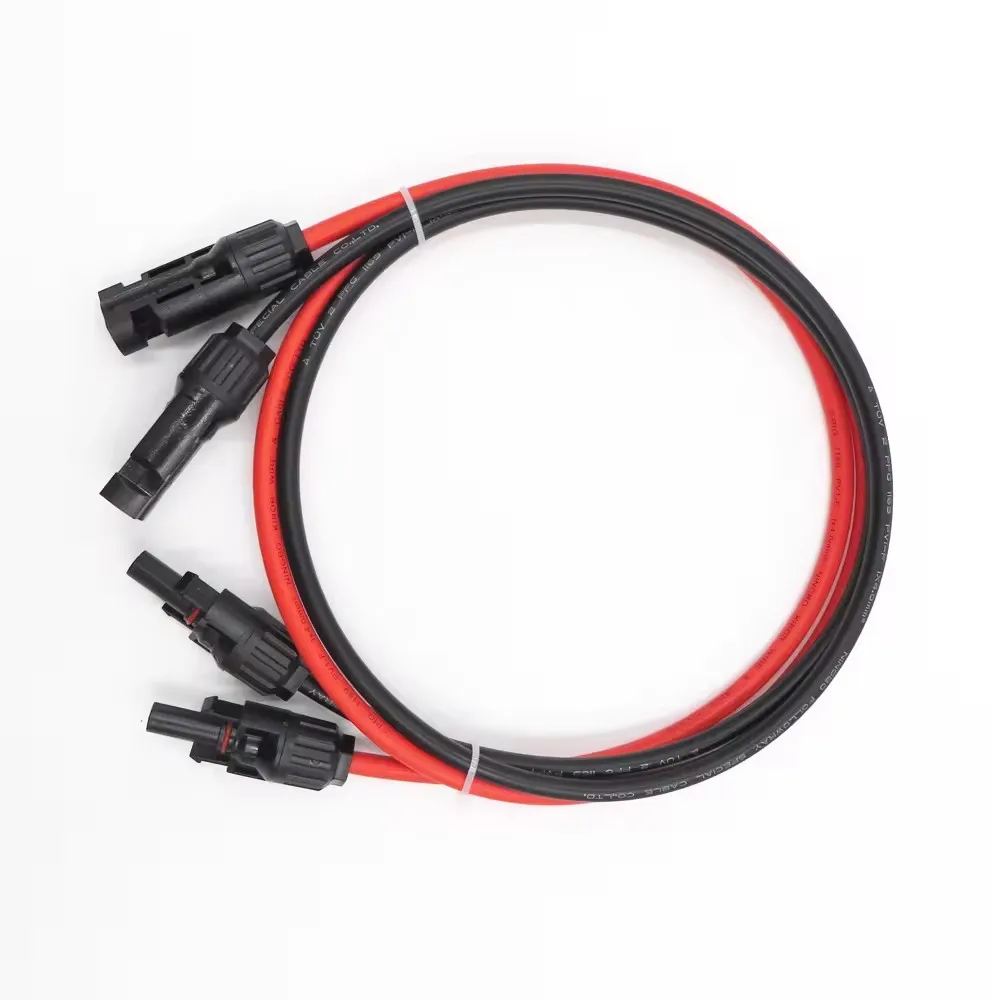

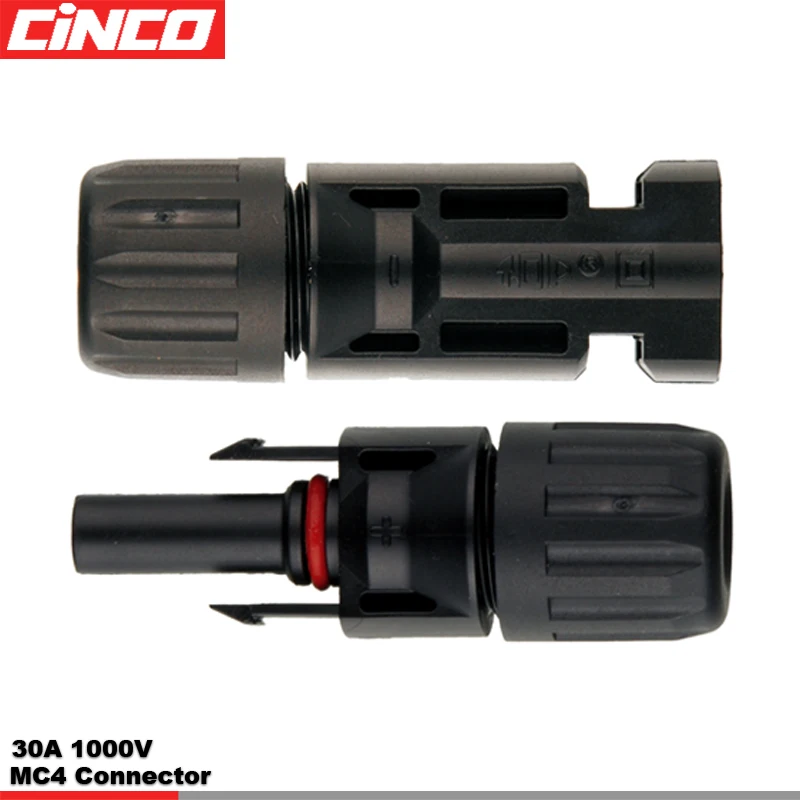

SOLAR CONNECTOR, PV CABLE CONNECTOR
Accepts wire gauges: 14AWG/2.5mm2,12AWG/4mm2,10 AWG/6mm2
Standard operating temperature range of -40℃ to 90 ℃
0.5mΩ low resistance
IP67 rating, mated(1 meter, 1 hour) & IP2X touch-proof
Product Paramenters
Model | PV-LTY3 | ||||||
Connector system | Φ4mm | ||||||
Rated voltage | 1000V DC | ||||||
Rated current | 30A | ||||||
Test voltage | 6KV(50Hz,1min) | ||||||
Ambient temperature range | -40℃...+90℃ | ||||||
Upper limiting temper ature | +105℃ | ||||||
Degree of protection mated | IP67 | ||||||
Degree of protection unmated | IP2X | ||||||
Comtact resistanceof plug connectors | 0.5mΩ | ||||||
Cable size | 2.5mm2 - 6mm2 | ||||||
Contact core material | Copper alloy tin plated | ||||||
Insulation material | PC/PA | ||||||
Flame class | UL-94-V0 | ||||||
Salt mist spray test | IEC60068-2-52 | ||||||

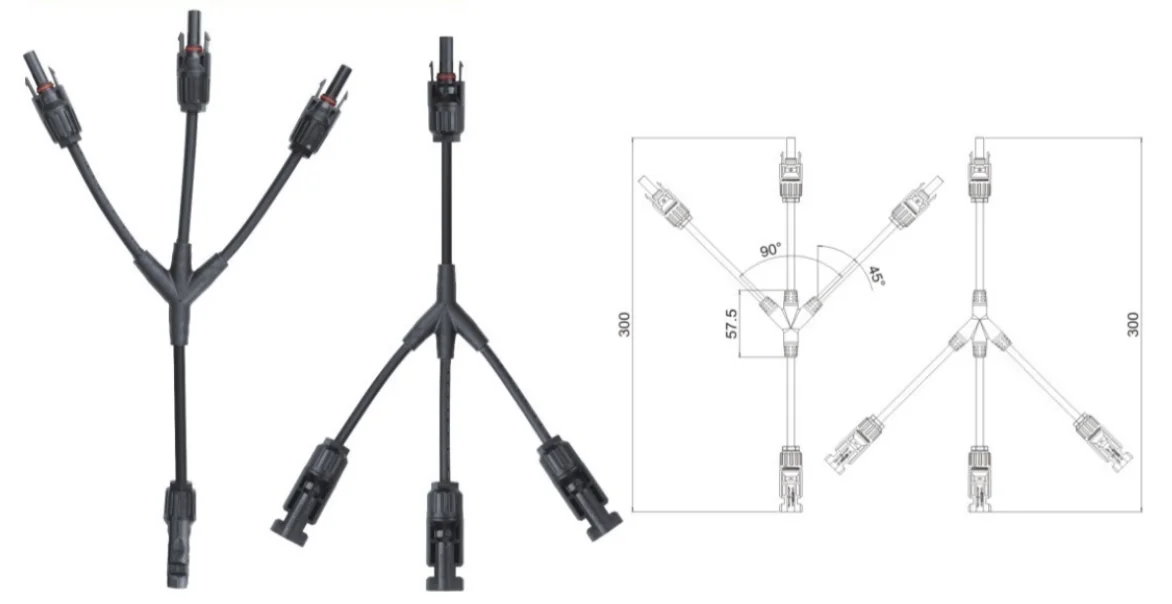

Details Images
Product packaging
Customer Photos
Norway--Solar Tracking System
Saudi Arabia-Wind Solar Hybrid System
Hungary-Off Grid Solar System
Panama-Off Grid Solar System
South Africa-Energy Storage System
China-On Grid Solar System
USA-Grid Tied Solar System
Indonesia-Rooftop Solar Power Station
Ukraine-On Grid Solar System
UK-Ground Solar Power Station
