LuoYang Ruichuang Smart Capacitor Energy Storage Stud Welding Machine System
- Category: >>>
- Supplier: Luoyang Ruichuang Electrical Equipment Co. Ltd.
Share on (1601243197366):
Product Overview
Description
PRODUCT DESCRIPTION

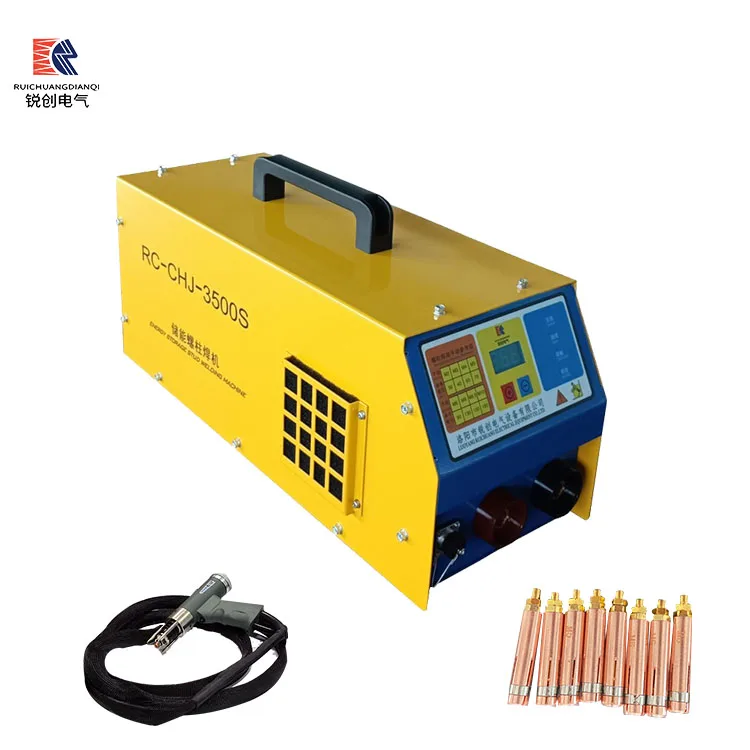

Model: RC-CHJ-3500S
>> Welding stud diameter: M3-M10
>> Welding stud length: 5-35mm
>> Weldable materials: stainless steel, carbon steel, galvanized sheet, aluminum, brass
>> Weldable sheet thickness: 0.5-2mm
>> Using domestic big brand thyristor, MOS tube
>> Standard capacitor capacity
>> Welding stud length: 5-35mm
>> Weldable materials: stainless steel, carbon steel, galvanized sheet, aluminum, brass
>> Weldable sheet thickness: 0.5-2mm
>> Using domestic big brand thyristor, MOS tube
>> Standard capacitor capacity

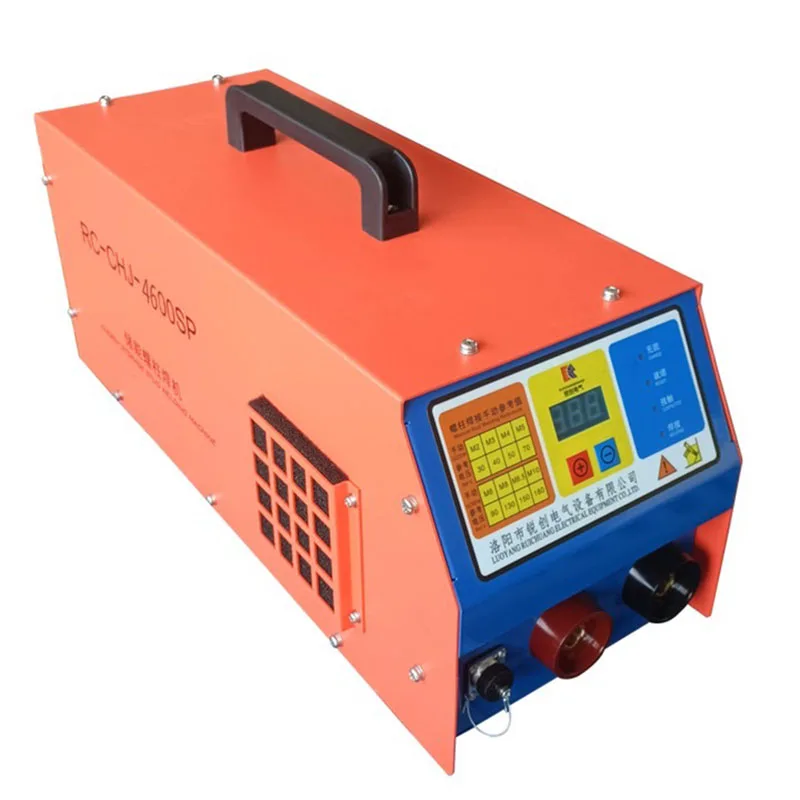

Model: RC-CHJ-4600SP
Model: RC-CHJ-4600SPC

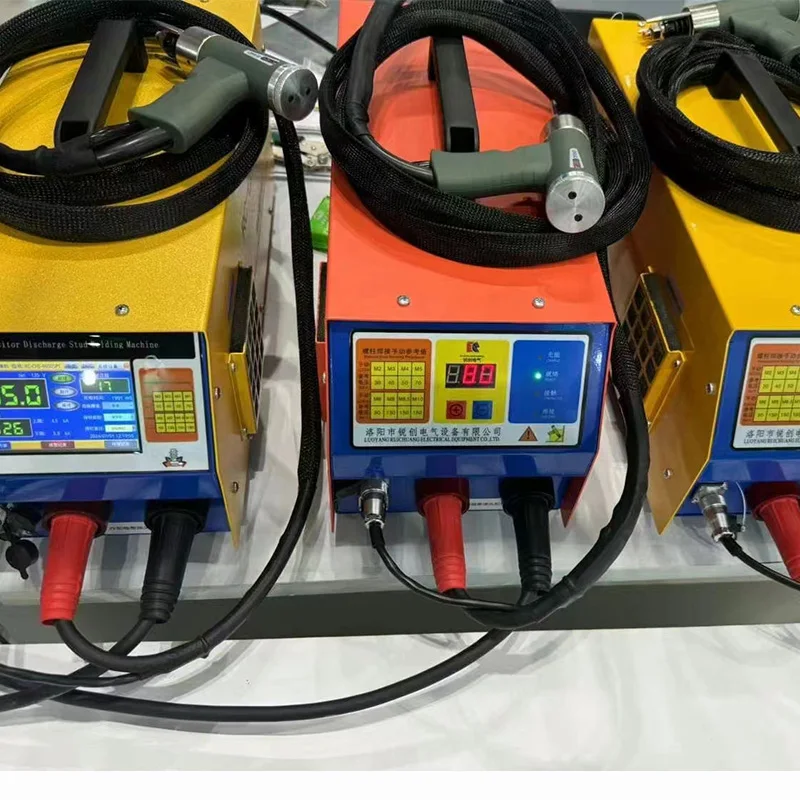

Based on the orange high-end version, adding touch screen control to increase the capacitance by 1/3
Model: RC-CHJ-4600SPI
On the black high-end version with touch, add discharge circuit detection function, which can effectively prevent cold welding caused by insufficient discharge during welding
Increase capacitance by 1/3
Increase capacitance by 1/3
Product Paramenters
Product model | |||||||
Supply Voltage | 220V/50HZ | ||||||
Charging voltage | 20-200V adjustable | ||||||
Stud diameter | Standard 5-35mm(can be extended to any length) | ||||||
Suitable plate thickness | 0.5-2mm | ||||||
Welding material | Stainless steel,carbon steel,galvanized sheet,aluminum,brass | ||||||
Welding speed | 25-30PCS/min(depending on input voltage and stud diameter) | ||||||
Dynamic mode | Electrolytic capacitor energy storage | ||||||
Capacitance capacity | 99000μF | 132000μF | 132000μF | 132000μF | |||
Output material | T2 copper | ||||||
Fuse wire | 10A 250VAC | ||||||
Welding time | 1-3ms | ||||||
Control method | Microprocessor control | ||||||
Weight | 25KG | 26KG | 26KG | 26KG | |||
Dimension | 550*211*238(mm) | ||||||

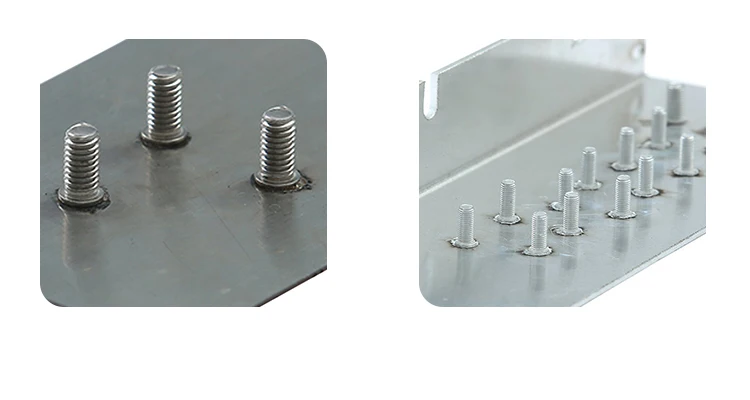

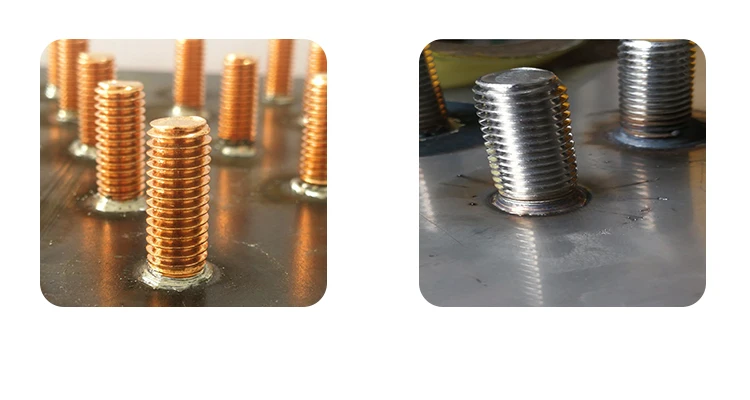

WELDING EFFECT DISPLAY

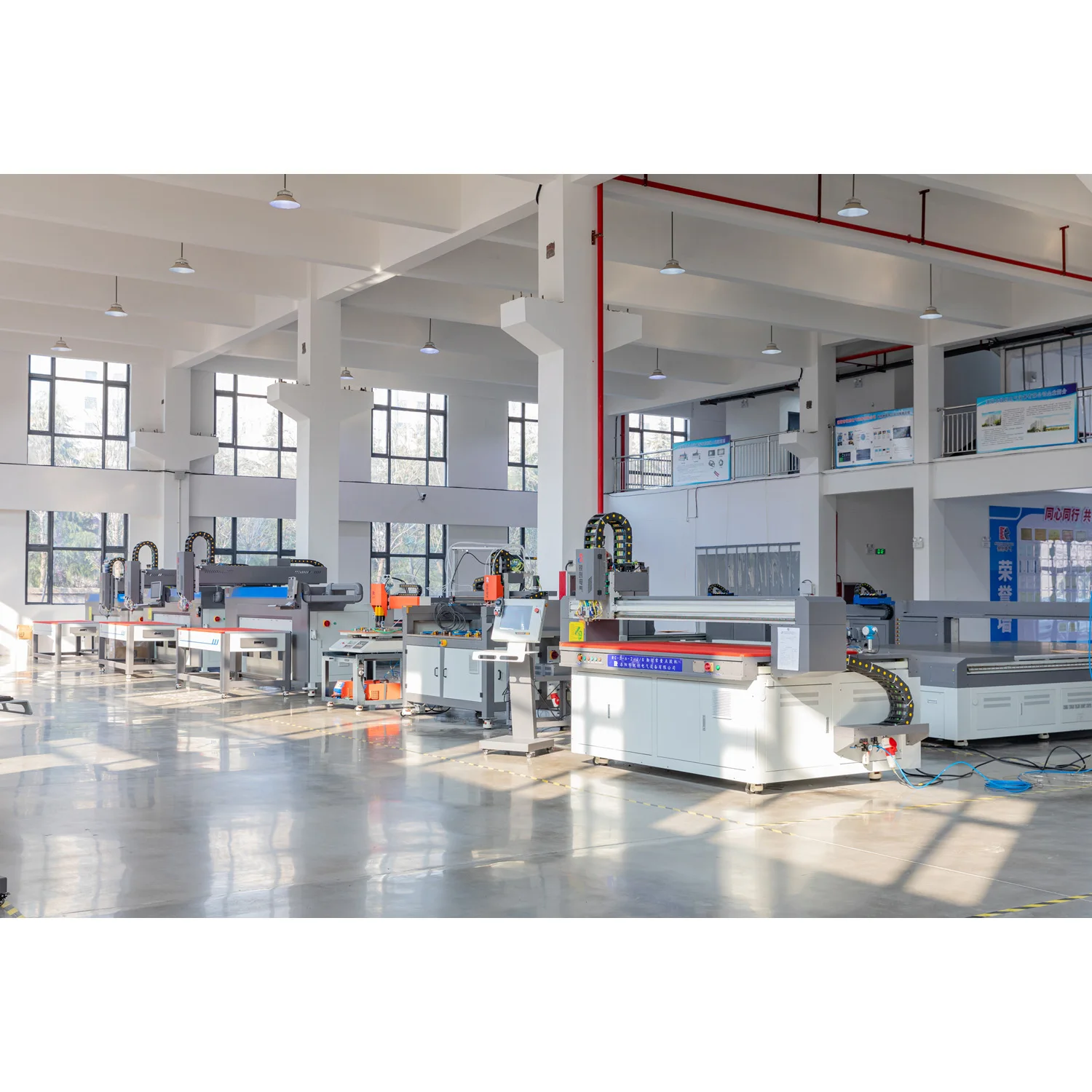

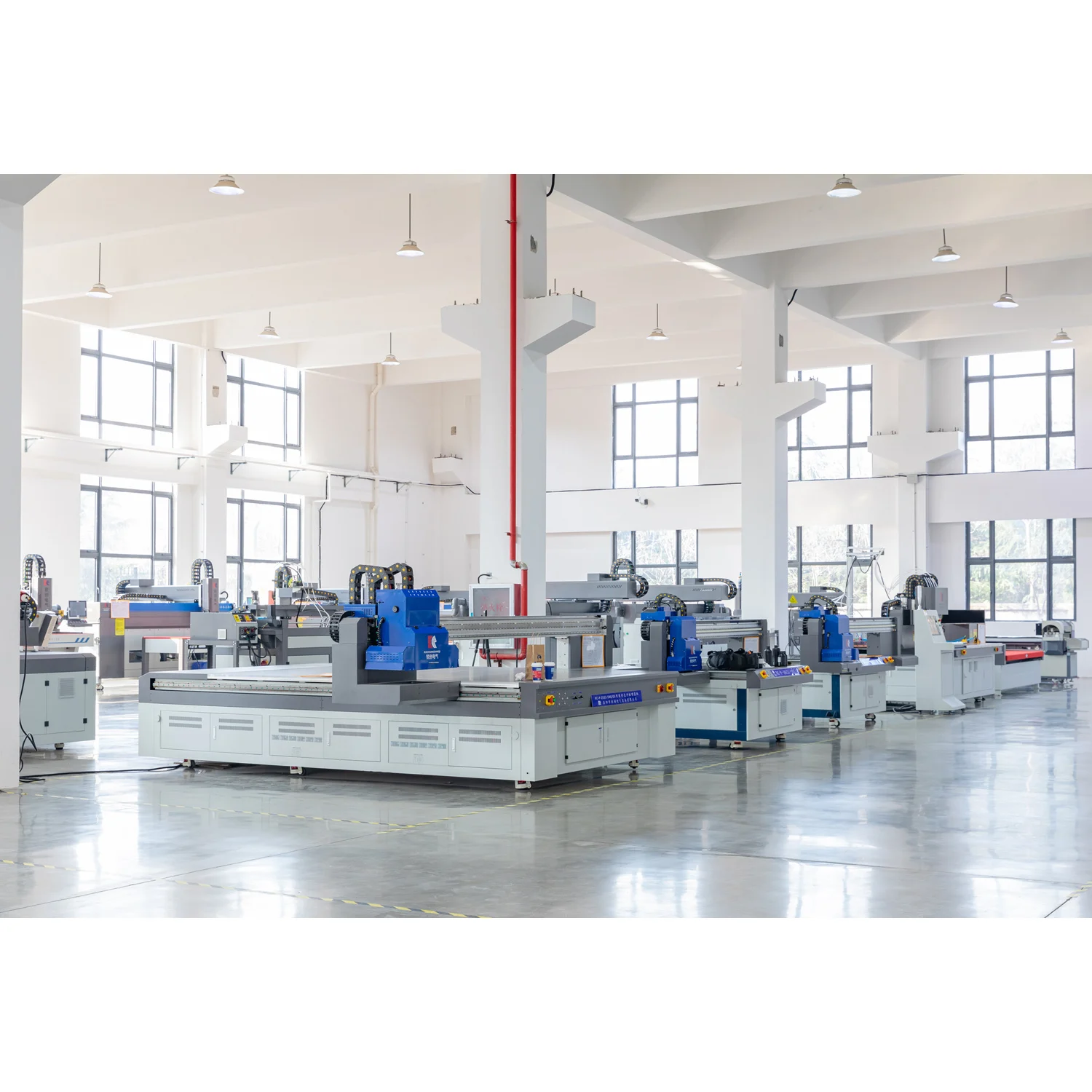

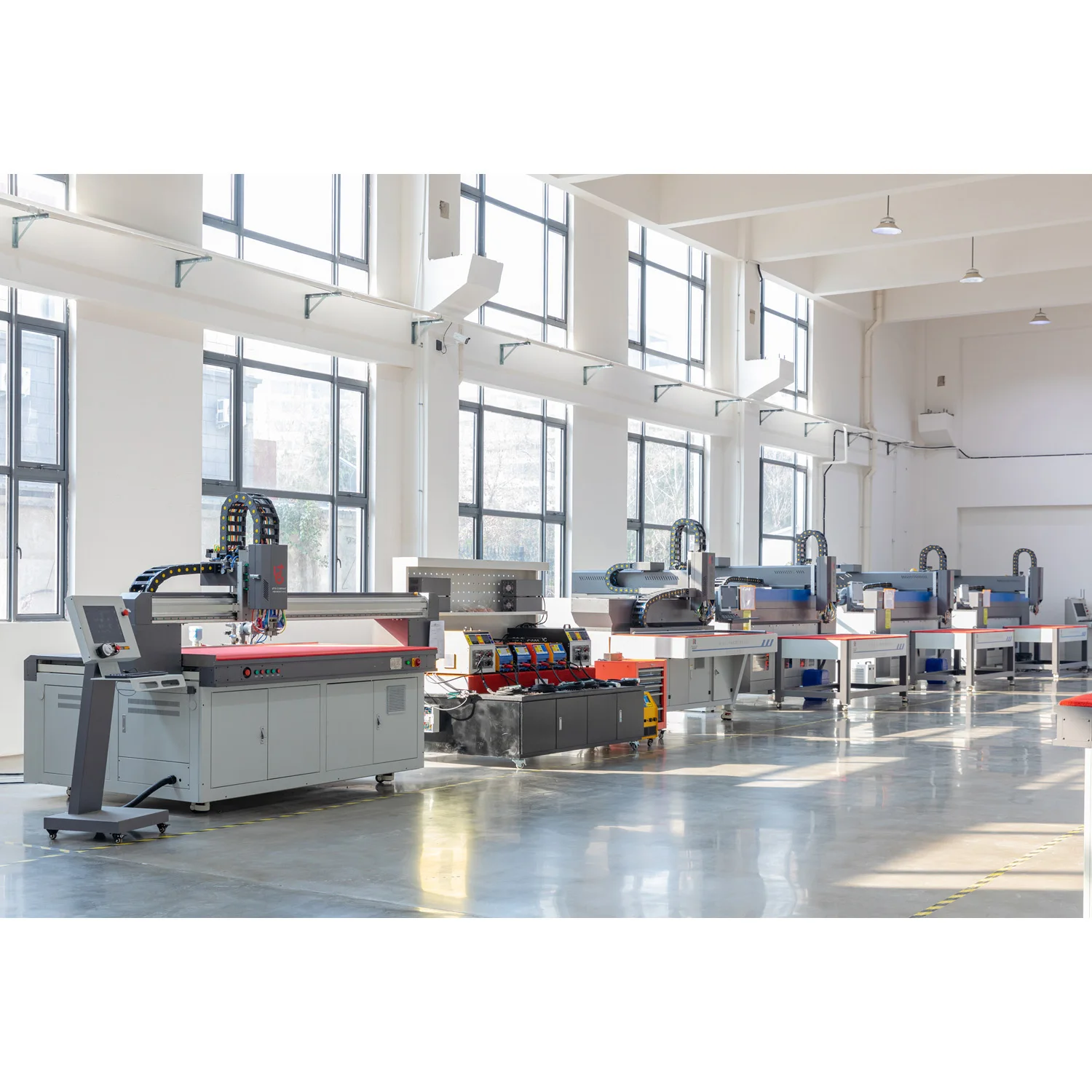

Company Profile
Luoyang Ruichuang Electrical Equipment Co, Ltd, was established in 1993. Located in the High-tech Development District of China (Henan) Free Trade Zone. it is a high-tech enterprise integrating R&D, design, manufacture, sales and service. Ruichuang has been committed to the development of high and low voltage power distribution eguipments, sheet metal processing equipments (polyurethane foam sealing machine ,uv flatbed inkjet printers, cnc welding stud machines,cnc laser cutting & welding machines)customized automation Solutions, robots, etc, The years of experience and technology accumulation in the sheet metal industry enable Ruichuang to provide customers with the most efficient and flexible automation solutions.
The product has high degree of automation, reliable performance and simple operation, and has gained trust and support from customers at home and abroad.
Exhibition
FAQ
Question 1: What are your advantages compared with your competitors?
Answer:
With rich industry experience and strict Product Quality Control systems, we provide:
1. Stable and reliable product at reasonable price
2. Good customer service: Fast response to any inquiry or question
3. On-time delivery.
Question 2: Are you manufactory?
Answer: Yes, we are factory with more than 15 years' experience.
Question 4: What are your Payment Terms?
Answer: Payment shall be made by T/T, L/C etc.
Question 5: What's your Minimum Order Quantity?
Answer: Any order quantity is warmly welcomed.
Question 6: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Question 7: Can I print my Logo on the Drawn ARC Studs Nuts Welding Machine?
Answer: Yes, sure.
Question 8: Can you customize the Drawn Arc Studs Nuts Welding machine for me ?
Answer: Yes, we can customize according to customer's requirements.
Answer:
With rich industry experience and strict Product Quality Control systems, we provide:
1. Stable and reliable product at reasonable price
2. Good customer service: Fast response to any inquiry or question
3. On-time delivery.
4. Competitive price.
Question 2: Are you manufactory?
Answer: Yes, we are factory with more than 15 years' experience.
Question 3: What are your Price Terms?
Answer: Price can be based on FOB, CFR, CIF, etc.
Answer: Price can be based on FOB, CFR, CIF, etc.
Question 4: What are your Payment Terms?
Answer: Payment shall be made by T/T, L/C etc.
Question 5: What's your Minimum Order Quantity?
Answer: Any order quantity is warmly welcomed.
Question 6: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Question 7: Can I print my Logo on the Drawn ARC Studs Nuts Welding Machine?
Answer: Yes, sure.
Question 8: Can you customize the Drawn Arc Studs Nuts Welding machine for me ?
Answer: Yes, we can customize according to customer's requirements.
