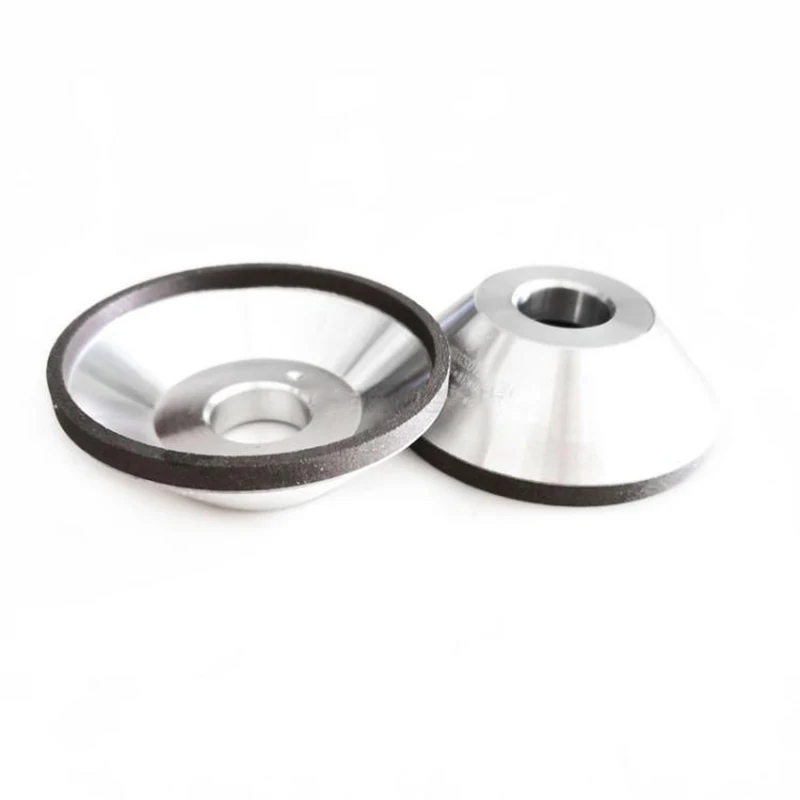

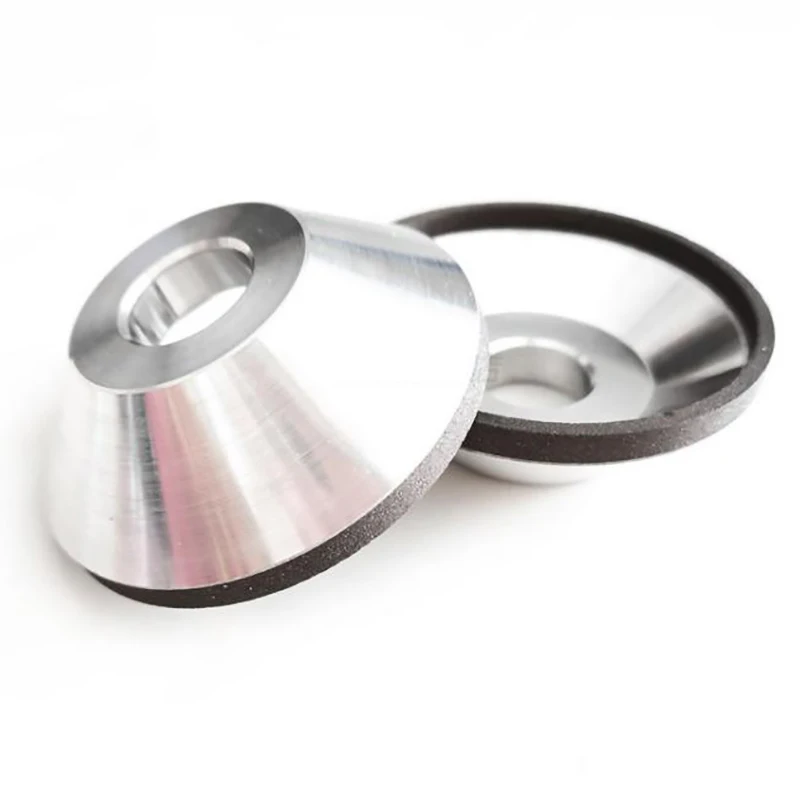

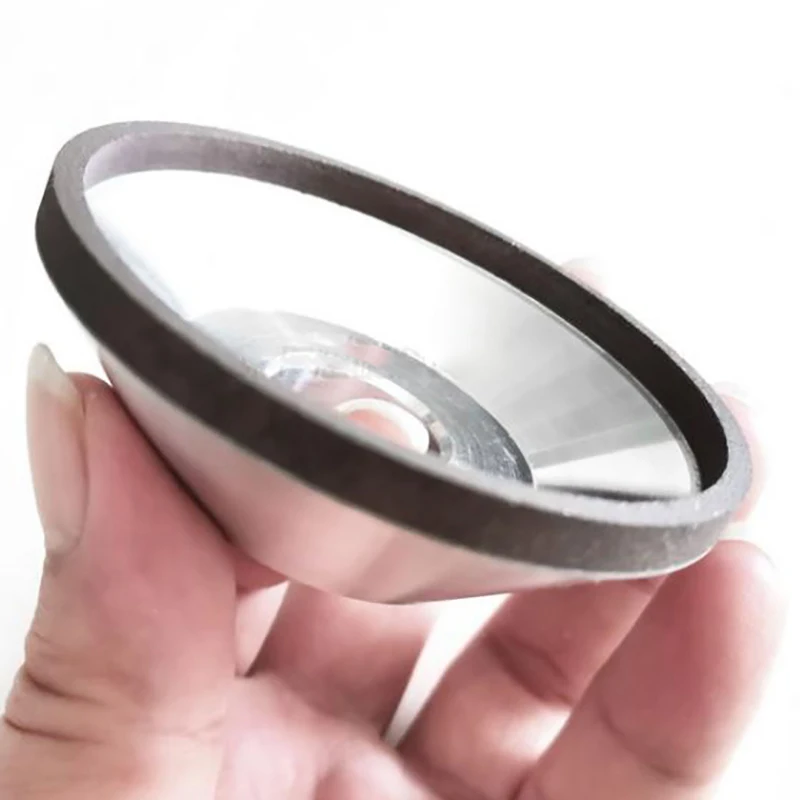

Customized 12A2 bowl shaped diamond resin grinding wheel 75mm CNC grinder sharpen tungsten steel milling cutter alloy drill bit
- Category: >>>
- Supplier: Xiamen Jianzuyang Trading Co. Ltd.
Share on (1601244935516):
Product Overview
Description

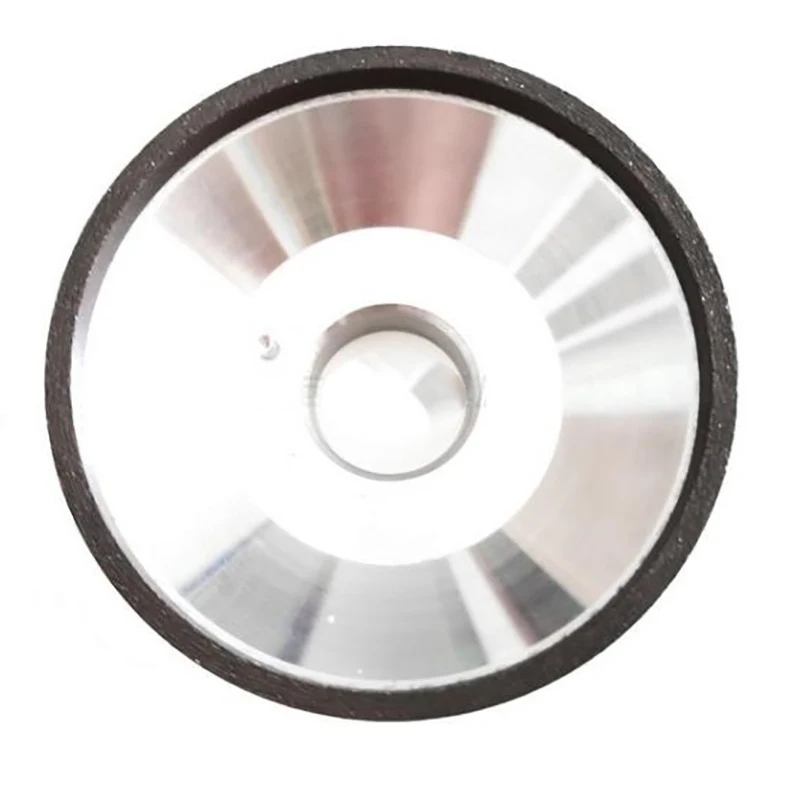

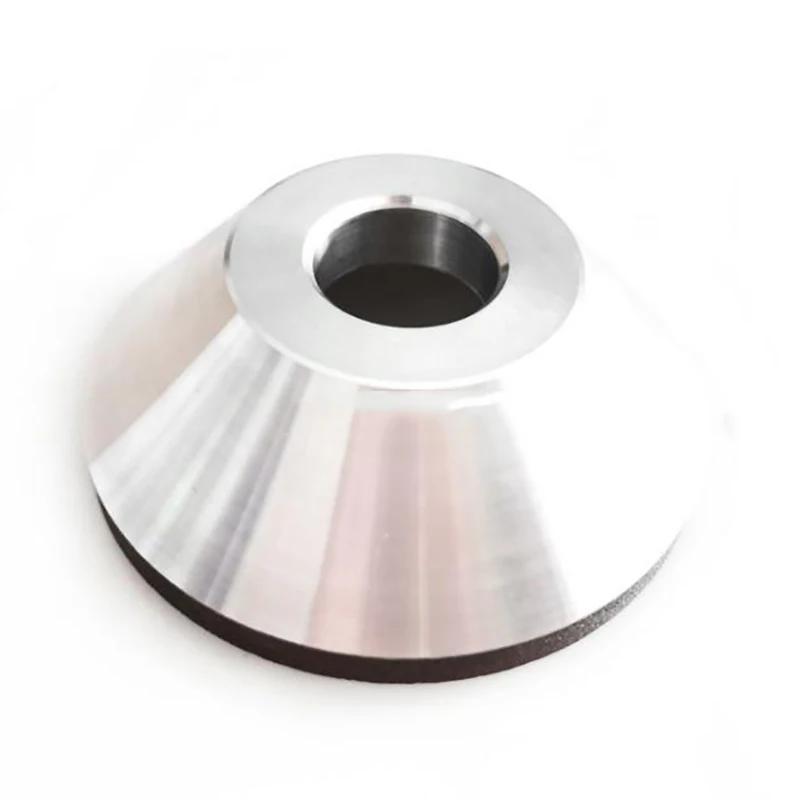

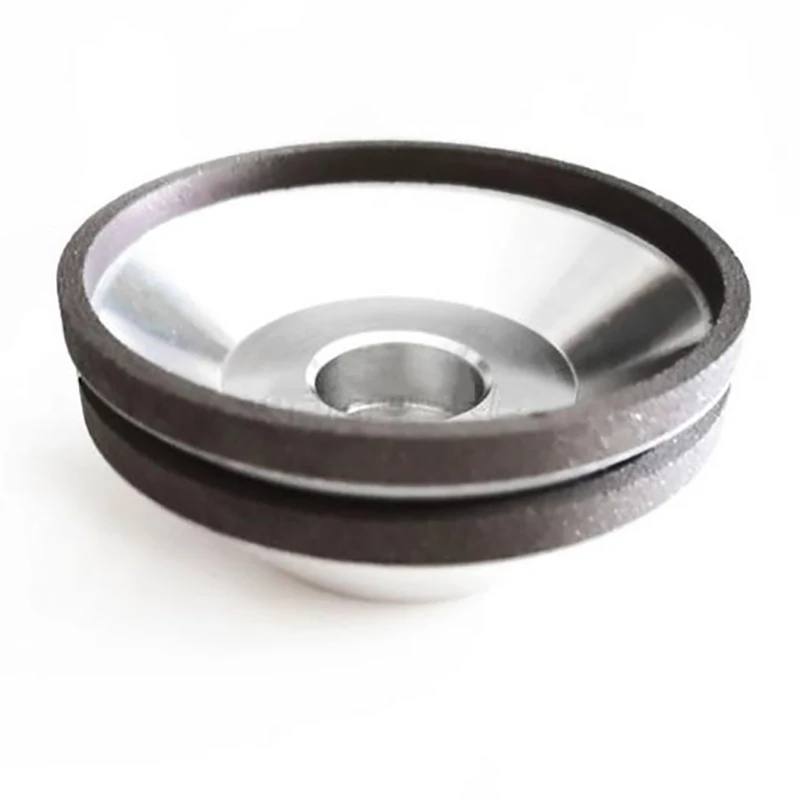

Customized 12A2 bowl-shaped diamond resin grinding wheel 75mm CNC grinder sharpening tungsten steel milling cutter alloy drill bit
CBN grinding wheel
14F1/14A1

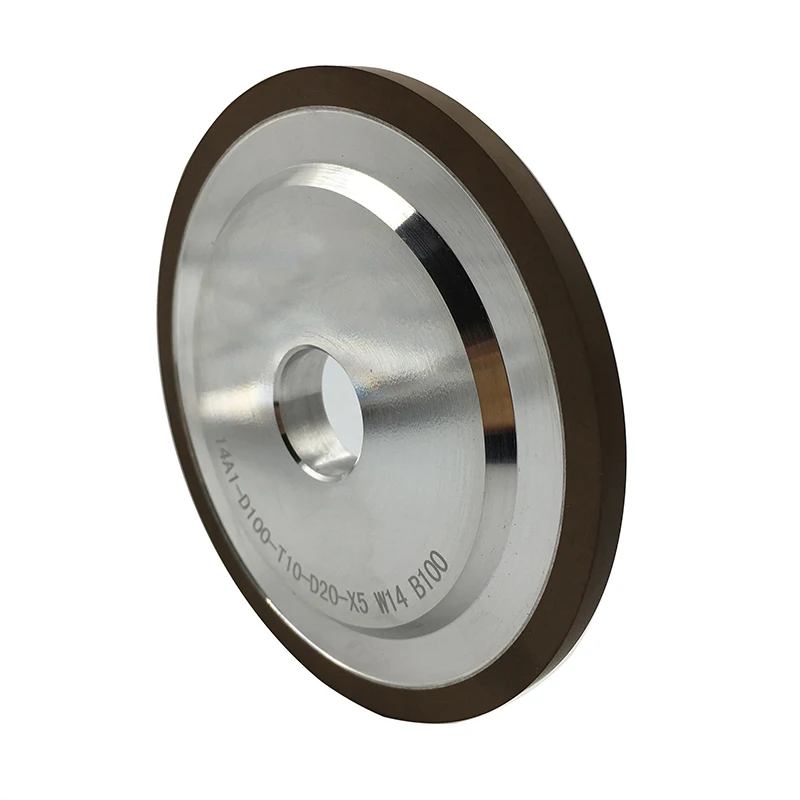

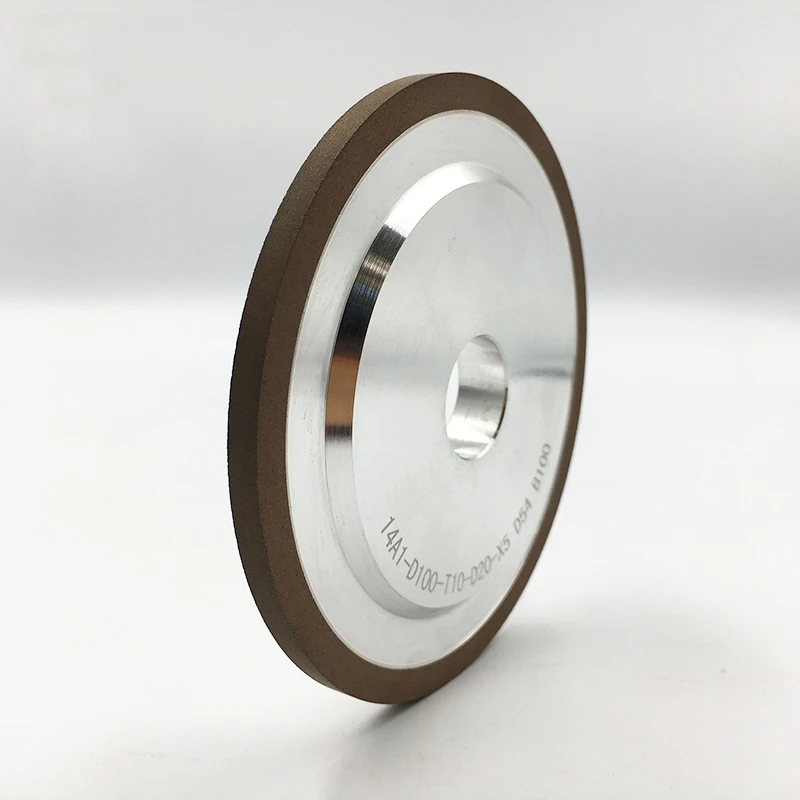

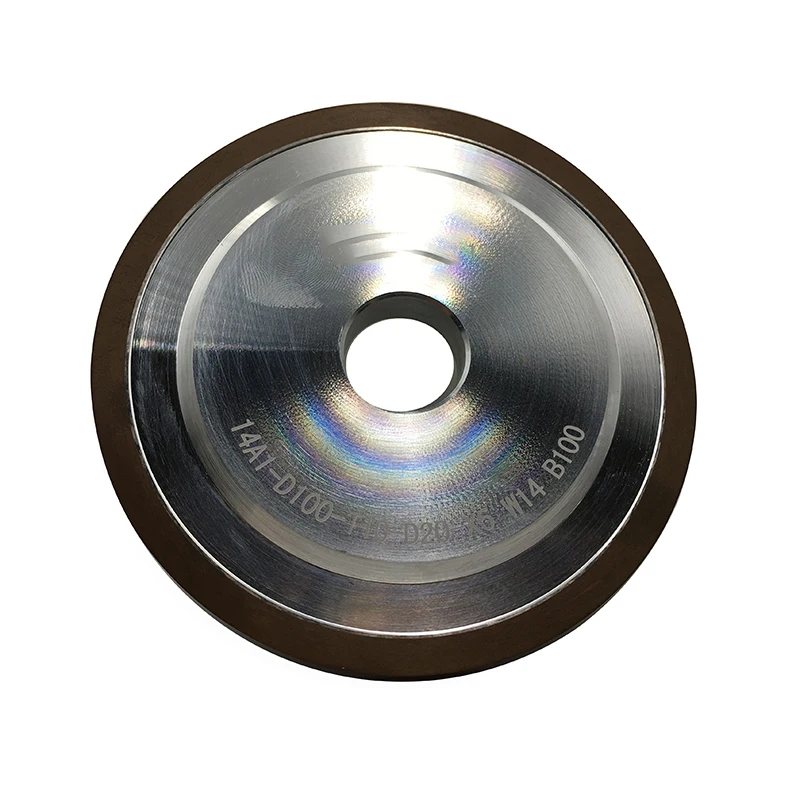

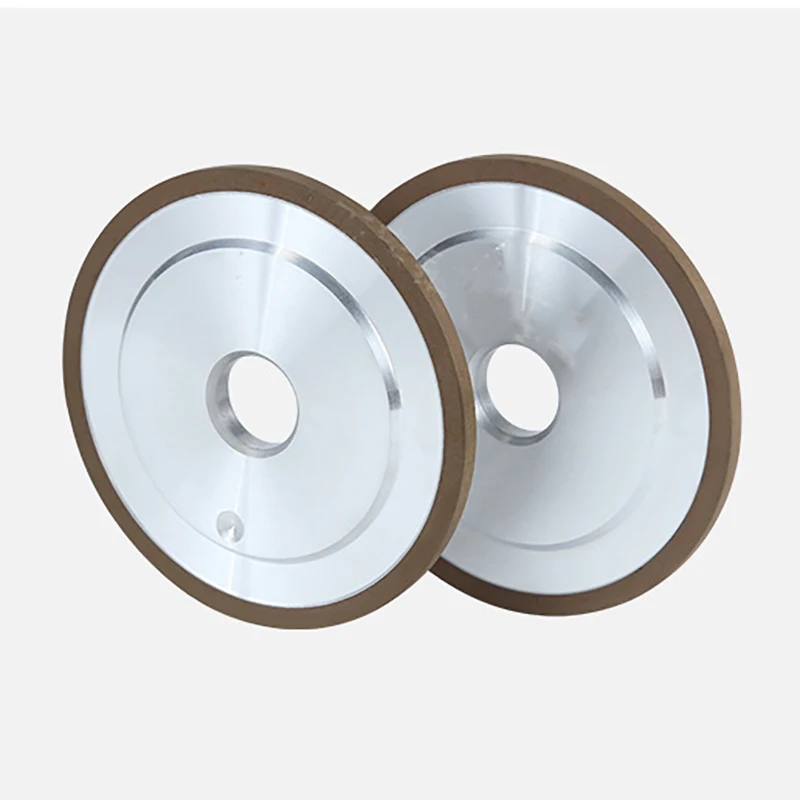

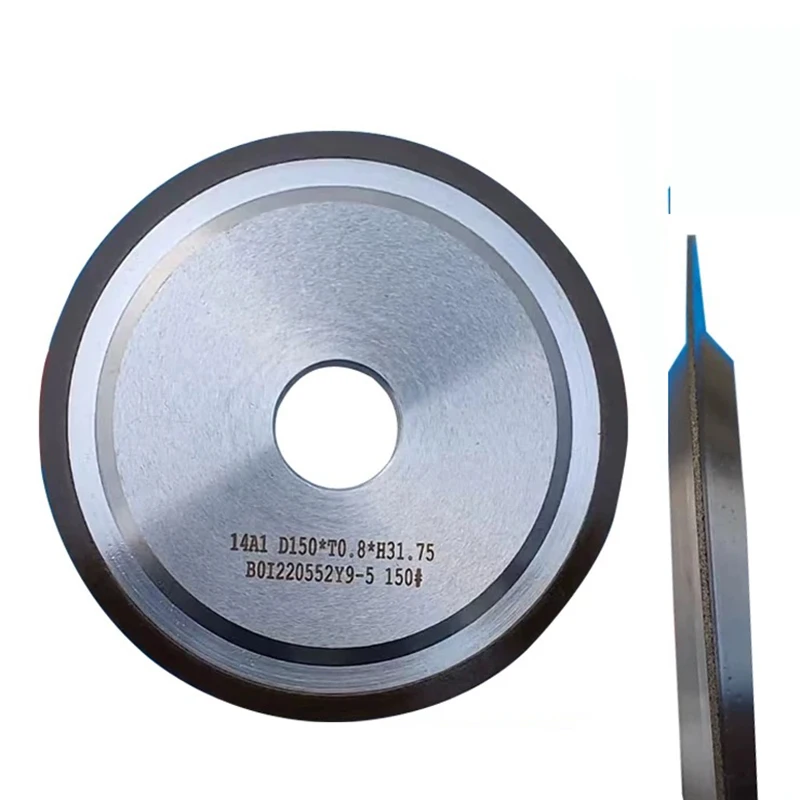

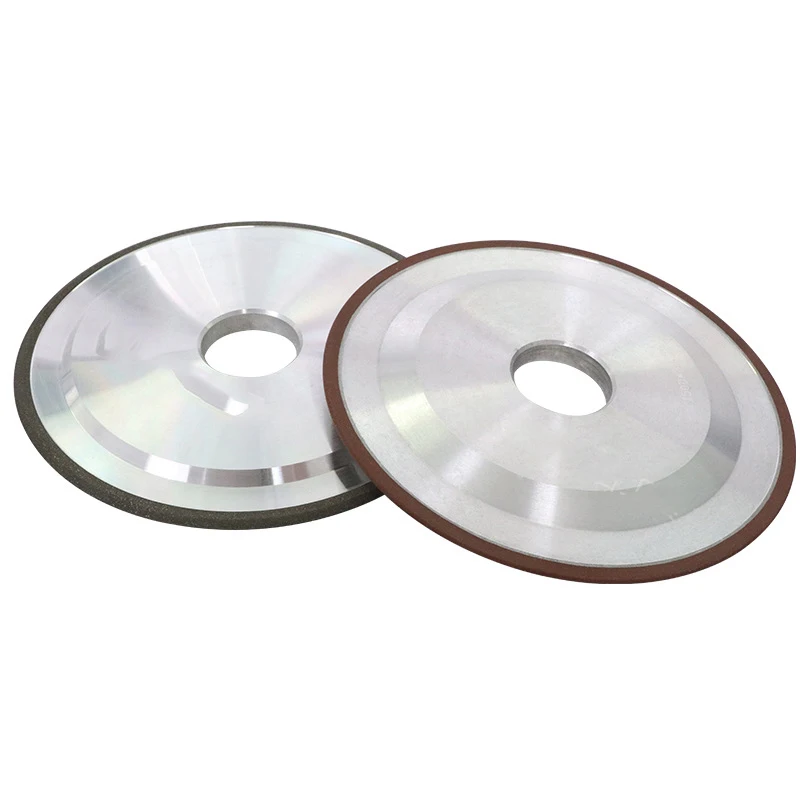

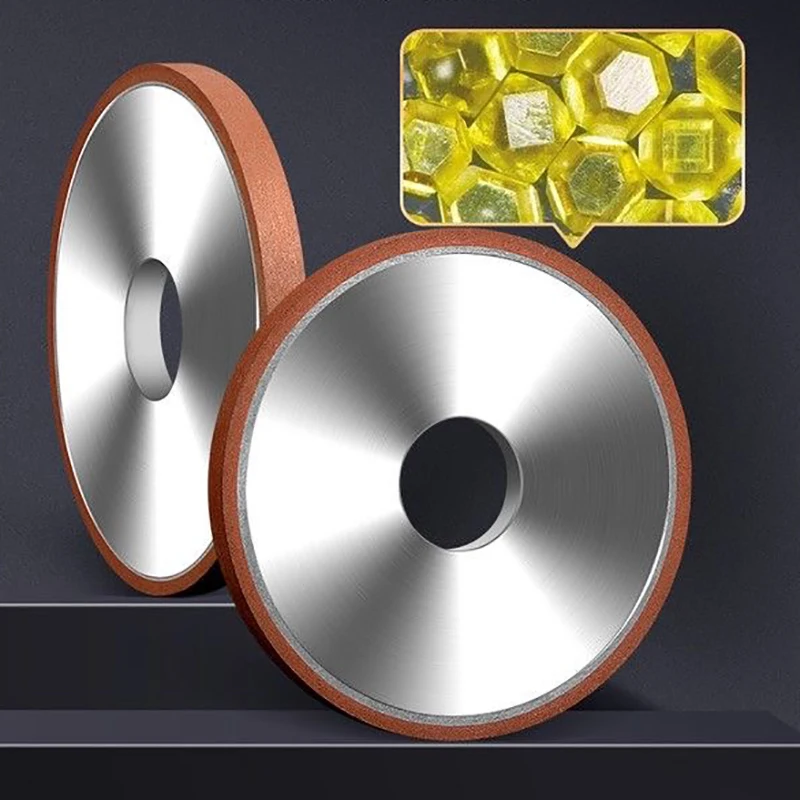

[Product Name]: 14A1 Double sided Parallel Resin Grinding Wheel
[Product Material]: Resin Grinding Wheel
[Outer diameter size]: 150D, 180D
[Product Features]: Made of imported resin binder and advanced diamond by hot pressing, it has good self sharpening and cutting ability
Sharp, hard, good wear resistance, high processing efficiency, smooth and non collapsing incisions, and other advantages.
[Grain size]: The smaller the grain size data, the coarser the grinding wheel, the larger the data, the finer the grinding wheel, and the higher the smoothness of the ground surface
[Particle size of spot goods]: 100 #, 180 #, 240 #, 320 #, 400 #, 600 ##
[Customized granularity]: 46 #, 60 #, 80 #, 800 #, 1000 #, 1500 #, 2000 #, 3000 #, 5000 ##

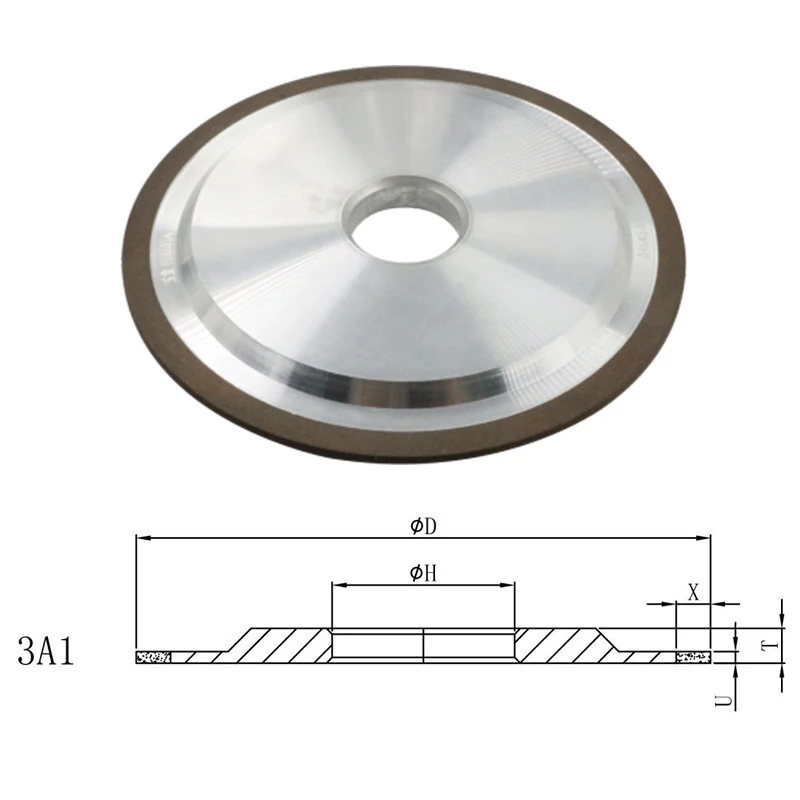

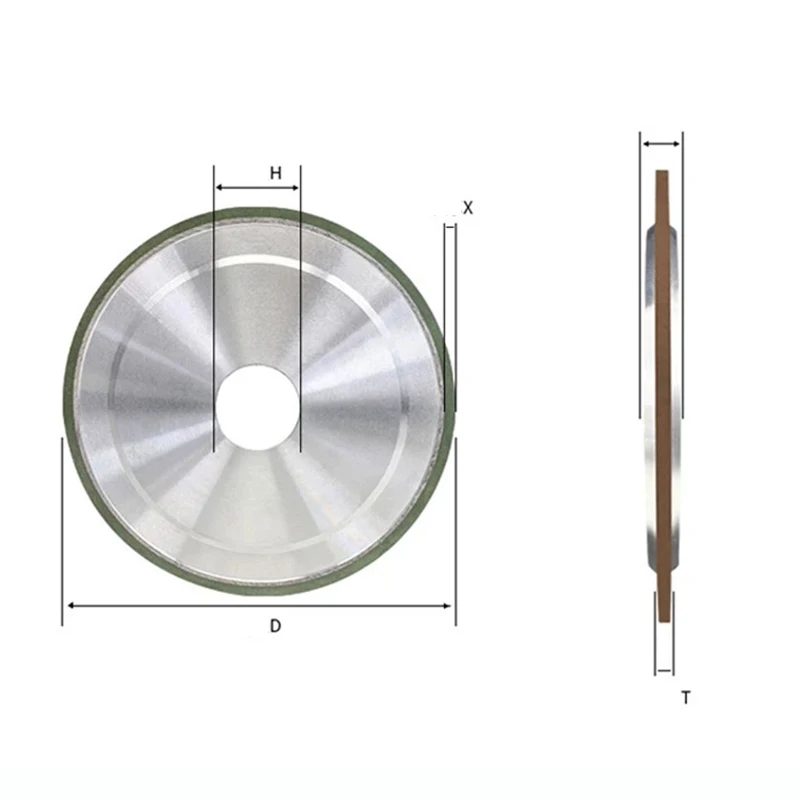

Total thickness
Aperture H
Sand thickness X
Outer diameter D
Height T
14F1/14A1

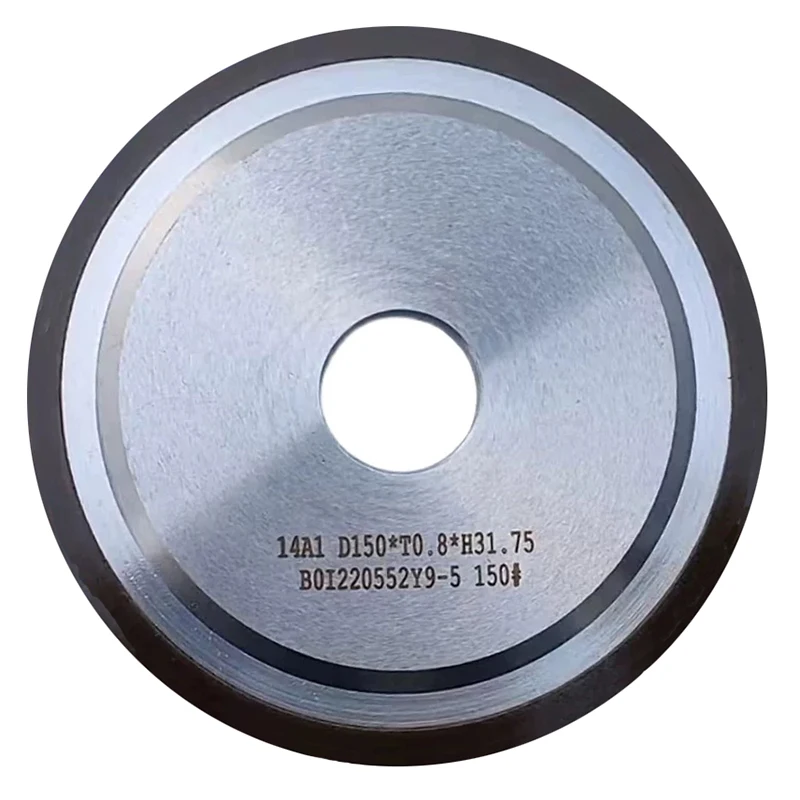

[Product Name]: 14A1 Double sided Parallel Resin Grinding Wheel
[Product Material]: Resin Grinding Wheel
[Outer diameter size]: 150D, 180D
[Product Features]: Made of imported resin binder and advanced diamond by hot pressing, it has good self sharpening and cutting ability
Sharp, hard, good wear resistance, high processing efficiency, smooth and non collapsing incisions, and other advantages.
[Grain size]: The smaller the grain size data, the coarser the grinding wheel, the larger the data, the finer the grinding wheel, and the higher the smoothness of the ground surface
[Particle size of spot goods]: 100 #, 180 #, 240 #, 320 #, 400 #, 600 ##
[Customized granularity]: 46 #, 60 #, 80 #, 800 #, 1000 #, 1500 #, 2000 #, 3000 #, 5000 ##
Total thickness
Aperture H
Sand thickness X
Outer diameter D
Height T

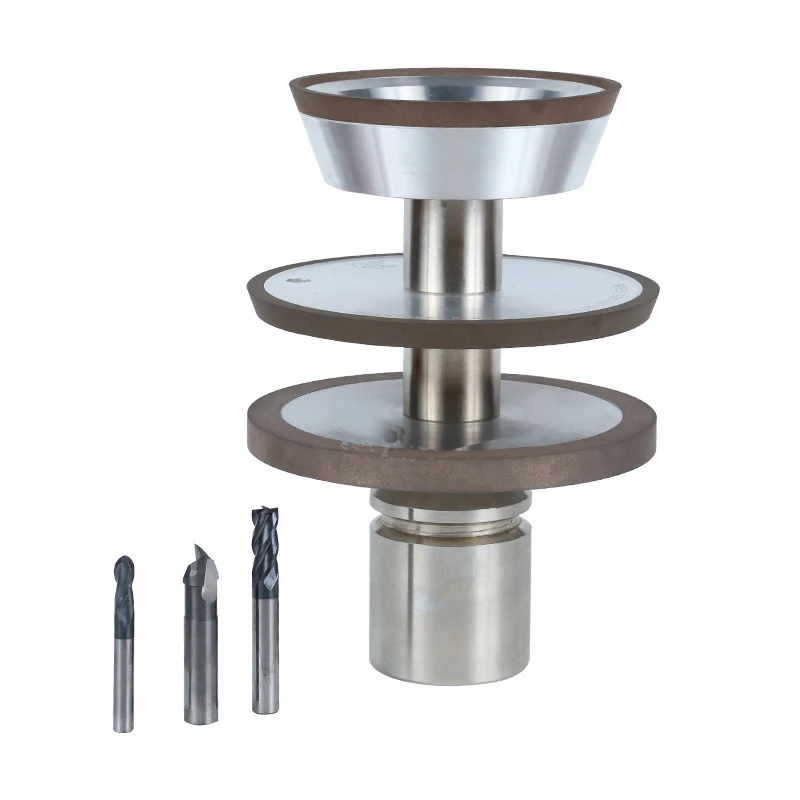

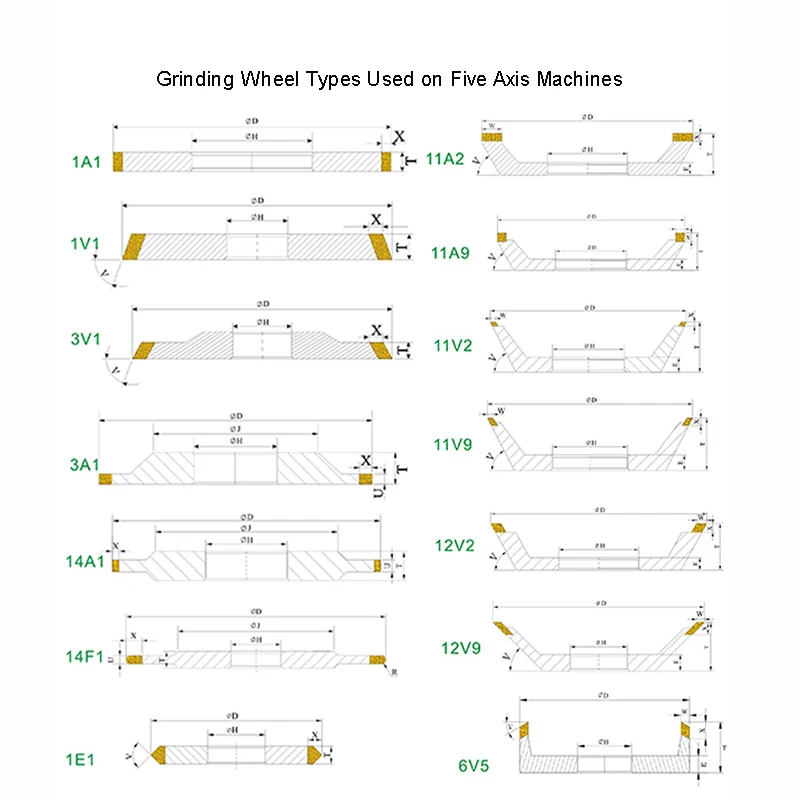

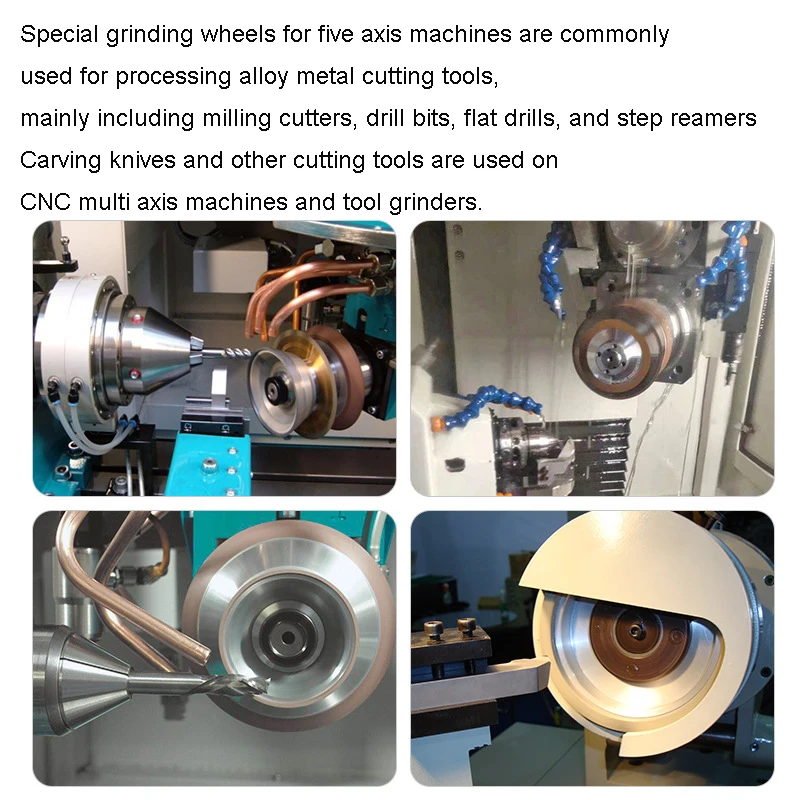

Special grinding wheels for five axis machines are commonly used for processing alloy metal cutting tools, mainly including milling cutters, drill bits, flat drills, and step reamers
Carving knives and other cutting tools are used on CNC multi axis machines and tool grinders.
Carving knives and other cutting tools are used on CNC multi axis machines and tool grinders.
Applications: Profile Grinding, Cut Off, Form Grinding,
O.D. Grinding, Dicing, Slicing
Bond Availability: Phenol, Polyimide, Hybrid, Electro-chemical
Available in: Diamond, CBN, CDX
Size Availability: 1" - 27"
*CDX Bond for Grinding Steel and Tungsten Carbide in combination
ITEM# BRAEMAR REF NUMBER | D O/A WHEEL DIAMETER | U ABRASIVE WIDTH | H ARBOR HOLE | T O/A WHEEL THICKNESS | J HUB DIAMETER | SPEC ABRASIVE HARDNESS & CONCENTRATION |
ED4A2000101213RS | 2.000" (51mm) | 0.156" (4mm) | 0.393" (10mm) | 0.281" (7.13mm) | 1.125" (28.57mm) | SD 120 R 100 B 0.187 DEPTH |
ED4A2000102013RS | 2.000" (51mm) | 0.156" (4mm) | 0.393" (10mm) | 0.281" (7.13mm) | 1.125" (28.57mm) | SD 200 R 100 B 0.187 DEPTH |
ED4A2000102213RS | 2.000" (51mm) | 0.156" (4mm) | 0.393" (10mm) | 0.281" (7.13mm) | 1.125" (28.57mm) | SD 220 R 100 B 0.187 DEPTH |
ED4A2000103213RS | 2.000" (51mm) | 0.156" (4mm) | 0.393" (10mm) | 0.281" (7.13mm) | 1.125" (28.57mm) | SD 320 R 100 B 0.187 DEPTH |
ED4A2000106013RS | 2.000" (51mm) | 0.156" (4mm) | 0.393" (10mm) | 0.281" (7.13mm) | 1.125" (28.57mm) | SD 600 R 100 B 0.187 DEPTH |
ED4A3000102212RS | 3.000" (76mm) | 0.156" (4mm) | 0.393" (10mm) | 0.393" (10.00mm) | 2.000" (50.00mm) | SD 220 R 100 B 0.250 DEPTH |
ED4A3000106012RS | 3.000" (76mm) | 0.156" (4mm) | 0.393" (10mm) | 0.393" (10.00mm) | 2.000" (50.00mm) | SD 600 R 100 B 0.250 DEPTH |
11V9 DIAMOND EWAG RESIN BOND WHEEL

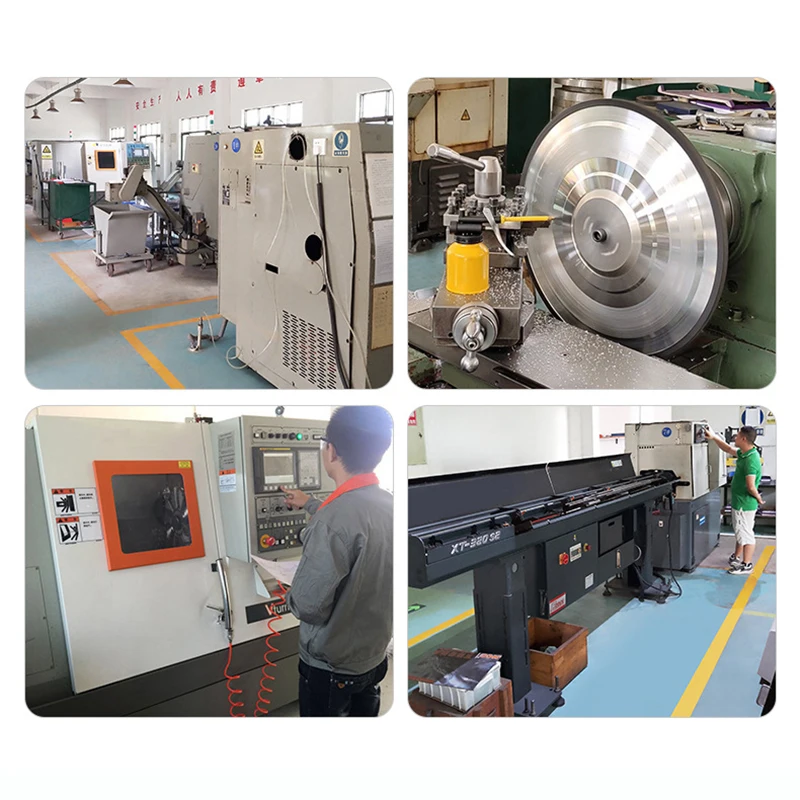

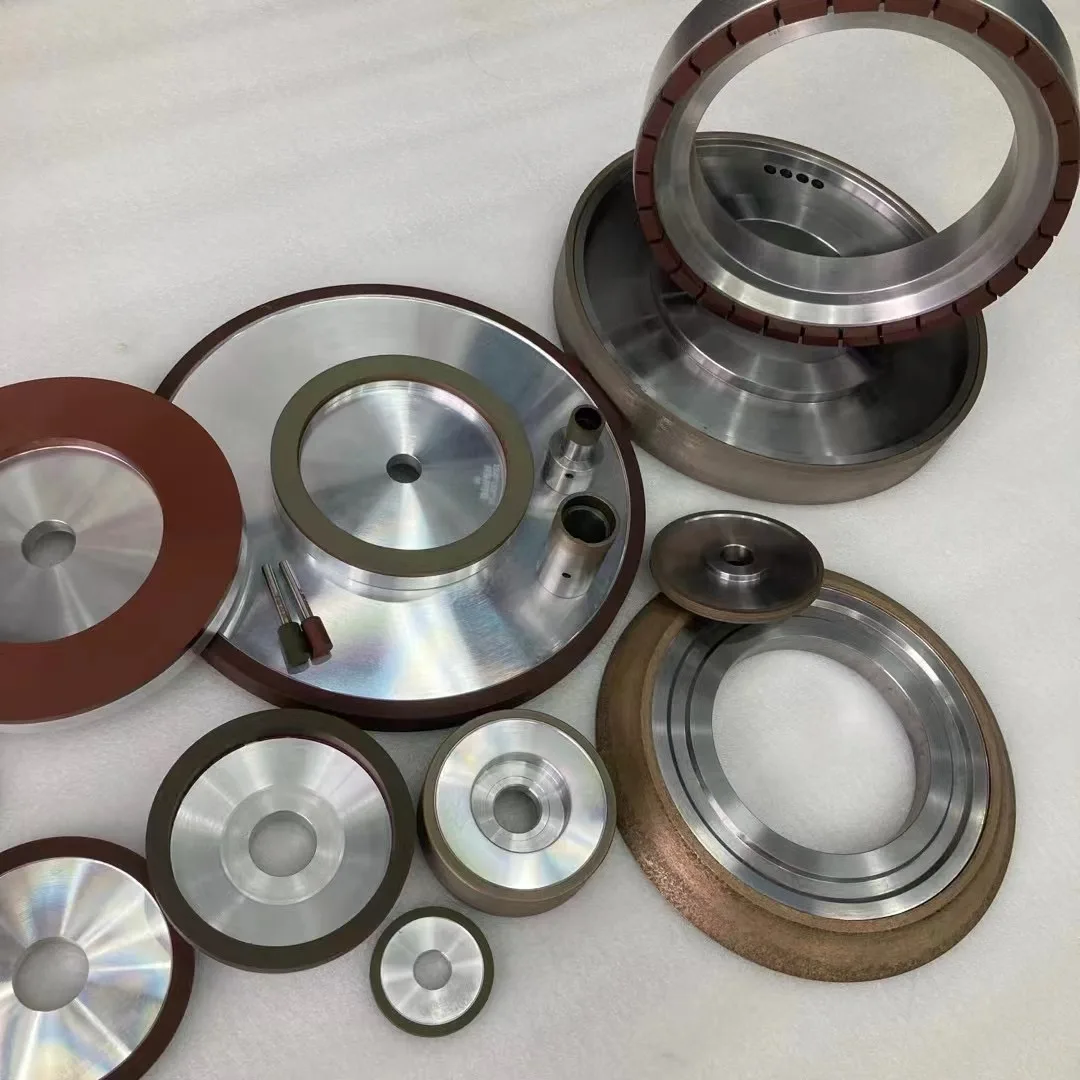

Xiamen Jianzuyan Diamond Tools Co., Ltd.was founded in 2005, is set Branch
Research, development and production of high-tech enterprises. Our main products
are diamond, CBN superhard series
Materials and tools. We specialize in Super abrasive resin bonds, metal bonds and electroplated products for all grinding applications. Un-mounted grinding wheels, mounted wheels, custom form wheels, and edge grinding wheels for the glass industries. Jianzuyan manufactures Precision Diamond core drills that are continuous rimed and segmented, with accommodating precision water swivels. Diamond plated band saw blades that are custom made continuous or interrupted to your exact requirements.
We have exported more than 80countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India,EU, etc
What we offer:
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
| Address: | |||
| Contact Person: | |||
| Tel: | |||
| Bond | Vitrified; Resin; Metal; electroplated; Vacuum brazed; Other | ||
| Abrasive | Diamond ; CBN ; Diamond &CBN | ||
| *Grinding Condition | Cycle Time: | General Capacity | Longitudinal Movement: |
| Linear Speed: | Cross Movement: | ||
| Surface Quality (Ra.): | Vertical Movement: | ||
| *Grinding Wheel | Name: | Liquid | Water: |
| Size: | Oil: | ||
| Grit: | |||
| Annual Qty.: | Other: | ||
| Machine Tool | Brand: | Workpiece | Name: |
| Name: | Material: | ||
| Item No.: | Hardness: | ||
| Dressing Tool | Diamond Pen: | Wheels Currently Using | Supplier: |
| Rotary Dresser: | Price: | ||
| Dressing Depth: | Working Life: | ||
| Dressing Freq.: | Working Speed: | ||
| Processing Method | Flat Grinding: | Centerless Grinding: | |
| Outer Circle Grinding: | Cutting: | ||
| Inner Circle Grinding: | Other: | ||
| REMARK: | |||
