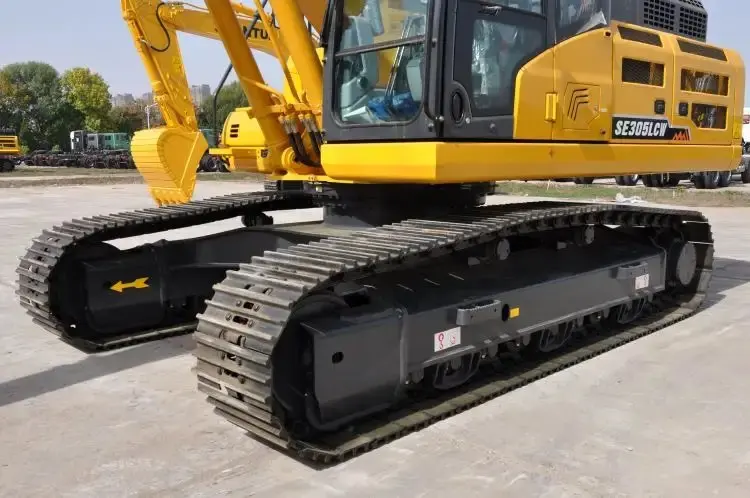

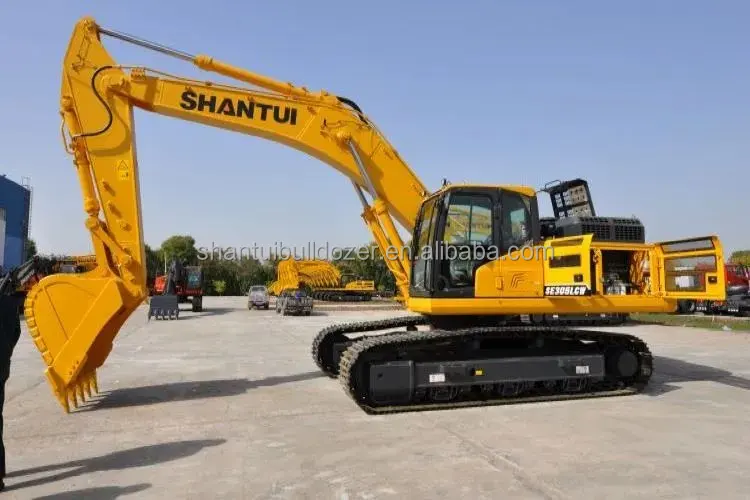

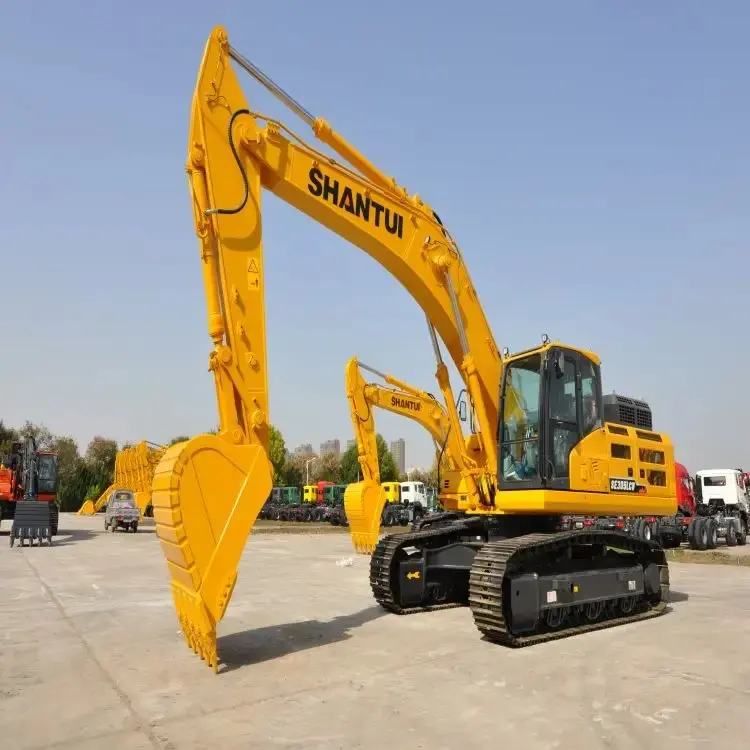

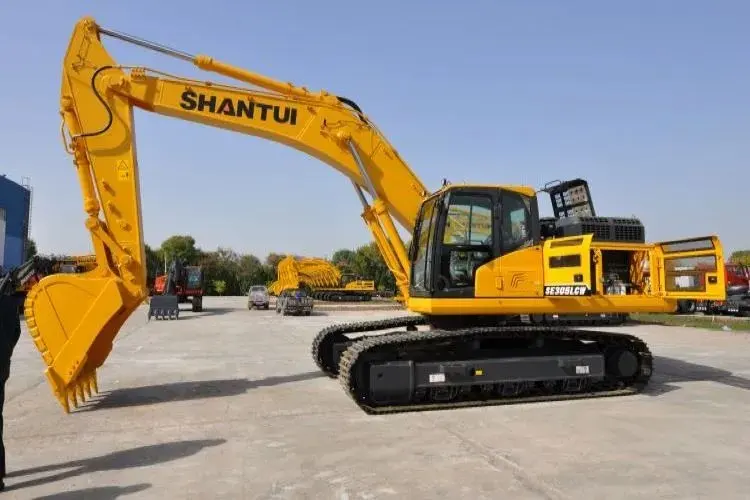

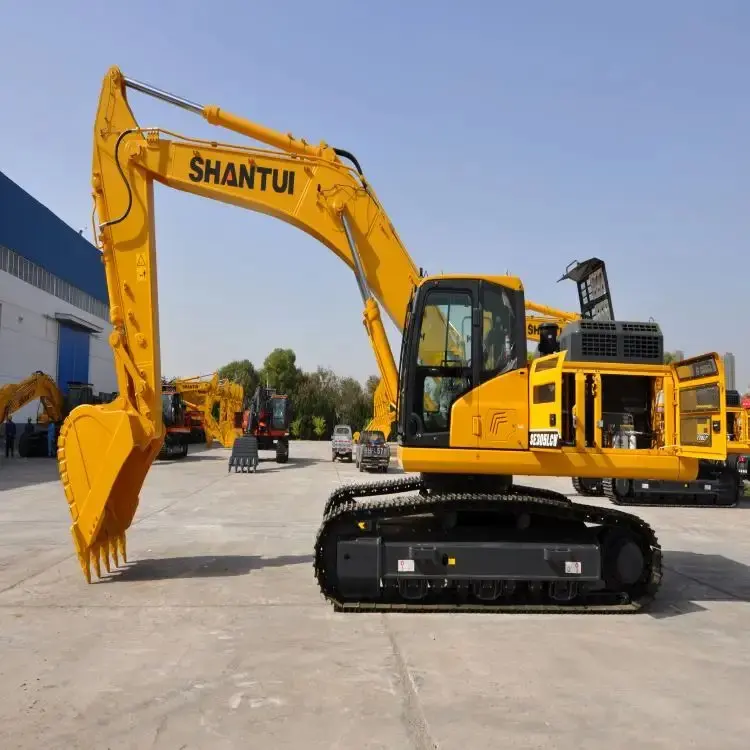

China Shantui SE305LCW excavator 32.6T large hydraulic crawler excavator within high power engine
- Category: >>>
- Supplier: Shandong Gt International Trading Co. Ltd.
Share on (1601245237253):
Product Overview
Description
Product Overview
The SHANTUI SE305LCW features standard integrated SHANTUI technology to make you more efficient. With new cab options focused on
operator comfort and less fuel and maintenance, the excavator ensures you’ll spend more time producing profits for your business.
operator comfort and less fuel and maintenance, the excavator ensures you’ll spend more time producing profits for your business.
Technical Features
Move more with less fuel
To fulfill the tough job of mining environment, the SHANTUI SE305LCW is equipped with a super strong “heart”-WeiChai WP7. Four working modes can switch freely and contributes to perfect balance of efficiency and energy saving.
To fulfill the tough job of mining environment, the SHANTUI SE305LCW is equipped with a super strong “heart”-WeiChai WP7. Four working modes can switch freely and contributes to perfect balance of efficiency and energy saving.
Purpose built for mining
The design of SE305LCW is completely optimized and the major stress locations are reinforced to resist against severe working conditions. Using advanced engineering and software, we carefully analyze each structure to create durable, reliable machines for tough applications.
Work in comfort
The full size ROPS and OPG certified cab is quiet and comfortable. Fully adjustable suspension seat can maximize comfort levels and reduces operator fatigue. ROPS and FOPS certified cab provides a safe work environment. The hydraulic activation level locks out all the hydraulic functions. Enter and exit the cab and walk on the upper structure safely with handrails, anti-skid plating and countersunk bolts which are meant to reduce slipping and tripping. Rear-view camera is also optional to protect working from all around.
Reduced maintenance costs

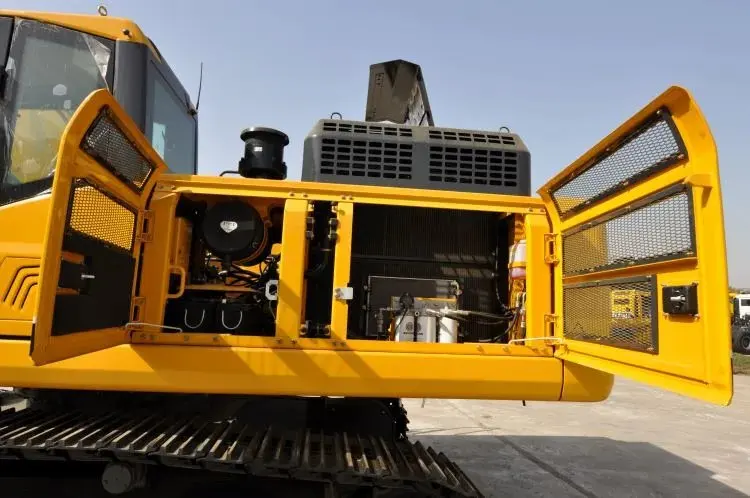

Convenient maintenance means less cost , and SE305LCW’s most routine service points are at ground level. The electric parts are centrally arranged to ease the checking and maintenances. The filling of coolant, the replacement of air filter element, and the power master switch are easily accessible. The parallel radiator effectively avoids the overheating and eases the cleaning.
Multi-purpose SHANTUI attachments
Fast and easily change attachments with optional auxiliary hydraulics. Enhance your work capabilities with a variety of
attachments including buckets, hammers, grapples and couplers. SHANTUI dealer can install hydraulic kits to properly operate attachments, maximizing machine uptime and profits.
attachments including buckets, hammers, grapples and couplers. SHANTUI dealer can install hydraulic kits to properly operate attachments, maximizing machine uptime and profits.
PRODUCT SPECIFICATIONS
SE220 Technical specifications: | Engine | Weichai WP7 |
1 | Emission | Tier 3 / Stage III |
2 | Displacement | 7.47L |
ENGINE | Power output | 199kW/2000rpm |
4 | Max. discharge flow | 285×2L/min |
5 | Bucket digging force | 210kN |
6 | Arm digging force | 155kN |
7 | Bucket capacity | 1.4~1.6(1.5)m³ |
8 | Grade ability | 70% (35°) |
Fuel tank | 620L | |
HYDRAULIC SYSTEM | Operating weight | 31500kg |
Max. digging height | 10030mm | |
Max. dumping height | 6920mm | |
Max. digging depth | 6760mm | |
Max. vertical digging depth | 5795mm | |
Max. digging distance | 10580mm |
