dump trailer hydraulic atv 4t dump trailer Hydraulic Cylinder End Dump Tipper Semi Trailer for Sale 4 Axles U Type 50Tons Steel
- Category: >>>
- Supplier: Shandong Panda Mechanical Co. Ltd.
Share on (1601245920737):
Product Overview
Description

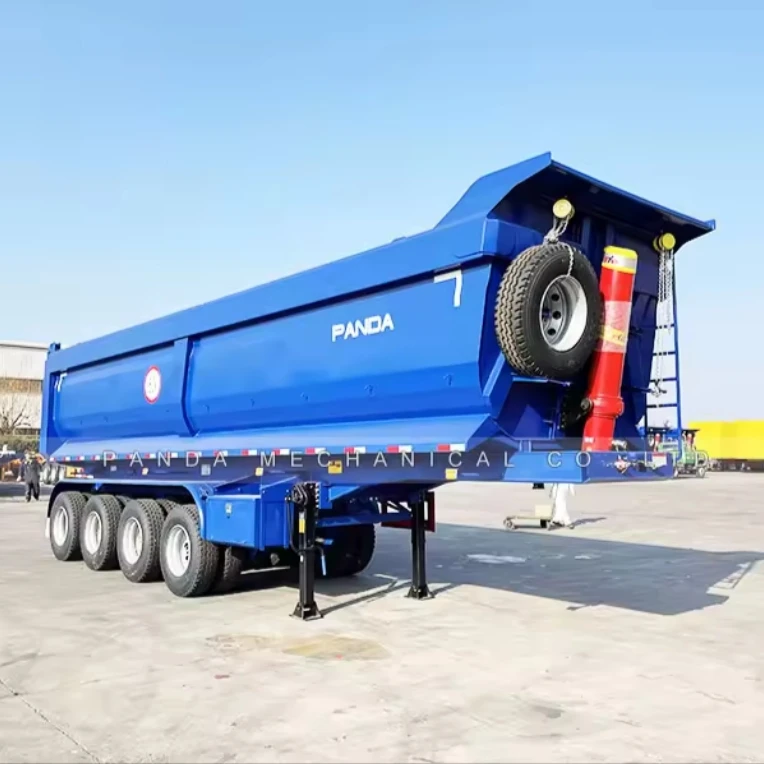

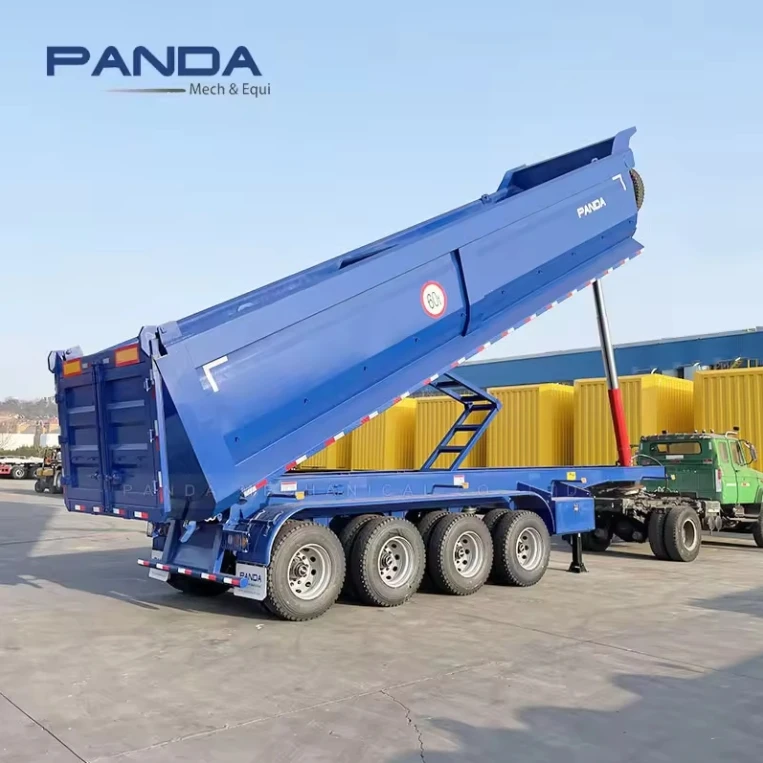

Hydraulic cylinder 4 Axles U type 50 tons End Dump Trailer Tipper Semi Truck Trailer
Dump semi trailer adopt advanced design concept.For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition.
Dump box dimensions and U-shape, box thickness, HYVA hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.
Product Details
U section box:
U model box design and analysis, larger section area with lower barycentre, load more and unloading easier, saftly and efficiently
Material：
Hardox 450 or equal wear and abrasion-resistant material box, T700 high tension beam, tare weight lighter 2000kg than normal material tipper, longer service time and lower fuel consumption
Cylinder：
FC and FE model optional, higher operating pressure, help Max 45° tilt angle, reducing turnaround time with faster-ripping speed, increasing operating time with long service intervals
Fasten Sys：
Rear door auto fasten lock efficiency work, adjustable design keep suitable situation,easy maintenance and replace
Material：
Hardox 450 or equal wear and abrasion-resistant material box, T700 high tension beam, tare weight lighter 2000kg than normal material tipper, longer service time and lower fuel consumption
Cylinder：
FC and FE model optional, higher operating pressure, help Max 45° tilt angle, reducing turnaround time with faster-ripping speed, increasing operating time with long service intervals
Fasten Sys：
Rear door auto fasten lock efficiency work, adjustable design keep suitable situation,easy maintenance and replace
Specification
40/45cbm Dump Trailer | 45cbm Dump Trailer | ||||
Dimension | 11500*2500*3750mm | 11500*2700*3750mm | |||
Axle | 3-6 axles BPW/FUWA/PDME | 3-6 axles BPW/FUWA/PDME | |||
Rim | 12-18 pieces 9.0-22.5 Steel | 12-18 pieces 9.0-22.5 Steel | |||
Tire | 12-18 pieces 12.00R20 Bridgeston/Triangle/Linglong | 12-18 pieces 12.00R20 Bridgeston/Triangle/Linglong | |||
Chamber | 6-12 sets T30/30 | ||||
Main Beam | T700 matirial "I" Section double web | ||||
Box | Hardox or equal steel | ||||
Lifting Sys | HYVA Brand | ||||
Suspenssion | Mechanical / Air / Bogie | ||||
Brake Valve | WABCO | WABCO | WABCO | ||
Brake Pipe | Nylon Wire Pipe | Nylon Wire Pipe | Nylon Wire Pipe | ||
Support Leg | 28T Lifting JOST/YAHUA | 28T Lifting JOST/YAHUA | 28T Lifting JOST/YAHUA | ||
Kingpin | 2"(50mm)/3.5"(90mm) JOST | 2"(50mm)/3.5"(90mm) JOST | 2"(50mm)/3.5"(90mm) JOST | ||
Lights | 12v/24v LED Waterproof | 12v/24v LED Waterproof | 12v/24v LED Waterproof | ||

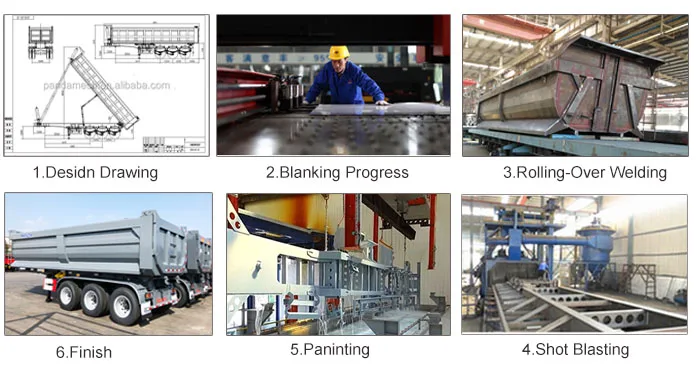

Production Process
More Products
PANDA MECH

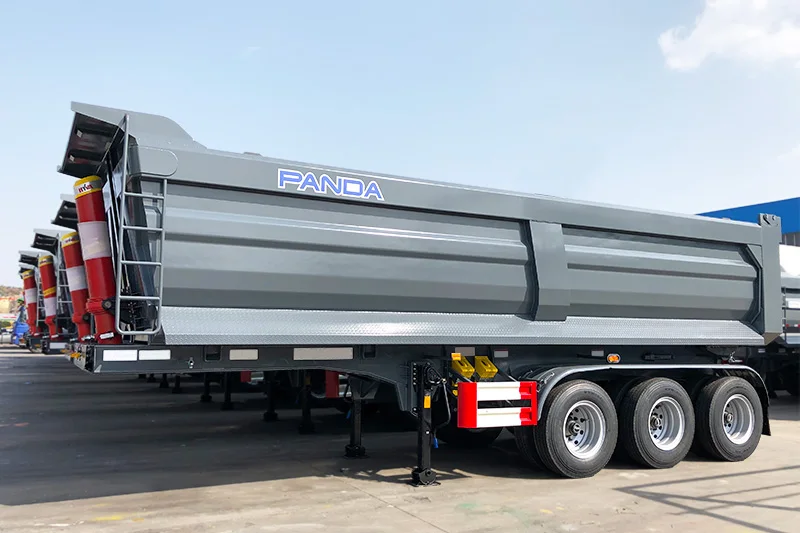

3 Axle 30cbm 35cbm rear dump tipper semi trailer
PANDA MECH
3 Axle 35cbm 40cbm rear dump tipper semi trailer
PANDA MECH
4 Axle 45 cubic meters rear tipping dump truck trailer
Packing & Shipping
Our service
Company information
1. Shandong Panda mechanical Co., Ltd. was established in June 2010. It is the "bulletin" enterprise of the Ministry of industry and information.
2. Main business: tipper trailer, container trailer, cement trailer, flatbed trailer, tanker trailer, self-unloading trailer, wing open
trailer and so on.
3. It covers more than 100,000 m2, we have more than 300 staffs spread in 6 department, 4 strict quality inspections throughout the production process. More than 60,000 m2 workshop which produce more than 4,000 trailers per year.
2. Main business: tipper trailer, container trailer, cement trailer, flatbed trailer, tanker trailer, self-unloading trailer, wing open
trailer and so on.
3. It covers more than 100,000 m2, we have more than 300 staffs spread in 6 department, 4 strict quality inspections throughout the production process. More than 60,000 m2 workshop which produce more than 4,000 trailers per year.
Contact us
Contact us for more produces, latest promotion and ready shipping products information, etc.
Any questions about sales, maintain and repair whatever Panda or yourself vehicle, feel free to contact us, we will try our best to support you.
Any questions about sales, maintain and repair whatever Panda or yourself vehicle, feel free to contact us, we will try our best to support you.
