New Arrival Load 8/10 Cars Carrying Vehicle Car Transporter Trailer Car Carrier Semi Trailer For Sale
- Category: >>>
- Supplier: Shandong Hstar Auto Co. Ltd.
Share on (1601246014175):
Product Overview
Description
Product Description
Car Carrier Semi-trailer
Main Description | ||||||||||||

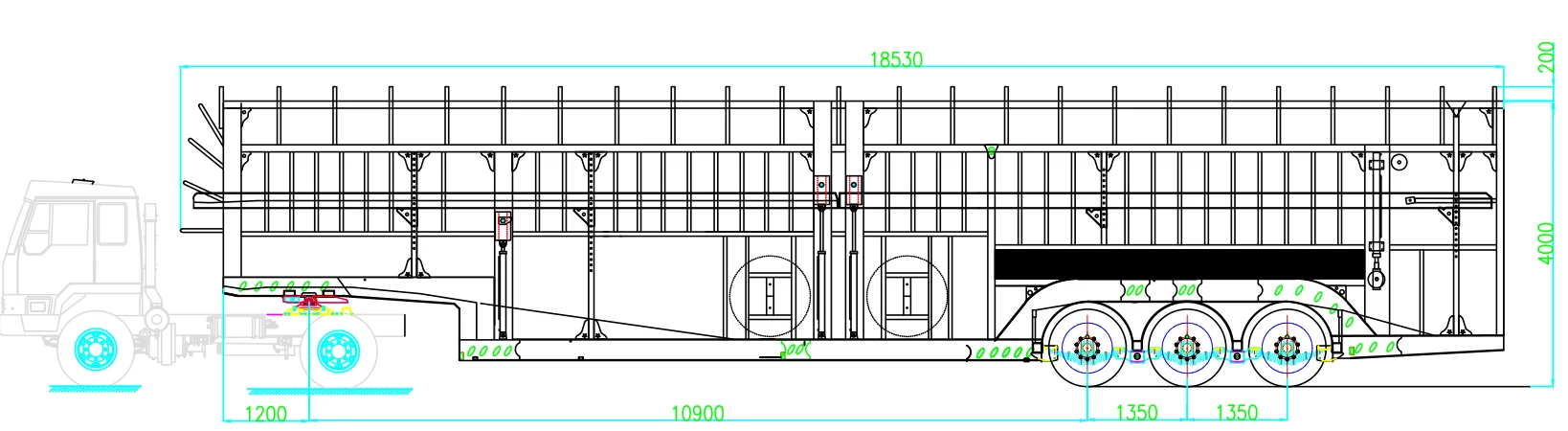

Overall Dimension (L* W *H) | 18560mm*2600mm*3950mm | |||||||||||
King Pin Setting | 1590mm | Wheelbase | 10850mm+1350mm | |||||||||
Ground Clearance | 200mm | Track | 2203mm | |||||||||
Height Of Loading Surface | 435mm | |||||||||||
Running Gear | ||||||||||||
Suspension | Mechanical suspension with 3-pcs leaf spring | |||||||||||
Hubs | Cast steel 10 studs | |||||||||||
Rim & Tire | Rim 9.0-22,5, 6 units tire 12.R22.5, | |||||||||||
Axles | 3 units AQ 10T concave axles | |||||||||||
Brakes | Dual lines pneumatic brake system, 30/30 chambers, air-actuated | |||||||||||
Under Frame | ||||||||||||
Main Beam | I shape, Mild Alloy （16Mn） by Automatic submerged arc welding, welded on left and right sides | |||||||||||
Cross Beam | Mild Alloy Q235 | |||||||||||
King Pin | 50# (2'') welded on plate (optional 90# ) | |||||||||||
Landing Gear | Static capacity 15Ton | |||||||||||
Body | ||||||||||||
Lifting Type Of Upper Floor | Hydraulic and manual lifting mechanism | |||||||||||

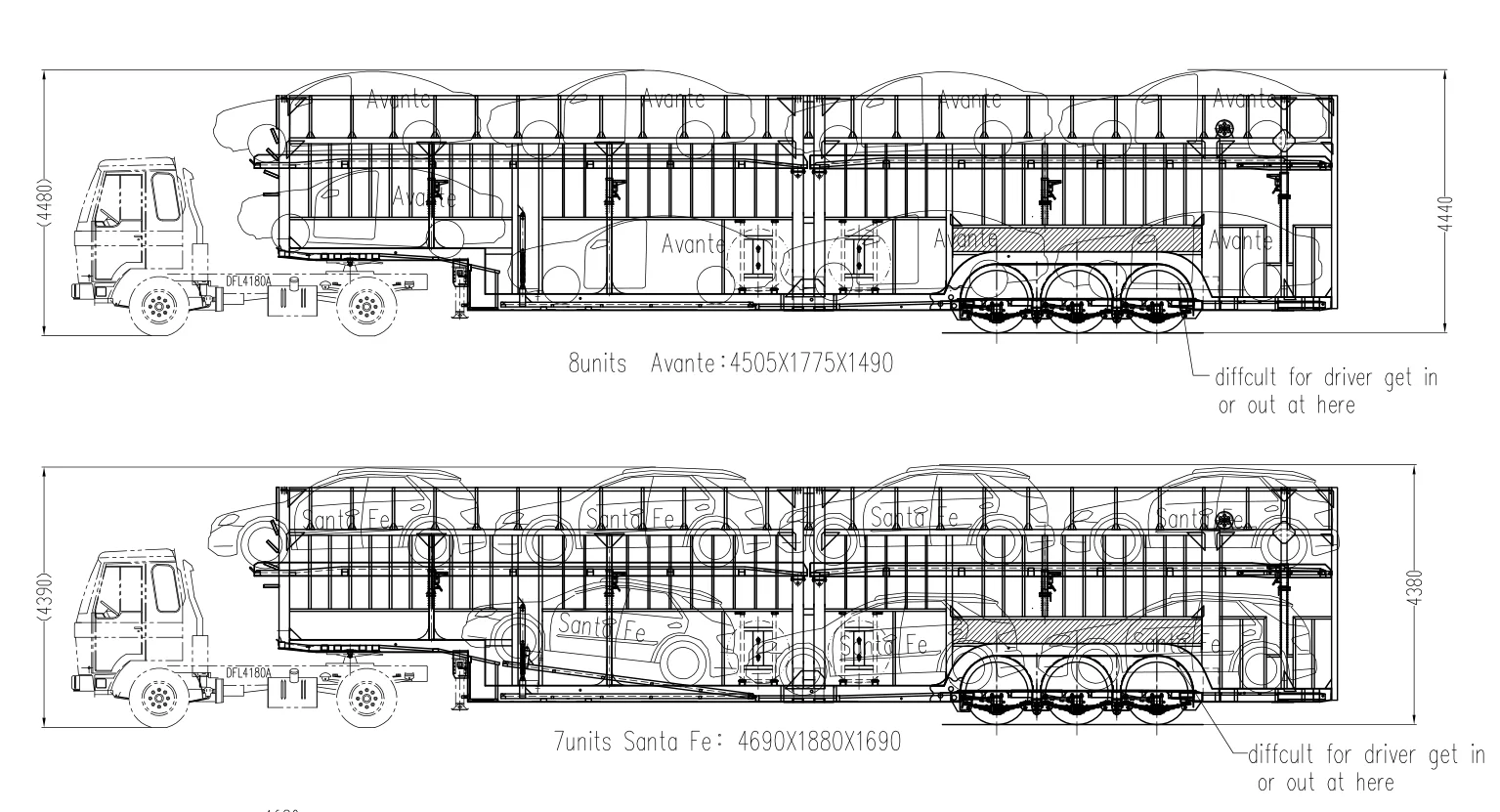

Quantity Of Carried Cars | 8 units (4m per car) | |||||||||||
Electrical & Paint | ||||||||||||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||||||||||
Wiring | 24V, 6 lines | |||||||||||
Company Profile
Our Factory
Customer Photos
Packing & Delivery
FAQ
Q1: Does your company is a factory or trade company?
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process. 100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
