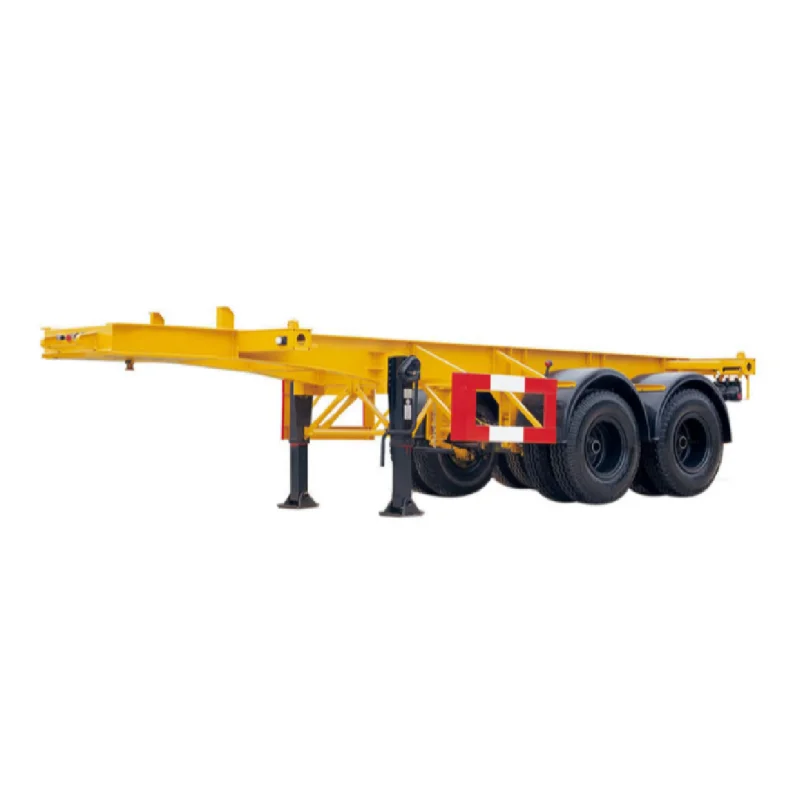

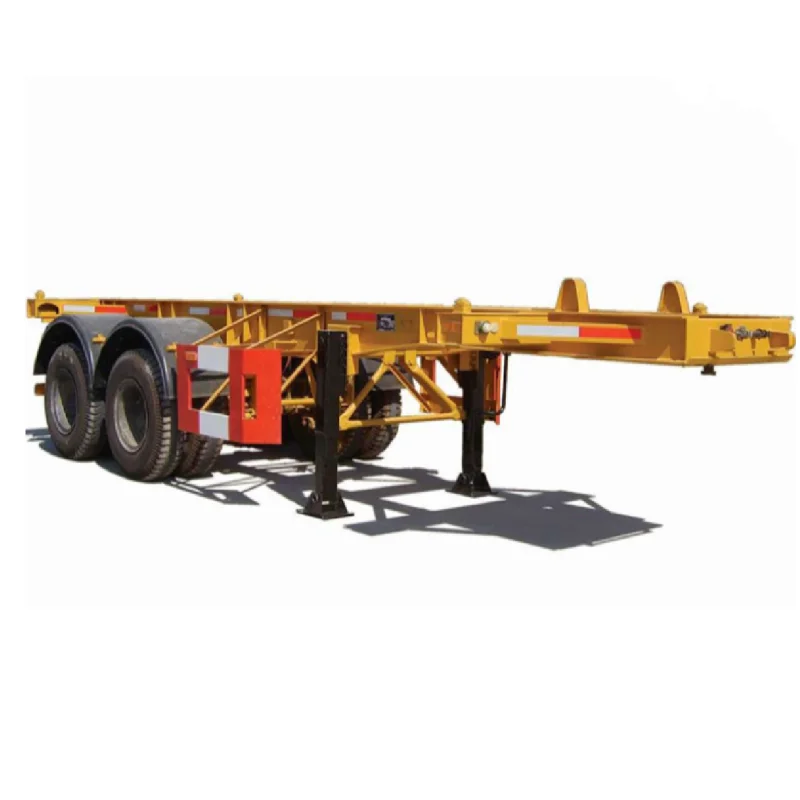

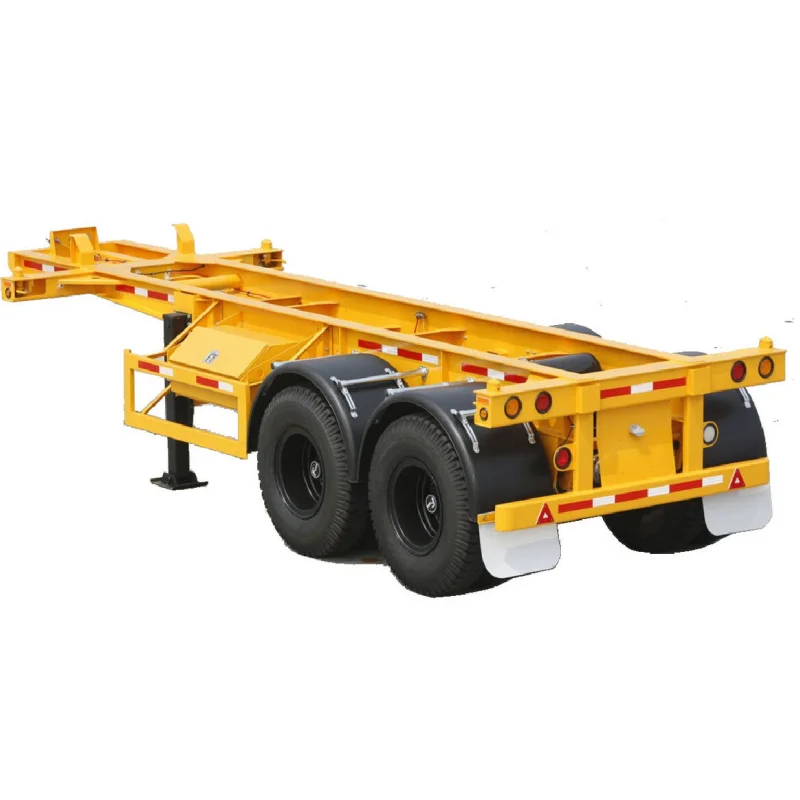

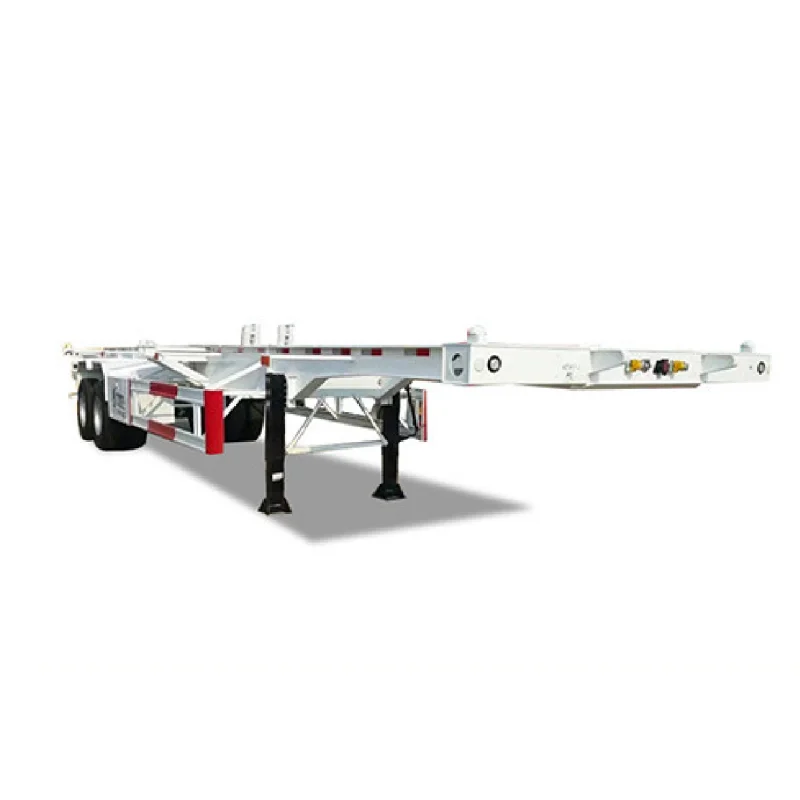

2 Axle 40 ft 40 ton skeleton semi trailer shipping container trailer transport chassis truck with 12 pieces twist lock
- Category: >>>
- Supplier: Shandong Hstar Auto Co. Ltd.
Share on (1601246239200):
Product Overview
Description
Product Description
What is the purpose of Skeleton Semi Trailer?
Usually, skeleton semi-trailers can be used to transport containers, such as in ships, ports, routes, highways, transfer stations, bridges, tunnels and other logistics systems, and can also be used to transport dangerous goods tanks.
1.Factory direct sale, no agent, no agency fees, low price for high quality.Give you the best product and the best price.
2.Our products can be customized for various needs.And customizable unique company logo is available.
3.Cutting edge automation equipment adopted in the factory, improved quality from traditional production methods.Steel is welded by automatic submerged arc process, connection spots look more flawless, more solid and durable compared with traditional manual ways.
4.Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process.
Specifications | ||

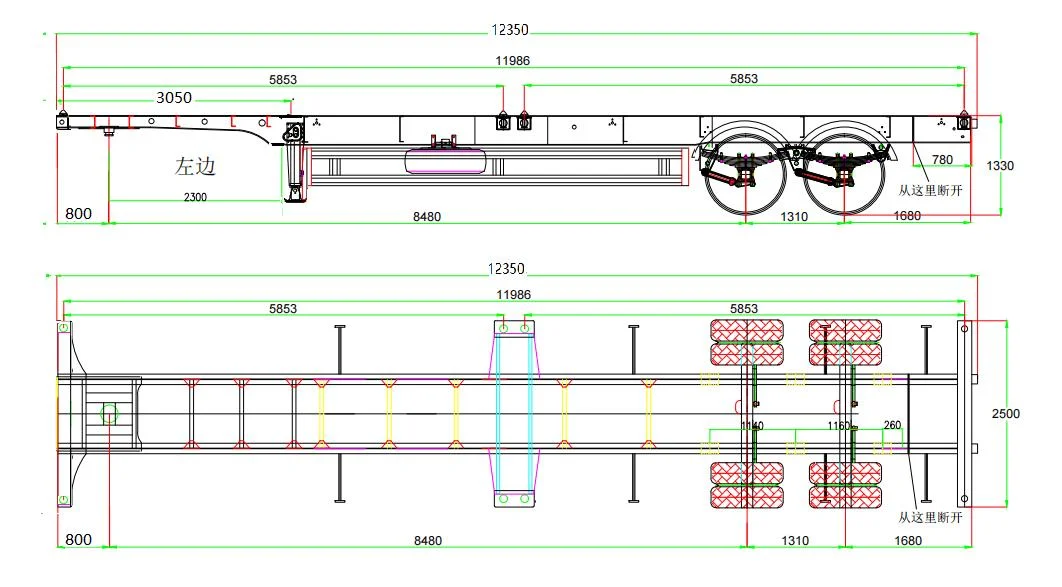

Dimension | 12.38m*2.48m*1.55m (Outside) | |
Payload | 50T | |
Tare Weight | About 6.5T | |
Twist Lock | 4 / 8units | |
Chassis | ||
Main Beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. | |
Frame Beam | Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm | |
Axle | 2 axles, 13Ton | |
Landing Gear | 28T lifting capacity with two speed | |
King Pin | 2.00 or 3.5 inch bolt-in king pin | |
Suspension | Mechanical suspension reinforced type | |
Leaf Spring | 90mm(W)*13mm(T)*10 Layer | |
Pneumatic Braking System | Dual line pneumatic brake system,T30 air chamber ,40L air tanks, Emergency relay valve | |
Rim | 9.0-20*8 pcs | |
Tire | 12R22.5*8 pcs | |
Accessories | One standard tool box | |
Details Images
Company Profile

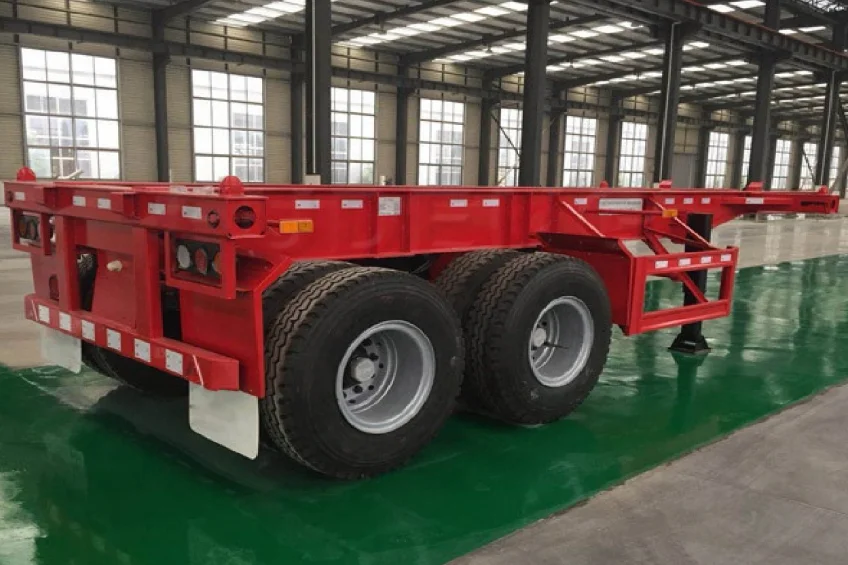

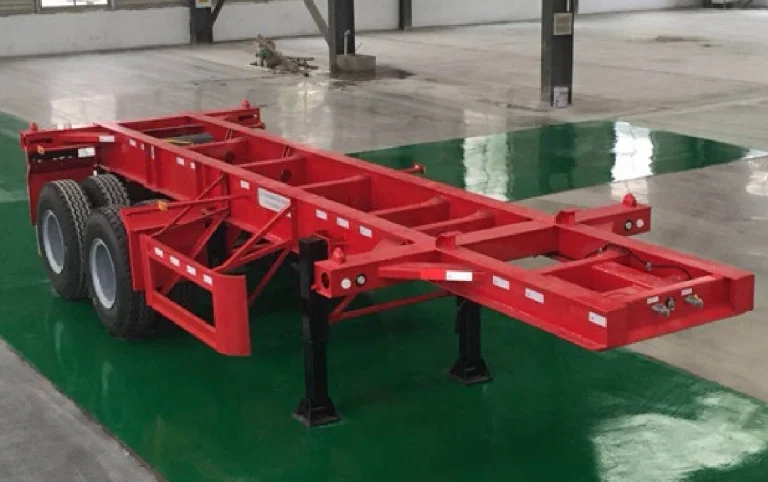

Our Factory

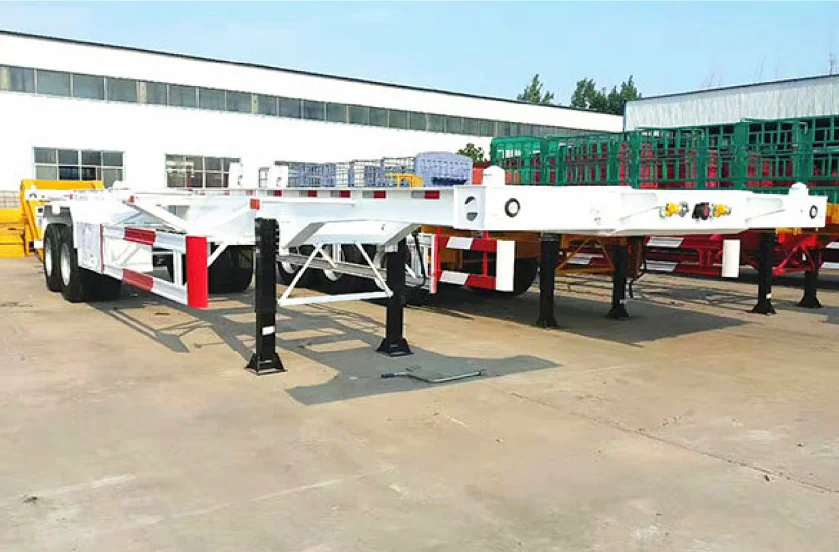

Customer Photos
Packing & Delivery
FAQ
Q1: Does your company is a factory or trade company?
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process. 100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
