JUNMA compressed Non asbestos Flange gasket material customize gasket
- Category: >>>
- Supplier: Chengdu Junma Sealing Technology Co. Ltd.Chengdu Ltd.
Share on (1601246339532):
Product Overview
Description
Comparison of similar products
Model Number | JM-7102 | JM-7103 | JM-7104 | JM-7105 | ||||
Density | 1.6-2g/cm³ | |||||||
Tensile strength | ≥6.0MPa | ≥8.0MPa | ≥10.0MPa | ≥13.0MPa | ||||
Compressibility (34.5MPa) | ≥7.0% | ≥7.0% | ≥12±5.0% | ≥12±5.0% | ||||
Recovery | ≥40% | ≥40% | ≥40% | ≥50% | ||||
Temperature range | -40℃-200℃ | -40℃-250℃ | -40℃-300℃ | -40℃-350℃ | ||||
Fluid Immersion, IRM 903 Oil (150℃×5h) | ||||||||
Change in weight | ≤20% | ≤20% | ≤20% | ≤15% | ||||
Change in thinkness | ≤15% | ≤15% | ≤15% | ≤10% | ||||
Fluid Immersion, Fuel B (21-30 ℃ ×5h) | ||||||||
Change in weight | ≤20% | ≤20% | ≤20% | ≤20% | ||||
Change in thinkness | ≤15% | ≤15% | ≤15% | ≤15% | ||||

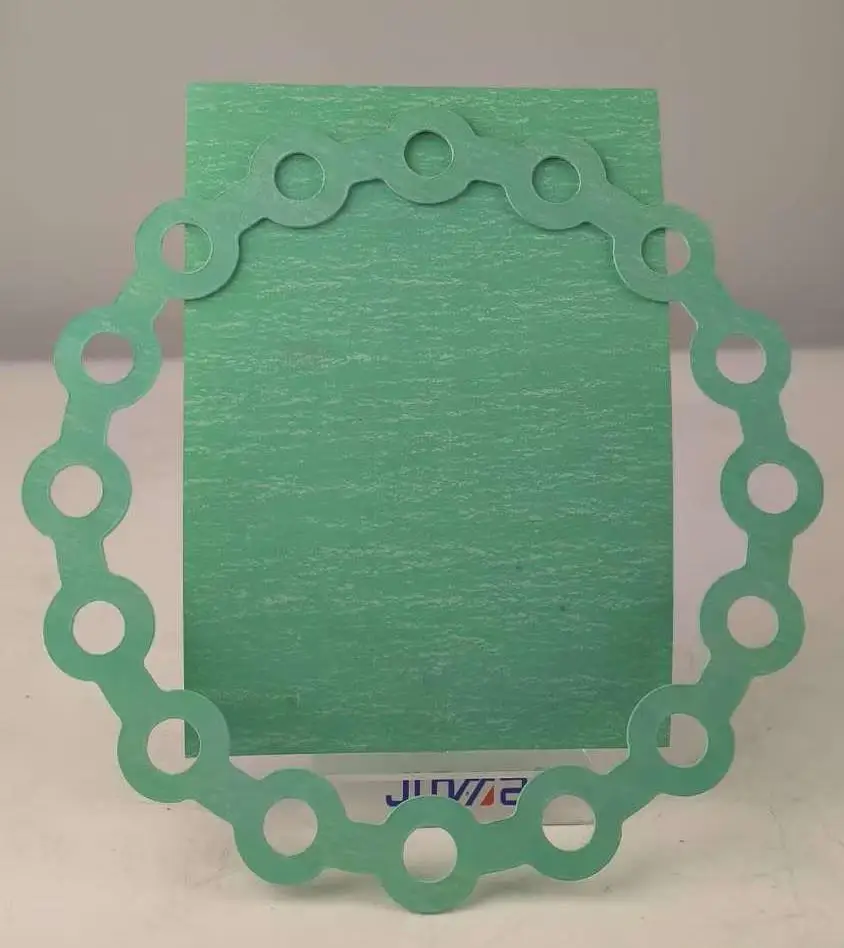

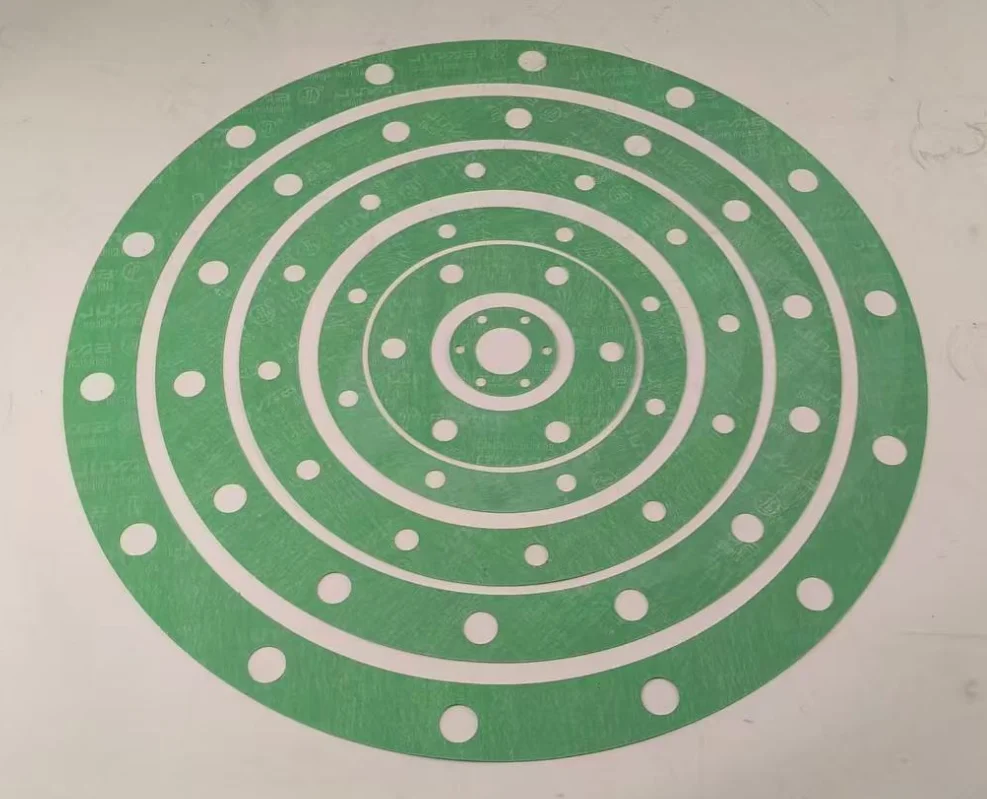

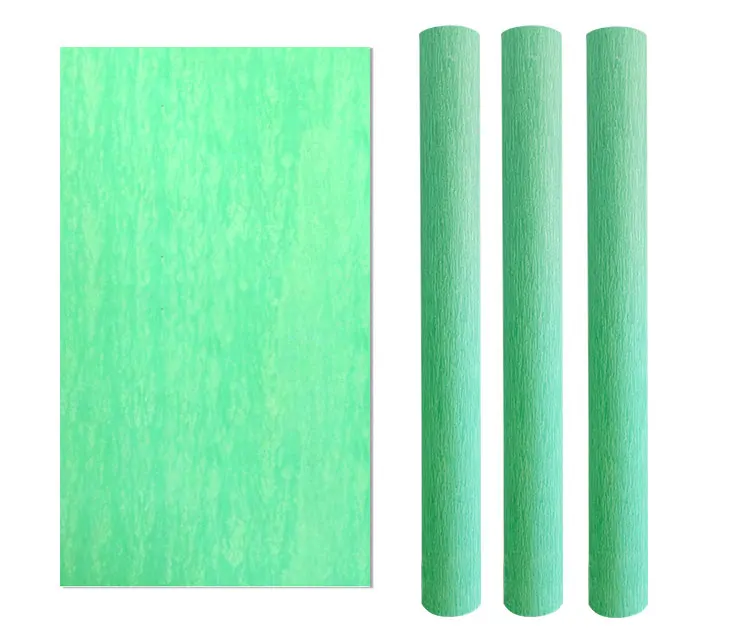

Non-asbestos Compressed Sheet Materials
Product Description:
JM-7102 is anon-asbestos cost-effective calendered sheet sealing material.Its composition is comprised of environmentally friendly aramid fibers,special inorganic fillers,and nitrile rubber binders
It has steady and well-balance mechanical properties.JM-7102 was designed to offer good fuel and oil resistance.It is suitable for heavy-duty transmission valves and other heavy-duty applications,The applicable temperature ofthis productis-40°C-300°C.
Model Number : JM-7102
The application temperature range of this product is -40℃-300℃.
Product Gauge: 0.5-3.0 mm. (Other thickness can be made uponrequested)
Product Gauge: 0.5-3.0 mm. (Other thickness can be made uponrequested)
Product Features:
--------------------------------------------
1.Tightly integrated structure with excellent sealing characteristics.
2.Very good physical properties of tensile strength, compressibility, recovery and creep relaxation.
3.Specially designed to obtain good durability and chemical resistance, including oil, antifreeze and fuel.
4.Uniform and smooth surface structure with good conformability to seal rough and uneven flange surfaces.
2.Very good physical properties of tensile strength, compressibility, recovery and creep relaxation.
3.Specially designed to obtain good durability and chemical resistance, including oil, antifreeze and fuel.
4.Uniform and smooth surface structure with good conformability to seal rough and uneven flange surfaces.
5.Products can be designed to meet customers' demands.
Areas of Application
Automobiles, Motorcycles, Small Engines for general applications, Compressors (air compressors and refrigeration compressors), Agriculture Equipment, Construction Equipment, Pipe Connection in Petroleum Chemical Industries, Ship Building, parts assembly kits and aftermarket applications.
Company Profile
Certifications
Certifications for quality management systems such as ISO9001 and IATF16949, environmental-management system 14001, occupational health and safety system 45001, All materials have passed
non-toxicity directive testing standards such as EU SGS, ROHS and REACH.

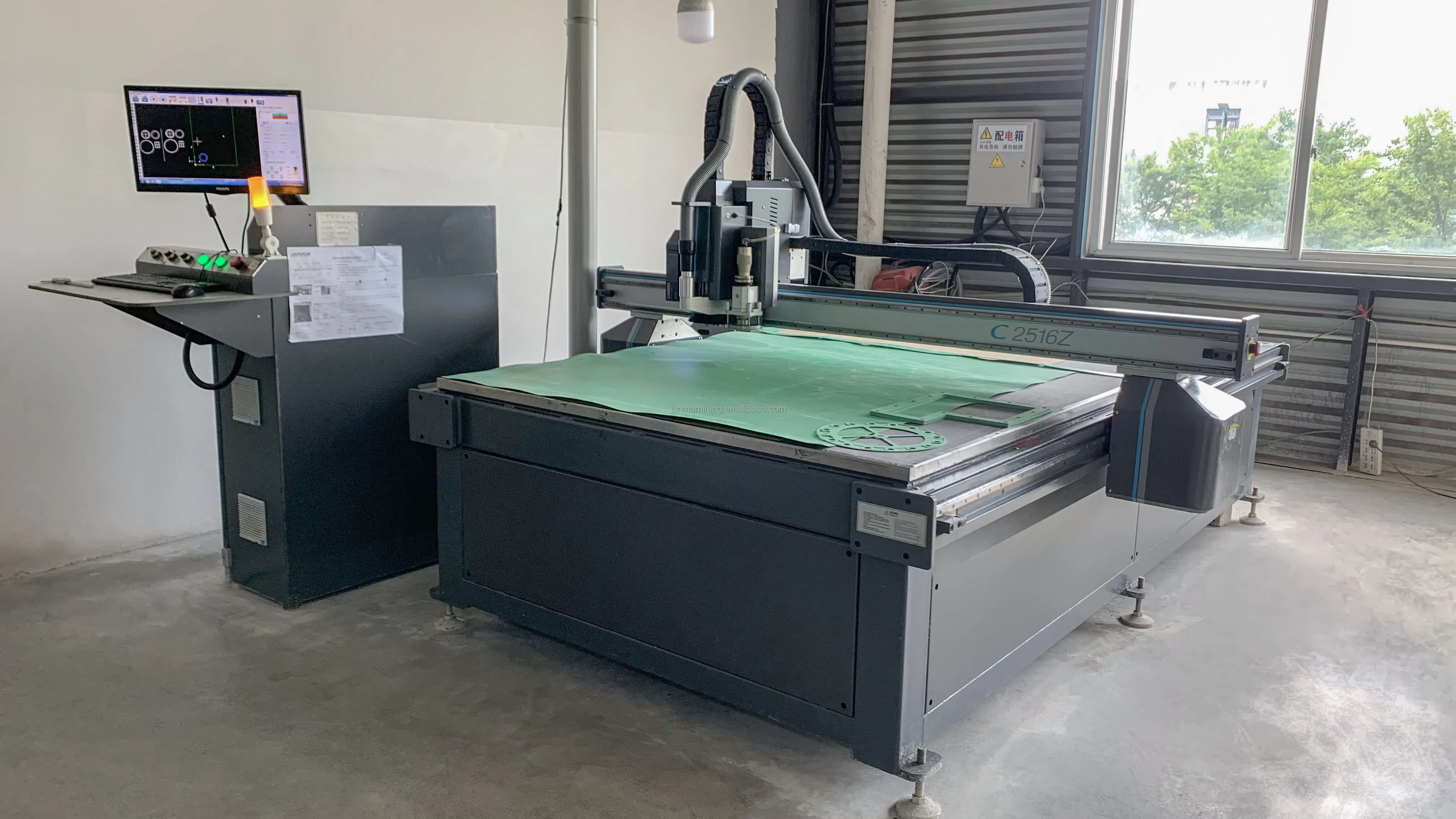

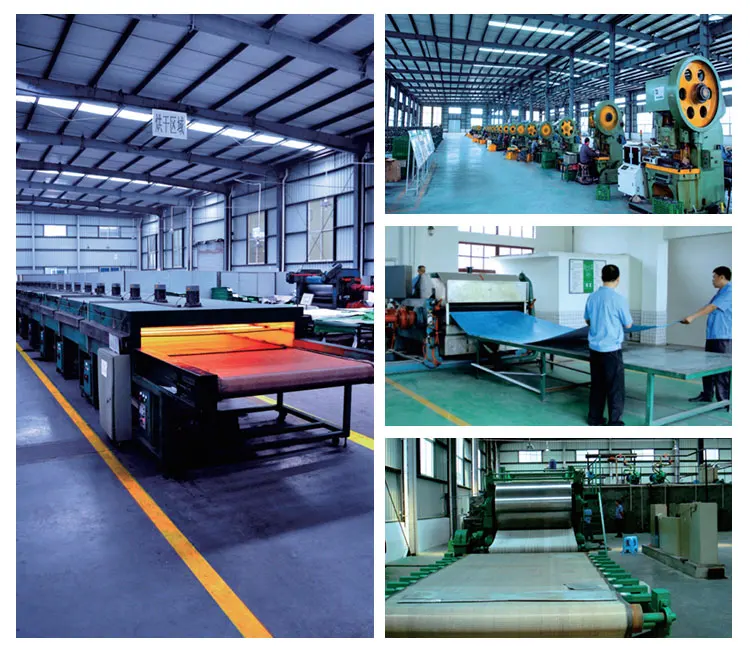

workshop

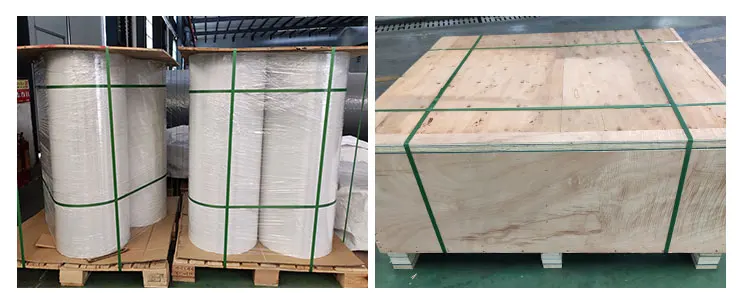

Product packaging
Packing: To better ensure the safety of your goods, professional, environmentally friendly, ------------ convenient and efficient packaging services will be provided.
Shipping: International express TNT , DHL , EMS ,by air or by ship and so on .
FAQ
Q1: What is your samples policy?
If we have the sample model you need,we can provide free samples. but customers need to pay for express delivery. If we don't have the samples you need, we can customize them and send them to you.
Q2: Can we do printing or label printing on the gasket?
Yes, we provide OEM service, please inform us in advance if you need to print brand.
Q3: How about your delivery time ?
Generally,it will take 20 to 30 days after receiving your advance payment, The specific deliver time depends on the items and thequantity of your order.
Q4: Do you have your own factory, or only a trading company?
We have our own factory, and our factory is located in Chengdu City, Sichuan Province,
Q5: what are your term of packing?
A: Generally,plastic bag +Carton+pallet
Q6: How do you make our business long-term and good relationship?
A1:we keep good quality and competitive price to ensure our customers benefits.
A2: we respect every customers as our friend and we sincerely do business and make friends with them,no matter where they come from.
Q7: what are your terms of payment?
A:T/T 50% in advance and balance 50% before shipment.
Q8: Do you test all your goods before delivery?
Yes,we have 100% test before delivery.We will confirm the accurate product list and product pictures with you before shipment to ensure that the goods are correct.
Q9: What is your terms of delivery?
FOB,T/T,D/P,Western Union
If we have the sample model you need,we can provide free samples. but customers need to pay for express delivery. If we don't have the samples you need, we can customize them and send them to you.
Q2: Can we do printing or label printing on the gasket?
Yes, we provide OEM service, please inform us in advance if you need to print brand.
Q3: How about your delivery time ?
Generally,it will take 20 to 30 days after receiving your advance payment, The specific deliver time depends on the items and thequantity of your order.
Q4: Do you have your own factory, or only a trading company?
We have our own factory, and our factory is located in Chengdu City, Sichuan Province,
Q5: what are your term of packing?
A: Generally,plastic bag +Carton+pallet
Q6: How do you make our business long-term and good relationship?
A1:we keep good quality and competitive price to ensure our customers benefits.
A2: we respect every customers as our friend and we sincerely do business and make friends with them,no matter where they come from.
Q7: what are your terms of payment?
A:T/T 50% in advance and balance 50% before shipment.
Q8: Do you test all your goods before delivery?
Yes,we have 100% test before delivery.We will confirm the accurate product list and product pictures with you before shipment to ensure that the goods are correct.
Q9: What is your terms of delivery?
FOB,T/T,D/P,Western Union
