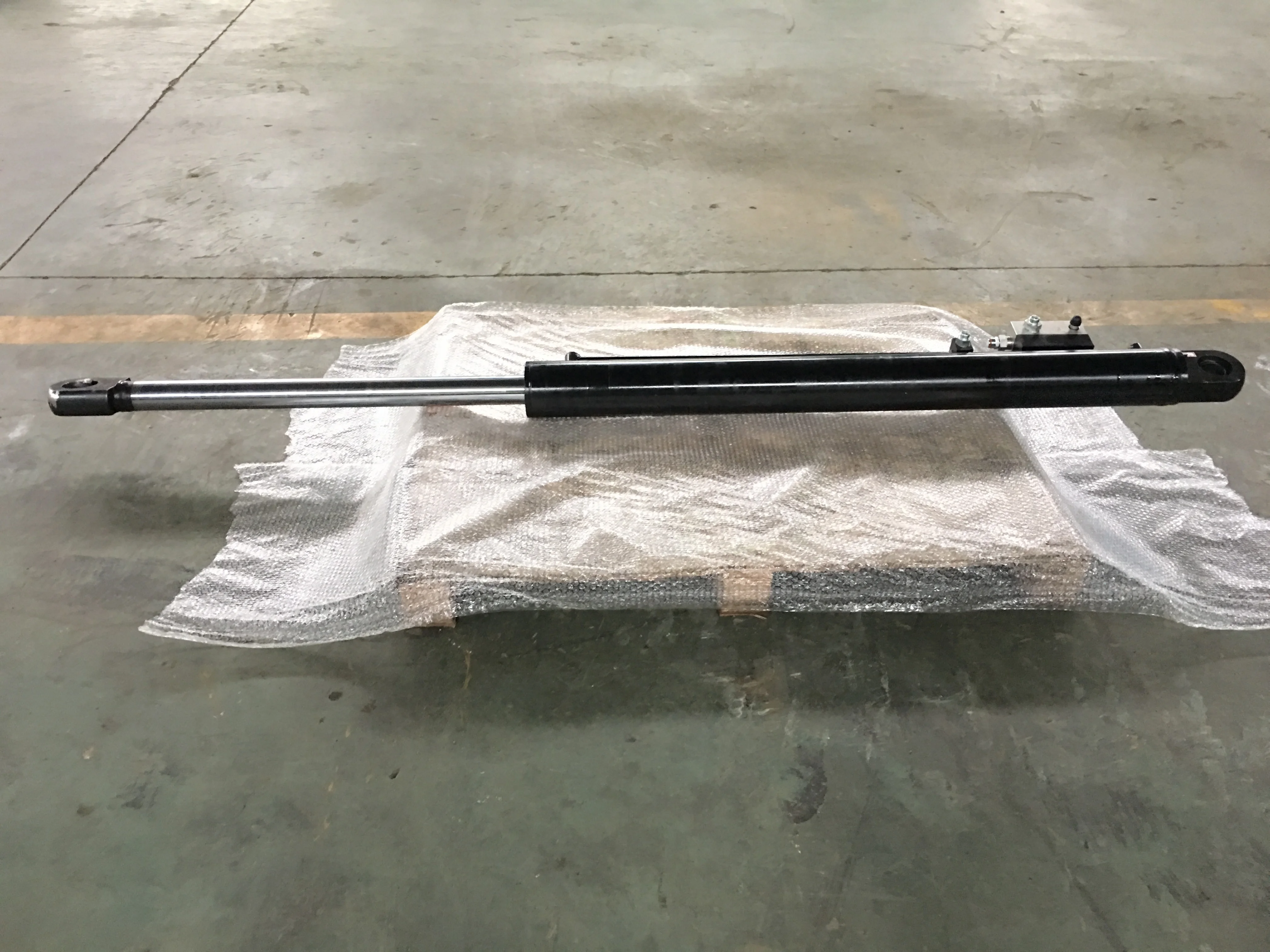

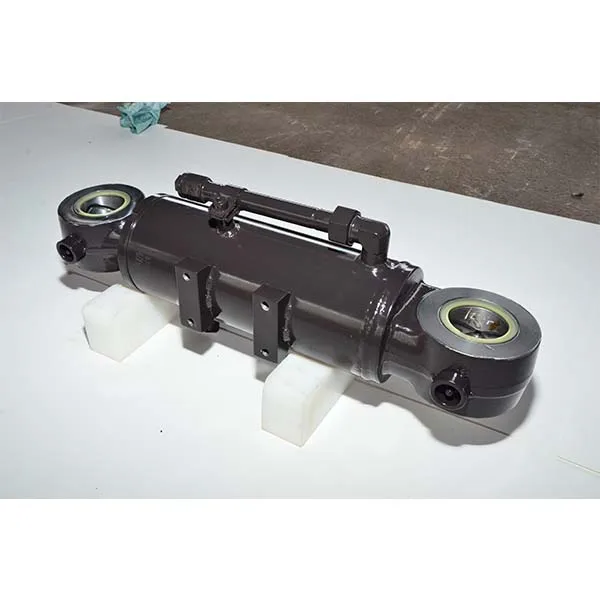

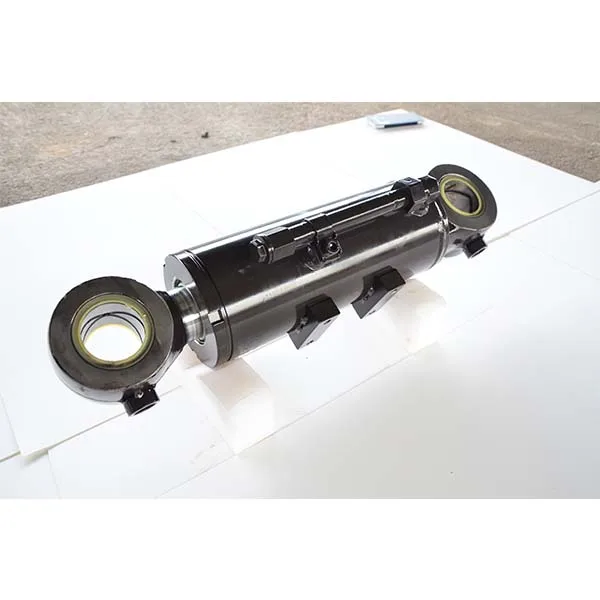

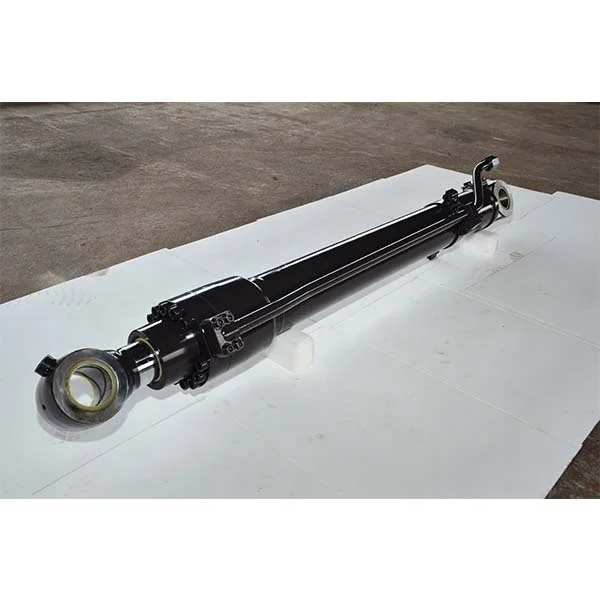

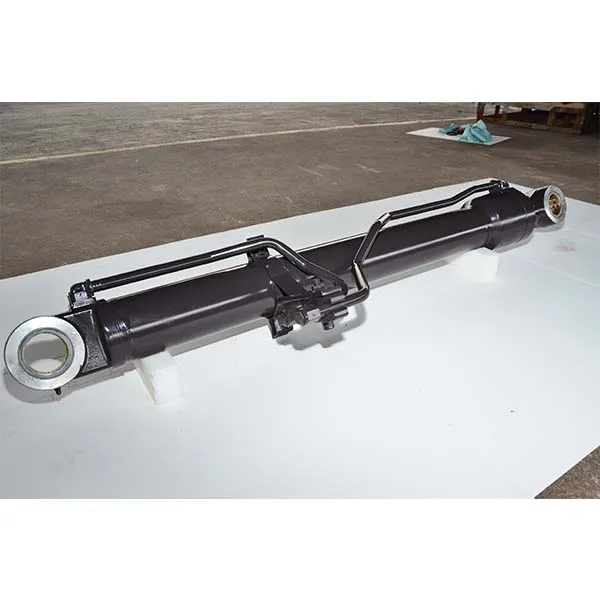

115 160mm Cylinder Dia. 65 110mm Rod Dia. Hydraulic Excavator Boom Arm Bucket Stick Cylinder
- Category: >>>
- Supplier: TYSIM PILIING EQUIPMENT CO. LTD
Share on (1601247601153):
Product Overview
Description
Products Description
Advantages:
1. Quality:
Overall Structure: Low weight; High strength; With buffer zone at both ends; Manufacturing Process: With one molding by imported scraping roller; Ensure the straightness surface finish and surface hardness of cylinder bore; The prstion rod: With high-frequency hardening and surface nickel and chrome plating process; Improve tis performance in anti-rust anti-wearing and anti-bruising;
2. Service: Long warranty period 3000 hours; Lifetime maintenance;
1. Quality:
Overall Structure: Low weight; High strength; With buffer zone at both ends; Manufacturing Process: With one molding by imported scraping roller; Ensure the straightness surface finish and surface hardness of cylinder bore; The prstion rod: With high-frequency hardening and surface nickel and chrome plating process; Improve tis performance in anti-rust anti-wearing and anti-bruising;
2. Service: Long warranty period 3000 hours; Lifetime maintenance;
Specification | ||||||||||
Excavator Type | Name | Stroke (mm) | Installation Diameter(mm) | Cylinder Diameter(mm) | Rod Diameter(mm) | |||||
5.5T | Boom Cylinder | 710 | 1120 | 115 | 65 | |||||
Stick Cylinder | 815 | 1210 | 90 | 55 | ||||||
Bucket Cylinder | 605 | 945 | 85 | 55 | ||||||
Dozer Cylinder | 150 | 500 | 110 | 60 | ||||||
6.5T | Boom Cylinder | 885 | 1311 | 110 | 65 | |||||
Stick Cylinder | 900 | 1300 | 90 | 60 | ||||||
Bucket Cylinder | 730 | 1120 | 80 | 50 | ||||||
Dozer Cylinder | 145 | 565 | 130 | 70 | ||||||
11.5T | Left Boom Cylinder | 980 | 1480 | 100 | 70 | |||||
Right Boom Cylinder | 980 | 1480 | 100 | 70 | ||||||
Stick Cylinder | 1010 | 1530 | 115 | 80 | ||||||
Bucket Cylinder | 885 | 1375 | 95 | 65 | ||||||
18.5T | Left Boom Cylinder | 1195 | 1790 | 120 | 85 | |||||
Right Boom Cylinder | 1195 | 1790 | 120 | 85 | ||||||
Stick Cylinder | 1405 | 2000 | 130 | 95 | ||||||
Bucket Cylinder | 1110 | 1630 | 110 | 80 | ||||||
20T | Boom Cylinder | 1285 | 1870 | 120 | 85 | |||||
Stick Cylinder | 1490 | 2075 | 135 | 95 | ||||||
Bucket Cylinder | 1120 | 1680 | 115 | 80 | ||||||
23T | Boom Cylinder Assembly | 1295 | 1870 | 130 | 90 | |||||
Stick Cylinder Assembly | 1675 | 2225 | 140 | 100 | ||||||
Bucket Cylinder Assembly | 1156 | 1744 | 130 | 90 | ||||||
26T | Boom Cylinder Assembly | 1420 | 1980 | 139 | 100 | |||||
Stick Cylinder Assembly | 1748 | 2348 | 149 | 110 | ||||||
Bucket Cylinder Assembly | 1130 | 1753 | 134 | 100 | ||||||
40T | Boom Cylinder Assembly | 1495 | 2135 | 160 | 110 | |||||
Stick Cylinder Assembly | 1790 | 2480 | 170 | 110 | ||||||
Bucket Cylinder Assembly | 1285 | 1990 | 160 | 110 | ||||||

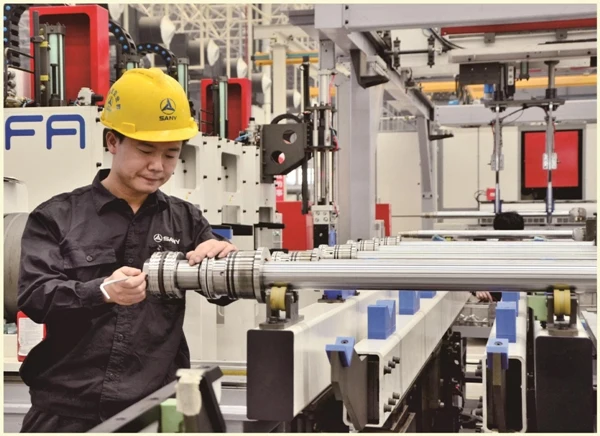

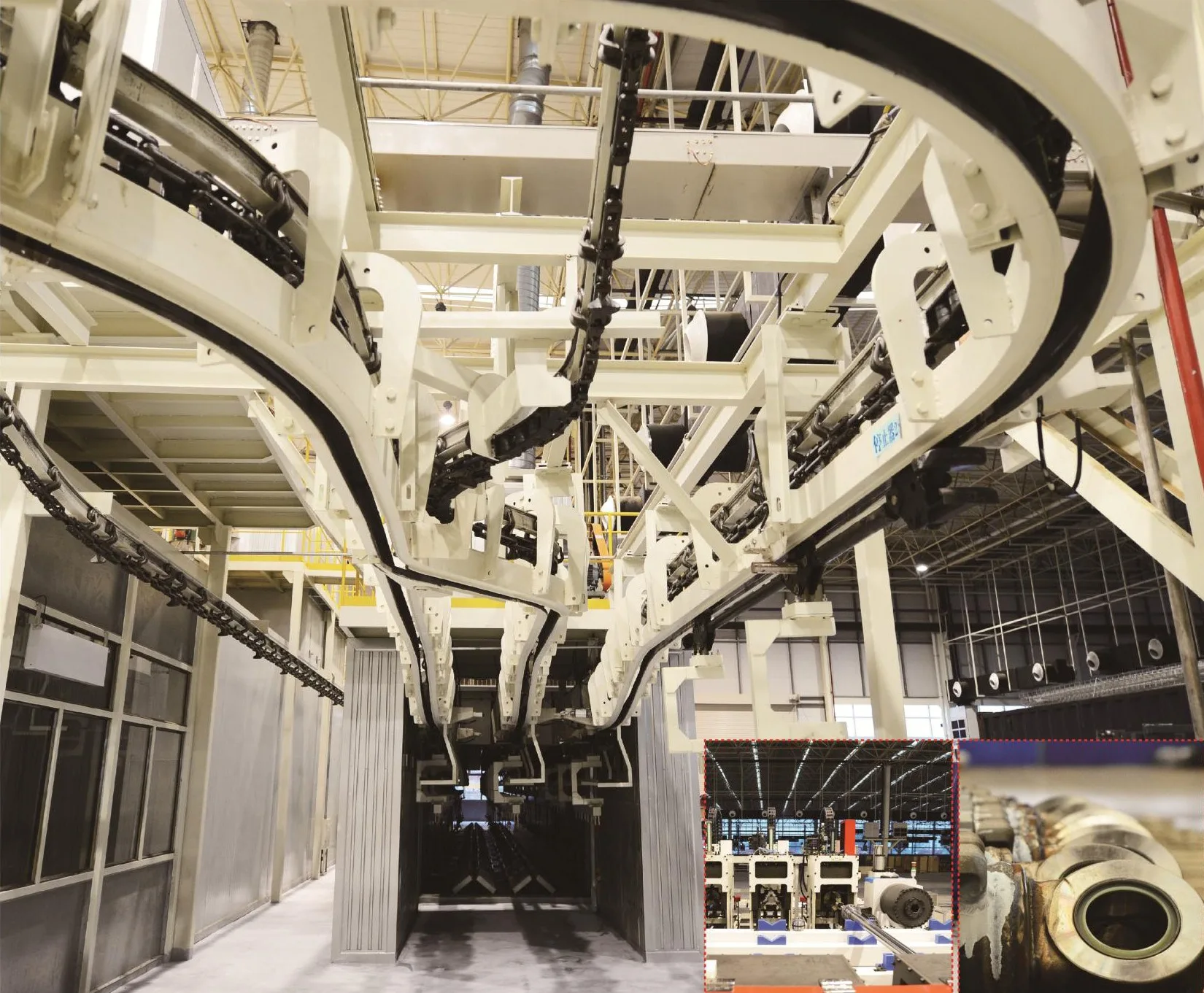

Production Process

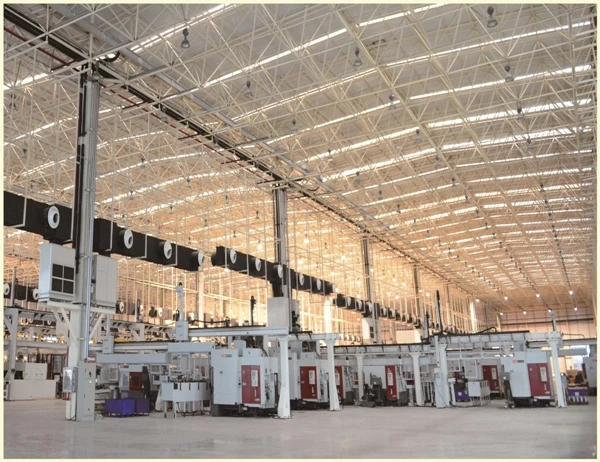

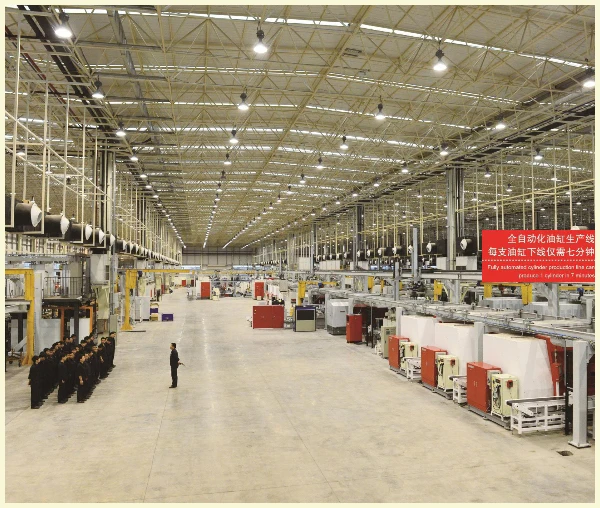

1. Full Automated Cylinder Production Line-------Produce 1 cylinder in 7 minutes;
2. Detection Methods and Clearance Level of Control-------with NAS level 7

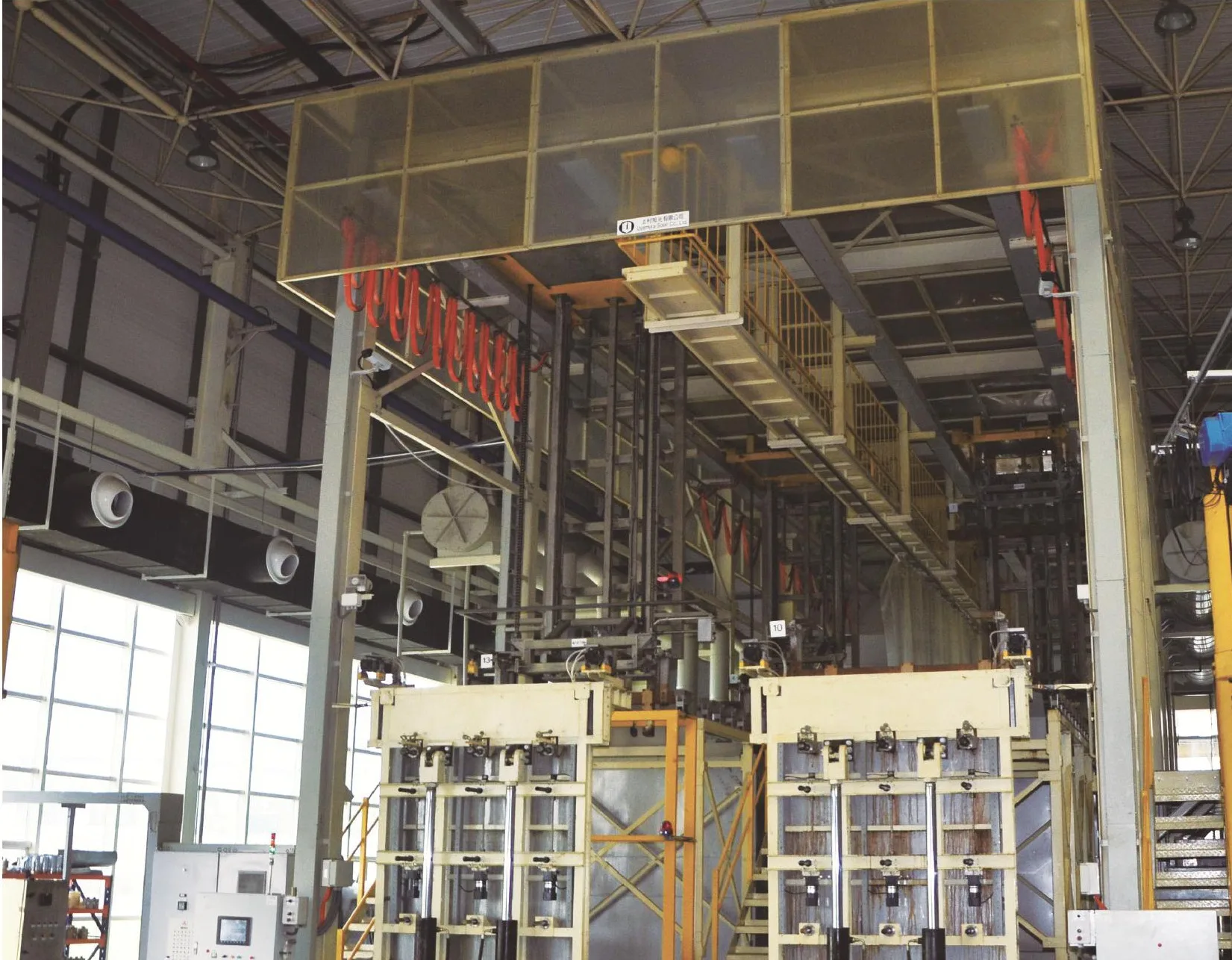

3. Plating Control
4. Painting Control-------automatic spraying uninterruptedly with PLC control
Company Profile
In 2003, Loudi Zhongfu Cylinder Plant was established.
In 2006, Zhongxing set foot in the development of excavator cylinder.
Zhongxing Excavator Cylinder Institute was founded.
In 2007, The excavator cylinder was successfullly develped and applied for the national patents.
In 2008, Excavator cylidner production line in plant 2 was put into use and start to bulk supply.
In 2009, With lean manufacturing transformation being launched SANY/SPS production got implemented.
In 2010, Sales have topped 1billion for the first time.
In 2011, Started to invest in the construction of excavator cylinder line the annual output of 50000 sets.
In 2012, Started to cooperate with PM importing Five-Step Performance Excellence Mode.
In 2013, Invest up to $500 million excavator cylinders automatic production line plant 5;
Certified by ISO9001/TS16949.
In 2014, Passed the PM/PL quality system audit.
In 2006, Zhongxing set foot in the development of excavator cylinder.
Zhongxing Excavator Cylinder Institute was founded.
In 2007, The excavator cylinder was successfullly develped and applied for the national patents.
In 2008, Excavator cylidner production line in plant 2 was put into use and start to bulk supply.
In 2009, With lean manufacturing transformation being launched SANY/SPS production got implemented.
In 2010, Sales have topped 1billion for the first time.
In 2011, Started to invest in the construction of excavator cylinder line the annual output of 50000 sets.
In 2012, Started to cooperate with PM importing Five-Step Performance Excellence Mode.
In 2013, Invest up to $500 million excavator cylinders automatic production line plant 5;
Certified by ISO9001/TS16949.
In 2014, Passed the PM/PL quality system audit.
Certifications
ISO9001 Quality System
ISO9001/TS Quality System
PM Quality System
JLG Quality System
ISO9001/TS Quality System
PM Quality System
JLG Quality System
Possess independent intellectual property rights and 13 patents at present. Its cushioning performance and service
life have reached the intermational advanced level, Compared with the cylinders of the same industry, it features lower buffer pressure, lower noise, faster start and so on.
The series excavator cylinder seals all adopt anti-high temperature anti-high pressure products of NOK and Parker.
Matenal of rod, tubes and other key parks are made of high-strength arbon steel and alloy stelel. The fully automated
imported equipment production lines ensure the machining accuracy and surface quality of all the parts, which improves service life and safety performance of the cylinder.
life have reached the intermational advanced level, Compared with the cylinders of the same industry, it features lower buffer pressure, lower noise, faster start and so on.
The series excavator cylinder seals all adopt anti-high temperature anti-high pressure products of NOK and Parker.
Matenal of rod, tubes and other key parks are made of high-strength arbon steel and alloy stelel. The fully automated
imported equipment production lines ensure the machining accuracy and surface quality of all the parts, which improves service life and safety performance of the cylinder.
FAQ
What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send" Now!
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
How to Contact Us?
Send your Inquiry Details in the Below, Click "Send" Now!
