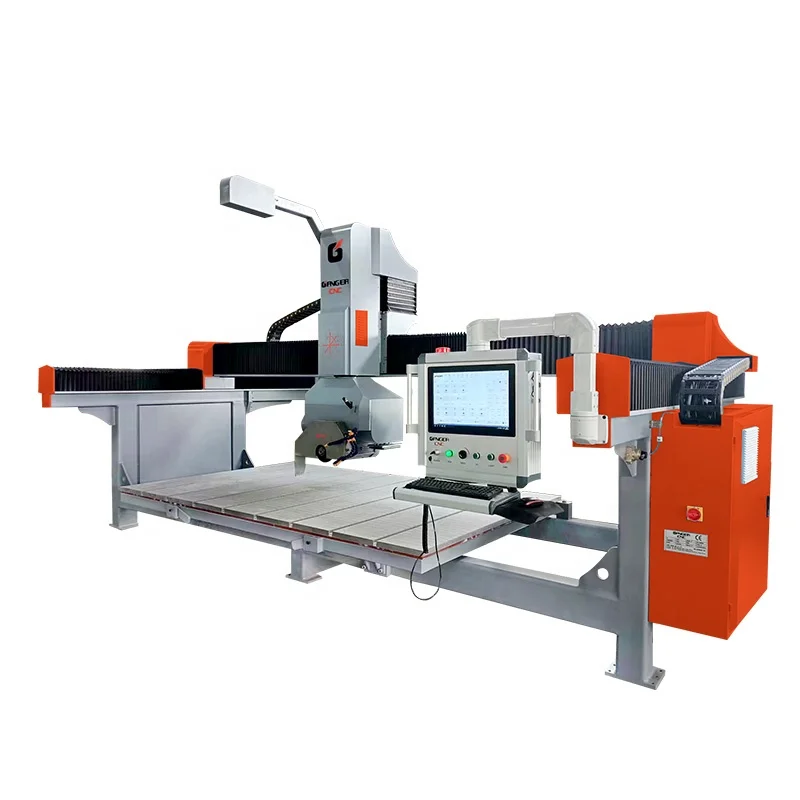

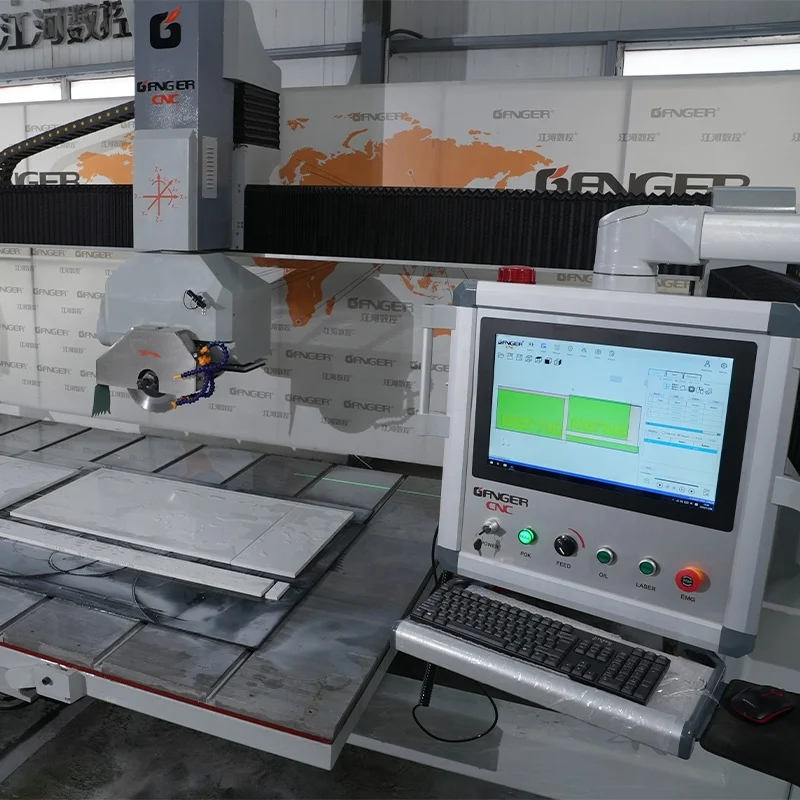

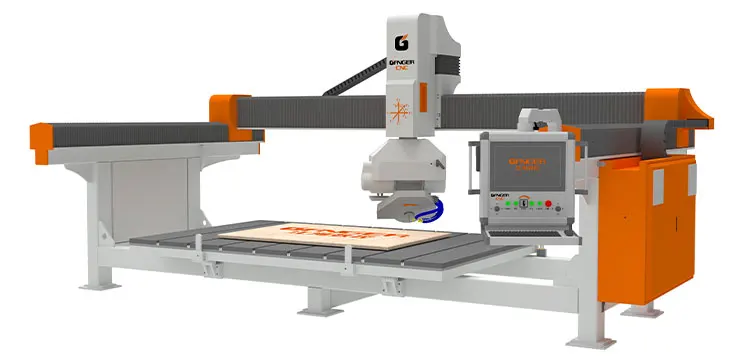

Circular cutting machine marble stone cutting Porcelain Tile Slabs Saw Jet Cutter 5 axis bridge cutting machine GQ 3220DS
- Category: >>>
- Supplier: Jinan Ganger Cnc Technology Co. Ltd.Jinan Ltd.
Share on (1601248211060):
Product Overview
Description
Product details
Applicable Industry & Material:
Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.
Machine Features:

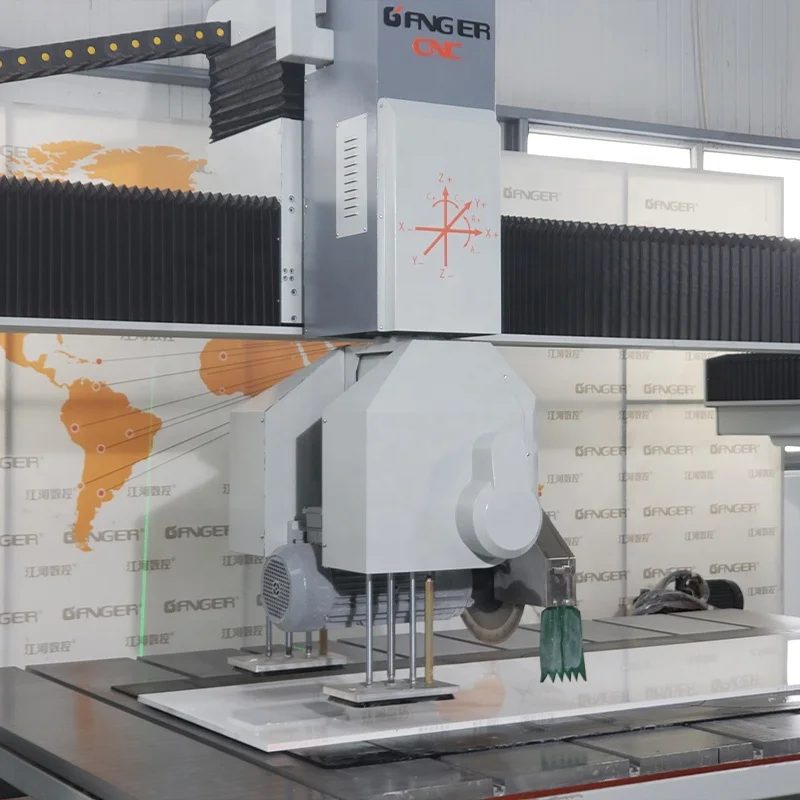

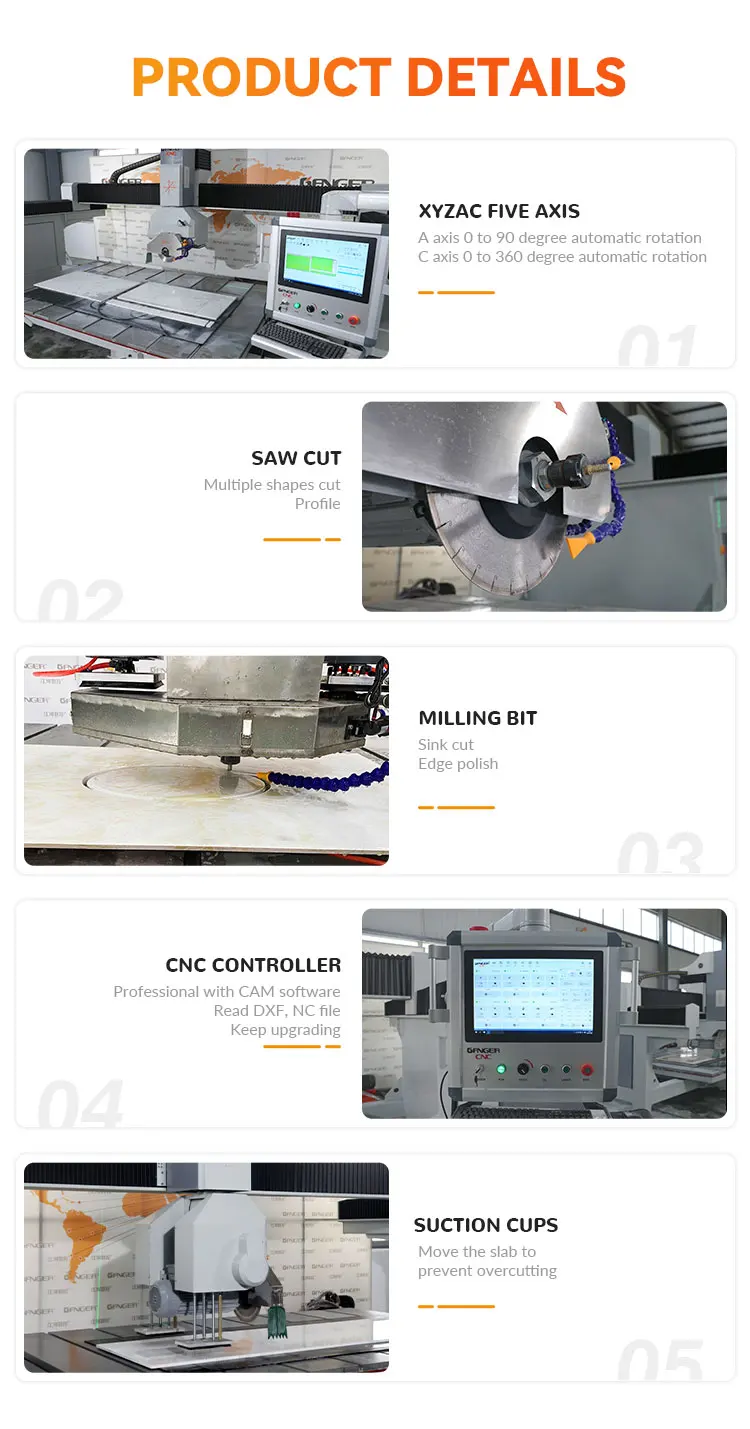

1.XYZAC five axis, A axis 0 to 90 degree automatic rotation, C axis 0 to 360 degree au-tomatic rotation.
2.Vertical and horizontal cutting, multi-angle diagonal cutting.
3.Four sides miter (any angle between 0°-90°).

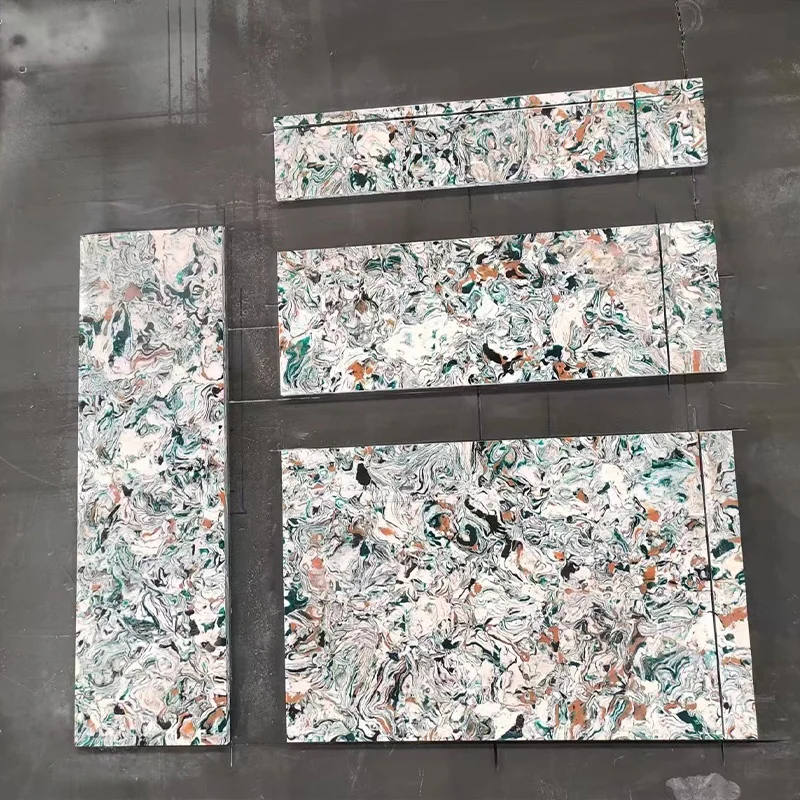

4.Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.
2.Vertical and horizontal cutting, multi-angle diagonal cutting.
3.Four sides miter (any angle between 0°-90°).
4.Cutting circle, Ellipse cutting, Sector cutting, L-tops cutting, Sink cut-out, Arc cutting.

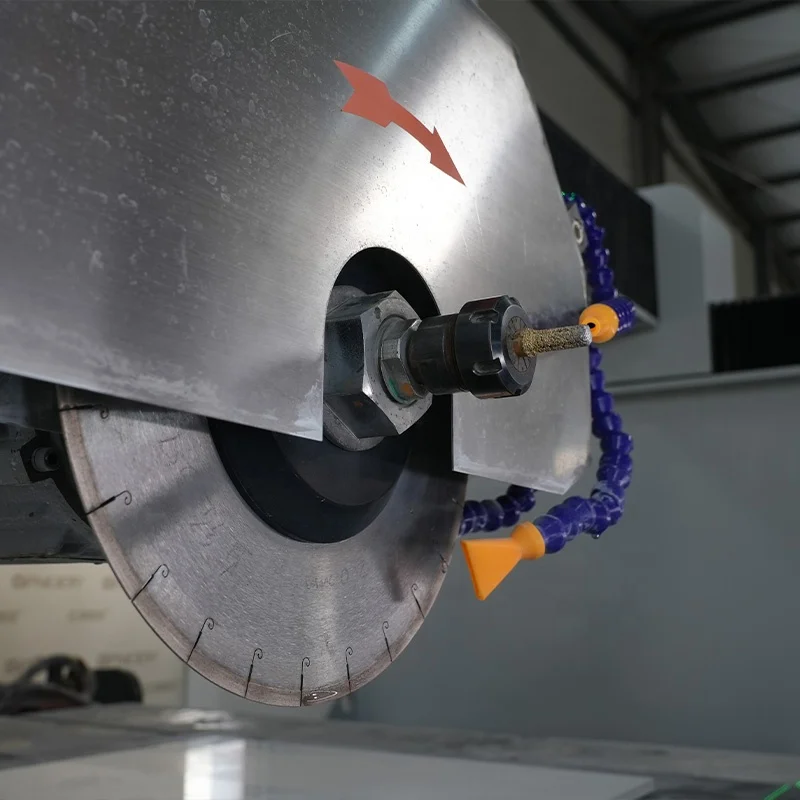

5.Cutter bits, Contouring, Suction moving.
6. Intelligent control system.
7.Table tilts 85 degree to load slabs easily.
6. Intelligent control system.
7.Table tilts 85 degree to load slabs easily.
Technical parameters
Model | GQ-3220D | ||||||
X/Y/Z Axis working size | 3200*2000*500mm | ||||||
Diameter of blade | 350mm | ||||||
Working table size | 3200x2000mm | ||||||
Blade Motor power | 15KW | ||||||
Total power | 29KW | ||||||
Rotation speed of blade | 3000/6000rpm | ||||||
A axis rotation angle | 0°-90° | ||||||
C axis rotation angle | 0°-360° | ||||||
Table Tilting angle | 85° | ||||||
Control system | GANGER | ||||||
Gross weight | 4500KGS | ||||||
Related recommendation
About GANGER
Certifications
Customer service

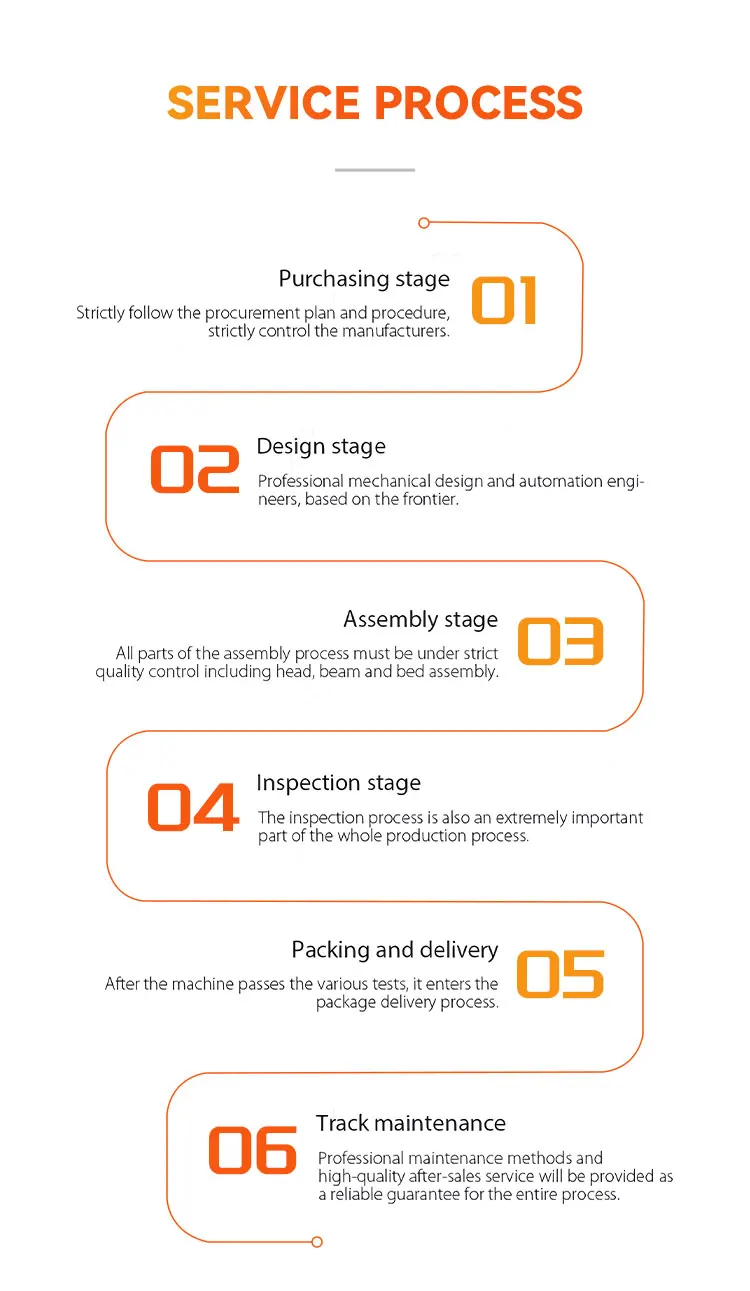

Service process

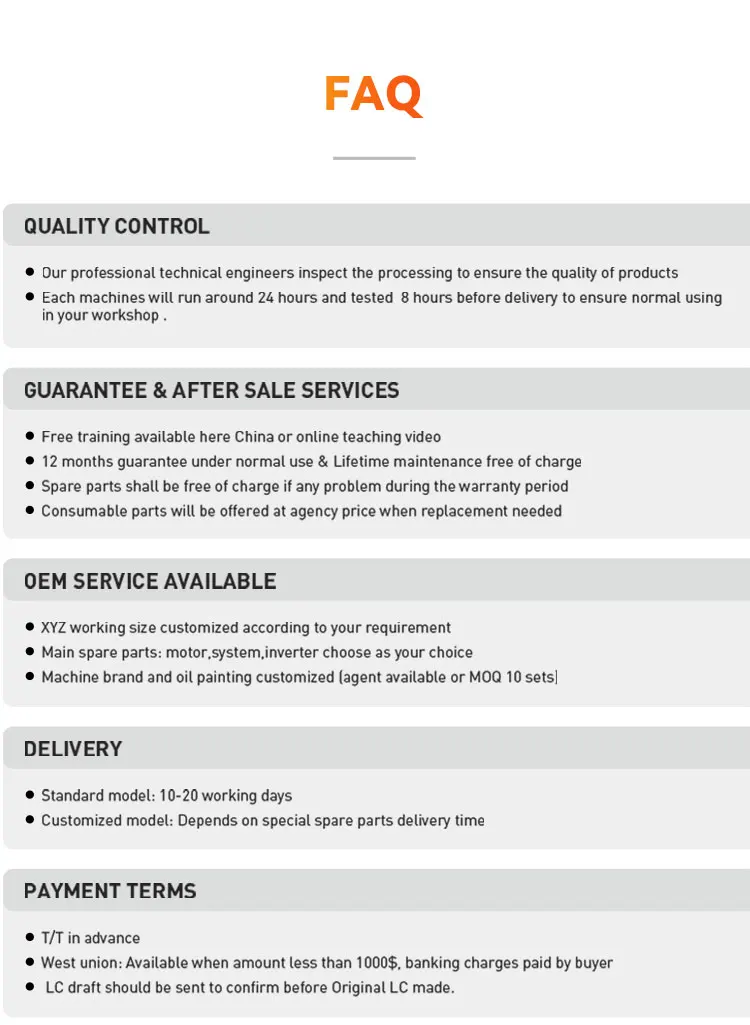

FAQ
